DSR Passive Buffer Entry. More...

#include "dsr-passive-buff.h"

Collaboration diagram for ns3::dsr::DsrPassiveBuffEntry:

Public Member Functions
	DsrPassiveBuffEntry (Ptr< const Packet > pa=0, Ipv4Address d=Ipv4Address(), Ipv4Address s=Ipv4Address(), Ipv4Address n=Ipv4Address(), uint16_t i=0, uint16_t f=0, uint8_t seg=0, Time exp=Simulator::Now(), uint8_t p=0)
	Construct a DsrPassiveBuffEntry with the given parameters. More...

Ipv4Address	GetDestination () const
	Get destination address function. More...

Time	GetExpireTime () const
	Get expire time. More...

uint16_t	GetFragmentOffset () const
	Get fragment offset function. More...

uint16_t	GetIdentification () const
	Get identification function. More...

Ipv4Address	GetNextHop () const
	Get next hop address function. More...

Ptr< const Packet >	GetPacket () const
	Get packet function. More...

uint8_t	GetProtocol () const
	Get protocol. More...

uint8_t	GetSegsLeft () const
	Get segments left function. More...

Ipv4Address	GetSource () const
	Get source address function. More...

bool	operator== (DsrPassiveBuffEntry const &o) const
	Compare send buffer entries. More...

void	SetDestination (Ipv4Address d)
	Set destination address function. More...

void	SetExpireTime (Time exp)
	Set expire time. More...

void	SetFragmentOffset (uint16_t f)
	Set fragment offset function. More...

void	SetIdentification (uint16_t i)
	Set identification function. More...

void	SetNextHop (Ipv4Address n)
	Set next hop address function. More...

void	SetPacket (Ptr< const Packet > p)
	Set packet function. More...

void	SetProtocol (uint8_t p)
	Set protocol function. More...

void	SetSegsLeft (uint8_t seg)
	Set segments left. More...

void	SetSource (Ipv4Address s)
	Set surce address function. More...

Private Attributes
Ipv4Address	m_dst
	Destination address. More...

Time	m_expire
	Expire time for queue entry. More...

uint16_t	m_fragmentOffset
	Fragment offset. More...

uint16_t	m_identification
	Identification. More...

Ipv4Address	m_nextHop
	Nexthop address. More...

Ptr< const Packet >	m_packet
	Data packet. More...

uint8_t	m_protocol
	The protocol number. More...

uint8_t	m_segsLeft
	Segments left. More...

Ipv4Address	m_source
	Source address. More...

Detailed Description

DSR Passive Buffer Entry.

Definition at line 45 of file dsr-passive-buff.h.

Constructor & Destructor Documentation

◆ DsrPassiveBuffEntry()

ns3::dsr::DsrPassiveBuffEntry::DsrPassiveBuffEntry	(	Ptr< const Packet >	pa = `0`,
		Ipv4Address	d = `Ipv4Address ()`,
		Ipv4Address	s = `Ipv4Address ()`,
		Ipv4Address	n = `Ipv4Address ()`,
		uint16_t	i = `0`,
		uint16_t	f = `0`,
		uint8_t	seg = `0`,
		Time	exp = `Simulator::Now ()`,
		uint8_t	p = `0`
	)

inline

Construct a DsrPassiveBuffEntry with the given parameters.

Parameters

pa	packet
d	IPv4 address of the destination
s	IPv4 address of the source
n	IPv4 address of the next hop node
i	ID
f	fragment offset
seg	number of segments left
exp	expiration time
p	protocol number

Definition at line 61 of file dsr-passive-buff.h.

Member Function Documentation

◆ GetDestination()

Ipv4Address ns3::dsr::DsrPassiveBuffEntry::GetDestination ( ) const

inline

Get destination address function.

Returns: the destination IP address

Definition at line 106 of file dsr-passive-buff.h.

References m_dst.

Referenced by ns3::dsr::DsrPassiveBuffer::AllEqual(), ns3::dsr::DsrPassiveBuffer::Drop(), and ns3::dsr::DsrPassiveBuffer::Enqueue().

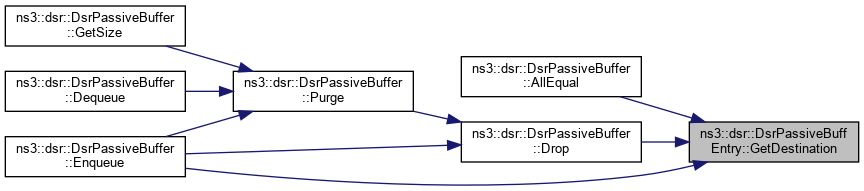

Here is the caller graph for this function:

◆ GetExpireTime()

Time ns3::dsr::DsrPassiveBuffEntry::GetExpireTime ( ) const

inline

Get expire time.

Returns: the expire time

Definition at line 210 of file dsr-passive-buff.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsr::IsExpired::operator()().

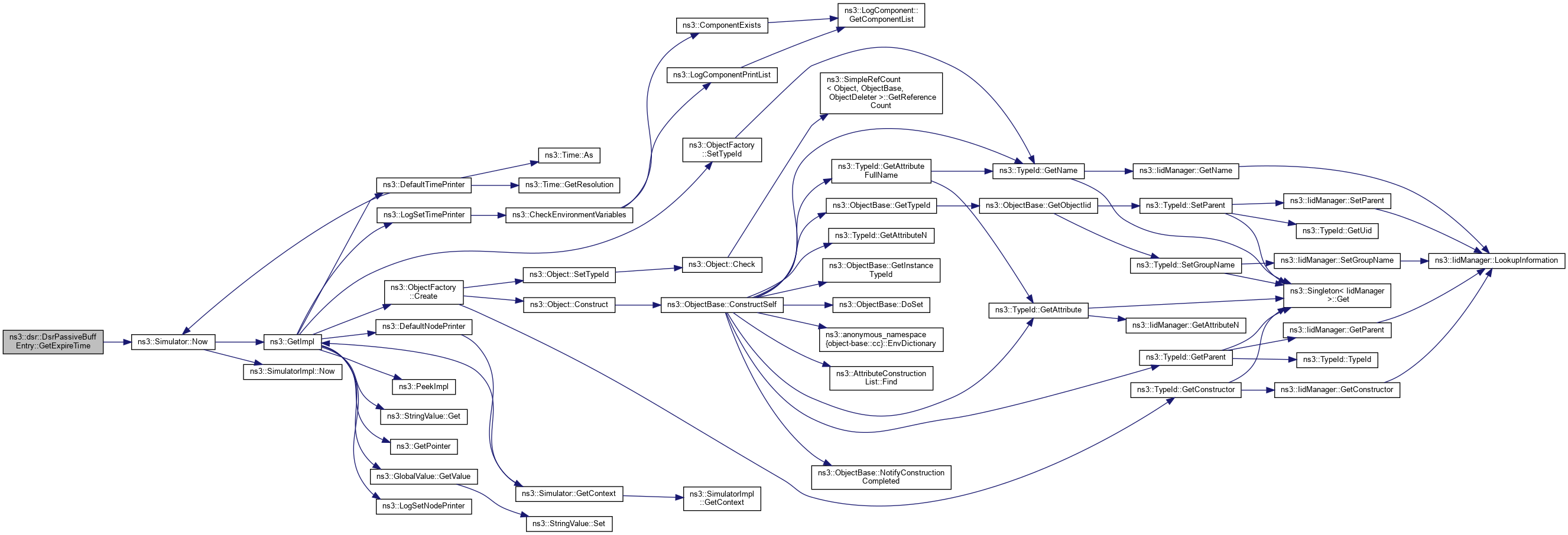

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFragmentOffset()

uint16_t ns3::dsr::DsrPassiveBuffEntry::GetFragmentOffset ( ) const

inline

Get fragment offset function.

Returns: the fragment offset

Definition at line 170 of file dsr-passive-buff.h.

References m_fragmentOffset.

Referenced by ns3::dsr::DsrPassiveBuffer::AllEqual(), and ns3::dsr::DsrPassiveBuffer::Enqueue().

Here is the caller graph for this function:

◆ GetIdentification()

uint16_t ns3::dsr::DsrPassiveBuffEntry::GetIdentification ( ) const

inline

Get identification function.

Returns: the identification

Definition at line 154 of file dsr-passive-buff.h.

References m_identification.

Referenced by ns3::dsr::DsrPassiveBuffer::AllEqual(), and ns3::dsr::DsrPassiveBuffer::Enqueue().

Here is the caller graph for this function:

◆ GetNextHop()

Ipv4Address ns3::dsr::DsrPassiveBuffEntry::GetNextHop ( ) const

inline

Get next hop address function.

Returns: the next hop IP address

Definition at line 138 of file dsr-passive-buff.h.

References m_nextHop.

Referenced by ns3::dsr::DsrPassiveBuffer::AllEqual(), ns3::dsr::DsrPassiveBuffer::DropLink(), ns3::dsr::DsrPassiveBuffer::Enqueue(), and ns3::dsr::DsrPassiveBuffer::LinkEqual().

Here is the caller graph for this function:

◆ GetPacket()

Ptr<const Packet> ns3::dsr::DsrPassiveBuffEntry::GetPacket ( ) const

inline

Get packet function.

Returns: the current packet

Definition at line 90 of file dsr-passive-buff.h.

References m_packet.

Referenced by ns3::dsr::DsrPassiveBuffer::AllEqual(), ns3::dsr::DsrPassiveBuffer::Dequeue(), ns3::dsr::DsrPassiveBuffer::Drop(), ns3::dsr::DsrPassiveBuffer::DropLink(), and ns3::dsr::DsrPassiveBuffer::Enqueue().

Here is the caller graph for this function:

◆ GetProtocol()

uint8_t ns3::dsr::DsrPassiveBuffEntry::GetProtocol ( ) const

inline

Get protocol.

Returns: the protocol number

Definition at line 226 of file dsr-passive-buff.h.

References m_protocol.

◆ GetSegsLeft()

uint8_t ns3::dsr::DsrPassiveBuffEntry::GetSegsLeft ( ) const

inline

Get segments left function.

Returns: the number of segments left

Definition at line 186 of file dsr-passive-buff.h.

References m_segsLeft.

Referenced by ns3::dsr::DsrPassiveBuffer::AllEqual(), and ns3::dsr::DsrPassiveBuffer::Enqueue().

Here is the caller graph for this function:

◆ GetSource()

Ipv4Address ns3::dsr::DsrPassiveBuffEntry::GetSource ( ) const

inline

Get source address function.

Returns: the source IP address

Definition at line 122 of file dsr-passive-buff.h.

References m_source.

Referenced by ns3::dsr::DsrPassiveBuffer::AllEqual(), ns3::dsr::DsrPassiveBuffer::DropLink(), ns3::dsr::DsrPassiveBuffer::Enqueue(), and ns3::dsr::DsrPassiveBuffer::LinkEqual().

Here is the caller graph for this function:

◆ operator==()

bool ns3::dsr::DsrPassiveBuffEntry::operator== ( DsrPassiveBuffEntry const & o ) const

inline

Compare send buffer entries.

Parameters

o	passive buffer entry to compare

Returns: true if equal

Definition at line 80 of file dsr-passive-buff.h.

References m_dst, m_expire, m_nextHop, m_packet, and m_source.

◆ SetDestination()

void ns3::dsr::DsrPassiveBuffEntry::SetDestination ( Ipv4Address d )

inline

Set destination address function.

Parameters

d	the destination IP address

Definition at line 114 of file dsr-passive-buff.h.

References m_dst.

Referenced by ns3::dsr::DsrRouting::PassiveEntryCheck().

Here is the caller graph for this function:

◆ SetExpireTime()

void ns3::dsr::DsrPassiveBuffEntry::SetExpireTime ( Time exp )

inline

Set expire time.

Parameters

exp	the expire time

Definition at line 202 of file dsr-passive-buff.h.

References m_expire, and ns3::Simulator::Now().

Referenced by ns3::dsr::DsrPassiveBuffer::Enqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetFragmentOffset()

void ns3::dsr::DsrPassiveBuffEntry::SetFragmentOffset ( uint16_t f )

inline

Set fragment offset function.

Parameters

f	the fragment offset

Definition at line 178 of file dsr-passive-buff.h.

References f(), and m_fragmentOffset.

Referenced by ns3::dsr::DsrRouting::PassiveEntryCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetIdentification()

void ns3::dsr::DsrPassiveBuffEntry::SetIdentification ( uint16_t i )

inline

Set identification function.

Parameters

i	the identification

Definition at line 162 of file dsr-passive-buff.h.

References m_identification.

Referenced by ns3::dsr::DsrRouting::PassiveEntryCheck().

Here is the caller graph for this function:

◆ SetNextHop()

void ns3::dsr::DsrPassiveBuffEntry::SetNextHop ( Ipv4Address n )

inline

Set next hop address function.

Parameters

n	the next hop address

Definition at line 146 of file dsr-passive-buff.h.

References m_nextHop.

◆ SetPacket()

void ns3::dsr::DsrPassiveBuffEntry::SetPacket ( Ptr< const Packet > p )

inline

Set packet function.

Parameters

p	the current packet

Definition at line 98 of file dsr-passive-buff.h.

References m_packet.

Referenced by ns3::dsr::DsrRouting::PassiveEntryCheck().

Here is the caller graph for this function:

◆ SetProtocol()

void ns3::dsr::DsrPassiveBuffEntry::SetProtocol ( uint8_t p )

inline

Set protocol function.

Parameters

p	the protocol

Definition at line 218 of file dsr-passive-buff.h.

References m_protocol.

◆ SetSegsLeft()

void ns3::dsr::DsrPassiveBuffEntry::SetSegsLeft ( uint8_t seg )

inline

Set segments left.

Parameters

seg	the number of segments left

Definition at line 194 of file dsr-passive-buff.h.

References m_segsLeft.

Referenced by ns3::dsr::DsrRouting::PassiveEntryCheck().

Here is the caller graph for this function:

◆ SetSource()

void ns3::dsr::DsrPassiveBuffEntry::SetSource ( Ipv4Address s )

inline

Set surce address function.

Parameters

s	the source IP address

Definition at line 130 of file dsr-passive-buff.h.

References m_source.

Referenced by ns3::dsr::DsrRouting::PassiveEntryCheck().

Here is the caller graph for this function:

Member Data Documentation

◆ m_dst

Ipv4Address ns3::dsr::DsrPassiveBuffEntry::m_dst

private

Destination address.

Definition at line 235 of file dsr-passive-buff.h.

Referenced by GetDestination(), operator==(), and SetDestination().

◆ m_expire

Time ns3::dsr::DsrPassiveBuffEntry::m_expire

private

Expire time for queue entry.

Definition at line 247 of file dsr-passive-buff.h.

Referenced by GetExpireTime(), operator==(), and SetExpireTime().

◆ m_fragmentOffset

uint16_t ns3::dsr::DsrPassiveBuffEntry::m_fragmentOffset

private

Fragment offset.

Definition at line 243 of file dsr-passive-buff.h.

Referenced by GetFragmentOffset(), and SetFragmentOffset().

◆ m_identification

uint16_t ns3::dsr::DsrPassiveBuffEntry::m_identification

private

Identification.

Definition at line 241 of file dsr-passive-buff.h.

Referenced by GetIdentification(), and SetIdentification().

◆ m_nextHop

Ipv4Address ns3::dsr::DsrPassiveBuffEntry::m_nextHop

private

Nexthop address.

Definition at line 239 of file dsr-passive-buff.h.

Referenced by GetNextHop(), operator==(), and SetNextHop().

◆ m_packet

Ptr<const Packet> ns3::dsr::DsrPassiveBuffEntry::m_packet

private

Data packet.

Definition at line 233 of file dsr-passive-buff.h.

Referenced by GetPacket(), operator==(), and SetPacket().

◆ m_protocol

uint8_t ns3::dsr::DsrPassiveBuffEntry::m_protocol

private

The protocol number.

Definition at line 249 of file dsr-passive-buff.h.

Referenced by GetProtocol(), and SetProtocol().

◆ m_segsLeft

uint8_t ns3::dsr::DsrPassiveBuffEntry::m_segsLeft

private

Segments left.

Definition at line 245 of file dsr-passive-buff.h.

Referenced by GetSegsLeft(), and SetSegsLeft().

◆ m_source

Ipv4Address ns3::dsr::DsrPassiveBuffEntry::m_source

private

Source address.

Definition at line 237 of file dsr-passive-buff.h.

Referenced by GetSource(), operator==(), and SetSource().

The documentation for this class was generated from the following file:

src/dsr/model/dsr-passive-buff.h

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DsrPassiveBuffEntry()

Member Function Documentation

◆ GetDestination()

◆ GetExpireTime()

◆ GetFragmentOffset()

◆ GetIdentification()

◆ GetNextHop()

◆ GetPacket()

◆ GetProtocol()

◆ GetSegsLeft()

◆ GetSource()

◆ operator==()

◆ SetDestination()

◆ SetExpireTime()

◆ SetFragmentOffset()

◆ SetIdentification()

◆ SetNextHop()

◆ SetPacket()

◆ SetProtocol()

◆ SetSegsLeft()

◆ SetSource()

Member Data Documentation

◆ m_dst

◆ m_expire

◆ m_fragmentOffset

◆ m_identification

◆ m_nextHop

◆ m_packet

◆ m_protocol

◆ m_segsLeft

◆ m_source
