ns3::dsr::DsrReceivedRreqEntry Class Reference

The request entry for intermediate nodes to check if they have received this request or not This is used to control the duplication request from being processed. More...

#include "dsr-rreq-table.h"

Collaboration diagram for ns3::dsr::DsrReceivedRreqEntry:

Public Member Functions
	DsrReceivedRreqEntry (Ipv4Address d=Ipv4Address(), uint16_t i=0)
	Construct a DsrReceivedRreqEntry with the given parameters. More...
Ipv4Address	GetDestination () const
	Return IPv4 address of the destination. More...
Time	GetExpireTime () const
	Return the remaining time before the RREQ entry expires. More...
uint16_t	GetIdentification () const
	Return identification. More...
Ipv4Address	GetSource () const
	Return IPv4 address of the source. More...
bool	operator== (DsrReceivedRreqEntry const &o) const
	Compare send buffer entries (destination address and identification) More...
void	SetDestination (Ipv4Address d)
	Set IPv4 address of the destination. More...
void	SetExpireTime (Time exp)
	Set expire time for the RREQ entry. More...
void	SetIdentification (uint16_t i)
	Set identification. More...
void	SetSource (Ipv4Address s)
	Set IPv4 address of the source. More...

Private Attributes
Ipv4Address	m_destination
	IPv4 address of the destinaton. More...
Time	m_expire
	Route request expire time. More...
uint16_t	m_identification
	Route request identification. More...
Ipv4Address	m_source
	IPv4 address of the source. More...

Detailed Description

The request entry for intermediate nodes to check if they have received this request or not This is used to control the duplication request from being processed.

Definition at line 86 of file dsr-rreq-table.h.

Constructor & Destructor Documentation

DsrReceivedRreqEntry()

ns3::dsr::DsrReceivedRreqEntry::DsrReceivedRreqEntry ( Ipv4Address  d = Ipv4Address (), uint16_t  i = 0  )

inline

Construct a DsrReceivedRreqEntry with the given parameters.

Parameters

d	IPv4 address of the destination
i	identification

Definition at line 95 of file dsr-rreq-table.h.

Member Function Documentation

GetDestination()

Ipv4Address ns3::dsr::DsrReceivedRreqEntry::GetDestination ( ) const

inline

Return IPv4 address of the destination.

Returns

IPv4 address of the destination

Definition at line 116 of file dsr-rreq-table.h.

References m_destination.

GetExpireTime()

Time ns3::dsr::DsrReceivedRreqEntry::GetExpireTime ( ) const

inline

Return the remaining time before the RREQ entry expires.

Note that we return the remaining time but the stored value is the absolute time.

Returns

the remaining time before the RREQ entry expires

Definition at line 183 of file dsr-rreq-table.h.

References m_expire, and ns3::Simulator::Now().

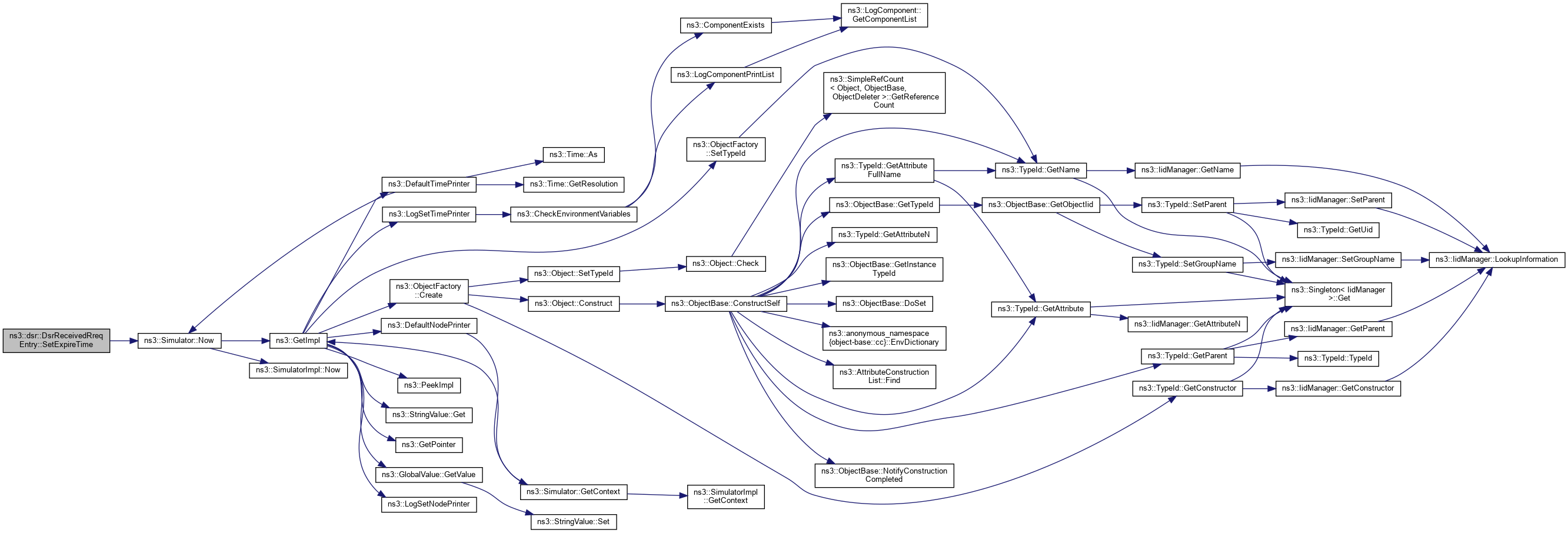

Here is the call graph for this function:

GetIdentification()

uint16_t ns3::dsr::DsrReceivedRreqEntry::GetIdentification ( ) const

inline

Return identification.

Returns

identification

Definition at line 152 of file dsr-rreq-table.h.

References m_identification.

GetSource()

Ipv4Address ns3::dsr::DsrReceivedRreqEntry::GetSource ( ) const

inline

Return IPv4 address of the source.

Returns

IPv4 address of the source

Definition at line 134 of file dsr-rreq-table.h.

References m_source.

operator==()

bool ns3::dsr::DsrReceivedRreqEntry::operator== ( DsrReceivedRreqEntry const &  o ) const

inline

Compare send buffer entries (destination address and identification)

Parameters

o	another DsrReceivedRreqEntry

Returns

true if equal

Definition at line 105 of file dsr-rreq-table.h.

References m_destination, and m_identification.

SetDestination()

void ns3::dsr::DsrReceivedRreqEntry::SetDestination ( Ipv4Address  d )

inline

Set IPv4 address of the destination.

Parameters

d	IPv4 address of the destination

Definition at line 125 of file dsr-rreq-table.h.

References m_destination.

Referenced by ns3::dsr::DsrRreqTable::FindSourceEntry().

Here is the caller graph for this function:

SetExpireTime()

void ns3::dsr::DsrReceivedRreqEntry::SetExpireTime ( Time  exp )

inline

Set expire time for the RREQ entry.

Note that the parameter is duration but the stored value is the absolute time.

Parameters

exp	duration before expire

Definition at line 172 of file dsr-rreq-table.h.

References m_expire, and ns3::Simulator::Now().

Here is the call graph for this function:

SetIdentification()

void ns3::dsr::DsrReceivedRreqEntry::SetIdentification ( uint16_t  i )

inline

Set identification.

Parameters

i	identification

Definition at line 161 of file dsr-rreq-table.h.

References m_identification.

Referenced by ns3::dsr::DsrRreqTable::FindSourceEntry().

Here is the caller graph for this function:

SetSource()

void ns3::dsr::DsrReceivedRreqEntry::SetSource ( Ipv4Address  s )

inline

Set IPv4 address of the source.

Parameters

s	IPv4 address of the source

Definition at line 143 of file dsr-rreq-table.h.

References m_source.

Member Data Documentation

m_destination

Ipv4Address ns3::dsr::DsrReceivedRreqEntry::m_destination

private

IPv4 address of the destinaton.

Definition at line 189 of file dsr-rreq-table.h.

Referenced by GetDestination(), operator==(), and SetDestination().

m_expire

Time ns3::dsr::DsrReceivedRreqEntry::m_expire

private

Route request expire time.

Definition at line 192 of file dsr-rreq-table.h.

Referenced by GetExpireTime(), and SetExpireTime().

m_identification

uint16_t ns3::dsr::DsrReceivedRreqEntry::m_identification

private

Route request identification.

Definition at line 191 of file dsr-rreq-table.h.

Referenced by GetIdentification(), operator==(), and SetIdentification().

m_source

Ipv4Address ns3::dsr::DsrReceivedRreqEntry::m_source

private

IPv4 address of the source.

Definition at line 190 of file dsr-rreq-table.h.

Referenced by GetSource(), and SetSource().

---

The documentation for this class was generated from the following file:

• src/dsr/model/dsr-rreq-table.h
