DSR send buffer. More...

#include "dsr-rsendbuff.h"

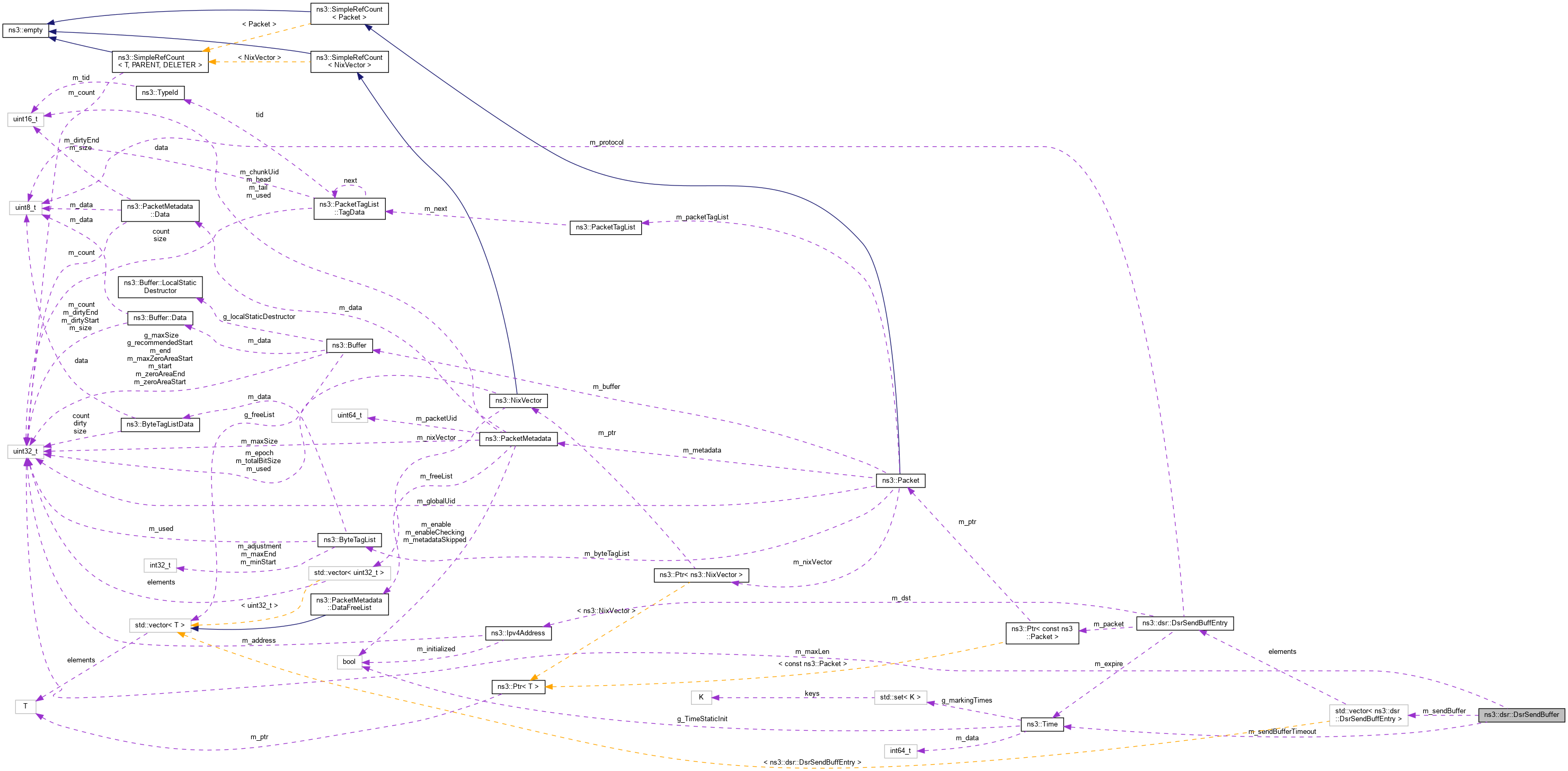

Collaboration diagram for ns3::dsr::DsrSendBuffer:

Public Member Functions
	DsrSendBuffer ()
	Default constructor. More...

bool	Dequeue (Ipv4Address dst, DsrSendBuffEntry &entry)
	Return first found (the earliest) entry for the given destination. More...

void	DropPacketWithDst (Ipv4Address dst)
	Remove all packets with destination IP address dst. More...

bool	Enqueue (DsrSendBuffEntry &entry)
	Push entry in queue, if there is no entry with the same packet and destination address in queue. More...

bool	Find (Ipv4Address dst)
	Check if a packet with destination dst exists in the queue. More...

std::vector< DsrSendBuffEntry > &	GetBuffer ()
	Return a pointer to the internal queue. More...

uint32_t	GetMaxQueueLen () const
	Return the maximum queue length. More...

Time	GetSendBufferTimeout () const
	Return the entry lifetime in the queue. More...

uint32_t	GetSize ()
	Number of entries. More...

void	SetMaxQueueLen (uint32_t len)
	Set the maximum queue length. More...

void	SetSendBufferTimeout (Time t)
	Set the entry lifetime in the queue. More...

Private Member Functions
void	Drop (DsrSendBuffEntry en, std::string reason)
	Notify that packet is dropped from queue by timeout. More...

void	Purge ()
	Remove all expired entries. More...

Private Attributes
uint32_t	m_maxLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

std::vector< DsrSendBuffEntry >	m_sendBuffer
	The send buffer to cache unsent packet. More...

Time	m_sendBufferTimeout
	The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds. More...

Detailed Description

DSR send buffer.

Definition at line 156 of file dsr-rsendbuff.h.

Constructor & Destructor Documentation

◆ DsrSendBuffer()

ns3::dsr::DsrSendBuffer::DsrSendBuffer ( )

inline

Default constructor.

Definition at line 162 of file dsr-rsendbuff.h.

Member Function Documentation

◆ Dequeue()

bool ns3::dsr::DsrSendBuffer::Dequeue	(	Ipv4Address	dst,
		DsrSendBuffEntry &	entry
	)

Return first found (the earliest) entry for the given destination.

Parameters

dst	IPv4 address of the destination
entry	pointer to entry to return

Returns: true if successfully dequeued, false otherwise

Definition at line 105 of file dsr-rsendbuff.cc.

References ns3::dsr::DsrSendBuffEntry::GetPacket(), ns3::Packet::GetSize(), m_sendBuffer, NS_LOG_DEBUG, and Purge().

Referenced by DsrSendBuffTest::DoRun(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

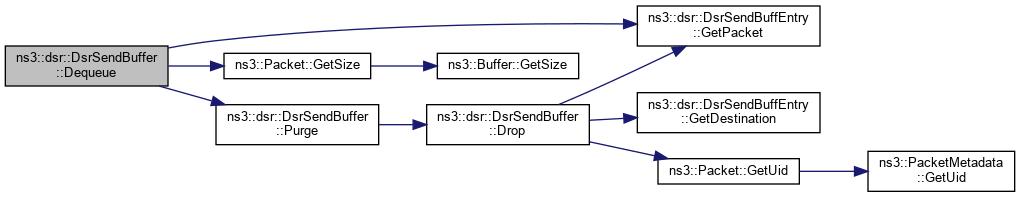

Here is the call graph for this function:

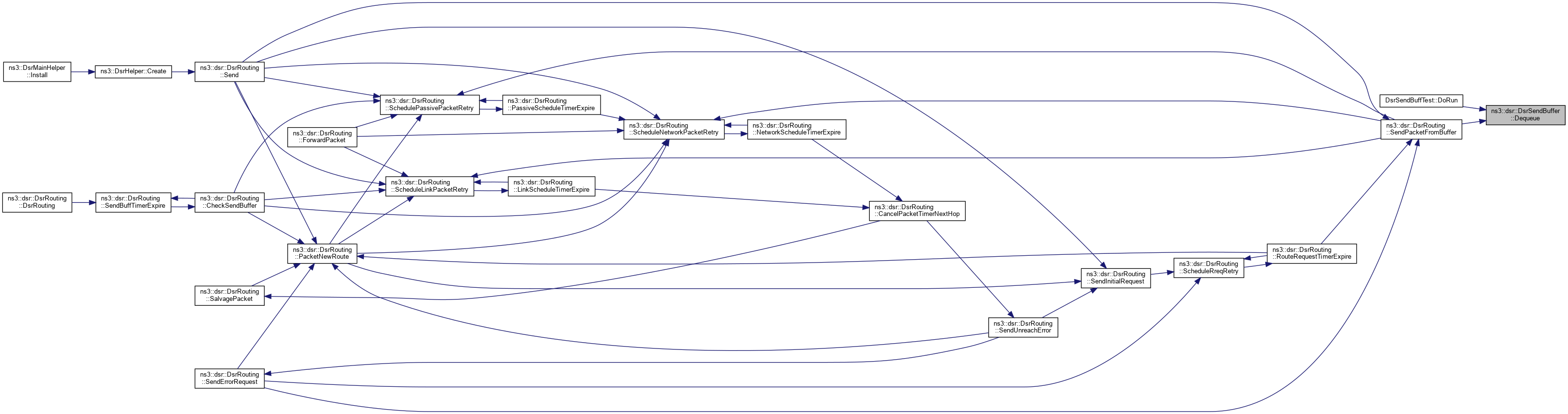

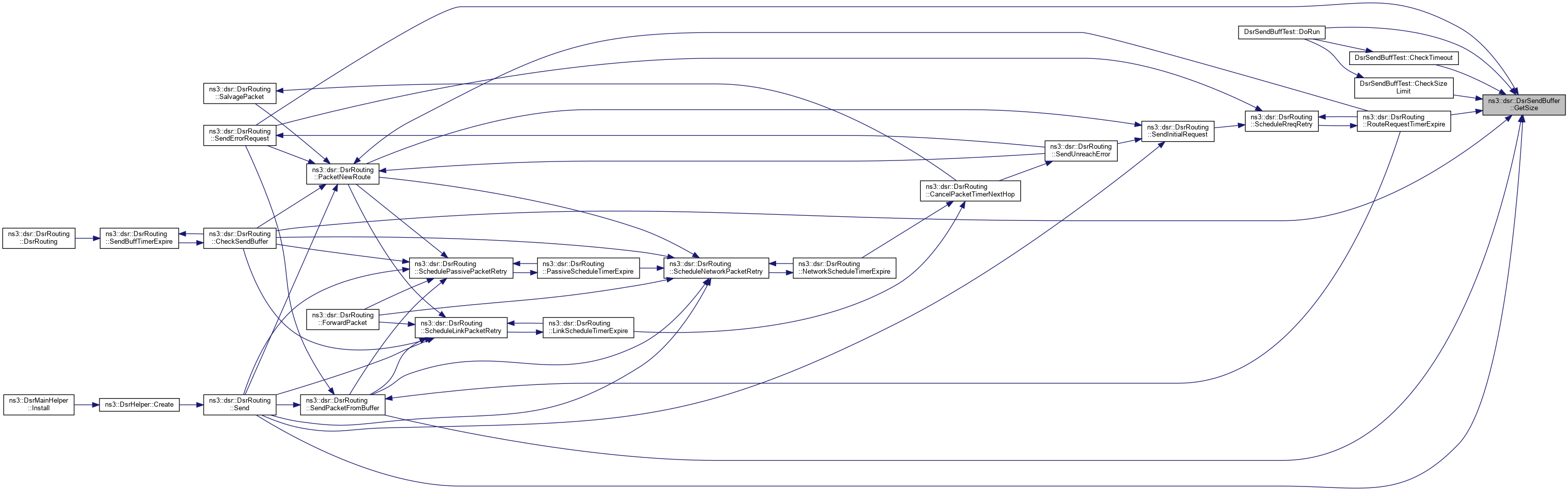

Here is the caller graph for this function:

◆ Drop()

void ns3::dsr::DsrSendBuffer::Drop	(	DsrSendBuffEntry	en,
		std::string	reason
	)

private

Notify that packet is dropped from queue by timeout.

Parameters

en	BuffEntry Buffer entry
reason	Drop reason

Definition at line 179 of file dsr-rsendbuff.cc.

References ns3::dsr::DsrSendBuffEntry::GetDestination(), ns3::dsr::DsrSendBuffEntry::GetPacket(), ns3::Packet::GetUid(), and NS_LOG_LOGIC.

Referenced by DropPacketWithDst(), Enqueue(), and Purge().

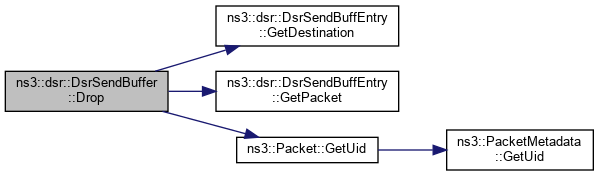

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DropPacketWithDst()

void ns3::dsr::DsrSendBuffer::DropPacketWithDst ( Ipv4Address dst )

Remove all packets with destination IP address dst.

Parameters

dst	IPv4 address of the destination

Definition at line 84 of file dsr-rsendbuff.cc.

References Drop(), m_sendBuffer, NS_LOG_FUNCTION, and Purge().

Referenced by DsrSendBuffTest::DoRun(), and ns3::dsr::DsrRouting::RouteRequestTimerExpire().

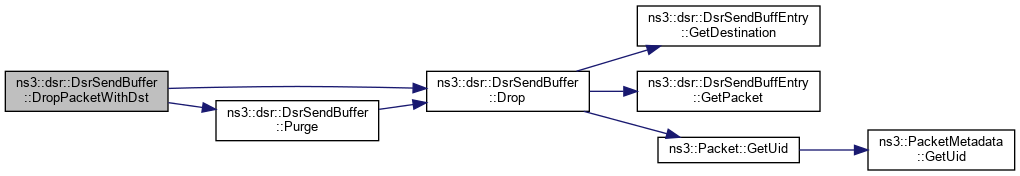

Here is the call graph for this function:

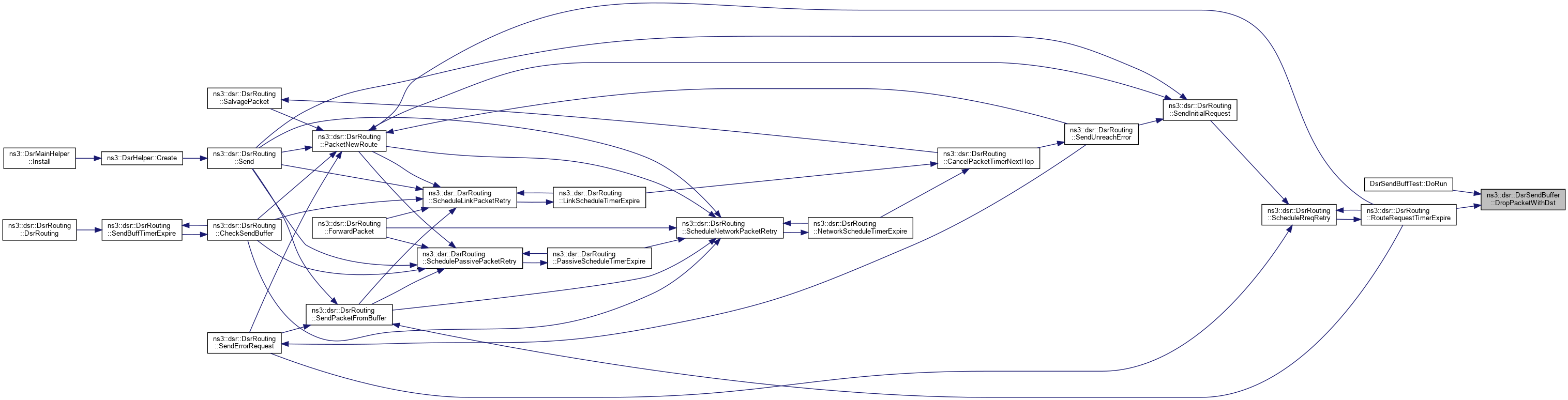

Here is the caller graph for this function:

◆ Enqueue()

bool ns3::dsr::DsrSendBuffer::Enqueue ( DsrSendBuffEntry & entry )

Push entry in queue, if there is no entry with the same packet and destination address in queue.

Parameters

entry DsrSendBuffEntry to put in the queue

Returns: true if successfully enqueued, false otherwise

Definition at line 53 of file dsr-rsendbuff.cc.

References Drop(), ns3::dsr::DsrSendBuffEntry::GetDestination(), ns3::dsr::DsrSendBuffEntry::GetPacket(), ns3::Packet::GetUid(), m_maxLen, m_sendBuffer, m_sendBufferTimeout, Purge(), and ns3::dsr::DsrSendBuffEntry::SetExpireTime().

Referenced by DsrSendBuffTest::CheckSizeLimit(), DsrSendBuffTest::DoRun(), ns3::dsr::DsrRouting::PacketNewRoute(), and ns3::dsr::DsrRouting::Send().

Here is the call graph for this function:

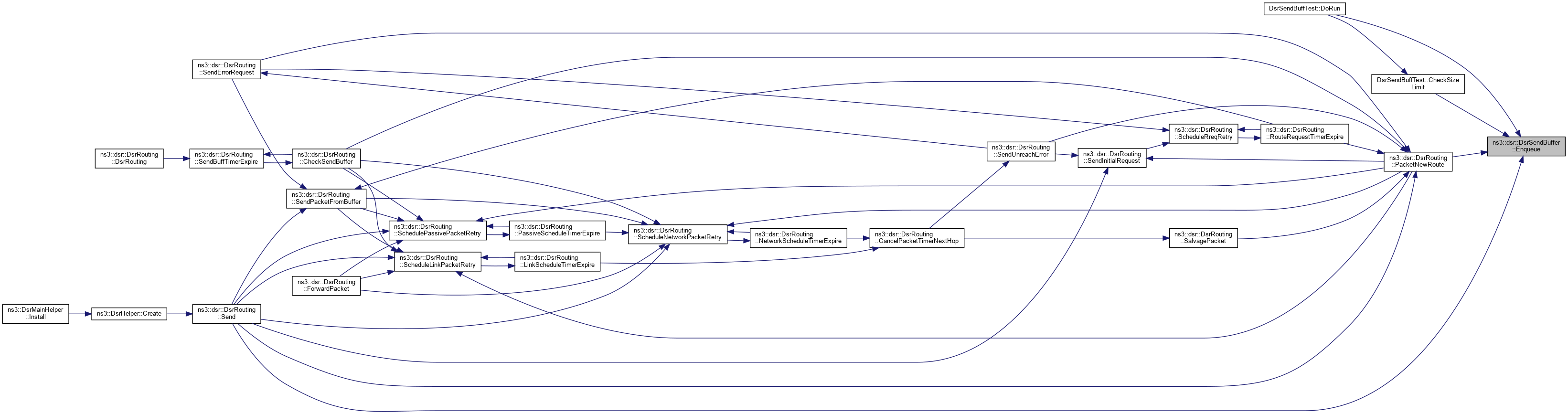

Here is the caller graph for this function:

◆ Find()

bool ns3::dsr::DsrSendBuffer::Find ( Ipv4Address dst )

Check if a packet with destination dst exists in the queue.

Parameters

dst	IPv4 address of the destination

Returns: true if found, false otherwise

Definition at line 125 of file dsr-rsendbuff.cc.

References m_sendBuffer, and NS_LOG_DEBUG.

Referenced by DsrSendBuffTest::DoRun(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

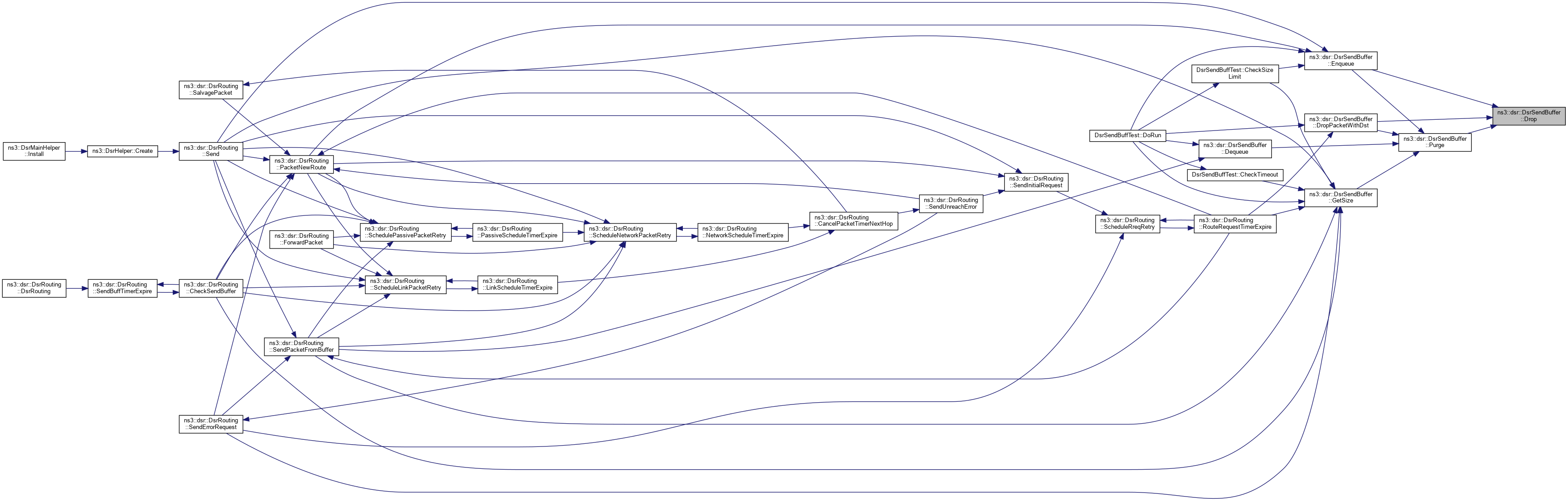

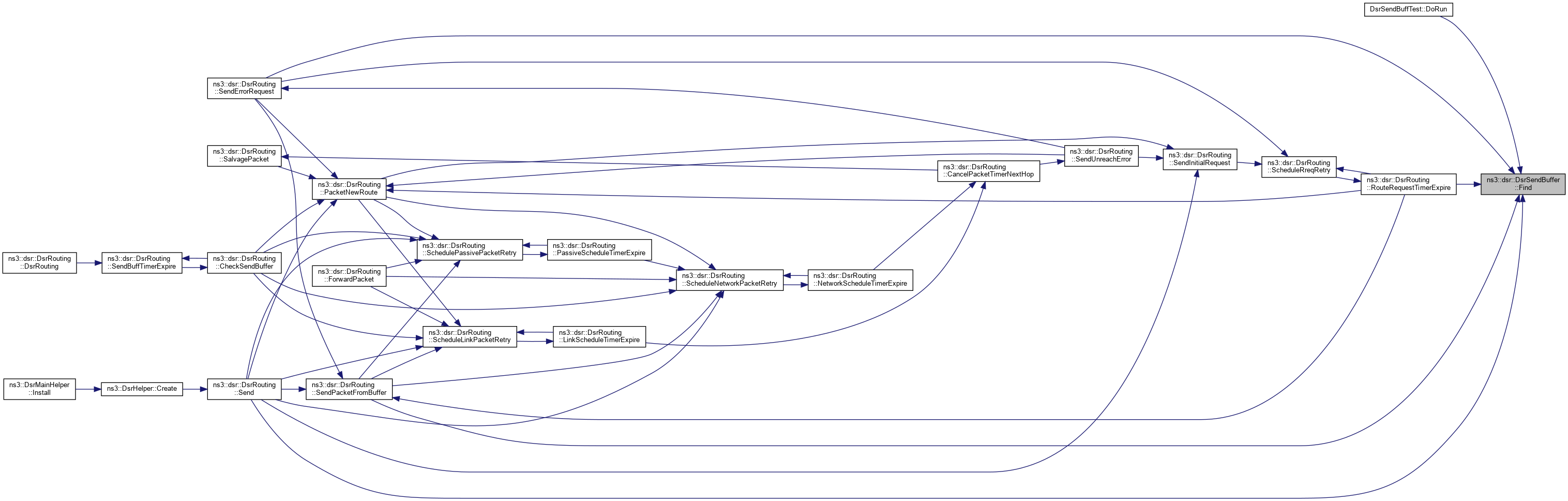

Here is the caller graph for this function:

◆ GetBuffer()

std::vector<DsrSendBuffEntry>& ns3::dsr::DsrSendBuffer::GetBuffer ( )

inline

Return a pointer to the internal queue.

Returns: a pointer to the internal queue

Definition at line 246 of file dsr-rsendbuff.h.

References m_sendBuffer.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer().

Here is the caller graph for this function:

◆ GetMaxQueueLen()

uint32_t ns3::dsr::DsrSendBuffer::GetMaxQueueLen ( ) const

inline

Return the maximum queue length.

Returns: the maximum queue length

Definition at line 208 of file dsr-rsendbuff.h.

References m_maxLen.

Referenced by DsrSendBuffTest::CheckSizeLimit(), and DsrSendBuffTest::DoRun().

Here is the caller graph for this function:

◆ GetSendBufferTimeout()

Time ns3::dsr::DsrSendBuffer::GetSendBufferTimeout ( ) const

inline

Return the entry lifetime in the queue.

Returns: the entry lifetime in the queue

Definition at line 226 of file dsr-rsendbuff.h.

References m_sendBufferTimeout.

Referenced by DsrSendBuffTest::DoRun().

Here is the caller graph for this function:

◆ GetSize()

uint32_t ns3::dsr::DsrSendBuffer::GetSize ( void )

Number of entries.

Returns: the number of entries in the queue

Definition at line 46 of file dsr-rsendbuff.cc.

References m_sendBuffer, and Purge().

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), DsrSendBuffTest::CheckSizeLimit(), DsrSendBuffTest::CheckTimeout(), DsrSendBuffTest::DoRun(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

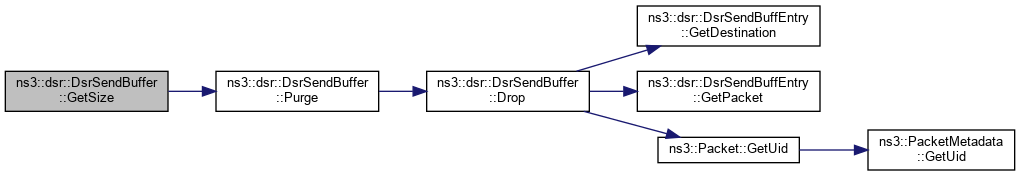

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Purge()

void ns3::dsr::DsrSendBuffer::Purge ( )

private

Remove all expired entries.

Definition at line 158 of file dsr-rsendbuff.cc.

References Drop(), m_sendBuffer, NS_LOG_DEBUG, and NS_LOG_INFO.

Referenced by Dequeue(), DropPacketWithDst(), Enqueue(), and GetSize().

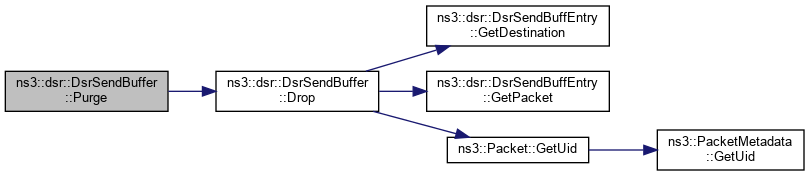

Here is the call graph for this function:

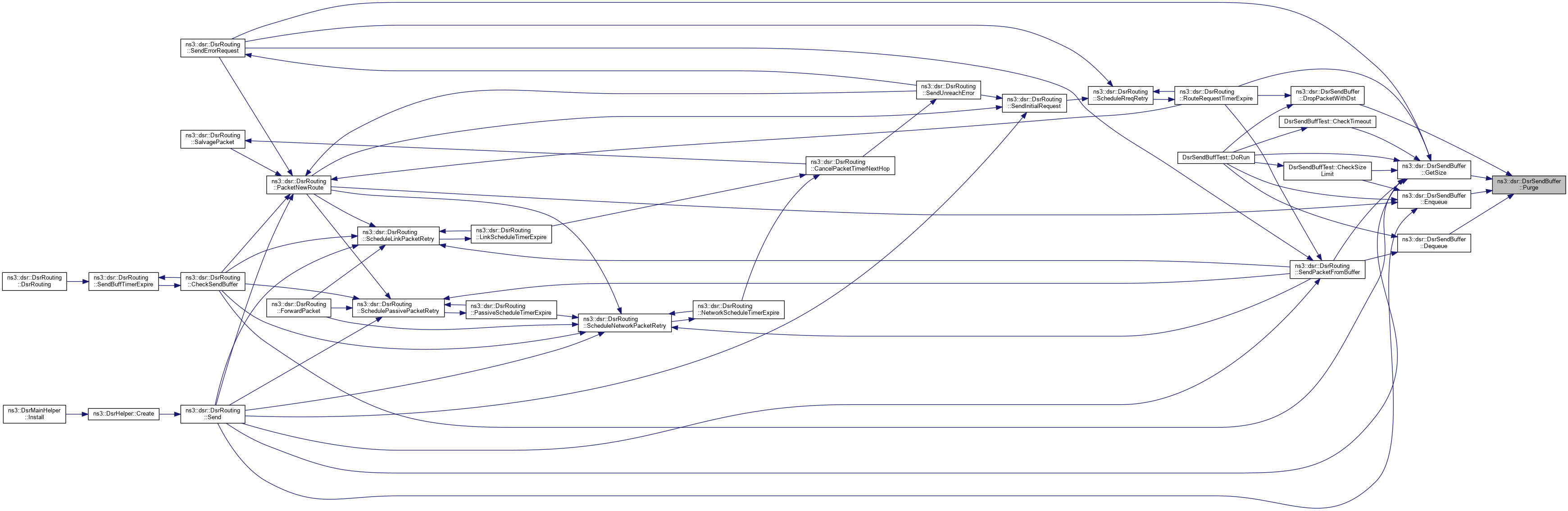

Here is the caller graph for this function:

◆ SetMaxQueueLen()

void ns3::dsr::DsrSendBuffer::SetMaxQueueLen ( uint32_t len )

inline

Set the maximum queue length.

Parameters

len	the maximum queue length

Definition at line 217 of file dsr-rsendbuff.h.

References m_maxLen.

Referenced by DsrSendBuffTest::DoRun(), and ns3::dsr::DsrRouting::Start().

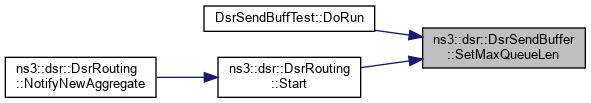

Here is the caller graph for this function:

◆ SetSendBufferTimeout()

void ns3::dsr::DsrSendBuffer::SetSendBufferTimeout ( Time t )

inline

Set the entry lifetime in the queue.

Parameters

t	the entry lifetime in the queue

Definition at line 235 of file dsr-rsendbuff.h.

References m_sendBufferTimeout.

Referenced by DsrSendBuffTest::DoRun(), and ns3::dsr::DsrRouting::Start().

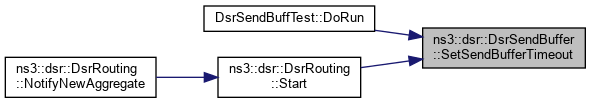

Here is the caller graph for this function:

Member Data Documentation

◆ m_maxLen

uint32_t ns3::dsr::DsrSendBuffer::m_maxLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 260 of file dsr-rsendbuff.h.

Referenced by Enqueue(), GetMaxQueueLen(), and SetMaxQueueLen().

◆ m_sendBuffer

std::vector<DsrSendBuffEntry> ns3::dsr::DsrSendBuffer::m_sendBuffer

private

The send buffer to cache unsent packet.

Definition at line 252 of file dsr-rsendbuff.h.

Referenced by Dequeue(), DropPacketWithDst(), Enqueue(), Find(), GetBuffer(), GetSize(), and Purge().

◆ m_sendBufferTimeout

Time ns3::dsr::DsrSendBuffer::m_sendBufferTimeout

private

The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds.

Definition at line 261 of file dsr-rsendbuff.h.

Referenced by Enqueue(), GetSendBufferTimeout(), and SetSendBufferTimeout().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-rsendbuff.h
src/dsr/model/dsr-rsendbuff.cc
