ns3::internal::PairChecker< A, B > Class Template Reference

Internal checker class templated to each AttributeChecker for each entry in the pair. More...

#include "pair.h"

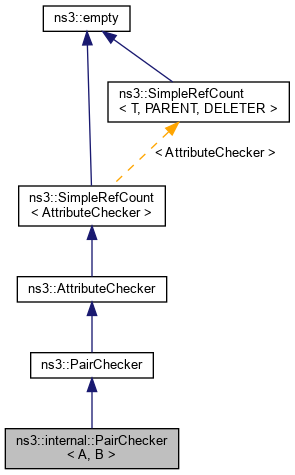

Inheritance diagram for ns3::internal::PairChecker< A, B >:

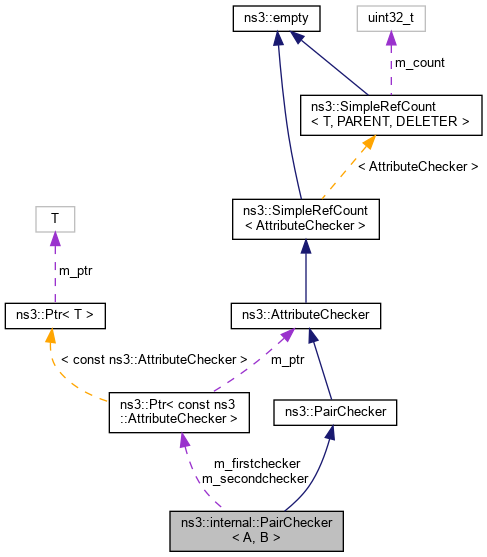

Collaboration diagram for ns3::internal::PairChecker< A, B >:

Public Member Functions
	PairChecker (Ptr< const AttributeChecker > firstchecker, Ptr< const AttributeChecker > secondchecker)
	Construct from a pair of AttributeChecker's. More...
	PairChecker (void)
	Default c'tor. More...
ns3::PairChecker::checker_pair_type	GetCheckers (void) const
	Get the pair of checkers for each pair entry. More...
void	SetCheckers (Ptr< const AttributeChecker > firstchecker, Ptr< const AttributeChecker > secondchecker)
	Set the individual AttributeChecker for each pair entry. More...
Public Member Functions inherited from ns3::AttributeChecker
	AttributeChecker ()
virtual	~AttributeChecker ()
virtual bool	Check (const AttributeValue &value) const =0
virtual bool	Copy (const AttributeValue &source, AttributeValue &destination) const =0
	Copy the source to the destination. More...
virtual Ptr< AttributeValue >	Create (void) const =0
Ptr< AttributeValue >	CreateValidValue (const AttributeValue &value) const
	Create a valid value from the argument value, or reinterpret the argument as a string. More...
virtual std::string	GetUnderlyingTypeInformation (void) const =0
virtual std::string	GetValueTypeName (void) const =0
virtual bool	HasUnderlyingTypeInformation (void) const =0
Public Member Functions inherited from ns3::SimpleRefCount< AttributeChecker >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Ptr< const AttributeChecker >	m_firstchecker
	The first checker. More...
Ptr< const AttributeChecker >	m_secondchecker
	The second checker. More...

Additional Inherited Members
Public Types inherited from ns3::PairChecker
typedef std::pair< Ptr< const AttributeChecker >, Ptr< const AttributeChecker > >	checker_pair_type
	Type holding an AttributeChecker for each member of a pair. More...

Detailed Description

template<class A, class B>
class ns3::internal::PairChecker< A, B >

Internal checker class templated to each AttributeChecker for each entry in the pair.

Definition at line 176 of file pair.h.

Constructor & Destructor Documentation

PairChecker() [1/2]

template<class A , class B >

ns3::internal::PairChecker< A, B >::PairChecker

(

void

)

Default c'tor.

Definition at line 198 of file pair.h.

PairChecker() [2/2]

template<class A , class B >

ns3::internal::PairChecker< A, B >::PairChecker	(	Ptr< const AttributeChecker >	firstchecker,
		Ptr< const AttributeChecker >	secondchecker
	)

Construct from a pair of AttributeChecker's.

Parameters

firstchecker	The AttributeChecker for first.
secondchecker	The AttributeChecker for second.

Definition at line 204 of file pair.h.

Member Function Documentation

GetCheckers()

template<class A , class B >

ns3::PairChecker::checker_pair_type ns3::internal::PairChecker< A, B >::GetCheckers ( void  ) const

virtual

Get the pair of checkers for each pair entry.

Returns

std::pair with AttributeChecker for each of abscissa and ordinate.

Implements ns3::PairChecker.

Definition at line 219 of file pair.h.

SetCheckers()

template<class A , class B >

void ns3::internal::PairChecker< A, B >::SetCheckers ( Ptr< const AttributeChecker >  firstchecker, Ptr< const AttributeChecker >  secondchecker  )

virtual

Set the individual AttributeChecker for each pair entry.

Parameters

[in]	firstchecker	AttributeChecker for abscissa.
[in]	secondchecker	AttributeChecker for ordinate.

Implements ns3::PairChecker.

Definition at line 211 of file pair.h.

Member Data Documentation

m_firstchecker

template<class A , class B >

Ptr<const AttributeChecker> ns3::internal::PairChecker< A, B >::m_firstchecker

private

The first checker.

Definition at line 192 of file pair.h.

m_secondchecker

template<class A , class B >

Ptr<const AttributeChecker> ns3::internal::PairChecker< A, B >::m_secondchecker

private

The second checker.

Definition at line 194 of file pair.h.

---

The documentation for this class was generated from the following file:

• src/core/model/pair.h
