ns3::internal::PointerChecker< T > Class Template Reference

PointerChecker implementation. More...

#include "pointer.h"

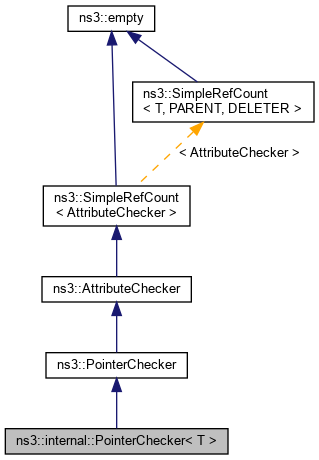

Inheritance diagram for ns3::internal::PointerChecker< T >:

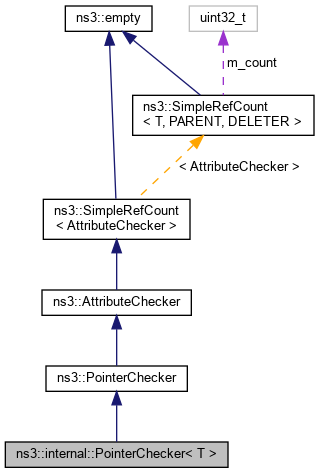

Collaboration diagram for ns3::internal::PointerChecker< T >:

Private Member Functions
virtual bool	Check (const AttributeValue &val) const
virtual bool	Copy (const AttributeValue &source, AttributeValue &destination) const
	Copy the source to the destination. More...
virtual Ptr< AttributeValue >	Create (void) const
virtual TypeId	GetPointeeTypeId (void) const
	Get the TypeId of the base type. More...
virtual std::string	GetUnderlyingTypeInformation (void) const
virtual std::string	GetValueTypeName (void) const
virtual bool	HasUnderlyingTypeInformation (void) const

Additional Inherited Members
Public Member Functions inherited from ns3::AttributeChecker
	AttributeChecker ()
virtual	~AttributeChecker ()
Ptr< AttributeValue >	CreateValidValue (const AttributeValue &value) const
	Create a valid value from the argument value, or reinterpret the argument as a string. More...
Public Member Functions inherited from ns3::SimpleRefCount< AttributeChecker >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Detailed Description

template<typename T>
class ns3::internal::PointerChecker< T >

PointerChecker implementation.

Definition at line 130 of file pointer.h.

Member Function Documentation

Check()

template<typename T >

virtual bool ns3::internal::PointerChecker< T >::Check ( const AttributeValue &  value ) const

inlineprivatevirtual

Parameters

[in]

value

A pointer to the value to check

Returns

true if the input value is both of the right type and if its value is within the requested range. Returns false otherwise.

Implements ns3::AttributeChecker.

Definition at line 132 of file pointer.h.

References ns3::PeekPointer().

Here is the call graph for this function:

Copy()

template<typename T >

virtual bool ns3::internal::PointerChecker< T >::Copy ( const AttributeValue &  source, AttributeValue &  destination  ) const

inlineprivatevirtual

Copy the source to the destination.

Parameters

[in]	source	Source AttributeValue
[out]	destination	Destination AttributeValue

Returns

true if copy was successful

Implements ns3::AttributeChecker.

Definition at line 167 of file pointer.h.

Create()

template<typename T >

virtual Ptr<AttributeValue> ns3::internal::PointerChecker< T >::Create ( void  ) const

inlineprivatevirtual

Returns

a new instance of an AttributeValue (wrapper in an Attribute instance) which matches the type of the underlying attribute.

This method is typically used to create a temporary variable prior to calling Attribute::DeserializeFromString.

Implements ns3::AttributeChecker.

Definition at line 163 of file pointer.h.

GetPointeeTypeId()

template<typename T >

virtual TypeId ns3::internal::PointerChecker< T >::GetPointeeTypeId ( void  ) const

inlineprivatevirtual

Get the TypeId of the base type.

Returns

The base TypeId.

Implements ns3::PointerChecker.

Definition at line 178 of file pointer.h.

GetUnderlyingTypeInformation()

template<typename T >

virtual std::string ns3::internal::PointerChecker< T >::GetUnderlyingTypeInformation ( void  ) const

inlineprivatevirtual

Returns

a human-readable representation of information about the underlying C++ type.

Implements ns3::AttributeChecker.

Definition at line 158 of file pointer.h.

References ns3::TypeId::GetName().

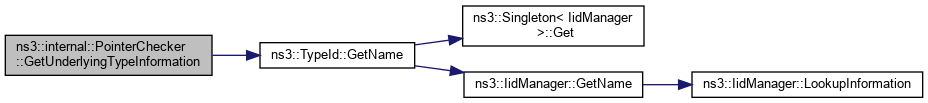

Here is the call graph for this function:

GetValueTypeName()

template<typename T >

virtual std::string ns3::internal::PointerChecker< T >::GetValueTypeName ( void  ) const

inlineprivatevirtual

Returns

the c++ fully-qualified typename of the subclass of the ns3::AttributeValue base class which is associated to this checker.

A typical return value here is FooValue where Foo is the name of the type being wrapped.

Implements ns3::AttributeChecker.

Definition at line 150 of file pointer.h.

HasUnderlyingTypeInformation()

template<typename T >

virtual bool ns3::internal::PointerChecker< T >::HasUnderlyingTypeInformation ( void  ) const

inlineprivatevirtual

Returns

true if this checker has information about the underlying C++ type, false otherwise.

If this method returns false, the return value of the GetUnderlyingTypeInformation method cannot be relied upon.

Implements ns3::AttributeChecker.

Definition at line 154 of file pointer.h.

---

The documentation for this class was generated from the following file:

• src/core/model/pointer.h
