ns3::internal::TupleChecker< Args > Class Template Reference

Internal checker class templated to each AttributeChecker for each entry in the tuple. More...

#include "tuple.h"

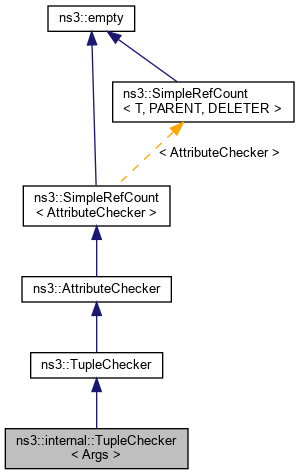

Inheritance diagram for ns3::internal::TupleChecker< Args >:

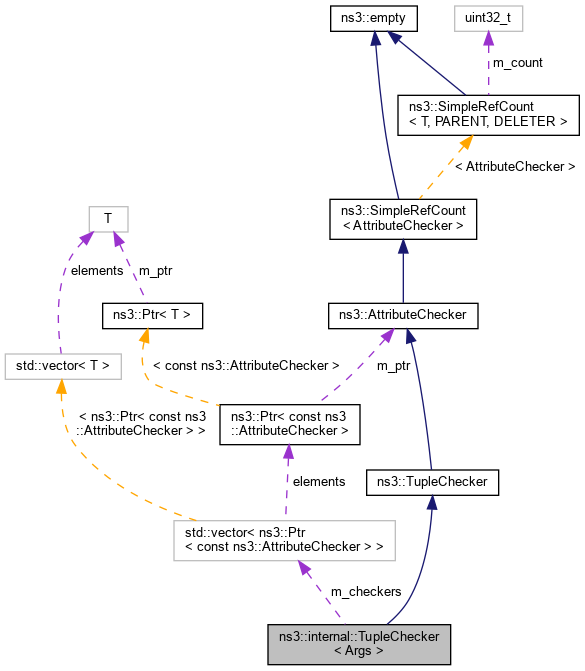

Collaboration diagram for ns3::internal::TupleChecker< Args >:

Public Member Functions
template<class... Ts>
	TupleChecker (Ts... checkers)
	Constructor. More...
bool	Check (const AttributeValue &value) const override
bool	Copy (const AttributeValue &source, AttributeValue &destination) const override
	Copy the source to the destination. More...
Ptr< AttributeValue >	Create (void) const override
const std::vector< Ptr< const AttributeChecker > > &	GetCheckers (void) const override
	Get the checkers for all tuple elements. More...
std::string	GetUnderlyingTypeInformation (void) const override
std::string	GetValueTypeName (void) const override
bool	HasUnderlyingTypeInformation (void) const override
Public Member Functions inherited from ns3::AttributeChecker
	AttributeChecker ()
virtual	~AttributeChecker ()
Ptr< AttributeValue >	CreateValidValue (const AttributeValue &value) const
	Create a valid value from the argument value, or reinterpret the argument as a string. More...
Public Member Functions inherited from ns3::SimpleRefCount< AttributeChecker >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
std::vector< Ptr< const AttributeChecker > >	m_checkers
	attribute checkers More...

Detailed Description

template<class... Args>
class ns3::internal::TupleChecker< Args >

Internal checker class templated to each AttributeChecker for each entry in the tuple.

Definition at line 363 of file tuple.h.

Constructor & Destructor Documentation

TupleChecker()

template<class... Args>

template<class... Ts>

ns3::internal::TupleChecker< Args >::TupleChecker ( Ts...  checkers )

inline

Constructor.

Template Parameters

Ts	[deduced] the type of the attribute checkers

Parameters

checkers

the attribute checkers for individual elements of the tuple

Definition at line 372 of file tuple.h.

Member Function Documentation

Check()

template<class... Args>

bool ns3::internal::TupleChecker< Args >::Check ( const AttributeValue &  value ) const

inlineoverridevirtual

Parameters

[in]

value

A pointer to the value to check

Returns

true if the input value is both of the right type and if its value is within the requested range. Returns false otherwise.

Implements ns3::AttributeChecker.

Definition at line 380 of file tuple.h.

References ns3::internal::TupleChecker< Args >::m_checkers.

Copy()

template<class... Args>

bool ns3::internal::TupleChecker< Args >::Copy ( const AttributeValue &  source, AttributeValue &  destination  ) const

inlineoverridevirtual

Copy the source to the destination.

Parameters

[in]	source	Source AttributeValue
[out]	destination	Destination AttributeValue

Returns

true if copy was successful

Implements ns3::AttributeChecker.

Definition at line 410 of file tuple.h.

Create()

template<class... Args>

Ptr<AttributeValue> ns3::internal::TupleChecker< Args >::Create ( void  ) const

inlineoverridevirtual

Returns

a new instance of an AttributeValue (wrapper in an Attribute instance) which matches the type of the underlying attribute.

This method is typically used to create a temporary variable prior to calling Attribute::DeserializeFromString.

Implements ns3::AttributeChecker.

Definition at line 406 of file tuple.h.

References ns3::Create().

Here is the call graph for this function:

GetCheckers()

template<class... Args>

const std::vector<Ptr<const AttributeChecker> >& ns3::internal::TupleChecker< Args >::GetCheckers ( void  ) const

inlineoverridevirtual

Get the checkers for all tuple elements.

Returns

the checkers for all tuple elements

Implements ns3::TupleChecker.

Definition at line 376 of file tuple.h.

References ns3::internal::TupleChecker< Args >::m_checkers.

GetUnderlyingTypeInformation()

template<class... Args>

std::string ns3::internal::TupleChecker< Args >::GetUnderlyingTypeInformation ( void  ) const

inlineoverridevirtual

Returns

a human-readable representation of information about the underlying C++ type.

Implements ns3::AttributeChecker.

Definition at line 402 of file tuple.h.

GetValueTypeName()

template<class... Args>

std::string ns3::internal::TupleChecker< Args >::GetValueTypeName ( void  ) const

inlineoverridevirtual

Returns

the c++ fully-qualified typename of the subclass of the ns3::AttributeValue base class which is associated to this checker.

A typical return value here is FooValue where Foo is the name of the type being wrapped.

Implements ns3::AttributeChecker.

Definition at line 394 of file tuple.h.

HasUnderlyingTypeInformation()

template<class... Args>

bool ns3::internal::TupleChecker< Args >::HasUnderlyingTypeInformation ( void  ) const

inlineoverridevirtual

Returns

true if this checker has information about the underlying C++ type, false otherwise.

If this method returns false, the return value of the GetUnderlyingTypeInformation method cannot be relied upon.

Implements ns3::AttributeChecker.

Definition at line 398 of file tuple.h.

Member Data Documentation

m_checkers

template<class... Args>

std::vector<Ptr<const AttributeChecker> > ns3::internal::TupleChecker< Args >::m_checkers

private

attribute checkers

Definition at line 423 of file tuple.h.

Referenced by ns3::internal::TupleChecker< Args >::Check(), and ns3::internal::TupleChecker< Args >::GetCheckers().

---

The documentation for this class was generated from the following file:

• src/core/model/tuple.h
