ns3::AparfWifiRemoteStation Struct Reference

Hold per-remote-station state for APARF Wifi manager. More...

Inheritance diagram for ns3::AparfWifiRemoteStation:

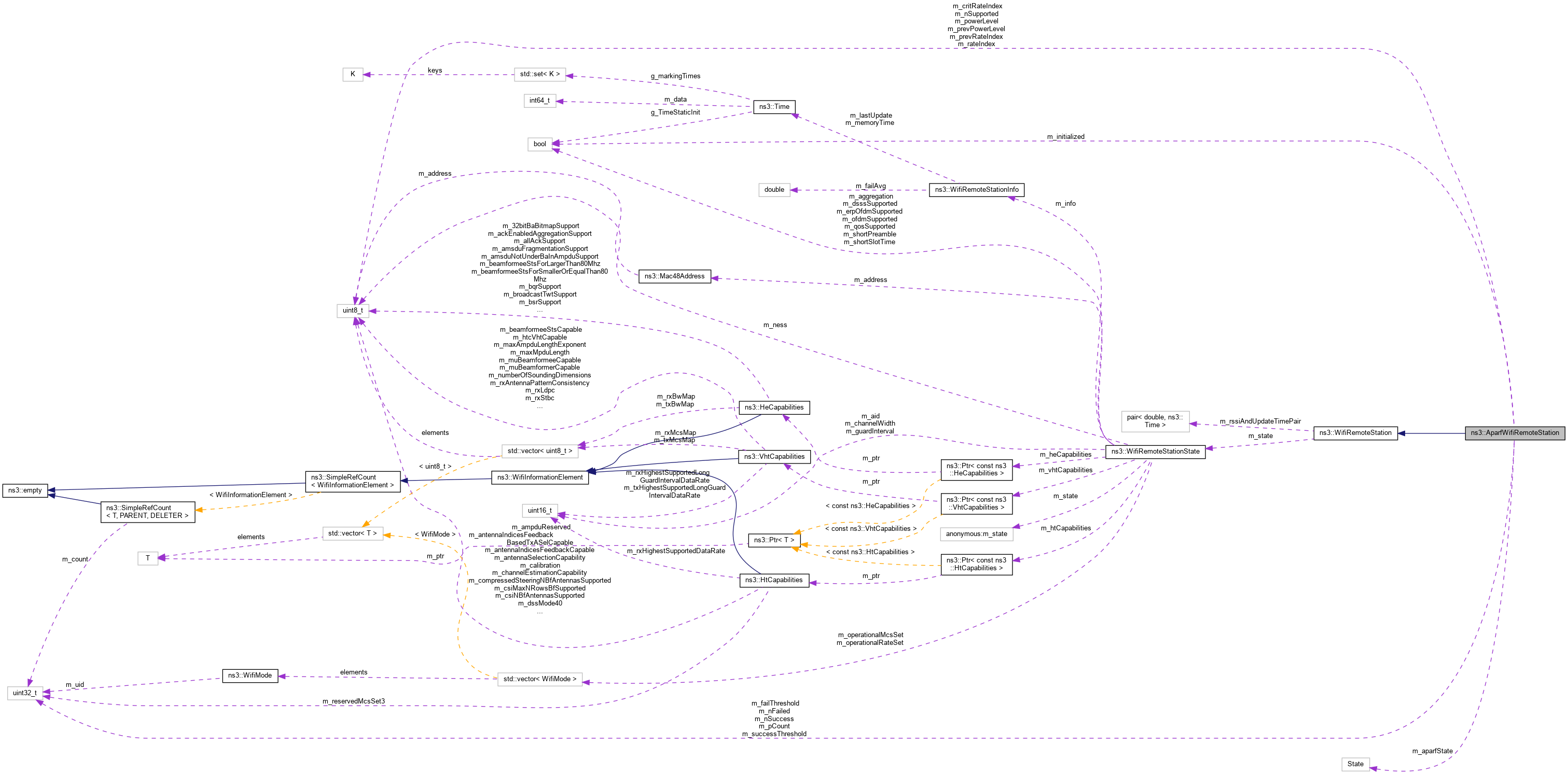

Collaboration diagram for ns3::AparfWifiRemoteStation:

Public Attributes
AparfWifiManager::State	m_aparfState
	The estimated state of the channel. More...
uint8_t	m_critRateIndex
	Critical rate. More...
uint32_t	m_failThreshold
	The minimum number of failed transmissions to try a new power or rate. More...
bool	m_initialized
	For initializing variables. More...
uint32_t	m_nFailed
	Number of failed transmission attempts. More...
uint32_t	m_nSuccess
	Number of successful transmission attempts. More...
uint8_t	m_nSupported
	Number of supported rates by the remote station. More...
uint32_t	m_pCount
	Number of power changes. More...
uint8_t	m_powerLevel
	Current power level. More...
uint8_t	m_prevPowerLevel
	Power level of the previous transmission. More...
uint8_t	m_prevRateIndex
	Rate index of the previous transmission. More...
uint8_t	m_rateIndex
	Current rate index. More...
uint32_t	m_successThreshold
	The minimum number of successful transmissions to try a new power or rate. More...
Public Attributes inherited from ns3::WifiRemoteStation
std::pair< double, Time >	m_rssiAndUpdateTimePair
	RSSI (in dBm) of the most recent packet received from the remote station along with update time. More...
WifiRemoteStationState *	m_state
	Remote station state. More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

Hold per-remote-station state for APARF Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the APARF Wifi manager

Definition at line 39 of file aparf-wifi-manager.cc.

Member Data Documentation

m_aparfState

AparfWifiManager::State ns3::AparfWifiRemoteStation::m_aparfState

The estimated state of the channel.

Definition at line 54 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::DoCreateStation(), ns3::AparfWifiManager::DoReportDataFailed(), and ns3::AparfWifiManager::DoReportDataOk().

m_critRateIndex

uint8_t ns3::AparfWifiRemoteStation::m_critRateIndex

Critical rate.

Definition at line 49 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::CheckInit(), ns3::AparfWifiManager::DoReportDataFailed(), and ns3::AparfWifiManager::DoReportDataOk().

m_failThreshold

uint32_t ns3::AparfWifiRemoteStation::m_failThreshold

The minimum number of failed transmissions to try a new power or rate.

Definition at line 46 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::DoCreateStation(), and ns3::AparfWifiManager::DoReportDataFailed().

m_initialized

bool ns3::AparfWifiRemoteStation::m_initialized

For initializing variables.

Definition at line 53 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::CheckInit(), and ns3::AparfWifiManager::DoCreateStation().

m_nFailed

uint32_t ns3::AparfWifiRemoteStation::m_nFailed

Number of failed transmission attempts.

Definition at line 43 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::DoCreateStation(), ns3::AparfWifiManager::DoReportDataFailed(), and ns3::AparfWifiManager::DoReportDataOk().

m_nSuccess

uint32_t ns3::AparfWifiRemoteStation::m_nSuccess

Number of successful transmission attempts.

Definition at line 42 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::DoCreateStation(), ns3::AparfWifiManager::DoReportDataFailed(), and ns3::AparfWifiManager::DoReportDataOk().

m_nSupported

uint8_t ns3::AparfWifiRemoteStation::m_nSupported

Number of supported rates by the remote station.

Definition at line 52 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::CheckInit().

m_pCount

uint32_t ns3::AparfWifiRemoteStation::m_pCount

Number of power changes.

Definition at line 44 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::DoCreateStation(), ns3::AparfWifiManager::DoReportDataFailed(), and ns3::AparfWifiManager::DoReportDataOk().

m_powerLevel

uint8_t ns3::AparfWifiRemoteStation::m_powerLevel

Current power level.

Definition at line 51 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::CheckInit(), ns3::AparfWifiManager::DoCreateStation(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoReportDataFailed(), and ns3::AparfWifiManager::DoReportDataOk().

m_prevPowerLevel

uint8_t ns3::AparfWifiRemoteStation::m_prevPowerLevel

Power level of the previous transmission.

Definition at line 50 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::CheckInit(), and ns3::AparfWifiManager::DoGetDataTxVector().

m_prevRateIndex

uint8_t ns3::AparfWifiRemoteStation::m_prevRateIndex

Rate index of the previous transmission.

Definition at line 47 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::CheckInit(), and ns3::AparfWifiManager::DoGetDataTxVector().

m_rateIndex

uint8_t ns3::AparfWifiRemoteStation::m_rateIndex

Current rate index.

Definition at line 48 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::CheckInit(), ns3::AparfWifiManager::DoCreateStation(), ns3::AparfWifiManager::DoGetDataTxVector(), ns3::AparfWifiManager::DoReportDataFailed(), and ns3::AparfWifiManager::DoReportDataOk().

m_successThreshold

uint32_t ns3::AparfWifiRemoteStation::m_successThreshold

The minimum number of successful transmissions to try a new power or rate.

Definition at line 45 of file aparf-wifi-manager.cc.

Referenced by ns3::AparfWifiManager::DoCreateStation(), ns3::AparfWifiManager::DoReportDataFailed(), and ns3::AparfWifiManager::DoReportDataOk().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rate-control/aparf-wifi-manager.cc
