ns3::LteUeRrc::PendingTrigger_t Struct Reference

Represents a single triggered event from a measurement identity which reporting criteria have been fulfilled, but delayed by time-to-trigger. More...

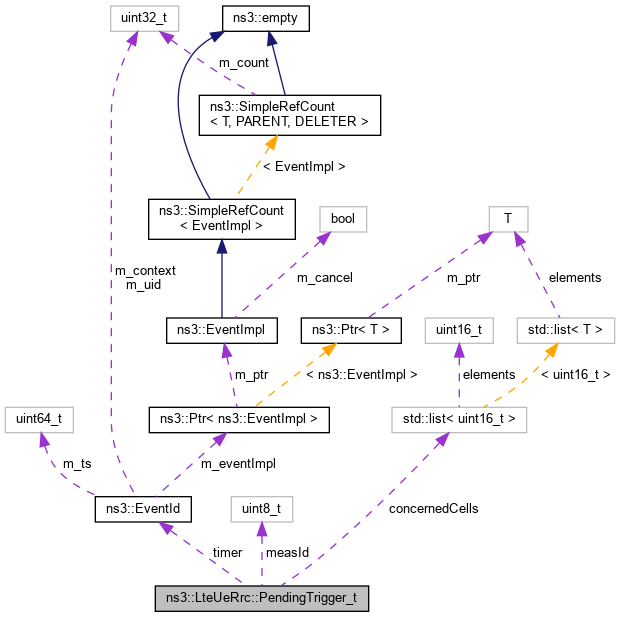

Collaboration diagram for ns3::LteUeRrc::PendingTrigger_t:

Public Attributes
ConcernedCells_t	concernedCells
	The list of cells responsible for this trigger. More...
uint8_t	measId
	The measurement identity which raised the trigger. More...
EventId	timer
	The pending reporting event, scheduled at the end of the time-to-trigger. More...

Detailed Description

Represents a single triggered event from a measurement identity which reporting criteria have been fulfilled, but delayed by time-to-trigger.

Definition at line 1109 of file lte-ue-rrc.h.

Member Data Documentation

concernedCells

ConcernedCells_t ns3::LteUeRrc::PendingTrigger_t::concernedCells

The list of cells responsible for this trigger.

Definition at line 1112 of file lte-ue-rrc.h.

Referenced by ns3::LteUeRrc::MeasurementReportTriggering().

measId

uint8_t ns3::LteUeRrc::PendingTrigger_t::measId

The measurement identity which raised the trigger.

Definition at line 1111 of file lte-ue-rrc.h.

Referenced by ns3::LteUeRrc::MeasurementReportTriggering().

timer

EventId ns3::LteUeRrc::PendingTrigger_t::timer

The pending reporting event, scheduled at the end of the time-to-trigger.

Definition at line 1113 of file lte-ue-rrc.h.

Referenced by ns3::LteUeRrc::MeasurementReportTriggering().

---

The documentation for this struct was generated from the following file:

• src/lte/model/lte-ue-rrc.h
