ns3::ModelNode Struct Reference

A class used in the implementation of the GtkConfigStore. More...

#include "model-node-creator.h"

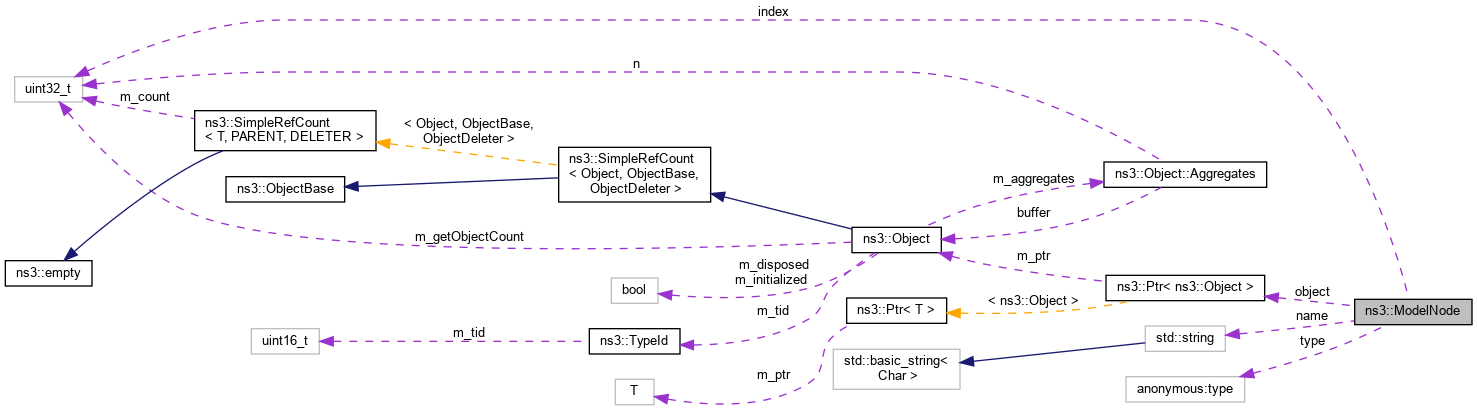

Collaboration diagram for ns3::ModelNode:

Public Types
enum	{   NODE_ATTRIBUTE , NODE_POINTER , NODE_VECTOR , NODE_VECTOR_ITEM ,   NODE_OBJECT }

Public Attributes
uint32_t	index
	index More...
std::string	name
	node name More...
Ptr< Object >	object
	the object More...
enum ns3::ModelNode:: { ... }	type
	node type More...

Detailed Description

A class used in the implementation of the GtkConfigStore.

Definition at line 35 of file model-node-creator.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
NODE_ATTRIBUTE
NODE_POINTER
NODE_VECTOR
NODE_VECTOR_ITEM
NODE_OBJECT

Definition at line 42 of file model-node-creator.h.

Member Data Documentation

index

uint32_t ns3::ModelNode::index

index

Definition at line 57 of file model-node-creator.h.

Referenced by ns3::cell_data_function_col_0(), and ns3::ModelCreator::DoStartVisitArrayItem().

name

std::string ns3::ModelNode::name

node name

Definition at line 55 of file model-node-creator.h.

Referenced by ns3::cell_data_function_col_0(), ns3::cell_data_function_col_1(), ns3::cell_edited_callback(), ns3::cell_tooltip_callback(), ns3::ModelCreator::DoStartVisitArrayAttribute(), ns3::ModelCreator::DoStartVisitPointerAttribute(), and ns3::ModelCreator::DoVisitAttribute().

object

Ptr<Object> ns3::ModelNode::object

the object

Definition at line 56 of file model-node-creator.h.

Referenced by ns3::cell_data_function_col_0(), ns3::cell_data_function_col_1(), ns3::cell_edited_callback(), ns3::cell_tooltip_callback(), ns3::ModelCreator::DoStartVisitArrayAttribute(), ns3::ModelCreator::DoStartVisitArrayItem(), ns3::ModelCreator::DoStartVisitObject(), ns3::ModelCreator::DoStartVisitPointerAttribute(), and ns3::ModelCreator::DoVisitAttribute().

enum { ... } ns3::ModelNode::type

node type

Referenced by ns3::cell_data_function_col_0(), ns3::cell_data_function_col_1(), ns3::cell_edited_callback(), ns3::cell_tooltip_callback(), ns3::ModelCreator::DoStartVisitArrayAttribute(), ns3::ModelCreator::DoStartVisitArrayItem(), ns3::ModelCreator::DoStartVisitObject(), ns3::ModelCreator::DoStartVisitPointerAttribute(), and ns3::ModelCreator::DoVisitAttribute().

---

The documentation for this struct was generated from the following file:

• src/config-store/model/model-node-creator.h
