ns3::Object::Aggregates Struct Reference

The list of Objects aggregated to this one. More...

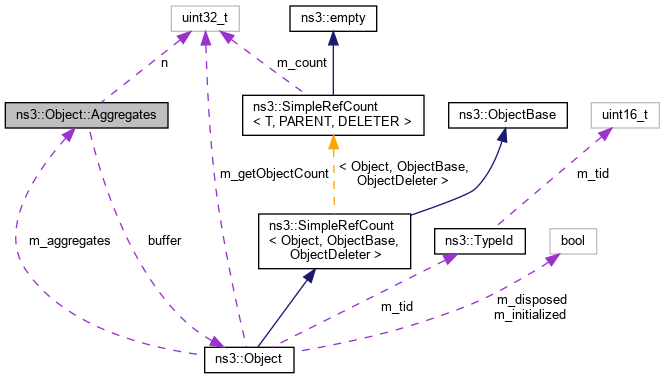

Collaboration diagram for ns3::Object::Aggregates:

Public Attributes
Object *	buffer [1]
	The array of Objects. More...
uint32_t	n
	The number of entries in buffer. More...

Detailed Description

The list of Objects aggregated to this one.

This data structure uses a classic C-style trick to hold an array of variable size without performing two memory allocations: the declaration of the structure declares a one-element array but when we allocate memory for this struct, we effectively allocate a larger chunk of memory than the struct to allow space for a larger variable sized buffer whose size is indicated by the element n

Definition at line 345 of file object.h.

Member Data Documentation

buffer

Object* ns3::Object::Aggregates::buffer[1]

The array of Objects.

Definition at line 350 of file object.h.

Referenced by ns3::Object::Object(), ns3::Object::~Object(), ns3::Object::AggregateObject(), ns3::Object::CheckLoose(), ns3::Object::Dispose(), ns3::Object::DoDelete(), ns3::Object::DoGetObject(), ns3::Object::GetObject(), ns3::Object::Initialize(), ns3::Object::AggregateIterator::Next(), and ns3::Object::UpdateSortedArray().

n

uint32_t ns3::Object::Aggregates::n

The number of entries in buffer.

Definition at line 348 of file object.h.

Referenced by ns3::Object::Object(), ns3::Object::~Object(), ns3::Object::AggregateObject(), ns3::Object::CheckLoose(), ns3::Object::Dispose(), ns3::Object::DoDelete(), ns3::Object::DoGetObject(), and ns3::Object::Initialize().

---

The documentation for this struct was generated from the following file:

• src/core/model/object.h
