ns3::ParfWifiRemoteStation Struct Reference

Hold per-remote-station state for PARF Wifi manager. More...

Inheritance diagram for ns3::ParfWifiRemoteStation:

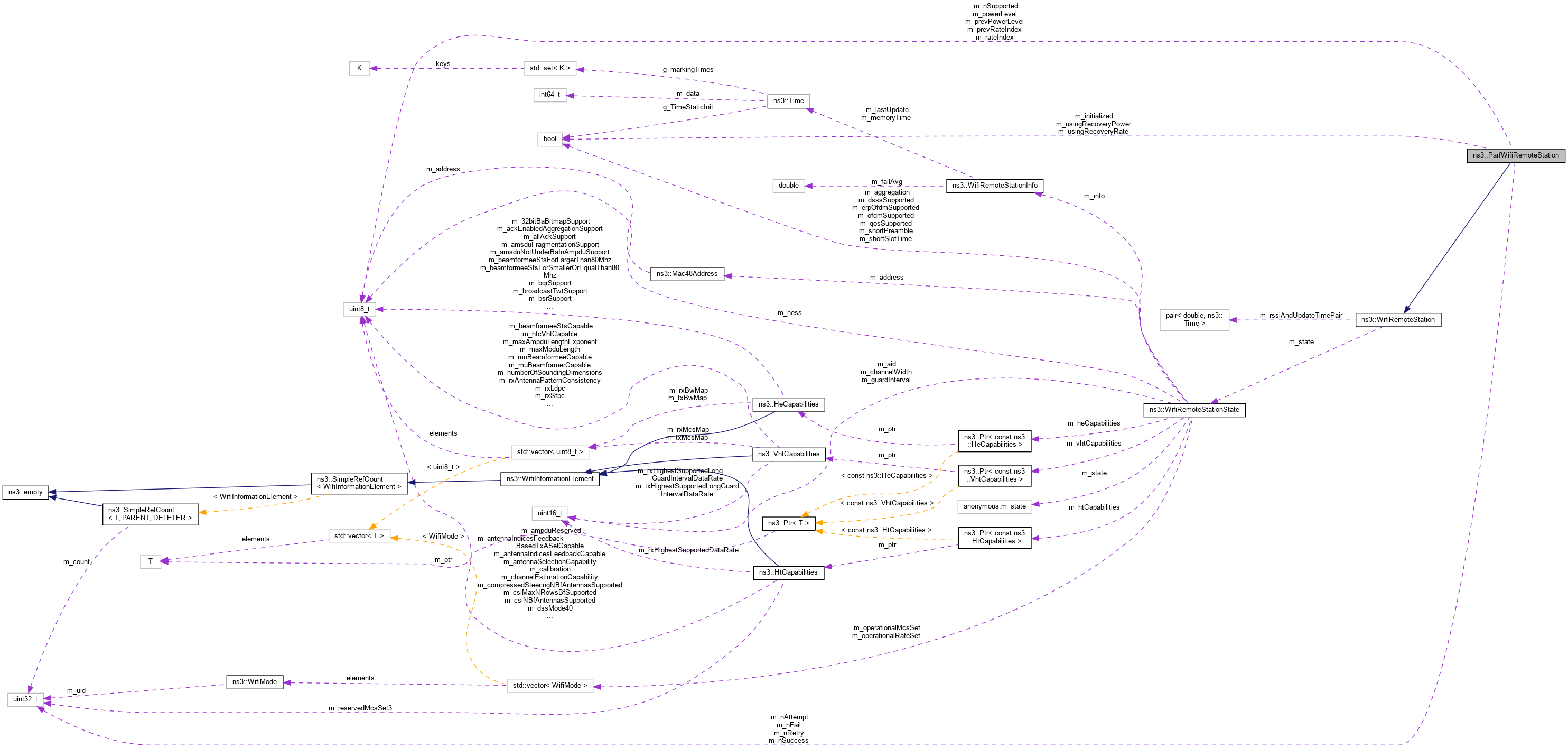

Collaboration diagram for ns3::ParfWifiRemoteStation:

Public Attributes
bool	m_initialized
	For initializing variables. More...
uint32_t	m_nAttempt
	Number of transmission attempts. More...
uint32_t	m_nFail
	Number of failed transmission attempts. More...
uint32_t	m_nRetry
	Number of transmission retries. More...
uint32_t	m_nSuccess
	Number of successful transmission attempts. More...
uint8_t	m_nSupported
	Number of supported rates by the remote station. More...
uint8_t	m_powerLevel
	Current power level used by the remote station. More...
uint8_t	m_prevPowerLevel
	Power level of the previous transmission. More...
uint8_t	m_prevRateIndex
	Rate index of the previous transmission. More...
uint8_t	m_rateIndex
	Current rate index used by the remote station. More...
bool	m_usingRecoveryPower
	If using recovery power. More...
bool	m_usingRecoveryRate
	If using recovery rate. More...
Public Attributes inherited from ns3::WifiRemoteStation
std::pair< double, Time >	m_rssiAndUpdateTimePair
	RSSI (in dBm) of the most recent packet received from the remote station along with update time. More...
WifiRemoteStationState *	m_state
	Remote station state. More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

Hold per-remote-station state for PARF Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the PARF Wifi manager

Definition at line 39 of file parf-wifi-manager.cc.

Member Data Documentation

m_initialized

bool ns3::ParfWifiRemoteStation::m_initialized

For initializing variables.

Definition at line 52 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit(), and ns3::ParfWifiManager::DoCreateStation().

m_nAttempt

uint32_t ns3::ParfWifiRemoteStation::m_nAttempt

Number of transmission attempts.

Definition at line 41 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

m_nFail

uint32_t ns3::ParfWifiRemoteStation::m_nFail

Number of failed transmission attempts.

Definition at line 43 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

m_nRetry

uint32_t ns3::ParfWifiRemoteStation::m_nRetry

Number of transmission retries.

Definition at line 46 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

m_nSuccess

uint32_t ns3::ParfWifiRemoteStation::m_nSuccess

Number of successful transmission attempts.

Definition at line 42 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

m_nSupported

uint8_t ns3::ParfWifiRemoteStation::m_nSupported

Number of supported rates by the remote station.

Definition at line 51 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit().

m_powerLevel

uint8_t ns3::ParfWifiRemoteStation::m_powerLevel

Current power level used by the remote station.

Definition at line 50 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit(), ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

m_prevPowerLevel

uint8_t ns3::ParfWifiRemoteStation::m_prevPowerLevel

Power level of the previous transmission.

Definition at line 49 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit(), and ns3::ParfWifiManager::DoGetDataTxVector().

m_prevRateIndex

uint8_t ns3::ParfWifiRemoteStation::m_prevRateIndex

Rate index of the previous transmission.

Definition at line 47 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit(), and ns3::ParfWifiManager::DoGetDataTxVector().

m_rateIndex

uint8_t ns3::ParfWifiRemoteStation::m_rateIndex

Current rate index used by the remote station.

Definition at line 48 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit(), ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

m_usingRecoveryPower

bool ns3::ParfWifiRemoteStation::m_usingRecoveryPower

If using recovery power.

Definition at line 45 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

m_usingRecoveryRate

bool ns3::ParfWifiRemoteStation::m_usingRecoveryRate

If using recovery rate.

Definition at line 44 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rate-control/parf-wifi-manager.cc
