hold per-remote-station state for RRAA Wifi manager. More...

Inheritance diagram for ns3::RraaWifiRemoteStation:

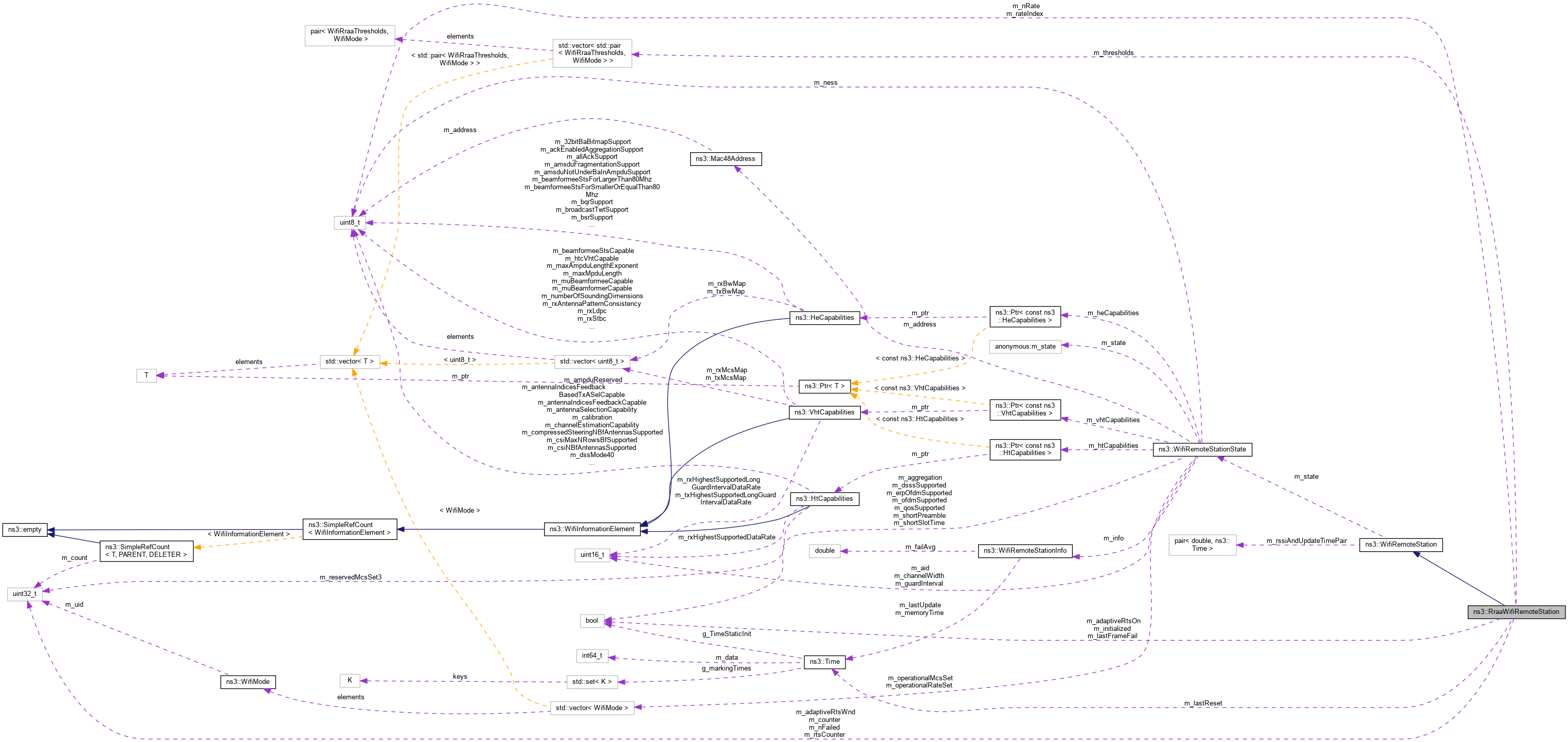

Collaboration diagram for ns3::RraaWifiRemoteStation:

Public Attributes
bool	m_adaptiveRtsOn
	Check if Adaptive RTS mechanism is on. More...

uint32_t	m_adaptiveRtsWnd
	Window size for the Adaptive RTS mechanism. More...

uint32_t	m_counter
	Counter for transmission attempts. More...

bool	m_initialized
	For initializing variables. More...

bool	m_lastFrameFail
	Flag if the last frame sent has failed. More...

Time	m_lastReset
	Time of the last reset. More...

uint32_t	m_nFailed
	Number of failed transmission attempts. More...

uint8_t	m_nRate
	Number of supported rates. More...

uint8_t	m_rateIndex
	Current rate index. More...

uint32_t	m_rtsCounter
	Counter for RTS transmission attempts. More...

RraaThresholdsTable	m_thresholds
	RRAA thresholds for this station. More...

Public Attributes inherited from ns3::WifiRemoteStation
std::pair< double, Time >	m_rssiAndUpdateTimePair
	RSSI (in dBm) of the most recent packet received from the remote station along with update time. More...

WifiRemoteStationState *	m_state
	Remote station state. More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

hold per-remote-station state for RRAA Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the RRAA Wifi manager

Definition at line 40 of file rraa-wifi-manager.cc.

Member Data Documentation

◆ m_adaptiveRtsOn

bool ns3::RraaWifiRemoteStation::m_adaptiveRtsOn

Check if Adaptive RTS mechanism is on.

Definition at line 47 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::ARts(), ns3::RraaWifiManager::DoCreateStation(), and ns3::RraaWifiManager::DoNeedRts().

◆ m_adaptiveRtsWnd

uint32_t ns3::RraaWifiRemoteStation::m_adaptiveRtsWnd

Window size for the Adaptive RTS mechanism.

Definition at line 44 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::ARts(), and ns3::RraaWifiManager::DoCreateStation().

◆ m_counter

uint32_t ns3::RraaWifiRemoteStation::m_counter

Counter for transmission attempts.

Definition at line 42 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::CheckTimeout(), ns3::RraaWifiManager::DoReportDataFailed(), ns3::RraaWifiManager::DoReportDataOk(), ns3::RraaWifiManager::ResetCountersBasic(), and ns3::RraaWifiManager::RunBasicAlgorithm().

◆ m_initialized

bool ns3::RraaWifiRemoteStation::m_initialized

For initializing variables.

Definition at line 49 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::CheckInit(), and ns3::RraaWifiManager::DoCreateStation().

◆ m_lastFrameFail

bool ns3::RraaWifiRemoteStation::m_lastFrameFail

Flag if the last frame sent has failed.

Definition at line 48 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::ARts(), ns3::RraaWifiManager::DoCreateStation(), ns3::RraaWifiManager::DoReportDataFailed(), and ns3::RraaWifiManager::DoReportDataOk().

◆ m_lastReset

Time ns3::RraaWifiRemoteStation::m_lastReset

Time of the last reset.

Definition at line 46 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::CheckTimeout(), and ns3::RraaWifiManager::ResetCountersBasic().

◆ m_nFailed

uint32_t ns3::RraaWifiRemoteStation::m_nFailed

Number of failed transmission attempts.

Definition at line 43 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::DoReportDataFailed(), ns3::RraaWifiManager::ResetCountersBasic(), and ns3::RraaWifiManager::RunBasicAlgorithm().

◆ m_nRate

uint8_t ns3::RraaWifiRemoteStation::m_nRate

Number of supported rates.

Definition at line 50 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::CheckInit(), ns3::RraaWifiManager::GetMaxRate(), and ns3::RraaWifiManager::InitThresholds().

◆ m_rateIndex

uint8_t ns3::RraaWifiRemoteStation::m_rateIndex

Current rate index.

Definition at line 51 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::CheckInit(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::ResetCountersBasic(), and ns3::RraaWifiManager::RunBasicAlgorithm().

◆ m_rtsCounter

uint32_t ns3::RraaWifiRemoteStation::m_rtsCounter

Counter for RTS transmission attempts.

Definition at line 45 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::ARts(), and ns3::RraaWifiManager::DoCreateStation().

◆ m_thresholds

RraaThresholdsTable ns3::RraaWifiRemoteStation::m_thresholds

RRAA thresholds for this station.

Definition at line 53 of file rraa-wifi-manager.cc.

Referenced by ns3::RraaWifiManager::CheckInit(), ns3::RraaWifiManager::GetThresholds(), and ns3::RraaWifiManager::InitThresholds().

The documentation for this struct was generated from the following file:

src/wifi/model/rate-control/rraa-wifi-manager.cc
