ns3::aodv::Neighbors::Neighbor Struct Reference

Neighbor description. More...

#include "aodv-neighbor.h"

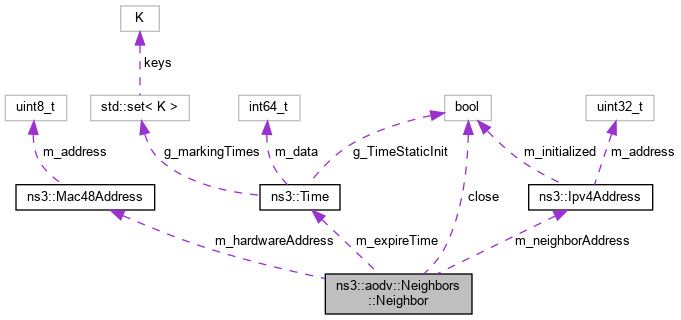

Collaboration diagram for ns3::aodv::Neighbors::Neighbor:

Public Member Functions
	Neighbor (Ipv4Address ip, Mac48Address mac, Time t)
	Neighbor structure constructor. More...

Public Attributes
bool	close
	Neighbor close indicator. More...
Time	m_expireTime
	Neighbor expire time. More...
Mac48Address	m_hardwareAddress
	Neighbor MAC address. More...
Ipv4Address	m_neighborAddress
	Neighbor IPv4 address. More...

Detailed Description

Neighbor description.

Definition at line 60 of file aodv-neighbor.h.

Constructor & Destructor Documentation

Neighbor()

ns3::aodv::Neighbors::Neighbor::Neighbor ( Ipv4Address  ip, Mac48Address  mac, Time  t  )

inline

Neighbor structure constructor.

Parameters

ip	Ipv4Address entry
mac	Mac48Address entry
t	Time expire time

Definition at line 78 of file aodv-neighbor.h.

Member Data Documentation

close

bool ns3::aodv::Neighbors::Neighbor::close

Neighbor close indicator.

Definition at line 69 of file aodv-neighbor.h.

Referenced by ns3::aodv::CloseNeighbor::operator()().

m_expireTime

Time ns3::aodv::Neighbors::Neighbor::m_expireTime

Neighbor expire time.

Definition at line 67 of file aodv-neighbor.h.

Referenced by ns3::aodv::CloseNeighbor::operator()().

m_hardwareAddress

Mac48Address ns3::aodv::Neighbors::Neighbor::m_hardwareAddress

Neighbor MAC address.

Definition at line 65 of file aodv-neighbor.h.

m_neighborAddress

Ipv4Address ns3::aodv::Neighbors::Neighbor::m_neighborAddress

Neighbor IPv4 address.

Definition at line 63 of file aodv-neighbor.h.

---

The documentation for this struct was generated from the following file:

• src/aodv/model/aodv-neighbor.h
