Port and its metadata. More...

#include "openflow-interface.h"

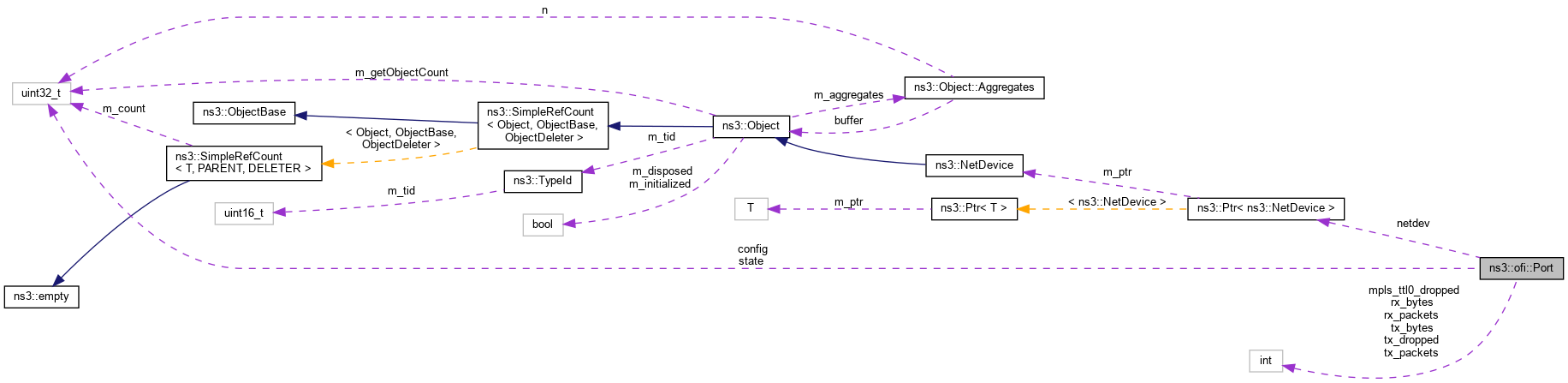

Collaboration diagram for ns3::ofi::Port:

Public Member Functions
	Port ()

Public Attributes
uint32_t	config
	Some subset of OFPPC_* flags. More...

unsigned long long int	mpls_ttl0_dropped
	Counter of packets dropped due to MPLS TTL. More...

Ptr< NetDevice >	netdev
	NetDevice pointer. More...

unsigned long long int	rx_bytes
	Counter of Rx bytes. More...

unsigned long long int	rx_packets
	Counter of Rx packets. More...

uint32_t	state
	Some subset of OFPPS_* flags. More...

unsigned long long int	tx_bytes
	Counter of Tx bytes. More...

unsigned long long int	tx_dropped
	Counter of Tx dropped packets. More...

unsigned long long int	tx_packets
	Counter of Tx packets. More...

Detailed Description

Port and its metadata.

We need to store port metadata, because OpenFlow dictates that there exists a type of request where the Controller asks for data about a port, or multiple ports. Otherwise, we'd refer to it via Ptr<NetDevice> everywhere.

Definition at line 122 of file openflow-interface.h.

Constructor & Destructor Documentation

◆ Port()

ns3::ofi::Port::Port ( )

inline

Definition at line 124 of file openflow-interface.h.

Member Data Documentation

◆ config

uint32_t ns3::ofi::Port::config

Some subset of OFPPC_* flags.

Definition at line 136 of file openflow-interface.h.

◆ mpls_ttl0_dropped

unsigned long long int ns3::ofi::Port::mpls_ttl0_dropped

Counter of packets dropped due to MPLS TTL.

Definition at line 144 of file openflow-interface.h.

◆ netdev

Ptr<NetDevice> ns3::ofi::Port::netdev

NetDevice pointer.

Definition at line 138 of file openflow-interface.h.

◆ rx_bytes

unsigned long long int ns3::ofi::Port::rx_bytes

Counter of Rx bytes.

Definition at line 141 of file openflow-interface.h.

◆ rx_packets

unsigned long long int ns3::ofi::Port::rx_packets

Counter of Rx packets.

Definition at line 139 of file openflow-interface.h.

◆ state

uint32_t ns3::ofi::Port::state

Some subset of OFPPS_* flags.

Definition at line 137 of file openflow-interface.h.

◆ tx_bytes

unsigned long long int ns3::ofi::Port::tx_bytes

Counter of Tx bytes.

Definition at line 142 of file openflow-interface.h.

◆ tx_dropped

unsigned long long int ns3::ofi::Port::tx_dropped

Counter of Tx dropped packets.

Definition at line 143 of file openflow-interface.h.

◆ tx_packets

unsigned long long int ns3::ofi::Port::tx_packets

Counter of Tx packets.

Definition at line 140 of file openflow-interface.h.

The documentation for this struct was generated from the following file:

src/openflow/model/openflow-interface.h
