ns3::olsr::MessageHeader::Tc Struct Reference

TC Message Format. More...

#include "olsr-header.h"

Collaboration diagram for ns3::olsr::MessageHeader::Tc:

Public Member Functions
uint32_t	Deserialize (Buffer::Iterator start, uint32_t messageSize)
	This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. More...
uint32_t	GetSerializedSize (void) const
	Returns the expected size of the header. More...
void	Print (std::ostream &os) const
	This method is used to print the content of a Tc message. More...
void	Serialize (Buffer::Iterator start) const
	This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. More...

Public Attributes
uint16_t	ansn
	Advertised Neighbor Sequence Number. More...
std::vector< Ipv4Address >	neighborAddresses
	Neighbor address container. More...

Detailed Description

TC Message Format.

  0                   1                   2                   3
  0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |              ANSN             |           Reserved            |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |               Advertised Neighbor Main Address                |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |               Advertised Neighbor Main Address                |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                              ...                              |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Definition at line 458 of file olsr-header.h.

Member Function Documentation

Deserialize()

uint32_t ns3::olsr::MessageHeader::Tc::Deserialize	(	Buffer::Iterator	start,
		uint32_t	messageSize
	)

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet.

Parameters

start	an iterator which points to where the header should read from.
messageSize	the message size.

Returns

the number of bytes read.

Definition at line 544 of file olsr-header.cc.

References IPV4_ADDRESS_SIZE, NS_ASSERT, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), and visualizer.core::start().

Here is the call graph for this function:

GetSerializedSize()

uint32_t ns3::olsr::MessageHeader::Tc::GetSerializedSize

(

void

)

const

Returns the expected size of the header.

Returns

the expected size of the header.

Definition at line 502 of file olsr-header.cc.

References IPV4_ADDRESS_SIZE.

Print()

void ns3::olsr::MessageHeader::Tc::Print

(

std::ostream &

os

)

const

This method is used to print the content of a Tc message.

Parameters

os	output stream

Definition at line 508 of file olsr-header.cc.

Serialize()

void ns3::olsr::MessageHeader::Tc::Serialize

(

Buffer::Iterator

start

)

const

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet.

Parameters

start

an iterator which points to where the header should be written.

Definition at line 529 of file olsr-header.cc.

References visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteHtonU32().

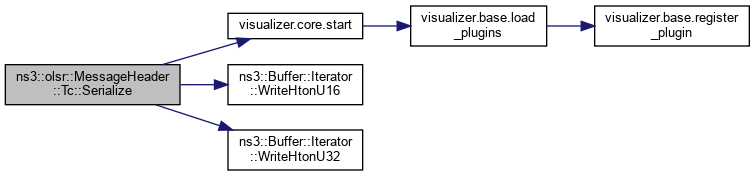

Here is the call graph for this function:

Member Data Documentation

ansn

uint16_t ns3::olsr::MessageHeader::Tc::ansn

Advertised Neighbor Sequence Number.

Definition at line 461 of file olsr-header.h.

Referenced by OlsrTcTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessTc(), and ns3::olsr::RoutingProtocol::SendTc().

neighborAddresses

std::vector<Ipv4Address> ns3::olsr::MessageHeader::Tc::neighborAddresses

Neighbor address container.

Definition at line 460 of file olsr-header.h.

Referenced by OlsrTcTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessTc(), ns3::olsr::TcRegressionTest::ReceivePktProbeA(), ns3::olsr::TcRegressionTest::ReceivePktProbeC(), and ns3::olsr::RoutingProtocol::SendTc().

---

The documentation for this struct was generated from the following files:

• src/olsr/model/olsr-header.h
• src/olsr/model/olsr-header.cc
