ns3::olsr::NeighborTuple Struct Reference

A Neighbor Tuple. More...

#include "olsr-repositories.h"

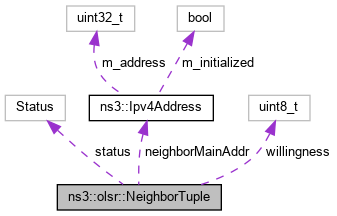

Collaboration diagram for ns3::olsr::NeighborTuple:

Public Types
enum	Status { STATUS_NOT_SYM = 0 , STATUS_SYM = 1 }
	Status of the link (Symmetric or not Symmetric). More...

Public Attributes
Ipv4Address	neighborMainAddr
	Main address of a neighbor node. More...
enum ns3::olsr::NeighborTuple::Status	status
	Status of the link. More...
uint8_t	willingness
	A value between 0 and 7 specifying the node's willingness to carry traffic on behalf of other nodes. More...

Detailed Description

A Neighbor Tuple.

Definition at line 102 of file olsr-repositories.h.

Member Enumeration Documentation

Status

enum ns3::olsr::NeighborTuple::Status

Status of the link (Symmetric or not Symmetric).

Enumerator
STATUS_NOT_SYM
STATUS_SYM

Definition at line 107 of file olsr-repositories.h.

Member Data Documentation

neighborMainAddr

Ipv4Address ns3::olsr::NeighborTuple::neighborMainAddr

Main address of a neighbor node.

Definition at line 105 of file olsr-repositories.h.

Referenced by ns3::olsr::RoutingProtocol::Degree(), ns3::olsr::OlsrState::InsertNeighborTuple(), ns3::olsr::RoutingProtocol::LinkTupleAdded(), ns3::olsr::RoutingProtocol::LinkTupleUpdated(), ns3::olsr::RoutingProtocol::MprComputation(), ns3::olsr::operator<<(), ns3::olsr::operator==(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

status

enum ns3::olsr::NeighborTuple::Status ns3::olsr::NeighborTuple::status

Status of the link.

Referenced by ns3::olsr::RoutingProtocol::LinkTupleAdded(), ns3::olsr::RoutingProtocol::LinkTupleUpdated(), ns3::olsr::operator<<(), ns3::olsr::operator==(), and ns3::olsr::RoutingProtocol::RoutingTableComputation().

willingness

uint8_t ns3::olsr::NeighborTuple::willingness

A value between 0 and 7 specifying the node's willingness to carry traffic on behalf of other nodes.

Definition at line 113 of file olsr-repositories.h.

Referenced by ns3::olsr::RoutingProtocol::LinkTupleAdded(), ns3::olsr::RoutingProtocol::MprComputation(), ns3::olsr::operator<<(), ns3::olsr::operator==(), and ns3::olsr::RoutingProtocol::PopulateNeighborSet().

---

The documentation for this struct was generated from the following file:

• src/olsr/model/olsr-repositories.h
