three-gpp-http-example.cc File Reference

#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/point-to-point-module.h"
#include "ns3/applications-module.h"

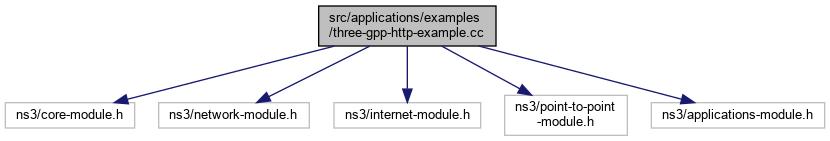

Include dependency graph for three-gpp-http-example.cc:

Go to the source code of this file.

Functions
void	ClientEmbeddedObjectReceived (Ptr< const ThreeGppHttpClient >, Ptr< const Packet > packet)
void	ClientMainObjectReceived (Ptr< const ThreeGppHttpClient >, Ptr< const Packet > packet)
void	ClientRx (Ptr< const Packet > packet, const Address &address)
void	EmbeddedObjectGenerated (uint32_t size)
void	MainObjectGenerated (uint32_t size)
void	ServerConnectionEstablished (Ptr< const ThreeGppHttpServer >, Ptr< Socket >)
void	ServerTx (Ptr< const Packet > packet)

Function Documentation

ClientEmbeddedObjectReceived()

void ClientEmbeddedObjectReceived	(	Ptr< const ThreeGppHttpClient >	,
		Ptr< const Packet >	packet
	)

Definition at line 80 of file three-gpp-http-example.cc.

References ns3::Packet::Copy(), ns3::ThreeGppHttpHeader::EMBEDDED_OBJECT, ns3::ThreeGppHttpHeader::GetContentLength(), ns3::ThreeGppHttpHeader::GetContentType(), ns3::Packet::GetSize(), NS_LOG_INFO, and ns3::Packet::RemoveHeader().

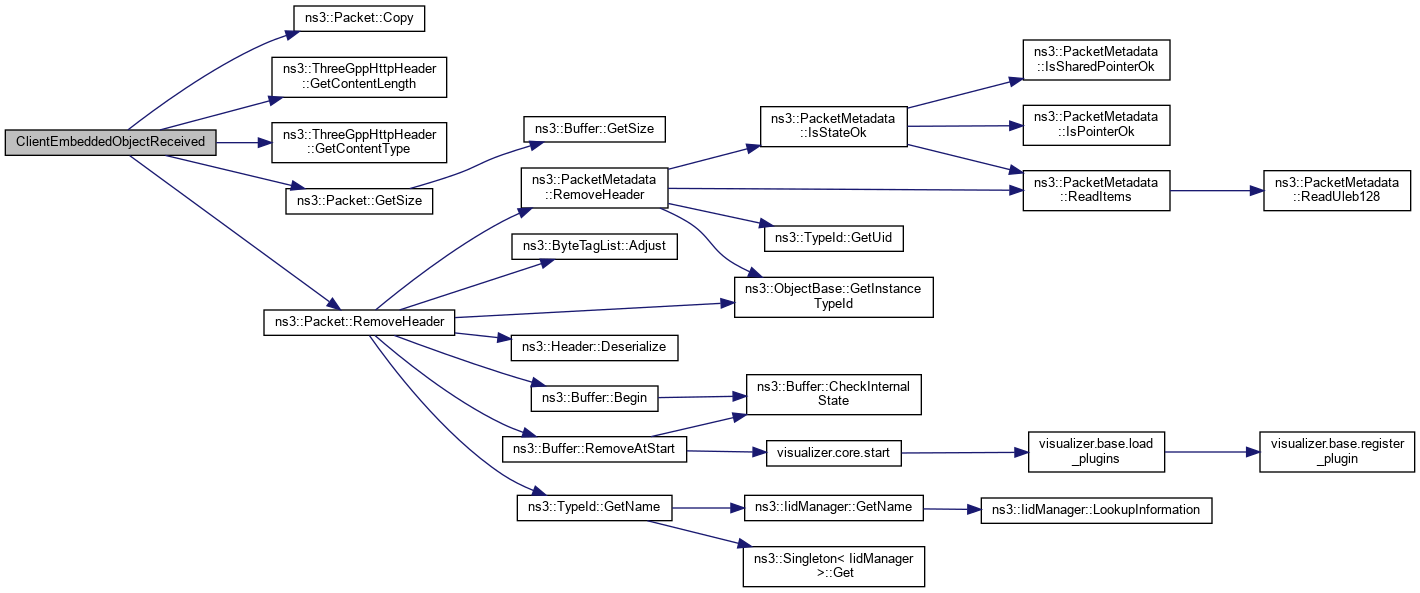

Here is the call graph for this function:

ClientMainObjectReceived()

void ClientMainObjectReceived	(	Ptr< const ThreeGppHttpClient >	,
		Ptr< const Packet >	packet
	)

Definition at line 62 of file three-gpp-http-example.cc.

References ns3::Packet::Copy(), ns3::ThreeGppHttpHeader::GetContentLength(), ns3::ThreeGppHttpHeader::GetContentType(), ns3::Packet::GetSize(), ns3::ThreeGppHttpHeader::MAIN_OBJECT, NS_LOG_INFO, and ns3::Packet::RemoveHeader().

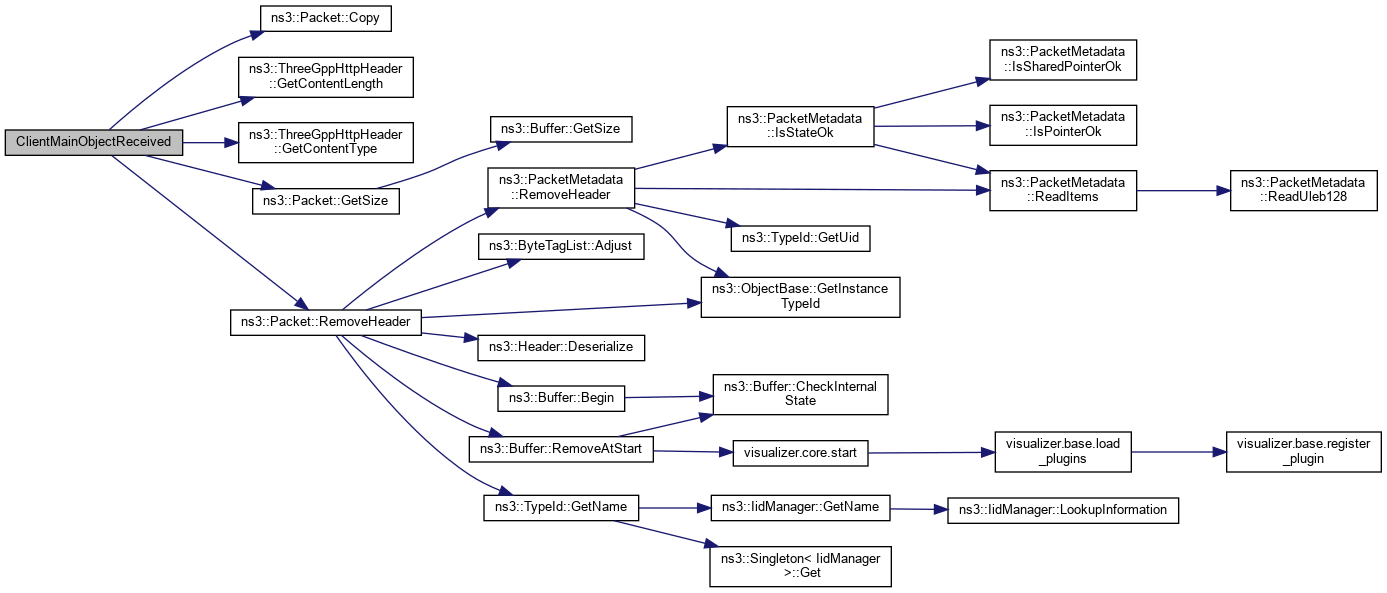

Here is the call graph for this function:

ClientRx()

void ClientRx	(	Ptr< const Packet >	packet,
		const Address &	address
	)

Definition at line 56 of file three-gpp-http-example.cc.

References first::address, ns3::Packet::GetSize(), and NS_LOG_INFO.

Here is the call graph for this function:

EmbeddedObjectGenerated()

void EmbeddedObjectGenerated

(

uint32_t

size

)

Definition at line 44 of file three-gpp-http-example.cc.

References NS_LOG_INFO.

MainObjectGenerated()

void MainObjectGenerated

(

uint32_t

size

)

Definition at line 38 of file three-gpp-http-example.cc.

References NS_LOG_INFO.

ServerConnectionEstablished()

void ServerConnectionEstablished	(	Ptr< const ThreeGppHttpServer >	,
		Ptr< Socket >
	)

Definition at line 32 of file three-gpp-http-example.cc.

References NS_LOG_INFO.

ServerTx()

void ServerTx

(

Ptr< const Packet >

packet

)

Definition at line 50 of file three-gpp-http-example.cc.

References ns3::Packet::GetSize(), and NS_LOG_INFO.

Here is the call graph for this function:
