#include "ns3/log.h"
#include "ns3/node.h"
#include "ns3/packet.h"
#include "ns3/config.h"
#include "ns3/double.h"
#include "ns3/simulator.h"
#include "ns3/command-line.h"
#include "ns3/single-model-spectrum-channel.h"
#include "ns3/spectrum-wifi-phy.h"
#include "ns3/propagation-loss-model.h"
#include "ns3/propagation-delay-model.h"
#include "ns3/interference-helper.h"
#include "ns3/nist-error-rate-model.h"
#include "ns3/constant-position-mobility-model.h"
#include "ns3/simple-frame-capture-model.h"
#include "ns3/wifi-psdu.h"
#include "ns3/wifi-mac-trailer.h"
#include "ns3/wifi-net-device.h"

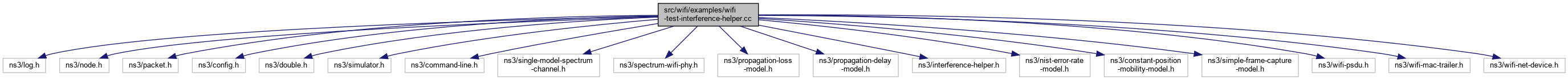

Include dependency graph for wifi-test-interference-helper.cc:

Classes
struct	InterferenceExperiment::Input
	Input structure. More...

class	InterferenceExperiment
	InterferenceExperiment. More...

Variables
bool	checkResults = false

bool	expectRxASuccessfull = false

bool	expectRxBSuccessfull = false

Detailed Description

Usage

$ ./ns3 run "wifi-test-interference-helper [Program Options]"

Program Options

–delay: Delay in microseconds between frame transmission from sender A and frame transmission from sender B [0]
–xA: The position of transmitter A (< 0) [-5]
–xB: The position of transmitter B (> 0) [5]
–packetSizeA: Packet size in bytes of transmitter A [1500]
–packetSizeB: Packet size in bytes of transmitter B [1500]
–txPowerA: TX power level of transmitter A [16.0206]
–txPowerB: TX power level of transmitter B [16.0206]
–txModeA: Wifi mode used for payload transmission of sender A [OfdmRate54Mbps]
–txModeB: Wifi mode used for payload transmission of sender B [OfdmRate54Mbps]
–channelA: The selected channel number of sender A [36]
–channelB: The selected channel number of sender B [36]
–widthA: The selected channel width (MHz) of sender A [20]
–widthB: The selected channel width (MHz) of sender B [20]
–standard: IEEE 802.11 flavor [WIFI_PHY_STANDARD_80211a]
–preamble: Type of preamble [WIFI_PREAMBLE_LONG]
–enableCapture: Enable/disable physical layer capture [false]
–captureMargin: Margin used for physical layer capture [0]
–checkResults: Used to check results at the end of the test [false]
–expectRxASuccessfull: Indicate whether packet A is expected to be successfully received [false]
–expectRxBSuccessfull: Indicate whether packet B is expected to be successfully received [false]
