energy-model-with-harvesting-example.cc File Reference

#include "ns3/core-module.h"
#include "ns3/energy-module.h"
#include "ns3/internet-module.h"
#include "ns3/mobility-module.h"
#include "ns3/network-module.h"
#include "ns3/wifi-radio-energy-model-helper.h"
#include "ns3/yans-wifi-helper.h"
#include <fstream>
#include <iostream>
#include <string>
#include <vector>

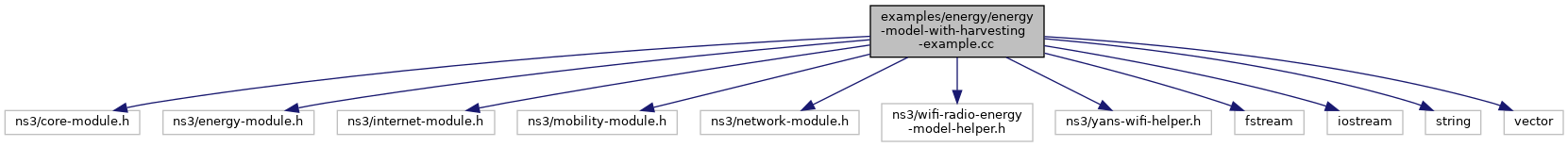

Include dependency graph for energy-model-with-harvesting-example.cc:

Go to the source code of this file.

Functions
static void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, Ptr< Node > n, uint32_t pktCount, Time pktInterval)
void	HarvestedPower (double oldValue, double harvestedPower)
	Trace function for the power harvested by the energy harvester. More...
static std::string	PrintReceivedPacket (Address &from)
	Print a received packet. More...
void	ReceivePacket (Ptr< Socket > socket)
void	RemainingEnergy (double oldValue, double remainingEnergy)
	Trace function for remaining energy at node. More...
void	TotalEnergy (double oldValue, double totalEnergy)
	Trace function for total energy consumption at node. More...
void	TotalEnergyHarvested (double oldValue, double totalEnergyHarvested)
	Trace function for the total energy harvested by the node. More...

Function Documentation

GenerateTraffic()

static void GenerateTraffic ( Ptr< Socket >  socket, uint32_t  pktSize, Ptr< Node >  n, uint32_t  pktCount, Time  pktInterval  )

static

Parameters

socket	Pointer to socket.
pktSize	Packet size.
n	Pointer to node.
pktCount	Number of packets to generate.
pktInterval	Packet sending interval.

Traffic generator.

Definition at line 113 of file energy-model-with-harvesting-example.cc.

References ns3::Socket::Close(), pktSize, ns3::Simulator::Schedule(), and ns3::Socket::Send().

Here is the call graph for this function:

HarvestedPower()

void HarvestedPower	(	double	oldValue,
		double	harvestedPower
	)

Trace function for the power harvested by the energy harvester.

Parameters

oldValue	Old value
harvestedPower	New value

Definition at line 169 of file energy-model-with-harvesting-example.cc.

References ns3::Simulator::Now(), and NS_LOG_UNCOND.

Here is the call graph for this function:

PrintReceivedPacket()

static std::string PrintReceivedPacket ( Address &  from )

inlinestatic

Print a received packet.

Parameters

from	sender address

Returns

a string with the details of the packet: dst {IP, port}, time.

Definition at line 73 of file energy-model-with-harvesting-example.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by ReceivePacket().

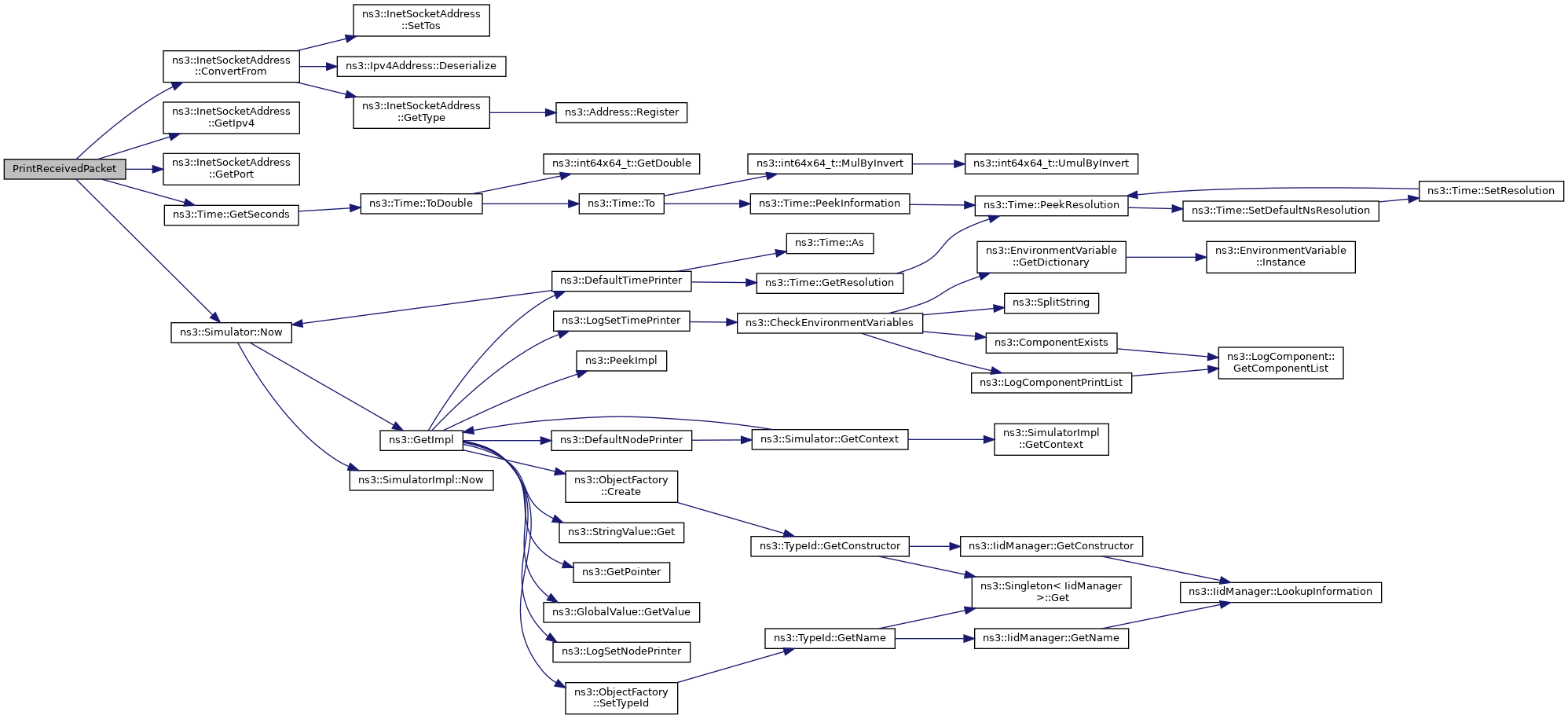

Here is the call graph for this function:

Here is the caller graph for this function:

ReceivePacket()

void ReceivePacket

(

Ptr< Socket >

socket

)

Parameters

socket

Pointer to socket.

Packet receiving sink.

Definition at line 90 of file energy-model-with-harvesting-example.cc.

References ns3::Packet::GetSize(), NS_LOG_UNCOND, PrintReceivedPacket(), and ns3::Socket::RecvFrom().

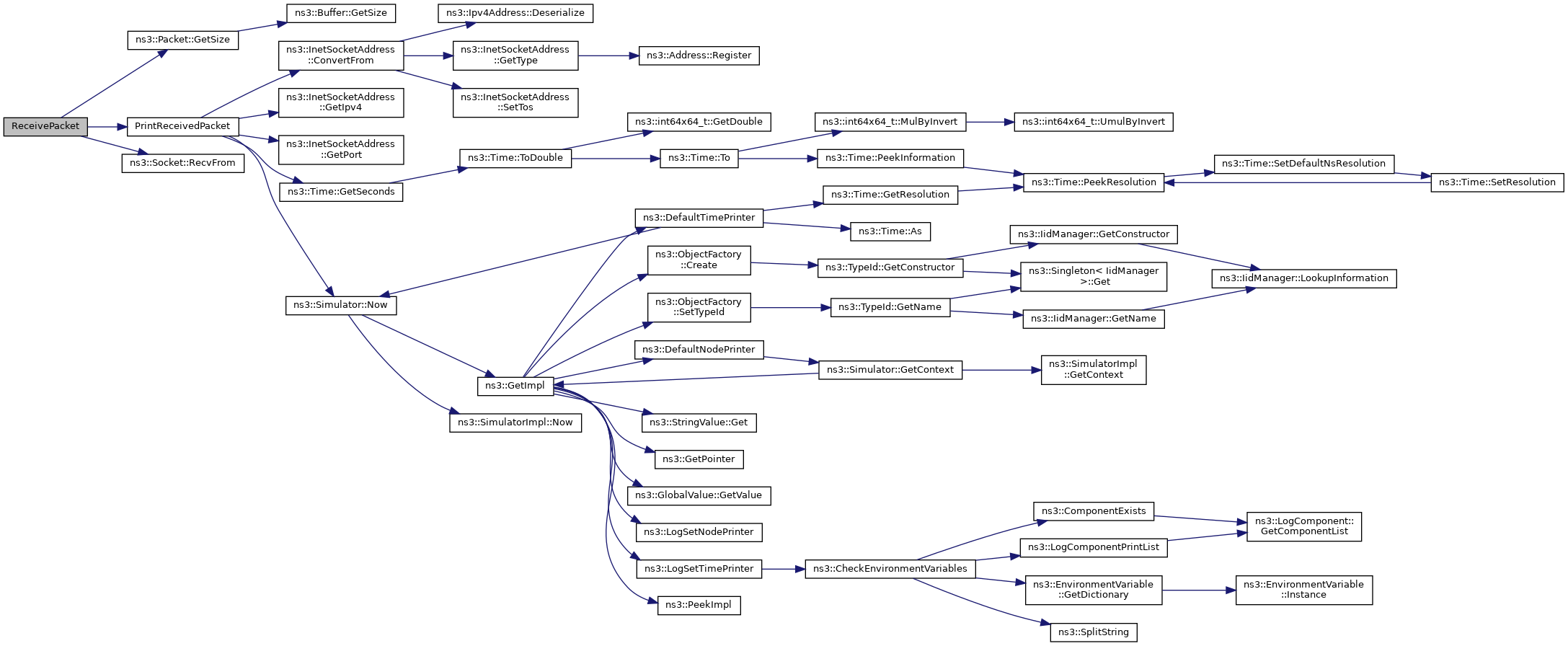

Here is the call graph for this function:

RemainingEnergy()

void RemainingEnergy	(	double	oldValue,
		double	remainingEnergy
	)

Trace function for remaining energy at node.

Parameters

oldValue	Old value
remainingEnergy	New value

Definition at line 143 of file energy-model-with-harvesting-example.cc.

References ns3::Simulator::Now(), and NS_LOG_UNCOND.

Here is the call graph for this function:

TotalEnergy()

void TotalEnergy	(	double	oldValue,
		double	totalEnergy
	)

Trace function for total energy consumption at node.

Parameters

oldValue	Old value
totalEnergy	New value

Definition at line 156 of file energy-model-with-harvesting-example.cc.

References ns3::Simulator::Now(), and NS_LOG_UNCOND.

Here is the call graph for this function:

TotalEnergyHarvested()

void TotalEnergyHarvested	(	double	oldValue,
		double	totalEnergyHarvested
	)

Trace function for the total energy harvested by the node.

Parameters

oldValue	Old value
totalEnergyHarvested	New value

Definition at line 182 of file energy-model-with-harvesting-example.cc.

References ns3::Simulator::Now(), and NS_LOG_UNCOND.

Here is the call graph for this function:
