A Discrete-Event Network Simulator
API
PointToPointTest Class Reference

Test class for PointToPoint model. More...

+ Inheritance diagram for PointToPointTest:

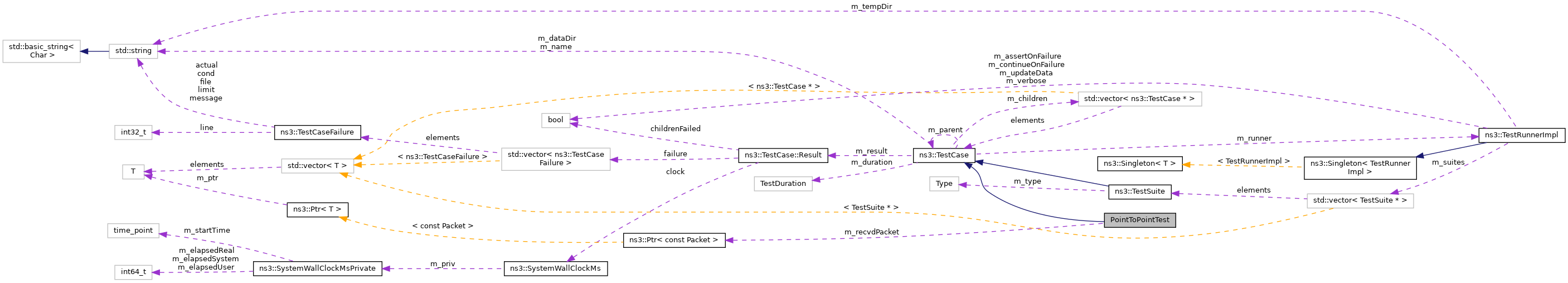

+ Collaboration diagram for PointToPointTest:

Public Member Functions

 PointToPointTest ()
 Create the test. More...

void DoRun () override
 Run the test. More...

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor. More...

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

bool RxPacket (Ptr< NetDevice > dev, Ptr< const Packet > pkt, uint16_t mode, const Address &sender)
 Callback function which sets the recvdPacket parameter. More...

void SendOnePacket (Ptr< PointToPointNetDevice > device, const uint8_t *buffer, uint32_t size)
 Send one packet to the device specified. More...


Private Attributes

Ptr< const Packetm_recvdPacket
 received packet More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCase. More...

bool IsStatusFailure () const
 Check if any tests failed. More...

bool IsStatusSuccess () const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure () const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure () const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

Test class for PointToPoint model.

It tries to send one packet from one NetDevice to another, over a PointToPointChannel.

Definition at line 37 of file point-to-point-test.cc.

Constructor & Destructor Documentation

◆ PointToPointTest()

PointToPointTest::PointToPointTest ( )

Create the test.

Definition at line 73 of file point-to-point-test.cc.

Member Function Documentation

◆ DoRun()

void PointToPointTest::DoRun ( void  )
overridevirtual

◆ RxPacket()

bool PointToPointTest::RxPacket ( Ptr< NetDevice dev,
Ptr< const Packet pkt,
uint16_t  mode,
const Address sender
)
private

Callback function which sets the recvdPacket parameter.

Parameters
devThe receiving device.
pktThe received packet.
modeThe protocol mode used.
senderThe sender address.
Returns
A boolean indicating packet handled properly.

Definition at line 88 of file point-to-point-test.cc.

References m_recvdPacket.

Referenced by DoRun().

+ Here is the caller graph for this function:

◆ SendOnePacket()

void PointToPointTest::SendOnePacket ( Ptr< PointToPointNetDevice device,
const uint8_t *  buffer,
uint32_t  size
)
private

Send one packet to the device specified.

Parameters
deviceNetDevice to send to.
bufferPayload content of the packet.
sizeSize of the payload.

Definition at line 79 of file point-to-point-test.cc.

Referenced by DoRun().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_recvdPacket

Ptr<const Packet> PointToPointTest::m_recvdPacket
private

received packet

Definition at line 51 of file point-to-point-test.cc.

Referenced by DoRun(), and RxPacket().


The documentation for this class was generated from the following file:
