Create an EPC network with PointToPoint links in the backhaul network. More...

#include "point-to-point-epc-helper.h"

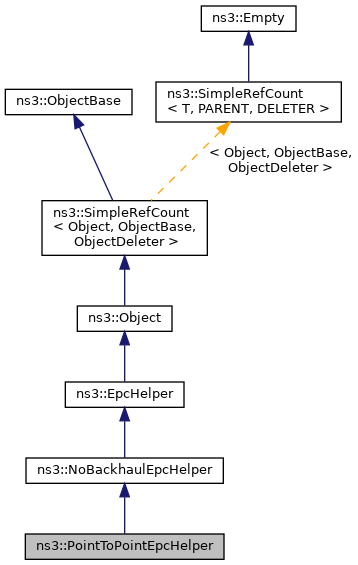

Inheritance diagram for ns3::PointToPointEpcHelper:

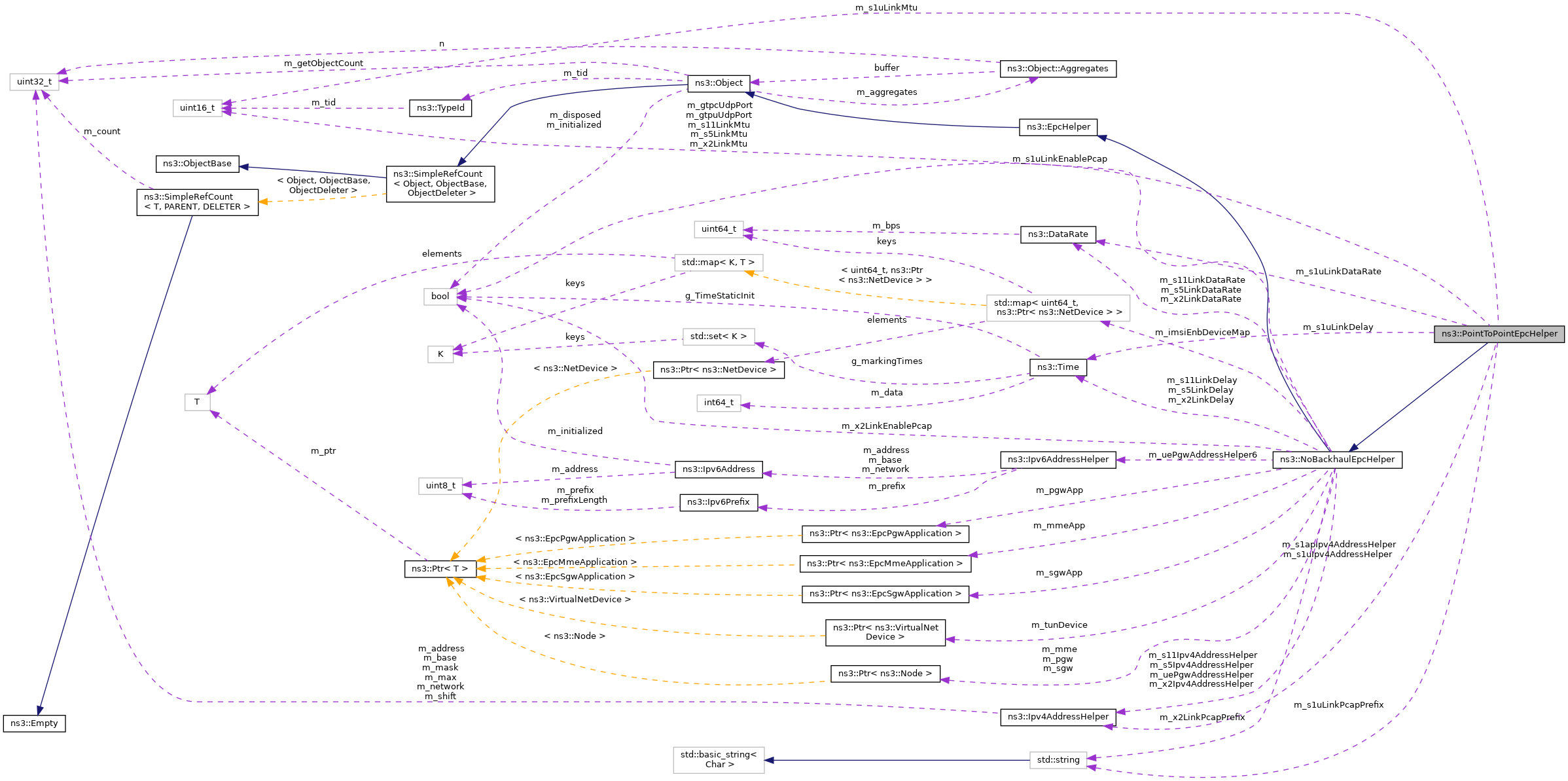

Collaboration diagram for ns3::PointToPointEpcHelper:

Public Member Functions
	PointToPointEpcHelper ()
	Constructor. More...

	~PointToPointEpcHelper () override
	Destructor. More...

void	AddEnb (Ptr< Node > enbNode, Ptr< NetDevice > lteEnbNetDevice, std::vector< uint16_t > cellIds) override
	Add an eNB to the EPC. More...

void	DoDispose () override
	Destructor implementation. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

Public Member Functions inherited from ns3::NoBackhaulEpcHelper
	NoBackhaulEpcHelper ()
	Constructor. More...

	~NoBackhaulEpcHelper () override
	Destructor. More...

uint8_t	ActivateEpsBearer (Ptr< NetDevice > ueLteDevice, uint64_t imsi, Ptr< EpcTft > tft, EpsBearer bearer) override
	Activate an EPS bearer, setting up the corresponding S1-U tunnel. More...

void	AddS1Interface (Ptr< Node > enb, Ipv4Address enbAddress, Ipv4Address sgwAddress, std::vector< uint16_t > cellIds) override
	Add an S1 interface between an eNB and a SGW. More...

void	AddUe (Ptr< NetDevice > ueLteDevice, uint64_t imsi) override
	Notify the EPC of the existence of a new UE which might attach at a later time. More...

void	AddX2Interface (Ptr< Node > enbNode1, Ptr< Node > enbNode2) override
	Add an X2 interface between two eNB. More...

int64_t	AssignStreams (int64_t stream) override
	Assign a fixed random variable stream number to the random variables used. More...

Ipv4InterfaceContainer	AssignUeIpv4Address (NetDeviceContainer ueDevices) override
	Assign IPv4 addresses to UE devices. More...

Ipv6InterfaceContainer	AssignUeIpv6Address (NetDeviceContainer ueDevices) override
	Assign IPv6 addresses to UE devices. More...

Ptr< Node >	GetPgwNode () const override
	Get the PGW node. More...

Ptr< Node >	GetSgwNode () const override
	Get the SGW node. More...

Ipv4Address	GetUeDefaultGatewayAddress () override

Ipv6Address	GetUeDefaultGatewayAddress6 () override

Public Member Functions inherited from ns3::EpcHelper
	EpcHelper ()
	Constructor. More...

	~EpcHelper () override
	Destructor. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::NoBackhaulEpcHelper
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::EpcHelper
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
Ipv4AddressHelper	m_s1apIpv4AddressHelper
	Helper to assign addresses to S1-MME NetDevices. More...

Ipv4AddressHelper	m_s1uIpv4AddressHelper
	S1-U interfaces. More...

DataRate	m_s1uLinkDataRate
	The data rate to be used for the next S1-U link to be created. More...

Time	m_s1uLinkDelay
	The delay to be used for the next S1-U link to be created. More...

bool	m_s1uLinkEnablePcap
	Enable PCAP generation for S1 link. More...

uint16_t	m_s1uLinkMtu
	The MTU of the next S1-U link to be created. More...

std::string	m_s1uLinkPcapPrefix
	Prefix for the PCAP file for the S1 link. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::NoBackhaulEpcHelper
virtual void	DoActivateEpsBearerForUe (const Ptr< NetDevice > &ueDevice, const Ptr< EpcTft > &tft, const EpsBearer &bearer) const
	DoActivateEpsBearerForUe: Schedule ActivateEpsBearer on the UE. More...

virtual void	DoAddX2Interface (const Ptr< EpcX2 > &enb1X2, const Ptr< NetDevice > &enb1LteDev, const Ipv4Address &enb1X2Address, const Ptr< EpcX2 > &enb2X2, const Ptr< NetDevice > &enb2LteDev, const Ipv4Address &enb2X2Address) const
	DoAddX2Interface: Call AddX2Interface on top of the Enb device pointers. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Create an EPC network with PointToPoint links in the backhaul network.

This Helper extends NoBackhaulEpcHelper creating PointToPoint links in the backhaul network (i.e. in the S1-U and S1-MME interfaces)

Definition at line 39 of file point-to-point-epc-helper.h.

Constructor & Destructor Documentation

◆ PointToPointEpcHelper()

ns3::PointToPointEpcHelper::PointToPointEpcHelper ( )

Constructor.

Definition at line 38 of file point-to-point-epc-helper.cc.

References ns3::ObjectBase::ConstructSelf(), m_s1apIpv4AddressHelper, m_s1uIpv4AddressHelper, NS_LOG_FUNCTION, and ns3::Ipv4AddressHelper::SetBase().

Here is the call graph for this function:

◆ ~PointToPointEpcHelper()

ns3::PointToPointEpcHelper::~PointToPointEpcHelper ( )

override

Destructor.

Definition at line 52 of file point-to-point-epc-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddEnb()

void ns3::PointToPointEpcHelper::AddEnb	(	Ptr< Node >	enbNode,
		Ptr< NetDevice >	lteEnbNetDevice,
		std::vector< uint16_t >	cellIds
	)

overridevirtual

Add an eNB to the EPC.

Parameters

enbNode	the previously created eNB node which is to be added to the EPC
lteEnbNetDevice	the LteEnbNetDevice of the eNB node
cellIds	IDs of cells served by this eNB

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 110 of file point-to-point-epc-helper.cc.

References ns3::NoBackhaulEpcHelper::AddEnb(), ns3::NoBackhaulEpcHelper::AddS1Interface(), ns3::Ipv4AddressHelper::Assign(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4::GetNInterfaces(), ns3::Object::GetObject(), ns3::NoBackhaulEpcHelper::GetSgwNode(), ns3::PointToPointHelper::Install(), m_s1uIpv4AddressHelper, m_s1uLinkDataRate, m_s1uLinkDelay, m_s1uLinkEnablePcap, m_s1uLinkMtu, m_s1uLinkPcapPrefix, ns3::Ipv4AddressHelper::NewNetwork(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::PointToPointHelper::SetChannelAttribute(), and ns3::PointToPointHelper::SetDeviceAttribute().

Referenced by EpcS1uDlTestCase::DoRun(), and EpcS1uUlTestCase::DoRun().

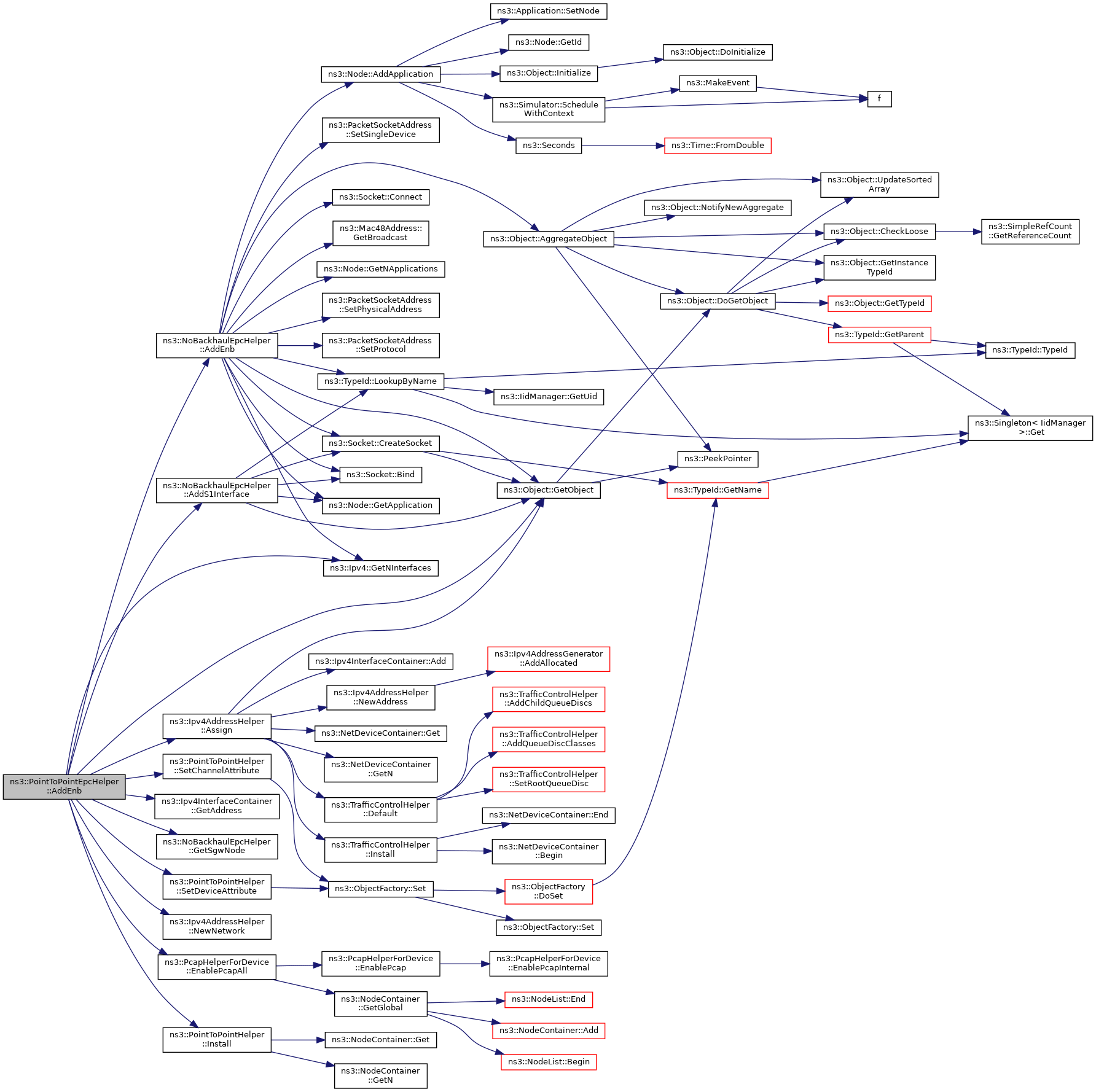

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::PointToPointEpcHelper::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 103 of file point-to-point-epc-helper.cc.

References ns3::NoBackhaulEpcHelper::DoDispose(), and NS_LOG_FUNCTION.

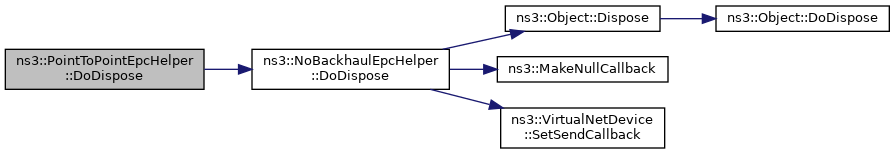

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::PointToPointEpcHelper::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
