Make it easy to create and manage PHY objects for the YANS model. More...
#include "yans-wifi-helper.h"

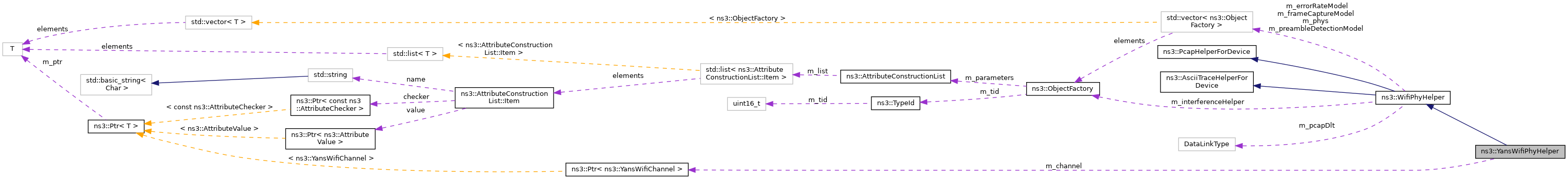

Inheritance diagram for ns3::YansWifiPhyHelper: Collaboration diagram for ns3::YansWifiPhyHelper:Public Member Functions | |
| YansWifiPhyHelper () | |
| Create a PHY helper. More... | |
| void | SetChannel (Ptr< YansWifiChannel > channel) |
| void | SetChannel (std::string channelName) |
| Public Member Functions inherited from ns3::WifiPhyHelper | |
| WifiPhyHelper (uint8_t nLinks=1) | |
| Constructor. More... | |
| ~WifiPhyHelper () override | |
| void | DisablePreambleDetectionModel () |
| Disable the preamble detection model on all links. More... | |
| PcapHelper::DataLinkType | GetPcapDataLinkType () const |
| Get the data link type of PCAP traces to be used. More... | |
| void | Set (std::string name, const AttributeValue &v) |
| void | Set (uint8_t linkId, std::string name, const AttributeValue &v) |
| template<typename... Args> | |
| void | SetErrorRateModel (std::string type, Args &&... args) |
| Helper function used to set the error rate model. More... | |
| template<typename... Args> | |
| void | SetErrorRateModel (uint8_t linkId, std::string type, Args &&... args) |
| template<typename... Args> | |
| void | SetFrameCaptureModel (std::string type, Args &&... args) |
| Helper function used to set the frame capture model. More... | |
| template<typename... Args> | |
| void | SetFrameCaptureModel (uint8_t linkId, std::string type, Args &&... args) |
| template<typename... Args> | |
| void | SetInterferenceHelper (std::string type, Args &&... args) |
| Helper function used to set the interference helper. More... | |
| void | SetPcapDataLinkType (SupportedPcapDataLinkTypes dlt) |
| Set the data link type of PCAP traces to be used. More... | |
| template<typename... Args> | |
| void | SetPreambleDetectionModel (std::string type, Args &&... args) |
| Helper function used to set the preamble detection model. More... | |
| template<typename... Args> | |
| void | SetPreambleDetectionModel (uint8_t linkId, std::string type, Args &&... args) |
| Public Member Functions inherited from ns3::PcapHelperForDevice | |
| PcapHelperForDevice () | |
| Construct a PcapHelperForDevice. More... | |
| virtual | ~PcapHelperForDevice () |
| Destroy a PcapHelperForDevice. More... | |
| void | EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false) |
| Enable pcap output on each device in the container which is of the appropriate type. More... | |
| void | EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false) |
| Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More... | |
| void | EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false) |
| Enable pcap output the indicated net device. More... | |
| void | EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false) |
| Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More... | |
| void | EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false) |
| Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More... | |
| void | EnablePcapAll (std::string prefix, bool promiscuous=false) |
| Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More... | |
| Public Member Functions inherited from ns3::AsciiTraceHelperForDevice | |
| AsciiTraceHelperForDevice () | |
| Construct an AsciiTraceHelperForDevice. More... | |
| virtual | ~AsciiTraceHelperForDevice () |
| Destroy an AsciiTraceHelperForDevice. More... | |
| void | EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d) |
| Enable ascii trace output on each device in the container which is of the appropriate type. More... | |
| void | EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n) |
| Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More... | |
| void | EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd) |
| Enable ascii trace output on the indicated net device. More... | |
| void | EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName) |
| Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More... | |
| void | EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid) |
| Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More... | |
| void | EnableAscii (std::string prefix, NetDeviceContainer d) |
| Enable ascii trace output on each device in the container which is of the appropriate type. More... | |
| void | EnableAscii (std::string prefix, NodeContainer n) |
| Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More... | |
| void | EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false) |
| Enable ascii trace output on the indicated net device. More... | |
| void | EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false) |
| Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More... | |
| void | EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename) |
| Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More... | |
| void | EnableAsciiAll (Ptr< OutputStreamWrapper > stream) |
| Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More... | |
| void | EnableAsciiAll (std::string prefix) |
| Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More... | |
Private Member Functions | |
| std::vector< Ptr< WifiPhy > > | Create (Ptr< Node > node, Ptr< WifiNetDevice > device) const override |
Private Attributes | |
| Ptr< YansWifiChannel > | m_channel |
| YANS wifi channel. More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::WifiPhyHelper | |
| enum | SupportedPcapDataLinkTypes { DLT_IEEE802_11 , DLT_PRISM_HEADER , DLT_IEEE802_11_RADIO } |
| An enumeration of the pcap data link types (DLTs) which this helper supports. More... | |
| Static Protected Member Functions inherited from ns3::WifiPhyHelper | |
| static void | PcapSniffRxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId=SU_STA_ID) |
| static void | PcapSniffTxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId=SU_STA_ID) |
| Protected Attributes inherited from ns3::WifiPhyHelper | |
| std::vector< ObjectFactory > | m_errorRateModel |
| error rate model More... | |
| std::vector< ObjectFactory > | m_frameCaptureModel |
| frame capture model More... | |
| ObjectFactory | m_interferenceHelper |
| interference helper More... | |
| std::vector< ObjectFactory > | m_phys |
| PHY objects. More... | |
| std::vector< ObjectFactory > | m_preambleDetectionModel |
| preamble detection model More... | |
Make it easy to create and manage PHY objects for the YANS model.
The YANS PHY model is described in "Yet Another Network Simulator", published in WNS2 2006; an author-prepared version of this paper is at: https://hal.inria.fr/file/index/docid/78318/filename/yans-rr.pdf
The Pcap and ASCII traces generated by the EnableAscii and EnablePcap methods defined in this class correspond to PHY-level traces and come to us via WifiPhyHelper
Definition at line 119 of file yans-wifi-helper.h.
| ns3::YansWifiPhyHelper::YansWifiPhyHelper | ( | ) |
Create a PHY helper.
Definition at line 81 of file yans-wifi-helper.cc.
References ns3::WifiPhyHelper::m_phys, ns3::WifiPhyHelper::SetErrorRateModel(), and ns3::WifiPhyHelper::SetInterferenceHelper().
Here is the call graph for this function:
|
overrideprivatevirtual |
| node | the node on which we wish to create a wifi PHY |
| device | the device within which this PHY will be created |
This method implements the pure virtual method defined in ns3::WifiPhyHelper.
Implements ns3::WifiPhyHelper.
Definition at line 104 of file yans-wifi-helper.cc.
References ns3::ObjectFactory::Create(), m_channel, ns3::WifiPhyHelper::m_errorRateModel, ns3::WifiPhyHelper::m_frameCaptureModel, ns3::WifiPhyHelper::m_interferenceHelper, ns3::WifiPhyHelper::m_phys, ns3::WifiPhyHelper::m_preambleDetectionModel, and third::phy.

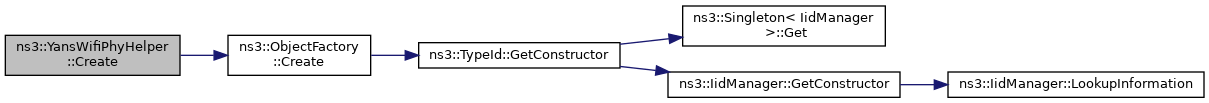

Here is the call graph for this function:| void ns3::YansWifiPhyHelper::SetChannel | ( | Ptr< YansWifiChannel > | channel | ) |
| channel | the channel to associate to this helper |
Every PHY created by a call to Install is associated to this channel.
Definition at line 91 of file yans-wifi-helper.cc.
References third::channel, and m_channel.
Referenced by BatteryLifetimeTest::ConstantLoadTest(), AodvExample::CreateDevices(), ChainRegressionTest::CreateDevices(), Bug772ChainTest::CreateDevices(), TracerouteExample::CreateDevices(), HwmpProactiveRegressionTest::CreateDevices(), HwmpReactiveRegressionTest::CreateDevices(), HwmpSimplestRegressionTest::CreateDevices(), HwmpDoRfRegressionTest::CreateDevices(), PeerManagementProtocolRegressionTest::CreateDevices(), FlameRegressionTest::CreateDevices(), DsdvManetExample::CreateDevices(), MeshTest::CreateNodes(), BasicEnergyDepletionTest::DepletionTestCase(), ns3::aodv::LoopbackTestCase::DoRun(), WifiAcMappingTest::DoRun(), WifiMsduAggregatorThroughputTest::DoRun(), experiment(), RoutingExperiment::Run(), and BatteryLifetimeTest::VariableLoadTest().

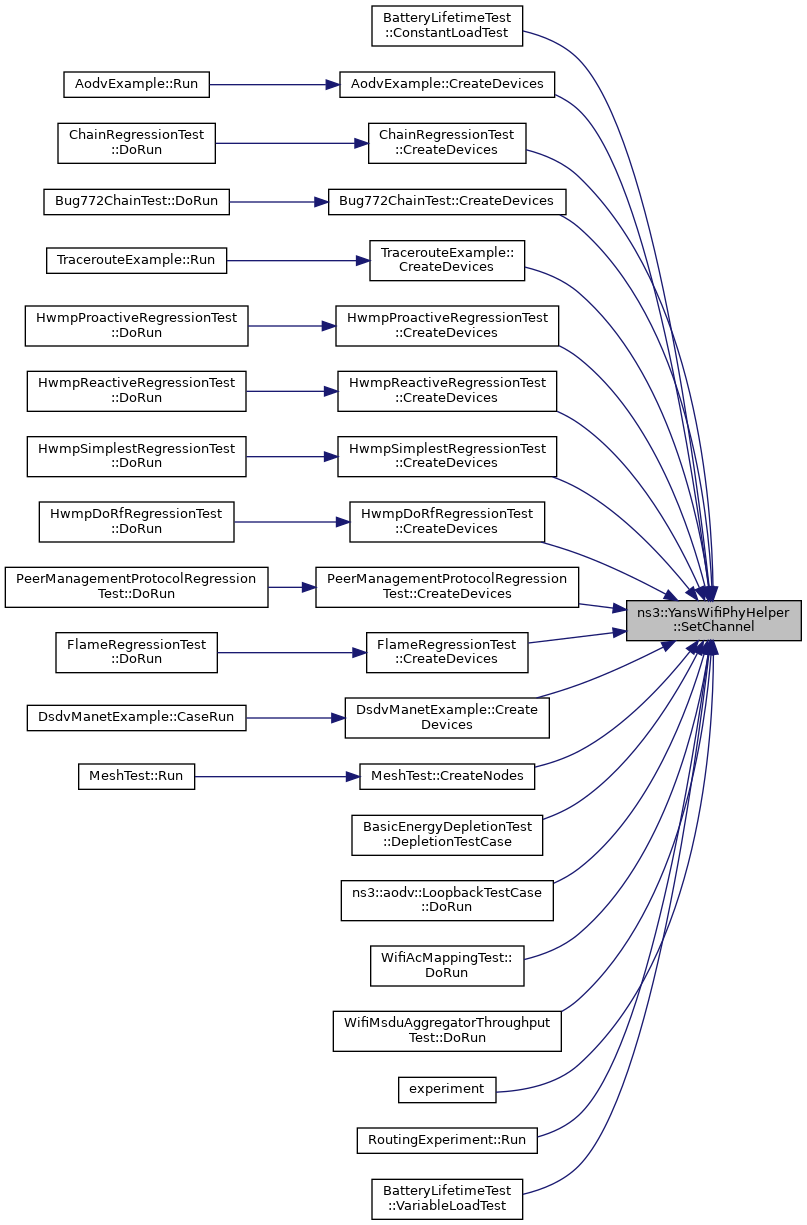

Here is the caller graph for this function:| void ns3::YansWifiPhyHelper::SetChannel | ( | std::string | channelName | ) |
| channelName | The name of the channel to associate to this helper |
Every PHY created by a call to Install is associated to this channel.
Definition at line 97 of file yans-wifi-helper.cc.
References third::channel, and m_channel.
|
private |
YANS wifi channel.
Definition at line 150 of file yans-wifi-helper.h.
Referenced by Create(), and SetChannel().
