ns3::DistributedSimulatorImpl Class Reference

Distributed simulator implementation using lookahead. More...

#include "distributed-simulator-impl.h"

+ Inheritance diagram for ns3::DistributedSimulatorImpl:

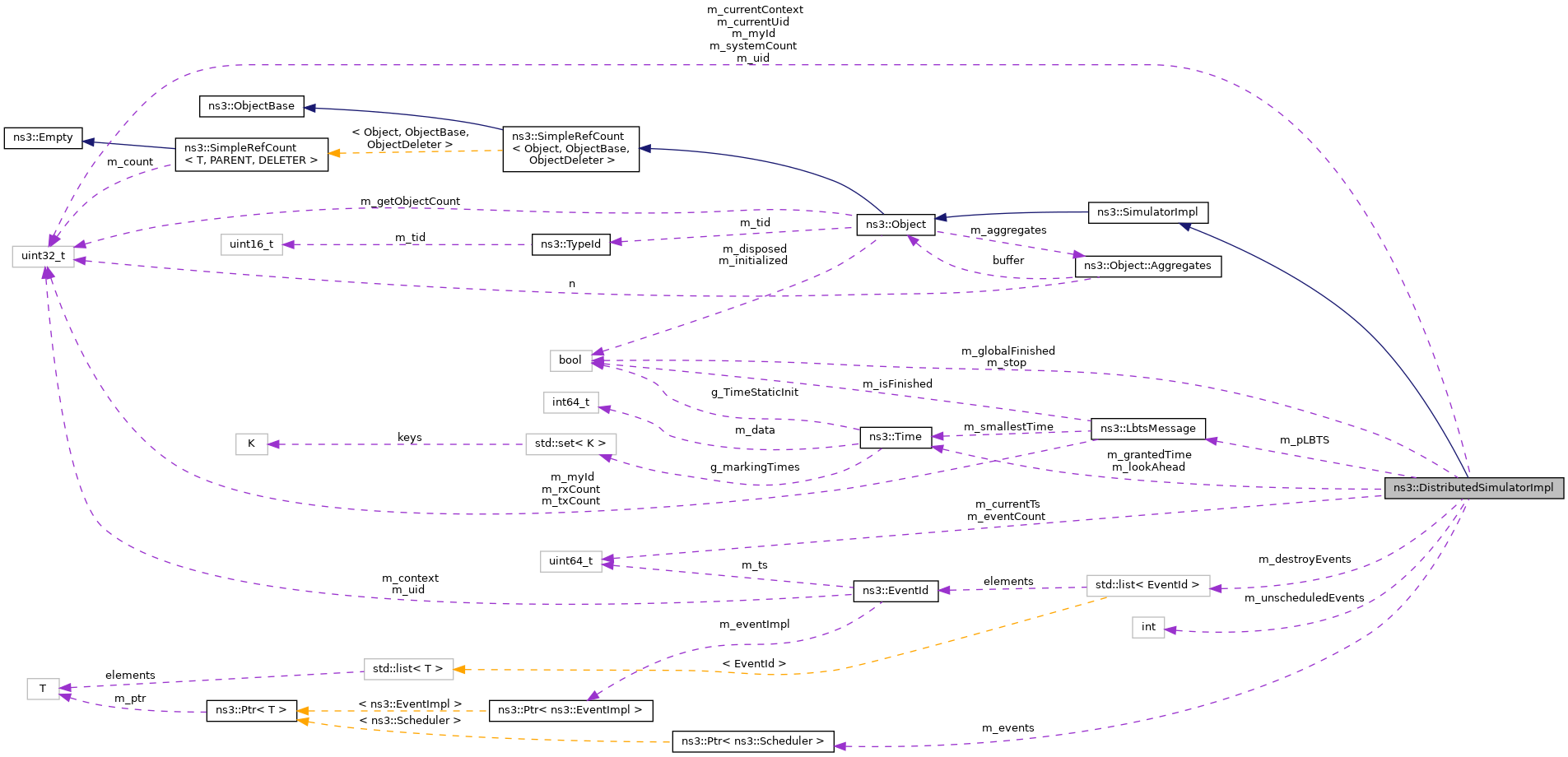

+ Collaboration diagram for ns3::DistributedSimulatorImpl:

Public Member Functions

 DistributedSimulatorImpl ()
 Default constructor. More...

 ~DistributedSimulatorImpl () override
 Destructor. More...

virtual void BoundLookAhead (const Time lookAhead)
 Add additional bound to lookahead constraints. More...

void Cancel (const EventId &id) override
 Set the cancel bit on this event: the event's associated function will not be invoked when it expires. More...

void Destroy () override
 Execute the events scheduled with ScheduleDestroy().
More...

uint32_t GetContext () const override
 Get the current simulation context. More...

Time GetDelayLeft (const EventId &id) const override
 Get the remaining time until this event will execute. More...

uint64_t GetEventCount () const override
 Get the number of events executed. More...

Time GetMaximumSimulationTime () const override
 Get the maximum representable simulation time. More...

uint32_t GetSystemId () const override
 Get the system id of this simulator. More...

bool IsExpired (const EventId &id) const override
 Check if an event has already run or been cancelled. More...

bool IsFinished () const override
 Check if the simulation should finish. More...

Time Now () const override
 Return the current simulation virtual time. More...

void Remove (const EventId &id) override
 Remove an event from the event list. More...

void Run () override
 Run the simulation. More...

EventId Schedule (const Time &delay, EventImpl *event) override
 Schedule a future event execution (in the same context). More...

EventId ScheduleDestroy (EventImpl *event) override
 Schedule an event to run at the end of the simulation, after the Stop() time or condition has been reached. More...

EventId ScheduleNow (EventImpl *event) override
 Schedule an event to run at the current virtual time. More...

void ScheduleWithContext (uint32_t context, const Time &delay, EventImpl *event) override
 Schedule a future event execution (in a different context). More...

void SetScheduler (ObjectFactory schedulerFactory) override
 Set the Scheduler to be used to manage the event list. More...

void Stop () override
 Tell the Simulator the calling event should be the last one executed. More...

EventId Stop (const Time &delay) override
 Schedule the time delay until the Simulator should stop. More...

- Public Member Functions inherited from ns3::SimulatorImpl
virtual void PreEventHook (const EventId &id)
 Hook called before processing each event. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

 ~Object () override
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose ()
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one. More...

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized () const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount () const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o[[maybe_unused]])
 Assignment operator. More...

void Ref () const
 Increment the reference count. More...

void Unref () const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimulatorImpl
static TypeId GetTypeId ()
 Get the registered TypeId for this class. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID. More...


Private Types

typedef std::list< EventIdDestroyEvents
 Container type for the events to run at Simulator::Destroy(). More...


Private Member Functions

void CalculateLookAhead ()
 Calculate lookahead constraint based on network latency. More...

void DoDispose () override
 Destructor implementation. More...

bool IsLocalFinished () const
 Check if this rank is finished. More...

Time Next () const
 Get the time of the next event, as returned by NextTs(). More...

uint64_t NextTs () const
 Get the timestep of the next event. More...

void ProcessOneEvent ()
 Process the next event. More...


Private Attributes

uint32_t m_currentContext
 Execution context of the current event. More...

uint64_t m_currentTs
 Timestamp of the current event. More...

uint32_t m_currentUid
 Unique id of the current event. More...

DestroyEvents m_destroyEvents
 The container of events to run at Destroy() More...

uint64_t m_eventCount
 The event count. More...

Ptr< Schedulerm_events
 The event priority queue. More...

bool m_globalFinished
 Are all parallel instances completed. More...

Time m_grantedTime
 End of current window. More...

uint32_t m_myId
 MPI rank. More...

LbtsMessagem_pLBTS
 Container for Lbts messages, one per rank. More...

bool m_stop
 Flag calling for the end of the simulation. More...

uint32_t m_systemCount
 MPI communicator size. More...

uint32_t m_uid
 Next event unique id. More...

int m_unscheduledEvents
 Number of events that have been inserted but not yet scheduled, not counting the "destroy" events; this is used for validation. More...


Static Private Attributes

static Time m_lookAhead = Time::Max()
 Current window size. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize ()
 Initialize() implementation. More...

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Distributed simulator implementation using lookahead.

Definition at line 107 of file distributed-simulator-impl.h.

Member Typedef Documentation

◆ DestroyEvents

Container type for the events to run at Simulator::Destroy().

Definition at line 196 of file distributed-simulator-impl.h.

Constructor & Destructor Documentation

◆ DistributedSimulatorImpl()

◆ ~DistributedSimulatorImpl()

ns3::DistributedSimulatorImpl::~DistributedSimulatorImpl ( )
override

Destructor.

Definition at line 123 of file distributed-simulator-impl.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ BoundLookAhead()

void ns3::DistributedSimulatorImpl::BoundLookAhead ( const Time  lookAhead)
virtual

Add additional bound to lookahead constraints.

This may be used if there are additional constraints on lookahead in addition to the minimum inter rank latency time. For example when running ns-3 in a co-simulation setting the other simulators may have tighter lookahead constraints.

The method may be invoked more than once, the minimum time will be used to constrain lookahead.

Parameters
[in]lookAheadThe maximum lookahead; must be > 0.

Definition at line 274 of file distributed-simulator-impl.cc.

References m_lookAhead, ns3::Min(), NS_LOG_FUNCTION, and NS_LOG_WARN.

+ Here is the call graph for this function:

◆ CalculateLookAhead()

void ns3::DistributedSimulatorImpl::CalculateLookAhead ( )
private

Calculate lookahead constraint based on network latency.

The smallest cross-rank PointToPoint channel delay imposes a constraint on the conservative PDES time window. The user may impose additional constraints on lookahead using the ConstrainLookAhead() method.

Definition at line 163 of file distributed-simulator-impl.cc.

References ns3::NodeContainer::Begin(), third::channel, ns3::NodeContainer::End(), ns3::TimeValue::Get(), ns3::MpiInterface::GetCommunicator(), ns3::NodeContainer::GetGlobal(), ns3::Time::GetInteger(), GetMaximumSimulationTime(), ns3::MpiInterface::GetSize(), ns3::MpiInterface::GetSystemId(), ns3::Node::GetSystemId(), m_grantedTime, m_lookAhead, NS_LOG_FUNCTION, and ns3::Seconds().

Referenced by Run().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Cancel()

void ns3::DistributedSimulatorImpl::Cancel ( const EventId id)
overridevirtual

Set the cancel bit on this event: the event's associated function will not be invoked when it expires.

This method has the same visible effect as the ns3::Simulator::Remove method but its algorithmic complexity is much lower: it has O(1) complexity. This method has the exact same semantics as ns3::EventId::Cancel. Note that it is not possible to cancel events which were scheduled for the "destroy" time. Doing so will result in a program error (crash).

Parameters
[in]idthe event to cancel

Implements ns3::SimulatorImpl.

Definition at line 584 of file distributed-simulator-impl.cc.

References IsExpired().

+ Here is the call graph for this function:

◆ Destroy()

void ns3::DistributedSimulatorImpl::Destroy ( )
overridevirtual

Execute the events scheduled with ScheduleDestroy().

This method is typically invoked at the end of a simulation to avoid false-positive reports by a leak checker. After this method has been invoked, it is actually possible to restart a new simulation with a set of calls to Simulator::Run, Simulator::Schedule and Simulator::ScheduleWithContext.

Implements ns3::SimulatorImpl.

Definition at line 144 of file distributed-simulator-impl.cc.

References ns3::MpiInterface::Destroy(), m_destroyEvents, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

+ Here is the call graph for this function:

◆ DoDispose()

void ns3::DistributedSimulatorImpl::DoDispose ( void  )
overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 129 of file distributed-simulator-impl.cc.

References ns3::Object::DoDispose(), ns3::Scheduler::Event::impl, m_events, m_pLBTS, NS_LOG_FUNCTION, and ns3::SimpleRefCount< T, PARENT, DELETER >::Unref().

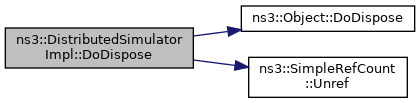

+ Here is the call graph for this function:

◆ GetContext()

uint32_t ns3::DistributedSimulatorImpl::GetContext ( ) const
overridevirtual

Get the current simulation context.

The simulation context is the ns-3 notion of a Logical Process. Events in a single context should only modify state associated with that context. Events for objects in other contexts should be scheduled with ScheduleWithContext() to track the context switches. In other words, events in different contexts should be mutually thread safe, by not modify overlapping model state.

In circumstances where the context can't be determined, such as during object initialization, the enum value NO_CONTEXT should be used.

Returns
The current simulation context

Implements ns3::SimulatorImpl.

Definition at line 625 of file distributed-simulator-impl.cc.

References m_currentContext.

Referenced by Schedule().

+ Here is the caller graph for this function:

◆ GetDelayLeft()

Time ns3::DistributedSimulatorImpl::GetDelayLeft ( const EventId id) const
overridevirtual

Get the remaining time until this event will execute.

Parameters
[in]idThe event id to analyse.
Returns
The delay left until the input event id expires. if the event is not running, this method returns zero.

Implements ns3::SimulatorImpl.

Definition at line 538 of file distributed-simulator-impl.cc.

References IsExpired(), and m_currentTs.

+ Here is the call graph for this function:

◆ GetEventCount()

uint64_t ns3::DistributedSimulatorImpl::GetEventCount ( ) const
overridevirtual

Get the number of events executed.

Returns
The total number of events executed.

Implements ns3::SimulatorImpl.

Definition at line 631 of file distributed-simulator-impl.cc.

References m_eventCount.

◆ GetMaximumSimulationTime()

Time ns3::DistributedSimulatorImpl::GetMaximumSimulationTime ( ) const
overridevirtual

Get the maximum representable simulation time.

Returns
The maximum simulation time at which an event can be scheduled.

The returned value will always be bigger than or equal to Simulator::Now.

Todo:
I am fairly certain other compilers use other non-standard post-fixes to indicate 64 bit constants.

Implements ns3::SimulatorImpl.

Definition at line 617 of file distributed-simulator-impl.cc.

Referenced by CalculateLookAhead(), NextTs(), and Run().

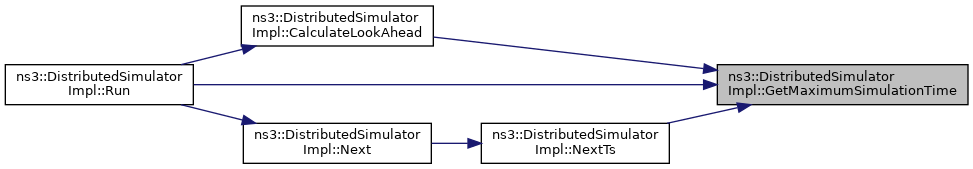

+ Here is the caller graph for this function:

◆ GetSystemId()

uint32_t ns3::DistributedSimulatorImpl::GetSystemId ( ) const
overridevirtual

Get the system id of this simulator.

The system id is the identifier for this simulator instance in a distributed simulation. For MPI this is the MPI rank.

Returns
The system id for this simulator.

Implements ns3::SimulatorImpl.

Definition at line 454 of file distributed-simulator-impl.cc.

References m_myId.

◆ GetTypeId()

TypeId ns3::DistributedSimulatorImpl::GetTypeId ( void  )
static

Register this type.

Returns
The object TypeId.

Definition at line 92 of file distributed-simulator-impl.cc.

References ns3::TypeId::SetParent().

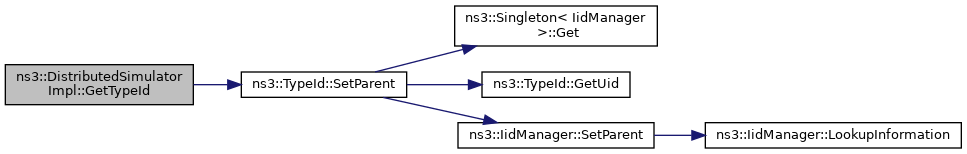

+ Here is the call graph for this function:

◆ IsExpired()

bool ns3::DistributedSimulatorImpl::IsExpired ( const EventId id) const
overridevirtual

Check if an event has already run or been cancelled.

This method has O(1) complexity. Note that it is not possible to test for the expiration of events which were scheduled for the "destroy" time. Doing so will result in a program error (crash). An event is said to "expire" when it starts being scheduled which means that if the code executed by the event calls this function, it will get true.

Parameters
[in]idThe event to test for expiration.
Returns
true if the event has expired, false otherwise.

Implements ns3::SimulatorImpl.

Definition at line 593 of file distributed-simulator-impl.cc.

References m_currentTs, m_currentUid, and m_destroyEvents.

Referenced by Cancel(), GetDelayLeft(), and Remove().

+ Here is the caller graph for this function:

◆ IsFinished()

bool ns3::DistributedSimulatorImpl::IsFinished ( ) const
overridevirtual

Check if the simulation should finish.

Reasons to finish are because there are no more events lefts to be scheduled, or if simulation time has already reached the "stop time" (see Simulator::Stop()).

Returns
true if no more events or stop time reached.

Implements ns3::SimulatorImpl.

Definition at line 327 of file distributed-simulator-impl.cc.

References m_globalFinished.

◆ IsLocalFinished()

bool ns3::DistributedSimulatorImpl::IsLocalFinished ( ) const
private

Check if this rank is finished.

It's finished when there are no more events or stop has been requested.

Returns
true when this rank is finished.

Definition at line 333 of file distributed-simulator-impl.cc.

References m_events, and m_stop.

Referenced by NextTs(), and Run().

+ Here is the caller graph for this function:

◆ Next()

Time ns3::DistributedSimulatorImpl::Next ( ) const
private

Get the time of the next event, as returned by NextTs().

Returns
The next event time stamp.

Definition at line 355 of file distributed-simulator-impl.cc.

References NextTs().

Referenced by Run().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ NextTs()

uint64_t ns3::DistributedSimulatorImpl::NextTs ( ) const
private

Get the timestep of the next event.

If there are no more events the timestep is infinity.

Returns
The next event timestep.

Definition at line 339 of file distributed-simulator-impl.cc.

References GetMaximumSimulationTime(), ns3::Time::GetTimeStep(), IsLocalFinished(), ns3::Scheduler::Event::key, m_events, and ns3::Scheduler::EventKey::m_ts.

Referenced by Next().

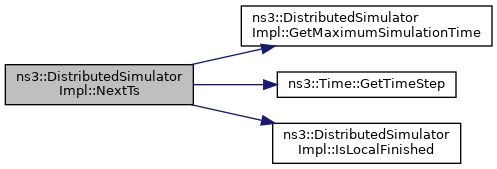

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Now()

Time ns3::DistributedSimulatorImpl::Now ( ) const
overridevirtual

Return the current simulation virtual time.

Returns
The current virtual time.

Implements ns3::SimulatorImpl.

Definition at line 532 of file distributed-simulator-impl.cc.

References m_currentTs.

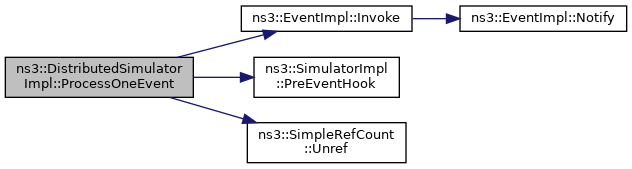

◆ ProcessOneEvent()

◆ Remove()

void ns3::DistributedSimulatorImpl::Remove ( const EventId id)
overridevirtual

Remove an event from the event list.

This method has the same visible effect as the ns3::EventId::Cancel method but its algorithmic complexity is much higher: it has often O(log(n)) complexity, sometimes O(n), sometimes worse. Note that it is not possible to remove events which were scheduled for the "destroy" time. Doing so will result in a program error (crash).

Parameters
[in]idThe event to remove from the list of scheduled events.

Implements ns3::SimulatorImpl.

Definition at line 551 of file distributed-simulator-impl.cc.

References ns3::Scheduler::Event::impl, IsExpired(), m_destroyEvents, m_events, and m_unscheduledEvents.

+ Here is the call graph for this function:

◆ Run()

void ns3::DistributedSimulatorImpl::Run ( )
overridevirtual

◆ Schedule()

EventId ns3::DistributedSimulatorImpl::Schedule ( const Time delay,
EventImpl event
)
overridevirtual

Schedule a future event execution (in the same context).

Parameters
[in]delayDelay until the event expires.
[in]eventThe event to schedule.
Returns
A unique identifier for the newly-scheduled event.

Implements ns3::SimulatorImpl.

Definition at line 479 of file distributed-simulator-impl.cc.

References GetContext(), ns3::Time::GetTimeStep(), ns3::Scheduler::Event::impl, ns3::Time::IsPositive(), ns3::Scheduler::Event::key, ns3::Scheduler::EventKey::m_context, m_currentTs, m_events, ns3::Scheduler::EventKey::m_ts, ns3::Scheduler::EventKey::m_uid, m_uid, m_unscheduledEvents, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ScheduleNow().

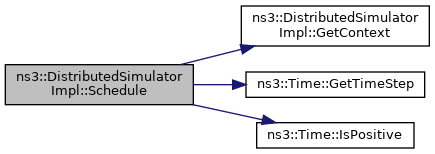

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ScheduleDestroy()

EventId ns3::DistributedSimulatorImpl::ScheduleDestroy ( EventImpl event)
overridevirtual

Schedule an event to run at the end of the simulation, after the Stop() time or condition has been reached.

Parameters
[in]eventThe event to schedule.
Returns
A unique identifier for the newly-scheduled event.

Implements ns3::SimulatorImpl.

Definition at line 521 of file distributed-simulator-impl.cc.

References m_currentTs, m_destroyEvents, m_uid, and NS_LOG_FUNCTION.

◆ ScheduleNow()

EventId ns3::DistributedSimulatorImpl::ScheduleNow ( EventImpl event)
overridevirtual

Schedule an event to run at the current virtual time.

Parameters
[in]eventThe event to schedule.
Returns
A unique identifier for the newly-scheduled event.

Implements ns3::SimulatorImpl.

Definition at line 514 of file distributed-simulator-impl.cc.

References NS_LOG_FUNCTION, and Schedule().

+ Here is the call graph for this function:

◆ ScheduleWithContext()

void ns3::DistributedSimulatorImpl::ScheduleWithContext ( uint32_t  context,
const Time delay,
EventImpl event
)
overridevirtual

Schedule a future event execution (in a different context).

This method is thread-safe: it can be called from any thread.

Parameters
[in]delayDelay until the event expires.
[in]contextEvent context.
[in]eventThe event to schedule.

Implements ns3::SimulatorImpl.

Definition at line 499 of file distributed-simulator-impl.cc.

References ns3::Time::GetTimeStep(), ns3::Scheduler::Event::impl, ns3::Scheduler::Event::key, ns3::Scheduler::EventKey::m_context, m_currentTs, m_events, ns3::Scheduler::EventKey::m_ts, ns3::Scheduler::EventKey::m_uid, m_uid, m_unscheduledEvents, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ SetScheduler()

void ns3::DistributedSimulatorImpl::SetScheduler ( ObjectFactory  schedulerFactory)
overridevirtual

Set the Scheduler to be used to manage the event list.

Parameters
[in]schedulerFactoryA new event scheduler factory.

The event scheduler can be set at any time: the events scheduled in the previous scheduler will be transferred to the new scheduler before we start to use it.

Implements ns3::SimulatorImpl.

Definition at line 288 of file distributed-simulator-impl.cc.

References ns3::ObjectFactory::Create(), m_events, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ Stop() [1/2]

void ns3::DistributedSimulatorImpl::Stop ( )
overridevirtual

Tell the Simulator the calling event should be the last one executed.

If a running event invokes this method, it will be the last event executed by the Simulator::Run method before returning to the caller.

Implements ns3::SimulatorImpl.

Definition at line 460 of file distributed-simulator-impl.cc.

References m_stop, and NS_LOG_FUNCTION.

◆ Stop() [2/2]

EventId ns3::DistributedSimulatorImpl::Stop ( const Time delay)
overridevirtual

Schedule the time delay until the Simulator should stop.

Force the Simulator::Run method to return to the caller when the expiration time of the next event to be processed is greater than or equal to the stop time. The stop time is relative to the current simulation time.

Parameters
[in]delayThe stop time, relative to the current time.
Returns
The stop EventId.

Implements ns3::SimulatorImpl.

Definition at line 468 of file distributed-simulator-impl.cc.

References ns3::Time::GetTimeStep(), NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and ns3::Simulator::Stop().

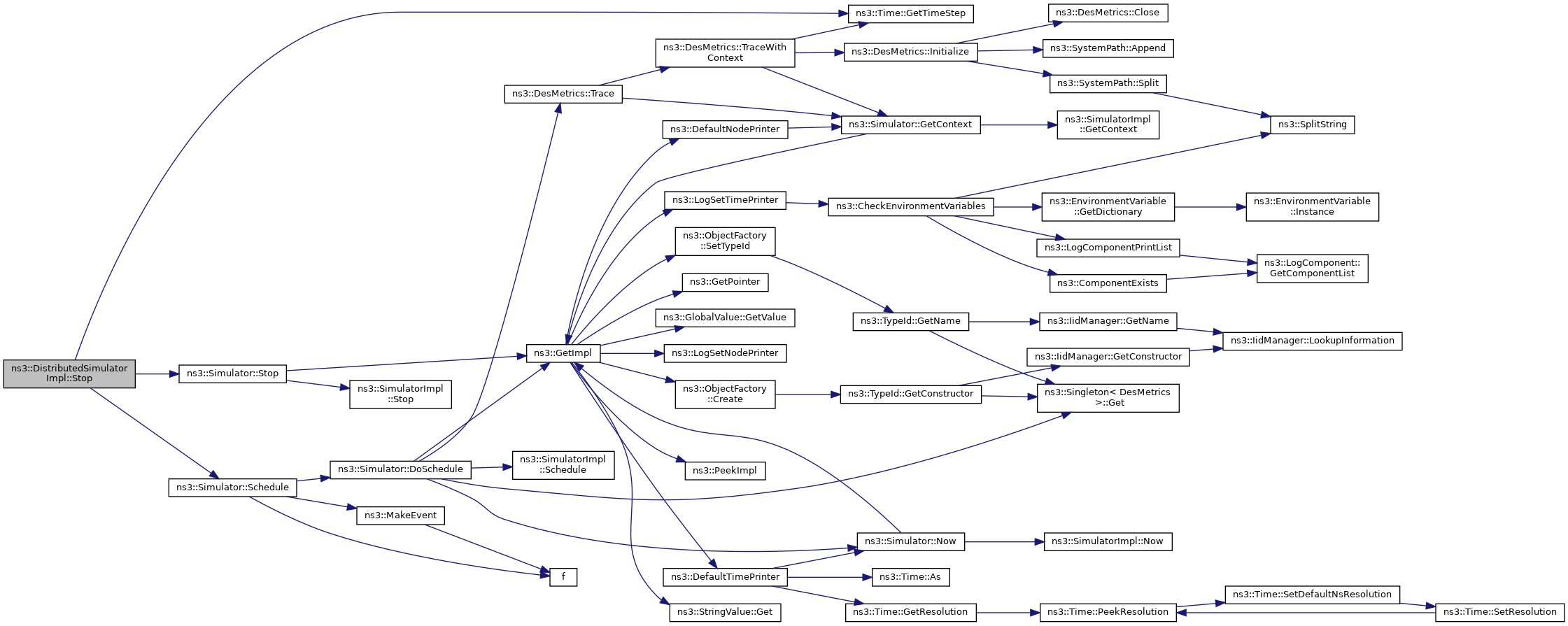

+ Here is the call graph for this function:

Member Data Documentation

◆ m_currentContext

uint32_t ns3::DistributedSimulatorImpl::m_currentContext
private

Execution context of the current event.

Definition at line 214 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), GetContext(), and ProcessOneEvent().

◆ m_currentTs

uint64_t ns3::DistributedSimulatorImpl::m_currentTs
private

◆ m_currentUid

uint32_t ns3::DistributedSimulatorImpl::m_currentUid
private

Unique id of the current event.

Definition at line 210 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), IsExpired(), and ProcessOneEvent().

◆ m_destroyEvents

DestroyEvents ns3::DistributedSimulatorImpl::m_destroyEvents
private

The container of events to run at Destroy()

Definition at line 199 of file distributed-simulator-impl.h.

Referenced by Destroy(), IsExpired(), Remove(), and ScheduleDestroy().

◆ m_eventCount

uint64_t ns3::DistributedSimulatorImpl::m_eventCount
private

The event count.

Definition at line 216 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), GetEventCount(), and ProcessOneEvent().

◆ m_events

Ptr<Scheduler> ns3::DistributedSimulatorImpl::m_events
private

◆ m_globalFinished

bool ns3::DistributedSimulatorImpl::m_globalFinished
private

Are all parallel instances completed.

Definition at line 203 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), IsFinished(), and Run().

◆ m_grantedTime

Time ns3::DistributedSimulatorImpl::m_grantedTime
private

End of current window.

Definition at line 230 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), CalculateLookAhead(), and Run().

◆ m_lookAhead

Time ns3::DistributedSimulatorImpl::m_lookAhead = Time::Max()
staticprivate

Current window size.

Initialize m_lookAhead to maximum, it will be constrained by user supplied time via BoundLookAhead and the minimum latency network between ranks.

Definition at line 231 of file distributed-simulator-impl.h.

Referenced by BoundLookAhead(), CalculateLookAhead(), and Run().

◆ m_myId

uint32_t ns3::DistributedSimulatorImpl::m_myId
private

MPI rank.

Definition at line 228 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), GetSystemId(), and Run().

◆ m_pLBTS

LbtsMessage* ns3::DistributedSimulatorImpl::m_pLBTS
private

Container for Lbts messages, one per rank.

Allocated once we know how many systems there are.

Definition at line 227 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), DoDispose(), and Run().

◆ m_stop

bool ns3::DistributedSimulatorImpl::m_stop
private

Flag calling for the end of the simulation.

Definition at line 201 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), IsLocalFinished(), Run(), and Stop().

◆ m_systemCount

uint32_t ns3::DistributedSimulatorImpl::m_systemCount
private

MPI communicator size.

Definition at line 229 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), and Run().

◆ m_uid

uint32_t ns3::DistributedSimulatorImpl::m_uid
private

Next event unique id.

Definition at line 208 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), Schedule(), ScheduleDestroy(), and ScheduleWithContext().

◆ m_unscheduledEvents

int ns3::DistributedSimulatorImpl::m_unscheduledEvents
private

Number of events that have been inserted but not yet scheduled, not counting the "destroy" events; this is used for validation.

Definition at line 221 of file distributed-simulator-impl.h.

Referenced by DistributedSimulatorImpl(), ProcessOneEvent(), Remove(), Run(), Schedule(), and ScheduleWithContext().


The documentation for this class was generated from the following files:
