Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler. More...

#include "lte-rrc-protocol-real.h"

Inheritance diagram for ns3::LteEnbRrcProtocolReal:

Collaboration diagram for ns3::LteEnbRrcProtocolReal:

Public Member Functions
	LteEnbRrcProtocolReal ()

	~LteEnbRrcProtocolReal () override

void	DoDispose () override
	Destructor implementation. More...

LteEnbRrcSapUser *	GetLteEnbRrcSapUser ()
	Get LTE ENB RRC SAP user function. More...

LteUeRrcSapProvider *	GetUeRrcSapProvider (uint16_t rnti)
	Get UE RRC SAP provider function. More...

void	SetCellId (uint16_t cellId)
	Set cell ID function. More...

void	SetLteEnbRrcSapProvider (LteEnbRrcSapProvider *p)
	Set LTE ENB RRC SAP provider function. More...

void	SetUeRrcSapProvider (uint16_t rnti, LteUeRrcSapProvider *p)
	Set UE RRC SAP provider function. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
LteRrcSap::RrcConnectionReconfiguration	DoDecodeHandoverCommand (Ptr< Packet > p)
	Decode handover command function. More...

LteRrcSap::HandoverPreparationInfo	DoDecodeHandoverPreparationInformation (Ptr< Packet > p)
	Decode handover preparation information function. More...

Ptr< Packet >	DoEncodeHandoverCommand (LteRrcSap::RrcConnectionReconfiguration msg)
	Encode handover command function. More...

Ptr< Packet >	DoEncodeHandoverPreparationInformation (LteRrcSap::HandoverPreparationInfo msg)
	Encode handover preparation information function. More...

void	DoReceivePdcpPdu (uint16_t rnti, Ptr< Packet > p)
	Receive PDCP PDU function. More...

void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)
	Receive PDCP SDU function. More...

void	DoRemoveUe (uint16_t rnti)
	Remove UE function. More...

void	DoSendRrcConnectionReconfiguration (uint16_t rnti, LteRrcSap::RrcConnectionReconfiguration msg)
	Send RRC connection reconfiguration function. More...

void	DoSendRrcConnectionReestablishment (uint16_t rnti, LteRrcSap::RrcConnectionReestablishment msg)
	Send RRC connection reestabishment function. More...

void	DoSendRrcConnectionReestablishmentReject (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentReject msg)
	Send RRC connection reestabishment reject function. More...

void	DoSendRrcConnectionReject (uint16_t rnti, LteRrcSap::RrcConnectionReject msg)
	Send RRC connection reject function. More...

void	DoSendRrcConnectionRelease (uint16_t rnti, LteRrcSap::RrcConnectionRelease msg)
	Send RRC connection release function. More...

void	DoSendRrcConnectionSetup (uint16_t rnti, LteRrcSap::RrcConnectionSetup msg)
	Send RRC connection setup function. More...

void	DoSendSystemInformation (uint16_t cellId, LteRrcSap::SystemInformation msg)
	Send system information function. More...

void	DoSetupUe (uint16_t rnti, LteEnbRrcSapUser::SetupUeParameters params)
	Setup UE function. More...

void	SendSystemInformation (uint16_t cellId, LteRrcSap::SystemInformation msg)
	Send system information function. More...

Private Attributes
uint16_t	m_cellId
	the cell ID More...

std::map< uint16_t, LteEnbRrcSapProvider::CompleteSetupUeParameters >	m_completeSetupUeParametersMap
	complete setup UE parameters map More...

LteEnbRrcSapProvider *	m_enbRrcSapProvider
	ENB RRC SAP provider. More...

std::map< uint16_t, LteUeRrcSapProvider * >	m_enbRrcSapProviderMap
	ENB RRC SAP provider map. More...

LteEnbRrcSapUser *	m_enbRrcSapUser
	ENB RRC SAP user. More...

uint16_t	m_rnti
	the RNTI More...

std::map< uint16_t, LteEnbRrcSapUser::SetupUeParameters >	m_setupUeParametersMap
	setup UE parameters map More...

Friends
class	LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >
	allow LtePdcpSpecificLtePdcpSapUser<LteEnbRrcProtocolReal> class friend access More...

class	LteRlcSpecificLteRlcSapUser< LteEnbRrcProtocolReal >
	allow LteRlcSpecificLteRlcSapUser<LteEnbRrcProtocolReal> class friend access More...

class	MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >
	allow MemberLteEnbRrcSapUser<LteEnbRrcProtocolReal> class friend access More...

class	RealProtocolRlcSapUser
	allow RealProtocolRlcSapUser class friend access More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler.

Definition at line 183 of file lte-rrc-protocol-real.h.

Constructor & Destructor Documentation

◆ LteEnbRrcProtocolReal()

ns3::LteEnbRrcProtocolReal::LteEnbRrcProtocolReal ( )

Definition at line 386 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapUser, MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >, and NS_LOG_FUNCTION.

◆ ~LteEnbRrcProtocolReal()

ns3::LteEnbRrcProtocolReal::~LteEnbRrcProtocolReal ( )

override

Definition at line 393 of file lte-rrc-protocol-real.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDecodeHandoverCommand()

LteRrcSap::RrcConnectionReconfiguration ns3::LteEnbRrcProtocolReal::DoDecodeHandoverCommand ( Ptr< Packet > p )

private

Decode handover command function.

Parameters

p	the packet

Returns: LteRrcSap::RrcConnectionReconfiguration

Definition at line 815 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionReconfigurationHeader::GetMessage(), and ns3::Packet::RemoveHeader().

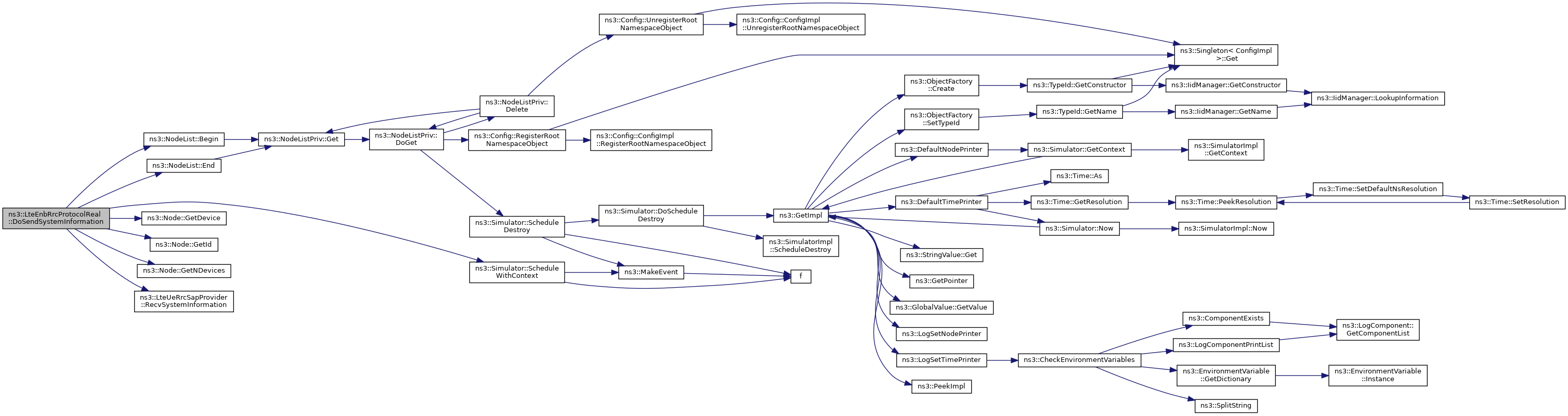

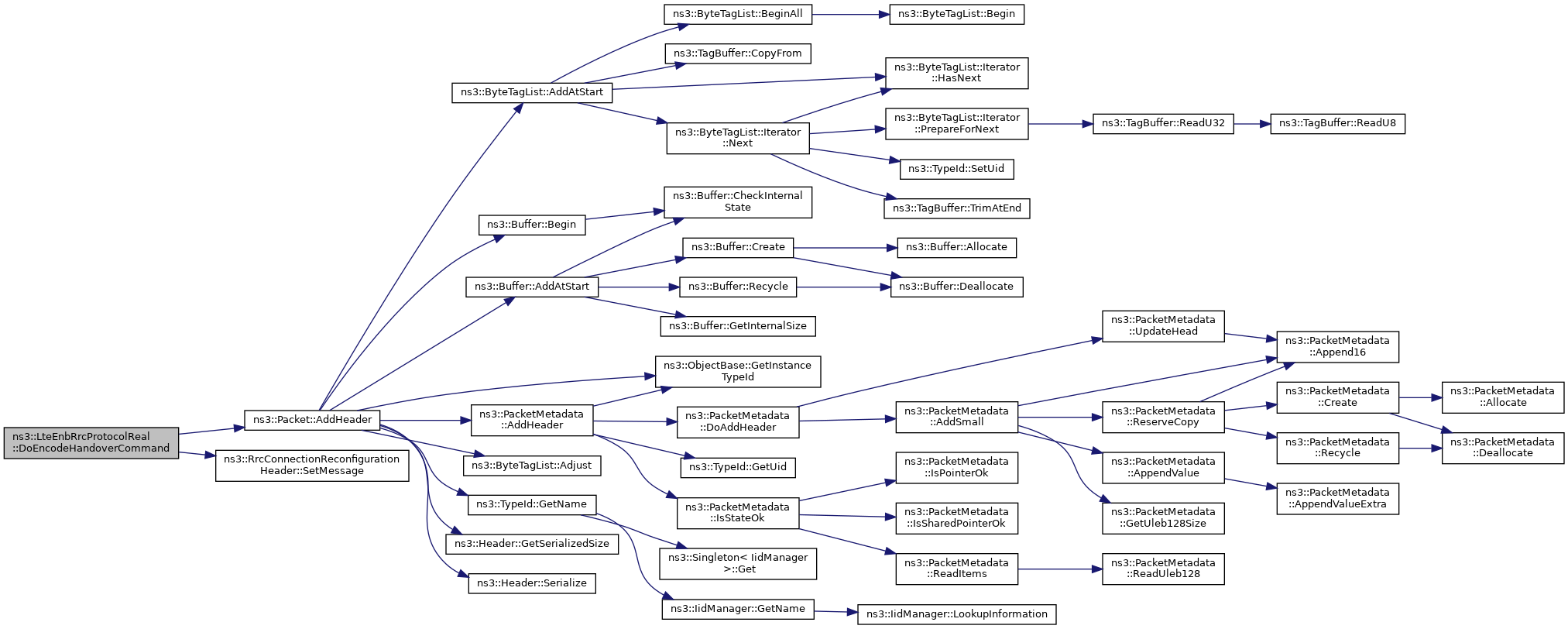

Here is the call graph for this function:

◆ DoDecodeHandoverPreparationInformation()

LteRrcSap::HandoverPreparationInfo ns3::LteEnbRrcProtocolReal::DoDecodeHandoverPreparationInformation ( Ptr< Packet > p )

private

Decode handover preparation information function.

Parameters

p	the packet

Returns: LteRrcSap::HandoverPreparationInfo

Definition at line 796 of file lte-rrc-protocol-real.cc.

References ns3::HandoverPreparationInfoHeader::GetMessage(), and ns3::Packet::RemoveHeader().

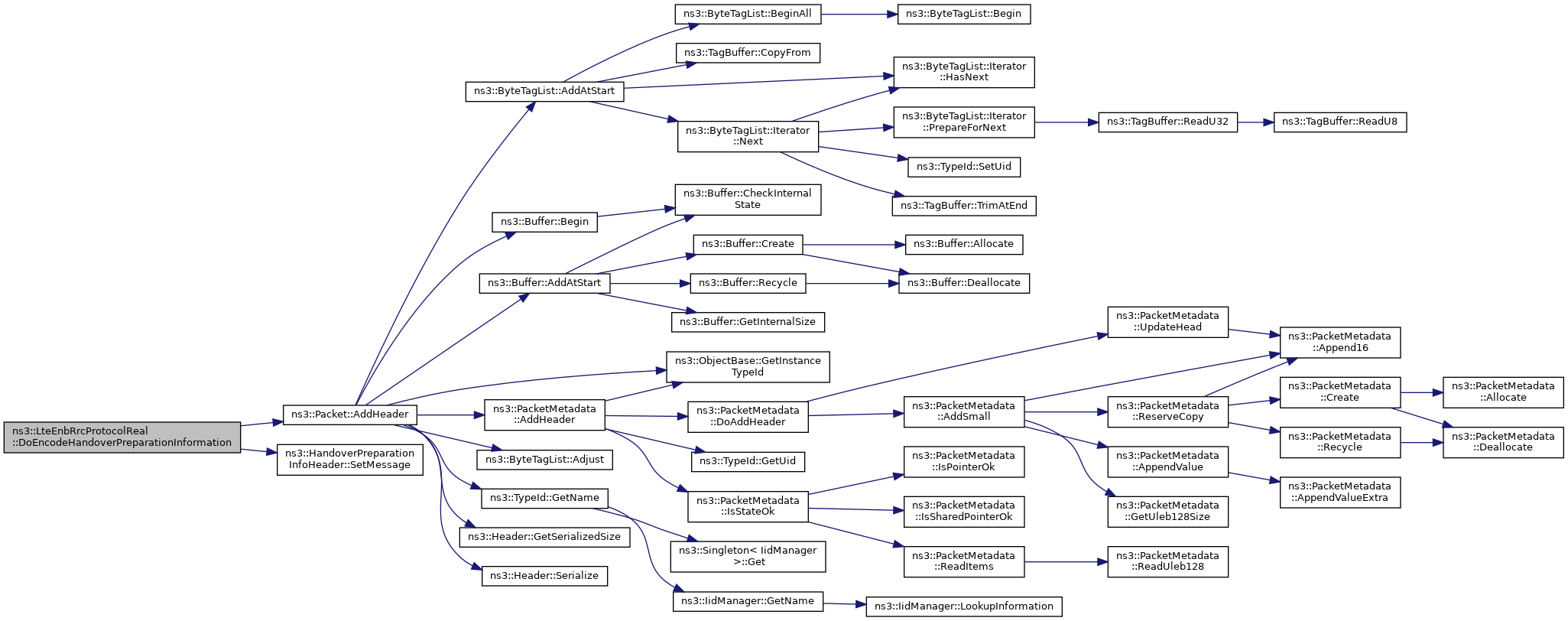

Here is the call graph for this function:

◆ DoDispose()

void ns3::LteEnbRrcProtocolReal::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 399 of file lte-rrc-protocol-real.cc.

References m_completeSetupUeParametersMap, m_enbRrcSapUser, and NS_LOG_FUNCTION.

◆ DoEncodeHandoverCommand()

Ptr< Packet > ns3::LteEnbRrcProtocolReal::DoEncodeHandoverCommand ( LteRrcSap::RrcConnectionReconfiguration msg )

private

Encode handover command function.

Parameters

msg	LteRrcSap::RrcConnectionReconfiguration

Returns: the packet

Definition at line 805 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), and ns3::RrcConnectionReconfigurationHeader::SetMessage().

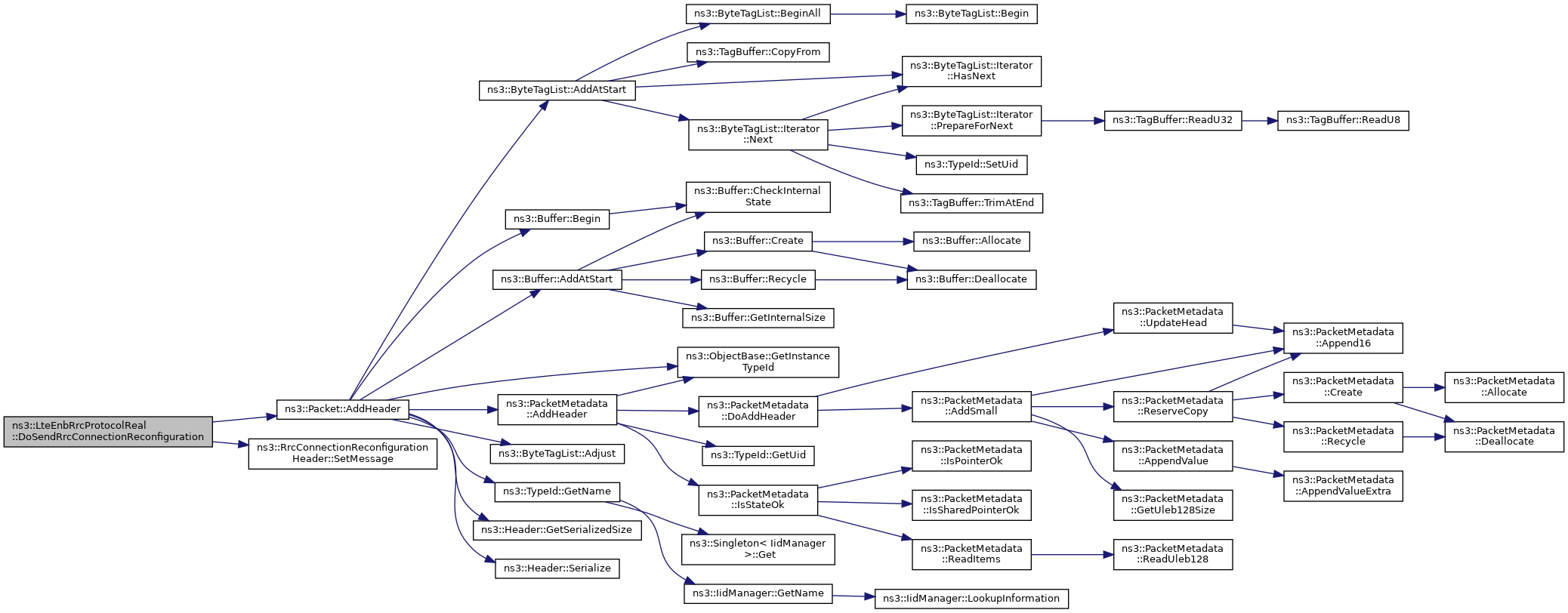

Here is the call graph for this function:

◆ DoEncodeHandoverPreparationInformation()

Ptr< Packet > ns3::LteEnbRrcProtocolReal::DoEncodeHandoverPreparationInformation ( LteRrcSap::HandoverPreparationInfo msg )

private

Encode handover preparation information function.

Parameters

msg	LteRrcSap::HandoverPreparationInfo

Returns: the packet

Definition at line 784 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), and ns3::HandoverPreparationInfoHeader::SetMessage().

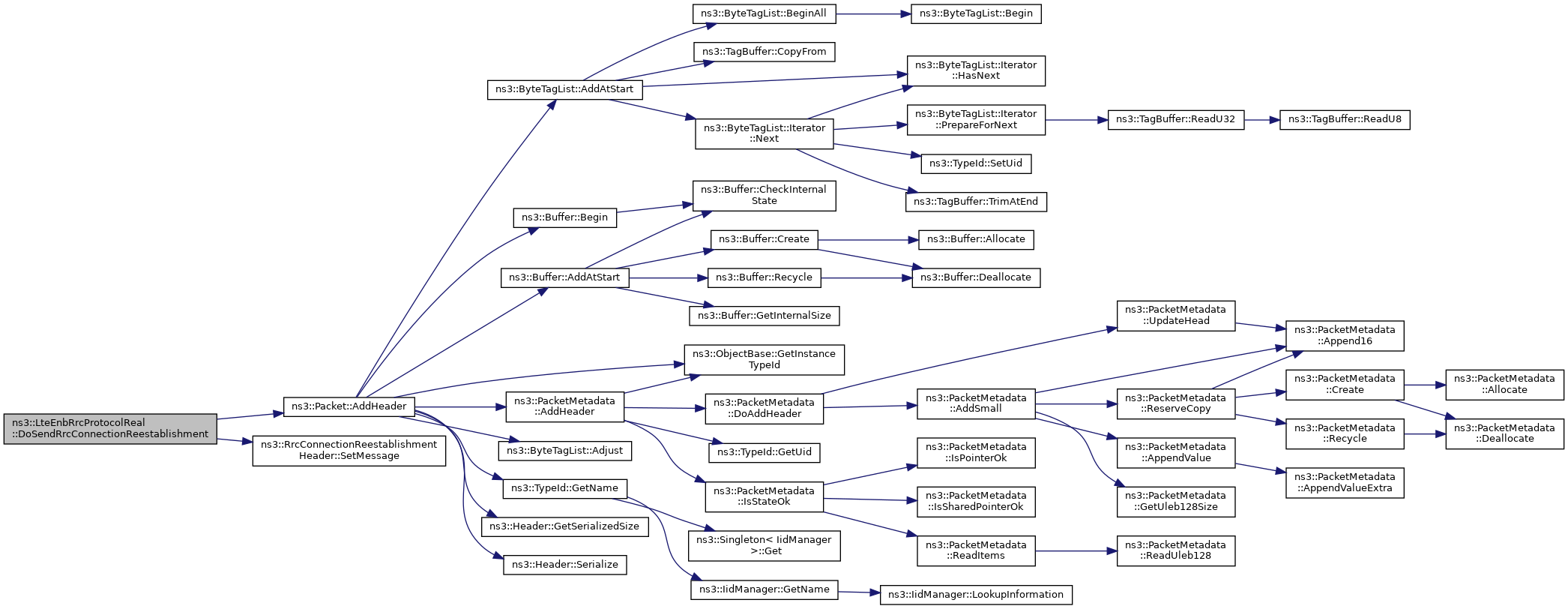

Here is the call graph for this function:

◆ DoReceivePdcpPdu()

void ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu	(	uint16_t	rnti,
		Ptr< Packet >	p
	)

private

Receive PDCP PDU function.

Parameters

rnti	the RNTI
p	the packet

Definition at line 700 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionRequestHeader::GetMessage(), ns3::RrcConnectionReestablishmentRequestHeader::GetMessage(), ns3::RrcAsn1Header::GetMessageType(), m_enbRrcSapProvider, ns3::Packet::PeekHeader(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionRequest(), and ns3::Packet::RemoveHeader().

Referenced by ns3::RealProtocolRlcSapUser::ReceivePdcpPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoReceivePdcpSdu()

void ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters params )

private

Receive PDCP SDU function.

Parameters

params LtePdcpSapUser::ReceivePdcpSduParameters

Definition at line 732 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionSetupCompleteHeader::GetMessage(), ns3::RrcConnectionReconfigurationCompleteHeader::GetMessage(), ns3::RrcConnectionReestablishmentCompleteHeader::GetMessage(), ns3::MeasurementReportHeader::GetMessage(), ns3::RrcAsn1Header::GetMessageType(), m_enbRrcSapProvider, two-ray-to-three-gpp-ch-calibration::params, ns3::LteEnbRrcSapProvider::RecvMeasurementReport(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete(), and ns3::LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted().

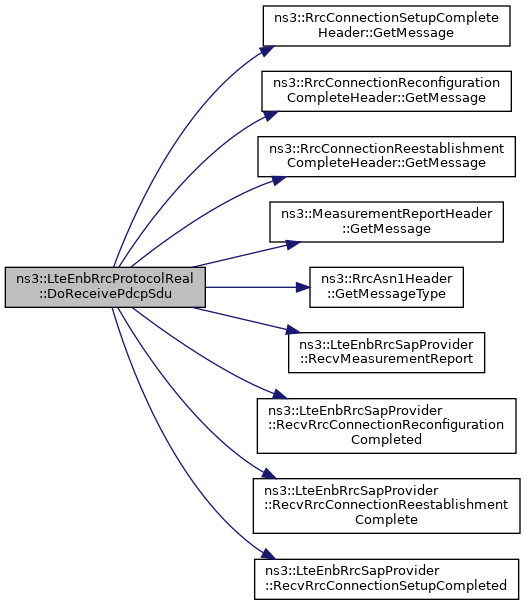

Here is the call graph for this function:

◆ DoRemoveUe()

void ns3::LteEnbRrcProtocolReal::DoRemoveUe ( uint16_t rnti )

private

Remove UE function.

Parameters

rnti the RNTI

Definition at line 523 of file lte-rrc-protocol-real.cc.

References m_completeSetupUeParametersMap, m_enbRrcSapProviderMap, m_setupUeParametersMap, NS_ASSERT, and NS_LOG_FUNCTION.

◆ DoSendRrcConnectionReconfiguration()

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionReconfiguration	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReconfiguration	msg
	)

private

Send RRC connection reconfiguration function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionReconfiguration

Definition at line 605 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_setupUeParametersMap, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, and ns3::RrcConnectionReconfigurationHeader::SetMessage().

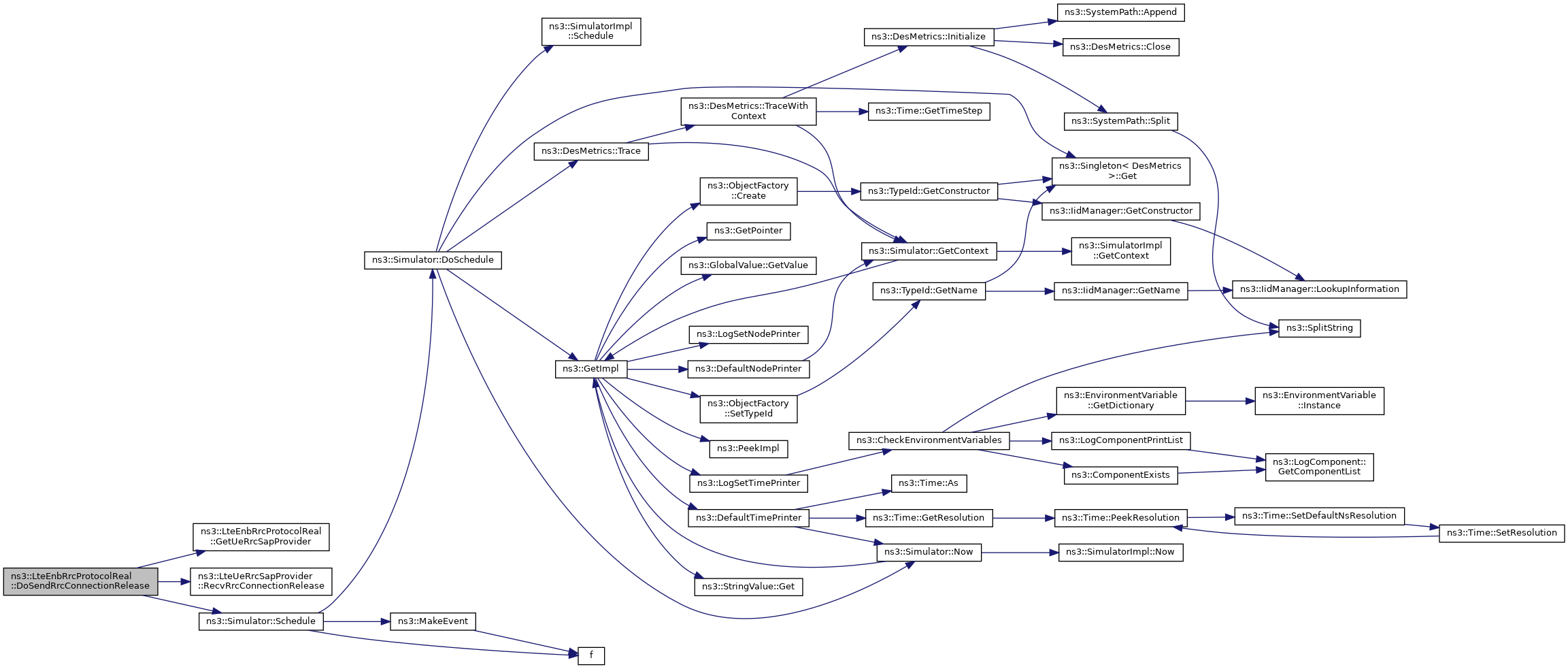

Here is the call graph for this function:

◆ DoSendRrcConnectionReestablishment()

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionReestablishment	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReestablishment	msg
	)

private

Send RRC connection reestabishment function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionReestablishment

Definition at line 625 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_setupUeParametersMap, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, and ns3::RrcConnectionReestablishmentHeader::SetMessage().

Here is the call graph for this function:

◆ DoSendRrcConnectionReestablishmentReject()

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionReestablishmentReject	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReestablishmentReject	msg
	)

private

Send RRC connection reestabishment reject function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionReestablishmentReject

Definition at line 645 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_setupUeParametersMap, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, and ns3::RrcConnectionReestablishmentRejectHeader::SetMessage().

Here is the call graph for this function:

◆ DoSendRrcConnectionReject()

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionReject	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReject	msg
	)

private

Send RRC connection reject function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionReject

Definition at line 587 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_setupUeParametersMap, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, and ns3::RrcConnectionRejectHeader::SetMessage().

Here is the call graph for this function:

◆ DoSendRrcConnectionRelease()

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionRelease	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionRelease	msg
	)

private

Send RRC connection release function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionRelease

Send RRC connection release in an idle way to ensure UE goes to idle mode during handover failure and connection setup timeout. Implemented to avoid unnecessary triggering of assert msgs due to reception of msgs (SRS CQI reports) from UE after UE context is deleted at eNodeB. TODO: Detection of handover failure and connection setup timeout at UE, so that the RRC connection release can be sent through the physical channel again.

Definition at line 665 of file lte-rrc-protocol-real.cc.

References GetUeRrcSapProvider(), NS_LOG_FUNCTION, ns3::LteUeRrcSapProvider::RecvRrcConnectionRelease(), ns3::RRC_REAL_MSG_DELAY, and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ DoSendRrcConnectionSetup()

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionSetup	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionSetup	msg
	)

private

Send RRC connection setup function.

Parameters

rnti	the RNTI
msg	LteRrcSap::RrcConnectionSetup

Definition at line 569 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_setupUeParametersMap, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, and ns3::RrcConnectionSetupHeader::SetMessage().

Here is the call graph for this function:

◆ DoSendSystemInformation()

void ns3::LteEnbRrcProtocolReal::DoSendSystemInformation	(	uint16_t	cellId,
		LteRrcSap::SystemInformation	msg
	)

private

Send system information function.

Parameters

cellId	cell ID
msg	LteRrcSap::SystemInformation

Definition at line 536 of file lte-rrc-protocol-real.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::Node::GetNDevices(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteUeRrcSapProvider::RecvSystemInformation(), ns3::RRC_REAL_MSG_DELAY, and ns3::Simulator::ScheduleWithContext().

Here is the call graph for this function:

◆ DoSetupUe()

void ns3::LteEnbRrcProtocolReal::DoSetupUe	(	uint16_t	rnti,
		LteEnbRrcSapUser::SetupUeParameters	params
	)

private

Setup UE function.

Parameters

rnti	the RNTI
params	LteEnbRrcSapUser::SetupUeParameters

Definition at line 461 of file lte-rrc-protocol-real.cc.

References ns3::LteEnbRrcSapProvider::CompleteSetupUe(), LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >, m_completeSetupUeParametersMap, m_enbRrcSapProvider, m_enbRrcSapProviderMap, m_setupUeParametersMap, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, RealProtocolRlcSapUser, ns3::LteEnbRrcSapProvider::CompleteSetupUeParameters::srb0SapUser, and ns3::LteEnbRrcSapProvider::CompleteSetupUeParameters::srb1SapUser.

Here is the call graph for this function:

◆ GetLteEnbRrcSapUser()

LteEnbRrcSapUser * ns3::LteEnbRrcProtocolReal::GetLteEnbRrcSapUser ( )

Get LTE ENB RRC SAP user function.

Returns: LteEnbRrcSapUser *

Definition at line 430 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapUser.

◆ GetTypeId()

TypeId ns3::LteEnbRrcProtocolReal::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 414 of file lte-rrc-protocol-real.cc.

References ns3::TypeId::SetParent().

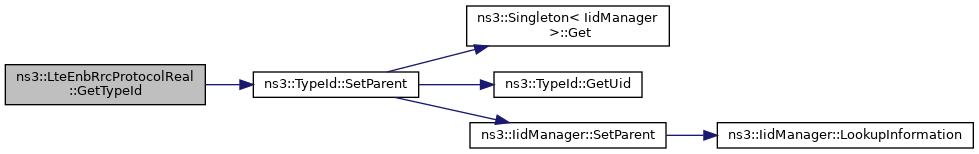

Here is the call graph for this function:

◆ GetUeRrcSapProvider()

LteUeRrcSapProvider * ns3::LteEnbRrcProtocolReal::GetUeRrcSapProvider ( uint16_t rnti )

Get UE RRC SAP provider function.

Parameters

rnti the RNTI

Returns: LteUeRrcSapProvider *

Definition at line 442 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProviderMap, and NS_ASSERT_MSG.

Referenced by DoSendRrcConnectionRelease().

Here is the caller graph for this function:

◆ SendSystemInformation()

void ns3::LteEnbRrcProtocolReal::SendSystemInformation	(	uint16_t	cellId,
		LteRrcSap::SystemInformation	msg
	)

private

Send system information function.

Parameters

cellId	cell ID
msg	LteRrcSap::SystemInformation

◆ SetCellId()

void ns3::LteEnbRrcProtocolReal::SetCellId ( uint16_t cellId )

Set cell ID function.

Parameters

cellId the cell ID

Definition at line 436 of file lte-rrc-protocol-real.cc.

References m_cellId.

◆ SetLteEnbRrcSapProvider()

void ns3::LteEnbRrcProtocolReal::SetLteEnbRrcSapProvider ( LteEnbRrcSapProvider * p )

Set LTE ENB RRC SAP provider function.

Parameters

p	LteEnbRrcSapProvider *

Definition at line 424 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProvider.

◆ SetUeRrcSapProvider()

void ns3::LteEnbRrcProtocolReal::SetUeRrcSapProvider	(	uint16_t	rnti,
		LteUeRrcSapProvider *	p
	)

Set UE RRC SAP provider function.

Parameters

rnti	the RNTI
p	LteUeRrcSapProvider *

Definition at line 450 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProviderMap.

Friends And Related Function Documentation

◆ LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >

friend class LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >

friend

allow LtePdcpSpecificLtePdcpSapUser<LteEnbRrcProtocolReal> class friend access

Definition at line 173 of file lte-rrc-protocol-real.h.

Referenced by DoSetupUe().

◆ LteRlcSpecificLteRlcSapUser< LteEnbRrcProtocolReal >

friend class LteRlcSpecificLteRlcSapUser< LteEnbRrcProtocolReal >

friend

allow LteRlcSpecificLteRlcSapUser<LteEnbRrcProtocolReal> class friend access

Definition at line 173 of file lte-rrc-protocol-real.h.

◆ MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >

friend class MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >

friend

allow MemberLteEnbRrcSapUser<LteEnbRrcProtocolReal> class friend access

Definition at line 173 of file lte-rrc-protocol-real.h.

Referenced by LteEnbRrcProtocolReal().

◆ RealProtocolRlcSapUser

friend class RealProtocolRlcSapUser

friend

allow RealProtocolRlcSapUser class friend access

Definition at line 192 of file lte-rrc-protocol-real.h.

Referenced by DoSetupUe().

Member Data Documentation

◆ m_cellId

uint16_t ns3::LteEnbRrcProtocolReal::m_cellId

private

the cell ID

Definition at line 360 of file lte-rrc-protocol-real.h.

Referenced by SetCellId().

◆ m_completeSetupUeParametersMap

std::map<uint16_t, LteEnbRrcSapProvider::CompleteSetupUeParameters> ns3::LteEnbRrcProtocolReal::m_completeSetupUeParametersMap

private

complete setup UE parameters map

Definition at line 367 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), DoRemoveUe(), and DoSetupUe().

◆ m_enbRrcSapProvider

LteEnbRrcSapProvider* ns3::LteEnbRrcProtocolReal::m_enbRrcSapProvider

private

ENB RRC SAP provider.

Definition at line 361 of file lte-rrc-protocol-real.h.

Referenced by DoReceivePdcpPdu(), DoReceivePdcpSdu(), DoSetupUe(), and SetLteEnbRrcSapProvider().

◆ m_enbRrcSapProviderMap

std::map<uint16_t, LteUeRrcSapProvider*> ns3::LteEnbRrcProtocolReal::m_enbRrcSapProviderMap

private

ENB RRC SAP provider map.

Definition at line 363 of file lte-rrc-protocol-real.h.

Referenced by DoRemoveUe(), DoSetupUe(), GetUeRrcSapProvider(), and SetUeRrcSapProvider().

◆ m_enbRrcSapUser

LteEnbRrcSapUser* ns3::LteEnbRrcProtocolReal::m_enbRrcSapUser

private

ENB RRC SAP user.

Definition at line 362 of file lte-rrc-protocol-real.h.

Referenced by LteEnbRrcProtocolReal(), DoDispose(), and GetLteEnbRrcSapUser().

◆ m_rnti

uint16_t ns3::LteEnbRrcProtocolReal::m_rnti

private

the RNTI

Definition at line 359 of file lte-rrc-protocol-real.h.

◆ m_setupUeParametersMap

std::map<uint16_t, LteEnbRrcSapUser::SetupUeParameters> ns3::LteEnbRrcProtocolReal::m_setupUeParametersMap

private

setup UE parameters map

Definition at line 365 of file lte-rrc-protocol-real.h.

Referenced by DoRemoveUe(), DoSendRrcConnectionReconfiguration(), DoSendRrcConnectionReestablishment(), DoSendRrcConnectionReestablishmentReject(), DoSendRrcConnectionReject(), DoSendRrcConnectionSetup(), and DoSetupUe().

The documentation for this class was generated from the following files:

src/lte/model/lte-rrc-protocol-real.h
src/lte/model/lte-rrc-protocol-real.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LteEnbRrcProtocolReal()

◆ ~LteEnbRrcProtocolReal()

Member Function Documentation

◆ DoDecodeHandoverCommand()

◆ DoDecodeHandoverPreparationInformation()

◆ DoDispose()

◆ DoEncodeHandoverCommand()

◆ DoEncodeHandoverPreparationInformation()

◆ DoReceivePdcpPdu()

◆ DoReceivePdcpSdu()

◆ DoRemoveUe()

◆ DoSendRrcConnectionReconfiguration()

◆ DoSendRrcConnectionReestablishment()

◆ DoSendRrcConnectionReestablishmentReject()

◆ DoSendRrcConnectionReject()

◆ DoSendRrcConnectionRelease()

◆ DoSendRrcConnectionSetup()

◆ DoSendSystemInformation()

◆ DoSetupUe()

◆ GetLteEnbRrcSapUser()

◆ GetTypeId()

◆ GetUeRrcSapProvider()

◆ SendSystemInformation()

◆ SetCellId()

◆ SetLteEnbRrcSapProvider()

◆ SetUeRrcSapProvider()

Friends And Related Function Documentation

◆ LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >

◆ LteRlcSpecificLteRlcSapUser< LteEnbRrcProtocolReal >

◆ MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >

◆ RealProtocolRlcSapUser

Member Data Documentation

◆ m_cellId

◆ m_completeSetupUeParametersMap

◆ m_enbRrcSapProvider

◆ m_enbRrcSapProviderMap

◆ m_enbRrcSapUser

◆ m_rnti

◆ m_setupUeParametersMap
