UanTest Class Reference

Uan Test. More...

Inheritance diagram for UanTest:

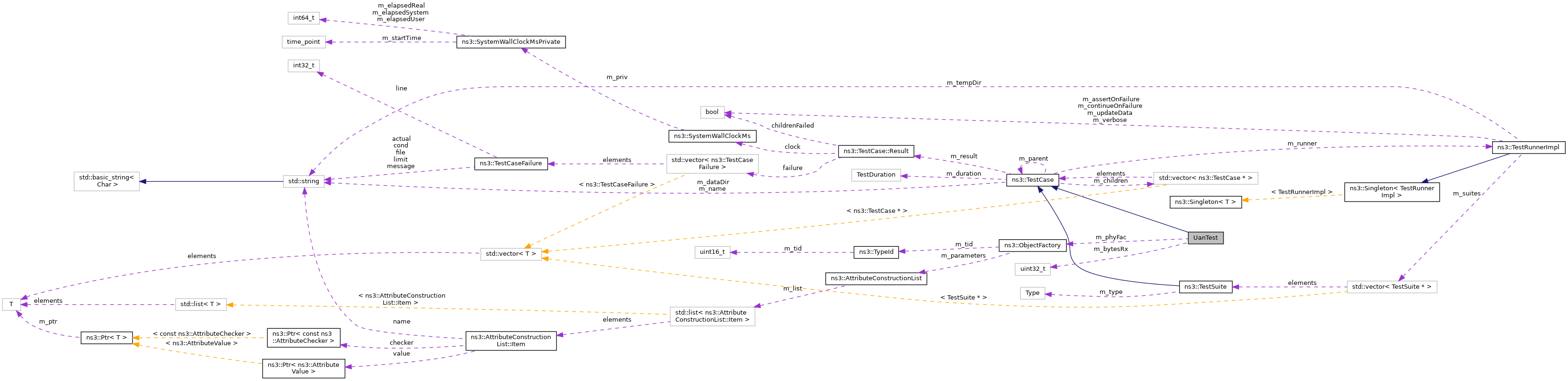

Collaboration diagram for UanTest:

Public Member Functions
	UanTest ()
void	DoRun () override
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
Ptr< UanNetDevice >	CreateNode (Vector pos, Ptr< UanChannel > chan)
	Create node function. More...
uint32_t	DoOnePhyTest (Time t1, Time t2, uint32_t r1, uint32_t r2, Ptr< UanPropModel > prop, uint16_t mode1=0, uint16_t mode2=0)
	Do one Phy test function. More...
bool	DoPhyTests ()
	Phy test function. More...
bool	RxPacket (Ptr< NetDevice > dev, Ptr< const Packet > pkt, uint16_t mode, const Address &sender)
	Receive packet function. More...
void	SendOnePacket (Ptr< UanNetDevice > dev, uint16_t mode)
	Send one packet function. More...

Private Attributes
uint32_t	m_bytesRx
	byes received More...
ObjectFactory	m_phyFac
	Phy. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Uan Test.

Definition at line 42 of file uan-test.cc.

Constructor & Destructor Documentation

UanTest()

UanTest::UanTest

(

)

Definition at line 99 of file uan-test.cc.

Member Function Documentation

CreateNode()

Ptr< UanNetDevice > UanTest::CreateNode ( Vector  pos, Ptr< UanChannel >  chan  )

private

Create node function.

Parameters

pos	the position of the device
chan	the communication channel

Returns

the UAN device

Definition at line 123 of file uan-test.cc.

References ns3::ObjectFactory::Create(), m_phyFac, third::mac, third::mobility, and third::phy.

Referenced by DoOnePhyTest().

Here is the call graph for this function:

Here is the caller graph for this function:

DoOnePhyTest()

uint32_t UanTest::DoOnePhyTest ( Time  t1, Time  t2, uint32_t  r1, uint32_t  r2, Ptr< UanPropModel >  prop, uint16_t  mode1 = 0, uint16_t  mode2 = 0  )

private

Do one Phy test function.

Parameters

t1	the time to send first packet
t2	the time to send the second packet
r1	first distance constant
r2	second distance constant
prop	the propagation model
mode1	the send mode for device 1
mode2	the send mode for device 2

Returns

number of bytes received

Definition at line 147 of file uan-test.cc.

References third::channel, CreateNode(), m_bytesRx, ns3::MakeCallback(), RxPacket(), ns3::Seconds(), and SendOnePacket().

Referenced by DoPhyTests().

Here is the call graph for this function:

Here is the caller graph for this function:

DoPhyTests()

bool UanTest::DoPhyTests ( )

private

Phy test function.

Returns

true if successful

Definition at line 176 of file uan-test.cc.

References ns3::UanModesList::AppendMode(), DoOnePhyTest(), MRG32k3a::m1, m_phyFac, NS_TEST_ASSERT_MSG_EQ_RETURNS_BOOL, ns3::Seconds(), ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void UanTest::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 286 of file uan-test.cc.

References DoPhyTests(), and NS_TEST_ASSERT_MSG_EQ_TOL.

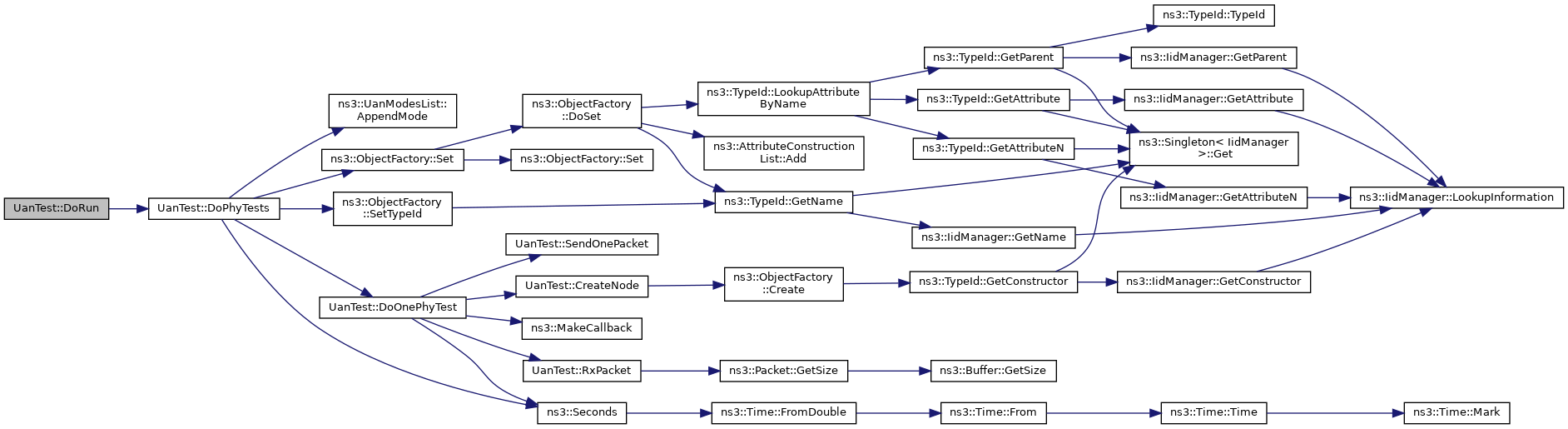

Here is the call graph for this function:

RxPacket()

bool UanTest::RxPacket ( Ptr< NetDevice >  dev, Ptr< const Packet >  pkt, uint16_t  mode, const Address &  sender  )

private

Receive packet function.

Parameters

dev	the device
pkt	the packet
mode	the receive mode
sender	the address of the sender

Returns

true if successful

Definition at line 105 of file uan-test.cc.

References ns3::Packet::GetSize(), and m_bytesRx.

Referenced by DoOnePhyTest().

Here is the call graph for this function:

Here is the caller graph for this function:

SendOnePacket()

void UanTest::SendOnePacket ( Ptr< UanNetDevice >  dev, uint16_t  mode  )

private

Send one packet function.

Parameters

dev	the device
mode	the transmit mode

Definition at line 115 of file uan-test.cc.

Referenced by DoOnePhyTest().

Here is the caller graph for this function:

Member Data Documentation

m_bytesRx

uint32_t UanTest::m_bytesRx

private

byes received

Definition at line 96 of file uan-test.cc.

Referenced by DoOnePhyTest(), and RxPacket().

m_phyFac

ObjectFactory UanTest::m_phyFac

private

Phy.

Definition at line 95 of file uan-test.cc.

Referenced by CreateNode(), and DoPhyTests().

---

The documentation for this class was generated from the following file:

• src/uan/test/uan-test.cc
