#include "csma-channel.h"

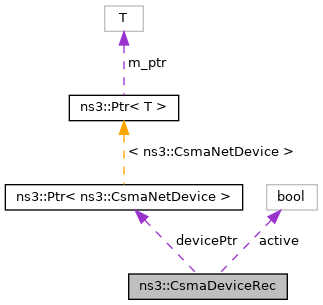

Collaboration diagram for ns3::CsmaDeviceRec:

Public Member Functions
	CsmaDeviceRec ()

	CsmaDeviceRec (const CsmaDeviceRec &o)
	Copy constructor. More...

	CsmaDeviceRec (Ptr< CsmaNetDevice > device)
	Constructor Builds a record of the given NetDevice, its status is initialized to enabled. More...

bool	IsActive () const

Public Attributes
bool	active
	Is net device enabled to TX/RX. More...

Ptr< CsmaNetDevice >	devicePtr
	Pointer to the net device. More...

Detailed Description

CsmaNetDevice Record.

Stores the information related to each net device that is connected to the channel.

Definition at line 42 of file csma-channel.h.

Constructor & Destructor Documentation

◆ CsmaDeviceRec() [1/3]

ns3::CsmaDeviceRec::CsmaDeviceRec ( )

Definition at line 335 of file csma-channel.cc.

References active.

◆ CsmaDeviceRec() [2/3]

ns3::CsmaDeviceRec::CsmaDeviceRec ( Ptr< CsmaNetDevice > device )

Constructor Builds a record of the given NetDevice, its status is initialized to enabled.

Parameters

device the device to record

Definition at line 340 of file csma-channel.cc.

References active, and devicePtr.

◆ CsmaDeviceRec() [3/3]

ns3::CsmaDeviceRec::CsmaDeviceRec ( const CsmaDeviceRec & o )

Copy constructor.

Parameters

o	the object to copy

Definition at line 346 of file csma-channel.cc.

References active, and devicePtr.

Member Function Documentation

◆ IsActive()

bool ns3::CsmaDeviceRec::IsActive ( ) const

Returns: If the net device pointed to by the devicePtr is active and ready to RX/TX.

Definition at line 353 of file csma-channel.cc.

References active.

Member Data Documentation

◆ active

bool ns3::CsmaDeviceRec::active

Is net device enabled to TX/RX.

Definition at line 46 of file csma-channel.h.

Referenced by CsmaDeviceRec(), and IsActive().

◆ devicePtr

Ptr<CsmaNetDevice> ns3::CsmaDeviceRec::devicePtr

Pointer to the net device.

Definition at line 45 of file csma-channel.h.

Referenced by CsmaDeviceRec().

The documentation for this class was generated from the following files:

src/csma/model/csma-channel.h
src/csma/model/csma-channel.cc
