Manages all the radio bearer information possessed by the ENB RRC for a single UE. More...

#include "lte-enb-rrc.h"

Inheritance diagram for ns3::UeManager:

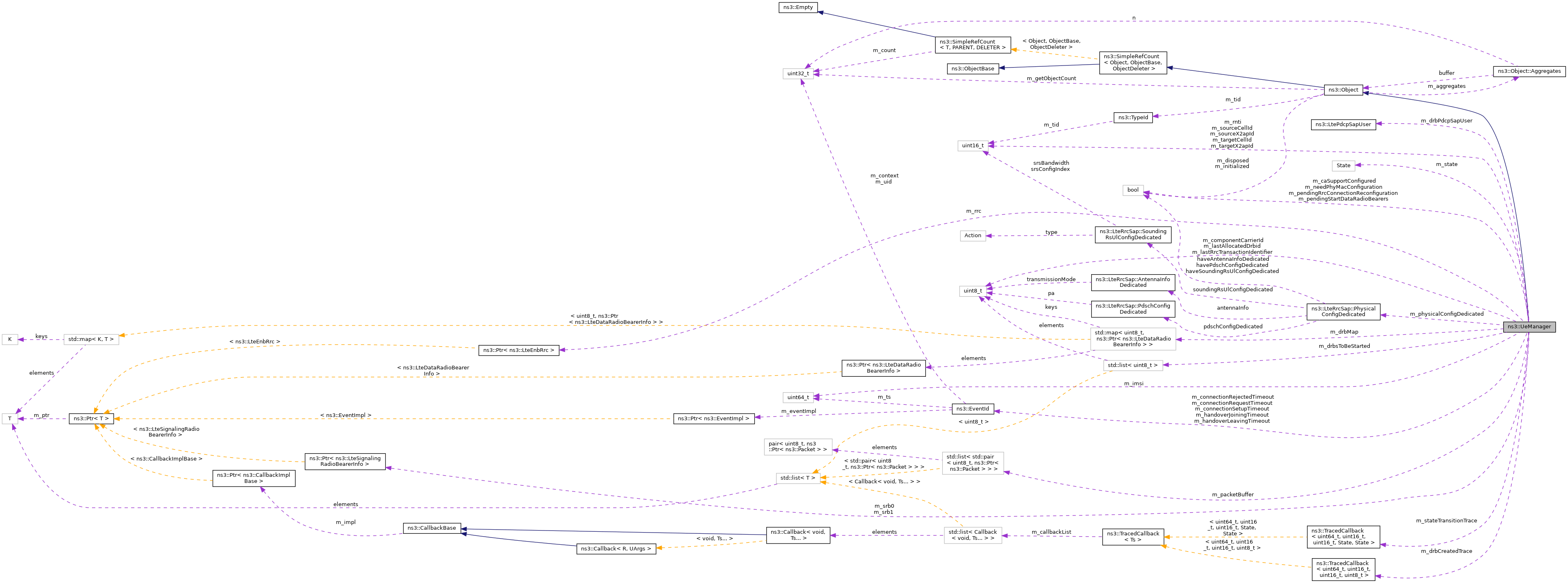

Collaboration diagram for ns3::UeManager:

Public Types
enum	State { INITIAL_RANDOM_ACCESS = 0 , CONNECTION_SETUP , CONNECTION_REJECTED , ATTACH_REQUEST , CONNECTED_NORMALLY , CONNECTION_RECONFIGURATION , CONNECTION_REESTABLISHMENT , HANDOVER_PREPARATION , HANDOVER_JOINING , HANDOVER_PATH_SWITCH , HANDOVER_LEAVING , NUM_STATES }
	The state of the UeManager at the eNB RRC. More...

typedef void(*	StateTracedCallback) (const uint64_t imsi, const uint16_t cellId, const uint16_t rnti, const State oldState, const State newState)
	TracedCallback signature for state transition events. More...

Public Member Functions
	UeManager ()

	UeManager (Ptr< LteEnbRrc > rrc, uint16_t rnti, State s, uint8_t componentCarrierId)
	UeManager constructor. More...

	~UeManager () override

EpcX2Sap::HandoverCancelParams	BuildHoCancelMsg ()
	build handover cancel message More...

EpcX2Sap::HandoverPreparationFailureParams	BuildHoPrepFailMsg ()
	build handover preparation failure message More...

void	CancelPendingEvents ()
	Cancel all timers which are running for the UE. More...

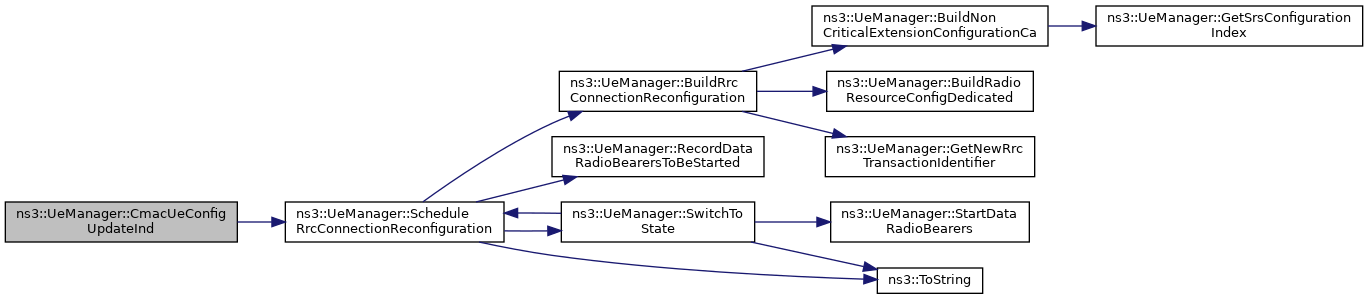

void	CmacUeConfigUpdateInd (LteEnbCmacSapUser::UeConfig cmacParams)
	CMAC UE config update indication function. More...

void	CompleteSetupUe (LteEnbRrcSapProvider::CompleteSetupUeParameters params)
	Implement the LteEnbRrcSapProvider::CompleteSetupUe interface. More...

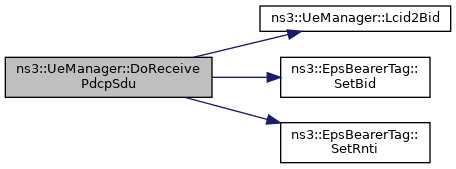

void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)
	Receive PDCP SDU function. More...

uint8_t	GetComponentCarrierId () const

std::vector< EpcX2Sap::ErabToBeSetupItem >	GetErabList ()

uint64_t	GetImsi () const

LteRrcSap::RadioResourceConfigDedicated	GetRadioResourceConfigForHandoverPreparationInfo ()

uint16_t	GetRnti () const

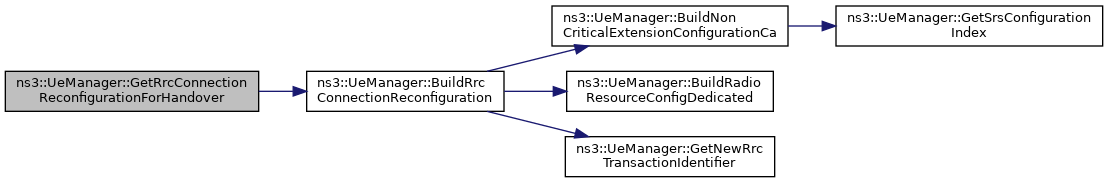

LteRrcSap::RrcConnectionReconfiguration	GetRrcConnectionReconfigurationForHandover (uint8_t componentCarrierId)

uint16_t	GetSrsConfigurationIndex () const

State	GetState () const

void	InitialContextSetupRequest ()
	Process Initial context setup request message from the MME. More...

void	PrepareHandover (uint16_t cellId)
	Start the handover preparation and send the handover request. More...

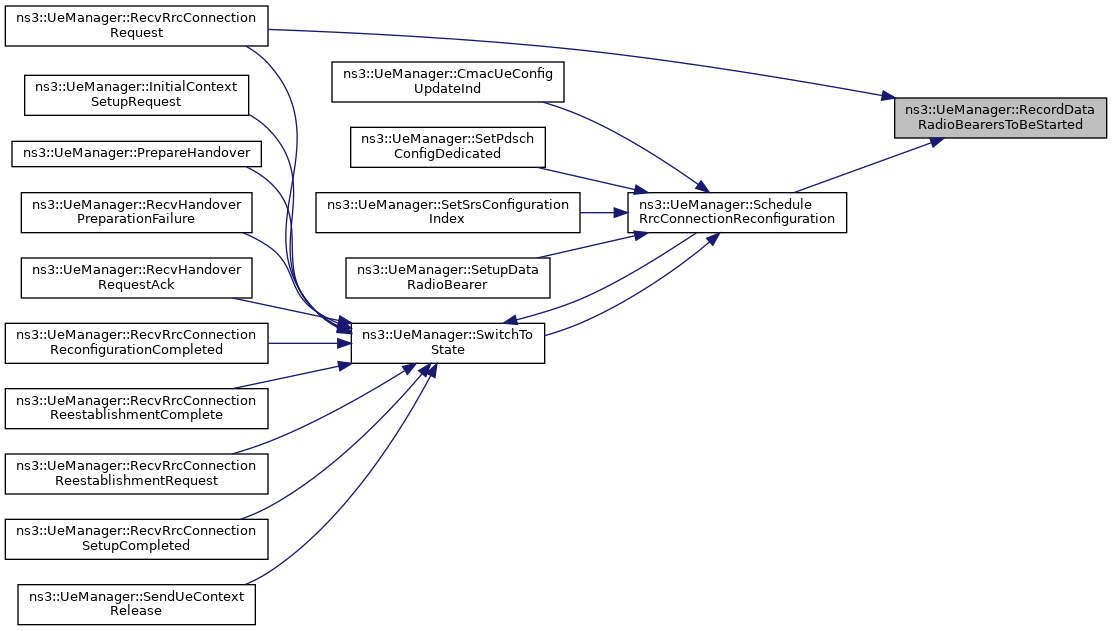

void	RecordDataRadioBearersToBeStarted ()
	Start all configured data radio bearers. More...

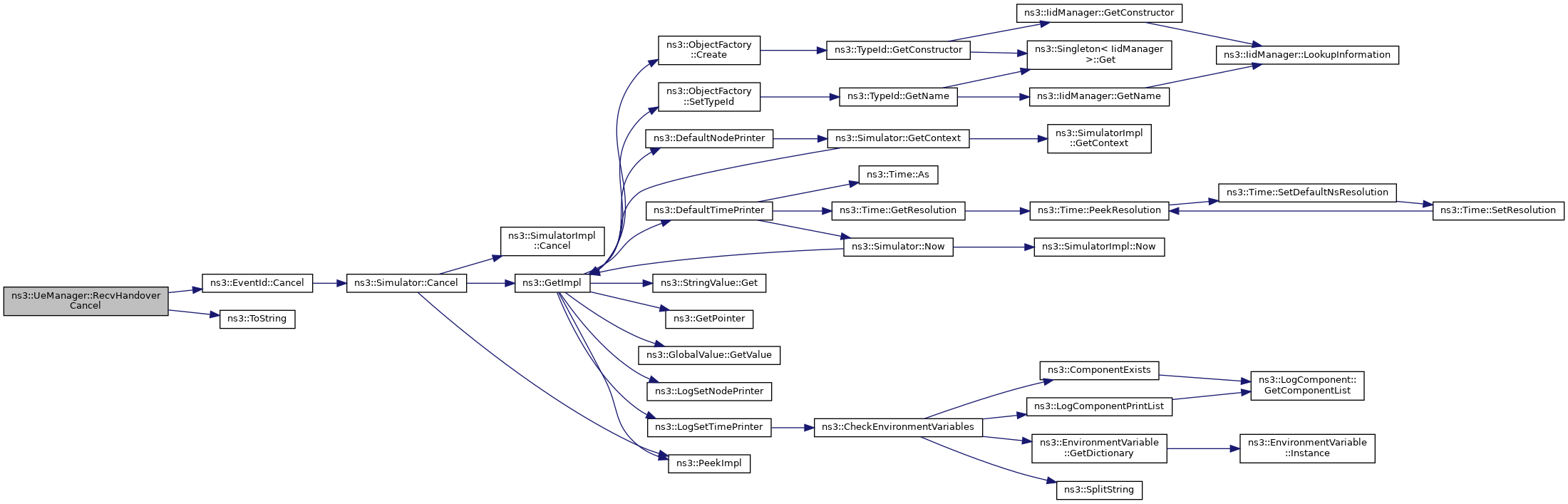

void	RecvHandoverCancel (EpcX2SapUser::HandoverCancelParams params)
	Take the necessary actions in response to the reception of an X2 UE CONTEXT RELEASE message. More...

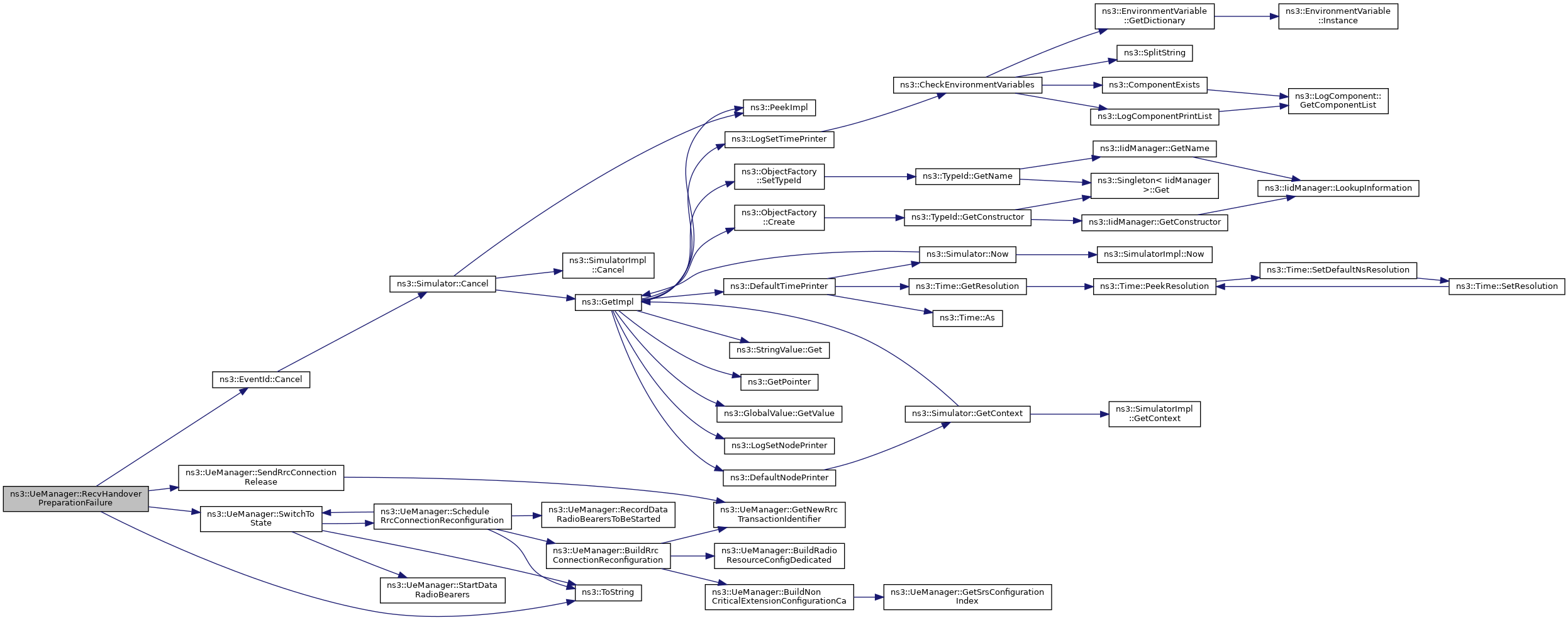

void	RecvHandoverPreparationFailure (uint16_t cellId)
	Take the necessary actions in response to the reception of an X2 HO preparation failure message. More...

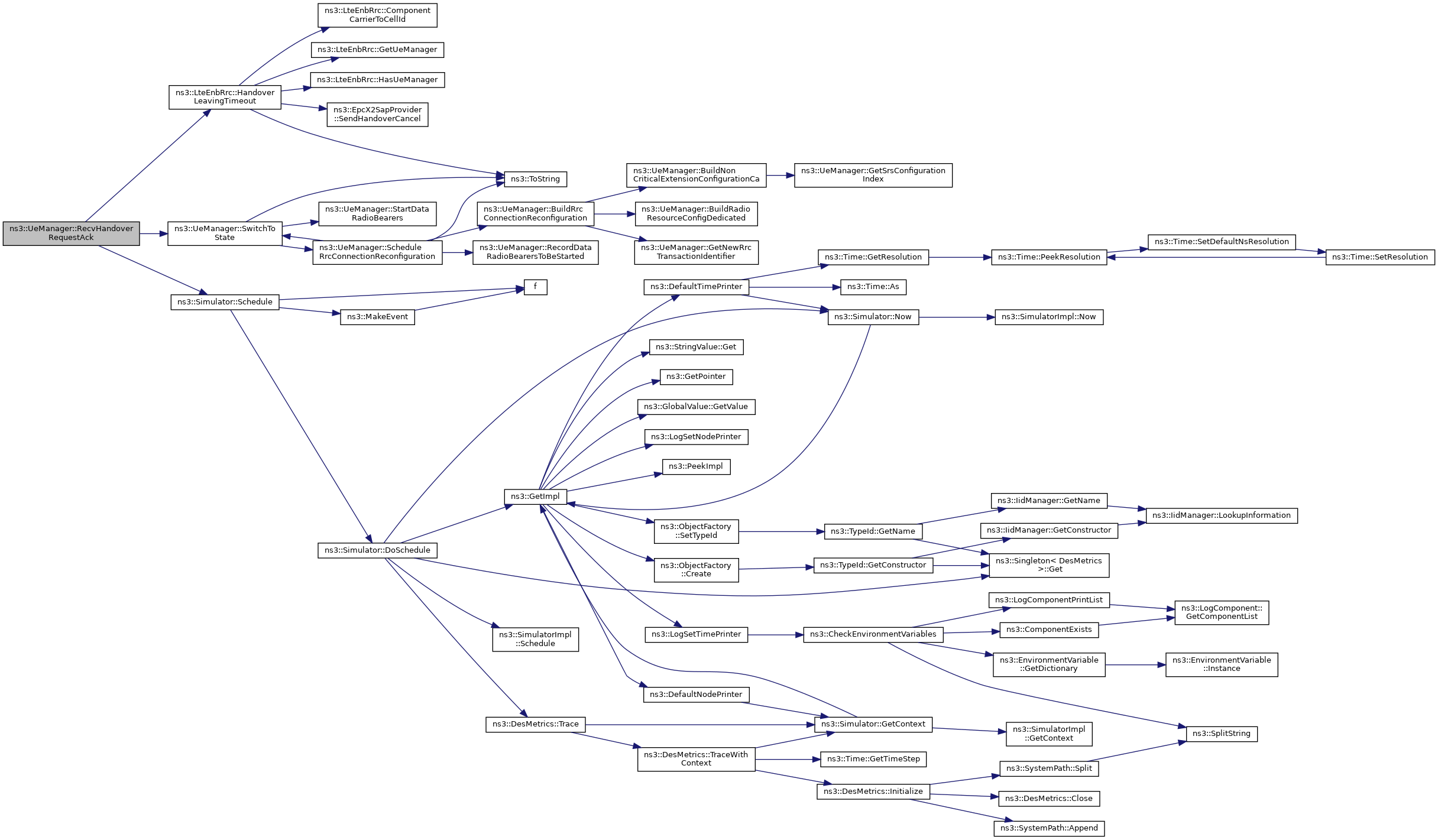

void	RecvHandoverRequestAck (EpcX2SapUser::HandoverRequestAckParams params)
	take the necessary actions in response to the reception of an X2 HANDOVER REQUEST ACK message More...

void	RecvIdealUeContextRemoveRequest (uint16_t rnti)
	Implement the LteEnbRrcSapProvider::RecvIdealUeContextRemoveRequest interface. More...

void	RecvMeasurementReport (LteRrcSap::MeasurementReport msg)
	Implement the LteEnbRrcSapProvider::RecvMeasurementReport interface. More...

void	RecvRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)
	Implement the LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted interface. More...

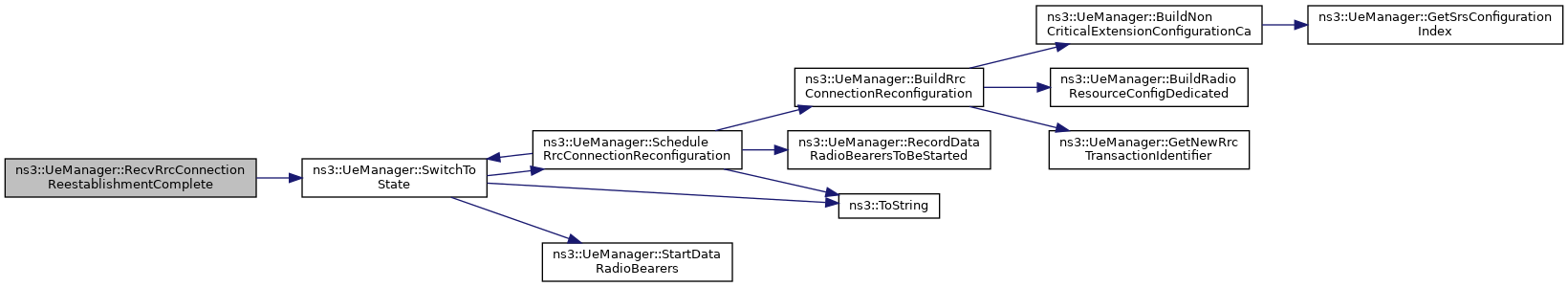

void	RecvRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)
	Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete interface. More...

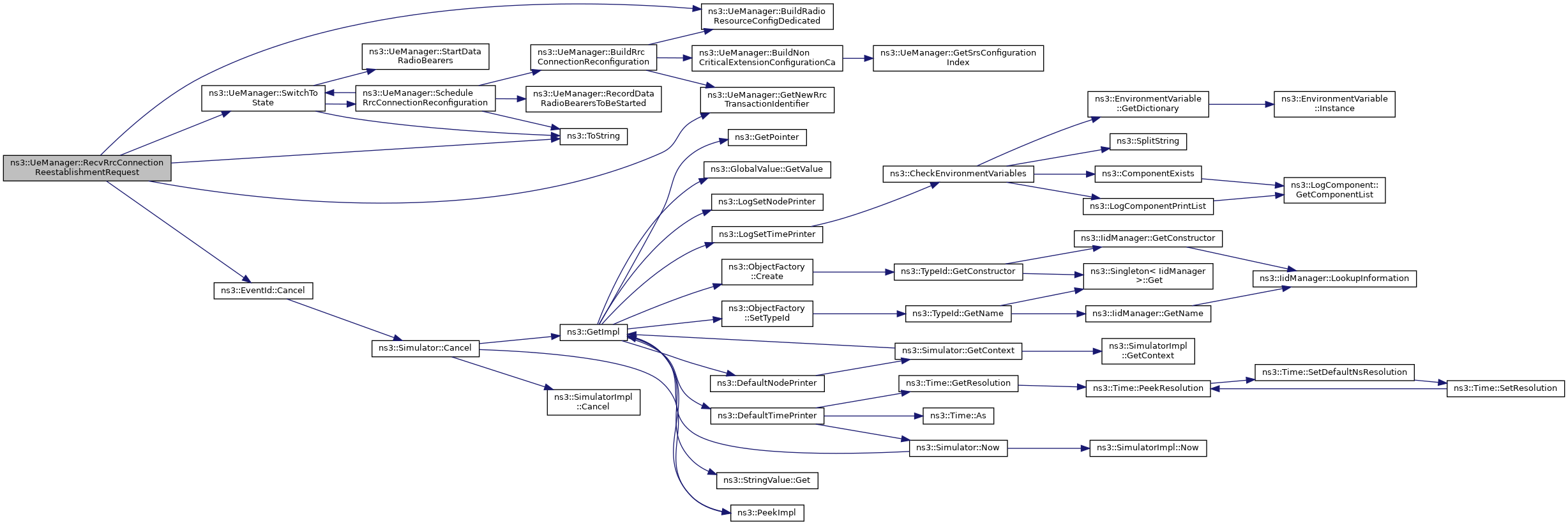

void	RecvRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)
	Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest interface. More...

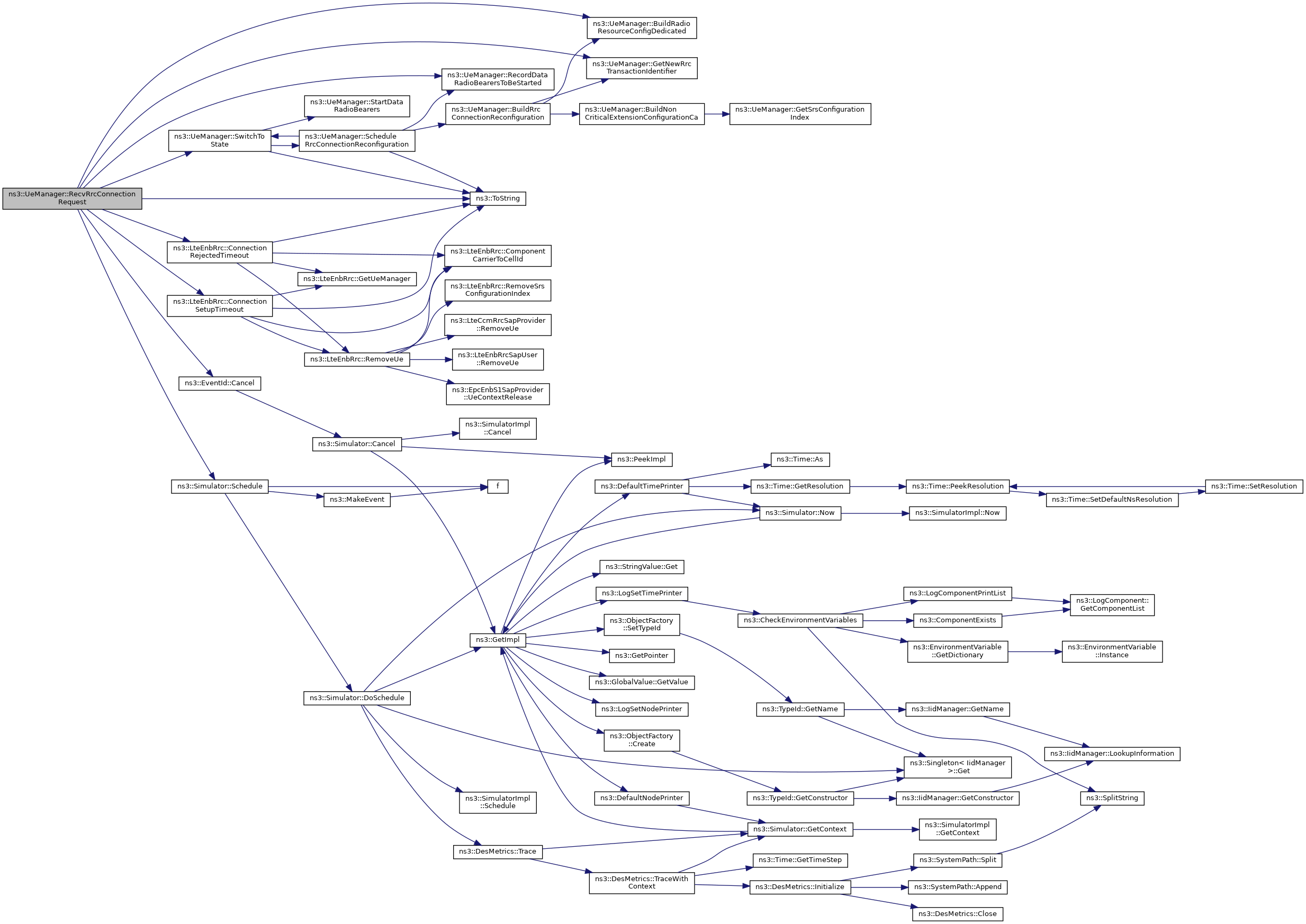

void	RecvRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)
	Implement the LteEnbRrcSapProvider::RecvRrcConnectionRequest interface. More...

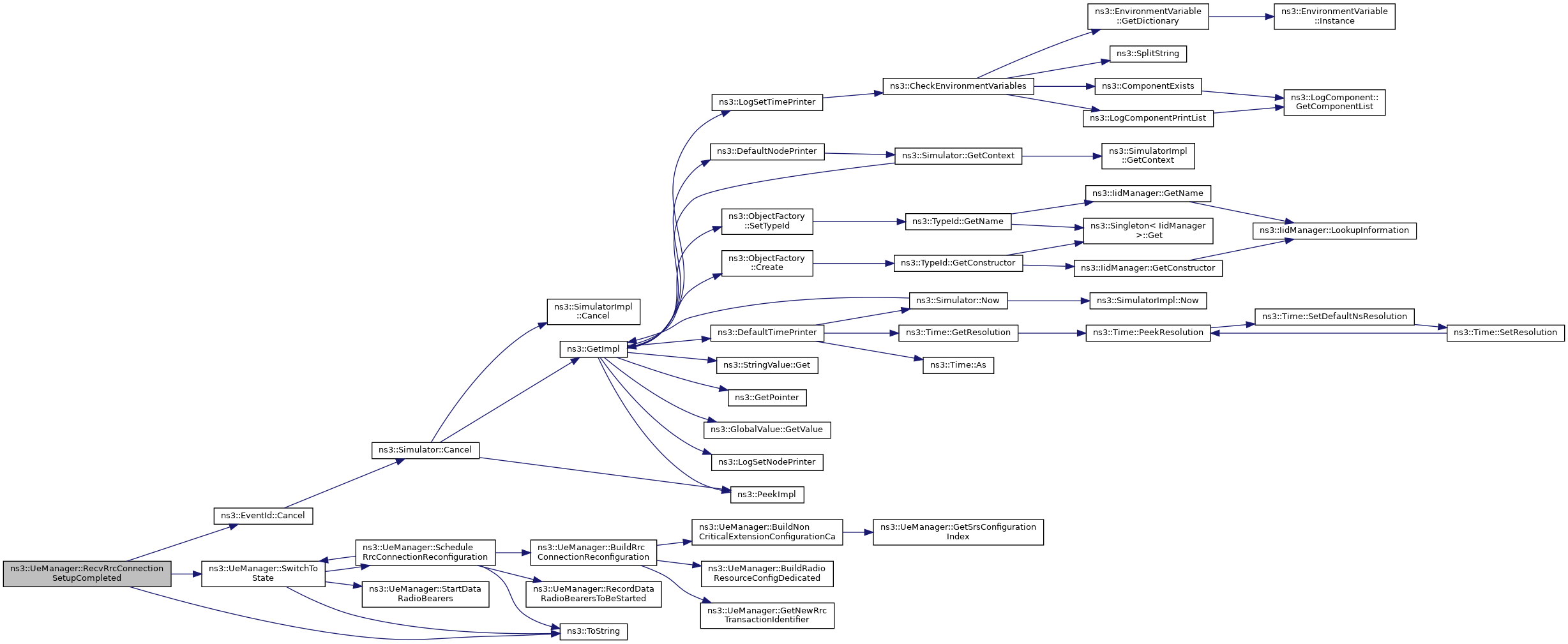

void	RecvRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)
	Implement the LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted interface. More...

void	RecvSnStatusTransfer (EpcX2SapUser::SnStatusTransferParams params)
	Take the necessary actions in response to the reception of an X2 SN STATUS TRANSFER message. More...

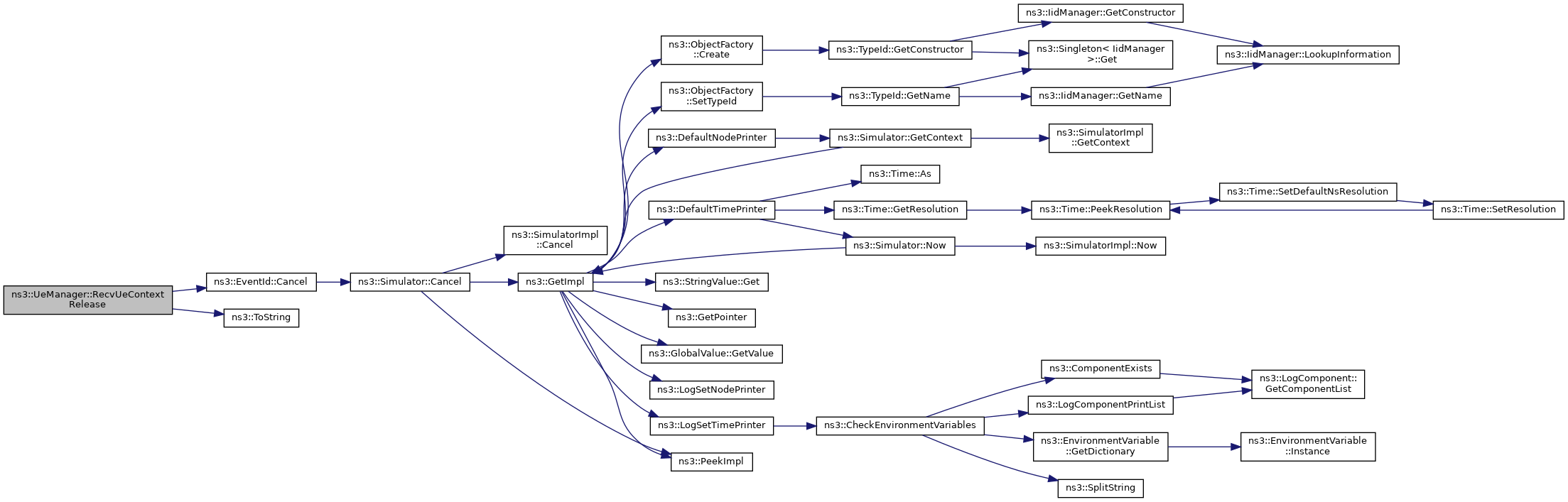

void	RecvUeContextRelease (EpcX2SapUser::UeContextReleaseParams params)
	Take the necessary actions in response to the reception of an X2 UE CONTEXT RELEASE message. More...

void	ReleaseDataRadioBearer (uint8_t drbid)
	Release a given radio bearer. More...

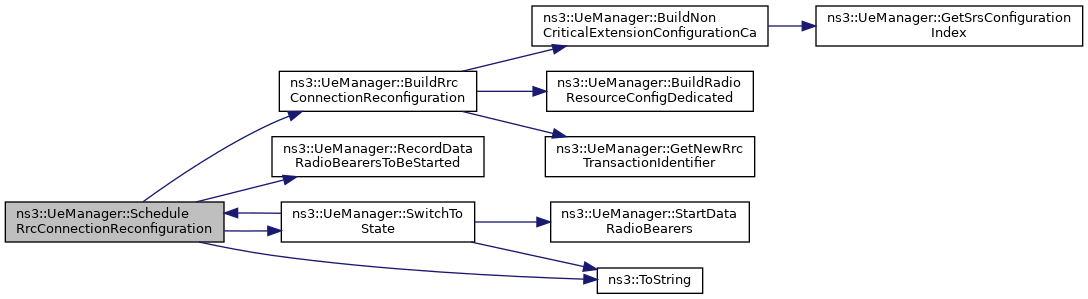

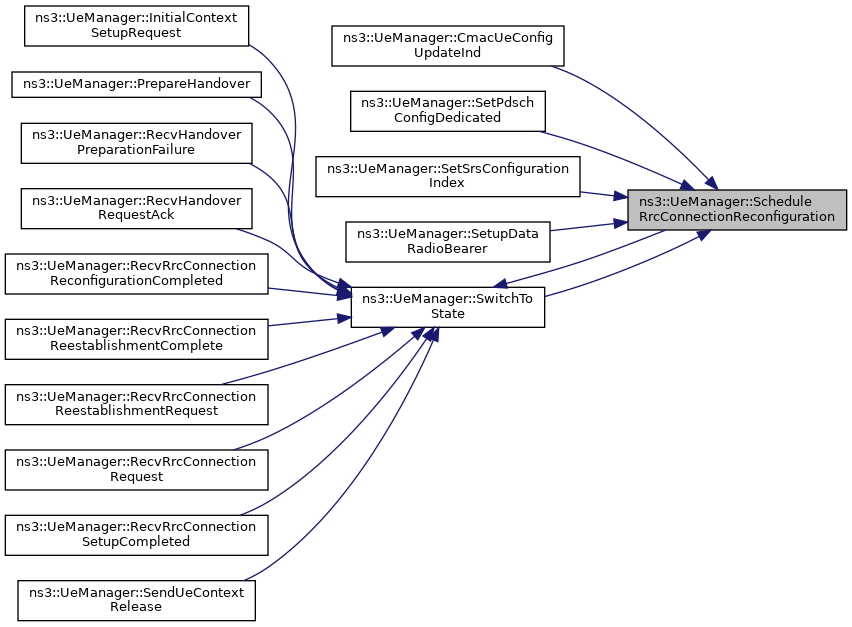

void	ScheduleRrcConnectionReconfiguration ()
	schedule an RRC Connection Reconfiguration procedure with the UE More...

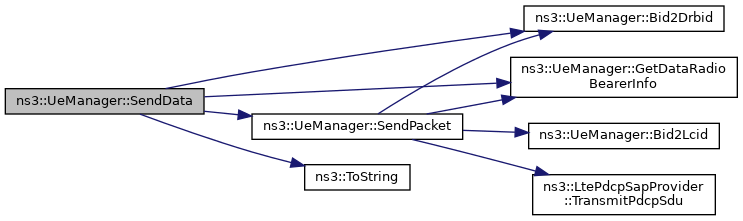

void	SendData (uint8_t bid, Ptr< Packet > p)
	Send a data packet over the appropriate Data Radio Bearer. More...

void	SendRrcConnectionRelease ()
	This function acts as an interface to trigger the connection release towards eNB, EPC and UE. More...

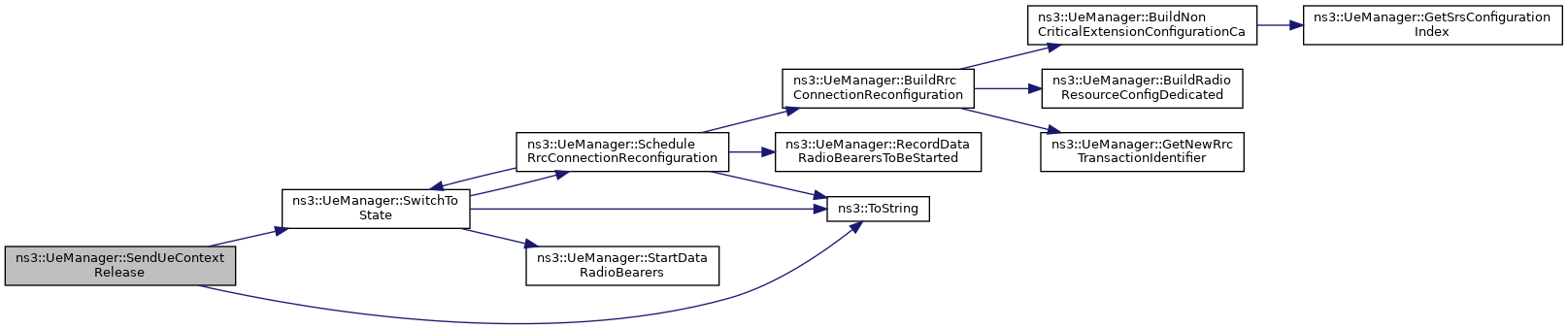

void	SendUeContextRelease ()
	send the UE CONTEXT RELEASE X2 message to the source eNB, thus successfully terminating an X2 handover procedure More...

void	SetImsi (uint64_t imsi)
	Set the IMSI. More...

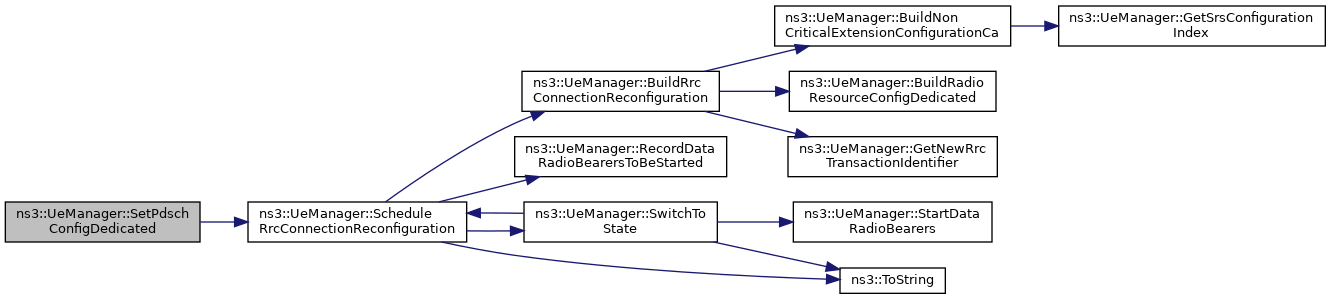

void	SetPdschConfigDedicated (LteRrcSap::PdschConfigDedicated pdschConfigDedicated)
	Configure PdschConfigDedicated (i.e. More...

void	SetSource (uint16_t sourceCellId, uint16_t sourceX2apId)
	Set the identifiers of the source eNB for the case where a UE joins the current eNB as part of a handover procedure. More...

void	SetSrsConfigurationIndex (uint16_t srsConfIndex)
	Set the SRS configuration index and do the necessary reconfiguration. More...

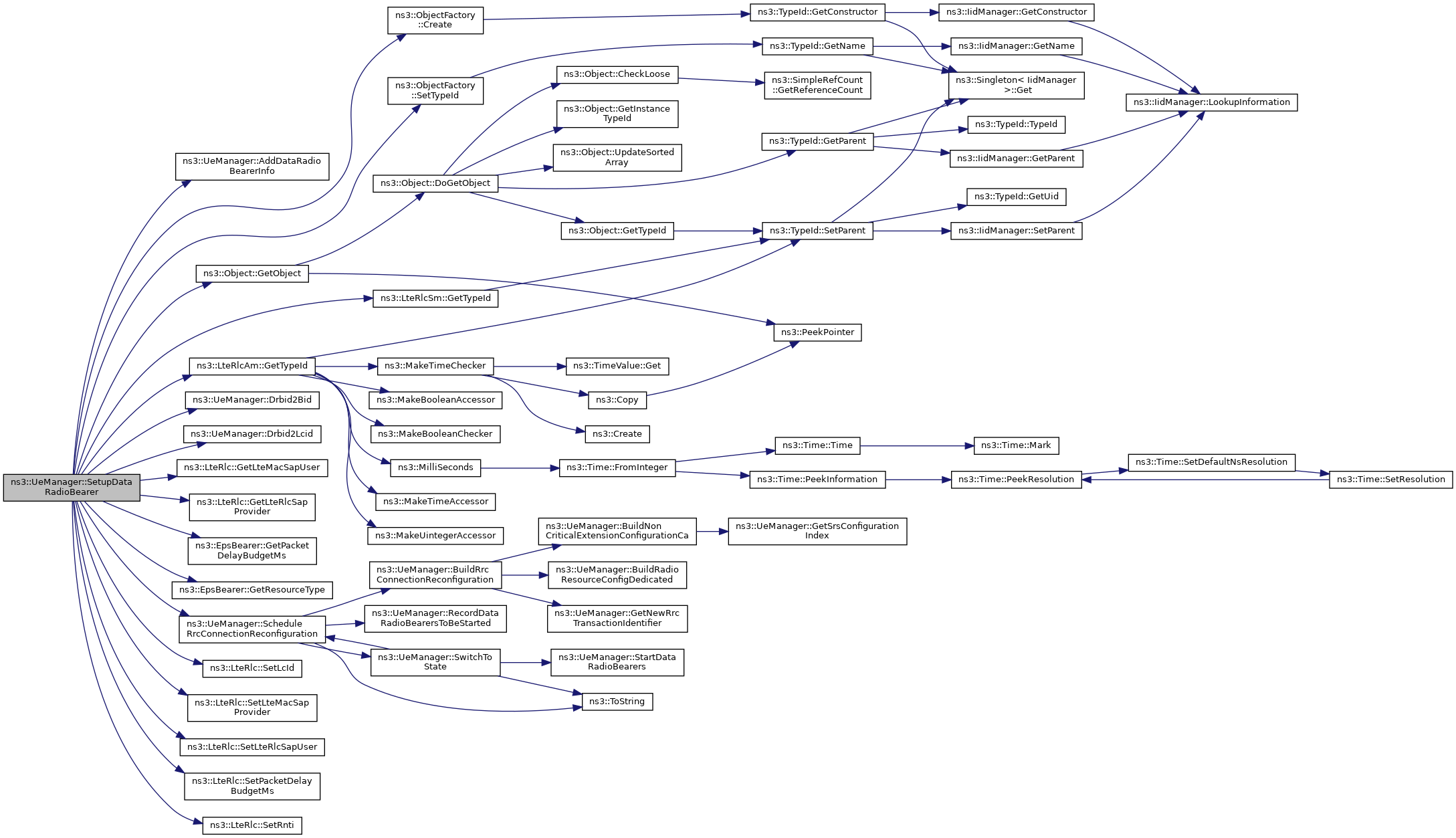

void	SetupDataRadioBearer (EpsBearer bearer, uint8_t bearerId, uint32_t gtpTeid, Ipv4Address transportLayerAddress)
	Setup a new data radio bearer, including both the configuration within the eNB and the necessary RRC signaling with the UE. More...

void	StartDataRadioBearers ()
	Start the data radio bearers that have been previously recorded to be started using RecordDataRadioBearersToBeStarted() More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

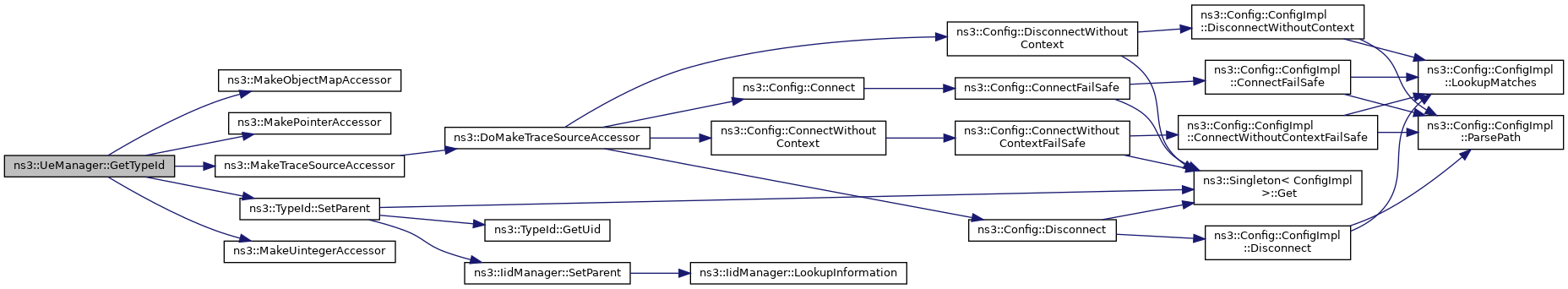

static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

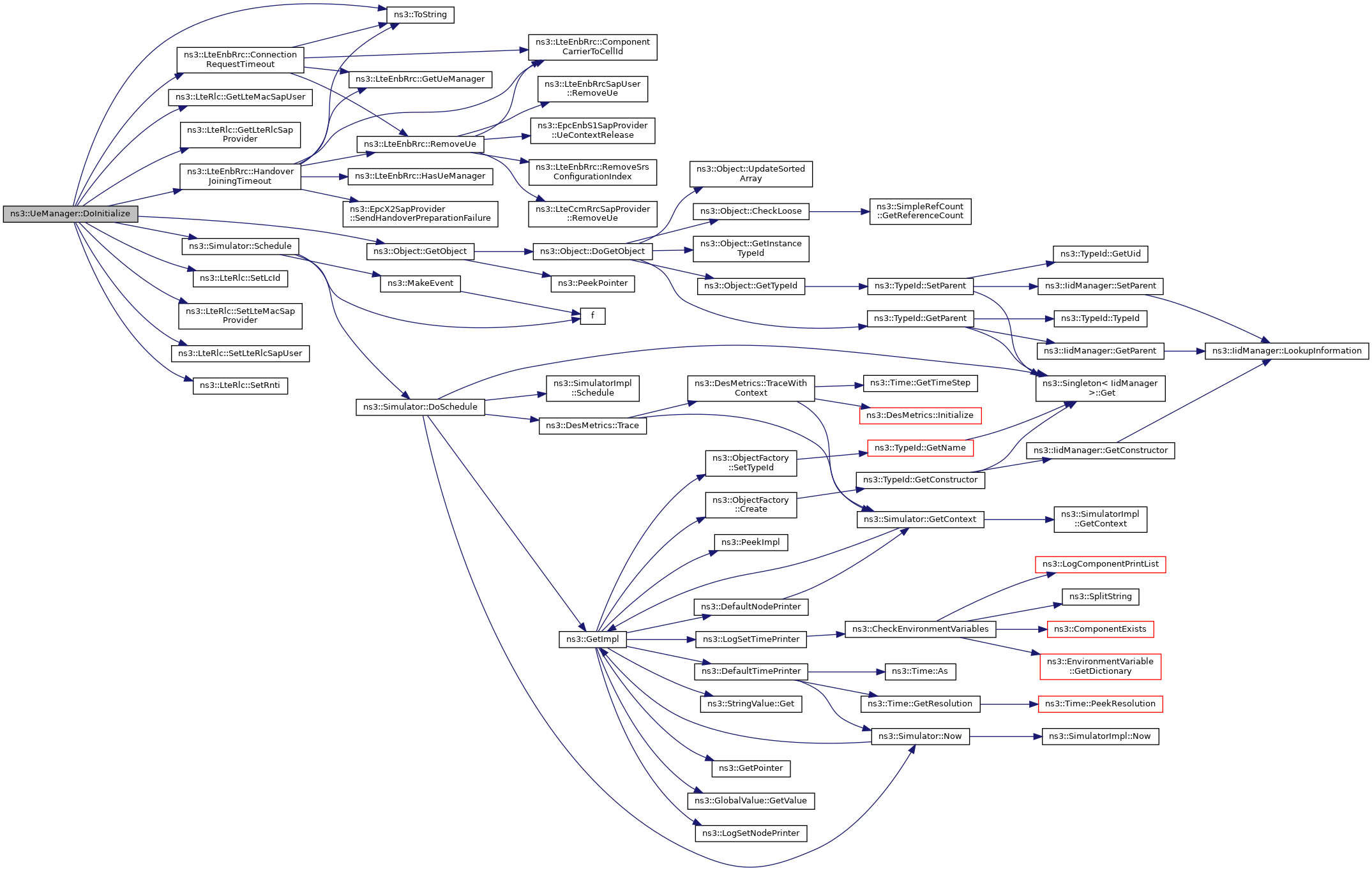

void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
uint8_t	AddDataRadioBearerInfo (Ptr< LteDataRadioBearerInfo > radioBearerInfo)
	Add a new LteDataRadioBearerInfo structure to the UeManager. More...

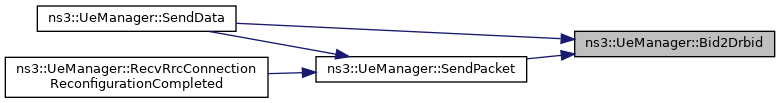

uint8_t	Bid2Drbid (uint8_t bid)

uint8_t	Bid2Lcid (uint8_t bid)

LteRrcSap::NonCriticalExtensionConfiguration	BuildNonCriticalExtensionConfigurationCa ()

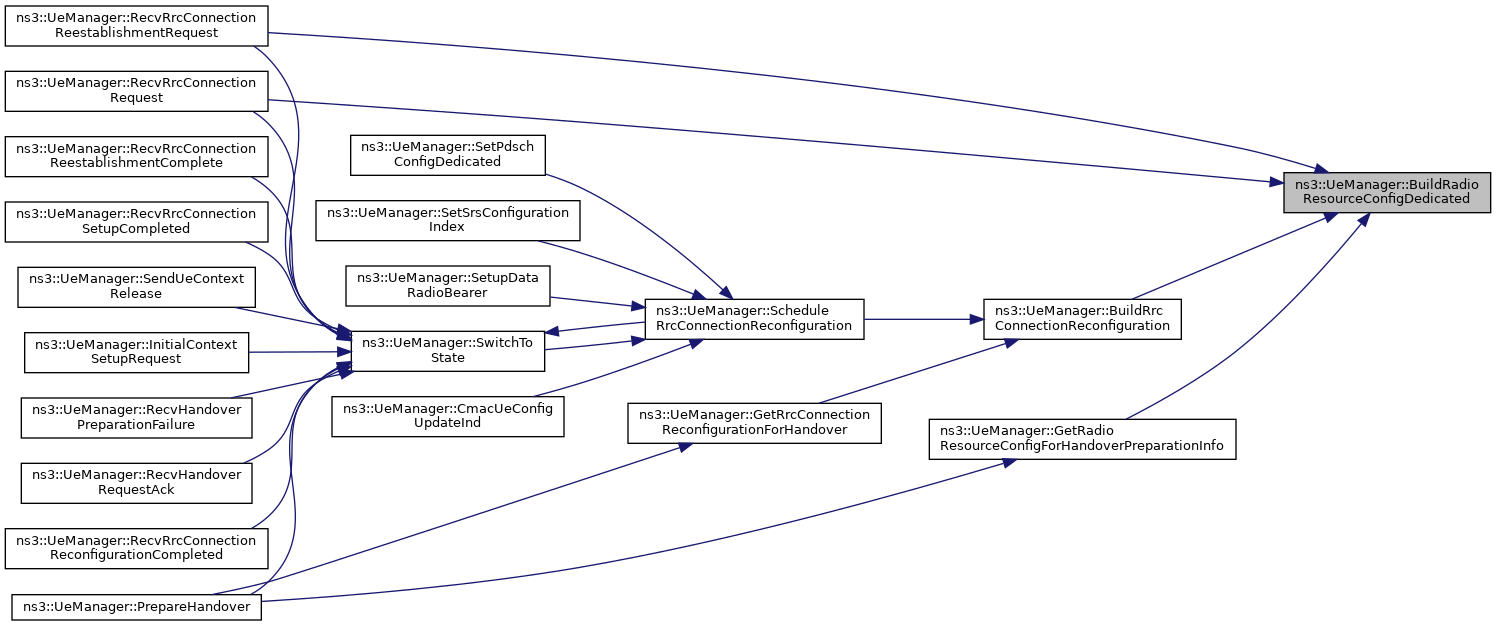

LteRrcSap::RadioResourceConfigDedicated	BuildRadioResourceConfigDedicated ()

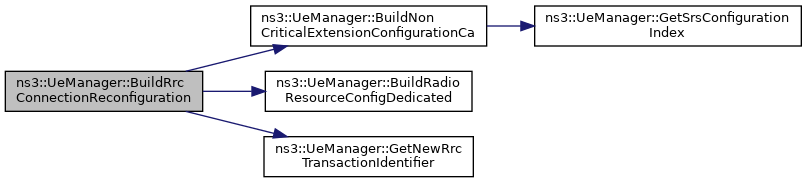

LteRrcSap::RrcConnectionReconfiguration	BuildRrcConnectionReconfiguration ()

uint8_t	Drbid2Bid (uint8_t drbid)

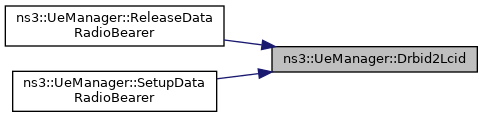

uint8_t	Drbid2Lcid (uint8_t drbid)

Ptr< LteDataRadioBearerInfo >	GetDataRadioBearerInfo (uint8_t drbid)

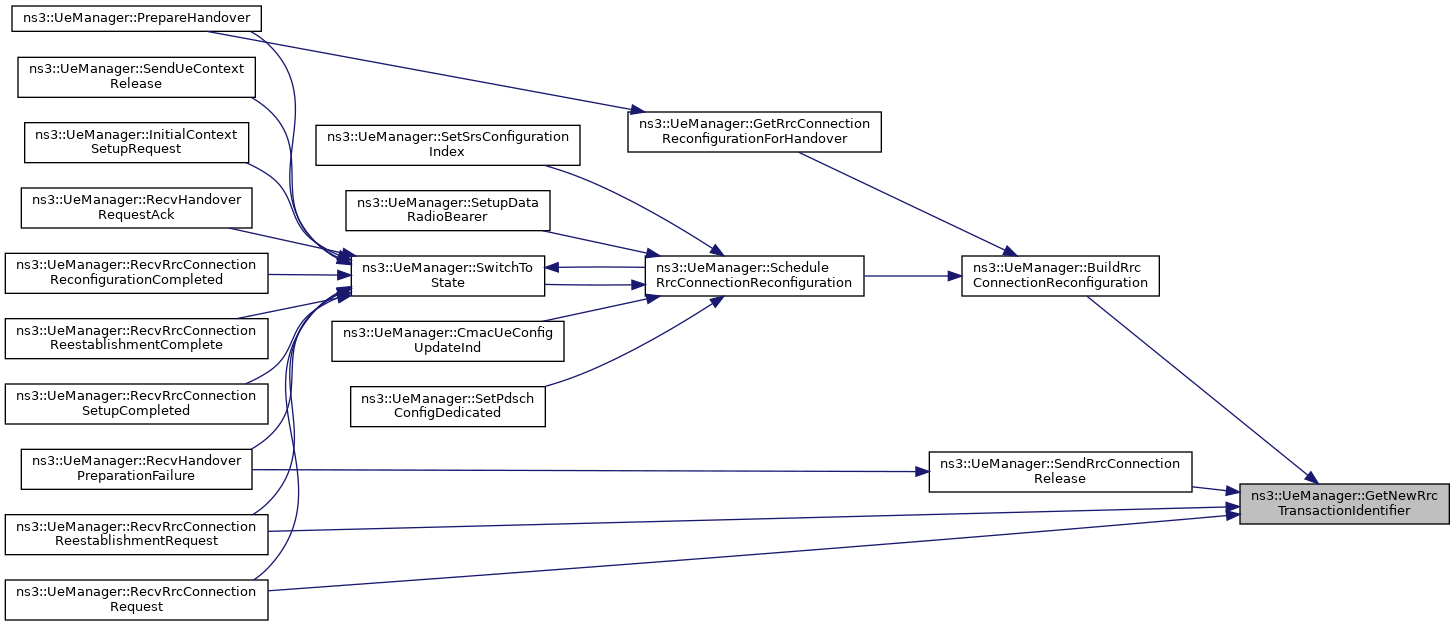

uint8_t	GetNewRrcTransactionIdentifier ()

uint8_t	Lcid2Bid (uint8_t lcid)

uint8_t	Lcid2Drbid (uint8_t lcid)

void	RemoveDataRadioBearerInfo (uint8_t drbid)
	remove the LteDataRadioBearerInfo corresponding to a bearer being released More...

void	SendPacket (uint8_t bid, Ptr< Packet > p)
	Send a data packet over the appropriate Data Radio Bearer. More...

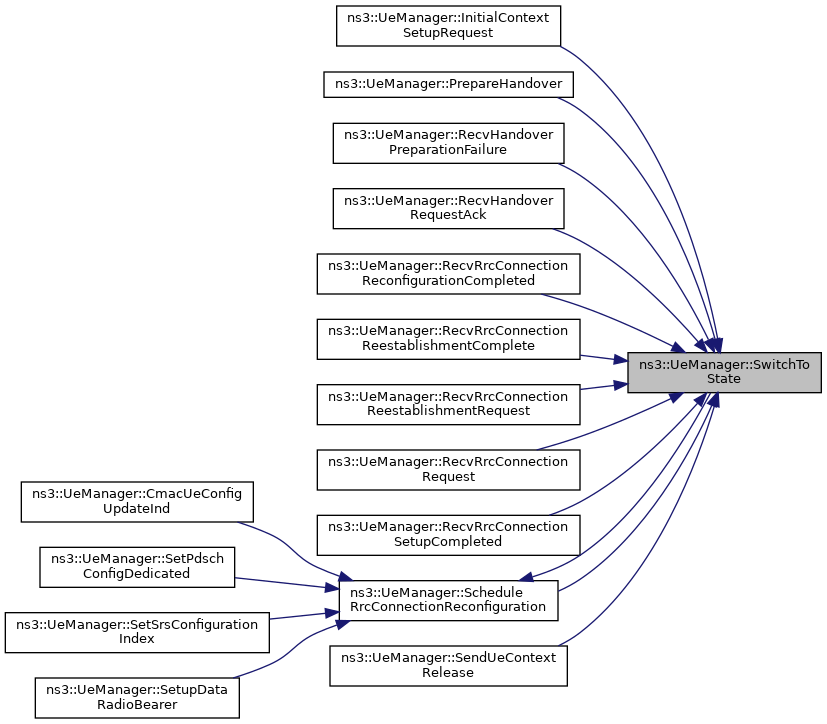

void	SwitchToState (State s)
	Switch the UeManager to the given state. More...

Private Attributes
bool	m_caSupportConfigured
	Define if the Carrier Aggregation was already configure for the current UE on not. More...

uint8_t	m_componentCarrierId
	ID of the primary CC for this UE. More...

EventId	m_connectionRejectedTimeout
	The delay before a connection rejected timeout occurs. More...

EventId	m_connectionRequestTimeout
	Time limit before a connection request timeout occurs. More...

EventId	m_connectionSetupTimeout
	Time limit before a connection setup timeout occurs. More...

TracedCallback< uint64_t, uint16_t, uint16_t, uint8_t >	m_drbCreatedTrace
	The `DrbCreated` trace source. More...

std::map< uint8_t, Ptr< LteDataRadioBearerInfo > >	m_drbMap
	The `DataRadioBearerMap` attribute. More...

LtePdcpSapUser *	m_drbPdcpSapUser
	DRB PDCP SAP user. More...

std::list< uint8_t >	m_drbsToBeStarted
	DRBS to be started. More...

EventId	m_handoverJoiningTimeout
	Time limit before a handover joining timeout occurs. More...

EventId	m_handoverLeavingTimeout
	Time limit before a handover leaving timeout occurs. More...

uint64_t	m_imsi
	International Mobile Subscriber Identity assigned to this UE. More...

uint8_t	m_lastAllocatedDrbid
	last allocated Data Radio Bearer ID More...

uint8_t	m_lastRrcTransactionIdentifier
	last RRC transaction identifier More...

bool	m_needPhyMacConfiguration
	need Phy MAC configuration More...

std::list< std::pair< uint8_t, Ptr< Packet > > >	m_packetBuffer
	Packet buffer for when UE is doing the handover. More...

bool	m_pendingRrcConnectionReconfiguration
	pending RRC connection reconfiguration More...

bool	m_pendingStartDataRadioBearers
	Pending start data radio bearers. More...

LteRrcSap::PhysicalConfigDedicated	m_physicalConfigDedicated
	physical config dedicated More...

uint16_t	m_rnti
	The `C-RNTI` attribute. More...

Ptr< LteEnbRrc >	m_rrc
	Pointer to the parent eNodeB RRC. More...

uint16_t	m_sourceCellId
	source cell ID More...

uint16_t	m_sourceX2apId
	source X2 ap ID More...

Ptr< LteSignalingRadioBearerInfo >	m_srb0
	The `Srb0` attribute. More...

Ptr< LteSignalingRadioBearerInfo >	m_srb1
	The `Srb1` attribute. More...

State	m_state
	The current UeManager state. More...

TracedCallback< uint64_t, uint16_t, uint16_t, State, State >	m_stateTransitionTrace
	The `StateTransition` trace source. More...

uint16_t	m_targetCellId
	target cell ID More...

uint16_t	m_targetX2apId
	target X2 ap ID More...

Friends
class	LtePdcpSpecificLtePdcpSapUser< UeManager >
	allow LtePdcpSpecificLtePdcpSapUser<UeManager> class friend access More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Manages all the radio bearer information possessed by the ENB RRC for a single UE.

Definition at line 67 of file lte-enb-rrc.h.

Member Typedef Documentation

◆ StateTracedCallback

typedef void(* ns3::UeManager::StateTracedCallback) (const uint64_t imsi, const uint16_t cellId, const uint16_t rnti, const State oldState, const State newState)

TracedCallback signature for state transition events.

Parameters

[in]	imsi
[in]	cellId
[in]	rnti
[in]	oldState
[in]	newState

Definition at line 416 of file lte-enb-rrc.h.

Member Enumeration Documentation

◆ State

enum ns3::UeManager::State

The state of the UeManager at the eNB RRC.

Enumerator
INITIAL_RANDOM_ACCESS
CONNECTION_SETUP
CONNECTION_REJECTED
ATTACH_REQUEST
CONNECTED_NORMALLY
CONNECTION_RECONFIGURATION
CONNECTION_REESTABLISHMENT
HANDOVER_PREPARATION
HANDOVER_JOINING
HANDOVER_PATH_SWITCH
HANDOVER_LEAVING
NUM_STATES

Definition at line 77 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

◆ UeManager() [1/2]

ns3::UeManager::UeManager ( )

Definition at line 143 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR.

◆ UeManager() [2/2]

ns3::UeManager::UeManager	(	Ptr< LteEnbRrc >	rrc,
		uint16_t	rnti,
		State	s,
		uint8_t	componentCarrierId
	)

UeManager constructor.

Parameters

rrc	pointer to the LteEnbRrc holding this UeManager
rnti	RNTI of the UE
s	initial state of the UeManager
componentCarrierId	primary component carrier ID

Definition at line 148 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

◆ ~UeManager()

ns3::UeManager::~UeManager ( )

override

Definition at line 316 of file lte-enb-rrc.cc.

Member Function Documentation

◆ AddDataRadioBearerInfo()

uint8_t ns3::UeManager::AddDataRadioBearerInfo ( Ptr< LteDataRadioBearerInfo > radioBearerInfo )

private

Add a new LteDataRadioBearerInfo structure to the UeManager.

Parameters

radioBearerInfo

Returns: the id of the newly added data radio bearer structure

Definition at line 1550 of file lte-enb-rrc.cc.

References m_drbMap, m_lastAllocatedDrbid, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by SetupDataRadioBearer().

Here is the caller graph for this function:

◆ Bid2Drbid()

uint8_t ns3::UeManager::Bid2Drbid ( uint8_t bid )

private

Parameters

bid	an EPS Bearer Identifier

Returns: the corresponding Data Radio Bearer Id

Definition at line 1691 of file lte-enb-rrc.cc.

Referenced by SendData(), and SendPacket().

Here is the caller graph for this function:

◆ Bid2Lcid()

uint8_t ns3::UeManager::Bid2Lcid ( uint8_t bid )

private

Parameters

bid	an EPS Bearer Identifier

Returns: the corresponding Logical Channel Identifier

Definition at line 1679 of file lte-enb-rrc.cc.

Referenced by SendPacket().

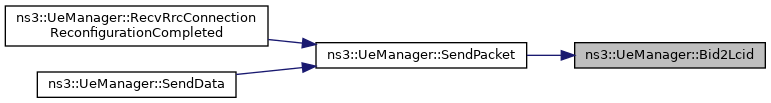

Here is the caller graph for this function:

◆ BuildHoCancelMsg()

EpcX2Sap::HandoverCancelParams ns3::UeManager::BuildHoCancelMsg ( )

build handover cancel message

Returns: the handover cancel message.

Definition at line 1536 of file lte-enb-rrc.cc.

References m_componentCarrierId, m_rnti, m_rrc, m_targetCellId, m_targetX2apId, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::res.

◆ BuildHoPrepFailMsg()

EpcX2Sap::HandoverPreparationFailureParams ns3::UeManager::BuildHoPrepFailMsg ( )

build handover preparation failure message

Returns: the handover preparation failure message.

Definition at line 1522 of file lte-enb-rrc.cc.

References m_componentCarrierId, m_rrc, m_sourceCellId, m_sourceX2apId, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::res.

◆ BuildNonCriticalExtensionConfigurationCa()

LteRrcSap::NonCriticalExtensionConfiguration ns3::UeManager::BuildNonCriticalExtensionConfigurationCa ( )

private

Returns: an NonCriticalExtensionConfiguration struct built based on the current configuration

Definition at line 1750 of file lte-enb-rrc.cc.

Referenced by BuildRrcConnectionReconfiguration().

Here is the call graph for this function:

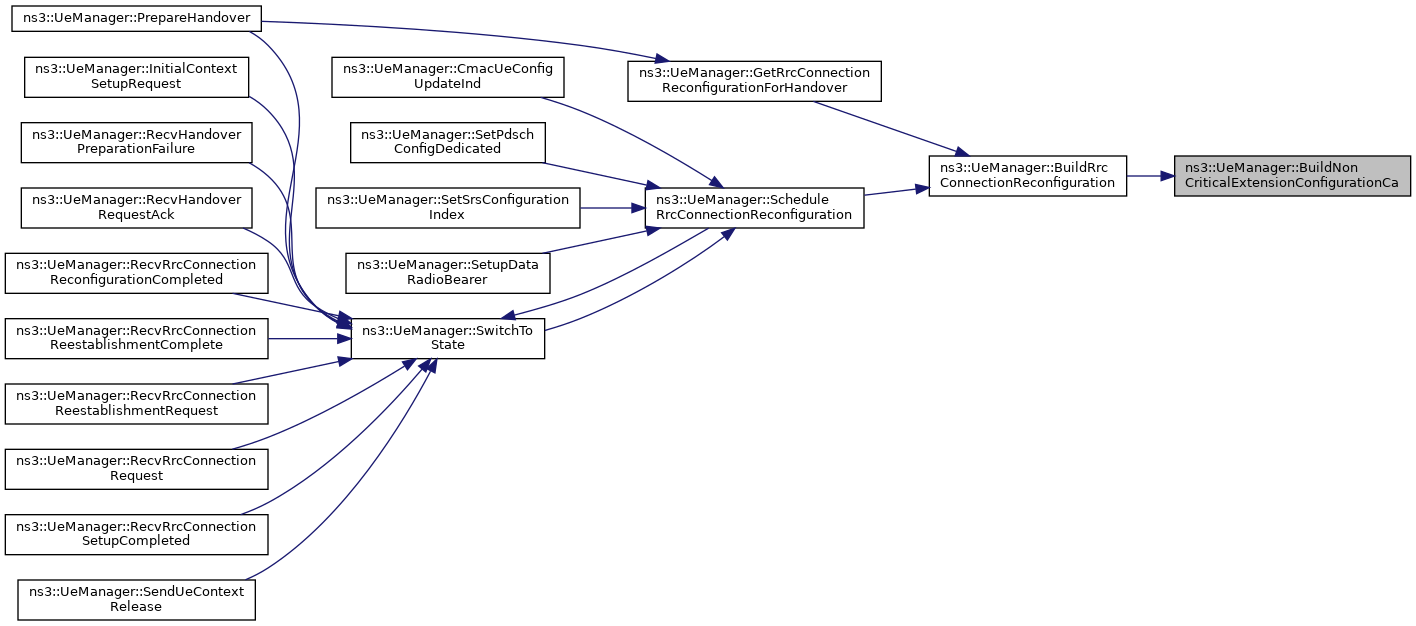

Here is the caller graph for this function:

◆ BuildRadioResourceConfigDedicated()

LteRrcSap::RadioResourceConfigDedicated ns3::UeManager::BuildRadioResourceConfigDedicated ( )

private

Returns: a RadioResourceConfigDedicated struct built based on the current configuration

Definition at line 1620 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::DrbToAddMod::drbIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::DrbToAddMod::epsBearerIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::SrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::DrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::DrbToAddMod::logicalChannelIdentity, m_drbMap, m_physicalConfigDedicated, m_srb1, NS_LOG_FUNCTION, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteRrcSap::DrbToAddMod::rlcConfig, ns3::LteRrcSap::SrbToAddMod::srbIdentity, and ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList.

Referenced by BuildRrcConnectionReconfiguration(), GetRadioResourceConfigForHandoverPreparationInfo(), RecvRrcConnectionReestablishmentRequest(), and RecvRrcConnectionRequest().

Here is the caller graph for this function:

◆ BuildRrcConnectionReconfiguration()

LteRrcSap::RrcConnectionReconfiguration ns3::UeManager::BuildRrcConnectionReconfiguration ( )

private

Returns: an RrcConnectionReconfiguration struct built based on the current configuration

Definition at line 1593 of file lte-enb-rrc.cc.

Referenced by GetRrcConnectionReconfigurationForHandover(), and ScheduleRrcConnectionReconfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CancelPendingEvents()

void ns3::UeManager::CancelPendingEvents ( )

Cancel all timers which are running for the UE.

Definition at line 1511 of file lte-enb-rrc.cc.

References ns3::EventId::Cancel(), m_connectionRejectedTimeout, m_connectionRequestTimeout, m_connectionSetupTimeout, m_handoverJoiningTimeout, m_handoverLeavingTimeout, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CmacUeConfigUpdateInd()

void ns3::UeManager::CmacUeConfigUpdateInd ( LteEnbCmacSapUser::UeConfig cmacParams )

CMAC UE config update indication function.

Parameters

cmacParams the UE config parameters

Definition at line 1416 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, m_needPhyMacConfiguration, m_physicalConfigDedicated, m_rnti, ns3::LteEnbCmacSapUser::UeConfig::m_transmissionMode, NS_LOG_FUNCTION, ScheduleRrcConnectionReconfiguration(), and ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode.

Here is the call graph for this function:

◆ CompleteSetupUe()

void ns3::UeManager::CompleteSetupUe ( LteEnbRrcSapProvider::CompleteSetupUeParameters params )

Implement the LteEnbRrcSapProvider::CompleteSetupUe interface.

Parameters

params CompleteSetupUeParameters

Definition at line 1125 of file lte-enb-rrc.cc.

References m_srb0, m_srb1, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

◆ DoDispose()

void ns3::UeManager::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 321 of file lte-enb-rrc.cc.

References m_drbMap, m_drbPdcpSapUser, and m_rrc.

◆ DoInitialize()

void ns3::UeManager::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 167 of file lte-enb-rrc.cc.

Here is the call graph for this function:

◆ DoReceivePdcpSdu()

void ns3::UeManager::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters params )

Receive PDCP SDU function.

Parameters

params the receive PDCP SDU parameters

Definition at line 1432 of file lte-enb-rrc.cc.

References Lcid2Bid(), m_rrc, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, ns3::EpsBearerTag::SetBid(), and ns3::EpsBearerTag::SetRnti().

Here is the call graph for this function:

◆ Drbid2Bid()

uint8_t ns3::UeManager::Drbid2Bid ( uint8_t drbid )

private

Parameters

drbid Data Radio Bearer Id

Returns: the corresponding EPS Bearer Identifier

Definition at line 1685 of file lte-enb-rrc.cc.

Referenced by SetupDataRadioBearer().

Here is the caller graph for this function:

◆ Drbid2Lcid()

uint8_t ns3::UeManager::Drbid2Lcid ( uint8_t drbid )

private

Parameters

drbid a Data Radio Bearer Id

Returns: the corresponding Logical Channel Identifier

Definition at line 1666 of file lte-enb-rrc.cc.

Referenced by ReleaseDataRadioBearer(), and SetupDataRadioBearer().

Here is the caller graph for this function:

◆ GetComponentCarrierId()

uint8_t ns3::UeManager::GetComponentCarrierId ( ) const

Returns: the primary component carrier ID

Definition at line 1459 of file lte-enb-rrc.cc.

References m_componentCarrierId.

◆ GetDataRadioBearerInfo()

Ptr< LteDataRadioBearerInfo > ns3::UeManager::GetDataRadioBearerInfo ( uint8_t drbid )

private

Parameters

drbid the Data Radio Bearer id

Returns: the corresponding LteDataRadioBearerInfo

Definition at line 1573 of file lte-enb-rrc.cc.

References m_drbMap, NS_ABORT_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by SendData(), and SendPacket().

Here is the caller graph for this function:

◆ GetErabList()

std::vector< EpcX2Sap::ErabToBeSetupItem > ns3::UeManager::GetErabList ( )

Returns: a list of ERAB-to-be-setup items to be put in a X2 HO REQ message

Definition at line 995 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::ErabToBeSetupItem::dlForwarding, ns3::EpcX2Sap::ErabToBeSetupItem::erabId, ns3::EpcX2Sap::ErabToBeSetupItem::erabLevelQosParameters, ns3::EpcX2Sap::ErabToBeSetupItem::gtpTeid, m_drbMap, NS_LOG_FUNCTION, and ns3::EpcX2Sap::ErabToBeSetupItem::transportLayerAddress.

Referenced by PrepareHandover().

Here is the caller graph for this function:

◆ GetImsi()

uint64_t ns3::UeManager::GetImsi ( ) const

Returns: the IMSI, i.e., a globally unique UE identifier

Definition at line 1453 of file lte-enb-rrc.cc.

References m_imsi.

Referenced by ns3::LteStatsCalculator::FindImsiFromEnbRlcPath(), and RecvIdealUeContextRemoveRequest().

Here is the caller graph for this function:

◆ GetNewRrcTransactionIdentifier()

uint8_t ns3::UeManager::GetNewRrcTransactionIdentifier ( )

private

Returns: a newly allocated identifier for a new RRC transaction

Definition at line 1650 of file lte-enb-rrc.cc.

References m_lastRrcTransactionIdentifier, and NS_LOG_FUNCTION.

Referenced by BuildRrcConnectionReconfiguration(), RecvRrcConnectionReestablishmentRequest(), RecvRrcConnectionRequest(), and SendRrcConnectionRelease().

Here is the caller graph for this function:

◆ GetRadioResourceConfigForHandoverPreparationInfo()

LteRrcSap::RadioResourceConfigDedicated ns3::UeManager::GetRadioResourceConfigForHandoverPreparationInfo ( )

Returns: the HandoverPreparationInfo sent by the source eNB to the target eNB in the X2-based handover procedure

Definition at line 870 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), and NS_LOG_FUNCTION.

Referenced by PrepareHandover().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRnti()

uint16_t ns3::UeManager::GetRnti ( ) const

Returns: the RNTI, i.e., an UE identifier that is unique within the cell

Definition at line 1447 of file lte-enb-rrc.cc.

References m_rnti.

◆ GetRrcConnectionReconfigurationForHandover()

LteRrcSap::RrcConnectionReconfiguration ns3::UeManager::GetRrcConnectionReconfigurationForHandover ( uint8_t componentCarrierId )

Parameters

componentCarrierId target component carrier ID

Returns: retrieve the data that the target eNB needs to send to the source eNB as the Handover Command in the X2-based handover procedure.

Note: mobility control info is not expected to be filled in (shall be filled in by the caller).

Definition at line 877 of file lte-enb-rrc.cc.

References BuildRrcConnectionReconfiguration(), ns3::LteRrcSap::MobilityControlInfo::carrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::carrierFreq, ns3::LteRrcSap::CarrierBandwidthEutra::dlBandwidth, ns3::LteRrcSap::CarrierFreqEutra::dlCarrierFreq, ns3::LteRrcSap::MobilityControlInfo::haveCarrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::haveCarrierFreq, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::RrcConnectionReconfiguration::haveNonCriticalExtension, m_caSupportConfigured, m_componentCarrierId, m_rrc, ns3::LteRrcSap::RrcConnectionReconfiguration::mobilityControlInfo, ns3::LteRrcSap::RrcConnectionReconfiguration::nonCriticalExtension, NS_LOG_FUNCTION, ns3::LteRrcSap::NonCriticalExtensionConfiguration::sCellToReleaseList, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LteRrcSap::CarrierBandwidthEutra::ulBandwidth, and ns3::LteRrcSap::CarrierFreqEutra::ulCarrierFreq.

Referenced by PrepareHandover().

Here is the call graph for this function:

Here is the caller graph for this function:

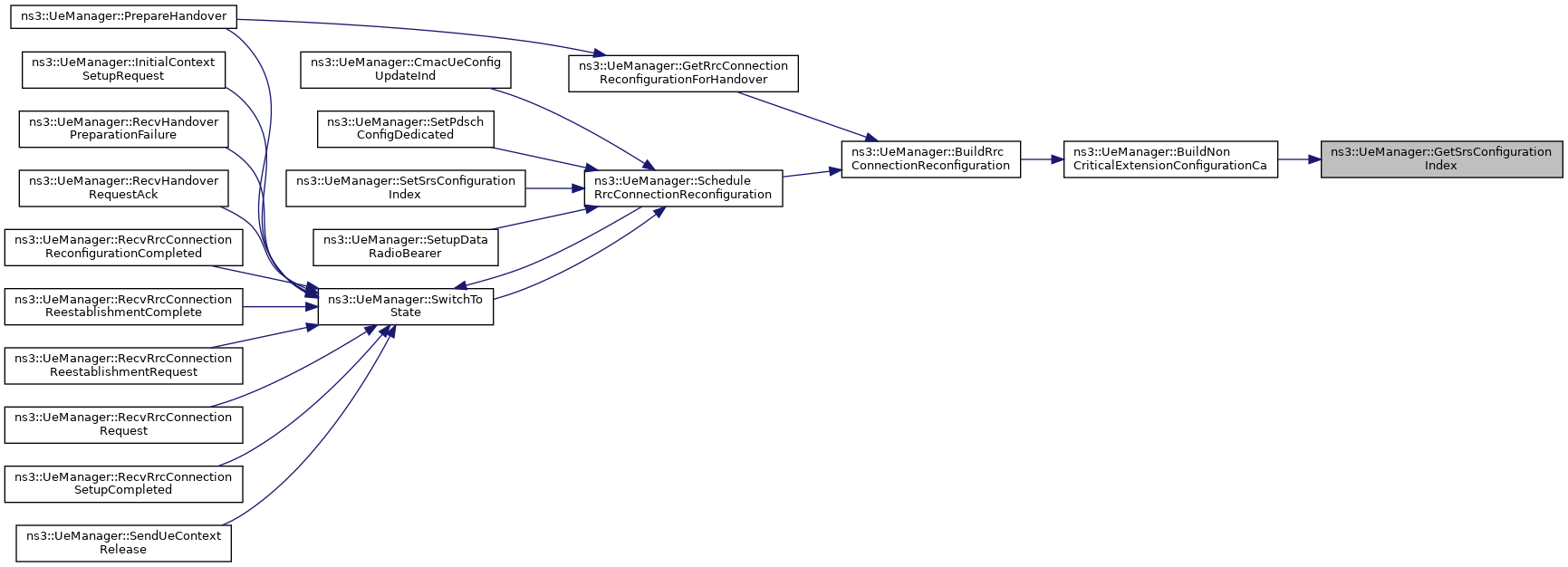

◆ GetSrsConfigurationIndex()

uint16_t ns3::UeManager::GetSrsConfigurationIndex ( ) const

Returns: the SRS Configuration Index

Definition at line 1465 of file lte-enb-rrc.cc.

References m_physicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex.

Referenced by BuildNonCriticalExtensionConfigurationCa().

Here is the caller graph for this function:

◆ GetState()

UeManager::State ns3::UeManager::GetState ( ) const

Returns: the current state

Definition at line 1493 of file lte-enb-rrc.cc.

References m_state.

◆ GetTypeId()

TypeId ns3::UeManager::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 332 of file lte-enb-rrc.cc.

References ns3::TypeId::ATTR_GET, m_drbCreatedTrace, m_drbMap, m_rnti, m_srb0, m_srb1, m_stateTransitionTrace, ns3::MakeObjectMapAccessor(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ InitialContextSetupRequest()

void ns3::UeManager::InitialContextSetupRequest ( )

Process Initial context setup request message from the MME.

It triggers RRC connection reconfiguration.

Definition at line 385 of file lte-enb-rrc.cc.

References ATTACH_REQUEST, CONNECTED_NORMALLY, m_rnti, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

◆ Lcid2Bid()

uint8_t ns3::UeManager::Lcid2Bid ( uint8_t lcid )

private

Parameters

lcid	a Logical Channel Identifier

Returns: the corresponding EPS Bearer Identifier

Definition at line 1672 of file lte-enb-rrc.cc.

References NS_ASSERT.

Referenced by DoReceivePdcpSdu().

Here is the caller graph for this function:

◆ Lcid2Drbid()

uint8_t ns3::UeManager::Lcid2Drbid ( uint8_t lcid )

private

Parameters

lcid	a Logical Channel Identifier

Returns: the corresponding Data Radio Bearer Id

Definition at line 1659 of file lte-enb-rrc.cc.

References NS_ASSERT.

◆ PrepareHandover()

void ns3::UeManager::PrepareHandover ( uint16_t cellId )

Start the handover preparation and send the handover request.

Parameters

cellId id of the target cell

Definition at line 660 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::HandoverPreparationInfo::asConfig, ns3::LteRrcSap::SystemInformationBlockType1::cellAccessRelatedInfo, ns3::LteRrcSap::CellAccessRelatedInfo::cellIdentity, CONNECTED_NORMALLY, ns3::LteRrcSap::TxFailParam::connEstFailCount, ns3::LteRrcSap::CellAccessRelatedInfo::csgIdentity, ns3::LteRrcSap::CellAccessRelatedInfo::csgIndication, ns3::LteRrcSap::MasterInformationBlock::dlBandwidth, ns3::LteRrcSap::SystemInformationBlockType2::freqInfo, GetErabList(), GetRadioResourceConfigForHandoverPreparationInfo(), GetRrcConnectionReconfigurationForHandover(), HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PREPARATION, ns3::EpcX2Sap::HandoverDesirableForRadioReason, ns3::LteEnbRrc::HandoverLeavingTimeout(), ns3::LteRrcSap::MobilityControlInfo::haveRachConfigDedicated, m_componentCarrierId, m_drbMap, m_handoverLeavingTimeout, m_imsi, m_rnti, m_rrc, m_state, m_targetCellId, ns3::LteRrcSap::RrcConnectionReconfiguration::mobilityControlInfo, ns3::LteRrcSap::MobilityControlInfo::newUeIdentity, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, two-ray-to-three-gpp-ch-calibration::params, ns3::LteRrcSap::PlmnIdentityInfo::plmnIdentity, ns3::LteRrcSap::CellAccessRelatedInfo::plmnIdentityInfo, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommon::rachConfigCommon, ns3::LteRrcSap::RadioResourceConfigCommonSib::rachConfigCommon, ns3::LteRrcSap::MobilityControlInfo::rachConfigDedicated, ns3::LteRrcSap::MobilityControlInfo::radioResourceConfigCommon, ns3::LteRrcSap::SystemInformationBlockType2::radioResourceConfigCommon, ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::raPrachMaskIndex, ns3::LteRrcSap::RachConfigDedicated::raPrachMaskIndex, ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::raPreambleId, ns3::LteRrcSap::RachConfigDedicated::raPreambleIndex, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, two-ray-to-three-gpp-ch-calibration::rc, ns3::Simulator::Schedule(), ns3::LteRrcSap::AsConfig::sourceDlCarrierFreq, ns3::LteRrcSap::AsConfig::sourceMasterInformationBlock, ns3::LteRrcSap::AsConfig::sourceMeasConfig, ns3::LteRrcSap::AsConfig::sourceRadioResourceConfig, ns3::LteRrcSap::AsConfig::sourceSystemInformationBlockType1, ns3::LteRrcSap::AsConfig::sourceSystemInformationBlockType2, ns3::LteRrcSap::AsConfig::sourceUeIdentity, SwitchToState(), ns3::LteRrcSap::MasterInformationBlock::systemFrameNumber, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::ToString(), ns3::LteRrcSap::RachConfigCommon::txFailParam, ns3::LteRrcSap::FreqInfo::ulBandwidth, ns3::LteRrcSap::FreqInfo::ulCarrierFreq, and ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::valid.

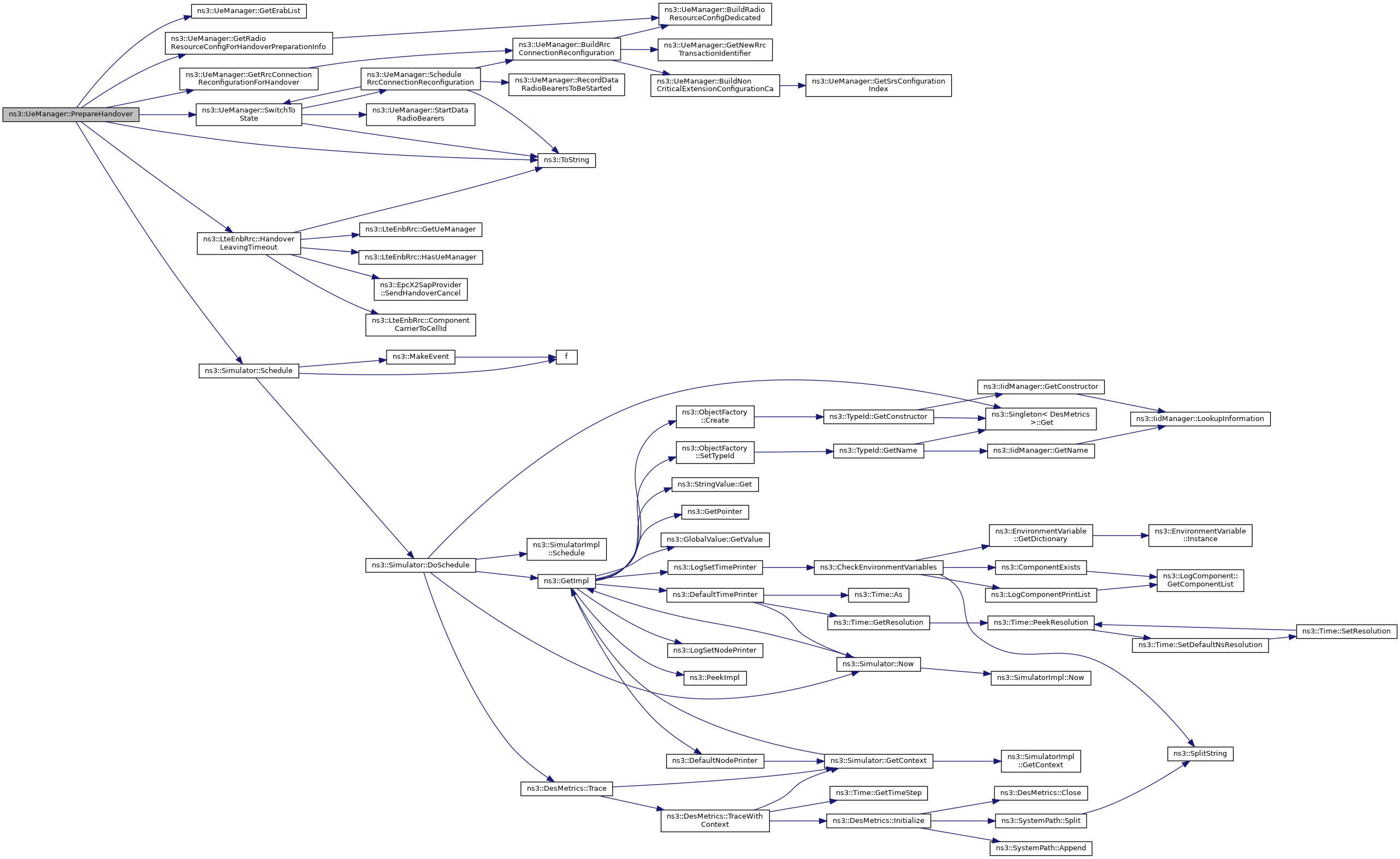

Here is the call graph for this function:

◆ RecordDataRadioBearersToBeStarted()

void ns3::UeManager::RecordDataRadioBearersToBeStarted ( )

Start all configured data radio bearers.

It is safe to call this method if any bearer had been already started previously.

Definition at line 522 of file lte-enb-rrc.cc.

References m_drbMap, m_drbsToBeStarted, m_rnti, and NS_LOG_FUNCTION.

Referenced by RecvRrcConnectionRequest(), and ScheduleRrcConnectionReconfiguration().

Here is the caller graph for this function:

◆ RecvHandoverCancel()

void ns3::UeManager::RecvHandoverCancel ( EpcX2SapUser::HandoverCancelParams params )

Take the necessary actions in response to the reception of an X2 UE CONTEXT RELEASE message.

Parameters

params the SN STATUS

Definition at line 1097 of file lte-enb-rrc.cc.

References ns3::EventId::Cancel(), HANDOVER_JOINING, m_handoverJoiningTimeout, m_state, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::ToString().

Here is the call graph for this function:

◆ RecvHandoverPreparationFailure()

void ns3::UeManager::RecvHandoverPreparationFailure ( uint16_t cellId )

Take the necessary actions in response to the reception of an X2 HO preparation failure message.

Parameters

cellId id of the target cell

Definition at line 1047 of file lte-enb-rrc.cc.

References ns3::EventId::Cancel(), CONNECTED_NORMALLY, HANDOVER_LEAVING, HANDOVER_PREPARATION, m_handoverLeavingTimeout, m_state, m_targetCellId, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, SendRrcConnectionRelease(), SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

◆ RecvHandoverRequestAck()

void ns3::UeManager::RecvHandoverRequestAck ( EpcX2SapUser::HandoverRequestAckParams params )

take the necessary actions in response to the reception of an X2 HANDOVER REQUEST ACK message

Parameters

params

Definition at line 800 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::dlPdcpSn, ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, HANDOVER_LEAVING, ns3::LteEnbRrc::HandoverLeavingTimeout(), ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::RrcConnectionReconfiguration::haveNonCriticalExtension, m_componentCarrierId, m_drbMap, m_handoverLeavingTimeout, m_imsi, m_rnti, m_rrc, m_targetCellId, m_targetX2apId, ns3::LteRrcSap::RrcConnectionReconfiguration::mobilityControlInfo, ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, ns3::LteRrcSap::RrcConnectionReconfiguration::nonCriticalExtension, NS_ASSERT, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId, two-ray-to-three-gpp-ch-calibration::params, ns3::LtePdcp::Status::rxSn, ns3::LteRrcSap::NonCriticalExtensionConfiguration::sCellToAddModList, ns3::Simulator::Schedule(), ns3::EpcX2Sap::SnStatusTransferParams::sourceCellId, SwitchToState(), ns3::EpcX2Sap::SnStatusTransferParams::targetCellId, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LtePdcp::Status::txSn, and ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::ulPdcpSn.

Here is the call graph for this function:

◆ RecvIdealUeContextRemoveRequest()

void ns3::UeManager::RecvIdealUeContextRemoveRequest ( uint16_t rnti )

Implement the LteEnbRrcSapProvider::RecvIdealUeContextRemoveRequest interface.

Parameters

rnti	the C-RNTI identifying the user

Definition at line 608 of file lte-enb-rrc.cc.

References GetImsi(), m_drbMap, m_rnti, m_rrc, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ RecvMeasurementReport()

void ns3::UeManager::RecvMeasurementReport ( LteRrcSap::MeasurementReport msg )

Implement the LteEnbRrcSapProvider::RecvMeasurementReport interface.

Parameters

msg	the measrurement report

ToDo: implement on Ffr algorithm the code to properly parsing the new measResults message format alternatively it is needed to 'repack' properly the measResults message before sending to Ffr

Report any measurements to ComponentCarrierManager, so it can react to any change or activate the SCC

Definition at line 1339 of file lte-enb-rrc.cc.

◆ RecvRrcConnectionReconfigurationCompleted()

void ns3::UeManager::RecvRrcConnectionReconfigurationCompleted ( LteRrcSap::RrcConnectionReconfigurationCompleted msg )

Implement the LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted interface.

Parameters

msg	RRC connection reconfiguration completed message

Definition at line 1218 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::EventId::Cancel(), CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, ns3::LteRrcSap::ConvertPdschConfigDedicated2Double(), ns3::EpcEnbS1SapProvider::BearerToBeSwitched::epsBearerId, HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PATH_SWITCH, m_componentCarrierId, m_drbMap, m_handoverJoiningTimeout, m_imsi, m_needPhyMacConfiguration, m_packetBuffer, m_physicalConfigDedicated, ns3::LteEnbCmacSapProvider::UeConfig::m_rnti, m_rnti, m_rrc, m_state, ns3::LteEnbCmacSapProvider::UeConfig::m_transmissionMode, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::LteRrcSap::PhysicalConfigDedicated::pdschConfigDedicated, SendPacket(), StartDataRadioBearers(), SwitchToState(), ns3::EpcEnbS1SapProvider::BearerToBeSwitched::teid, ns3::ToString(), and ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode.

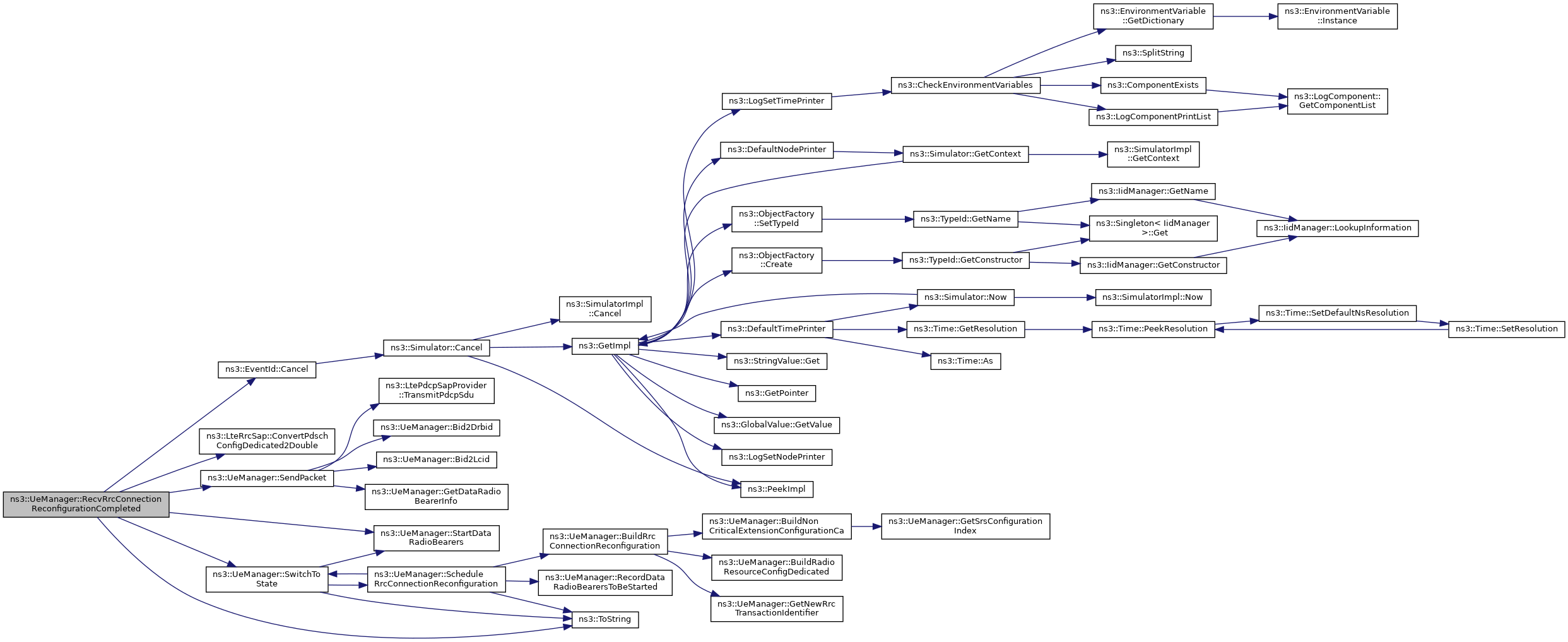

Here is the call graph for this function:

◆ RecvRrcConnectionReestablishmentComplete()

void ns3::UeManager::RecvRrcConnectionReestablishmentComplete ( LteRrcSap::RrcConnectionReestablishmentComplete msg )

Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete interface.

Parameters

msg	the RRC connection reestablsihment complete message

Definition at line 1331 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, NS_LOG_FUNCTION, and SwitchToState().

Here is the call graph for this function:

◆ RecvRrcConnectionReestablishmentRequest()

void ns3::UeManager::RecvRrcConnectionReestablishmentRequest ( LteRrcSap::RrcConnectionReestablishmentRequest msg )

Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest interface.

Parameters

msg	the RRC connection reestablishment request message

Definition at line 1305 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), ns3::EventId::Cancel(), CONNECTED_NORMALLY, CONNECTION_REESTABLISHMENT, GetNewRrcTransactionIdentifier(), HANDOVER_LEAVING, m_handoverLeavingTimeout, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteRrcSap::RrcConnectionReestablishment::radioResourceConfigDedicated, ns3::LteRrcSap::RrcConnectionReestablishment::rrcTransactionIdentifier, SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

◆ RecvRrcConnectionRequest()

void ns3::UeManager::RecvRrcConnectionRequest ( LteRrcSap::RrcConnectionRequest msg )

Implement the LteEnbRrcSapProvider::RecvRrcConnectionRequest interface.

Parameters

msg	the RRC connection request message

Definition at line 1133 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), ns3::EventId::Cancel(), CONNECTION_REJECTED, CONNECTION_SETUP, ns3::LteEnbRrc::ConnectionRejectedTimeout(), ns3::LteEnbRrc::ConnectionSetupTimeout(), GetNewRrcTransactionIdentifier(), INITIAL_RANDOM_ACCESS, m_connectionRejectedTimeout, m_connectionRequestTimeout, m_connectionSetupTimeout, m_imsi, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteRrcSap::RrcConnectionSetup::radioResourceConfigDedicated, RecordDataRadioBearersToBeStarted(), ns3::LteRrcSap::RrcConnectionSetup::rrcTransactionIdentifier, ns3::Simulator::Schedule(), SwitchToState(), ns3::ToString(), ns3::LteRrcSap::RrcConnectionRequest::ueIdentity, and ns3::LteRrcSap::RrcConnectionReject::waitTime.

Here is the call graph for this function:

◆ RecvRrcConnectionSetupCompleted()

void ns3::UeManager::RecvRrcConnectionSetupCompleted ( LteRrcSap::RrcConnectionSetupCompleted msg )

Implement the LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted interface.

Parameters

msg	RRC connection setup completed message

Definition at line 1184 of file lte-enb-rrc.cc.

References ATTACH_REQUEST, ns3::EventId::Cancel(), CONNECTED_NORMALLY, CONNECTION_SETUP, m_caSupportConfigured, m_componentCarrierId, m_connectionSetupTimeout, m_imsi, m_pendingRrcConnectionReconfiguration, m_pendingStartDataRadioBearers, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, SwitchToState(), and ns3::ToString().

Here is the call graph for this function:

◆ RecvSnStatusTransfer()

void ns3::UeManager::RecvSnStatusTransfer ( EpcX2SapUser::SnStatusTransferParams params )

Take the necessary actions in response to the reception of an X2 SN STATUS TRANSFER message.

Parameters

params the SN STATUS

Definition at line 1071 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

◆ RecvUeContextRelease()

void ns3::UeManager::RecvUeContextRelease ( EpcX2SapUser::UeContextReleaseParams params )

Take the necessary actions in response to the reception of an X2 UE CONTEXT RELEASE message.

Parameters

params the SN STATUS

Definition at line 1089 of file lte-enb-rrc.cc.

References ns3::EventId::Cancel(), HANDOVER_LEAVING, m_handoverLeavingTimeout, m_state, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::ToString().

Here is the call graph for this function:

◆ ReleaseDataRadioBearer()

void ns3::UeManager::ReleaseDataRadioBearer ( uint8_t drbid )

Release a given radio bearer.

Parameters

drbid the data radio bearer id of the bearer to be released

Definition at line 549 of file lte-enb-rrc.cc.

References Drbid2Lcid(), ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMeasConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::RrcConnectionReconfiguration::haveNonCriticalExtension, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::RrcConnectionReconfiguration::haveRadioResourceConfigDedicated, m_drbMap, m_physicalConfigDedicated, m_rnti, m_rrc, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, and ns3::LteRrcSap::RrcConnectionReconfiguration::radioResourceConfigDedicated.

Here is the call graph for this function:

◆ RemoveDataRadioBearerInfo()

void ns3::UeManager::RemoveDataRadioBearerInfo ( uint8_t drbid )

private

remove the LteDataRadioBearerInfo corresponding to a bearer being released

Parameters

drbid the Data Radio Bearer id

Definition at line 1583 of file lte-enb-rrc.cc.

References m_drbMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ ScheduleRrcConnectionReconfiguration()

void ns3::UeManager::ScheduleRrcConnectionReconfiguration ( )

schedule an RRC Connection Reconfiguration procedure with the UE

Definition at line 627 of file lte-enb-rrc.cc.

References ATTACH_REQUEST, BuildRrcConnectionReconfiguration(), CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, CONNECTION_SETUP, HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PREPARATION, INITIAL_RANDOM_ACCESS, m_pendingRrcConnectionReconfiguration, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, RecordDataRadioBearersToBeStarted(), SwitchToState(), and ns3::ToString().

Referenced by CmacUeConfigUpdateInd(), SetPdschConfigDedicated(), SetSrsConfigurationIndex(), SetupDataRadioBearer(), and SwitchToState().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendData()

void ns3::UeManager::SendData	(	uint8_t	bid,
		Ptr< Packet >	p
	)

Send a data packet over the appropriate Data Radio Bearer.

If state is HANDOVER_JOINING (i.e. target eNB has received the Handover Request), the packet is buffered. If state is HANDOVER_LEAVING (i.e. source eNB has received the RRC Connection Reconfiguration, the packet is sent through the X2 interface.

Parameters

bid	the corresponding EPS Bearer ID
p	the packet

Definition at line 949 of file lte-enb-rrc.cc.

References Bid2Drbid(), CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, CONNECTION_SETUP, GetDataRadioBearerInfo(), HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PATH_SWITCH, HANDOVER_PREPARATION, INITIAL_RANDOM_ACCESS, m_componentCarrierId, m_packetBuffer, m_rrc, m_state, m_targetCellId, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, two-ray-to-three-gpp-ch-calibration::params, SendPacket(), and ns3::ToString().

Here is the call graph for this function:

◆ SendPacket()

void ns3::UeManager::SendPacket	(	uint8_t	bid,
		Ptr< Packet >	p
	)

private

Send a data packet over the appropriate Data Radio Bearer.

It is called by SendData if the UE is in a connected state or when the RRC Connection Reconfiguration Complete message is received and the packets are debuffered.

Parameters

bid	the corresponding EPS Bearer ID
p	the packet

Definition at line 926 of file lte-enb-rrc.cc.

References Bid2Drbid(), Bid2Lcid(), GetDataRadioBearerInfo(), m_drbMap, m_rnti, NS_LOG_FUNCTION, NS_LOG_INFO, two-ray-to-three-gpp-ch-calibration::params, and ns3::LtePdcpSapProvider::TransmitPdcpSdu().

Referenced by RecvRrcConnectionReconfigurationCompleted(), and SendData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRrcConnectionRelease()

void ns3::UeManager::SendRrcConnectionRelease ( )

This function acts as an interface to trigger the connection release towards eNB, EPC and UE.

Bearer de-activation indication towards epc-enb application and removal of UE context at the eNodeB

Definition at line 1105 of file lte-enb-rrc.cc.

References GetNewRrcTransactionIdentifier(), m_rnti, m_rrc, NS_LOG_FUNCTION, and ns3::LteRrcSap::RrcConnectionRelease::rrcTransactionIdentifier.

Referenced by RecvHandoverPreparationFailure().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendUeContextRelease()

void ns3::UeManager::SendUeContextRelease ( )

send the UE CONTEXT RELEASE X2 message to the source eNB, thus successfully terminating an X2 handover procedure

Definition at line 1013 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, HANDOVER_PATH_SWITCH, m_componentCarrierId, m_imsi, m_rnti, m_rrc, m_sourceCellId, m_sourceX2apId, m_state, m_targetCellId, ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, ns3::EpcX2Sap::UeContextReleaseParams::sourceCellId, SwitchToState(), ns3::EpcX2Sap::UeContextReleaseParams::targetCellId, and ns3::ToString().

Here is the call graph for this function:

◆ SetImsi()

void ns3::UeManager::SetImsi ( uint64_t imsi )

Set the IMSI.

Parameters

imsi the IMSI

Definition at line 379 of file lte-enb-rrc.cc.

References m_imsi.

◆ SetPdschConfigDedicated()

void ns3::UeManager::SetPdschConfigDedicated ( LteRrcSap::PdschConfigDedicated pdschConfigDedicated )

Configure PdschConfigDedicated (i.e.

P_A value) for UE and start RrcConnectionReconfiguration to inform UE about new PdschConfigDedicated

Parameters

pdschConfigDedicated new pdschConfigDedicated (i.e. P_A value) to be set

Definition at line 1499 of file lte-enb-rrc.cc.

References m_needPhyMacConfiguration, m_physicalConfigDedicated, NS_LOG_FUNCTION, ns3::LteRrcSap::PhysicalConfigDedicated::pdschConfigDedicated, and ScheduleRrcConnectionReconfiguration().

Here is the call graph for this function:

◆ SetSource()

void ns3::UeManager::SetSource	(	uint16_t	sourceCellId,
		uint16_t	sourceX2apId
	)

Set the identifiers of the source eNB for the case where a UE joins the current eNB as part of a handover procedure.

Parameters

sourceCellId
sourceX2apId

Definition at line 372 of file lte-enb-rrc.cc.

References m_sourceCellId, and m_sourceX2apId.

◆ SetSrsConfigurationIndex()

void ns3::UeManager::SetSrsConfigurationIndex ( uint16_t srsConfIndex )

Set the SRS configuration index and do the necessary reconfiguration.

Parameters

srsConfIndex

Definition at line 1471 of file lte-enb-rrc.cc.

References INITIAL_RANDOM_ACCESS, m_physicalConfigDedicated, m_rnti, m_rrc, m_state, NS_LOG_FUNCTION, ScheduleRrcConnectionReconfiguration(), ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex.

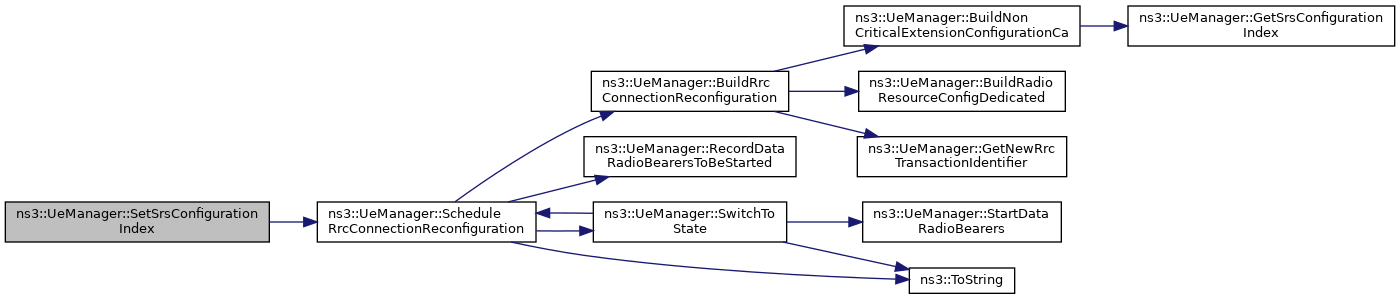

Here is the call graph for this function:

◆ SetupDataRadioBearer()

void ns3::UeManager::SetupDataRadioBearer	(	EpsBearer	bearer,
		uint8_t	bearerId,
		uint32_t	gtpTeid,
		Ipv4Address	transportLayerAddress
	)

Setup a new data radio bearer, including both the configuration within the eNB and the necessary RRC signaling with the UE.

Parameters

bearer	the QoS characteristics of the bearer
bearerId	the EPS bearer identifier
gtpTeid	S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1
transportLayerAddress	IP Address of the SGW, see 36.423 9.2.1

Definition at line 400 of file lte-enb-rrc.cc.

References AddDataRadioBearerInfo(), ns3::LteRrcSap::RlcConfig::AM, ns3::ObjectFactory::Create(), ns3::LteEnbRrc::X2uTeidInfo::drbid, Drbid2Bid(), Drbid2Lcid(), ns3::EpsBearer::gbrQosInfo, ns3::GbrQosInformation::gbrUl, ns3::LteRlc::GetLteMacSapUser(), ns3::LteRlc::GetLteRlcSapProvider(), ns3::Object::GetObject(), ns3::EpsBearer::GetPacketDelayBudgetMs(), ns3::EpsBearer::GetResourceType(), ns3::LteRlcAm::GetTypeId(), ns3::LteRlcSm::GetTypeId(), HANDOVER_JOINING, m_componentCarrierId, m_drbCreatedTrace, m_drbPdcpSapUser, m_imsi, m_rnti, m_rrc, m_state, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::LteEnbRrc::X2uTeidInfo::rnti, ScheduleRrcConnectionReconfiguration(), ns3::LteRlc::SetLcId(), ns3::LteRlc::SetLteMacSapProvider(), ns3::LteRlc::SetLteRlcSapUser(), ns3::LteRlc::SetPacketDelayBudgetMs(), ns3::LteRlc::SetRnti(), ns3::ObjectFactory::SetTypeId(), and ns3::LteRrcSap::RlcConfig::UM_BI_DIRECTIONAL.

Here is the call graph for this function:

◆ StartDataRadioBearers()

void ns3::UeManager::StartDataRadioBearers ( )

Start the data radio bearers that have been previously recorded to be started using RecordDataRadioBearersToBeStarted()

Definition at line 532 of file lte-enb-rrc.cc.

References m_drbMap, m_drbsToBeStarted, m_rnti, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by RecvRrcConnectionReconfigurationCompleted(), and SwitchToState().

Here is the caller graph for this function:

◆ SwitchToState()

void ns3::UeManager::SwitchToState ( State s )

private

Switch the UeManager to the given state.

Parameters

s	the given state

Definition at line 1697 of file lte-enb-rrc.cc.

References ATTACH_REQUEST, CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, CONNECTION_SETUP, HANDOVER_JOINING, HANDOVER_LEAVING, INITIAL_RANDOM_ACCESS, m_caSupportConfigured, m_componentCarrierId, m_imsi, m_pendingRrcConnectionReconfiguration, m_pendingStartDataRadioBearers, m_rnti, m_rrc, m_state, m_stateTransitionTrace, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ScheduleRrcConnectionReconfiguration(), StartDataRadioBearers(), and ns3::ToString().

Referenced by InitialContextSetupRequest(), PrepareHandover(), RecvHandoverPreparationFailure(), RecvHandoverRequestAck(), RecvRrcConnectionReconfigurationCompleted(), RecvRrcConnectionReestablishmentComplete(), RecvRrcConnectionReestablishmentRequest(), RecvRrcConnectionRequest(), RecvRrcConnectionSetupCompleted(), ScheduleRrcConnectionReconfiguration(), and SendUeContextRelease().

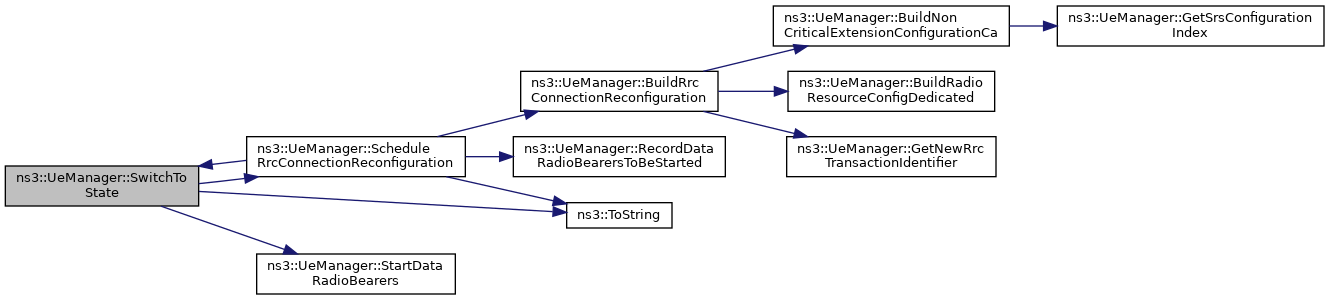

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ LtePdcpSpecificLtePdcpSapUser< UeManager >

friend class LtePdcpSpecificLtePdcpSapUser< UeManager >

friend

allow LtePdcpSpecificLtePdcpSapUser<UeManager> class friend access

Definition at line 1 of file lte-enb-rrc.h.

Referenced by DoInitialize().

Member Data Documentation

◆ m_caSupportConfigured

bool ns3::UeManager::m_caSupportConfigured

private

Define if the Carrier Aggregation was already configure for the current UE on not.

Definition at line 632 of file lte-enb-rrc.h.

Referenced by BuildRrcConnectionReconfiguration(), DoInitialize(), GetRrcConnectionReconfigurationForHandover(), RecvRrcConnectionSetupCompleted(), and SwitchToState().

◆ m_componentCarrierId

uint8_t ns3::UeManager::m_componentCarrierId

private

ID of the primary CC for this UE.

Definition at line 562 of file lte-enb-rrc.h.

Referenced by BuildHoCancelMsg(), BuildHoPrepFailMsg(), BuildNonCriticalExtensionConfigurationCa(), DoInitialize(), GetComponentCarrierId(), GetRrcConnectionReconfigurationForHandover(), PrepareHandover(), RecvHandoverRequestAck(), RecvMeasurementReport(), RecvRrcConnectionReconfigurationCompleted(), RecvRrcConnectionSetupCompleted(), SendData(), SendUeContextRelease(), SetupDataRadioBearer(), and SwitchToState().

◆ m_connectionRejectedTimeout

EventId ns3::UeManager::m_connectionRejectedTimeout

private

The delay before a connection rejected timeout occurs.

Set after an RRC CONNECTION REJECT is sent. Calling LteEnbRrc::ConnectionRejectedTimeout() when it expires.

Definition at line 615 of file lte-enb-rrc.h.

Referenced by CancelPendingEvents(), and RecvRrcConnectionRequest().

◆ m_connectionRequestTimeout

EventId ns3::UeManager::m_connectionRequestTimeout

private

Time limit before a connection request timeout occurs.

Set after a new UE context is added after a successful Random Access. Calling LteEnbRrc::ConnectionRequestTimeout() when it expires. Cancelled when RRC CONNECTION REQUEST is received.

Definition at line 603 of file lte-enb-rrc.h.

Referenced by CancelPendingEvents(), DoInitialize(), and RecvRrcConnectionRequest().

◆ m_connectionSetupTimeout

EventId ns3::UeManager::m_connectionSetupTimeout

private

Time limit before a connection setup timeout occurs.

Set after an RRC CONNECTION SETUP is sent. Calling LteEnbRrc::ConnectionSetupTimeout() when it expires. Cancelled when RRC CONNECTION SETUP COMPLETE is received.

Definition at line 609 of file lte-enb-rrc.h.

Referenced by CancelPendingEvents(), RecvRrcConnectionRequest(), and RecvRrcConnectionSetupCompleted().

◆ m_drbCreatedTrace

TracedCallback<uint64_t, uint16_t, uint16_t, uint8_t> ns3::UeManager::m_drbCreatedTrace

private

The DrbCreated trace source.

Fired when DRB is created, i.e. the RLC and PDCP entities are created for one logical channel. Exporting IMSI, cell ID, RNTI, LCID.

Definition at line 588 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and SetupDataRadioBearer().

◆ m_drbMap

std::map<uint8_t, Ptr<LteDataRadioBearerInfo> > ns3::UeManager::m_drbMap

private

The DataRadioBearerMap attribute.

List of UE DataRadioBearerInfo by DRBID.

Definition at line 539 of file lte-enb-rrc.h.

Referenced by AddDataRadioBearerInfo(), BuildRadioResourceConfigDedicated(), DoDispose(), GetDataRadioBearerInfo(), GetErabList(), GetTypeId(), PrepareHandover(), RecordDataRadioBearersToBeStarted(), RecvHandoverRequestAck(), RecvIdealUeContextRemoveRequest(), RecvRrcConnectionReconfigurationCompleted(), ReleaseDataRadioBearer(), RemoveDataRadioBearerInfo(), SendPacket(), and StartDataRadioBearers().

◆ m_drbPdcpSapUser

LtePdcpSapUser* ns3::UeManager::m_drbPdcpSapUser

private

DRB PDCP SAP user.

Definition at line 572 of file lte-enb-rrc.h.

Referenced by DoDispose(), DoInitialize(), and SetupDataRadioBearer().

◆ m_drbsToBeStarted

std::list<uint8_t> ns3::UeManager::m_drbsToBeStarted

private

DRBS to be started.

Definition at line 594 of file lte-enb-rrc.h.

Referenced by RecordDataRadioBearersToBeStarted(), and StartDataRadioBearers().

◆ m_handoverJoiningTimeout

EventId ns3::UeManager::m_handoverJoiningTimeout

private

Time limit before a handover joining timeout occurs.

Set after a new UE context is added after receiving a handover request. Calling LteEnbRrc::HandoverJoiningTimeout() when it expires. Cancelled when RRC CONNECTION RECONFIGURATION COMPLETE is received.

Definition at line 622 of file lte-enb-rrc.h.

Referenced by CancelPendingEvents(), DoInitialize(), RecvHandoverCancel(), and RecvRrcConnectionReconfigurationCompleted().

◆ m_handoverLeavingTimeout

EventId ns3::UeManager::m_handoverLeavingTimeout

private

Time limit before a handover leaving timeout occurs.

Set after a handover command is sent. Calling LteEnbRrc::HandoverLeavingTimeout() when it expires. Cancelled when RRC CONNECTION RE-ESTABLISHMENT or X2 UE CONTEXT RELEASE is received.

Definition at line 629 of file lte-enb-rrc.h.

Referenced by CancelPendingEvents(), PrepareHandover(), RecvHandoverPreparationFailure(), RecvHandoverRequestAck(), RecvRrcConnectionReestablishmentRequest(), and RecvUeContextRelease().

◆ m_imsi

uint64_t ns3::UeManager::m_imsi

private

International Mobile Subscriber Identity assigned to this UE.

A globally unique UE identifier.

Definition at line 558 of file lte-enb-rrc.h.

Referenced by GetImsi(), PrepareHandover(), RecvHandoverRequestAck(), RecvMeasurementReport(), RecvRrcConnectionReconfigurationCompleted(), RecvRrcConnectionRequest(), RecvRrcConnectionSetupCompleted(), SendUeContextRelease(), SetImsi(), SetupDataRadioBearer(), and SwitchToState().

◆ m_lastAllocatedDrbid

uint8_t ns3::UeManager::m_lastAllocatedDrbid

private

last allocated Data Radio Bearer ID

Definition at line 533 of file lte-enb-rrc.h.

Referenced by AddDataRadioBearerInfo().

◆ m_lastRrcTransactionIdentifier

uint8_t ns3::UeManager::m_lastRrcTransactionIdentifier

private

last RRC transaction identifier

Definition at line 564 of file lte-enb-rrc.h.

Referenced by GetNewRrcTransactionIdentifier().

◆ m_needPhyMacConfiguration

bool ns3::UeManager::m_needPhyMacConfiguration

private

need Phy MAC configuration

Definition at line 595 of file lte-enb-rrc.h.

Referenced by CmacUeConfigUpdateInd(), RecvRrcConnectionReconfigurationCompleted(), and SetPdschConfigDedicated().

◆ m_packetBuffer

std::list<std::pair<uint8_t, Ptr<Packet> > > ns3::UeManager::m_packetBuffer

private

Packet buffer for when UE is doing the handover.

The packets are stored with the bid (bearer ID).

Source eNB starts forwarding data to target eNB through the X2 interface when it sends RRC Connection Reconfiguration to the UE. Target eNB buffers data until it receives RRC Connection Reconfiguration Complete from the UE.

Definition at line 646 of file lte-enb-rrc.h.

Referenced by RecvRrcConnectionReconfigurationCompleted(), and SendData().

◆ m_pendingRrcConnectionReconfiguration

bool ns3::UeManager::m_pendingRrcConnectionReconfiguration

private

pending RRC connection reconfiguration

Definition at line 574 of file lte-enb-rrc.h.

Referenced by RecvRrcConnectionSetupCompleted(), ScheduleRrcConnectionReconfiguration(), and SwitchToState().

◆ m_pendingStartDataRadioBearers

bool ns3::UeManager::m_pendingStartDataRadioBearers

private

Pending start data radio bearers.

Definition at line 635 of file lte-enb-rrc.h.

Referenced by RecvRrcConnectionSetupCompleted(), and SwitchToState().

◆ m_physicalConfigDedicated

LteRrcSap::PhysicalConfigDedicated ns3::UeManager::m_physicalConfigDedicated

private

physical config dedicated

Definition at line 566 of file lte-enb-rrc.h.

Referenced by BuildRadioResourceConfigDedicated(), CmacUeConfigUpdateInd(), DoInitialize(), GetSrsConfigurationIndex(), RecvRrcConnectionReconfigurationCompleted(), ReleaseDataRadioBearer(), SetPdschConfigDedicated(), and SetSrsConfigurationIndex().

◆ m_rnti

uint16_t ns3::UeManager::m_rnti

private

The C-RNTI attribute.

Cell Radio Network Temporary Identifier.

Definition at line 553 of file lte-enb-rrc.h.

Referenced by BuildHoCancelMsg(), CmacUeConfigUpdateInd(), DoInitialize(), GetRnti(), GetTypeId(), InitialContextSetupRequest(), PrepareHandover(), RecordDataRadioBearersToBeStarted(), RecvHandoverRequestAck(), RecvIdealUeContextRemoveRequest(), RecvMeasurementReport(), RecvRrcConnectionReconfigurationCompleted(), RecvRrcConnectionReestablishmentRequest(), RecvRrcConnectionRequest(), RecvRrcConnectionSetupCompleted(), ReleaseDataRadioBearer(), ScheduleRrcConnectionReconfiguration(), SendPacket(), SendRrcConnectionRelease(), SendUeContextRelease(), SetSrsConfigurationIndex(), SetupDataRadioBearer(), StartDataRadioBearers(), and SwitchToState().

◆ m_rrc

Ptr<LteEnbRrc> ns3::UeManager::m_rrc

private

◆ m_sourceCellId

uint16_t ns3::UeManager::m_sourceCellId

private

source cell ID

Definition at line 592 of file lte-enb-rrc.h.

Referenced by BuildHoPrepFailMsg(), SendUeContextRelease(), and SetSource().

◆ m_sourceX2apId

uint16_t ns3::UeManager::m_sourceX2apId

private

source X2 ap ID

Definition at line 590 of file lte-enb-rrc.h.

Referenced by BuildHoPrepFailMsg(), SendUeContextRelease(), and SetSource().

◆ m_srb0

Ptr<LteSignalingRadioBearerInfo> ns3::UeManager::m_srb0

private

The Srb0 attribute.

SignalingRadioBearerInfo for SRB0.

Definition at line 544 of file lte-enb-rrc.h.

Referenced by CompleteSetupUe(), DoInitialize(), and GetTypeId().

◆ m_srb1

Ptr<LteSignalingRadioBearerInfo> ns3::UeManager::m_srb1

private

The Srb1 attribute.

SignalingRadioBearerInfo for SRB1.

Definition at line 548 of file lte-enb-rrc.h.

Referenced by BuildRadioResourceConfigDedicated(), CompleteSetupUe(), DoInitialize(), and GetTypeId().

◆ m_state

State ns3::UeManager::m_state

private

◆ m_stateTransitionTrace

TracedCallback<uint64_t, uint16_t, uint16_t, State, State> ns3::UeManager::m_stateTransitionTrace

private

The StateTransition trace source.

Fired upon every UE state transition seen by the UeManager at the eNB RRC. Exporting IMSI, cell ID, RNTI, old state, and new state.

Definition at line 581 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and SwitchToState().

◆ m_targetCellId

uint16_t ns3::UeManager::m_targetCellId

private

target cell ID

Definition at line 593 of file lte-enb-rrc.h.

Referenced by BuildHoCancelMsg(), PrepareHandover(), RecvHandoverPreparationFailure(), RecvHandoverRequestAck(), SendData(), and SendUeContextRelease().

◆ m_targetX2apId

uint16_t ns3::UeManager::m_targetX2apId

private

target X2 ap ID

Definition at line 591 of file lte-enb-rrc.h.

Referenced by BuildHoCancelMsg(), and RecvHandoverRequestAck().

The documentation for this class was generated from the following files:

src/lte/model/lte-enb-rrc.h
src/lte/model/lte-enb-rrc.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ StateTracedCallback

Member Enumeration Documentation

◆ State

Constructor & Destructor Documentation

◆ UeManager() [1/2]

◆ UeManager() [2/2]

◆ ~UeManager()

Member Function Documentation

◆ AddDataRadioBearerInfo()

◆ Bid2Drbid()

◆ Bid2Lcid()

◆ BuildHoCancelMsg()

◆ BuildHoPrepFailMsg()

◆ BuildNonCriticalExtensionConfigurationCa()

◆ BuildRadioResourceConfigDedicated()

◆ BuildRrcConnectionReconfiguration()

◆ CancelPendingEvents()

◆ CmacUeConfigUpdateInd()

◆ CompleteSetupUe()

◆ DoDispose()

◆ DoInitialize()

◆ DoReceivePdcpSdu()

◆ Drbid2Bid()

◆ Drbid2Lcid()

◆ GetComponentCarrierId()

◆ GetDataRadioBearerInfo()

◆ GetErabList()

◆ GetImsi()

◆ GetNewRrcTransactionIdentifier()

◆ GetRadioResourceConfigForHandoverPreparationInfo()

◆ GetRnti()

◆ GetRrcConnectionReconfigurationForHandover()

◆ GetSrsConfigurationIndex()

◆ GetState()

◆ GetTypeId()

◆ InitialContextSetupRequest()

◆ Lcid2Bid()

◆ Lcid2Drbid()

◆ PrepareHandover()

◆ RecordDataRadioBearersToBeStarted()

◆ RecvHandoverCancel()

◆ RecvHandoverPreparationFailure()

◆ RecvHandoverRequestAck()

◆ RecvIdealUeContextRemoveRequest()

◆ RecvMeasurementReport()

◆ RecvRrcConnectionReconfigurationCompleted()

◆ RecvRrcConnectionReestablishmentComplete()

◆ RecvRrcConnectionReestablishmentRequest()

◆ RecvRrcConnectionRequest()

◆ RecvRrcConnectionSetupCompleted()

◆ RecvSnStatusTransfer()

◆ RecvUeContextRelease()

◆ ReleaseDataRadioBearer()

◆ RemoveDataRadioBearerInfo()

◆ ScheduleRrcConnectionReconfiguration()

◆ SendData()

◆ SendPacket()

◆ SendRrcConnectionRelease()

◆ SendUeContextRelease()

◆ SetImsi()

◆ SetPdschConfigDedicated()

◆ SetSource()

◆ SetSrsConfigurationIndex()

◆ SetupDataRadioBearer()

◆ StartDataRadioBearers()

◆ SwitchToState()

Friends And Related Function Documentation

◆ LtePdcpSpecificLtePdcpSapUser< UeManager >

Member Data Documentation

◆ m_caSupportConfigured
