A generic battery model for Li-Ion, NiCd, NiMh and Lead acid batteries. More...

#include "generic-battery-model.h"

Inheritance diagram for ns3::GenericBatteryModel:

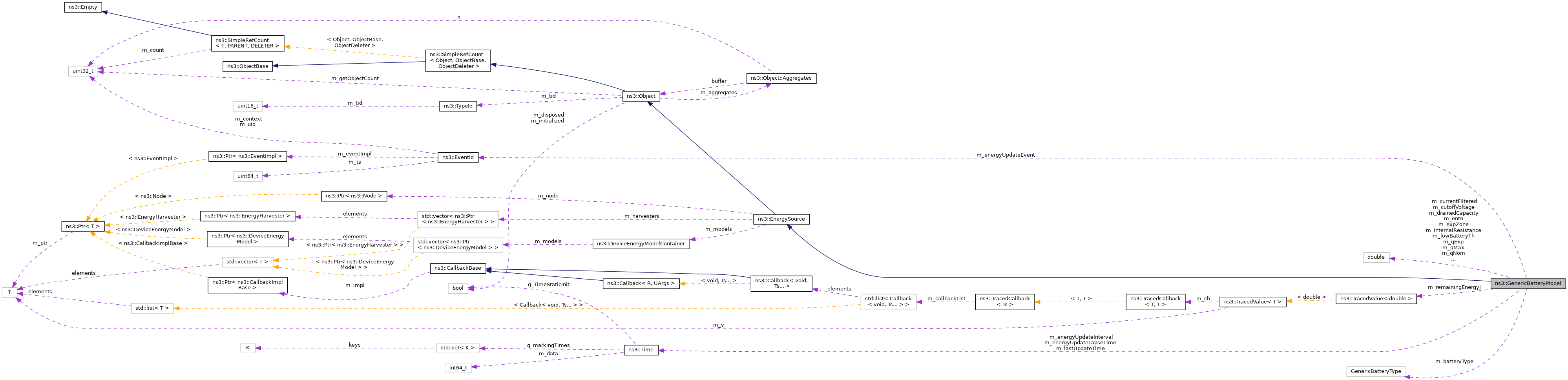

Collaboration diagram for ns3::GenericBatteryModel:

Public Member Functions
	GenericBatteryModel ()

	~GenericBatteryModel () override

double	GetDrainedCapacity () const
	Obtain the amount of drained capacity from the battery based on the integral of the current over time (Coulomb counting method). More...

double	GetEnergyFraction () override
	Implements GetEnergyFraction. More...

Time	GetEnergyUpdateInterval () const

double	GetInitialEnergy () const override
	Implements GetInitialEnergy. More...

double	GetRemainingEnergy () override
	Implements GetRemainingEnergy. More...

double	GetStateOfCharge () const
	Calculates an estimate of the State of Charge (SoC). More...

double	GetSupplyVoltage () const override
	Implements GetSupplyVoltage. More...

void	SetDrainedCapacity (double drainedCapacity)
	This function is used to change the initial capacity in the battery. More...

void	SetEnergyUpdateInterval (Time interval)
	This function sets the interval between each energy update. More...

void	UpdateEnergySource () override
	Implements UpdateEnergySource. More...

Public Member Functions inherited from ns3::EnergySource
	EnergySource ()

	~EnergySource () override

void	AppendDeviceEnergyModel (Ptr< DeviceEnergyModel > deviceEnergyModelPtr)

void	ConnectEnergyHarvester (Ptr< EnergyHarvester > energyHarvesterPtr)

void	DisposeDeviceModels ()
	Calls Dispose () method of the device energy models. More...

DeviceEnergyModelContainer	FindDeviceEnergyModels (std::string name)

DeviceEnergyModelContainer	FindDeviceEnergyModels (TypeId tid)

Ptr< Node >	GetNode () const

void	InitializeDeviceModels ()
	Calls Start () method of the device energy models. More...

void	SetNode (Ptr< Node > node)
	Sets pointer to node containing this EnergySource. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::EnergySource
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	BatteryChargedEvent ()
	Handles the battery reaching its full voltage. More...

void	BatteryDepletedEvent ()
	Handles the battery reaching its cutoff voltage. More...

void	CalculateRemainingEnergy ()
	Calculates remaining energy. More...

void	DoDispose () override
	All child's implementation must call BreakDeviceEnergyModelRefCycle to ensure reference cycles to DeviceEnergyModel objects are broken. More...

void	DoInitialize () override
	Initialize() implementation. More...

double	GetChargeVoltage (double current)
	Obtain the battery voltage as a result of a charge current. More...

double	GetVoltage (double current)
	Get the battery voltage in function of the discharge current. More...

Private Attributes
GenericBatteryType	m_batteryType
	Indicates the battery type used by the model. More...

double	m_currentFiltered
	The step response (a.k.a. More...

double	m_cutoffVoltage
	The threshold voltage where the battery is considered depleted. More...

double	m_drainedCapacity
	Capacity drained from the battery, in Ah. More...

EventId	m_energyUpdateEvent
	Energy update event. More...

Time	m_energyUpdateInterval
	Energy update interval. More...

Time	m_energyUpdateLapseTime
	The lapse of time between the last battery energy update and the current time. More...

double	m_entn
	The previous value of the exponential zone in NiMh,NiCd and LeadAcid. More...

double	m_expZone
	Voltage value of the exponential zone. More...

double	m_internalResistance
	Internal resistance of the battery, in Ohms. More...

Time	m_lastUpdateTime
	Last update time. More...

double	m_lowBatteryTh
	Low battery threshold, as a fraction of the initial energy. More...

double	m_qExp
	Capacity value at the end of the exponential zone, in Ah. More...

double	m_qMax
	The maximum capacity of the battery, in Ah. More...

double	m_qNom
	Battery capacity at the end of the nominal zone, in Ah. More...

TracedValue< double >	m_remainingEnergyJ
	Remaining energy, in Joules. More...

double	m_supplyVoltageV
	Actual voltage of the battery. More...

double	m_typicalCurrent
	Typical discharge current used to fit the curves. More...

double	m_vExp
	Battery voltage at the end of the exponential zone, in Volts. More...

double	m_vFull
	Initial voltage of the battery, in Volts. More...

double	m_vNom
	Nominal voltage of the battery, in Volts. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::EnergySource
void	BreakDeviceEnergyModelRefCycle ()
	This function is called to break reference cycle between EnergySource and DeviceEnergyModel. More...

double	CalculateTotalCurrent ()

void	NotifyEnergyChanged ()
	This function notifies all DeviceEnergyModel of energy changed event. More...

void	NotifyEnergyDrained ()
	This function notifies all DeviceEnergyModel of energy depletion event. More...

void	NotifyEnergyRecharged ()
	This function notifies all DeviceEnergyModel of energy recharged event. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A generic battery model for Li-Ion, NiCd, NiMh and Lead acid batteries.

The generic battery model can be used to describe the discharge behavior of the battery chemestries supported by the model.

Definition at line 152 of file generic-battery-model.h.

Constructor & Destructor Documentation

◆ GenericBatteryModel()

ns3::GenericBatteryModel::GenericBatteryModel ( )

Definition at line 121 of file generic-battery-model.cc.

References NS_LOG_FUNCTION.

◆ ~GenericBatteryModel()

ns3::GenericBatteryModel::~GenericBatteryModel ( )

override

Definition at line 131 of file generic-battery-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ BatteryChargedEvent()

void ns3::GenericBatteryModel::BatteryChargedEvent ( )

private

Handles the battery reaching its full voltage.

This function notifies all the energy models aggregated to the node about the battery reaching its full energy charge.

Definition at line 255 of file generic-battery-model.cc.

References ns3::EnergySource::NotifyEnergyRecharged(), and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BatteryDepletedEvent()

void ns3::GenericBatteryModel::BatteryDepletedEvent ( )

private

Handles the battery reaching its cutoff voltage.

This function notifies all the energy models aggregated to the node about the usable energy in the battery has being depleted. Each energy model is then responsible for its own handler.

Definition at line 246 of file generic-battery-model.cc.

References ns3::EnergySource::NotifyEnergyDrained(), and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateRemainingEnergy()

void ns3::GenericBatteryModel::CalculateRemainingEnergy ( )

private

Calculates remaining energy.

This function uses the total current from all device models to calculate the amount of energy to decrease. The energy to decrease is given by: energy to decrease = total current * supply voltage * time duration This function subtracts the calculated energy to decrease from remaining energy.

Definition at line 264 of file generic-battery-model.cc.

References ns3::EnergySource::CalculateTotalCurrent(), GetChargeVoltage(), ns3::Time::GetSeconds(), GetVoltage(), m_currentFiltered, m_drainedCapacity, m_energyUpdateLapseTime, m_lastUpdateTime, m_supplyVoltageV, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::Seconds().

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::GenericBatteryModel::DoDispose ( void )

overrideprivatevirtual

All child's implementation must call BreakDeviceEnergyModelRefCycle to ensure reference cycles to DeviceEnergyModel objects are broken.

Defined in ns3::Object

Reimplemented from ns3::EnergySource.

Definition at line 239 of file generic-battery-model.cc.

References ns3::EnergySource::BreakDeviceEnergyModelRefCycle(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoInitialize()

void ns3::GenericBatteryModel::DoInitialize ( void )

overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 233 of file generic-battery-model.cc.

References NS_LOG_FUNCTION.

◆ GetChargeVoltage()

double ns3::GenericBatteryModel::GetChargeVoltage ( double current )

private

Obtain the battery voltage as a result of a charge current.

Parameters

current The actual charge current value (-i).

Returns: The voltage of the battery.

Definition at line 300 of file generic-battery-model.cc.

References GetStateOfCharge(), ns3::LEADACID, ns3::LION_LIPO, m_batteryType, m_currentFiltered, m_drainedCapacity, m_energyUpdateLapseTime, m_entn, m_expZone, m_internalResistance, m_qExp, m_qMax, m_qNom, m_remainingEnergyJ, m_typicalCurrent, m_vExp, m_vFull, m_vNom, ns3::NIMH_NICD, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Time::S.

Referenced by CalculateRemainingEnergy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDrainedCapacity()

double ns3::GenericBatteryModel::GetDrainedCapacity ( ) const

Obtain the amount of drained capacity from the battery based on the integral of the current over time (Coulomb counting method).

Returns: The drainedCapacity (Ah)

Definition at line 164 of file generic-battery-model.cc.

References m_drainedCapacity.

◆ GetEnergyFraction()

double ns3::GenericBatteryModel::GetEnergyFraction ( )

overridevirtual

Implements GetEnergyFraction.

For the generic battery model, energy fraction is equivalent to the remaining usable capacity (i.e. The SoC).

Returns: Energy fraction.

Implements ns3::EnergySource.

Definition at line 192 of file generic-battery-model.cc.

References GetStateOfCharge(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetEnergyUpdateInterval()

Time ns3::GenericBatteryModel::GetEnergyUpdateInterval ( ) const

Returns: The interval between each energy update.

Definition at line 177 of file generic-battery-model.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetInitialEnergy()

double ns3::GenericBatteryModel::GetInitialEnergy ( ) const

overridevirtual

Implements GetInitialEnergy.

It returns the amount of energy in Joules stored in the battery when fully charged. This energy is different to the total amount of usable energy in the battery. This is because the battery cannot be used until Voltage = 0, only until it reaches the cutoff voltage.

Returns: The initial energy stored in the fully charged battery, in Joules.

Implements ns3::EnergySource.

Definition at line 137 of file generic-battery-model.cc.

References m_qMax, and m_vFull.

◆ GetRemainingEnergy()

double ns3::GenericBatteryModel::GetRemainingEnergy ( )

overridevirtual

Implements GetRemainingEnergy.

Returns: Remaining energy in energy source, in Joules

Implements ns3::EnergySource.

Definition at line 184 of file generic-battery-model.cc.

References m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

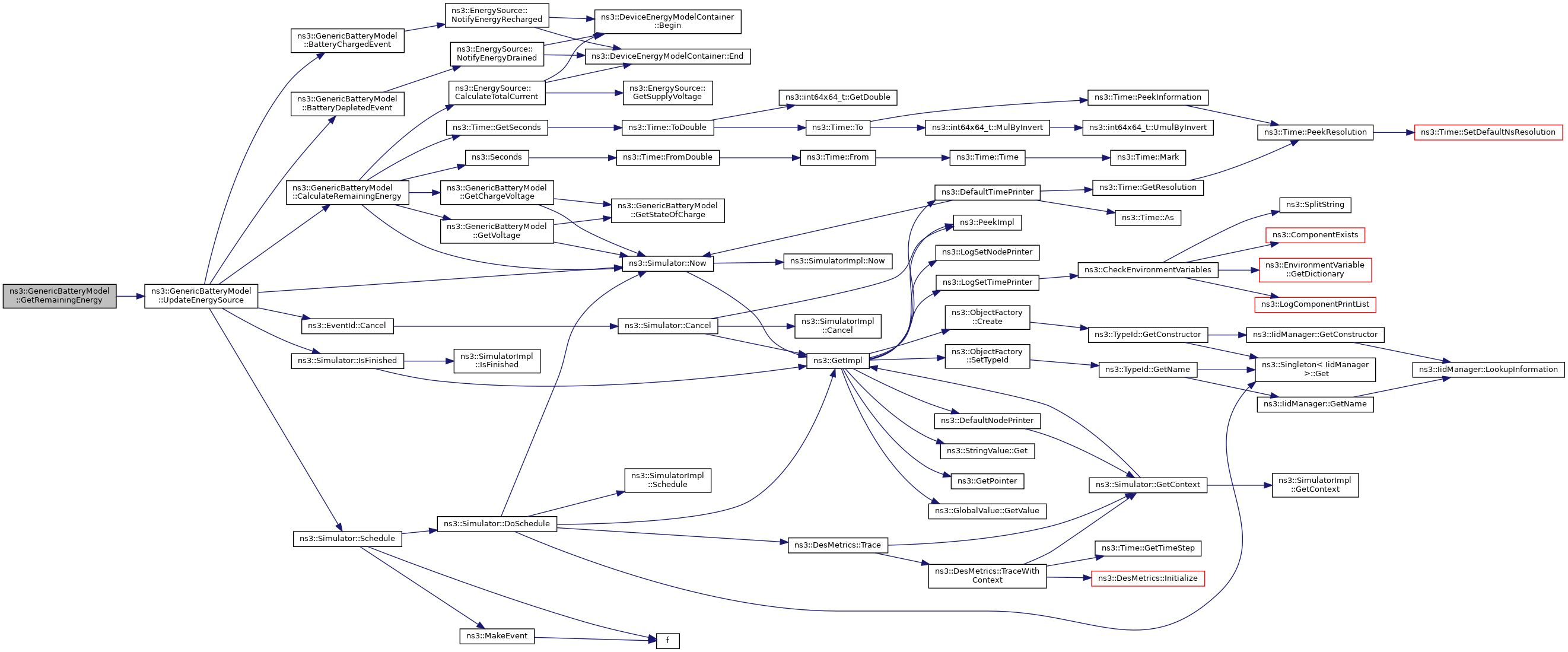

Here is the call graph for this function:

◆ GetStateOfCharge()

double ns3::GenericBatteryModel::GetStateOfCharge ( ) const

Calculates an estimate of the State of Charge (SoC).

In essence, the amount of usable capacity remaining in the battery (%).

Returns: The percentage of usable capacity remaining in the battery.

Definition at line 170 of file generic-battery-model.cc.

References m_drainedCapacity, and m_qMax.

Referenced by GetChargeVoltage(), GetEnergyFraction(), and GetVoltage().

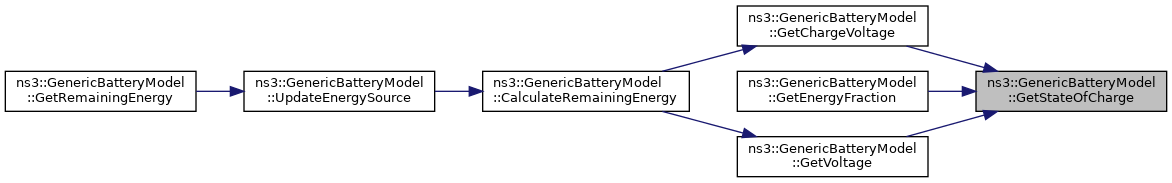

Here is the caller graph for this function:

◆ GetSupplyVoltage()

double ns3::GenericBatteryModel::GetSupplyVoltage ( ) const

overridevirtual

Implements GetSupplyVoltage.

Returns: Supply voltage at the energy source.

Implements ns3::EnergySource.

Definition at line 144 of file generic-battery-model.cc.

References m_supplyVoltageV.

◆ GetTypeId()

TypeId ns3::GenericBatteryModel::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 41 of file generic-battery-model.cc.

References GetEnergyUpdateInterval(), ns3::LEADACID, ns3::LION_LIPO, m_batteryType, m_cutoffVoltage, m_internalResistance, m_lowBatteryTh, m_qExp, m_qMax, m_qNom, m_remainingEnergyJ, m_typicalCurrent, m_vExp, m_vFull, m_vNom, ns3::MakeDoubleAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::NIMH_NICD, ns3::Seconds(), SetEnergyUpdateInterval(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ GetVoltage()

double ns3::GenericBatteryModel::GetVoltage ( double current )

private

Get the battery voltage in function of the discharge current.

It consider different discharge curves for different discharge currents and the remaining energy of the battery.

Parameters

current The actual discharge current value (+i).

Returns: The voltage of the battery.

Definition at line 376 of file generic-battery-model.cc.

References GetStateOfCharge(), ns3::LEADACID, ns3::LION_LIPO, m_batteryType, m_currentFiltered, m_drainedCapacity, m_energyUpdateLapseTime, m_entn, m_expZone, m_internalResistance, m_qExp, m_qMax, m_qNom, m_remainingEnergyJ, m_typicalCurrent, m_vExp, m_vFull, m_vNom, ns3::NIMH_NICD, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Time::S.

Referenced by CalculateRemainingEnergy().

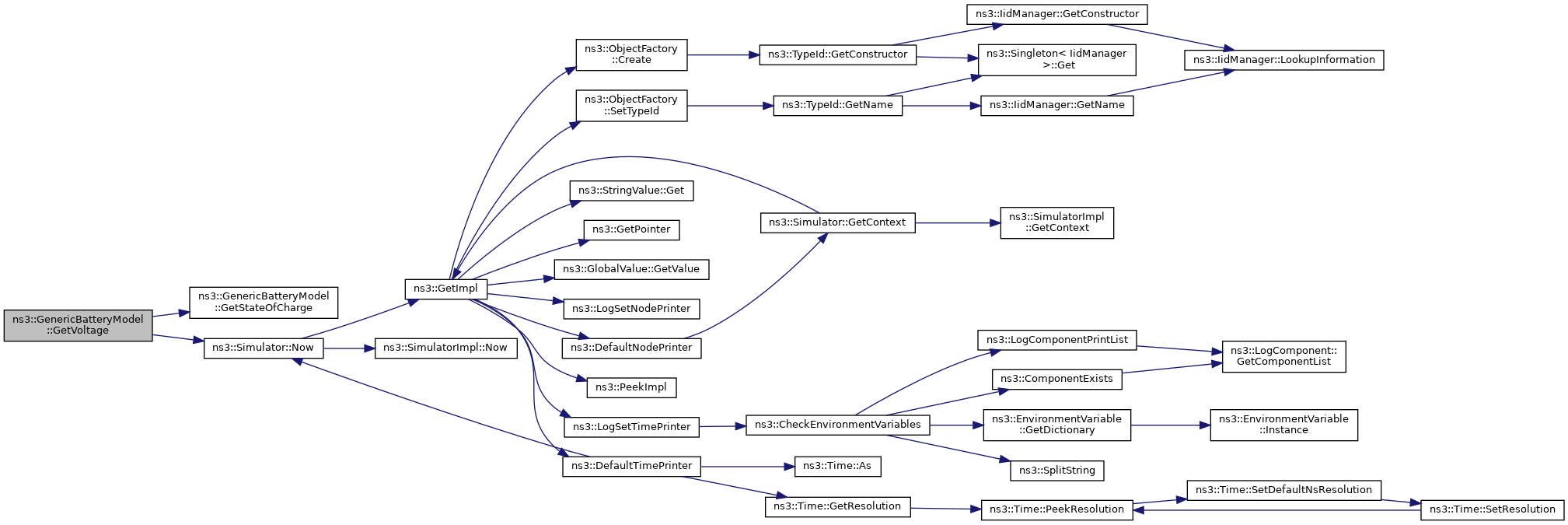

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDrainedCapacity()

void ns3::GenericBatteryModel::SetDrainedCapacity ( double drainedCapacity )

This function is used to change the initial capacity in the battery.

A value of 0 means that the battery is fully charged. The value cannot be set to a value bigger than the rated capacity (fully discharged) or less than 0 (fully charged).

Parameters

drainedCapacity The capacity drained so far in the battery.

Definition at line 157 of file generic-battery-model.cc.

References m_drainedCapacity, m_qMax, and NS_ASSERT.

◆ SetEnergyUpdateInterval()

void ns3::GenericBatteryModel::SetEnergyUpdateInterval ( Time interval )

This function sets the interval between each energy update.

Parameters

interval Energy update interval.

Definition at line 150 of file generic-battery-model.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ UpdateEnergySource()

void ns3::GenericBatteryModel::UpdateEnergySource ( )

overridevirtual

Implements UpdateEnergySource.

Implements ns3::EnergySource.

Definition at line 199 of file generic-battery-model.cc.

References BatteryChargedEvent(), BatteryDepletedEvent(), CalculateRemainingEnergy(), ns3::EventId::Cancel(), ns3::Simulator::IsFinished(), m_cutoffVoltage, m_energyUpdateEvent, m_energyUpdateInterval, m_lastUpdateTime, m_supplyVoltageV, m_vFull, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by GetRemainingEnergy().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_batteryType

GenericBatteryType ns3::GenericBatteryModel::m_batteryType

private

Indicates the battery type used by the model.

Definition at line 309 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetTypeId(), and GetVoltage().

◆ m_currentFiltered

double ns3::GenericBatteryModel::m_currentFiltered

private

The step response (a.k.a.

low pass filter)

Definition at line 289 of file generic-battery-model.h.

Referenced by CalculateRemainingEnergy(), GetChargeVoltage(), and GetVoltage().

◆ m_cutoffVoltage

double ns3::GenericBatteryModel::m_cutoffVoltage

private

The threshold voltage where the battery is considered depleted.

Definition at line 308 of file generic-battery-model.h.

Referenced by GetTypeId(), and UpdateEnergySource().

◆ m_drainedCapacity

double ns3::GenericBatteryModel::m_drainedCapacity

private

Capacity drained from the battery, in Ah.

Definition at line 288 of file generic-battery-model.h.

Referenced by CalculateRemainingEnergy(), GetChargeVoltage(), GetDrainedCapacity(), GetStateOfCharge(), GetVoltage(), and SetDrainedCapacity().

◆ m_energyUpdateEvent

EventId ns3::GenericBatteryModel::m_energyUpdateEvent

private

Energy update event.

Definition at line 297 of file generic-battery-model.h.

Referenced by UpdateEnergySource().

◆ m_energyUpdateInterval

Time ns3::GenericBatteryModel::m_energyUpdateInterval

private

Energy update interval.

Definition at line 299 of file generic-battery-model.h.

Referenced by GetEnergyUpdateInterval(), SetEnergyUpdateInterval(), and UpdateEnergySource().

◆ m_energyUpdateLapseTime

Time ns3::GenericBatteryModel::m_energyUpdateLapseTime

private

The lapse of time between the last battery energy update and the current time.

Definition at line 293 of file generic-battery-model.h.

Referenced by CalculateRemainingEnergy(), GetChargeVoltage(), and GetVoltage().

◆ m_entn

double ns3::GenericBatteryModel::m_entn

private

The previous value of the exponential zone in NiMh,NiCd and LeadAcid.

Definition at line 290 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), and GetVoltage().

◆ m_expZone

double ns3::GenericBatteryModel::m_expZone

private

Voltage value of the exponential zone.

Definition at line 292 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), and GetVoltage().

◆ m_internalResistance

double ns3::GenericBatteryModel::m_internalResistance

private

Internal resistance of the battery, in Ohms.

Definition at line 303 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetTypeId(), and GetVoltage().

◆ m_lastUpdateTime

Time ns3::GenericBatteryModel::m_lastUpdateTime

private

Last update time.

Definition at line 298 of file generic-battery-model.h.

Referenced by CalculateRemainingEnergy(), and UpdateEnergySource().

◆ m_lowBatteryTh

double ns3::GenericBatteryModel::m_lowBatteryTh

private

Low battery threshold, as a fraction of the initial energy.

Definition at line 296 of file generic-battery-model.h.

Referenced by GetTypeId().

◆ m_qExp

double ns3::GenericBatteryModel::m_qExp

private

Capacity value at the end of the exponential zone, in Ah.

Definition at line 306 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetTypeId(), and GetVoltage().

◆ m_qMax

double ns3::GenericBatteryModel::m_qMax

private

The maximum capacity of the battery, in Ah.

Definition at line 304 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetInitialEnergy(), GetStateOfCharge(), GetTypeId(), GetVoltage(), and SetDrainedCapacity().

◆ m_qNom

double ns3::GenericBatteryModel::m_qNom

private

Battery capacity at the end of the nominal zone, in Ah.

Definition at line 305 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetTypeId(), and GetVoltage().

◆ m_remainingEnergyJ

TracedValue<double> ns3::GenericBatteryModel::m_remainingEnergyJ

private

Remaining energy, in Joules.

Definition at line 287 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetRemainingEnergy(), GetTypeId(), and GetVoltage().

◆ m_supplyVoltageV

double ns3::GenericBatteryModel::m_supplyVoltageV

private

Actual voltage of the battery.

Definition at line 295 of file generic-battery-model.h.

Referenced by CalculateRemainingEnergy(), GetSupplyVoltage(), and UpdateEnergySource().

◆ m_typicalCurrent

double ns3::GenericBatteryModel::m_typicalCurrent

private

Typical discharge current used to fit the curves.

Definition at line 307 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetTypeId(), and GetVoltage().

◆ m_vExp

double ns3::GenericBatteryModel::m_vExp

private

Battery voltage at the end of the exponential zone, in Volts.

Definition at line 302 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetTypeId(), and GetVoltage().

◆ m_vFull

double ns3::GenericBatteryModel::m_vFull

private

Initial voltage of the battery, in Volts.

Definition at line 300 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetInitialEnergy(), GetTypeId(), GetVoltage(), and UpdateEnergySource().

◆ m_vNom

double ns3::GenericBatteryModel::m_vNom

private

Nominal voltage of the battery, in Volts.

Definition at line 301 of file generic-battery-model.h.

Referenced by GetChargeVoltage(), GetTypeId(), and GetVoltage().

The documentation for this class was generated from the following files:

src/energy/model/generic-battery-model.h
src/energy/model/generic-battery-model.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GenericBatteryModel()

◆ ~GenericBatteryModel()

Member Function Documentation

◆ BatteryChargedEvent()

◆ BatteryDepletedEvent()

◆ CalculateRemainingEnergy()

◆ DoDispose()

◆ DoInitialize()

◆ GetChargeVoltage()

◆ GetDrainedCapacity()

◆ GetEnergyFraction()

◆ GetEnergyUpdateInterval()

◆ GetInitialEnergy()

◆ GetRemainingEnergy()

◆ GetStateOfCharge()

◆ GetSupplyVoltage()

◆ GetTypeId()

◆ GetVoltage()

◆ SetDrainedCapacity()

◆ SetEnergyUpdateInterval()

◆ UpdateEnergySource()

Member Data Documentation

◆ m_batteryType

◆ m_currentFiltered

◆ m_cutoffVoltage

◆ m_drainedCapacity

◆ m_energyUpdateEvent

◆ m_energyUpdateInterval

◆ m_energyUpdateLapseTime

◆ m_entn

◆ m_expZone

◆ m_internalResistance

◆ m_lastUpdateTime

◆ m_lowBatteryTh

◆ m_qExp

◆ m_qMax

◆ m_qNom

◆ m_remainingEnergyJ

◆ m_supplyVoltageV

◆ m_typicalCurrent

◆ m_vExp

◆ m_vFull

◆ m_vNom
