PHY CCA thresholds test. More...

Inheritance diagram for WifiPhyCcaThresholdsTest:

Collaboration diagram for WifiPhyCcaThresholdsTest:

Public Member Functions
	WifiPhyCcaThresholdsTest ()

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
Ptr< HePpdu >	CreateDummyHePpdu (uint16_t bandwidth, const WifiPhyOperatingChannel &channel)
	Create a HE PPDU. More...

Ptr< HtPpdu >	CreateDummyHtPpdu (uint16_t bandwidth, const WifiPhyOperatingChannel &channel)
	Create a HT PPDU. More...

Ptr< OfdmPpdu >	CreateDummyNonHtPpdu (const WifiPhyOperatingChannel &channel)
	Create a non-HT PPDU. More...

Ptr< WifiPsdu >	CreateDummyPsdu ()
	Create a dummy PSDU whose payload is 1000 bytes. More...

Ptr< VhtPpdu >	CreateDummyVhtPpdu (uint16_t bandwidth, const WifiPhyOperatingChannel &channel)
	Create a VHT PPDU. More...

void	DoRun () override
	Implementation to actually run this TestCase. More...

void	DoSetup () override
	Implementation to do any local setup required for this TestCase. More...

void	DoTeardown () override
	Implementation to do any local setup required for this TestCase. More...

void	RunOne ()
	Run tests for given CCA attributes. More...

void	VerifyCcaThreshold (const Ptr< PhyEntity > phy, const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType, double expectedCcaThresholdDbm)
	Function to verify the CCA threshold that is being reported by a given PHY entity upon reception of a signal or a PPDU. More...

Private Attributes
double	m_CcaEdThresholdDbm
	The current CCA-ED threshold for a 20 MHz subchannel (in dBm) More...

double	m_CcaSensitivityDbm
	The current CCA sensitivity threshold for signals that occupy the primary 20 MHz channel (in dBm) More...

Ptr< WifiNetDevice >	m_device
	The WifiNetDevice. More...

Ptr< ObssPdAlgorithm >	m_obssPdAlgorithm
	The OBSS-PD algorithm. More...

double	m_obssPdLevel
	The current OBSS-PD level (in dBm) More...

Ptr< SpectrumWifiPhy >	m_phy
	The spectrum PHY. More...

VhtConfiguration::SecondaryCcaSensitivityThresholds	m_secondaryCcaSensitivityThresholds
	The current CCA sensitivity thresholds for signals that do not occupy the primary 20 MHz channel (in dBm) More...

Ptr< VhtConfiguration >	m_vhtConfiguration
	The VHT configuration. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

PHY CCA thresholds test.

Definition at line 75 of file wifi-phy-cca-test.cc.

Constructor & Destructor Documentation

◆ WifiPhyCcaThresholdsTest()

WifiPhyCcaThresholdsTest::WifiPhyCcaThresholdsTest ( )

Definition at line 154 of file wifi-phy-cca-test.cc.

Member Function Documentation

◆ CreateDummyHePpdu()

Ptr< HePpdu > WifiPhyCcaThresholdsTest::CreateDummyHePpdu	(	uint16_t	bandwidth,
		const WifiPhyOperatingChannel &	channel
	)

private

Create a HE PPDU.

Parameters

bandwidth	the bandwidth used for the transmission the PPDU in MHz
channel	the operating channel of the PHY used for the transmission

Returns: a HE PPDU

Definition at line 203 of file wifi-phy-cca-test.cc.

References third::channel, CreateDummyPsdu(), ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_HE_SU.

Referenced by RunOne().

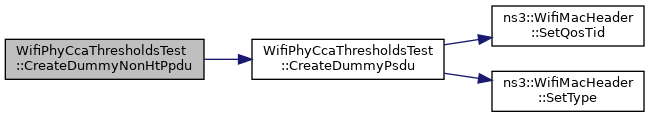

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDummyHtPpdu()

Ptr< HtPpdu > WifiPhyCcaThresholdsTest::CreateDummyHtPpdu	(	uint16_t	bandwidth,
		const WifiPhyOperatingChannel &	channel
	)

private

Create a HT PPDU.

Parameters

bandwidth	the bandwidth used for the transmission the PPDU in MHz
channel	the operating channel of the PHY used for the transmission

Returns: a HT PPDU

Definition at line 183 of file wifi-phy-cca-test.cc.

References third::channel, CreateDummyPsdu(), ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_HT_MF.

Referenced by RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDummyNonHtPpdu()

Ptr< OfdmPpdu > WifiPhyCcaThresholdsTest::CreateDummyNonHtPpdu ( const WifiPhyOperatingChannel & channel )

private

Create a non-HT PPDU.

Parameters

channel the operating channel of the PHY used for the transmission

Returns: a non-HT PPDU

Definition at line 174 of file wifi-phy-cca-test.cc.

References third::channel, CreateDummyPsdu(), and ns3::WIFI_PREAMBLE_LONG.

Referenced by RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDummyPsdu()

Ptr< WifiPsdu > WifiPhyCcaThresholdsTest::CreateDummyPsdu ( )

private

Create a dummy PSDU whose payload is 1000 bytes.

Returns: a dummy PSDU whose payload is 1000 bytes

Definition at line 164 of file wifi-phy-cca-test.cc.

References ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_QOSDATA.

Referenced by CreateDummyHePpdu(), CreateDummyHtPpdu(), CreateDummyNonHtPpdu(), and CreateDummyVhtPpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDummyVhtPpdu()

Ptr< VhtPpdu > WifiPhyCcaThresholdsTest::CreateDummyVhtPpdu	(	uint16_t	bandwidth,
		const WifiPhyOperatingChannel &	channel
	)

private

Create a VHT PPDU.

Parameters

bandwidth	the bandwidth used for the transmission the PPDU in MHz
channel	the operating channel of the PHY used for the transmission

Returns: a VHT PPDU

Definition at line 193 of file wifi-phy-cca-test.cc.

References third::channel, CreateDummyPsdu(), ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_VHT_SU.

Referenced by RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void WifiPhyCcaThresholdsTest::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 530 of file wifi-phy-cca-test.cc.

References m_CcaEdThresholdDbm, m_CcaSensitivityDbm, m_obssPdLevel, m_secondaryCcaSensitivityThresholds, and RunOne().

Here is the call graph for this function:

◆ DoSetup()

void WifiPhyCcaThresholdsTest::DoSetup ( )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 233 of file wifi-phy-cca-test.cc.

References ns3::SpectrumWifiPhy::AddChannel(), ns3::Object::AggregateObject(), ns3::WifiPhy::ConfigureStandard(), ns3::ObssPdAlgorithm::ConnectWifiNetDevice(), m_device, m_obssPdAlgorithm, m_phy, m_vhtConfiguration, ns3::SpectrumWifiPhy::SetDevice(), ns3::WifiPhy::SetInterferenceHelper(), ns3::WifiPhy::SetOperatingChannel(), ns3::WifiNetDevice::SetPhy(), ns3::WifiNetDevice::SetStandard(), ns3::WifiNetDevice::SetVhtConfiguration(), ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_STANDARD_80211ax.

Here is the call graph for this function:

◆ DoTeardown()

void WifiPhyCcaThresholdsTest::DoTeardown ( )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 260 of file wifi-phy-cca-test.cc.

References ns3::Object::Dispose(), and m_device.

Here is the call graph for this function:

◆ RunOne()

void WifiPhyCcaThresholdsTest::RunOne ( )

private

Run tests for given CCA attributes.

Definition at line 267 of file wifi-phy-cca-test.cc.

References CreateDummyHePpdu(), CreateDummyHtPpdu(), CreateDummyNonHtPpdu(), CreateDummyVhtPpdu(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhy::GetPhyEntity(), m_CcaEdThresholdDbm, m_CcaSensitivityDbm, m_obssPdAlgorithm, m_obssPdLevel, m_phy, m_secondaryCcaSensitivityThresholds, m_vhtConfiguration, max, ns3::WifiPhy::SetCcaEdThreshold(), ns3::WifiPhy::SetCcaSensitivityThreshold(), ns3::ObssPdAlgorithm::SetObssPdLevel(), ns3::VhtConfiguration::SetSecondaryCcaSensitivityThresholds(), VerifyCcaThreshold(), ns3::WIFI_CHANLIST_PRIMARY, ns3::WIFI_CHANLIST_SECONDARY, ns3::WIFI_CHANLIST_SECONDARY40, ns3::WIFI_CHANLIST_SECONDARY80, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ VerifyCcaThreshold()

void WifiPhyCcaThresholdsTest::VerifyCcaThreshold	(	const Ptr< PhyEntity >	phy,
		const Ptr< const WifiPpdu >	ppdu,
		WifiChannelListType	channelType,
		double	expectedCcaThresholdDbm
	)

private

Function to verify the CCA threshold that is being reported by a given PHY entity upon reception of a signal or a PPDU.

Parameters

phy	the PHY entity to verify
ppdu	the incoming PPDU or signal (if nullptr)
channelType	the channel list type that indicates which channel the PPDU or the signal occupies
expectedCcaThresholdDbm	the CCA threshold in dBm that is expected to be reported

Definition at line 213 of file wifi-phy-cca-test.cc.

References NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_EXPECT_MSG_EQ_TOL, and third::phy.

Referenced by RunOne().

Here is the caller graph for this function:

Member Data Documentation

◆ m_CcaEdThresholdDbm

double WifiPhyCcaThresholdsTest::m_CcaEdThresholdDbm

private

The current CCA-ED threshold for a 20 MHz subchannel (in dBm)

Definition at line 142 of file wifi-phy-cca-test.cc.

Referenced by DoRun(), and RunOne().

◆ m_CcaSensitivityDbm

double WifiPhyCcaThresholdsTest::m_CcaSensitivityDbm

private

The current CCA sensitivity threshold for signals that occupy the primary 20 MHz channel (in dBm)

Definition at line 143 of file wifi-phy-cca-test.cc.

Referenced by DoRun(), and RunOne().

◆ m_device

Ptr<WifiNetDevice> WifiPhyCcaThresholdsTest::m_device

private

The WifiNetDevice.

Definition at line 137 of file wifi-phy-cca-test.cc.

Referenced by DoSetup(), and DoTeardown().

◆ m_obssPdAlgorithm

Ptr<ObssPdAlgorithm> WifiPhyCcaThresholdsTest::m_obssPdAlgorithm

private

The OBSS-PD algorithm.

Definition at line 139 of file wifi-phy-cca-test.cc.

Referenced by DoSetup(), and RunOne().

◆ m_obssPdLevel

double WifiPhyCcaThresholdsTest::m_obssPdLevel

private

The current OBSS-PD level (in dBm)

Definition at line 151 of file wifi-phy-cca-test.cc.

Referenced by DoRun(), and RunOne().

◆ m_phy

Ptr<SpectrumWifiPhy> WifiPhyCcaThresholdsTest::m_phy

private

The spectrum PHY.

Definition at line 138 of file wifi-phy-cca-test.cc.

Referenced by DoSetup(), and RunOne().

◆ m_secondaryCcaSensitivityThresholds

VhtConfiguration::SecondaryCcaSensitivityThresholds WifiPhyCcaThresholdsTest::m_secondaryCcaSensitivityThresholds

private

The current CCA sensitivity thresholds for signals that do not occupy the primary 20 MHz channel (in dBm)

Definition at line 147 of file wifi-phy-cca-test.cc.

Referenced by DoRun(), and RunOne().

◆ m_vhtConfiguration

Ptr<VhtConfiguration> WifiPhyCcaThresholdsTest::m_vhtConfiguration

private

The VHT configuration.

Definition at line 140 of file wifi-phy-cca-test.cc.

Referenced by DoSetup(), and RunOne().

The documentation for this class was generated from the following file:
