Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources. More...

#include "lte-rrc-protocol-ideal.h"

Inheritance diagram for ns3::LteUeRrcProtocolIdeal:

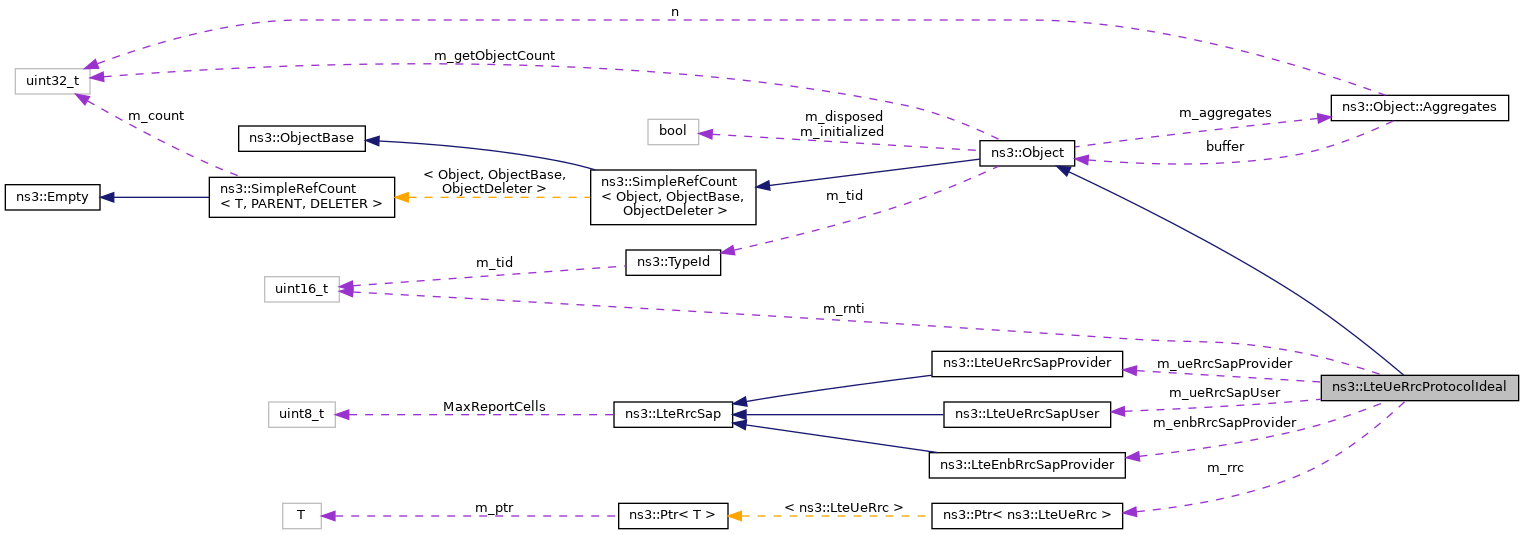

Collaboration diagram for ns3::LteUeRrcProtocolIdeal:

Public Member Functions
	LteUeRrcProtocolIdeal ()

	~LteUeRrcProtocolIdeal () override

void	DoDispose () override
	Destructor implementation. More...

LteUeRrcSapUser *	GetLteUeRrcSapUser ()
	Get LTE UE RRC SAP user function. More...

void	SetLteUeRrcSapProvider (LteUeRrcSapProvider *p)
	Set LTE UE RRC SAP provider function. More...

void	SetUeRrc (Ptr< LteUeRrc > rrc)
	Set LTE UE RRC function. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoSendIdealUeContextRemoveRequest (uint16_t rnti)
	Send Ideal UE context remove request function. More...

void	DoSendMeasurementReport (LteRrcSap::MeasurementReport msg)
	Send measurement report function. More...

void	DoSendRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)
	Send RRC connection reconfiguration completed function. More...

void	DoSendRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)
	Send RRC connection reestablishment complete function. More...

void	DoSendRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)
	Send RRC connection reestablishment request function. More...

void	DoSendRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)
	Send RRC connection request function. More...

void	DoSendRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)
	Send RRC connection setup completed function. More...

void	DoSetup (LteUeRrcSapUser::SetupParameters params)
	Setup function. More...

void	SetEnbRrcSapProvider ()
	Set ENB RRC SAP provider. More...

Private Attributes
LteEnbRrcSapProvider *	m_enbRrcSapProvider
	the ENB RRC SAP provider More...

uint16_t	m_rnti
	the RNTI More...

Ptr< LteUeRrc >	m_rrc
	the RRC More...

LteUeRrcSapProvider *	m_ueRrcSapProvider
	the UE RRC SAP provider More...

LteUeRrcSapUser *	m_ueRrcSapUser
	the RRC SAP user More...

Friends
class	MemberLteUeRrcSapUser< LteUeRrcProtocolIdeal >
	allow MemberLteUeRrcSapUser<LteUeRrcProtocolIdeal> class friend access More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources.

Definition at line 47 of file lte-rrc-protocol-ideal.h.

Constructor & Destructor Documentation

◆ LteUeRrcProtocolIdeal()

ns3::LteUeRrcProtocolIdeal::LteUeRrcProtocolIdeal ( )

Definition at line 49 of file lte-rrc-protocol-ideal.cc.

References m_ueRrcSapUser, and MemberLteUeRrcSapUser< LteUeRrcProtocolIdeal >.

◆ ~LteUeRrcProtocolIdeal()

ns3::LteUeRrcProtocolIdeal::~LteUeRrcProtocolIdeal ( )

override

Definition at line 56 of file lte-rrc-protocol-ideal.cc.

Member Function Documentation

◆ DoDispose()

void ns3::LteUeRrcProtocolIdeal::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 61 of file lte-rrc-protocol-ideal.cc.

References m_rrc, m_ueRrcSapUser, and NS_LOG_FUNCTION.

◆ DoSendIdealUeContextRemoveRequest()

void ns3::LteUeRrcProtocolIdeal::DoSendIdealUeContextRemoveRequest ( uint16_t rnti )

private

Send Ideal UE context remove request function.

Notify eNodeB to release UE context once radio link failure or random access failure is detected. It is needed since no RLF detection mechanism at eNodeB is implemented

Parameters

rnti	the RNTI of the UE

Definition at line 177 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider, m_rnti, m_rrc, NS_ABORT_MSG_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::LteEnbRrcSapProvider::RecvIdealUeContextRemoveRequest(), ns3::RRC_IDEAL_MSG_DELAY, ns3::Simulator::Schedule(), and SetEnbRrcSapProvider().

Here is the call graph for this function:

◆ DoSendMeasurementReport()

void ns3::LteUeRrcProtocolIdeal::DoSendMeasurementReport ( LteRrcSap::MeasurementReport msg )

private

Send measurement report function.

Parameters

msg	LteRrcSap::MeasurementReport

Definition at line 167 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider, m_rnti, ns3::LteEnbRrcSapProvider::RecvMeasurementReport(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().

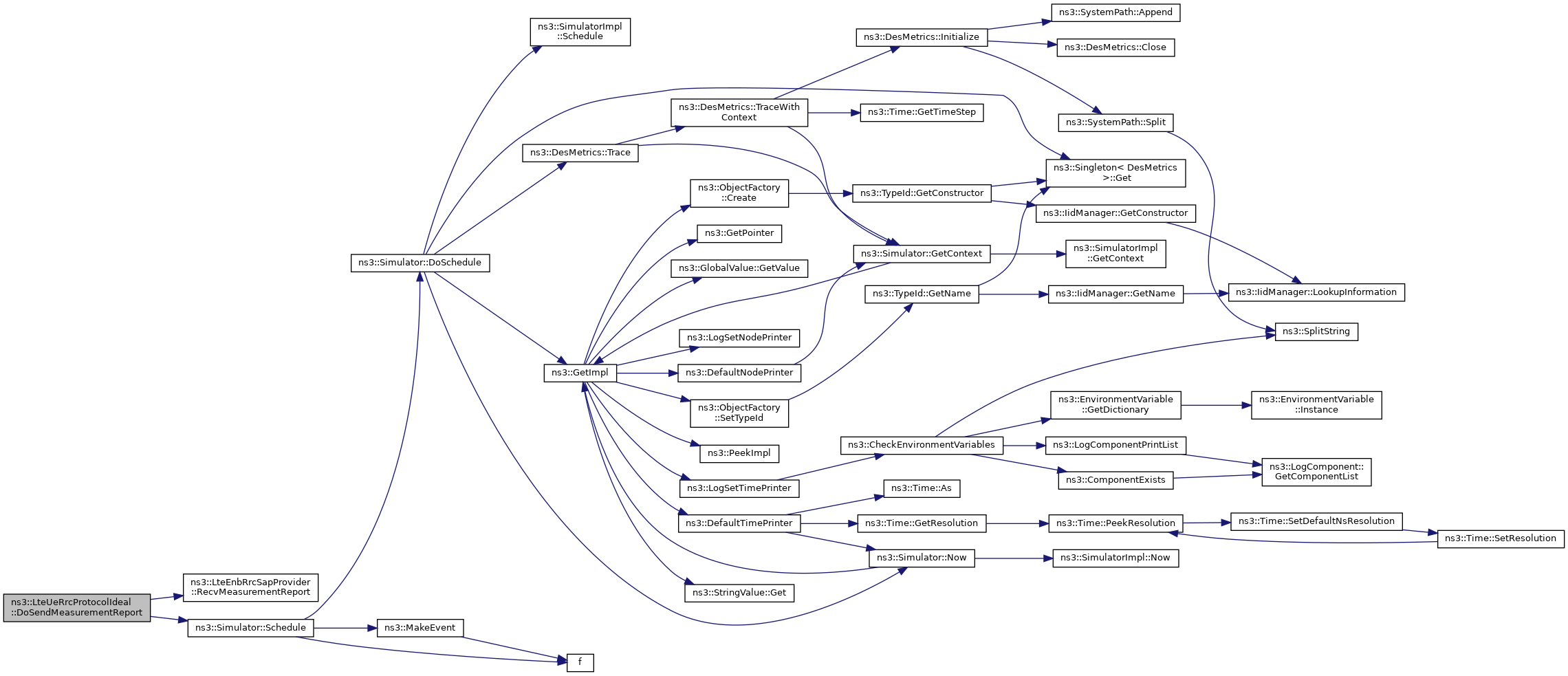

Here is the call graph for this function:

◆ DoSendRrcConnectionReconfigurationCompleted()

void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReconfigurationCompleted ( LteRrcSap::RrcConnectionReconfigurationCompleted msg )

private

Send RRC connection reconfiguration completed function.

Parameters

msg	LteRrcSap::RrcConnectionReconfigurationCompleted

Definition at line 129 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider, m_rnti, m_rrc, ns3::LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted(), ns3::RRC_IDEAL_MSG_DELAY, ns3::Simulator::Schedule(), and SetEnbRrcSapProvider().

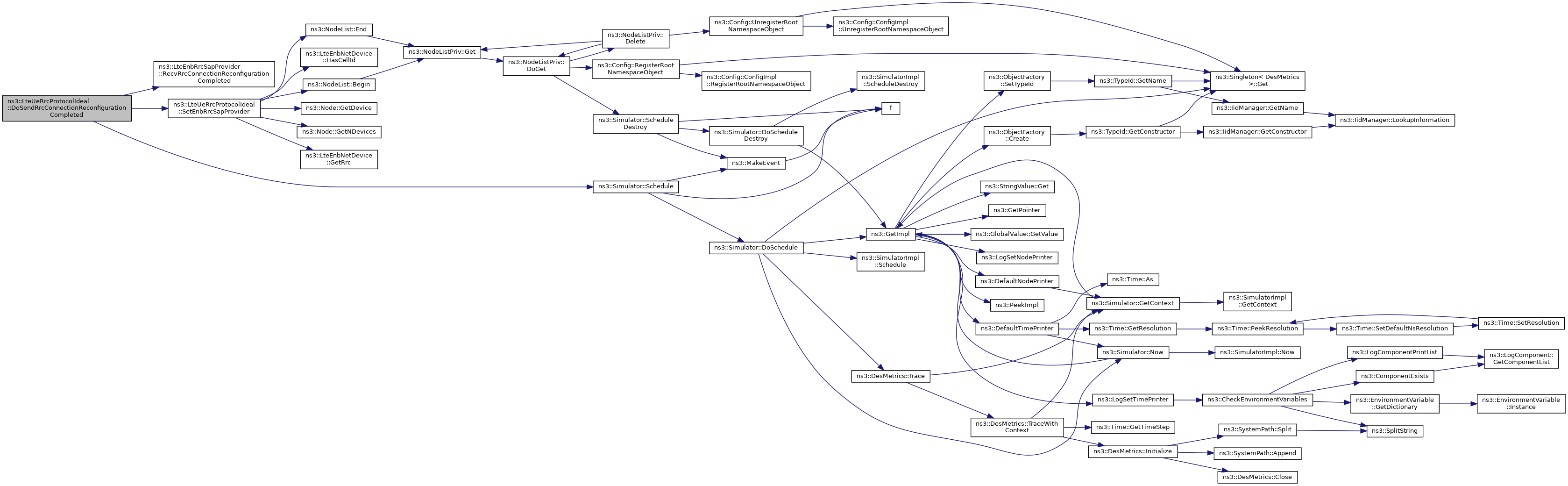

Here is the call graph for this function:

◆ DoSendRrcConnectionReestablishmentComplete()

void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentComplete ( LteRrcSap::RrcConnectionReestablishmentComplete msg )

private

Send RRC connection reestablishment complete function.

Parameters

msg	LteRrcSap::RrcConnectionReestablishmentRequest

Definition at line 156 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider, m_rnti, ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ DoSendRrcConnectionReestablishmentRequest()

void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentRequest ( LteRrcSap::RrcConnectionReestablishmentRequest msg )

private

Send RRC connection reestablishment request function.

Parameters

msg	LteRrcSap::RrcConnectionReestablishmentRequest

Definition at line 145 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider, m_rnti, ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ DoSendRrcConnectionRequest()

void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionRequest ( LteRrcSap::RrcConnectionRequest msg )

private

Send RRC connection request function.

Parameters

msg	LteRrcSap::RrcConnectionRequest

Definition at line 104 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider, m_rnti, m_rrc, ns3::LteEnbRrcSapProvider::RecvRrcConnectionRequest(), ns3::RRC_IDEAL_MSG_DELAY, ns3::Simulator::Schedule(), and SetEnbRrcSapProvider().

Here is the call graph for this function:

◆ DoSendRrcConnectionSetupCompleted()

void ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionSetupCompleted ( LteRrcSap::RrcConnectionSetupCompleted msg )

private

Send RRC connection setup completed function.

Parameters

msg	LteRrcSap::RrcConnectionSetupCompleted

Definition at line 119 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider, m_rnti, ns3::LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ DoSetup()

void ns3::LteUeRrcProtocolIdeal::DoSetup ( LteUeRrcSapUser::SetupParameters params )

private

Setup function.

Parameters

params LteUeRrcSapUser::SetupParameters

Definition at line 97 of file lte-rrc-protocol-ideal.cc.

References NS_LOG_FUNCTION.

◆ GetLteUeRrcSapUser()

LteUeRrcSapUser * ns3::LteUeRrcProtocolIdeal::GetLteUeRrcSapUser ( )

Get LTE UE RRC SAP user function.

Returns: LTE UE RRC SAP user

Definition at line 85 of file lte-rrc-protocol-ideal.cc.

References m_ueRrcSapUser.

◆ GetTypeId()

TypeId ns3::LteUeRrcProtocolIdeal::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 69 of file lte-rrc-protocol-ideal.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ SetEnbRrcSapProvider()

void ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider ( )

private

Set ENB RRC SAP provider.

Definition at line 200 of file lte-rrc-protocol-ideal.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), ns3::LteEnbNetDevice::GetRrc(), ns3::LteEnbNetDevice::HasCellId(), m_enbRrcSapProvider, m_rnti, m_rrc, m_ueRrcSapProvider, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoSendIdealUeContextRemoveRequest(), DoSendRrcConnectionReconfigurationCompleted(), and DoSendRrcConnectionRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetLteUeRrcSapProvider()

void ns3::LteUeRrcProtocolIdeal::SetLteUeRrcSapProvider ( LteUeRrcSapProvider * p )

Set LTE UE RRC SAP provider function.

Parameters

p	LTE UE RRC SAP provider

Definition at line 79 of file lte-rrc-protocol-ideal.cc.

References m_ueRrcSapProvider.

◆ SetUeRrc()

void ns3::LteUeRrcProtocolIdeal::SetUeRrc ( Ptr< LteUeRrc > rrc )

Set LTE UE RRC function.

Parameters

rrc	LTE UE RRC

Definition at line 91 of file lte-rrc-protocol-ideal.cc.

References m_rrc.

Friends And Related Function Documentation

◆ MemberLteUeRrcSapUser< LteUeRrcProtocolIdeal >

friend class MemberLteUeRrcSapUser< LteUeRrcProtocolIdeal >

friend

allow MemberLteUeRrcSapUser<LteUeRrcProtocolIdeal> class friend access

Definition at line 1 of file lte-rrc-protocol-ideal.h.

Referenced by LteUeRrcProtocolIdeal().

Member Data Documentation

◆ m_enbRrcSapProvider

LteEnbRrcSapProvider* ns3::LteUeRrcProtocolIdeal::m_enbRrcSapProvider

private

the ENB RRC SAP provider

Definition at line 150 of file lte-rrc-protocol-ideal.h.

Referenced by DoSendIdealUeContextRemoveRequest(), DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionReestablishmentComplete(), DoSendRrcConnectionReestablishmentRequest(), DoSendRrcConnectionRequest(), DoSendRrcConnectionSetupCompleted(), and SetEnbRrcSapProvider().

◆ m_rnti

uint16_t ns3::LteUeRrcProtocolIdeal::m_rnti

private

the RNTI

Definition at line 147 of file lte-rrc-protocol-ideal.h.

Referenced by DoSendIdealUeContextRemoveRequest(), DoSendMeasurementReport(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionReestablishmentComplete(), DoSendRrcConnectionReestablishmentRequest(), DoSendRrcConnectionRequest(), DoSendRrcConnectionSetupCompleted(), and SetEnbRrcSapProvider().

◆ m_rrc

Ptr<LteUeRrc> ns3::LteUeRrcProtocolIdeal::m_rrc

private

the RRC

Definition at line 146 of file lte-rrc-protocol-ideal.h.

Referenced by DoDispose(), DoSendIdealUeContextRemoveRequest(), DoSendRrcConnectionReconfigurationCompleted(), DoSendRrcConnectionRequest(), SetEnbRrcSapProvider(), and SetUeRrc().

◆ m_ueRrcSapProvider

LteUeRrcSapProvider* ns3::LteUeRrcProtocolIdeal::m_ueRrcSapProvider

private

the UE RRC SAP provider

Definition at line 148 of file lte-rrc-protocol-ideal.h.

Referenced by SetEnbRrcSapProvider(), and SetLteUeRrcSapProvider().

◆ m_ueRrcSapUser

LteUeRrcSapUser* ns3::LteUeRrcProtocolIdeal::m_ueRrcSapUser

private

the RRC SAP user

Definition at line 149 of file lte-rrc-protocol-ideal.h.

Referenced by LteUeRrcProtocolIdeal(), DoDispose(), and GetLteUeRrcSapUser().

The documentation for this class was generated from the following files:

src/lte/model/lte-rrc-protocol-ideal.h
src/lte/model/lte-rrc-protocol-ideal.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LteUeRrcProtocolIdeal()

◆ ~LteUeRrcProtocolIdeal()

Member Function Documentation

◆ DoDispose()

◆ DoSendIdealUeContextRemoveRequest()

◆ DoSendMeasurementReport()

◆ DoSendRrcConnectionReconfigurationCompleted()

◆ DoSendRrcConnectionReestablishmentComplete()

◆ DoSendRrcConnectionReestablishmentRequest()

◆ DoSendRrcConnectionRequest()

◆ DoSendRrcConnectionSetupCompleted()

◆ DoSetup()

◆ GetLteUeRrcSapUser()

◆ GetTypeId()

◆ SetEnbRrcSapProvider()

◆ SetLteUeRrcSapProvider()

◆ SetUeRrc()

Friends And Related Function Documentation

◆ MemberLteUeRrcSapUser< LteUeRrcProtocolIdeal >

Member Data Documentation

◆ m_enbRrcSapProvider

◆ m_rnti

◆ m_rrc

◆ m_ueRrcSapProvider

◆ m_ueRrcSapUser
