Test for Block Ack Policy with aggregation disabled. More...

Inheritance diagram for BlockAckAggregationDisabledTest:

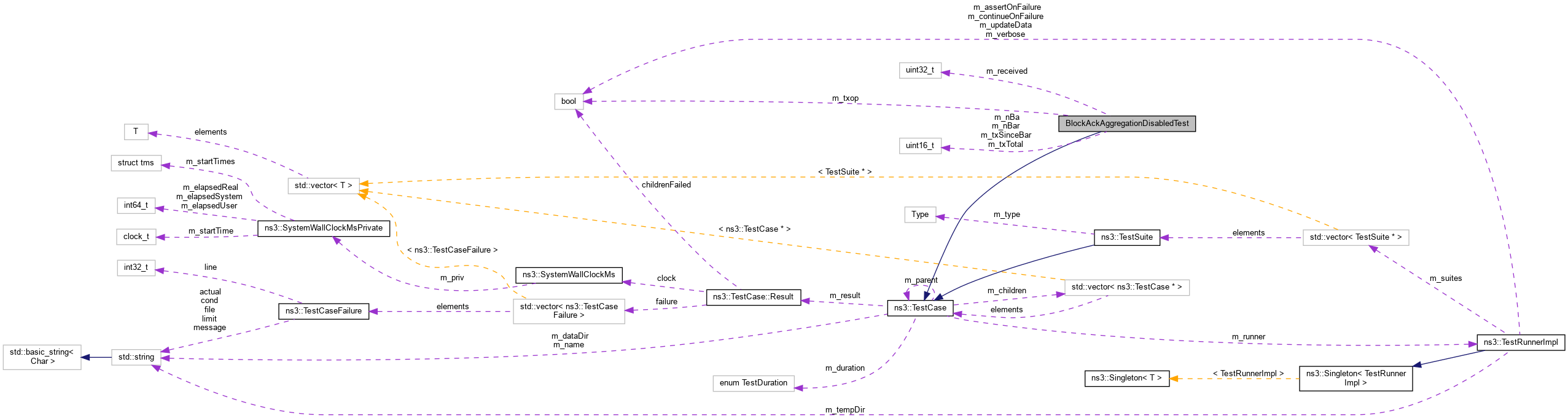

Collaboration diagram for BlockAckAggregationDisabledTest:

Classes
struct	TxopDurationTracer
	Keeps the maximum duration among all TXOPs. More...

Public Member Functions
	BlockAckAggregationDisabledTest (bool txop)
	Constructor. More...

virtual	~BlockAckAggregationDisabledTest ()

void	DoRun (void) override
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	L7Receive (std::string context, Ptr< const Packet > p, const Address &adr)
	Function to trace packets received by the server application. More...

void	Receive (std::string context, Ptr< const Packet > p, RxPowerWattPerChannelBand rxPowersW)
	Callback invoked when PHY receives a packet. More...

void	Transmit (std::string context, Ptr< const Packet > p, double power)
	Callback invoked when PHY transmits a packet. More...

Private Attributes
uint16_t	m_nBa
	received BlockAck frames More...

uint16_t	m_nBar
	transmitted BlockAckReq frames More...

uint32_t	m_received
	received packets More...

bool	m_txop
	true for non-null TXOP limit More...

uint16_t	m_txSinceBar
	packets transmitted since the agreement was established or the last block ack was received More...

uint16_t	m_txTotal
	transmitted data packets More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test for Block Ack Policy with aggregation disabled.

This test aims to check the Block Ack policy when A-MPDU aggregation is disabled. In this case, a QoS station can transmit multiple QoS data frames before requesting a Block Ack through a Block Ack Request frame. If the AC is granted a non-null TXOP limit, MPDUs can be separated by a SIFS.

In this test, an HT STA sends 14 packets to an HT AP. The ack policy selector is configured so that a Block Ack is requested once 8 (= 0.125 * 64) MPDUs are sent in addition to the MPDU having the starting sequence number. The block ack threshold is set to 2, hence a block ack agreement is established when there are at least two packets in the EDCA queue.

When the TXOP limit is null:

the first packet is sent with Normal Ack policy because the BA agreement has not been established yet (there are no queued packets when the first one arrives);
packets from the 2nd to the 10th are sent with Block Ack policy (and hence are not immediately acknowledged);
after the 10th packet, a Block Ack Request is sent, followed by a Block Ack;
the remaining 4 packets are sent with Block Ack policy (and hence are not immediately acknowledged);
the last packet is followed by a Block Ack Request because there are no more packets in the EDCA queue and hence a response is needed independently of the number of outstanding MPDUs.

When the TXOP is not null (and long enough to include the transmission of all packets):

the first packet is sent with Normal Ack policy because the BA agreement has not been established yet (there are no queued packets when the first one arrives);
the second packet is sent with Normal Ack Policy because the first packet sent in a TXOP shall request an immediate response and no previous MPDUs have to be acknowledged;
packets from the 3rd to the 11th are sent with Block Ack policy (and hence are not immediately acknowledged);
after the 11th packet, a Block Ack Request is sent, followed by a Block Ack;
the remaining 3 packets are sent with Block Ack policy (and hence are not immediately acknowledged);
the last packet is followed by a Block Ack Request because there are no more packets in the EDCA queue and hence a response is needed independently of the number of outstanding MPDUs.

Definition at line 1346 of file block-ack-test-suite.cc.

Constructor & Destructor Documentation

◆ BlockAckAggregationDisabledTest()

BlockAckAggregationDisabledTest::BlockAckAggregationDisabledTest ( bool txop )

Constructor.

Parameters

txop	true for non-null TXOP limit

Definition at line 1414 of file block-ack-test-suite.cc.

◆ ~BlockAckAggregationDisabledTest()

BlockAckAggregationDisabledTest::~BlockAckAggregationDisabledTest ( )

virtual

Definition at line 1425 of file block-ack-test-suite.cc.

Member Function Documentation

◆ DoRun()

void BlockAckAggregationDisabledTest::DoRun ( void )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1490 of file block-ack-test-suite.cc.

References ns3::Node::AddApplication(), third::apDevices, third::channel, ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NodeContainer::Get(), ns3::PointerValue::Get(), ns3::WifiNetDevice::GetAddress(), ns3::WifiNetDevice::GetIfIndex(), ns3::WifiNetDevice::GetMac(), ns3::PacketSocketHelper::Install(), L7Receive(), BlockAckAggregationDisabledTest::TxopDurationTracer::m_max, m_nBa, m_nBar, m_received, m_txop, m_txTotal, third::mac, ns3::MakeCallback(), ns3::MicroSeconds(), third::mobility, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_GT, NS_TEST_EXPECT_MSG_LT, third::phy, Receive(), ns3::Seconds(), ns3::Config::SetDefault(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::PacketSocketAddress::SetSingleDevice(), third::ssid, third::staDevices, BlockAckAggregationDisabledTest::TxopDurationTracer::Trace(), Transmit(), third::wifi, ns3::WIFI_STANDARD_80211n, and third::wifiApNode.

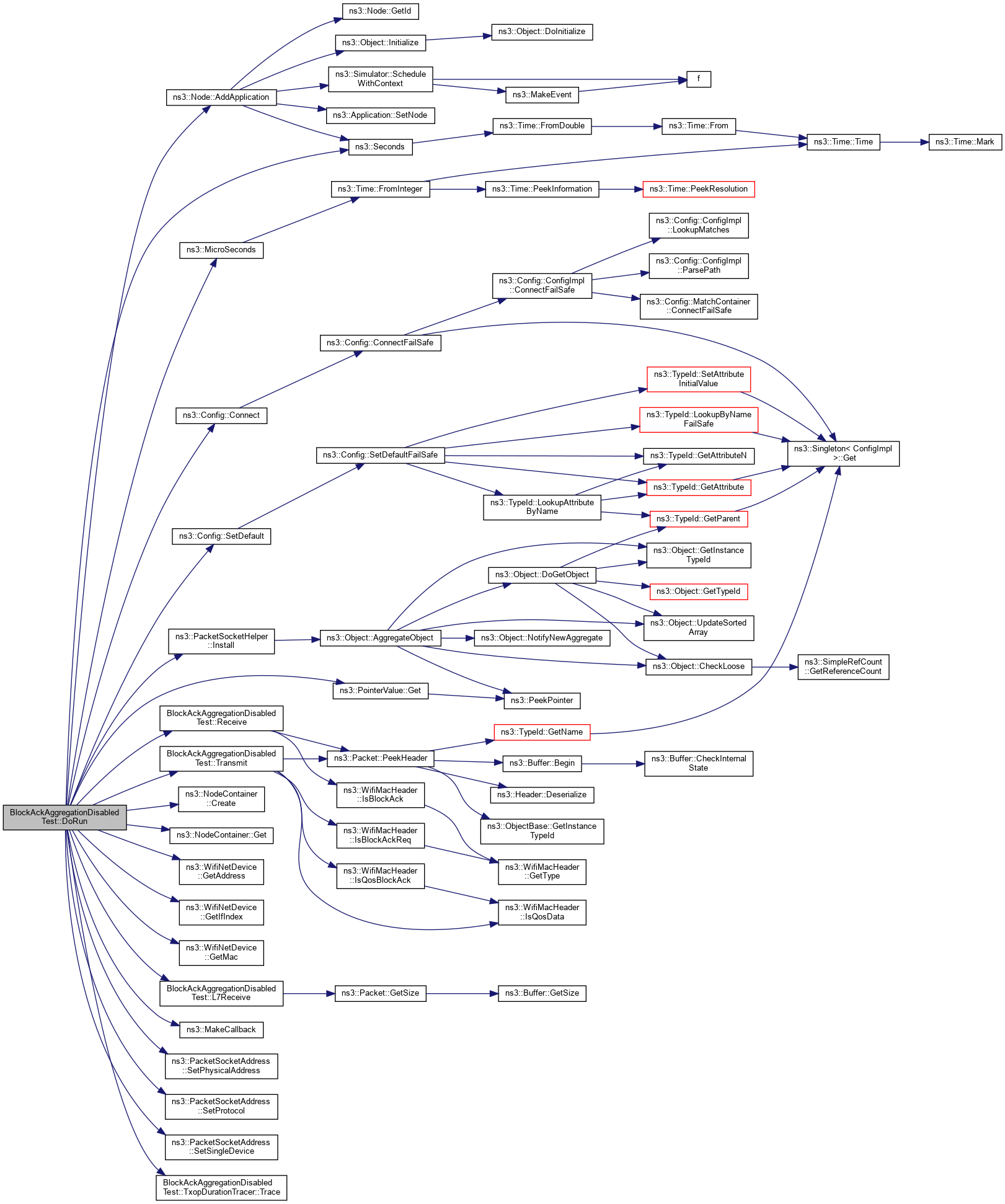

Here is the call graph for this function:

◆ L7Receive()

void BlockAckAggregationDisabledTest::L7Receive	(	std::string	context,
		Ptr< const Packet >	p,
		const Address &	adr
	)

private

Function to trace packets received by the server application.

Parameters

context	the context
p	the packet
adr	the address

Definition at line 1430 of file block-ack-test-suite.cc.

References ns3::Packet::GetSize(), and m_received.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Receive()

void BlockAckAggregationDisabledTest::Receive	(	std::string	context,
		Ptr< const Packet >	p,
		RxPowerWattPerChannelBand	rxPowersW
	)

private

Callback invoked when PHY receives a packet.

Parameters

context	the context
p	the packet
rxPowersW	the received power per channel band in watts

Definition at line 1478 of file block-ack-test-suite.cc.

References ns3::WifiMacHeader::IsBlockAck(), m_nBa, and ns3::Packet::PeekHeader().

Referenced by DoRun().

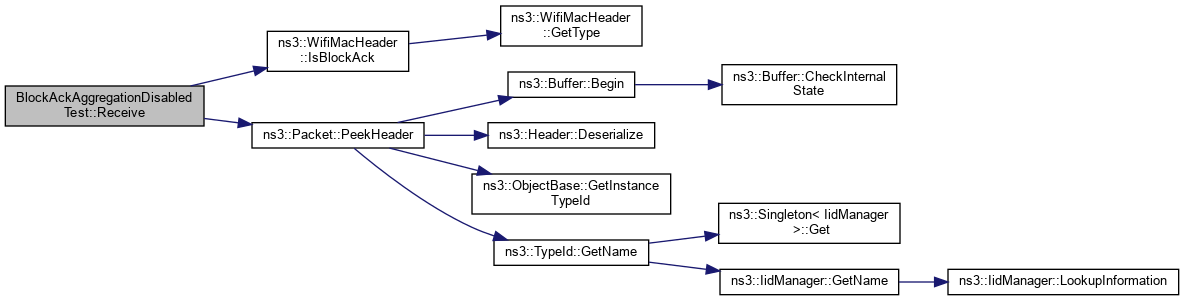

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Transmit()

void BlockAckAggregationDisabledTest::Transmit	(	std::string	context,
		Ptr< const Packet >	p,
		double	power
	)

private

Callback invoked when PHY transmits a packet.

Parameters

context	the context
p	the packet
power	the tx power

Definition at line 1439 of file block-ack-test-suite.cc.

References ns3::WifiMacHeader::IsBlockAckReq(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), m_nBar, m_txop, m_txSinceBar, m_txTotal, NS_TEST_ASSERT_MSG_EQ, NS_TEST_EXPECT_MSG_EQ, and ns3::Packet::PeekHeader().

Referenced by DoRun().

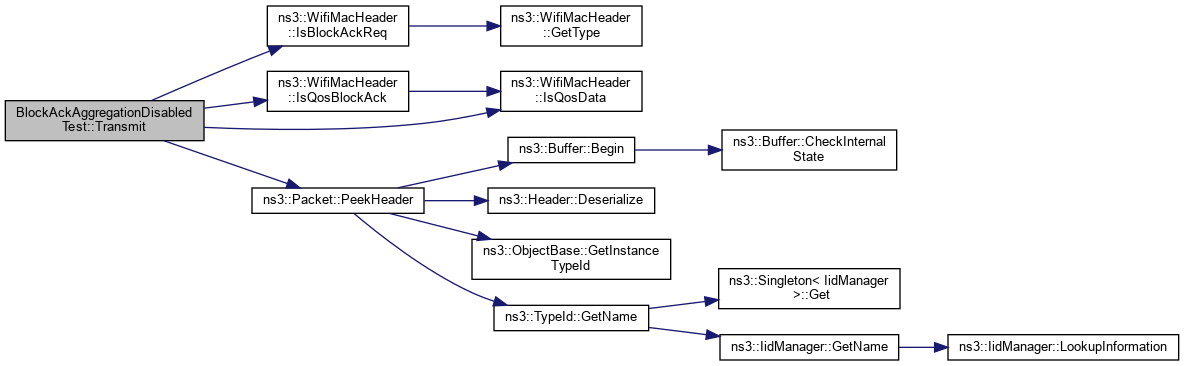

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_nBa

uint16_t BlockAckAggregationDisabledTest::m_nBa

private

received BlockAck frames

Definition at line 1380 of file block-ack-test-suite.cc.

Referenced by DoRun(), and Receive().

◆ m_nBar

uint16_t BlockAckAggregationDisabledTest::m_nBar

private

transmitted BlockAckReq frames

Definition at line 1379 of file block-ack-test-suite.cc.

Referenced by DoRun(), and Transmit().

◆ m_received

uint32_t BlockAckAggregationDisabledTest::m_received

private

received packets

Definition at line 1375 of file block-ack-test-suite.cc.

Referenced by DoRun(), and L7Receive().

◆ m_txop

bool BlockAckAggregationDisabledTest::m_txop

private

true for non-null TXOP limit

Definition at line 1374 of file block-ack-test-suite.cc.

Referenced by DoRun(), and Transmit().

◆ m_txSinceBar

uint16_t BlockAckAggregationDisabledTest::m_txSinceBar

private

packets transmitted since the agreement was established or the last block ack was received

Definition at line 1377 of file block-ack-test-suite.cc.

Referenced by Transmit().

◆ m_txTotal

uint16_t BlockAckAggregationDisabledTest::m_txTotal

private

transmitted data packets

Definition at line 1376 of file block-ack-test-suite.cc.

Referenced by DoRun(), and Transmit().

The documentation for this class was generated from the following file:

src/wifi/test/block-ack-test-suite.cc
