This section documents the API of the ns-3 Wifi module. More...

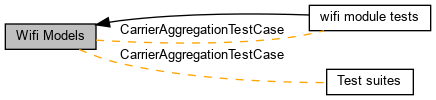

Collaboration diagram for Wifi Models:

Modules
	wifi module tests

Files
file	dsss-phy.h
	Declaration of ns3::DsssPhy class.

file	dsss-ppdu.h
	Declaration of ns3::DsssPpdu class.

file	erp-ofdm-phy.h
	Declaration of ns3::ErpOfdmPhy class.

file	erp-ofdm-ppdu.h
	Declaration of ns3::ErpOfdmPpdu class.

file	he-phy.h
	Declaration of ns3::HePhy class and ns3::HeSigAParameters struct.

file	he-ppdu.h
	Declaration of ns3::HePpdu class.

file	ht-phy.h
	Declaration of ns3::HtPhy class.

file	ht-ppdu.h
	Declaration of ns3::HtPpdu class.

file	ofdm-phy.h
	Declaration of ns3::OfdmPhy class and ns3::OfdmPhyVariant enum.

file	ofdm-ppdu.h
	Declaration of ns3::OfdmPpdu class.

file	phy-entity.h
	Declaration of:

file	vht-phy.h
	Declaration of ns3::VhtPhy class.

file	vht-ppdu.h
	Declaration of ns3::VhtPpdu class.

file	wifi-phy-common.h
	Declaration of the following enums:

file	wifi-ppdu.h
	Declaration of ns3::WifiPpdu class and ns3::WifiConstPsduMap.

Classes
class	ns3::AarfcdWifiManager
	an implementation of the AARF-CD algorithm More...

class	ns3::AarfWifiManager
	AARF Rate control algorithm. More...

class	ns3::AdhocWifiMac
	Wifi MAC high model for an ad-hoc Wifi MAC. More...

class	ns3::AmpduSubframeHeader
	Headers for A-MPDU subframes. More...

class	ns3::AmpduTag
	The aim of the AmpduTag is to provide means for a MAC to specify that a packet includes A-MPDU since this is done in HT-SIG and there is no HT-SIG representation in ns-3. More...

class	ns3::AmrrWifiManager
	AMRR Rate control algorithm. More...

class	ns3::AmsduSubframeHeader
	Headers for A-MSDU subframes. More...

class	ns3::AparfWifiManager
	APARF Power and rate control algorithm. More...

struct	ns3::ApInfo
	Struct to hold information regarding observed AP through active/passive scanning. More...

class	ns3::ApWifiMac
	Wi-Fi AP state machine. More...

class	ns3::ArfWifiManager
	ARF Rate control algorithm. More...

struct	ns3::Bar
	BlockAckRequest frame information. More...

class	ns3::BlockAckAgreement
	Maintains information for a block ack agreement. More...

class	ns3::BlockAckManager
	Manages all block ack agreements for an originator station. More...

struct	ns3::BlockAckReqType
	The different BlockAckRequest variants. More...

struct	ns3::BlockAckType
	The different BlockAck variants. More...

class	ns3::BlockAckWindow
	Block ack window. More...

class	ns3::CapabilityInformation
	Capability information. More...

class	ns3::CaraWifiManager
	implement the CARA rate control algorithm More...

class	CarrierAggregationTestCase
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	ns3::ChannelAccessManager
	Manage a set of ns3::Txop. More...

class	ns3::ConstantObssPdAlgorithm
	Constant OBSS PD algorithm. More...

class	ns3::ConstantRateWifiManager
	use constant rates for data and RTS transmissions More...

class	ns3::CtrlBAckRequestHeader
	Headers for BlockAckRequest. More...

class	ns3::CtrlBAckResponseHeader
	Headers for BlockAck response. More...

class	ns3::CtrlTriggerHeader
	Headers for Trigger frames. More...

class	ns3::CtrlTriggerUserInfoField
	User Info field of Trigger frames. More...

class	ns3::DsssErrorRateModel
	an implementation of DSSS error rate model More...

class	ns3::DsssParameterSet
	The DSSS Parameter Set. More...

class	ns3::DsssPhy
	PHY entity for HR/DSSS (11b) More...

class	ns3::DsssPpdu
	DSSS (HR/DSSS) PPDU (11b) More...

class	ns3::EdcaParameterSet
	The EDCA Parameter Set. More...

class	ns3::ErpInformation
	The ErpInformation Information Element. More...

class	ns3::ErpOfdmPhy
	PHY entity for ERP-OFDM (11g) More...

class	ns3::ErpOfdmPpdu
	ERP-OFDM PPDU (11g) More...

class	ns3::ErrorRateModel
	the interface for Wifi's error models More...

class	ns3::Event
	handles interference calculations More...

class	ns3::ExtendedCapabilities
	The Extended Capabilities Information Element. More...

class	ns3::ExtendedSupportedRatesIE
	The Extended Supported Rates Information Element. More...

class	ns3::FrameCaptureModel
	the interface for Wifi's frame capture models More...

class	ns3::FrameExchangeManager
	FrameExchangeManager is a base class handling the basic frame exchange sequences for non-QoS stations. More...

class	ns3::HeCapabilities
	The IEEE 802.11ax HE Capabilities. More...

class	ns3::HeConfiguration
	HE configuration. More...

class	ns3::HeFrameExchangeManager
	HeFrameExchangeManager handles the frame exchange sequences for HE stations. More...

class	ns3::HeOperation
	The HE Operation Information Element. More...

class	ns3::HePhy
	PHY entity for HE (11ax) More...

class	ns3::HePpdu
	HE PPDU (11ax) More...

class	ns3::HtCapabilities
	The HT Capabilities Information Element. More...

class	ns3::HtConfiguration
	HT configuration. More...

class	ns3::HtFrameExchangeManager
	HtFrameExchangeManager handles the frame exchange sequences for HT stations. More...

class	ns3::HtOperation
	The HT Operation Information Element. More...

class	ns3::HtPhy
	PHY entity for HT (11n) More...

class	ns3::HtPpdu
	HT PPDU (11n) More...

class	ns3::IdealWifiManager
	Ideal rate control algorithm. More...

class	ns3::InterferenceHelper
	handles interference calculations More...

class	ns3::MacRxMiddle
	This class handles duplicate detection and recomposition of fragments. More...

class	ns3::MacTxMiddle
	Handles sequence numbering of IEEE 802.11 data frames. More...

class	ns3::MgtAddBaRequestHeader
	Implement the header for management frames of type Add Block Ack request. More...

class	ns3::MgtAddBaResponseHeader
	Implement the header for management frames of type Add Block Ack response. More...

class	ns3::MgtAssocRequestHeader
	Implement the header for management frames of type association request. More...

class	ns3::MgtAssocResponseHeader
	Implement the header for management frames of type association and reassociation response. More...

class	ns3::MgtBeaconHeader
	Implement the header for management frames of type beacon. More...

class	ns3::MgtDelBaHeader
	Implement the header for management frames of type Delete Block Ack. More...

class	ns3::MgtProbeRequestHeader
	Implement the header for management frames of type probe request. More...

class	ns3::MgtProbeResponseHeader
	Implement the header for management frames of type probe response. More...

class	ns3::MgtReassocRequestHeader
	Implement the header for management frames of type reassociation request. More...

class	ns3::MinstrelHtWifiManager
	Implementation of Minstrel-HT Rate Control Algorithm. More...

class	ns3::MinstrelWifiManager
	Implementation of Minstrel Rate Control Algorithm. More...

class	ns3::MpduAggregator
	Aggregator used to construct A-MPDUs. More...

class	ns3::MsduAggregator
	Aggregator used to construct A-MSDUs. More...

class	ns3::MuEdcaParameterSet
	The MU EDCA Parameter Set. More...

class	ns3::MultiUserScheduler
	MultiUserScheduler is an abstract base class defining the API that APs supporting at least VHT can use to determine the format of their next transmission. More...

class	ns3::MuSnrTag
	A tag to be attached to a response to a multi-user UL frame, that carries the SNR values with which the individual frames have been received. More...

class	ns3::NistErrorRateModel
	A model for the error rate for different modulations. More...

class	ns3::ObssPdAlgorithm
	OBSS PD algorithm interface. More...

class	ns3::OfdmPhy
	PHY entity for OFDM (11a) More...

class	ns3::OfdmPpdu
	OFDM PPDU (11a) More...

class	ns3::OnoeWifiManager
	an implementation of the rate control algorithm developed by Atsushi Onoe More...

class	ns3::OriginatorBlockAckAgreement
	Maintains the state and information about transmitted MPDUs with Ack Policy set to Block Ack for an originator station. More...

class	ns3::ParfWifiManager
	PARF Rate control algorithm. More...

class	ns3::PhyEntity
	Abstract class for PHY entities. More...

class	ns3::PreambleDetectionModel
	the interface for Wifi's preamble detection models More...

class	ns3::QosFrameExchangeManager
	QosFrameExchangeManager handles the frame exchange sequences for QoS stations. More...

class	ns3::QosTxop
	Handle packet fragmentation and retransmissions for QoS data frames as well as MSDU aggregation (A-MSDU) and block ack sessions, for a given access class. More...

class	ns3::RecipientBlockAckAgreement
	Maintains the scoreboard and the receive reordering buffer used by a recipient of a Block Ack agreement. More...

class	ns3::RraaWifiManager
	Robust Rate Adaptation Algorithm. More...

class	ns3::RrMultiUserScheduler
	RrMultiUserScheduler is a simple OFDMA scheduler that indicates to perform a DL OFDMA transmission if the AP has frames to transmit to at least one station. More...

class	ns3::SimpleFrameCaptureModel
	A simple threshold-based model for frame capture effect. More...

class	ns3::SpectrumWifiPhy
	802.11 PHY layer model More...

class	ns3::Ssid
	The IEEE 802.11 SSID Information Element. More...

class	ns3::StaWifiMac
	The Wifi MAC high model for a non-AP STA in a BSS. More...

class	ns3::SupportedRates
	The Supported Rates Information Element. More...

class	ns3::ThompsonSamplingWifiManager
	Thompson Sampling rate control algorithm. More...

class	ns3::ThresholdPreambleDetectionModel
	A threshold-based model for detecting PHY preamble. More...

class	ns3::Txop
	Handle packet fragmentation and retransmissions for data and management frames. More...

class	ns3::VhtCapabilities
	The IEEE 802.11ac VHT Capabilities. More...

class	ns3::VhtConfiguration
	VHT configuration. More...

class	ns3::VhtFrameExchangeManager
	VhtFrameExchangeManager handles the frame exchange sequences for VHT stations. More...

class	ns3::VhtOperation
	The VHT Operation Information Element. More...

class	ns3::VhtPhy
	PHY entity for VHT (11ac) More...

class	ns3::VhtPpdu
	VHT PPDU (11ac) More...

class	ns3::WifiAc
	This class stores the pair of TIDs of an Access Category. More...

struct	ns3::WifiAckAfterTbPpdu
	WifiAckAfterTbPpdu is used when a station prepares a TB PPDU to send in response to a Basic Trigger Frame. More...

class	ns3::WifiAckManager
	WifiAckManager is an abstract base class. More...

struct	ns3::WifiAcknowledgment
	WifiAcknowledgment is an abstract base struct. More...

class	ns3::WifiActionHeader
	See IEEE 802.11 chapter 7.3.1.11 Header format: \| category: 1 \| action value: 1 \|. More...

struct	ns3::WifiBarBlockAck
	WifiBarBlockAck specifies that a BlockAckReq is sent to solicit a Block Ack response. More...

struct	ns3::WifiBlockAck
	WifiBlockAck specifies that acknowledgment via Block Ack is required. More...

struct	ns3::WifiCtsToSelfProtection
	WifiCtsToSelfProtection specifies that CTS-to-self protection method is used. More...

class	ns3::WifiDefaultAckManager
	WifiDefaultAckManager is the default ack manager. More...

class	ns3::WifiDefaultProtectionManager
	WifiDefaultProtectionManager is the default protection manager, which selects the protection method for a frame based on its size. More...

struct	ns3::WifiDlMuAggregateTf
	WifiDlMuAggregateTf specifies that a DL MU PPDU made of PSDUs including each a MU-BAR Trigger Frame is acknowledged through BlockAck frames sent as HE TB PPDUs. More...

struct	ns3::WifiDlMuBarBaSequence
	WifiDlMuBarBaSequence specifies that a DL MU PPDU is acknowledged through a sequence of BlockAckReq and BlockAck frames. More...

struct	ns3::WifiDlMuTfMuBar
	WifiDlMuTfMuBar specifies that a DL MU PPDU is followed after a SIFS duration by a MU-BAR Trigger Frame (sent as single user frame) soliciting BlockAck frames sent as HE TB PPDUs. More...

class	ns3::WifiInformationElement
	Information element, as defined in 802.11-2007 standard. More...

class	ns3::WifiInformationElementVector
	Information element vector. More...

class	ns3::WifiMac
	base class for all MAC-level wifi objects. More...

class	ns3::WifiMacHeader
	Implements the IEEE 802.11 MAC header. More...

class	ns3::WifiMacQueue
	This queue implements the timeout procedure described in (Section 9.19.2.6 "Retransmit procedures" paragraph 6; IEEE 802.11-2012). More...

class	ns3::WifiMacQueueItem
	WifiMacQueueItem stores (const) packets along with their Wifi MAC headers and the time when they were enqueued. More...

class	ns3::WifiMacTrailer
	Implements the IEEE 802.11 MAC trailer. More...

class	ns3::WifiMode
	represent a single transmission mode More...

class	ns3::WifiNetDevice
	Hold together all Wifi-related objects. More...

struct	ns3::WifiNoAck
	WifiNoAck specifies that no acknowledgment is required. More...

struct	ns3::WifiNoProtection
	WifiNoProtection specifies that no protection method is used. More...

struct	ns3::WifiNormalAck
	WifiNormalAck specifies that acknowledgment via Normal Ack is required. More...

class	ns3::WifiPhy
	802.11 PHY layer model More...

class	ns3::WifiPhyOperatingChannel
	Class that keeps track of all information about the current PHY operating channel. More...

class	ns3::WifiPhyStateHelper
	This objects implements the PHY state machine of the Wifi device. More...

class	ns3::WifiPpdu
	WifiPpdu stores a preamble, a modulation class, PHY headers and a PSDU. More...

struct	ns3::WifiProtection
	WifiProtection is an abstract base struct. More...

class	ns3::WifiProtectionManager
	WifiProtectionManager is an abstract base class. More...

class	ns3::WifiPsdu
	WifiPsdu stores an MPDU, S-MPDU or A-MPDU, by keeping header(s) and payload(s) separate for each constituent MPDU. More...

class	ns3::WifiRemoteStationManager
	hold a list of per-remote-station state. More...

struct	ns3::WifiRrpaaThresholds
	Robust Rate and Power Adaptation Algorithm. More...

struct	ns3::WifiRtsCtsProtection
	WifiRtsCtsProtection specifies that RTS/CTS protection method is used. More...

class	ns3::WifiSpectrumPhyInterface
	This class is an adaptor between class SpectrumWifiPhy (which inherits from WifiPhy) and class SpectrumChannel (which expects objects derived from class SpectrumPhy to be connected to it). More...

struct	ns3::WifiSpectrumSignalParameters
	Signal parameters for wifi. More...

class	ns3::WifiTxParameters
	This class stores the TX parameters (TX vector, protection mechanism, acknowledgment mechanism, TX duration, ...) for a frame of different types (MPDU, A-MPDU, multi-TID A-MPDU, MU PPDU, ...). More...

class	ns3::WifiTxTimer
	This class is used to handle the timer that a station starts when transmitting a frame that solicits a response. More...

struct	ns3::WifiUlMuMultiStaBa
	WifiUlMuMultiStaBa specifies that a Basic Trigger Frame is being sent to solicit TB PPDUs that will be acknowledged through a multi-STA BlockAck frame. More...

class	ns3::YansErrorRateModel
	Model the error rate for different modulations. More...

class	ns3::YansWifiChannel
	a channel to interconnect ns3::YansWifiPhy objects. More...

class	ns3::YansWifiPhy
	802.11 PHY layer model More...

Enumerations
enum	ns3::AcIndex : uint8_t { ns3::AC_BE = 0 , ns3::AC_BK = 1 , ns3::AC_VI = 2 , ns3::AC_VO = 3 , ns3::AC_BE_NQOS = 4 , ns3::AC_BEACON = 5 , ns3::AC_UNDEF }
	This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified (Table 8-104 "ACI-to-AC coding"; IEEE 802.11-2012). More...

enum	ns3::FrequencyChannelType : uint8_t { ns3::WIFI_PHY_DSSS_CHANNEL = 0 , ns3::WIFI_PHY_OFDM_CHANNEL , ns3::WIFI_PHY_80211p_CHANNEL }
	Enumeration of frequency channel types. More...

enum	ns3::MpduType { ns3::NORMAL_MPDU , ns3::SINGLE_MPDU , ns3::FIRST_MPDU_IN_AGGREGATE , ns3::MIDDLE_MPDU_IN_AGGREGATE , ns3::LAST_MPDU_IN_AGGREGATE }
	The type of an MPDU. More...

enum	ns3::OfdmPhyVariant { ns3::OFDM_PHY_DEFAULT , ns3::OFDM_PHY_10_MHZ , ns3::OFDM_PHY_5_MHZ }
	The OFDM (11a) PHY variants. More...

enum	ns3::TriggerFrameType : uint8_t { ns3::BASIC_TRIGGER = 0 , ns3::BFRP_TRIGGER = 1 , ns3::MU_BAR_TRIGGER = 2 , ns3::MU_RTS_TRIGGER = 3 , ns3::BSRP_TRIGGER = 4 , ns3::GCR_MU_BAR_TRIGGER = 5 , ns3::BQRP_TRIGGER = 6 , ns3::NFRP_TRIGGER = 7 }
	The different Trigger frame types. More...

enum	ns3::WifiMacDropReason : uint8_t { ns3::WIFI_MAC_DROP_FAILED_ENQUEUE = 0 , ns3::WIFI_MAC_DROP_EXPIRED_LIFETIME , ns3::WIFI_MAC_DROP_REACHED_RETRY_LIMIT , ns3::WIFI_MAC_DROP_QOS_OLD_PACKET }
	The reason why an MPDU was dropped. More...

enum	ns3::WifiModulationClass { ns3::WIFI_MOD_CLASS_UNKNOWN = 0 , ns3::WIFI_MOD_CLASS_DSSS , ns3::WIFI_MOD_CLASS_HR_DSSS , ns3::WIFI_MOD_CLASS_ERP_OFDM , ns3::WIFI_MOD_CLASS_OFDM , ns3::WIFI_MOD_CLASS_HT , ns3::WIFI_MOD_CLASS_VHT , ns3::WIFI_MOD_CLASS_HE }
	This enumeration defines the modulation classes per (Table 10-6 "Modulation classes"; IEEE 802.11-2016, with updated in 802.11ax/D6.0 as Table 10-9). More...

enum	ns3::WifiPhyBand { ns3::WIFI_PHY_BAND_2_4GHZ , ns3::WIFI_PHY_BAND_5GHZ , ns3::WIFI_PHY_BAND_6GHZ , ns3::WIFI_PHY_BAND_UNSPECIFIED }
	Identifies the PHY band. More...

enum	ns3::WifiPhyRxfailureReason { ns3::UNKNOWN = 0 , ns3::UNSUPPORTED_SETTINGS , ns3::CHANNEL_SWITCHING , ns3::RXING , ns3::TXING , ns3::SLEEPING , ns3::POWERED_OFF , ns3::TRUNCATED_TX , ns3::BUSY_DECODING_PREAMBLE , ns3::PREAMBLE_DETECT_FAILURE , ns3::RECEPTION_ABORTED_BY_TX , ns3::L_SIG_FAILURE , ns3::HT_SIG_FAILURE , ns3::SIG_A_FAILURE , ns3::SIG_B_FAILURE , ns3::PREAMBLE_DETECTION_PACKET_SWITCH , ns3::FRAME_CAPTURE_PACKET_SWITCH , ns3::OBSS_PD_CCA_RESET , ns3::HE_TB_PPDU_TOO_LATE , ns3::FILTERED }
	Enumeration of the possible reception failure reasons. More...

enum	ns3::WifiPpduField { ns3::WIFI_PPDU_FIELD_PREAMBLE = 0 , ns3::WIFI_PPDU_FIELD_NON_HT_HEADER , ns3::WIFI_PPDU_FIELD_HT_SIG , ns3::WIFI_PPDU_FIELD_TRAINING , ns3::WIFI_PPDU_FIELD_SIG_A , ns3::WIFI_PPDU_FIELD_SIG_B , ns3::WIFI_PPDU_FIELD_DATA }
	The type of PPDU field (grouped for convenience) More...

enum	ns3::WifiPpduType { ns3::WIFI_PPDU_TYPE_SU = 0 , ns3::WIFI_PPDU_TYPE_DL_MU , ns3::WIFI_PPDU_TYPE_UL_MU }
	The type of PPDU (SU, DL MU, or UL MU) More...

enum	ns3::WifiPreamble { ns3::WIFI_PREAMBLE_LONG , ns3::WIFI_PREAMBLE_SHORT , ns3::WIFI_PREAMBLE_HT_MF , ns3::WIFI_PREAMBLE_VHT_SU , ns3::WIFI_PREAMBLE_VHT_MU , ns3::WIFI_PREAMBLE_HE_SU , ns3::WIFI_PREAMBLE_HE_ER_SU , ns3::WIFI_PREAMBLE_HE_MU , ns3::WIFI_PREAMBLE_HE_TB }
	The type of preamble to be used by an IEEE 802.11 transmission. More...

enum	ns3::WifiStandard { ns3::WIFI_STANDARD_UNSPECIFIED , ns3::WIFI_STANDARD_80211a , ns3::WIFI_STANDARD_80211b , ns3::WIFI_STANDARD_80211g , ns3::WIFI_STANDARD_80211p , ns3::WIFI_STANDARD_80211n , ns3::WIFI_STANDARD_80211ac , ns3::WIFI_STANDARD_80211ax }
	Identifies the IEEE 802.11 specifications that a Wifi device can be configured to use. More...

Functions
uint8_t	ns3::GetTid (Ptr< const Packet > packet, const WifiMacHeader hdr)
	This function is useful to get traffic id of different packet types. More...

bool	ns3::operator< (enum AcIndex left, enum AcIndex right)
	Operator< overload returning true if the AC on the left has lower priority than the AC on the right. More...

bool	ns3::operator<= (enum AcIndex left, enum AcIndex right)
	Operator<= overload returning true if the AC on the left has lower or the same priority than the AC on the right. More...

bool	ns3::operator> (enum AcIndex left, enum AcIndex right)
	Operator> overload returning true if the AC on the left has higher priority than the AC on the right. More...

bool	ns3::operator>= (enum AcIndex left, enum AcIndex right)
	Operator>= overload returning true if the AC on the left has higher or the same priority than the AC on the right. More...

uint8_t	ns3::QosUtilsGetTidForPacket (Ptr< const Packet > packet)
	If a QoS tag is attached to the packet, returns a value < 8. More...

bool	ns3::QosUtilsIsOldPacket (uint16_t startingSeq, uint16_t seqNumber)
	This function checks if packet with sequence number seqNumber is an "old" packet. More...

uint32_t	ns3::QosUtilsMapSeqControlToUniqueInteger (uint16_t seqControl, uint16_t endSequence)
	Next function is useful to correctly sort buffered packets under block ack. More...

AcIndex	ns3::QosUtilsMapTidToAc (uint8_t tid)
	Maps TID (Traffic ID) to Access classes. More...

uint8_t	ns3::SelectQueueByDSField (Ptr< QueueItem > item)
	Determine the TX queue for a given packet. More...

Detailed Description

This section documents the API of the ns-3 Wifi module.

For a generic functional description, please refer to the ns-3 manual.

Enumeration Type Documentation

◆ AcIndex

enum ns3::AcIndex : uint8_t

This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified (Table 8-104 "ACI-to-AC coding"; IEEE 802.11-2012).

Enumerator
AC_BE	Best Effort.
AC_BK	Background.
AC_VI	Video.
AC_VO	Voice.
AC_BE_NQOS	Non-QoS.
AC_BEACON	Beacon queue.
AC_UNDEF	Total number of ACs.

Definition at line 70 of file qos-utils.h.

◆ FrequencyChannelType

enum ns3::FrequencyChannelType : uint8_t

Enumeration of frequency channel types.

Enumerator
WIFI_PHY_DSSS_CHANNEL
WIFI_PHY_OFDM_CHANNEL
WIFI_PHY_80211p_CHANNEL

Definition at line 96 of file wifi-standards.h.

◆ MpduType

enum ns3::MpduType

The type of an MPDU.

Enumerator
NORMAL_MPDU	The MPDU is not part of an A-MPDU.
SINGLE_MPDU	The MPDU is a single MPDU.
FIRST_MPDU_IN_AGGREGATE	The MPDU is the first aggregate in an A-MPDU with multiple MPDUs, but is not the last aggregate.
MIDDLE_MPDU_IN_AGGREGATE	The MPDU is part of an A-MPDU with multiple MPDUs, but is neither the first nor the last aggregate.
LAST_MPDU_IN_AGGREGATE	The MPDU is the last aggregate in an A-MPDU with multiple MPDUs.

Definition at line 30 of file wifi-mpdu-type.h.

◆ OfdmPhyVariant

enum ns3::OfdmPhyVariant

The OFDM (11a) PHY variants.

See also: OfdmPhy

Enumerator
OFDM_PHY_DEFAULT
OFDM_PHY_10_MHZ
OFDM_PHY_5_MHZ

Definition at line 43 of file ofdm-phy.h.

◆ TriggerFrameType

enum ns3::TriggerFrameType : uint8_t

The different Trigger frame types.

Enumerator
BASIC_TRIGGER
BFRP_TRIGGER
MU_BAR_TRIGGER
MU_RTS_TRIGGER
BSRP_TRIGGER
GCR_MU_BAR_TRIGGER
BQRP_TRIGGER
NFRP_TRIGGER

Definition at line 560 of file ctrl-headers.h.

◆ WifiMacDropReason

enum ns3::WifiMacDropReason : uint8_t

The reason why an MPDU was dropped.

Enumerator
WIFI_MAC_DROP_FAILED_ENQUEUE
WIFI_MAC_DROP_EXPIRED_LIFETIME
WIFI_MAC_DROP_REACHED_RETRY_LIMIT
WIFI_MAC_DROP_QOS_OLD_PACKET

Definition at line 65 of file wifi-mac.h.

◆ WifiModulationClass

enum ns3::WifiModulationClass

This enumeration defines the modulation classes per (Table 10-6 "Modulation classes"; IEEE 802.11-2016, with updated in 802.11ax/D6.0 as Table 10-9).

Enumerator
WIFI_MOD_CLASS_UNKNOWN	Modulation class unknown or unspecified. A WifiMode with this WifiModulationClass has not been properly initialized.
WIFI_MOD_CLASS_DSSS	DSSS (Clause 15)
WIFI_MOD_CLASS_HR_DSSS	HR/DSSS (Clause 16)
WIFI_MOD_CLASS_ERP_OFDM	ERP-OFDM (18.4)
WIFI_MOD_CLASS_OFDM	OFDM (Clause 17)
WIFI_MOD_CLASS_HT	HT (Clause 19)
WIFI_MOD_CLASS_VHT	VHT (Clause 22)
WIFI_MOD_CLASS_HE	HE (Clause 27)

Definition at line 121 of file wifi-phy-common.h.

◆ WifiPhyBand

enum ns3::WifiPhyBand

Identifies the PHY band.

Enumerator
WIFI_PHY_BAND_2_4GHZ	The 2.4 GHz band.
WIFI_PHY_BAND_5GHZ	The 5 GHz band.
WIFI_PHY_BAND_6GHZ	The 6 GHz band.
WIFI_PHY_BAND_UNSPECIFIED	Unspecified.

Definition at line 32 of file wifi-phy-band.h.

◆ WifiPhyRxfailureReason

enum ns3::WifiPhyRxfailureReason

Enumeration of the possible reception failure reasons.

Enumerator
UNKNOWN
UNSUPPORTED_SETTINGS
CHANNEL_SWITCHING
RXING
TXING
SLEEPING
POWERED_OFF
TRUNCATED_TX
BUSY_DECODING_PREAMBLE
PREAMBLE_DETECT_FAILURE
RECEPTION_ABORTED_BY_TX
L_SIG_FAILURE
HT_SIG_FAILURE
SIG_A_FAILURE
SIG_B_FAILURE
PREAMBLE_DETECTION_PACKET_SWITCH
FRAME_CAPTURE_PACKET_SWITCH
OBSS_PD_CCA_RESET
HE_TB_PPDU_TOO_LATE
FILTERED

Definition at line 262 of file wifi-phy-common.h.

◆ WifiPpduField

enum ns3::WifiPpduField

The type of PPDU field (grouped for convenience)

Enumerator
WIFI_PPDU_FIELD_PREAMBLE	SYNC + SFD fields for DSSS or ERP, shortSYNC + shortSFD fields for HR/DSSS or ERP, HT-GF-STF + HT-GF-LTF1 fields for HT-GF, L-STF + L-LTF fields otherwise.
WIFI_PPDU_FIELD_NON_HT_HEADER	PHY header field for DSSS or ERP, short PHY header field for HR/DSSS or ERP, field not present for HT-GF, L-SIG field or L-SIG + RL-SIG fields otherwise.
WIFI_PPDU_FIELD_HT_SIG	HT-SIG field.
WIFI_PPDU_FIELD_TRAINING	STF + LTF fields (excluding those in preamble for HT-GF)
WIFI_PPDU_FIELD_SIG_A	SIG-A field.
WIFI_PPDU_FIELD_SIG_B	SIG-B field.
WIFI_PPDU_FIELD_DATA	data field

Definition at line 170 of file wifi-phy-common.h.

◆ WifiPpduType

enum ns3::WifiPpduType

The type of PPDU (SU, DL MU, or UL MU)

Enumerator
WIFI_PPDU_TYPE_SU
WIFI_PPDU_TYPE_DL_MU
WIFI_PPDU_TYPE_UL_MU

Definition at line 228 of file wifi-phy-common.h.

◆ WifiPreamble

enum ns3::WifiPreamble

The type of preamble to be used by an IEEE 802.11 transmission.

Enumerator
WIFI_PREAMBLE_LONG
WIFI_PREAMBLE_SHORT
WIFI_PREAMBLE_HT_MF
WIFI_PREAMBLE_VHT_SU
WIFI_PREAMBLE_VHT_MU
WIFI_PREAMBLE_HE_SU
WIFI_PREAMBLE_HE_ER_SU
WIFI_PREAMBLE_HE_MU
WIFI_PREAMBLE_HE_TB

Definition at line 67 of file wifi-phy-common.h.

◆ WifiStandard

enum ns3::WifiStandard

Identifies the IEEE 802.11 specifications that a Wifi device can be configured to use.

Enumerator
WIFI_STANDARD_UNSPECIFIED
WIFI_STANDARD_80211a
WIFI_STANDARD_80211b
WIFI_STANDARD_80211g
WIFI_STANDARD_80211p
WIFI_STANDARD_80211n
WIFI_STANDARD_80211ac
WIFI_STANDARD_80211ax

Definition at line 35 of file wifi-standards.h.

Function Documentation

◆ GetTid()

uint8_t ns3::GetTid	(	Ptr< const Packet >	packet,
		const WifiMacHeader	hdr
	)

This function is useful to get traffic id of different packet types.

Parameters

packet	packet to check
hdr	802.11 header for packet to check

Returns: the TID of different packet types

Definition at line 187 of file qos-utils.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::Packet::Copy(), ns3::WifiActionHeader::GetAction(), ns3::WifiActionHeader::GetCategory(), ns3::WifiMacHeader::GetQosTid(), ns3::MgtAddBaRequestHeader::GetTid(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::MgtDelBaHeader::GetTid(), ns3::CtrlBAckResponseHeader::GetTidInfo(), ns3::CtrlBAckRequestHeader::GetTidInfo(), ns3::WifiMacHeader::IsAction(), ns3::WifiMacHeader::IsBlockAck(), ns3::WifiMacHeader::IsBlockAckReq(), ns3::WifiMacHeader::IsMgt(), ns3::WifiMacHeader::IsQosData(), NS_ASSERT, NS_FATAL_ERROR, ns3::Packet::PeekHeader(), and ns3::Packet::RemoveHeader().

Referenced by ns3::HtFrameExchangeManager::NotifyPacketDiscarded(), and ns3::WifiDefaultAckManager::TryAddMpdu().

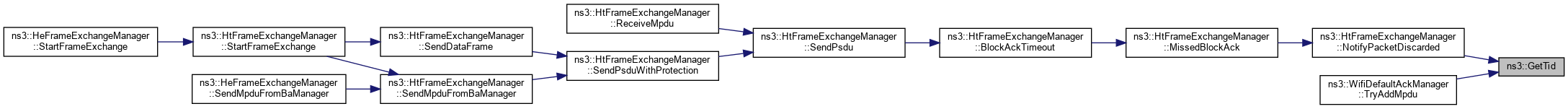

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator<()

bool ns3::operator<	(	enum AcIndex	left,
		enum AcIndex	right
	)

Operator< overload returning true if the AC on the left has lower priority than the AC on the right.

Parameters

left	the AC on the left of operator<
right	the AC on the right of operator<

Returns: true if the AC on the left has lower priority than the AC on the right

Definition at line 110 of file qos-utils.cc.

◆ operator<=()

bool ns3::operator<=	(	enum AcIndex	left,
		enum AcIndex	right
	)

Operator<= overload returning true if the AC on the left has lower or the same priority than the AC on the right.

Parameters

left	the AC on the left of operator<=
right	the AC on the right of operator<=

Returns: true if the AC on the left has lower or the same priority than the AC on the right

Definition at line 115 of file qos-utils.cc.

◆ operator>()

bool ns3::operator>	(	enum AcIndex	left,
		enum AcIndex	right
	)

Operator> overload returning true if the AC on the left has higher priority than the AC on the right.

Parameters

left	the AC on the left of operator>
right	the AC on the right of operator>

Returns: true if the AC on the left has higher priority than the AC on the right

Definition at line 84 of file qos-utils.cc.

References ns3::AC_BK, and NS_ABORT_MSG_IF.

◆ operator>=()

bool ns3::operator>=	(	enum AcIndex	left,
		enum AcIndex	right
	)

Operator>= overload returning true if the AC on the left has higher or the same priority than the AC on the right.

Parameters

left	the AC on the left of operator>=
right	the AC on the right of operator>=

Returns: true if the AC on the left has higher or the same priority than the AC on the right

Definition at line 103 of file qos-utils.cc.

References NS_ABORT_MSG_IF.

◆ QosUtilsGetTidForPacket()

uint8_t ns3::QosUtilsGetTidForPacket ( Ptr< const Packet > packet )

If a QoS tag is attached to the packet, returns a value < 8.

A value >= 8 is returned otherwise.

Parameters

packet the packet to checked for a QoS tag

Returns: a value less than 8 if QoS tag was present, a value >= 8 is returned if no QoS tag was present

Definition at line 152 of file qos-utils.cc.

References ns3::SocketPriorityTag::GetPriority(), and ns3::Packet::PeekPacketTag().

Referenced by ns3::OcbWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), and ns3::OcbWifiMac::SendVsc().

Here is the call graph for this function:

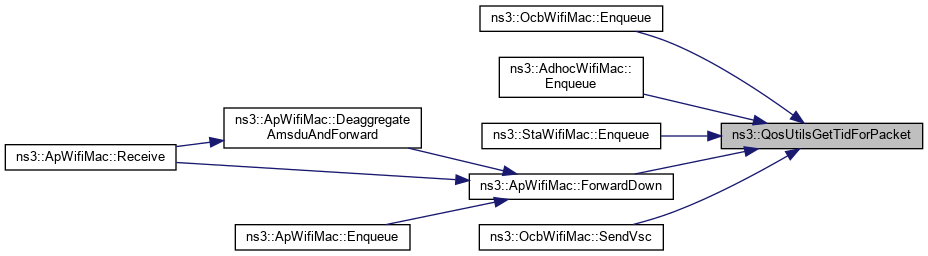

Here is the caller graph for this function:

◆ QosUtilsIsOldPacket()

bool ns3::QosUtilsIsOldPacket	(	uint16_t	startingSeq,
		uint16_t	seqNumber
	)

This function checks if packet with sequence number seqNumber is an "old" packet.

The sequence number space is considered divided into two parts, one of which is "old" and one of which is "new" by means of a boundary created by adding half the sequence number range to the starting sequence number startingSeq. So this function works fine also when seqNumber is smaller than startingSeq and startingSeq + 2048 is greater than 4096 because all comparison are circular modulo 2^12. The following are possible scenarios:

--— = old packets +++++ = new packets

CASE A:

0 4095 |++++++|-------------—|++++++| ^ ^ | endSeq | startingSeq

CASE B:

0 4095 |---—|++++++++++++++++|--—| ^ ^ | startingSeq | endSeq

Here in the examples endSeq is the sequenceNumber of the "last" new packet. So this function, when specified a starting sequence and a sequence number, returns true if that packet (with sequence number numberSeq)) belongs to the section of the sequence number space marked with '-' characters. The function returns false otherwise.

Parameters

startingSeq	the starting sequence number
seqNumber	the sequence number to be checked

Returns: true if the packet is old, false otherwise

Definition at line 178 of file qos-utils.cc.

References NS_ASSERT.

Referenced by QosUtilsIsOldPacketTest::DoRun(), ns3::WifiDefaultAckManager::GetMaxDistFromStartingSeq(), ns3::WifiPsdu::GetMaxDistFromStartingSeq(), ns3::QosTxop::IsQosOldPacket(), and ns3::BlockAckManager::NotifyDiscardedMpdu().

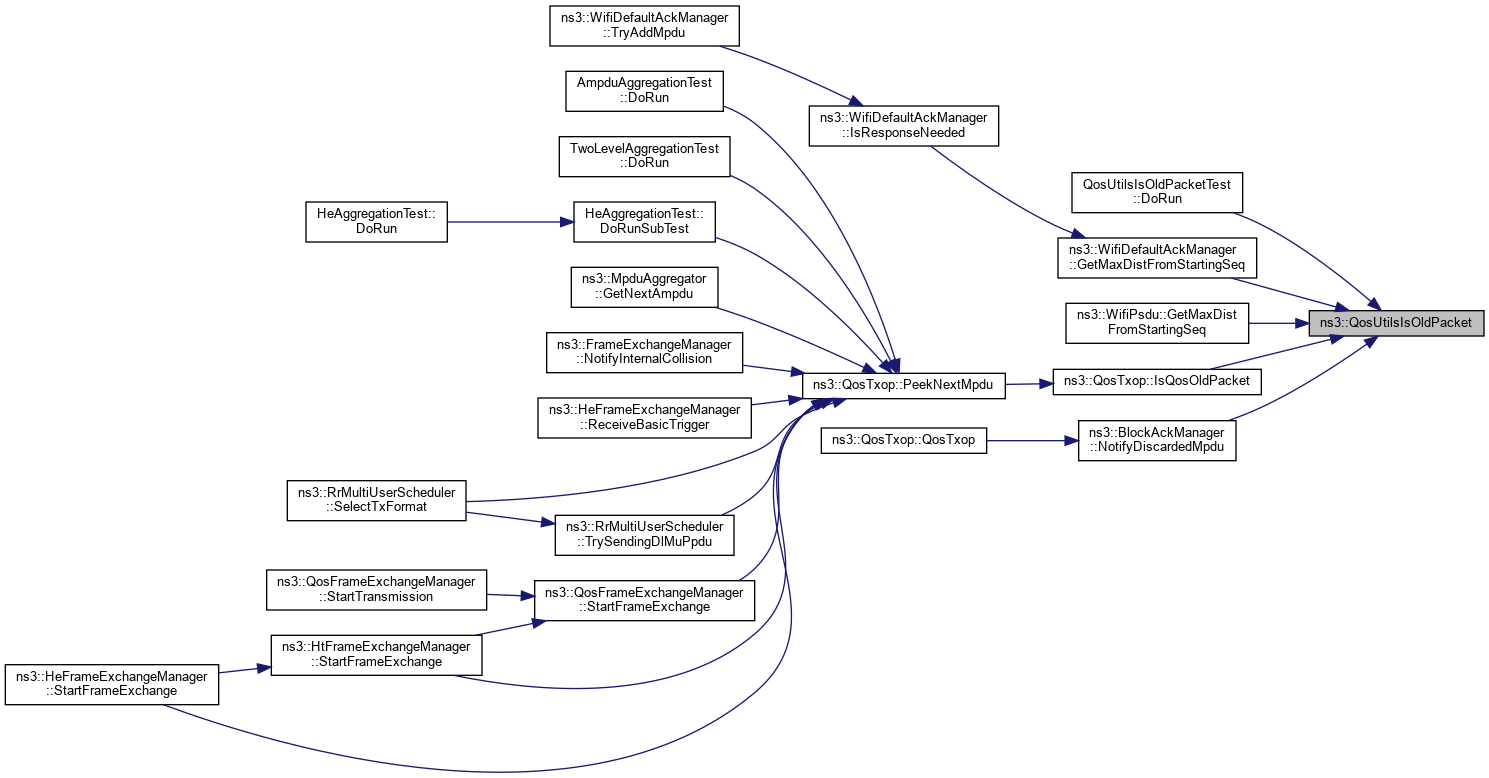

Here is the caller graph for this function:

◆ QosUtilsMapSeqControlToUniqueInteger()

uint32_t ns3::QosUtilsMapSeqControlToUniqueInteger	(	uint16_t	seqControl,
		uint16_t	endSequence
	)

Next function is useful to correctly sort buffered packets under block ack.

When an BAR is received from originator station, completed "old" (see section 9.10.3 in IEEE 802.11e) packets must be forwarded up before "new" packets.

Parameters

seqControl	the sequence control field
endSequence	the sequence number ending the acknowledgment window

Returns: a unique integer for the given sequence control and end sequence

Definition at line 167 of file qos-utils.cc.

Referenced by PacketBufferingCaseA::DoRun(), and PacketBufferingCaseB::DoRun().

Here is the caller graph for this function:

◆ QosUtilsMapTidToAc()

AcIndex ns3::QosUtilsMapTidToAc ( uint8_t tid )

Maps TID (Traffic ID) to Access classes.

For more details see (Table 9-1 "UP-to-AC mapping"; IEEE 802.11-2012).

Parameters

tid	the Traffic ID to be mapped to Access class

Returns: the access class for the given TID

Definition at line 126 of file qos-utils.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, and NS_ASSERT_MSG.

Referenced by ns3::RrMultiUserScheduler::ComputeDlMuInfo(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::WifiDefaultAckManager::GetAckInfoIfAggregatedMuBar(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar(), ns3::MpduAggregator::GetMaxAmpduSize(), ns3::MsduAggregator::GetMaxAmsduSize(), ns3::WifiMac::GetQosTxop(), ns3::WifiRemoteStationManager::NeedRetransmission(), ns3::QosTxop::PrepareBlockAckRequest(), ns3::WifiRemoteStationManager::ReportDataFailed(), ns3::WifiRemoteStationManager::ReportDataOk(), ns3::WifiRemoteStationManager::ReportFinalDataFailed(), ns3::WifiRemoteStationManager::ReportFinalRtsFailed(), ns3::WifiRemoteStationManager::ReportRtsFailed(), ns3::WifiRemoteStationManager::ReportRtsOk(), ns3::SelectQueueByDSField(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

Here is the caller graph for this function:

◆ SelectQueueByDSField()

uint8_t ns3::SelectQueueByDSField ( Ptr< QueueItem > item )

Determine the TX queue for a given packet.

Parameters

item	the packet

Returns: the access category

Modeled after the Linux function ieee80211_select_queue (net/mac80211/wme.c). A SocketPriority tag is attached to the packet (or the existing one is replaced) to carry the user priority, which is set to the three most significant bits of the DS field (TOS field in case of IPv4 and Traffic Class field in case of IPv6). The Access Category corresponding to the user priority according to the QosUtilsMapTidToAc function is returned.

The following table shows the mapping for the Diffserv Per Hop Behaviors.

PHB	TOS (binary)	UP	Access Category
EF	101110xx	5	AC_VI
AF11	001010xx	1	AC_BK
AF21	010010xx	2	AC_BK
AF31	011010xx	3	AC_BE
AF41	100010xx	4	AC_VI
AF12	001100xx	1	AC_BK
AF22	010100xx	2	AC_BK
AF32	011100xx	3	AC_BE
AF42	100100xx	4	AC_VI
AF13	001110xx	1	AC_BK
AF23	010110xx	2	AC_BK
AF33	011110xx	3	AC_BE
AF43	100110xx	4	AC_VI
CS0	000000xx	0	AC_BE
CS1	001000xx	1	AC_BK
CS2	010000xx	2	AC_BK
CS3	011000xx	3	AC_BE
CS4	100000xx	4	AC_VI
CS5	101000xx	5	AC_VI
CS6	110000xx	6	AC_VO
CS7	111000xx	7	AC_VO

This method is called by the traffic control layer before enqueuing a packet in the queue disc, if a queue disc is installed on the outgoing device, or passing a packet to the device, otherwise.

Definition at line 253 of file qos-utils.cc.

References ns3::QueueItem::IP_DSFIELD, ns3::QosUtilsMapTidToAc(), and ns3::SocketPriorityTag::SetPriority().

Here is the call graph for this function:

Modules

Files

Classes

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ AcIndex

◆ FrequencyChannelType

◆ MpduType

◆ OfdmPhyVariant

◆ TriggerFrameType

◆ WifiMacDropReason

◆ WifiModulationClass

◆ WifiPhyBand

◆ WifiPhyRxfailureReason

◆ WifiPpduField

◆ WifiPpduType

◆ WifiPreamble

◆ WifiStandard

Function Documentation

◆ GetTid()

◆ operator<()

◆ operator<=()

◆ operator>()

◆ operator>=()

◆ QosUtilsGetTidForPacket()

◆ QosUtilsIsOldPacket()

◆ QosUtilsMapSeqControlToUniqueInteger()

◆ QosUtilsMapTidToAc()

◆ SelectQueueByDSField()
