Aggregator used to construct A-MPDUs. More...

#include "mpdu-aggregator.h"

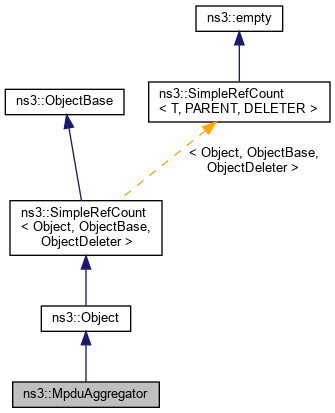

Inheritance diagram for ns3::MpduAggregator:

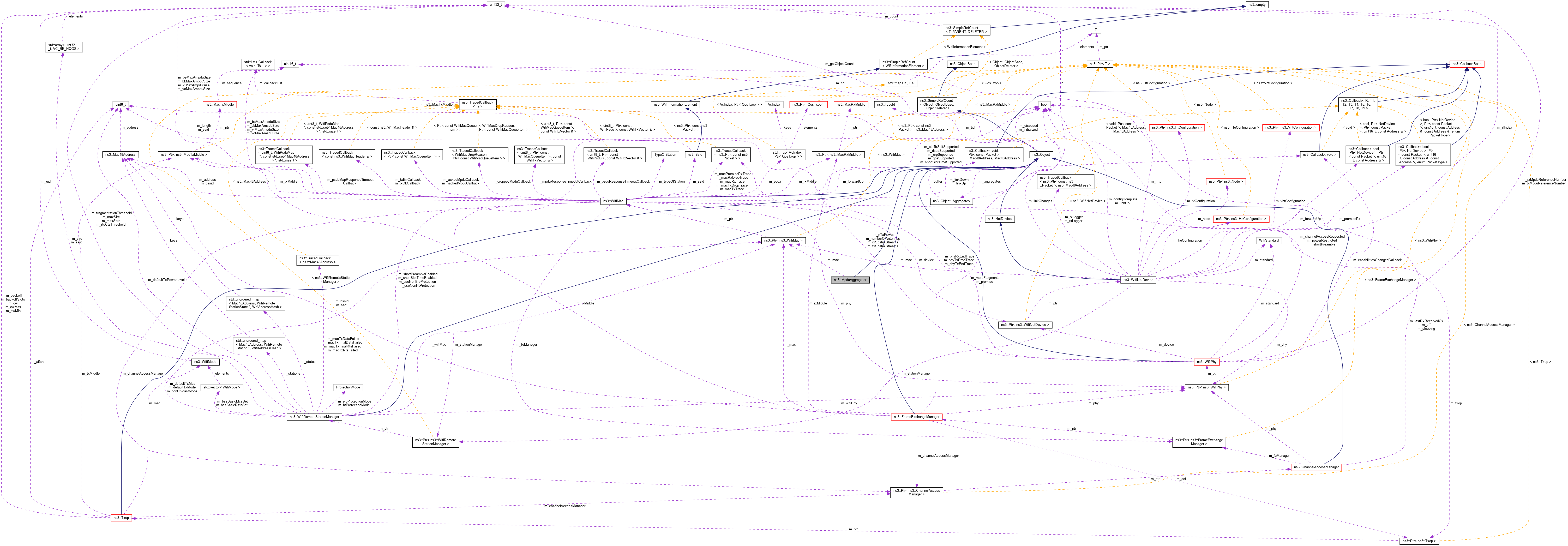

Collaboration diagram for ns3::MpduAggregator:

Public Types
typedef std::map< AcIndex, Ptr< QosTxop > >	EdcaQueues
	EDCA queues typedef. More...

Public Member Functions
	MpduAggregator ()

virtual	~MpduAggregator ()

uint32_t	GetMaxAmpduSize (Mac48Address recipient, uint8_t tid, WifiModulationClass modulation) const
	Determine the maximum size for an A-MPDU of the given TID that can be sent to the given receiver when using the given modulation class. More...

std::vector< Ptr< WifiMacQueueItem > >	GetNextAmpdu (Ptr< WifiMacQueueItem > mpdu, WifiTxParameters &txParams, Time availableTime) const
	Attempt to aggregate other MPDUs to the given MPDU, while meeting the following constraints: More...

void	SetWifiMac (const Ptr< WifiMac > mac)
	Set the MAC layer to use. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static void	Aggregate (Ptr< const WifiMacQueueItem > mpdu, Ptr< Packet > ampdu, bool isSingle)
	Aggregate an MPDU to an A-MPDU. More...

static uint8_t	CalculatePadding (uint32_t ampduSize)

static AmpduSubframeHeader	GetAmpduSubframeHeader (uint16_t mpduSize, bool isSingle)
	Get the A-MPDU subframe header corresponding to the MPDU size and whether the MPDU is a single MPDU. More...

static uint32_t	GetSizeIfAggregated (uint32_t mpduSize, uint32_t ampduSize)
	Compute the size of the A-MPDU resulting from the aggregation of an MPDU of size mpduSize and an A-MPDU of size ampduSize. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
Ptr< WifiMac >	m_mac
	the MAC of this station More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Aggregator used to construct A-MPDUs.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 43 of file mpdu-aggregator.h.

Member Typedef Documentation

◆ EdcaQueues

typedef std::map<AcIndex, Ptr<QosTxop> > ns3::MpduAggregator::EdcaQueues

EDCA queues typedef.

Definition at line 49 of file mpdu-aggregator.h.

Constructor & Destructor Documentation

◆ MpduAggregator()

ns3::MpduAggregator::MpduAggregator ( )

Definition at line 59 of file mpdu-aggregator.cc.

◆ ~MpduAggregator()

ns3::MpduAggregator::~MpduAggregator ( )

virtual

Definition at line 63 of file mpdu-aggregator.cc.

Member Function Documentation

◆ Aggregate()

void ns3::MpduAggregator::Aggregate	(	Ptr< const WifiMacQueueItem >	mpdu,
		Ptr< Packet >	ampdu,
		bool	isSingle
	)

static

Aggregate an MPDU to an A-MPDU.

Parameters

mpdu	the MPDU.
ampdu	the A-MPDU.
isSingle	whether it is a single MPDU.

Definition at line 82 of file mpdu-aggregator.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::AddWifiMacTrailer(), CalculatePadding(), GetAmpduSubframeHeader(), ns3::Packet::GetSize(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::WifiPsdu::GetPacket().

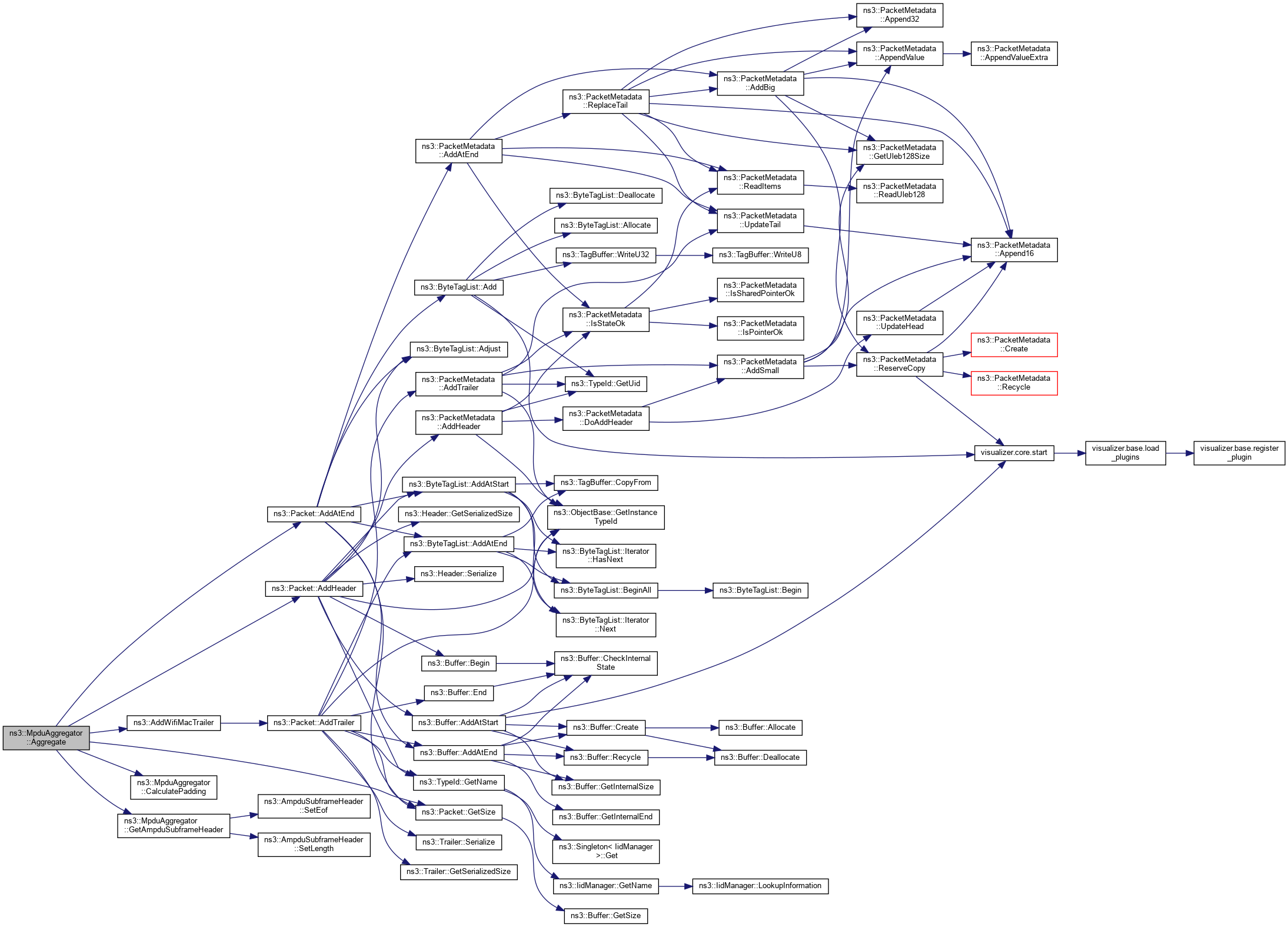

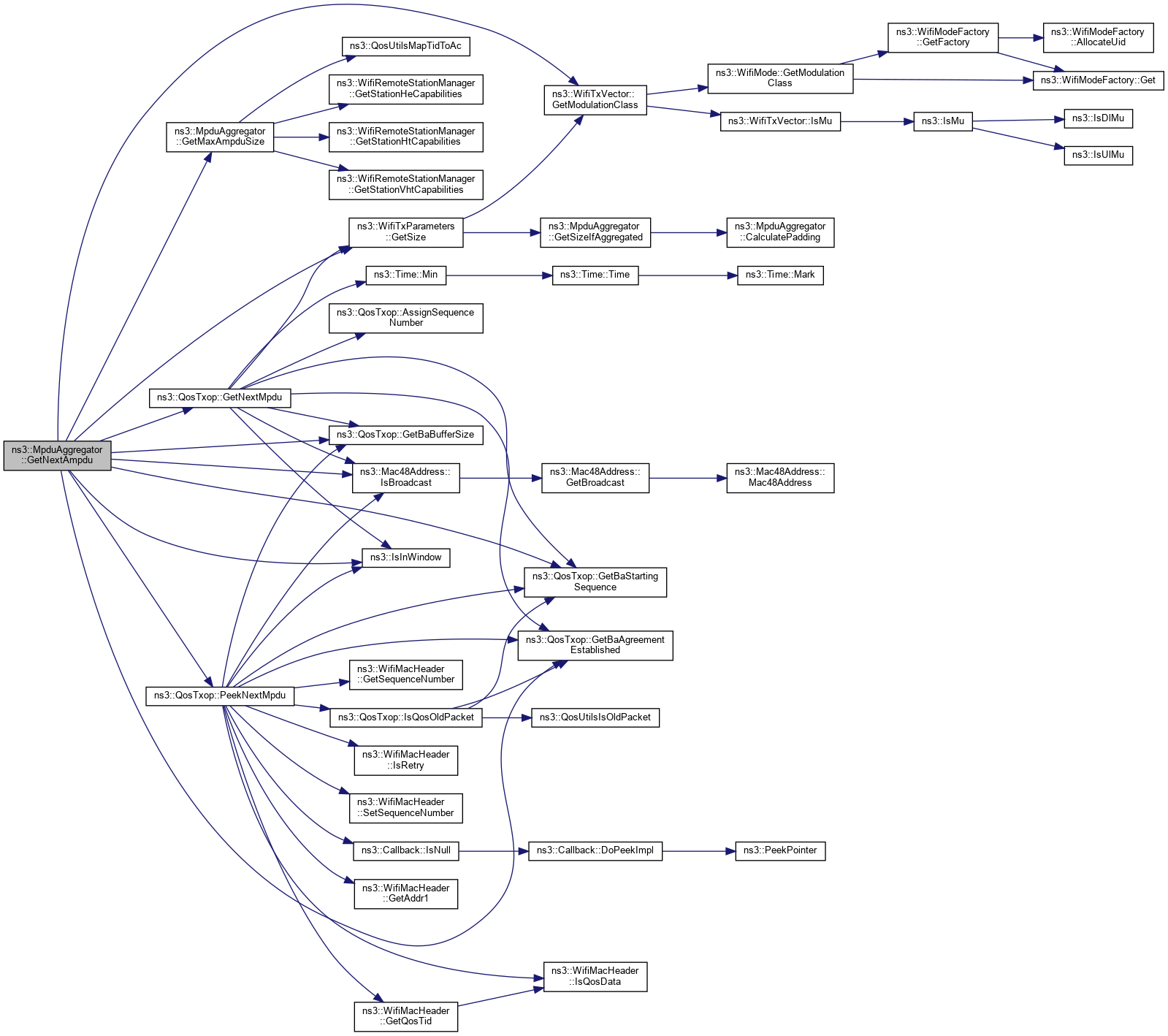

Here is the call graph for this function:

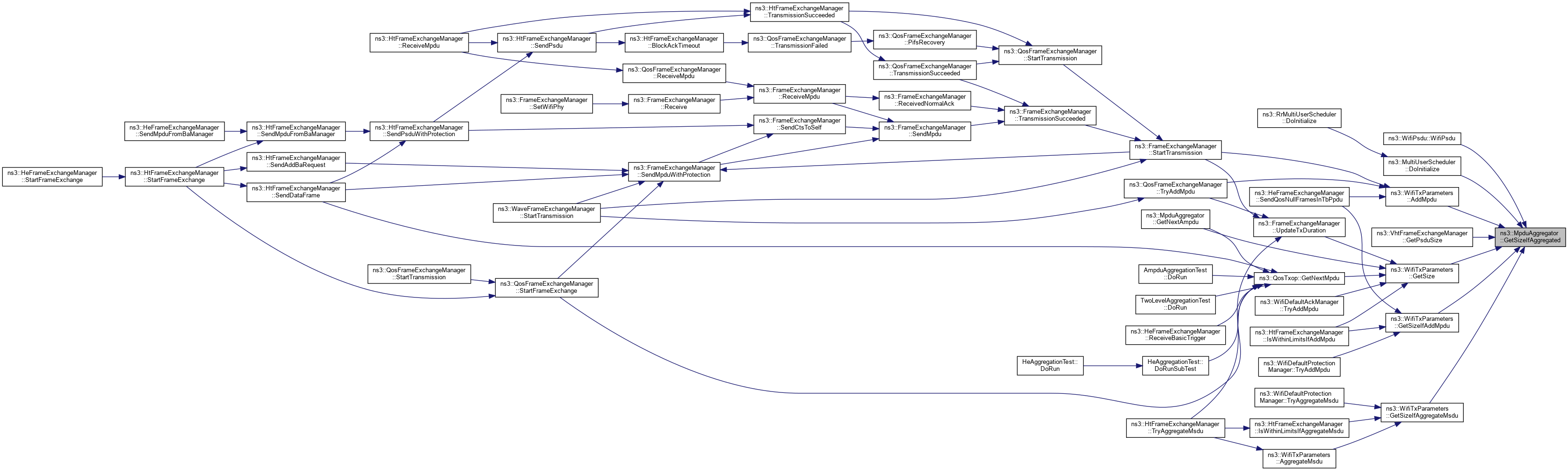

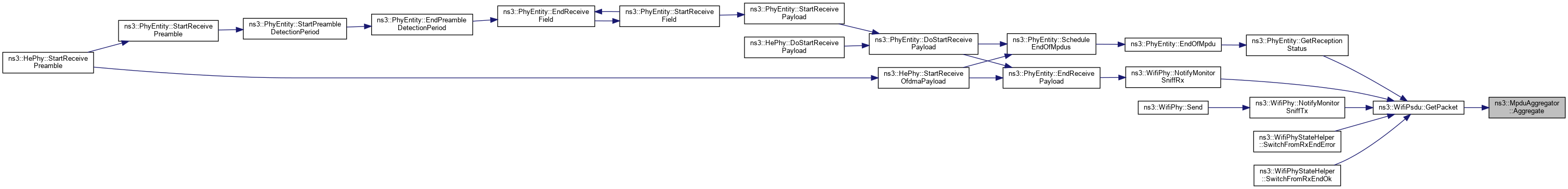

Here is the caller graph for this function:

◆ CalculatePadding()

uint8_t ns3::MpduAggregator::CalculatePadding ( uint32_t ampduSize )

static

Parameters

ampduSize the size of the A-MPDU that needs to be padded in bytes

Returns: the size of the padding that must be added to the end of an A-MPDU in bytes

Calculates how much padding must be added to the end of an A-MPDU of the given size (once another MPDU is aggregated). Each A-MPDU subframe is padded so that its length is multiple of 4 octets.

Definition at line 177 of file mpdu-aggregator.cc.

Referenced by Aggregate(), ns3::WifiPsdu::GetAmpduSubframeSize(), and GetSizeIfAggregated().

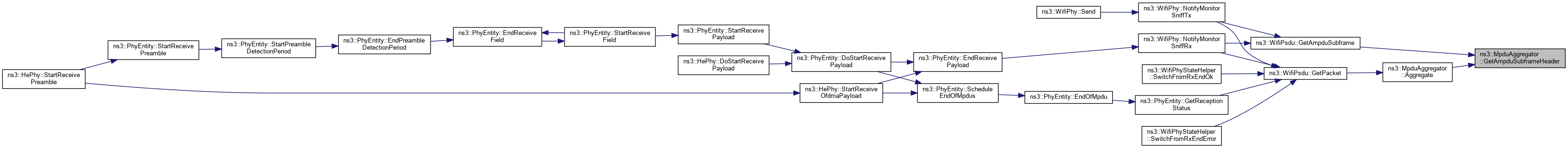

Here is the caller graph for this function:

◆ DoDispose()

void ns3::MpduAggregator::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 68 of file mpdu-aggregator.cc.

References ns3::Object::DoDispose(), and m_mac.

Here is the call graph for this function:

◆ GetAmpduSubframeHeader()

AmpduSubframeHeader ns3::MpduAggregator::GetAmpduSubframeHeader	(	uint16_t	mpduSize,
		bool	isSingle
	)

static

Get the A-MPDU subframe header corresponding to the MPDU size and whether the MPDU is a single MPDU.

Parameters

mpduSize	size of the MPDU in bytes.
isSingle	true if S-MPDU.

Returns: the A-MPDU subframe header

Definition at line 183 of file mpdu-aggregator.cc.

References ns3::AmpduSubframeHeader::SetEof(), and ns3::AmpduSubframeHeader::SetLength().

Referenced by Aggregate(), and ns3::WifiPsdu::GetAmpduSubframe().

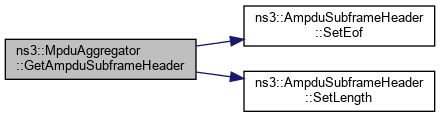

Here is the call graph for this function:

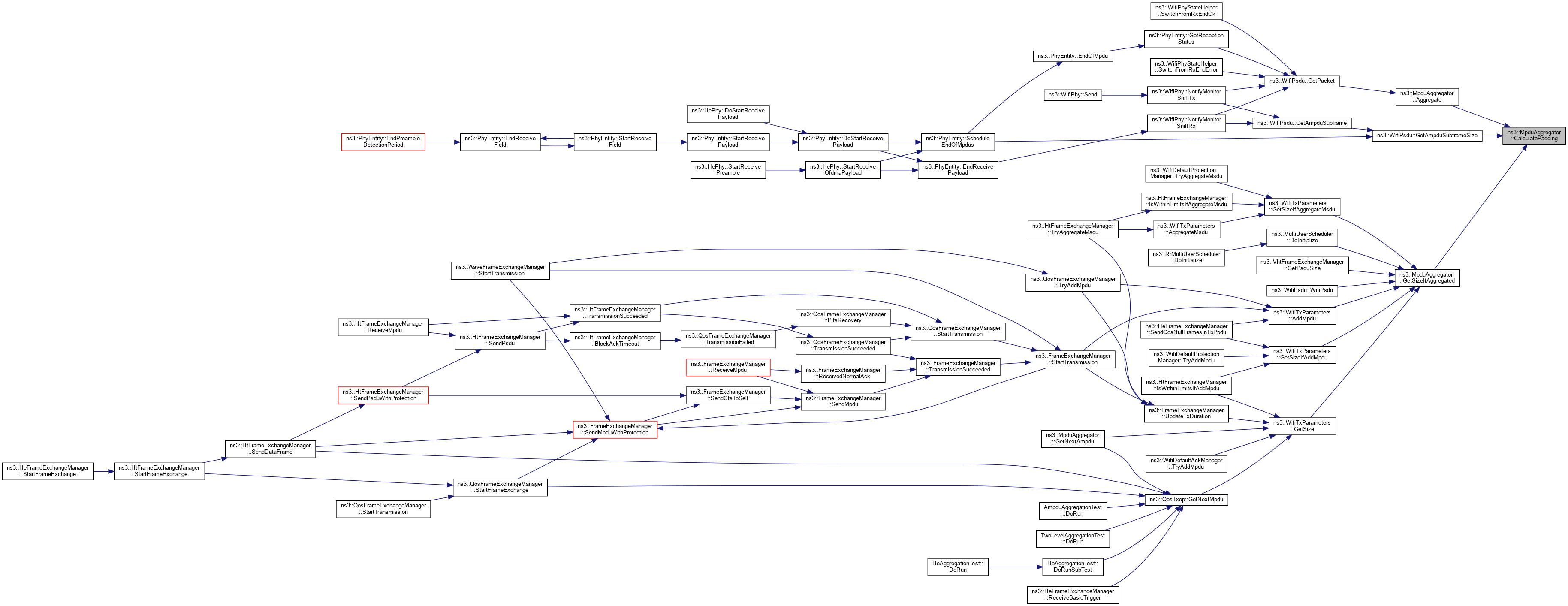

Here is the caller graph for this function:

◆ GetMaxAmpduSize()

uint32_t ns3::MpduAggregator::GetMaxAmpduSize	(	Mac48Address	recipient,
		uint8_t	tid,
		WifiModulationClass	modulation
	)		const

Determine the maximum size for an A-MPDU of the given TID that can be sent to the given receiver when using the given modulation class.

Parameters

recipient	the receiver station address.
tid	the TID.
modulation	the modulation class.

Returns: the maximum A-MPDU size in bytes.

Definition at line 122 of file mpdu-aggregator.cc.

References ns3::WifiRemoteStationManager::GetStationHeCapabilities(), ns3::WifiRemoteStationManager::GetStationHtCapabilities(), ns3::WifiRemoteStationManager::GetStationVhtCapabilities(), m_mac, min, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by GetNextAmpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNextAmpdu()

std::vector< Ptr< WifiMacQueueItem > > ns3::MpduAggregator::GetNextAmpdu	(	Ptr< WifiMacQueueItem >	mpdu,
		WifiTxParameters &	txParams,
		Time	availableTime
	)		const

Attempt to aggregate other MPDUs to the given MPDU, while meeting the following constraints:

the size of the resulting A-MPDU does not exceed the maximum A-MPDU size as determined for the modulation class indicated by the given TxVector
the time to transmit the resulting PPDU, according to the given TxVector, does not exceed the maximum PPDU duration allowed by the corresponding modulation class (if any)
the time to transmit the resulting PPDU and to carry out protection and acknowledgment, as specified by the given TX parameters, does not exceed the given available time (if distinct from Time::Min ())

For now, only non-broadcast QoS Data frames can be aggregated (do not pass other types of frames to this method). MPDUs to aggregate are looked for among those with the same TID and receiver as the given MPDU.

The resulting A-MPDU is returned as a vector of the constituent MPDUs (including the given MPDU), which are not actually aggregated (call the Aggregate method afterwards to get the actual A-MPDU). If aggregation was not possible (aggregation is disabled, there is no Block Ack agreement established with the receiver, or another MPDU to aggregate was not found), the returned vector is empty.

Parameters
