Wifi MAC high model for an ad-hoc Wifi MAC. More...

#include "adhoc-wifi-mac.h"

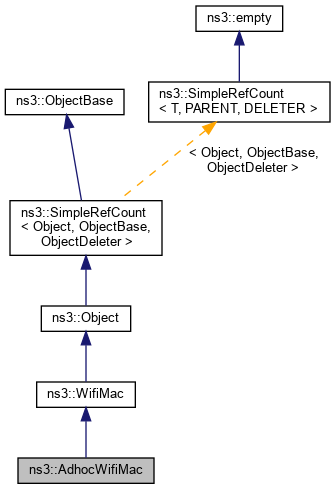

Inheritance diagram for ns3::AdhocWifiMac:

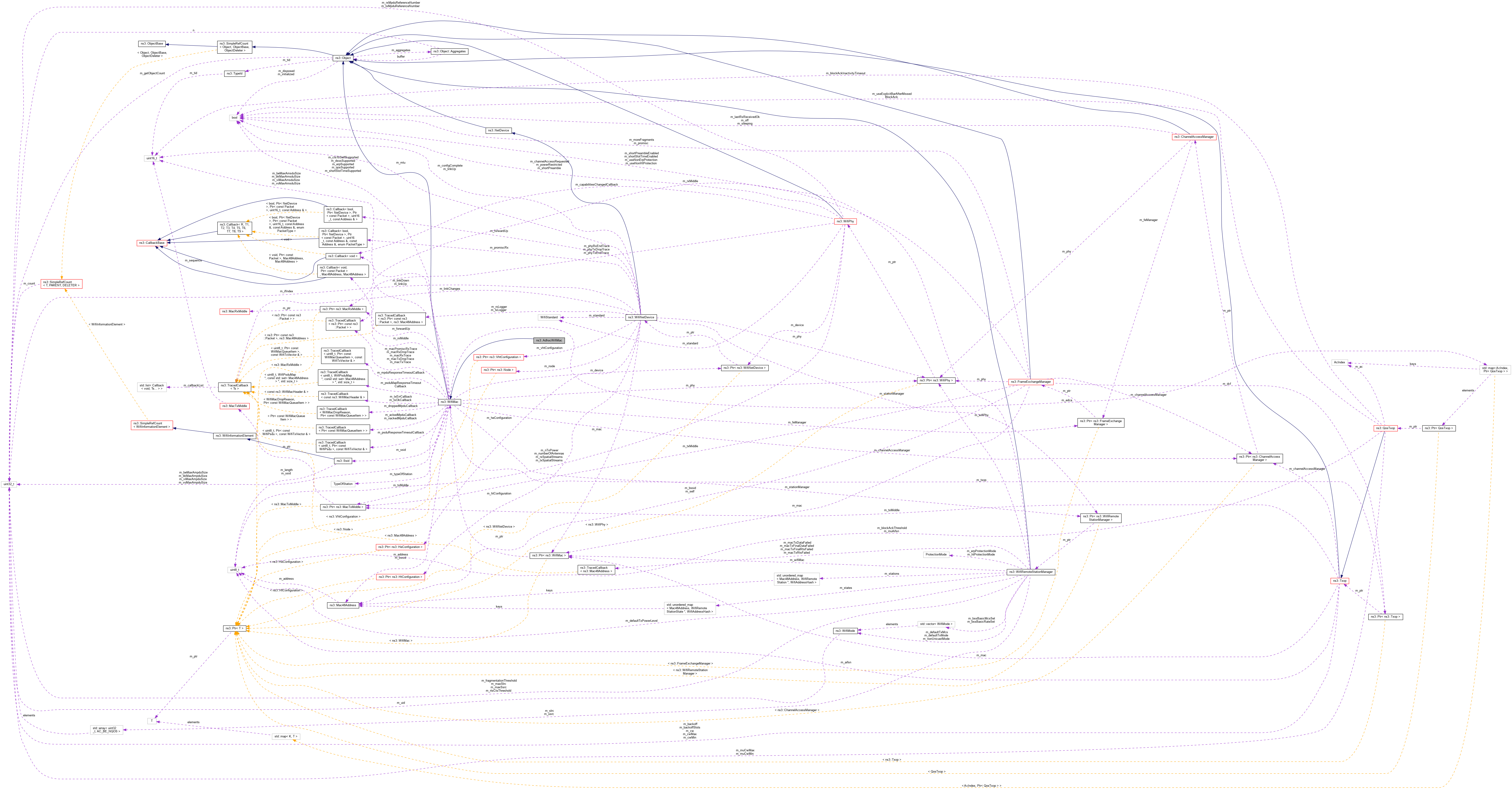

Collaboration diagram for ns3::AdhocWifiMac:

Public Member Functions
	AdhocWifiMac ()

virtual	~AdhocWifiMac ()

bool	CanForwardPacketsTo (Mac48Address to) const override
	Return true if packets can be forwarded to the given destination, false otherwise. More...

void	Enqueue (Ptr< Packet > packet, Mac48Address to) override

void	SetAddress (Mac48Address address) override

void	SetLinkUpCallback (Callback< void > linkUp) override

Public Member Functions inherited from ns3::WifiMac
	WifiMac ()

virtual	~WifiMac ()

virtual void	ConfigureStandard (WifiStandard standard)

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from)

Mac48Address	GetAddress (void) const

Mac48Address	GetBssid (void) const

Ptr< WifiNetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...

bool	GetErpSupported () const
	Return whether the device supports ERP. More...

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities of the device. More...

Ptr< FrameExchangeManager >	GetFrameExchangeManager (void) const
	Get the Frame Exchange Manager. More...

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities of the device. More...

Ptr< HeConfiguration >	GetHeConfiguration (void) const

bool	GetHeSupported () const
	Return whether the device supports HE. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities of the device. More...

Ptr< HtConfiguration >	GetHtConfiguration (void) const

bool	GetHtSupported () const
	Return whether the device supports HT. More...

uint32_t	GetMaxAmpduSize (AcIndex ac) const
	Return the maximum A-MPDU size of the given Access Category. More...

uint16_t	GetMaxAmsduSize (AcIndex ac) const
	Return the maximum A-MSDU size of the given Access Category. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< QosTxop >	GetQosTxop (AcIndex ac) const
	Accessor for a specified EDCA object. More...

Ptr< QosTxop >	GetQosTxop (uint8_t tid) const
	Accessor for a specified EDCA object. More...

Ssid	GetSsid (void) const

Ptr< Txop >	GetTxop (void) const
	Accessor for the Txop object. More...

virtual Ptr< WifiMacQueue >	GetTxopQueue (AcIndex ac) const
	Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise. More...

TypeOfStation	GetTypeOfStation (void) const
	Return the type of station. More...

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities of the device. More...

Ptr< VhtConfiguration >	GetVhtConfiguration (void) const

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

Ptr< WifiPhy >	GetWifiPhy (void) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

virtual void	NotifyChannelSwitching (void)
	Notify that channel has been switched. More...

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

void	ResetWifiPhy (void)
	Remove currently attached WifiPhy device from this MAC. More...

void	SetBssid (Mac48Address bssid)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetDevice (const Ptr< WifiNetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetForwardUpCallback (ForwardUpCallback upCallback)

void	SetLinkDownCallback (Callback< void > linkDown)

void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetSsid (Ssid ssid)

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

virtual void	SetWifiPhy (Ptr< WifiPhy > phy)

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

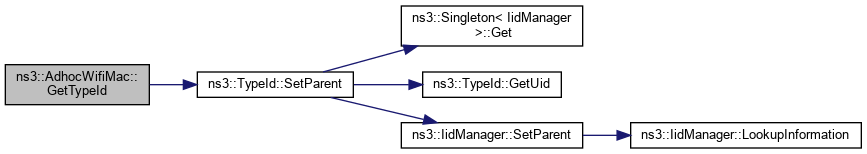

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	Receive (Ptr< WifiMacQueueItem > mpdu) override
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...

Additional Inherited Members
Public Types inherited from ns3::WifiMac
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Member Functions inherited from ns3::WifiMac
virtual void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

virtual void	DeaggregateAmsduAndForward (Ptr< WifiMacQueueItem > mpdu)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

void	ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< QosTxop >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< QosTxop >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

bool	GetShortSlotTimeSupported (void) const

Ptr< QosTxop >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< QosTxop >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::WifiMac
Ptr< ChannelAccessManager >	m_channelAccessManager
	channel access manager More...

Ptr< FrameExchangeManager >	m_feManager
	Frame Exchange Manager. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (defragmentation etc.) More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	TXOP used for transmission of frames to non-QoS peers. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Wifi MAC high model for an ad-hoc Wifi MAC.

Config Paths

ns3::AdhocWifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::AdhocWifiMac"

No Attributes are defined for this type.

Attributes defined in parent class ns3::WifiMac

Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read
QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Txop: The Txop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Txop>
- Flags: read
VO_Txop: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VI_Txop: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BE_Txop: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BK_Txop: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 0
- Flags: construct write read
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 65535
- Flags: construct write read
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 65535
- Flags: construct write read
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 0
- Flags: construct write read
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission. This trace source is fired, e.g., when an AP's MAC receives from the upper layer a packet destined to a station that is not associated with the AP or a STA's MAC receives a packet from the upper layer while it is not associated with any AP.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback
TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
AckedMpdu: An MPDU that was successfully acknowledged, via either a Normal Ack or a Block Ack.
Callback signature: ns3::WifiMacQueueItem::TracedCallback
NAckedMpdu: An MPDU that was negatively acknowledged via a Block Ack.
Callback signature: ns3::WifiMacQueueItem::TracedCallback
DroppedMpdu: An MPDU that was dropped for the given reason (see WifiMacDropReason).
Callback signature: ns3::WifiMac::DroppedMpduCallback
MpduResponseTimeout: An MPDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the MPDU. This trace source is fired when a CTS is missing after an RTS or a Normal Ack is missing after an MPDU or after a DL MU PPDU acknowledged in SU format.
Callback signature: ns3::WifiMac::MpduResponseTimeoutCallback
PsduResponseTimeout: A PSDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the PSDU. This trace source is fired when a BlockAck is missing after an A-MPDU, a BlockAckReq (possibly in the context of the acknowledgment of a DL MU PPDU in SU format) or a TB PPDU (in the latter case the missing BlockAck is a Multi-STA BlockAck).
Callback signature: ns3::WifiMac::PsduResponseTimeoutCallback
PsduMapResponseTimeout: A PSDU map for which not all the responses were received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason), the set of MAC addresses of the stations that did not respond and the total number of stations that had to respond. This trace source is fired when not all the addressed stations responded to an MU-BAR Trigger frame (either sent as a SU frame or aggregated to PSDUs in the DL MU PPDU), a Basic Trigger Frame or a BSRP Trigger Frame.
Callback signature: ns3::WifiMac::PsduMapResponseTimeoutCallback

Size of this type is 584 bytes (on a 64-bit architecture).

Definition at line 35 of file adhoc-wifi-mac.h.

Constructor & Destructor Documentation

◆ AdhocWifiMac()

ns3::AdhocWifiMac::AdhocWifiMac ( )

Definition at line 48 of file adhoc-wifi-mac.cc.

References ns3::ADHOC_STA, NS_LOG_FUNCTION, and ns3::WifiMac::SetTypeOfStation().

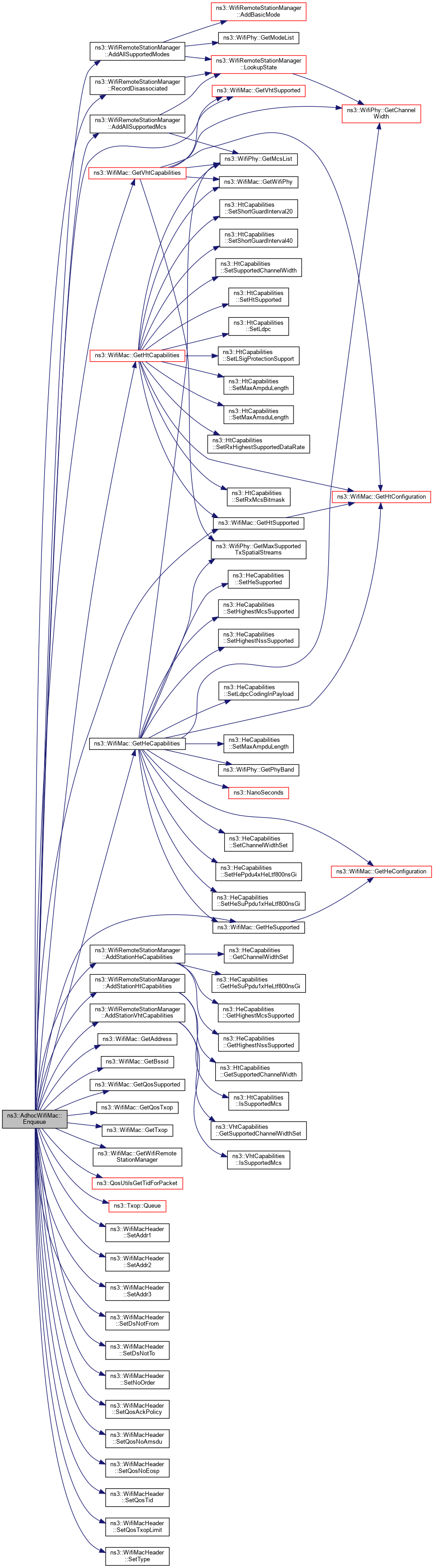

Here is the call graph for this function:

◆ ~AdhocWifiMac()

ns3::AdhocWifiMac::~AdhocWifiMac ( )

virtual

Definition at line 55 of file adhoc-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ CanForwardPacketsTo()

bool ns3::AdhocWifiMac::CanForwardPacketsTo ( Mac48Address to ) const

overridevirtual

Return true if packets can be forwarded to the given destination, false otherwise.

Parameters

to	the address to which the packet should be sent

Returns: whether packets can be forwarded to the given destination

Implements ns3::WifiMac.

Definition at line 75 of file adhoc-wifi-mac.cc.

◆ Enqueue()

void ns3::AdhocWifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to
	)

overridevirtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implements ns3::WifiMac.

Definition at line 81 of file adhoc-wifi-mac.cc.

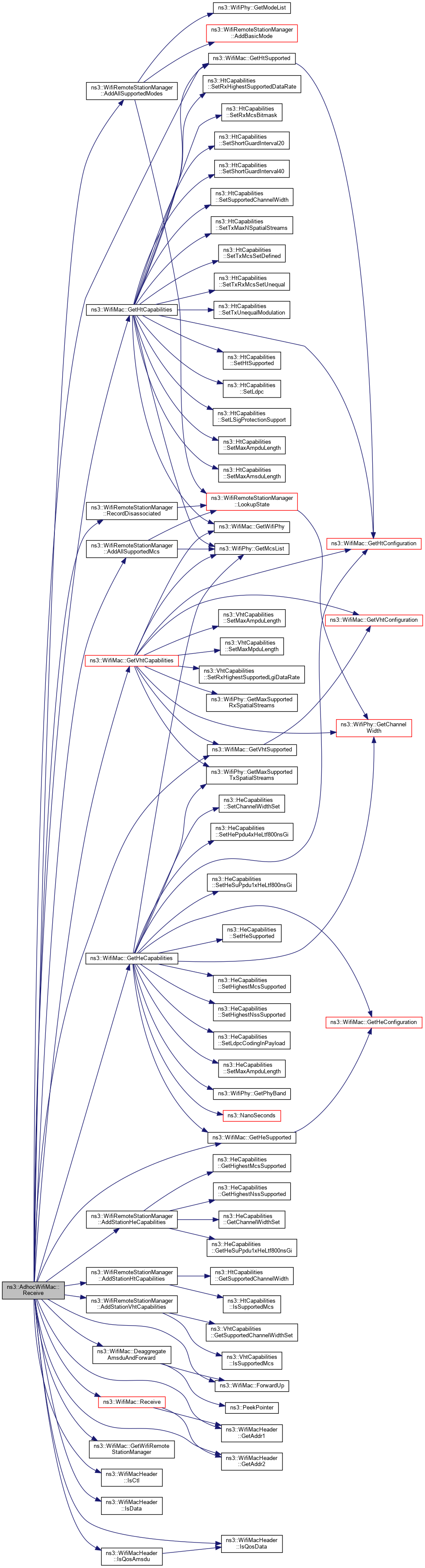

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::AdhocWifiMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file adhoc-wifi-mac.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ Receive()

void ns3::AdhocWifiMac::Receive ( Ptr< WifiMacQueueItem > mpdu )

overrideprivatevirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack management frames is dealt with here.

This method will need, however, to be overridden by derived classes so that they can perform their data handling before invoking the base version.

Parameters

mpdu	the MPDU that has been received.

Reimplemented from ns3::WifiMac.

Definition at line 177 of file adhoc-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddAllSupportedMcs(), ns3::WifiRemoteStationManager::AddAllSupportedModes(), ns3::WifiRemoteStationManager::AddStationHeCapabilities(), ns3::WifiRemoteStationManager::AddStationHtCapabilities(), ns3::WifiRemoteStationManager::AddStationVhtCapabilities(), ns3::WifiMac::DeaggregateAmsduAndForward(), ns3::WifiMac::ForwardUp(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMac::GetHeCapabilities(), ns3::WifiMac::GetHeSupported(), ns3::WifiMac::GetHtCapabilities(), ns3::WifiMac::GetHtSupported(), ns3::WifiMac::GetVhtCapabilities(), ns3::WifiMac::GetVhtSupported(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiMacHeader::IsCtl(), ns3::WifiMacHeader::IsData(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMac::Receive(), and ns3::WifiRemoteStationManager::RecordDisassociated().

Here is the call graph for this function:

◆ SetAddress()

void ns3::AdhocWifiMac::SetAddress ( Mac48Address address )

overridevirtual

Parameters

address the current address of this MAC layer.

Reimplemented from ns3::WifiMac.

Definition at line 61 of file adhoc-wifi-mac.cc.

References first::address, NS_LOG_FUNCTION, ns3::WifiMac::SetAddress(), and ns3::WifiMac::SetBssid().

Here is the call graph for this function:

◆ SetLinkUpCallback()

void ns3::AdhocWifiMac::SetLinkUpCallback ( Callback< void > linkUp )

overridevirtual

Parameters

linkUp the callback to invoke when the link becomes up.

Reimplemented from ns3::WifiMac.

Definition at line 165 of file adhoc-wifi-mac.cc.

References NS_LOG_FUNCTION, and ns3::WifiMac::SetLinkUpCallback().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/wifi/model/adhoc-wifi-mac.h
src/wifi/model/adhoc-wifi-mac.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Additional Inherited Members

Detailed Description

Config Paths

Attributes defined in parent class ns3::WifiMac

TraceSources defined in parent class ns3::WifiMac

Constructor & Destructor Documentation

◆ AdhocWifiMac()

◆ ~AdhocWifiMac()

Member Function Documentation

◆ CanForwardPacketsTo()

◆ Enqueue()

◆ GetTypeId()

◆ Receive()

◆ SetAddress()

◆ SetLinkUpCallback()
