The IEEE 802.11ac VHT Capabilities. More...

#include "vht-capabilities.h"

Inheritance diagram for ns3::VhtCapabilities:

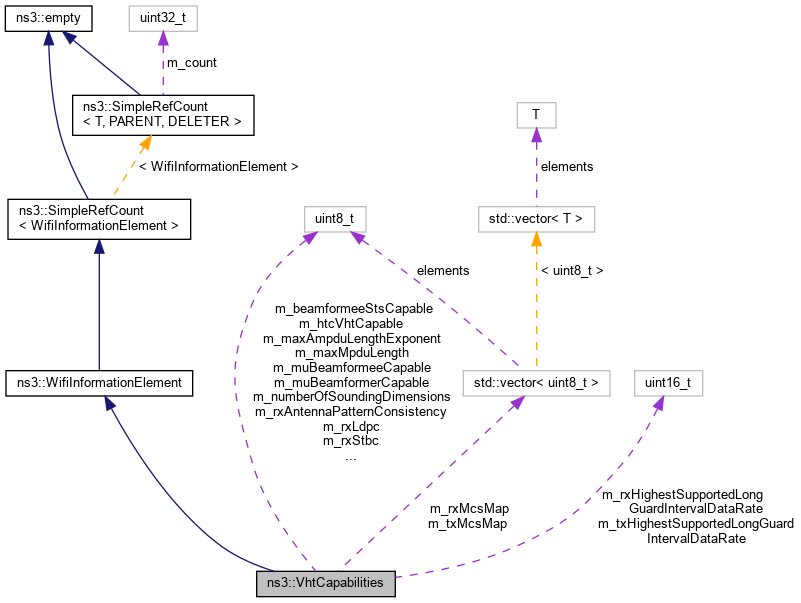

Collaboration diagram for ns3::VhtCapabilities:

Public Member Functions
	VhtCapabilities ()

uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const override

uint8_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint32_t	GetMaxAmpduLength (void) const
	Return the maximum A-MPDU length. More...

uint16_t	GetMaxMpduLength (void) const
	Get the maximum MPDU length. More...

uint16_t	GetRxHighestSupportedLgiDataRate () const
	Get the receive highest supported LGI data rate. More...

uint8_t	GetRxLdpc () const
	Get the receive LDPC. More...

uint8_t	GetRxStbc () const
	Get the receive STBC. More...

uint16_t	GetSerializedSize () const override
	Get the size of the serialized IE including Element ID and length fields. More...

uint8_t	GetSupportedChannelWidthSet () const
	Get the supported channel width set. More...

uint64_t	GetSupportedMcsAndNssSet () const
	Return the MCS and NSS field in the VHT Capabilities information element. More...

uint8_t	GetTxStbc () const
	Get the transmit STBC. More...

uint32_t	GetVhtCapabilitiesInfo () const
	Return the VHT Capabilities Info field in the VHT Capabilities information element. More...

bool	IsSupportedMcs (uint8_t mcs, uint8_t nss) const
	Get the is MCS supported. More...

bool	IsSupportedRxMcs (uint8_t mcs) const
	Returns true if receive MCS is supported. More...

bool	IsSupportedTxMcs (uint8_t mcs) const
	Returns true if transmit MCS is supported. More...

Buffer::Iterator	Serialize (Buffer::Iterator start) const override
	Serialize entire IE including Element ID and length fields. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetMaxAmpduLength (uint32_t maxAmpduLength)
	Set the maximum AMPDU length. More...

void	SetMaxMpduLength (uint16_t length)
	Set the maximum MPDU length. More...

void	SetRxHighestSupportedLgiDataRate (uint16_t supportedDatarate)
	Set the receive highest supported LGI data rate. More...

void	SetRxLdpc (uint8_t rxLdpc)
	Set the receive LDPC. More...

void	SetRxMcsMap (uint8_t mcs, uint8_t nss)

void	SetRxStbc (uint8_t rxStbc)
	Set the receive STBC. More...

void	SetShortGuardIntervalFor160Mhz (uint8_t shortGuardInterval)
	Set the short guard interval 160 MHz. More...

void	SetShortGuardIntervalFor80Mhz (uint8_t shortGuardInterval)
	Set the short guard interval 80 MHz. More...

void	SetSupportedChannelWidthSet (uint8_t channelWidthSet)
	Set the supported channel width set. More...

void	SetSupportedMcsAndNssSet (uint64_t ctrl)
	Set the MCS and NSS field in the VHT Capabilities information element. More...

void	SetTxHighestSupportedLgiDataRate (uint16_t supportedDatarate)
	Set the transmit highest supported LGI data rate. More...

void	SetTxMcsMap (uint8_t mcs, uint8_t nss)

void	SetTxStbc (uint8_t txStbc)
	Set the transmit STBC. More...

void	SetVhtCapabilitiesInfo (uint32_t ctrl)
	Set the VHT Capabilities Info field in the VHT Capabilities information element. More...

void	SetVhtSupported (uint8_t vhtSupported)
	Set the VHT supported field. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_beamformeeStsCapable
	beamformee STS capable More...

uint8_t	m_htcVhtCapable
	HTC VHT capable. More...

uint8_t	m_maxAmpduLengthExponent
	maximum A-MPDU length exponent More...

uint8_t	m_maxMpduLength
	maximum MPDU length More...

uint8_t	m_muBeamformeeCapable
	MU beamformee capable. More...

uint8_t	m_muBeamformerCapable
	MU beamformer capable. More...

uint8_t	m_numberOfSoundingDimensions
	number of sounding dimensions More...

uint8_t	m_rxAntennaPatternConsistency
	receive antenna pattern consistency More...

uint16_t	m_rxHighestSupportedLongGuardIntervalDataRate
	receive highest supported long guard interval data rate More...

uint8_t	m_rxLdpc
	receive LDPC More...

std::vector< uint8_t >	m_rxMcsMap
	receive MCS map More...

uint8_t	m_rxStbc
	receive STBC More...

uint8_t	m_shortGuardIntervalFor160Mhz
	short guard interval for 160 MHz More...

uint8_t	m_shortGuardIntervalFor80Mhz
	short guard interval for 80 MHz More...

uint8_t	m_suBeamformeeCapable
	SU beamformee capable. More...

uint8_t	m_suBeamformerCapable
	SU beamformer capable. More...

uint8_t	m_supportedChannelWidthSet
	supported channel width set More...

uint8_t	m_txAntennaPatternConsistency
	transmit antenna pattern consistency More...

uint16_t	m_txHighestSupportedLongGuardIntervalDataRate
	transmit highest supported long guard interval data rate More...

std::vector< uint8_t >	m_txMcsMap
	transmit MCS map More...

uint8_t	m_txStbc
	transmit STBC More...

uint8_t	m_vhtLinkAdaptationCapable
	VHT link adaptation capable. More...

uint8_t	m_vhtSupported
	This is used to decide if this element should be added to the frame or not. More...

uint8_t	m_vhtTxopPs
	VHT TXOP PS. More...

Detailed Description

The IEEE 802.11ac VHT Capabilities.

Definition at line 34 of file vht-capabilities.h.

Constructor & Destructor Documentation

◆ VhtCapabilities()

ns3::VhtCapabilities::VhtCapabilities ( )

Definition at line 26 of file vht-capabilities.cc.

References m_rxMcsMap, and m_txMcsMap.

Member Function Documentation

◆ DeserializeInformationField()

uint8_t ns3::VhtCapabilities::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

overridevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 111 of file vht-capabilities.cc.

References ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadLsbtohU64(), SetSupportedMcsAndNssSet(), SetVhtCapabilitiesInfo(), and visualizer.core::start().

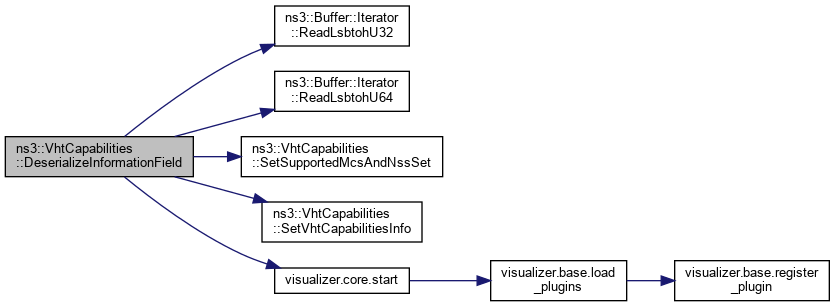

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::VhtCapabilities::ElementId ( ) const

overridevirtual

Returns: Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 60 of file vht-capabilities.cc.

References IE_VHT_CAPABILITIES.

◆ GetInformationFieldSize()

uint8_t ns3::VhtCapabilities::GetInformationFieldSize ( ) const

overridevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 72 of file vht-capabilities.cc.

References m_vhtSupported, and NS_ASSERT.

◆ GetMaxAmpduLength()

uint32_t ns3::VhtCapabilities::GetMaxAmpduLength ( void ) const

Return the maximum A-MPDU length.

Returns: the maximum A-MPDU length in bytes

Definition at line 388 of file vht-capabilities.cc.

References m_maxAmpduLengthExponent.

◆ GetMaxMpduLength()

uint16_t ns3::VhtCapabilities::GetMaxMpduLength ( void ) const

Get the maximum MPDU length.

Returns: the maximum MPDU length in bytes

Definition at line 346 of file vht-capabilities.cc.

References m_maxMpduLength, and NS_ABORT_MSG.

◆ GetRxHighestSupportedLgiDataRate()

uint16_t ns3::VhtCapabilities::GetRxHighestSupportedLgiDataRate ( ) const

Get the receive highest supported LGI data rate.

Returns: the receive highest supported LGI data rate.

Definition at line 413 of file vht-capabilities.cc.

References m_rxHighestSupportedLongGuardIntervalDataRate.

Referenced by ns3::ApWifiMac::Receive(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

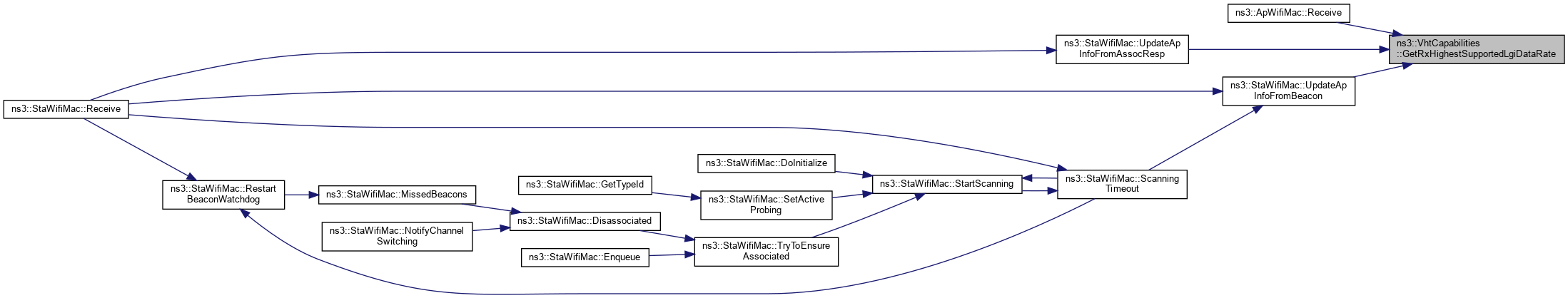

Here is the caller graph for this function:

◆ GetRxLdpc()

uint8_t ns3::VhtCapabilities::GetRxLdpc ( ) const

Get the receive LDPC.

Returns: the receive LDPC

Definition at line 370 of file vht-capabilities.cc.

References m_rxLdpc.

◆ GetRxStbc()

uint8_t ns3::VhtCapabilities::GetRxStbc ( ) const

Get the receive STBC.

Returns: the receive STBC

Definition at line 376 of file vht-capabilities.cc.

References m_rxStbc.

◆ GetSerializedSize()

uint16_t ns3::VhtCapabilities::GetSerializedSize ( void ) const

overridevirtual

Get the size of the serialized IE including Element ID and length fields.

Returns: the size of the serialized IE in bytes

Reimplemented from ns3::WifiInformationElement.

Definition at line 90 of file vht-capabilities.cc.

References ns3::WifiInformationElement::GetSerializedSize(), and m_vhtSupported.

Referenced by ns3::MgtReassocRequestHeader::GetSerializedSize(), ns3::MgtAssocResponseHeader::GetSerializedSize(), ns3::MgtProbeRequestHeader::GetSerializedSize(), ns3::MgtProbeResponseHeader::GetSerializedSize(), and ns3::MgtAssocRequestHeader::GetSerializedSize().

Here is the call graph for this function:

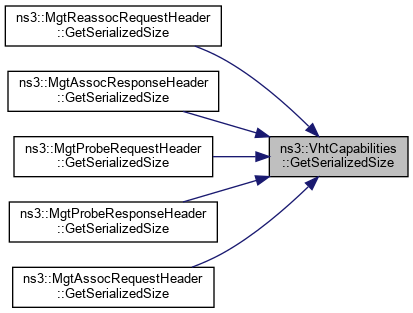

Here is the caller graph for this function:

◆ GetSupportedChannelWidthSet()

uint8_t ns3::VhtCapabilities::GetSupportedChannelWidthSet ( ) const

Get the supported channel width set.

Returns: the supported channel width set

Definition at line 364 of file vht-capabilities.cc.

References m_supportedChannelWidthSet.

Referenced by ns3::WifiRemoteStationManager::AddStationVhtCapabilities().

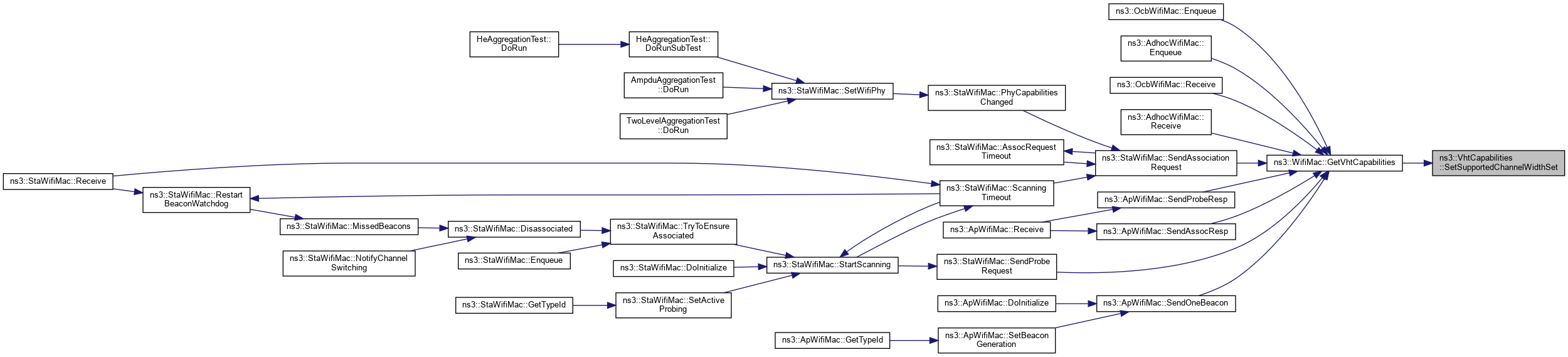

Here is the caller graph for this function:

◆ GetSupportedMcsAndNssSet()

uint64_t ns3::VhtCapabilities::GetSupportedMcsAndNssSet ( ) const

Return the MCS and NSS field in the VHT Capabilities information element.

Returns: the MCS and NSS field in the VHT Capabilities information element

Definition at line 191 of file vht-capabilities.cc.

References m_rxHighestSupportedLongGuardIntervalDataRate, m_rxMcsMap, m_txHighestSupportedLongGuardIntervalDataRate, and m_txMcsMap.

Referenced by ns3::operator<<(), and SerializeInformationField().

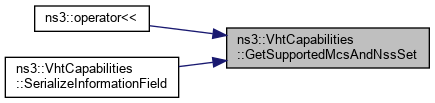

Here is the caller graph for this function:

◆ GetTxStbc()

uint8_t ns3::VhtCapabilities::GetTxStbc ( ) const

Get the transmit STBC.

Returns: the transmit STBC

Definition at line 382 of file vht-capabilities.cc.

References m_txStbc.

◆ GetVhtCapabilitiesInfo()

uint32_t ns3::VhtCapabilities::GetVhtCapabilitiesInfo ( ) const

Return the VHT Capabilities Info field in the VHT Capabilities information element.

Returns: the VHT Capabilities Info field in the VHT Capabilities information element

Definition at line 147 of file vht-capabilities.cc.

References m_beamformeeStsCapable, m_htcVhtCapable, m_maxAmpduLengthExponent, m_maxMpduLength, m_muBeamformeeCapable, m_muBeamformerCapable, m_numberOfSoundingDimensions, m_rxAntennaPatternConsistency, m_rxLdpc, m_rxStbc, m_shortGuardIntervalFor160Mhz, m_shortGuardIntervalFor80Mhz, m_suBeamformeeCapable, m_suBeamformerCapable, m_supportedChannelWidthSet, m_txAntennaPatternConsistency, m_txStbc, m_vhtLinkAdaptationCapable, and m_vhtTxopPs.

Referenced by ns3::operator<<(), ns3::ApWifiMac::Receive(), and SerializeInformationField().

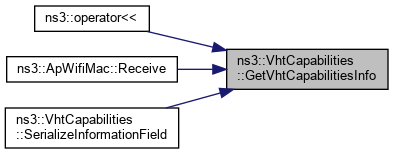

Here is the caller graph for this function:

◆ IsSupportedMcs()

bool ns3::VhtCapabilities::IsSupportedMcs	(	uint8_t	mcs,
		uint8_t	nss
	)		const

Get the is MCS supported.

Parameters

mcs	the MCS
nss	the NSS

Returns: the is MCS supported

Definition at line 394 of file vht-capabilities.cc.

References m_rxMcsMap.

Referenced by ns3::WifiRemoteStationManager::AddStationVhtCapabilities().

Here is the caller graph for this function:

◆ IsSupportedRxMcs()

bool ns3::VhtCapabilities::IsSupportedRxMcs ( uint8_t mcs ) const

Returns true if receive MCS is supported.

Parameters

mcs the MCS

Returns: whether receive MCS is supported

Definition at line 315 of file vht-capabilities.cc.

References m_rxMcsMap, and NS_ASSERT.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

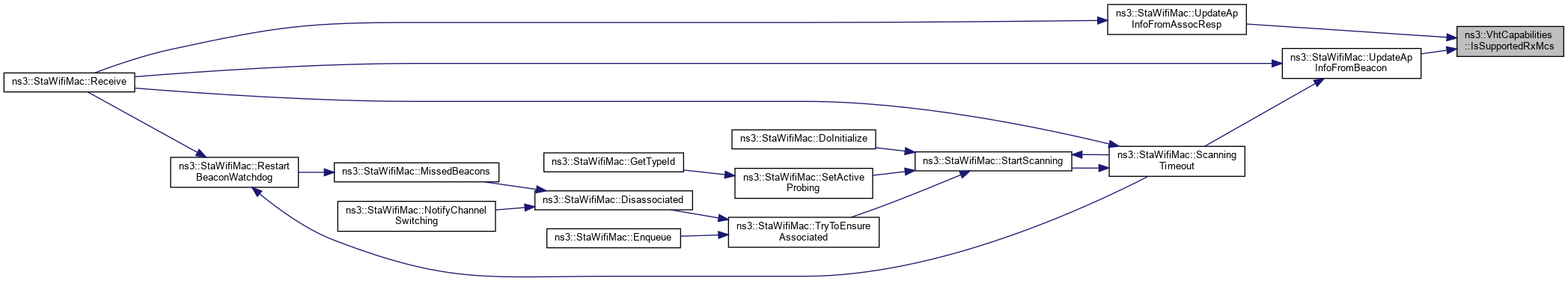

Here is the caller graph for this function:

◆ IsSupportedTxMcs()

bool ns3::VhtCapabilities::IsSupportedTxMcs ( uint8_t mcs ) const

Returns true if transmit MCS is supported.

Parameters

mcs the MCS

Returns: whether transmit MCS is supported

Definition at line 296 of file vht-capabilities.cc.

References m_txMcsMap, and NS_ASSERT.

Referenced by ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

◆ Serialize()

Buffer::Iterator ns3::VhtCapabilities::Serialize ( Buffer::Iterator i ) const

overridevirtual

Serialize entire IE including Element ID and length fields.

Parameters

i	an iterator which points to where the IE should be written.

Returns: an iterator

Reimplemented from ns3::WifiInformationElement.

Definition at line 80 of file vht-capabilities.cc.

References m_vhtSupported, and ns3::WifiInformationElement::Serialize().

Referenced by ns3::MgtReassocRequestHeader::Serialize(), ns3::MgtAssocResponseHeader::Serialize(), ns3::MgtProbeRequestHeader::Serialize(), ns3::MgtProbeResponseHeader::Serialize(), and ns3::MgtAssocRequestHeader::Serialize().

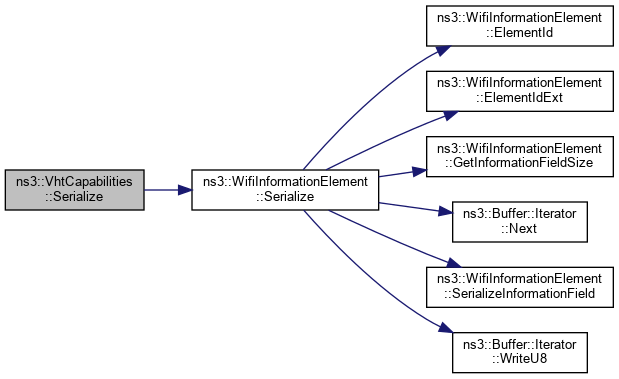

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::VhtCapabilities::SerializeInformationField ( Buffer::Iterator start ) const

overridevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 100 of file vht-capabilities.cc.

References GetSupportedMcsAndNssSet(), GetVhtCapabilitiesInfo(), m_vhtSupported, and visualizer.core::start().

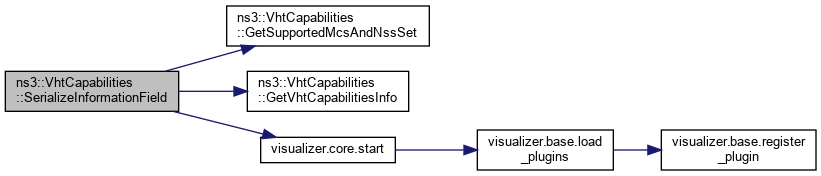

Here is the call graph for this function:

◆ SetMaxAmpduLength()

void ns3::VhtCapabilities::SetMaxAmpduLength ( uint32_t maxAmpduLength )

Set the maximum AMPDU length.

Parameters

maxAmpduLength 2^(13 + x) - 1, x in the range 0 to 7

Definition at line 266 of file vht-capabilities.cc.

References m_maxAmpduLengthExponent, and NS_ABORT_MSG.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetMaxMpduLength()

void ns3::VhtCapabilities::SetMaxMpduLength ( uint16_t length )

Set the maximum MPDU length.

Parameters

length the maximum MPDU length (3895, 7991 or 11454)

Definition at line 211 of file vht-capabilities.cc.

References m_maxMpduLength, and NS_ABORT_MSG_IF.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetRxHighestSupportedLgiDataRate()

void ns3::VhtCapabilities::SetRxHighestSupportedLgiDataRate ( uint16_t supportedDatarate )

Set the receive highest supported LGI data rate.

Parameters

supportedDatarate receive highest supported LGI data rate

Definition at line 334 of file vht-capabilities.cc.

References m_rxHighestSupportedLongGuardIntervalDataRate.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetRxLdpc()

void ns3::VhtCapabilities::SetRxLdpc ( uint8_t rxLdpc )

Set the receive LDPC.

Parameters

rxLdpc the receive LDPC

Definition at line 236 of file vht-capabilities.cc.

References m_rxLdpc.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetRxMcsMap()

void ns3::VhtCapabilities::SetRxMcsMap	(	uint8_t	mcs,
		uint8_t	nss
	)

Parameters

mcs	Max MCS value (between 7 and 9)
nss	Spatial stream for which the Max MCS value is being set

Definition at line 280 of file vht-capabilities.cc.

References m_rxMcsMap, and NS_ASSERT.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetRxStbc()

void ns3::VhtCapabilities::SetRxStbc ( uint8_t rxStbc )

Set the receive STBC.

Parameters

rxStbc the receive STBC

Definition at line 254 of file vht-capabilities.cc.

References m_rxStbc.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetShortGuardIntervalFor160Mhz()

void ns3::VhtCapabilities::SetShortGuardIntervalFor160Mhz ( uint8_t shortGuardInterval )

Set the short guard interval 160 MHz.

Parameters

shortGuardInterval the short guard interval 160 MHz

Definition at line 248 of file vht-capabilities.cc.

References m_shortGuardIntervalFor160Mhz.

Referenced by ns3::WifiMac::GetVhtCapabilities().

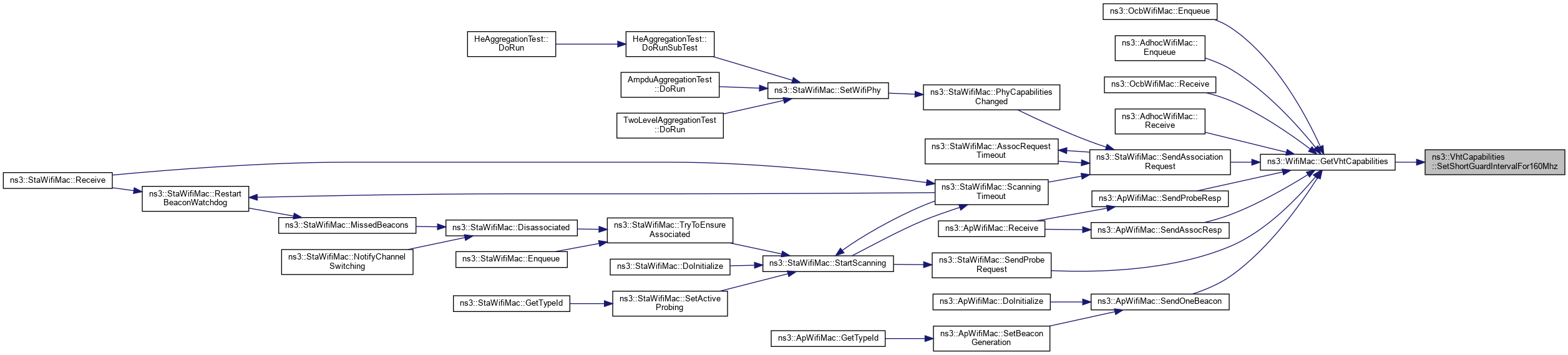

Here is the caller graph for this function:

◆ SetShortGuardIntervalFor80Mhz()

void ns3::VhtCapabilities::SetShortGuardIntervalFor80Mhz ( uint8_t shortGuardInterval )

Set the short guard interval 80 MHz.

Parameters

shortGuardInterval the short guard interval 80 MHz

Definition at line 242 of file vht-capabilities.cc.

References m_shortGuardIntervalFor80Mhz.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetSupportedChannelWidthSet()

void ns3::VhtCapabilities::SetSupportedChannelWidthSet ( uint8_t channelWidthSet )

Set the supported channel width set.

Parameters

channelWidthSet the supported channel width set

Definition at line 230 of file vht-capabilities.cc.

References m_supportedChannelWidthSet.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetSupportedMcsAndNssSet()

void ns3::VhtCapabilities::SetSupportedMcsAndNssSet ( uint64_t ctrl )

Set the MCS and NSS field in the VHT Capabilities information element.

Parameters

ctrl	the MCS and NSS field in the VHT Capabilities information element

Definition at line 173 of file vht-capabilities.cc.

References m_rxHighestSupportedLongGuardIntervalDataRate, m_rxMcsMap, m_txHighestSupportedLongGuardIntervalDataRate, and m_txMcsMap.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetTxHighestSupportedLgiDataRate()

void ns3::VhtCapabilities::SetTxHighestSupportedLgiDataRate ( uint16_t supportedDatarate )

Set the transmit highest supported LGI data rate.

Parameters

supportedDatarate transmit highest supported LGI data rate

Definition at line 340 of file vht-capabilities.cc.

References m_txHighestSupportedLongGuardIntervalDataRate.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetTxMcsMap()

void ns3::VhtCapabilities::SetTxMcsMap	(	uint8_t	mcs,
		uint8_t	nss
	)

Parameters

mcs	Max MCS value (between 7 and 9)
nss	Spatial stream for which the Max MCS value is being set

Definition at line 288 of file vht-capabilities.cc.

References m_txMcsMap, and NS_ASSERT.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetTxStbc()

void ns3::VhtCapabilities::SetTxStbc ( uint8_t txStbc )

Set the transmit STBC.

Parameters

txStbc the receive STBC

Definition at line 260 of file vht-capabilities.cc.

References m_txStbc.

Referenced by ns3::WifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetVhtCapabilitiesInfo()

void ns3::VhtCapabilities::SetVhtCapabilitiesInfo ( uint32_t ctrl )

Set the VHT Capabilities Info field in the VHT Capabilities information element.

Parameters

ctrl	the VHT Capabilities Info field in the VHT Capabilities information element

Definition at line 123 of file vht-capabilities.cc.

References m_beamformeeStsCapable, m_htcVhtCapable, m_maxAmpduLengthExponent, m_maxMpduLength, m_muBeamformeeCapable, m_muBeamformerCapable, m_numberOfSoundingDimensions, m_rxAntennaPatternConsistency, m_rxLdpc, m_rxStbc, m_shortGuardIntervalFor160Mhz, m_shortGuardIntervalFor80Mhz, m_suBeamformeeCapable, m_suBeamformerCapable, m_supportedChannelWidthSet, m_txAntennaPatternConsistency, m_txStbc, m_vhtLinkAdaptationCapable, and m_vhtTxopPs.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetVhtSupported()

void ns3::VhtCapabilities::SetVhtSupported ( uint8_t vhtSupported )

Set the VHT supported field.

Parameters

vhtSupported the VHT supported field

Definition at line 66 of file vht-capabilities.cc.

References m_vhtSupported.

Referenced by ns3::WifiMac::GetVhtCapabilities().

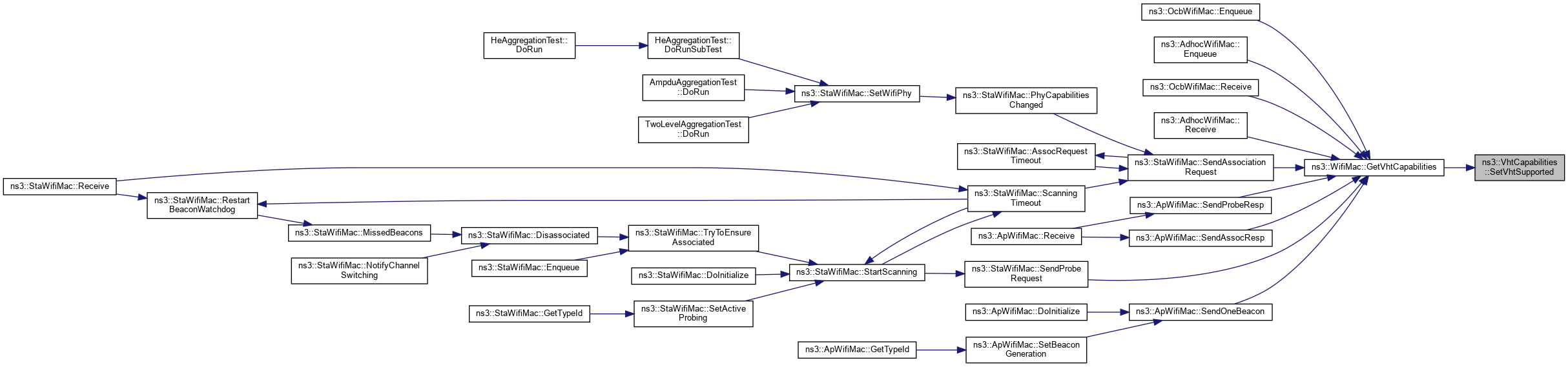

Here is the caller graph for this function:

Member Data Documentation

◆ m_beamformeeStsCapable

uint8_t ns3::VhtCapabilities::m_beamformeeStsCapable

private

beamformee STS capable

Definition at line 237 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_htcVhtCapable

uint8_t ns3::VhtCapabilities::m_htcVhtCapable

private

HTC VHT capable.

Definition at line 242 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_maxAmpduLengthExponent

uint8_t ns3::VhtCapabilities::m_maxAmpduLengthExponent

private

maximum A-MPDU length exponent

Definition at line 243 of file vht-capabilities.h.

Referenced by GetMaxAmpduLength(), GetVhtCapabilitiesInfo(), SetMaxAmpduLength(), and SetVhtCapabilitiesInfo().

◆ m_maxMpduLength

uint8_t ns3::VhtCapabilities::m_maxMpduLength

private

maximum MPDU length

Definition at line 228 of file vht-capabilities.h.

Referenced by GetMaxMpduLength(), GetVhtCapabilitiesInfo(), SetMaxMpduLength(), and SetVhtCapabilitiesInfo().

◆ m_muBeamformeeCapable

uint8_t ns3::VhtCapabilities::m_muBeamformeeCapable

private

MU beamformee capable.

Definition at line 240 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_muBeamformerCapable

uint8_t ns3::VhtCapabilities::m_muBeamformerCapable

private

MU beamformer capable.

Definition at line 239 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_numberOfSoundingDimensions

uint8_t ns3::VhtCapabilities::m_numberOfSoundingDimensions

private

number of sounding dimensions

Definition at line 238 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_rxAntennaPatternConsistency

uint8_t ns3::VhtCapabilities::m_rxAntennaPatternConsistency

private

receive antenna pattern consistency

Definition at line 245 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_rxHighestSupportedLongGuardIntervalDataRate

uint16_t ns3::VhtCapabilities::m_rxHighestSupportedLongGuardIntervalDataRate

private

receive highest supported long guard interval data rate

Definition at line 250 of file vht-capabilities.h.

Referenced by GetRxHighestSupportedLgiDataRate(), GetSupportedMcsAndNssSet(), SetRxHighestSupportedLgiDataRate(), and SetSupportedMcsAndNssSet().

◆ m_rxLdpc

uint8_t ns3::VhtCapabilities::m_rxLdpc

private

receive LDPC

Definition at line 230 of file vht-capabilities.h.

Referenced by GetRxLdpc(), GetVhtCapabilitiesInfo(), SetRxLdpc(), and SetVhtCapabilitiesInfo().

◆ m_rxMcsMap

std::vector<uint8_t> ns3::VhtCapabilities::m_rxMcsMap

private

receive MCS map

Definition at line 249 of file vht-capabilities.h.

Referenced by VhtCapabilities(), GetSupportedMcsAndNssSet(), IsSupportedMcs(), IsSupportedRxMcs(), SetRxMcsMap(), and SetSupportedMcsAndNssSet().

◆ m_rxStbc

uint8_t ns3::VhtCapabilities::m_rxStbc

private

receive STBC

Definition at line 234 of file vht-capabilities.h.

Referenced by GetRxStbc(), GetVhtCapabilitiesInfo(), SetRxStbc(), and SetVhtCapabilitiesInfo().

◆ m_shortGuardIntervalFor160Mhz

uint8_t ns3::VhtCapabilities::m_shortGuardIntervalFor160Mhz

private

short guard interval for 160 MHz

Definition at line 232 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), SetShortGuardIntervalFor160Mhz(), and SetVhtCapabilitiesInfo().

◆ m_shortGuardIntervalFor80Mhz

uint8_t ns3::VhtCapabilities::m_shortGuardIntervalFor80Mhz

private

short guard interval for 80 MHz

Definition at line 231 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), SetShortGuardIntervalFor80Mhz(), and SetVhtCapabilitiesInfo().

◆ m_suBeamformeeCapable

uint8_t ns3::VhtCapabilities::m_suBeamformeeCapable

private

SU beamformee capable.

Definition at line 236 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_suBeamformerCapable

uint8_t ns3::VhtCapabilities::m_suBeamformerCapable

private

SU beamformer capable.

Definition at line 235 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_supportedChannelWidthSet

uint8_t ns3::VhtCapabilities::m_supportedChannelWidthSet

private

supported channel width set

Definition at line 229 of file vht-capabilities.h.

Referenced by GetSupportedChannelWidthSet(), GetVhtCapabilitiesInfo(), SetSupportedChannelWidthSet(), and SetVhtCapabilitiesInfo().

◆ m_txAntennaPatternConsistency

uint8_t ns3::VhtCapabilities::m_txAntennaPatternConsistency

private

transmit antenna pattern consistency

Definition at line 246 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_txHighestSupportedLongGuardIntervalDataRate

uint16_t ns3::VhtCapabilities::m_txHighestSupportedLongGuardIntervalDataRate

private

transmit highest supported long guard interval data rate

Definition at line 252 of file vht-capabilities.h.

Referenced by GetSupportedMcsAndNssSet(), SetSupportedMcsAndNssSet(), and SetTxHighestSupportedLgiDataRate().

◆ m_txMcsMap

std::vector<uint8_t> ns3::VhtCapabilities::m_txMcsMap

private

transmit MCS map

Definition at line 251 of file vht-capabilities.h.

Referenced by VhtCapabilities(), GetSupportedMcsAndNssSet(), IsSupportedTxMcs(), SetSupportedMcsAndNssSet(), and SetTxMcsMap().

◆ m_txStbc

uint8_t ns3::VhtCapabilities::m_txStbc

private

transmit STBC

Definition at line 233 of file vht-capabilities.h.

Referenced by GetTxStbc(), GetVhtCapabilitiesInfo(), SetTxStbc(), and SetVhtCapabilitiesInfo().

◆ m_vhtLinkAdaptationCapable

uint8_t ns3::VhtCapabilities::m_vhtLinkAdaptationCapable

private

VHT link adaptation capable.

Definition at line 244 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_vhtSupported

uint8_t ns3::VhtCapabilities::m_vhtSupported

private

This is used to decide if this element should be added to the frame or not.

Definition at line 255 of file vht-capabilities.h.

Referenced by GetInformationFieldSize(), GetSerializedSize(), Serialize(), SerializeInformationField(), and SetVhtSupported().

◆ m_vhtTxopPs

uint8_t ns3::VhtCapabilities::m_vhtTxopPs

private

VHT TXOP PS.

Definition at line 241 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

The documentation for this class was generated from the following files:

src/wifi/model/vht/vht-capabilities.h
src/wifi/model/vht/vht-capabilities.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VhtCapabilities()

Member Function Documentation

◆ DeserializeInformationField()

◆ ElementId()

◆ GetInformationFieldSize()

◆ GetMaxAmpduLength()

◆ GetMaxMpduLength()

◆ GetRxHighestSupportedLgiDataRate()

◆ GetRxLdpc()

◆ GetRxStbc()

◆ GetSerializedSize()

◆ GetSupportedChannelWidthSet()

◆ GetSupportedMcsAndNssSet()

◆ GetTxStbc()

◆ GetVhtCapabilitiesInfo()

◆ IsSupportedMcs()

◆ IsSupportedRxMcs()

◆ IsSupportedTxMcs()

◆ Serialize()

◆ SerializeInformationField()

◆ SetMaxAmpduLength()

◆ SetMaxMpduLength()

◆ SetRxHighestSupportedLgiDataRate()

◆ SetRxLdpc()

◆ SetRxMcsMap()

◆ SetRxStbc()

◆ SetShortGuardIntervalFor160Mhz()

◆ SetShortGuardIntervalFor80Mhz()

◆ SetSupportedChannelWidthSet()

◆ SetSupportedMcsAndNssSet()

◆ SetTxHighestSupportedLgiDataRate()

◆ SetTxMcsMap()

◆ SetTxStbc()

◆ SetVhtCapabilitiesInfo()

◆ SetVhtSupported()

Member Data Documentation

◆ m_beamformeeStsCapable

◆ m_htcVhtCapable

◆ m_maxAmpduLengthExponent

◆ m_maxMpduLength

◆ m_muBeamformeeCapable

◆ m_muBeamformerCapable

◆ m_numberOfSoundingDimensions

◆ m_rxAntennaPatternConsistency

◆ m_rxHighestSupportedLongGuardIntervalDataRate

◆ m_rxLdpc

◆ m_rxMcsMap

◆ m_rxStbc

◆ m_shortGuardIntervalFor160Mhz

◆ m_shortGuardIntervalFor80Mhz

◆ m_suBeamformeeCapable

◆ m_suBeamformerCapable

◆ m_supportedChannelWidthSet

◆ m_txAntennaPatternConsistency

◆ m_txHighestSupportedLongGuardIntervalDataRate

◆ m_txMcsMap

◆ m_txStbc

◆ m_vhtLinkAdaptationCapable

◆ m_vhtSupported

◆ m_vhtTxopPs
