Implement the header for management frames of type association and reassociation response. More...

#include "mgt-headers.h"

Inheritance diagram for ns3::MgtAssocResponseHeader:

Collaboration diagram for ns3::MgtAssocResponseHeader:

Public Member Functions
	MgtAssocResponseHeader ()

	~MgtAssocResponseHeader ()

uint32_t	Deserialize (Buffer::Iterator start)

uint16_t	GetAssociationId (void) const
	Return the association ID. More...

CapabilityInformation	GetCapabilities (void) const
	Return the Capability information. More...

EdcaParameterSet	GetEdcaParameterSet (void) const
	Return the EDCA Parameter Set. More...

ErpInformation	GetErpInformation (void) const
	Return the ERP information. More...

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities. More...

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities. More...

HeOperation	GetHeOperation (void) const
	Return the HE operation. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities. More...

HtOperation	GetHtOperation (void) const
	Return the HT operation. More...

TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

MuEdcaParameterSet	GetMuEdcaParameterSet (void) const
	Return the MU EDCA Parameter Set. More...

uint32_t	GetSerializedSize (void) const

StatusCode	GetStatusCode (void)
	Return the status code. More...

SupportedRates	GetSupportedRates (void)
	Return the supported rates. More...

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities. More...

VhtOperation	GetVhtOperation (void) const
	Return the VHT operation. More...

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetAssociationId (uint16_t aid)
	Set the association ID. More...

void	SetCapabilities (CapabilityInformation capabilities)
	Set the Capability information. More...

void	SetEdcaParameterSet (EdcaParameterSet edcaParameterSet)
	Set the EDCA Parameter Set. More...

void	SetErpInformation (ErpInformation erpInformation)
	Set the ERP information. More...

void	SetExtendedCapabilities (ExtendedCapabilities extendedCapabilities)
	Set the extended capabilities. More...

void	SetHeCapabilities (HeCapabilities heCapabilities)
	Set the HE capabilities. More...

void	SetHeOperation (HeOperation heOperation)
	Set the HE operation. More...

void	SetHtCapabilities (HtCapabilities htCapabilities)
	Set the HT capabilities. More...

void	SetHtOperation (HtOperation htOperation)
	Set the HT operation. More...

void	SetMuEdcaParameterSet (MuEdcaParameterSet muEdcaParameterSet)
	Set the MU EDCA Parameter Set. More...

void	SetStatusCode (StatusCode code)
	Set the status code. More...

void	SetSupportedRates (SupportedRates rates)
	Set the supported rates. More...

void	SetVhtCapabilities (VhtCapabilities vhtCapabilities)
	Set the VHT capabilities. More...

void	SetVhtOperation (VhtOperation vhtOperation)
	Set the VHT operation. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_aid
	AID. More...

CapabilityInformation	m_capability
	Capability information. More...

StatusCode	m_code
	Status code. More...

EdcaParameterSet	m_edcaParameterSet
	EDCA Parameter Set. More...

ErpInformation	m_erpInformation
	ERP information. More...

ExtendedCapabilities	m_extendedCapability
	extended capabilities More...

HeCapabilities	m_heCapability
	HE capabilities. More...

HeOperation	m_heOperation
	HE operation. More...

HtCapabilities	m_htCapability
	HT capabilities. More...

HtOperation	m_htOperation
	HT operation. More...

MuEdcaParameterSet	m_muEdcaParameterSet
	MU EDCA Parameter Set. More...

SupportedRates	m_rates
	List of supported rates. More...

VhtCapabilities	m_vhtCapability
	VHT capabilities. More...

VhtOperation	m_vhtOperation
	VHT operation. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the header for management frames of type association and reassociation response.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 864 bytes (on a 64-bit architecture).

Definition at line 319 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ MgtAssocResponseHeader()

ns3::MgtAssocResponseHeader::MgtAssocResponseHeader ( )

Definition at line 904 of file mgt-headers.cc.

◆ ~MgtAssocResponseHeader()

ns3::MgtAssocResponseHeader::~MgtAssocResponseHeader ( )

Definition at line 909 of file mgt-headers.cc.

Member Function Documentation

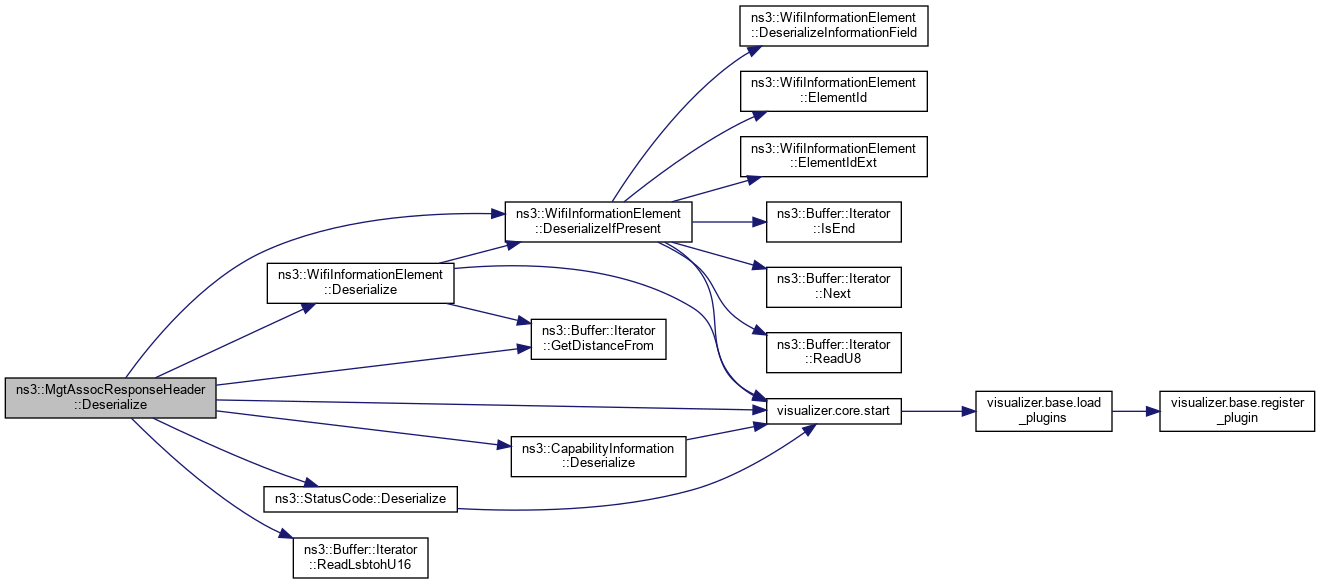

◆ Deserialize()

uint32_t ns3::MgtAssocResponseHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1158 of file mgt-headers.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::CapabilityInformation::Deserialize(), ns3::StatusCode::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_aid, m_capability, m_code, m_edcaParameterSet, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_muEdcaParameterSet, m_rates, m_vhtCapability, m_vhtOperation, ns3::Buffer::Iterator::ReadLsbtohU16(), and visualizer.core::start().

Here is the call graph for this function:

◆ GetAssociationId()

uint16_t ns3::MgtAssocResponseHeader::GetAssociationId ( void ) const

Return the association ID.

Returns: the association ID

Definition at line 1040 of file mgt-headers.cc.

References m_aid.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ GetCapabilities()

CapabilityInformation ns3::MgtAssocResponseHeader::GetCapabilities ( void ) const

Return the Capability information.

Returns: Capability information

Definition at line 944 of file mgt-headers.cc.

References m_capability.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetEdcaParameterSet()

EdcaParameterSet ns3::MgtAssocResponseHeader::GetEdcaParameterSet ( void ) const

Return the EDCA Parameter Set.

Returns: the EDCA Parameter Set

Definition at line 1070 of file mgt-headers.cc.

References m_edcaParameterSet.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetErpInformation()

ErpInformation ns3::MgtAssocResponseHeader::GetErpInformation ( void ) const

Return the ERP information.

Returns: the ERP information

Definition at line 1052 of file mgt-headers.cc.

References m_erpInformation.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetExtendedCapabilities()

ExtendedCapabilities ns3::MgtAssocResponseHeader::GetExtendedCapabilities ( void ) const

Return the extended capabilities.

Returns: the extended capabilities

Definition at line 956 of file mgt-headers.cc.

References m_extendedCapability.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetHeCapabilities()

HeCapabilities ns3::MgtAssocResponseHeader::GetHeCapabilities ( void ) const

Return the HE capabilities.

Returns: HE capabilities

Definition at line 1016 of file mgt-headers.cc.

References m_heCapability.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetHeOperation()

HeOperation ns3::MgtAssocResponseHeader::GetHeOperation ( void ) const

Return the HE operation.

Returns: HE operation

Definition at line 1028 of file mgt-headers.cc.

References m_heOperation.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetHtCapabilities()

HtCapabilities ns3::MgtAssocResponseHeader::GetHtCapabilities ( void ) const

Return the HT capabilities.

Returns: HT capabilities

Definition at line 968 of file mgt-headers.cc.

References m_htCapability.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetHtOperation()

HtOperation ns3::MgtAssocResponseHeader::GetHtOperation ( void ) const

Return the HT operation.

Returns: HT operation

Definition at line 980 of file mgt-headers.cc.

References m_htOperation.

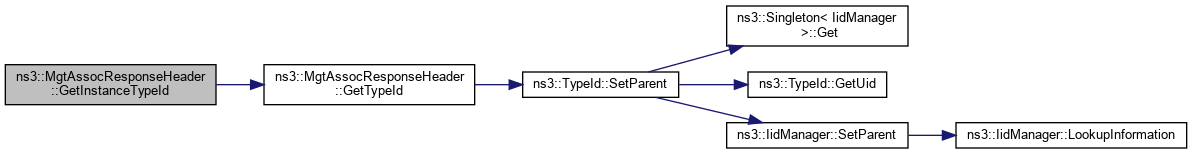

◆ GetInstanceTypeId()

TypeId ns3::MgtAssocResponseHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1093 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetMuEdcaParameterSet()

MuEdcaParameterSet ns3::MgtAssocResponseHeader::GetMuEdcaParameterSet ( void ) const

Return the MU EDCA Parameter Set.

Returns: the MU EDCA Parameter Set

Definition at line 1076 of file mgt-headers.cc.

References m_muEdcaParameterSet.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::MgtAssocResponseHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1099 of file mgt-headers.cc.

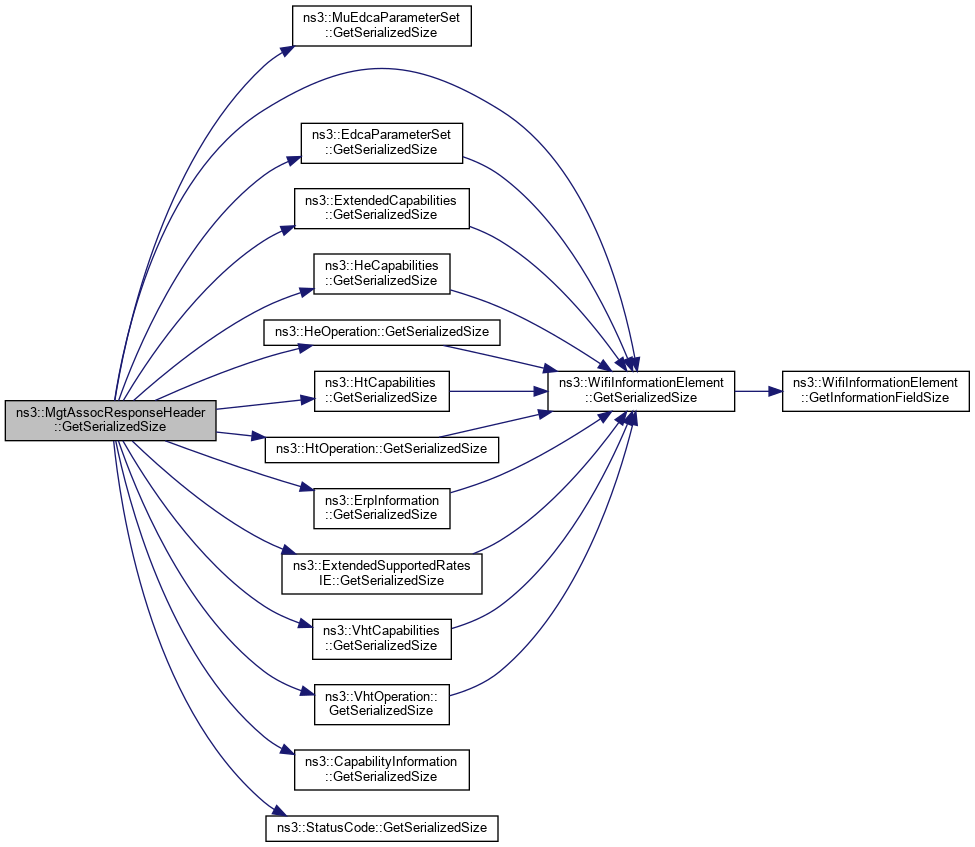

Here is the call graph for this function:

◆ GetStatusCode()

StatusCode ns3::MgtAssocResponseHeader::GetStatusCode ( void )

Return the status code.

Returns: the status code

Definition at line 914 of file mgt-headers.cc.

References m_code.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ GetSupportedRates()

SupportedRates ns3::MgtAssocResponseHeader::GetSupportedRates ( void )

Return the supported rates.

Returns: the supported rates

Definition at line 920 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MgtAssocResponseHeader::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 1082 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

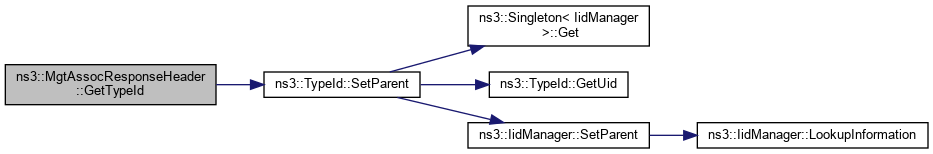

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtCapabilities()

VhtCapabilities ns3::MgtAssocResponseHeader::GetVhtCapabilities ( void ) const

Return the VHT capabilities.

Returns: VHT capabilities

Definition at line 992 of file mgt-headers.cc.

References m_vhtCapability.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ GetVhtOperation()

VhtOperation ns3::MgtAssocResponseHeader::GetVhtOperation ( void ) const

Return the VHT operation.

Returns: VHT operation

Definition at line 1004 of file mgt-headers.cc.

References m_vhtOperation.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp().

Here is the caller graph for this function:

◆ Print()

void ns3::MgtAssocResponseHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1121 of file mgt-headers.cc.

References m_aid, m_code, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_rates, m_vhtCapability, and m_vhtOperation.

◆ Serialize()

void ns3::MgtAssocResponseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1137 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_aid, m_capability, m_code, m_edcaParameterSet, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_muEdcaParameterSet, m_rates, m_vhtCapability, m_vhtOperation, ns3::WifiInformationElement::Serialize(), ns3::CapabilityInformation::Serialize(), ns3::MuEdcaParameterSet::Serialize(), ns3::StatusCode::Serialize(), ns3::EdcaParameterSet::Serialize(), ns3::ExtendedCapabilities::Serialize(), ns3::HeCapabilities::Serialize(), ns3::HeOperation::Serialize(), ns3::HtCapabilities::Serialize(), ns3::HtOperation::Serialize(), ns3::ErpInformation::Serialize(), ns3::ExtendedSupportedRatesIE::Serialize(), ns3::VhtCapabilities::Serialize(), ns3::VhtOperation::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

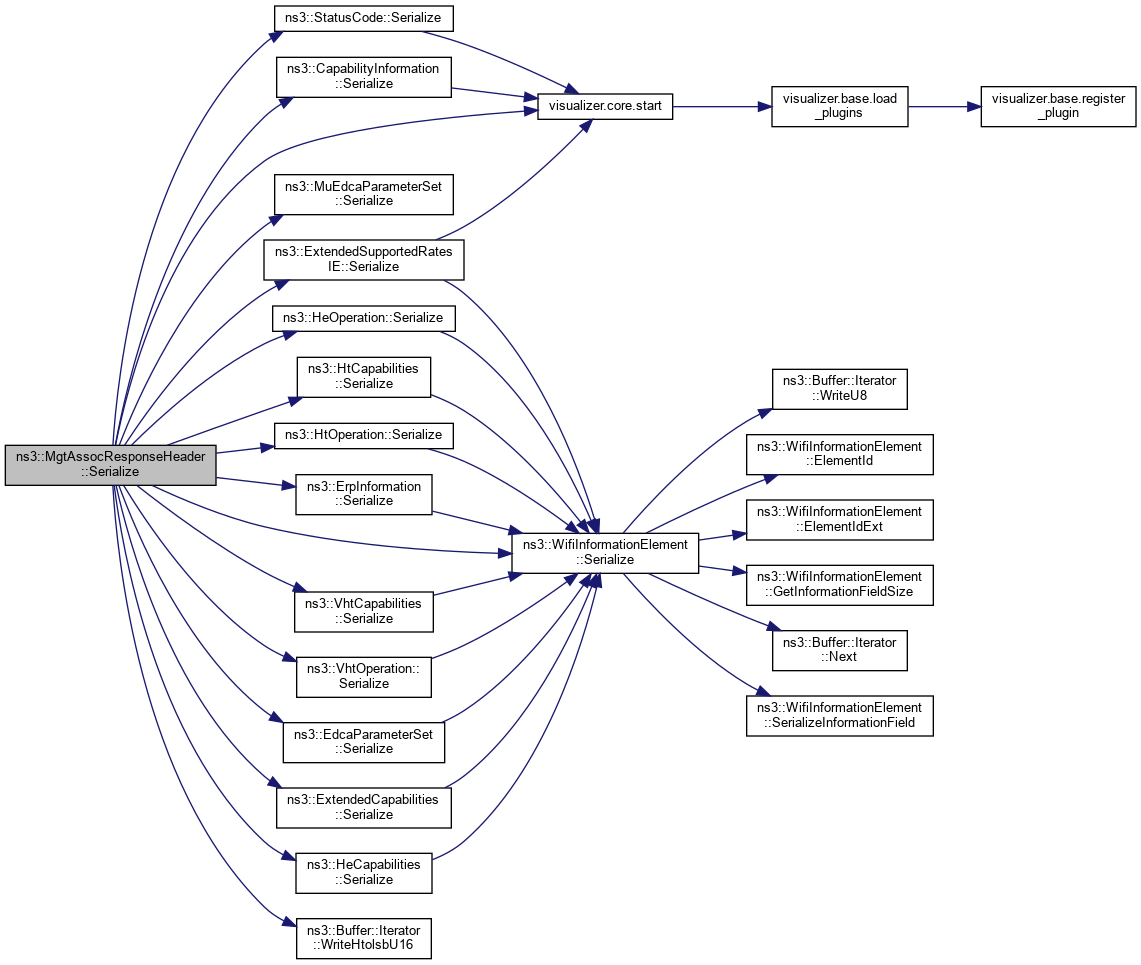

Here is the call graph for this function:

◆ SetAssociationId()

void ns3::MgtAssocResponseHeader::SetAssociationId ( uint16_t aid )

Set the association ID.

Parameters

aid	the association ID

Definition at line 1034 of file mgt-headers.cc.

References m_aid.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetCapabilities()

void ns3::MgtAssocResponseHeader::SetCapabilities ( CapabilityInformation capabilities )

Set the Capability information.

Parameters

capabilities Capability information

Definition at line 938 of file mgt-headers.cc.

References m_capability.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetEdcaParameterSet()

void ns3::MgtAssocResponseHeader::SetEdcaParameterSet ( EdcaParameterSet edcaParameterSet )

Set the EDCA Parameter Set.

Parameters

edcaParameterSet the EDCA Parameter Set

Definition at line 1058 of file mgt-headers.cc.

References m_edcaParameterSet.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetErpInformation()

void ns3::MgtAssocResponseHeader::SetErpInformation ( ErpInformation erpInformation )

Set the ERP information.

Parameters

erpInformation the ERP information

Definition at line 1046 of file mgt-headers.cc.

References m_erpInformation.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetExtendedCapabilities()

void ns3::MgtAssocResponseHeader::SetExtendedCapabilities ( ExtendedCapabilities extendedCapabilities )

Set the extended capabilities.

Parameters

extendedCapabilities the extended capabilities

Definition at line 950 of file mgt-headers.cc.

References m_extendedCapability.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetHeCapabilities()

void ns3::MgtAssocResponseHeader::SetHeCapabilities ( HeCapabilities heCapabilities )

Set the HE capabilities.

Parameters

heCapabilities HE capabilities

Definition at line 1010 of file mgt-headers.cc.

References m_heCapability.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetHeOperation()

void ns3::MgtAssocResponseHeader::SetHeOperation ( HeOperation heOperation )

Set the HE operation.

Parameters

heOperation HE operation

Definition at line 1022 of file mgt-headers.cc.

References m_heOperation.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetHtCapabilities()

void ns3::MgtAssocResponseHeader::SetHtCapabilities ( HtCapabilities htCapabilities )

Set the HT capabilities.

Parameters

htCapabilities HT capabilities

Definition at line 962 of file mgt-headers.cc.

References m_htCapability.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetHtOperation()

void ns3::MgtAssocResponseHeader::SetHtOperation ( HtOperation htOperation )

Set the HT operation.

Parameters

htOperation HT operation

Definition at line 974 of file mgt-headers.cc.

References m_htOperation.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetMuEdcaParameterSet()

void ns3::MgtAssocResponseHeader::SetMuEdcaParameterSet ( MuEdcaParameterSet muEdcaParameterSet )

Set the MU EDCA Parameter Set.

Parameters

muEdcaParameterSet the MU EDCA Parameter Set

Definition at line 1064 of file mgt-headers.cc.

References m_muEdcaParameterSet.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetStatusCode()

void ns3::MgtAssocResponseHeader::SetStatusCode ( StatusCode code )

Set the status code.

Parameters

code	the status code

Definition at line 926 of file mgt-headers.cc.

References m_code.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetSupportedRates()

void ns3::MgtAssocResponseHeader::SetSupportedRates ( SupportedRates rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 932 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetVhtCapabilities()

void ns3::MgtAssocResponseHeader::SetVhtCapabilities ( VhtCapabilities vhtCapabilities )

Set the VHT capabilities.

Parameters

vhtCapabilities VHT capabilities

Definition at line 986 of file mgt-headers.cc.

References m_vhtCapability.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetVhtOperation()

void ns3::MgtAssocResponseHeader::SetVhtOperation ( VhtOperation vhtOperation )

Set the VHT operation.

Parameters

vhtOperation VHT operation

Definition at line 998 of file mgt-headers.cc.

References m_vhtOperation.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

Member Data Documentation

◆ m_aid

uint16_t ns3::MgtAssocResponseHeader::m_aid

private

AID.

Definition at line 510 of file mgt-headers.h.

Referenced by Deserialize(), GetAssociationId(), Print(), Serialize(), and SetAssociationId().

◆ m_capability

CapabilityInformation ns3::MgtAssocResponseHeader::m_capability

private

Capability information.

Definition at line 508 of file mgt-headers.h.

Referenced by Deserialize(), GetCapabilities(), GetSerializedSize(), Serialize(), and SetCapabilities().

◆ m_code

StatusCode ns3::MgtAssocResponseHeader::m_code

private

Status code.

Definition at line 509 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetStatusCode(), Print(), Serialize(), and SetStatusCode().

◆ m_edcaParameterSet

EdcaParameterSet ns3::MgtAssocResponseHeader::m_edcaParameterSet

private

EDCA Parameter Set.

Definition at line 517 of file mgt-headers.h.

Referenced by Deserialize(), GetEdcaParameterSet(), GetSerializedSize(), Serialize(), and SetEdcaParameterSet().

◆ m_erpInformation

ErpInformation ns3::MgtAssocResponseHeader::m_erpInformation

private

ERP information.

Definition at line 516 of file mgt-headers.h.

Referenced by Deserialize(), GetErpInformation(), GetSerializedSize(), Print(), Serialize(), and SetErpInformation().

◆ m_extendedCapability

ExtendedCapabilities ns3::MgtAssocResponseHeader::m_extendedCapability

private

extended capabilities

Definition at line 511 of file mgt-headers.h.

Referenced by Deserialize(), GetExtendedCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetExtendedCapabilities().

◆ m_heCapability

HeCapabilities ns3::MgtAssocResponseHeader::m_heCapability

private

HE capabilities.

Definition at line 518 of file mgt-headers.h.

Referenced by Deserialize(), GetHeCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHeCapabilities().

◆ m_heOperation

HeOperation ns3::MgtAssocResponseHeader::m_heOperation

private

HE operation.

Definition at line 519 of file mgt-headers.h.

Referenced by Deserialize(), GetHeOperation(), GetSerializedSize(), Print(), Serialize(), and SetHeOperation().

◆ m_htCapability

HtCapabilities ns3::MgtAssocResponseHeader::m_htCapability

private

HT capabilities.

Definition at line 512 of file mgt-headers.h.

Referenced by Deserialize(), GetHtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHtCapabilities().

◆ m_htOperation

HtOperation ns3::MgtAssocResponseHeader::m_htOperation

private

HT operation.

Definition at line 513 of file mgt-headers.h.

Referenced by Deserialize(), GetHtOperation(), GetSerializedSize(), Print(), Serialize(), and SetHtOperation().

◆ m_muEdcaParameterSet

MuEdcaParameterSet ns3::MgtAssocResponseHeader::m_muEdcaParameterSet

private

MU EDCA Parameter Set.

Definition at line 520 of file mgt-headers.h.

Referenced by Deserialize(), GetMuEdcaParameterSet(), GetSerializedSize(), Serialize(), and SetMuEdcaParameterSet().

◆ m_rates

SupportedRates ns3::MgtAssocResponseHeader::m_rates

private

List of supported rates.

Definition at line 507 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSupportedRates(), Print(), Serialize(), and SetSupportedRates().

◆ m_vhtCapability

VhtCapabilities ns3::MgtAssocResponseHeader::m_vhtCapability

private

VHT capabilities.

Definition at line 514 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetVhtCapabilities(), Print(), Serialize(), and SetVhtCapabilities().

◆ m_vhtOperation

VhtOperation ns3::MgtAssocResponseHeader::m_vhtOperation

private

VHT operation.

Definition at line 515 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetVhtOperation(), Print(), Serialize(), and SetVhtOperation().

The documentation for this class was generated from the following files:

src/wifi/model/mgt-headers.h
src/wifi/model/mgt-headers.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MgtAssocResponseHeader()

◆ ~MgtAssocResponseHeader()

Member Function Documentation

◆ Deserialize()

◆ GetAssociationId()

◆ GetCapabilities()

◆ GetEdcaParameterSet()

◆ GetErpInformation()

◆ GetExtendedCapabilities()

◆ GetHeCapabilities()

◆ GetHeOperation()

◆ GetHtCapabilities()

◆ GetHtOperation()

◆ GetInstanceTypeId()

◆ GetMuEdcaParameterSet()

◆ GetSerializedSize()

◆ GetStatusCode()

◆ GetSupportedRates()

◆ GetTypeId()

◆ GetVhtCapabilities()

◆ GetVhtOperation()

◆ Print()

◆ Serialize()

◆ SetAssociationId()

◆ SetCapabilities()

◆ SetEdcaParameterSet()

◆ SetErpInformation()

◆ SetExtendedCapabilities()

◆ SetHeCapabilities()

◆ SetHeOperation()

◆ SetHtCapabilities()

◆ SetHtOperation()

◆ SetMuEdcaParameterSet()

◆ SetStatusCode()

◆ SetSupportedRates()

◆ SetVhtCapabilities()

◆ SetVhtOperation()

Member Data Documentation

◆ m_aid

◆ m_capability

◆ m_code

◆ m_edcaParameterSet

◆ m_erpInformation

◆ m_extendedCapability

◆ m_heCapability

◆ m_heOperation

◆ m_htCapability

◆ m_htOperation

◆ m_muEdcaParameterSet

◆ m_rates

◆ m_vhtCapability

◆ m_vhtOperation
