The EDCA Parameter Set. More...

#include "edca-parameter-set.h"

Inheritance diagram for ns3::EdcaParameterSet:

Collaboration diagram for ns3::EdcaParameterSet:

Public Member Functions
	EdcaParameterSet ()

uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const override

uint8_t	GetBeAifsn (void) const
	Return the AC_BE AIFSN field in the EdcaParameterSet information element. More...

uint32_t	GetBeCWmax (void) const
	Return the AC_BE CWmax field in the EdcaParameterSet information element. More...

uint32_t	GetBeCWmin (void) const
	Return the AC_BE CWmin field in the EdcaParameterSet information element. More...

uint16_t	GetBeTxopLimit (void) const
	Return the AC_BE TXOP Limit field in the EdcaParameterSet information element. More...

uint8_t	GetBkAifsn (void) const
	Return the AC_BK AIFSN field in the EdcaParameterSet information element. More...

uint32_t	GetBkCWmax (void) const
	Return the AC_BK CWmax field in the EdcaParameterSet information element. More...

uint32_t	GetBkCWmin (void) const
	Return the AC_BK CWmin field in the EdcaParameterSet information element. More...

uint16_t	GetBkTxopLimit (void) const
	Return the AC_BK TXOP Limit field in the EdcaParameterSet information element. More...

uint8_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t	GetQosInfo (void) const
	Return the QoS Info field in the EdcaParameterSet information element. More...

uint16_t	GetSerializedSize () const override
	Get the size of the serialized IE including Element ID and length fields. More...

uint8_t	GetViAifsn (void) const
	Return the AC_VI AIFSN field in the EdcaParameterSet information element. More...

uint32_t	GetViCWmax (void) const
	Return the AC_VI CWmax field in the EdcaParameterSet information element. More...

uint32_t	GetViCWmin (void) const
	Return the AC_VI CWmin field in the EdcaParameterSet information element. More...

uint16_t	GetViTxopLimit (void) const
	Return the AC_VI TXOP Limit field in the EdcaParameterSet information element. More...

uint8_t	GetVoAifsn (void) const
	Return the AC_VO AIFSN field in the EdcaParameterSet information element. More...

uint32_t	GetVoCWmax (void) const
	Return the AC_VO CWmax field in the EdcaParameterSet information element. More...

uint32_t	GetVoCWmin (void) const
	Return the AC_VO CWmin field in the EdcaParameterSet information element. More...

uint16_t	GetVoTxopLimit (void) const
	Return the AC_VO TXOP Limit field in the EdcaParameterSet information element. More...

uint8_t	IsQosSupported (void) const
	Is QOS supported function. More...

Buffer::Iterator	Serialize (Buffer::Iterator start) const override
	Serialize entire IE including Element ID and length fields. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetBeAci (uint8_t aci)
	Set the AC_BE ACI field in the EdcaParameterSet information element. More...

void	SetBeAifsn (uint8_t aifsn)
	Set the AC_BE AIFSN field in the EdcaParameterSet information element. More...

void	SetBeCWmax (uint32_t cwMax)
	Set the AC_BE CWmax field in the EdcaParameterSet information element. More...

void	SetBeCWmin (uint32_t cwMin)
	Set the AC_BE CWmin field in the EdcaParameterSet information element. More...

void	SetBeTxopLimit (uint16_t txop)
	Set the AC_BE TXOP Limit field in the EdcaParameterSet information element. More...

void	SetBkAci (uint8_t aci)
	Set the AC_BK ACI field in the EdcaParameterSet information element. More...

void	SetBkAifsn (uint8_t aifsn)
	Set the AC_BK AIFSN field in the EdcaParameterSet information element. More...

void	SetBkCWmax (uint32_t cwMax)
	Set the AC_BK CWmax field in the EdcaParameterSet information element. More...

void	SetBkCWmin (uint32_t cwMin)
	Set the AC_BK CWmin field in the EdcaParameterSet information element. More...

void	SetBkTxopLimit (uint16_t txop)
	Set the AC_BK TXOP Limit field in the EdcaParameterSet information element. More...

void	SetQosInfo (uint8_t qosInfo)
	Set the QoS Info field in the EdcaParameterSet information element. More...

void	SetQosSupported (uint8_t qosSupported)
	Set QOS supported function. More...

void	SetViAci (uint8_t aci)
	Set the AC_VI ACI field in the EdcaParameterSet information element. More...

void	SetViAifsn (uint8_t aifsn)
	Set the AC_VI AIFSN field in the EdcaParameterSet information element. More...

void	SetViCWmax (uint32_t cwMax)
	Set the AC_VI CWmax field in the EdcaParameterSet information element. More...

void	SetViCWmin (uint32_t cwMin)
	Set the AC_VI CWmin field in the EdcaParameterSet information element. More...

void	SetViTxopLimit (uint16_t txop)
	Set the AC_VI TXOP Limit field in the EdcaParameterSet information element. More...

void	SetVoAci (uint8_t aci)
	Set the AC_VO ACI field in the EdcaParameterSet information element. More...

void	SetVoAifsn (uint8_t aifsn)
	Set the AC_VO AIFSN field in the EdcaParameterSet information element. More...

void	SetVoCWmax (uint32_t cwMax)
	Set the AC_VO CWmax field in the EdcaParameterSet information element. More...

void	SetVoCWmin (uint32_t cwMin)
	Set the AC_VO CWmin field in the EdcaParameterSet information element. More...

void	SetVoTxopLimit (uint16_t txop)
	Set the AC_VO TXOP Limit field in the EdcaParameterSet information element. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint32_t	m_acBE
	AC_BE. More...

uint32_t	m_acBK
	AC_BK. More...

uint32_t	m_acVI
	AC_VI. More...

uint32_t	m_acVO
	AC_VO. More...

uint8_t	m_qosInfo
	QOS info. More...

bool	m_qosSupported
	This is used to decide whether this element should be added to the frame or not. More...

uint8_t	m_reserved
	reserved More...

Detailed Description

The EDCA Parameter Set.

This class knows how to serialise and deserialise the EDCA Parameter Set.

Definition at line 34 of file edca-parameter-set.h.

Constructor & Destructor Documentation

◆ EdcaParameterSet()

ns3::EdcaParameterSet::EdcaParameterSet ( )

Definition at line 26 of file edca-parameter-set.cc.

Member Function Documentation

◆ DeserializeInformationField()

uint8_t ns3::EdcaParameterSet::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

overridevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 341 of file edca-parameter-set.cc.

References m_acBE, m_acBK, m_acVI, m_acVO, m_qosInfo, m_reserved, ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::EdcaParameterSet::ElementId ( ) const

overridevirtual

Returns: Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 38 of file edca-parameter-set.cc.

References IE_EDCA_PARAMETER_SET.

◆ GetBeAifsn()

uint8_t ns3::EdcaParameterSet::GetBeAifsn ( void ) const

Return the AC_BE AIFSN field in the EdcaParameterSet information element.

Returns: the AC_BE AIFSN field in the EdcaParameterSet information element

Definition at line 196 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetBeCWmax()

uint32_t ns3::EdcaParameterSet::GetBeCWmax ( void ) const

Return the AC_BE CWmax field in the EdcaParameterSet information element.

Returns: the AC_BE CWmax field in the EdcaParameterSet information element

Definition at line 209 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

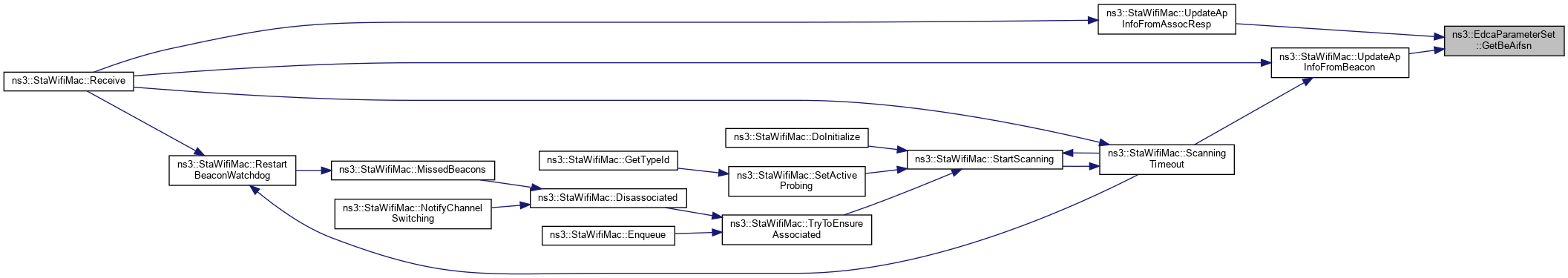

Here is the caller graph for this function:

◆ GetBeCWmin()

uint32_t ns3::EdcaParameterSet::GetBeCWmin ( void ) const

Return the AC_BE CWmin field in the EdcaParameterSet information element.

Returns: the AC_BE CWmin field in the EdcaParameterSet information element

Definition at line 202 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetBeTxopLimit()

uint16_t ns3::EdcaParameterSet::GetBeTxopLimit ( void ) const

Return the AC_BE TXOP Limit field in the EdcaParameterSet information element.

Returns: the AC_BE TXOP Limit field in the EdcaParameterSet information element

Definition at line 216 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetBkAifsn()

uint8_t ns3::EdcaParameterSet::GetBkAifsn ( void ) const

Return the AC_BK AIFSN field in the EdcaParameterSet information element.

Returns: the AC_BK AIFSN field in the EdcaParameterSet information element

Definition at line 222 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetBkCWmax()

uint32_t ns3::EdcaParameterSet::GetBkCWmax ( void ) const

Return the AC_BK CWmax field in the EdcaParameterSet information element.

Returns: the AC_BK CWmax field in the EdcaParameterSet information element

Definition at line 235 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetBkCWmin()

uint32_t ns3::EdcaParameterSet::GetBkCWmin ( void ) const

Return the AC_BK CWmin field in the EdcaParameterSet information element.

Returns: the AC_BK CWmin field in the EdcaParameterSet information element

Definition at line 228 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetBkTxopLimit()

uint16_t ns3::EdcaParameterSet::GetBkTxopLimit ( void ) const

Return the AC_BK TXOP Limit field in the EdcaParameterSet information element.

Returns: the AC_BK TXOP Limit field in the EdcaParameterSet information element

Definition at line 242 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetInformationFieldSize()

uint8_t ns3::EdcaParameterSet::GetInformationFieldSize ( ) const

overridevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 300 of file edca-parameter-set.cc.

References m_qosSupported, and NS_ASSERT.

◆ GetQosInfo()

uint8_t ns3::EdcaParameterSet::GetQosInfo ( void ) const

Return the QoS Info field in the EdcaParameterSet information element.

Returns: the QoS Info field in the EdcaParameterSet information element

Definition at line 190 of file edca-parameter-set.cc.

References m_qosInfo.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint16_t ns3::EdcaParameterSet::GetSerializedSize ( void ) const

overridevirtual

Get the size of the serialized IE including Element ID and length fields.

Returns: the size of the serialized IE in bytes

Reimplemented from ns3::WifiInformationElement.

Definition at line 317 of file edca-parameter-set.cc.

References ns3::WifiInformationElement::GetSerializedSize(), and m_qosSupported.

Referenced by ns3::MgtAssocResponseHeader::GetSerializedSize(), and ns3::MgtProbeResponseHeader::GetSerializedSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetViAifsn()

uint8_t ns3::EdcaParameterSet::GetViAifsn ( void ) const

Return the AC_VI AIFSN field in the EdcaParameterSet information element.

Returns: the AC_VI AIFSN field in the EdcaParameterSet information element

Definition at line 248 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetViCWmax()

uint32_t ns3::EdcaParameterSet::GetViCWmax ( void ) const

Return the AC_VI CWmax field in the EdcaParameterSet information element.

Returns: the AC_VI CWmax field in the EdcaParameterSet information element

Definition at line 261 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetViCWmin()

uint32_t ns3::EdcaParameterSet::GetViCWmin ( void ) const

Return the AC_VI CWmin field in the EdcaParameterSet information element.

Returns: the AC_VI CWmin field in the EdcaParameterSet information element

Definition at line 254 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetViTxopLimit()

uint16_t ns3::EdcaParameterSet::GetViTxopLimit ( void ) const

Return the AC_VI TXOP Limit field in the EdcaParameterSet information element.

Returns: the AC_VI TXOP Limit field in the EdcaParameterSet information element

Definition at line 268 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetVoAifsn()

uint8_t ns3::EdcaParameterSet::GetVoAifsn ( void ) const

Return the AC_VO AIFSN field in the EdcaParameterSet information element.

Returns: the AC_VO AIFSN field in the EdcaParameterSet information element

Definition at line 274 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetVoCWmax()

uint32_t ns3::EdcaParameterSet::GetVoCWmax ( void ) const

Return the AC_VO CWmax field in the EdcaParameterSet information element.

Returns: the AC_VO CWmax field in the EdcaParameterSet information element

Definition at line 287 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetVoCWmin()

uint32_t ns3::EdcaParameterSet::GetVoCWmin ( void ) const

Return the AC_VO CWmin field in the EdcaParameterSet information element.

Returns: the AC_VO CWmin field in the EdcaParameterSet information element

Definition at line 280 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetVoTxopLimit()

uint16_t ns3::EdcaParameterSet::GetVoTxopLimit ( void ) const

Return the AC_VO TXOP Limit field in the EdcaParameterSet information element.

Returns: the AC_VO TXOP Limit field in the EdcaParameterSet information element

Definition at line 294 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ IsQosSupported()

uint8_t ns3::EdcaParameterSet::IsQosSupported ( void ) const

Is QOS supported function.

Returns: the is QOS supported indicator

Definition at line 50 of file edca-parameter-set.cc.

References m_acBE, m_acBK, m_acVI, and m_acVO.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ Serialize()

Buffer::Iterator ns3::EdcaParameterSet::Serialize ( Buffer::Iterator i ) const

overridevirtual

Serialize entire IE including Element ID and length fields.

Parameters

i	an iterator which points to where the IE should be written.

Returns: an iterator

Reimplemented from ns3::WifiInformationElement.

Definition at line 307 of file edca-parameter-set.cc.

References m_qosSupported, and ns3::WifiInformationElement::Serialize().

Referenced by ns3::MgtAssocResponseHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::EdcaParameterSet::SerializeInformationField ( Buffer::Iterator start ) const

overridevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 327 of file edca-parameter-set.cc.

References GetQosInfo(), m_acBE, m_acBK, m_acVI, m_acVO, m_qosSupported, m_reserved, and visualizer.core::start().

Here is the call graph for this function:

◆ SetBeAci()

void ns3::EdcaParameterSet::SetBeAci ( uint8_t aci )

Set the AC_BE ACI field in the EdcaParameterSet information element.

Parameters

aci	the AC_BE ACI field in the EdcaParameterSet information element

Definition at line 68 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBeAifsn()

void ns3::EdcaParameterSet::SetBeAifsn ( uint8_t aifsn )

Set the AC_BE AIFSN field in the EdcaParameterSet information element.

Parameters

aifsn the AC_BE AIFSN field in the EdcaParameterSet information element

Definition at line 62 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBeCWmax()

void ns3::EdcaParameterSet::SetBeCWmax ( uint32_t cwMax )

Set the AC_BE CWmax field in the EdcaParameterSet information element.

Parameters

cwMax the AC_BE CWmax field in the EdcaParameterSet information element

Definition at line 81 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBeCWmin()

void ns3::EdcaParameterSet::SetBeCWmin ( uint32_t cwMin )

Set the AC_BE CWmin field in the EdcaParameterSet information element.

Parameters

cwMin the AC_BE CWmin field in the EdcaParameterSet information element

Definition at line 74 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBeTxopLimit()

void ns3::EdcaParameterSet::SetBeTxopLimit ( uint16_t txop )

Set the AC_BE TXOP Limit field in the EdcaParameterSet information element.

Parameters

txop	the AC_BE TXOP Limit field in the EdcaParameterSet information element

Definition at line 88 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBkAci()

void ns3::EdcaParameterSet::SetBkAci ( uint8_t aci )

Set the AC_BK ACI field in the EdcaParameterSet information element.

Parameters

aci	the AC_BK ACI field in the EdcaParameterSet information element

Definition at line 100 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBkAifsn()

void ns3::EdcaParameterSet::SetBkAifsn ( uint8_t aifsn )

Set the AC_BK AIFSN field in the EdcaParameterSet information element.

Parameters

aifsn the AC_BB AIFSN field in the EdcaParameterSet information element

Definition at line 94 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBkCWmax()

void ns3::EdcaParameterSet::SetBkCWmax ( uint32_t cwMax )

Set the AC_BK CWmax field in the EdcaParameterSet information element.

Parameters

cwMax the AC_BK CWmax field in the EdcaParameterSet information element

Definition at line 113 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBkCWmin()

void ns3::EdcaParameterSet::SetBkCWmin ( uint32_t cwMin )

Set the AC_BK CWmin field in the EdcaParameterSet information element.

Parameters

cwMin the AC_BK CWmin field in the EdcaParameterSet information element

Definition at line 106 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetBkTxopLimit()

void ns3::EdcaParameterSet::SetBkTxopLimit ( uint16_t txop )

Set the AC_BK TXOP Limit field in the EdcaParameterSet information element.

Parameters

txop	the AC_BK TXOP Limit field in the EdcaParameterSet information element

Definition at line 120 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetQosInfo()

void ns3::EdcaParameterSet::SetQosInfo ( uint8_t qosInfo )

Set the QoS Info field in the EdcaParameterSet information element.

Parameters

qosInfo the QoS Info field in the EdcaParameterSet information element

Definition at line 56 of file edca-parameter-set.cc.

References m_qosInfo.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetQosSupported()

void ns3::EdcaParameterSet::SetQosSupported ( uint8_t qosSupported )

Set QOS supported function.

Parameters

qosSupported the QOS supported indicator

Definition at line 44 of file edca-parameter-set.cc.

References m_qosSupported.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetViAci()

void ns3::EdcaParameterSet::SetViAci ( uint8_t aci )

Set the AC_VI ACI field in the EdcaParameterSet information element.

Parameters

aci	the AC_VI ACI field in the EdcaParameterSet information element

Definition at line 132 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetViAifsn()

void ns3::EdcaParameterSet::SetViAifsn ( uint8_t aifsn )

Set the AC_VI AIFSN field in the EdcaParameterSet information element.

Parameters

aifsn the AC_VI AIFSN field in the EdcaParameterSet information element

Definition at line 126 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetViCWmax()

void ns3::EdcaParameterSet::SetViCWmax ( uint32_t cwMax )

Set the AC_VI CWmax field in the EdcaParameterSet information element.

Parameters

cwMax the AC_VI CWmax field in the EdcaParameterSet information element

Definition at line 145 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetViCWmin()

void ns3::EdcaParameterSet::SetViCWmin ( uint32_t cwMin )

Set the AC_VI CWmin field in the EdcaParameterSet information element.

Parameters

cwMin the AC_VI CWmin field in the EdcaParameterSet information element

Definition at line 138 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetViTxopLimit()

void ns3::EdcaParameterSet::SetViTxopLimit ( uint16_t txop )

Set the AC_VI TXOP Limit field in the EdcaParameterSet information element.

Parameters

txop	the AC_VI TXOP Limit field in the EdcaParameterSet information element

Definition at line 152 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetVoAci()

void ns3::EdcaParameterSet::SetVoAci ( uint8_t aci )

Set the AC_VO ACI field in the EdcaParameterSet information element.

Parameters

aci	the AC_VO ACI field in the EdcaParameterSet information element

Definition at line 164 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetVoAifsn()

void ns3::EdcaParameterSet::SetVoAifsn ( uint8_t aifsn )

Set the AC_VO AIFSN field in the EdcaParameterSet information element.

Parameters

aifsn the AC_VO AIFSN field in the EdcaParameterSet information element

Definition at line 158 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetVoCWmax()

void ns3::EdcaParameterSet::SetVoCWmax ( uint32_t cwMax )

Set the AC_VO CWmax field in the EdcaParameterSet information element.

Parameters

cwMax the AC_VO CWmax field in the EdcaParameterSet information element

Definition at line 177 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetVoCWmin()

void ns3::EdcaParameterSet::SetVoCWmin ( uint32_t cwMin )

Set the AC_VO CWmin field in the EdcaParameterSet information element.

Parameters

cwMin the AC_VO CWmin field in the EdcaParameterSet information element

Definition at line 170 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

◆ SetVoTxopLimit()

void ns3::EdcaParameterSet::SetVoTxopLimit ( uint16_t txop )

Set the AC_VO TXOP Limit field in the EdcaParameterSet information element.

Parameters

txop	the AC_VO TXOP Limit field in the EdcaParameterSet information element

Definition at line 184 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

Member Data Documentation

◆ m_acBE

uint32_t ns3::EdcaParameterSet::m_acBE

private

AC_BE.

Definition at line 296 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetBeAifsn(), GetBeCWmax(), GetBeCWmin(), GetBeTxopLimit(), IsQosSupported(), SerializeInformationField(), SetBeAci(), SetBeAifsn(), SetBeCWmax(), SetBeCWmin(), and SetBeTxopLimit().

◆ m_acBK

uint32_t ns3::EdcaParameterSet::m_acBK

private

AC_BK.

Definition at line 297 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetBkAifsn(), GetBkCWmax(), GetBkCWmin(), GetBkTxopLimit(), IsQosSupported(), SerializeInformationField(), SetBkAci(), SetBkAifsn(), SetBkCWmax(), SetBkCWmin(), and SetBkTxopLimit().

◆ m_acVI

uint32_t ns3::EdcaParameterSet::m_acVI

private

AC_VI.

Definition at line 298 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetViAifsn(), GetViCWmax(), GetViCWmin(), GetViTxopLimit(), IsQosSupported(), SerializeInformationField(), SetViAci(), SetViAifsn(), SetViCWmax(), SetViCWmin(), and SetViTxopLimit().

◆ m_acVO

uint32_t ns3::EdcaParameterSet::m_acVO

private

AC_VO.

Definition at line 299 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetVoAifsn(), GetVoCWmax(), GetVoCWmin(), GetVoTxopLimit(), IsQosSupported(), SerializeInformationField(), SetVoAci(), SetVoAifsn(), SetVoCWmax(), SetVoCWmin(), and SetVoTxopLimit().

◆ m_qosInfo

uint8_t ns3::EdcaParameterSet::m_qosInfo

private

QOS info.

Definition at line 294 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetQosInfo(), and SetQosInfo().

◆ m_qosSupported

bool ns3::EdcaParameterSet::m_qosSupported

private

This is used to decide whether this element should be added to the frame or not.

Definition at line 302 of file edca-parameter-set.h.

Referenced by GetInformationFieldSize(), GetSerializedSize(), Serialize(), SerializeInformationField(), and SetQosSupported().

◆ m_reserved

uint8_t ns3::EdcaParameterSet::m_reserved

private

reserved

Definition at line 295 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), and SerializeInformationField().

The documentation for this class was generated from the following files:

src/wifi/model/edca-parameter-set.h
src/wifi/model/edca-parameter-set.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ EdcaParameterSet()

Member Function Documentation

◆ DeserializeInformationField()

◆ ElementId()

◆ GetBeAifsn()

◆ GetBeCWmax()

◆ GetBeCWmin()

◆ GetBeTxopLimit()

◆ GetBkAifsn()

◆ GetBkCWmax()

◆ GetBkCWmin()

◆ GetBkTxopLimit()

◆ GetInformationFieldSize()

◆ GetQosInfo()

◆ GetSerializedSize()

◆ GetViAifsn()

◆ GetViCWmax()

◆ GetViCWmin()

◆ GetViTxopLimit()

◆ GetVoAifsn()

◆ GetVoCWmax()

◆ GetVoCWmin()

◆ GetVoTxopLimit()

◆ IsQosSupported()

◆ Serialize()

◆ SerializeInformationField()

◆ SetBeAci()

◆ SetBeAifsn()

◆ SetBeCWmax()

◆ SetBeCWmin()

◆ SetBeTxopLimit()

◆ SetBkAci()

◆ SetBkAifsn()

◆ SetBkCWmax()

◆ SetBkCWmin()

◆ SetBkTxopLimit()

◆ SetQosInfo()

◆ SetQosSupported()

◆ SetViAci()

◆ SetViAifsn()

◆ SetViCWmax()

◆ SetViCWmin()

◆ SetViTxopLimit()

◆ SetVoAci()

◆ SetVoAifsn()

◆ SetVoCWmax()

◆ SetVoCWmin()

◆ SetVoTxopLimit()

Member Data Documentation

◆ m_acBE

◆ m_acBK

◆ m_acVI

◆ m_acVO

◆ m_qosInfo

◆ m_qosSupported

◆ m_reserved
