The aim of the AmpduTag is to provide means for a MAC to specify that a packet includes A-MPDU since this is done in HT-SIG and there is no HT-SIG representation in ns-3. More...

#include "ampdu-tag.h"

Inheritance diagram for ns3::AmpduTag:

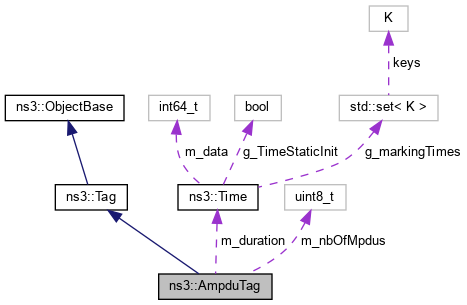

Collaboration diagram for ns3::AmpduTag:

Public Member Functions
	AmpduTag ()
	Create a AmpduTag with the default =0 no A-MPDU. More...

void	Deserialize (TagBuffer i) override

TypeId	GetInstanceTypeId (void) const override
	Get the most derived TypeId for this Object. More...

Time	GetRemainingAmpduDuration (void) const

uint8_t	GetRemainingNbOfMpdus (void) const

uint32_t	GetSerializedSize () const override

void	Print (std::ostream &os) const override

void	Serialize (TagBuffer i) const override

void	SetRemainingAmpduDuration (Time duration)

void	SetRemainingNbOfMpdus (uint8_t nbOfMpdus)

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Time	m_duration
	Remaining duration of the A-MPDU. More...

uint8_t	m_nbOfMpdus
	Remaining number of MPDUs in the A-MPDU. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The aim of the AmpduTag is to provide means for a MAC to specify that a packet includes A-MPDU since this is done in HT-SIG and there is no HT-SIG representation in ns-3.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 36 of file ampdu-tag.h.

Constructor & Destructor Documentation

◆ AmpduTag()

ns3::AmpduTag::AmpduTag ( )

Create a AmpduTag with the default =0 no A-MPDU.

Definition at line 45 of file ampdu-tag.cc.

Member Function Documentation

◆ Deserialize()

void ns3::AmpduTag::Deserialize ( TagBuffer i )

overridevirtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 79 of file ampdu-tag.cc.

References m_duration, m_nbOfMpdus, ns3::TagBuffer::Read(), and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::AmpduTag::GetInstanceTypeId ( void ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 40 of file ampdu-tag.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetRemainingAmpduDuration()

Time ns3::AmpduTag::GetRemainingAmpduDuration ( void ) const

Returns: the remaining duration of an A-MPDU

Returns the remaining duration of an A-MPDU

Definition at line 94 of file ampdu-tag.cc.

References m_duration.

◆ GetRemainingNbOfMpdus()

uint8_t ns3::AmpduTag::GetRemainingNbOfMpdus ( void ) const

Returns: the remaining number of MPDUs in an A-MPDU

Returns the remaining number of MPDUs in an A-MPDU

Definition at line 88 of file ampdu-tag.cc.

References m_nbOfMpdus.

◆ GetSerializedSize()

uint32_t ns3::AmpduTag::GetSerializedSize ( ) const

overridevirtual

Returns: the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 65 of file ampdu-tag.cc.

◆ GetTypeId()

TypeId ns3::AmpduTag::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 29 of file ampdu-tag.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::AmpduTag::Print ( std::ostream & os ) const

overridevirtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 100 of file ampdu-tag.cc.

References m_duration, and m_nbOfMpdus.

◆ Serialize()

void ns3::AmpduTag::Serialize ( TagBuffer i ) const

overridevirtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 71 of file ampdu-tag.cc.

References ns3::Time::GetTimeStep(), m_duration, m_nbOfMpdus, ns3::TagBuffer::Write(), and ns3::TagBuffer::WriteU8().

Here is the call graph for this function:

◆ SetRemainingAmpduDuration()

void ns3::AmpduTag::SetRemainingAmpduDuration ( Time duration )

Parameters

duration the remaining duration of the A-MPDU

Set the remaining duration of the A-MPDU.

Definition at line 58 of file ampdu-tag.cc.

References m_duration, ns3::MilliSeconds(), and NS_ASSERT.

Here is the call graph for this function:

◆ SetRemainingNbOfMpdus()

void ns3::AmpduTag::SetRemainingNbOfMpdus ( uint8_t nbOfMpdus )

Parameters

nbOfMpdus the remaining number of MPDUs

Set the remaining number of MPDUs in the A-MPDU.

Definition at line 52 of file ampdu-tag.cc.

References m_nbOfMpdus.

Member Data Documentation

◆ m_duration

Time ns3::AmpduTag::m_duration

private

Remaining duration of the A-MPDU.

Definition at line 84 of file ampdu-tag.h.

Referenced by Deserialize(), GetRemainingAmpduDuration(), Print(), Serialize(), and SetRemainingAmpduDuration().

◆ m_nbOfMpdus

uint8_t ns3::AmpduTag::m_nbOfMpdus

private

Remaining number of MPDUs in the A-MPDU.

Definition at line 83 of file ampdu-tag.h.

Referenced by Deserialize(), GetRemainingNbOfMpdus(), Print(), Serialize(), and SetRemainingNbOfMpdus().

The documentation for this class was generated from the following files:

src/wifi/model/ampdu-tag.h
src/wifi/model/ampdu-tag.cc
