Implement the header for management frames of type Delete Block Ack. More...

#include "mgt-headers.h"

Inheritance diagram for ns3::MgtDelBaHeader:

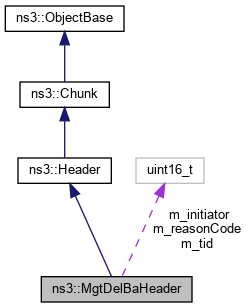

Collaboration diagram for ns3::MgtDelBaHeader:

Public Member Functions
	MgtDelBaHeader ()

uint32_t	Deserialize (Buffer::Iterator start)

TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint32_t	GetSerializedSize (void) const

uint8_t	GetTid (void) const
	Return the Traffic ID (TID). More...

bool	IsByOriginator (void) const
	Check if the initiator bit in the DELBA is set. More...

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetByOriginator (void)
	Set the initiator bit in the DELBA. More...

void	SetByRecipient (void)
	Un-set the initiator bit in the DELBA. More...

void	SetTid (uint8_t tid)
	Set Traffic ID (TID). More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
uint16_t	GetParameterSet (void) const
	Return the raw parameter set. More...

void	SetParameterSet (uint16_t params)
	Set the parameter set from the given raw value. More...

Private Attributes
uint16_t	m_initiator
	initiator More...

uint16_t	m_reasonCode
	Not used for now. More...

uint16_t	m_tid
	Traffic ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the header for management frames of type Delete Block Ack.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 1270 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ MgtDelBaHeader()

ns3::MgtDelBaHeader::MgtDelBaHeader ( )

Definition at line 1812 of file mgt-headers.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::MgtDelBaHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1857 of file mgt-headers.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_reasonCode, ns3::Buffer::Iterator::ReadLsbtohU16(), SetParameterSet(), and visualizer.core::start().

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::MgtDelBaHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1829 of file mgt-headers.cc.

References GetTypeId().

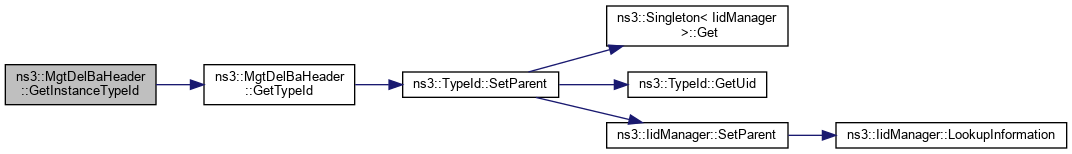

Here is the call graph for this function:

◆ GetParameterSet()

uint16_t ns3::MgtDelBaHeader::GetParameterSet ( void ) const

private

Return the raw parameter set.

Returns: the raw parameter set

Definition at line 1899 of file mgt-headers.cc.

References m_initiator, and m_tid.

Referenced by Serialize().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::MgtDelBaHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1840 of file mgt-headers.cc.

◆ GetTid()

uint8_t ns3::MgtDelBaHeader::GetTid ( void ) const

Return the Traffic ID (TID).

Returns: TID

Definition at line 1872 of file mgt-headers.cc.

References m_tid, and NS_ASSERT.

Referenced by ns3::GetTid(), ns3::QosTxop::GotDelBaFrame(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), and ns3::WifiMac::Receive().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MgtDelBaHeader::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 1818 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

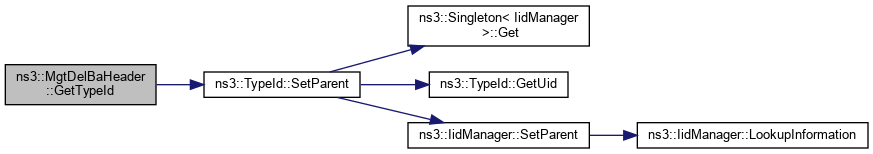

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsByOriginator()

bool ns3::MgtDelBaHeader::IsByOriginator ( void ) const

Check if the initiator bit in the DELBA is set.

Returns: true if the initiator bit in the DELBA is set, false otherwise

Definition at line 1866 of file mgt-headers.cc.

References m_initiator.

Referenced by ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), and ns3::WifiMac::Receive().

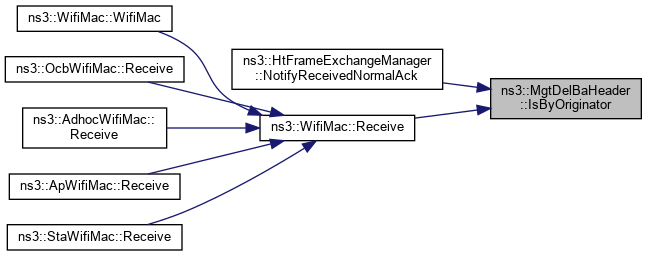

Here is the caller graph for this function:

◆ Print()

void ns3::MgtDelBaHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1835 of file mgt-headers.cc.

◆ Serialize()

void ns3::MgtDelBaHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1849 of file mgt-headers.cc.

References GetParameterSet(), m_reasonCode, visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

Here is the call graph for this function:

◆ SetByOriginator()

void ns3::MgtDelBaHeader::SetByOriginator ( void )

Set the initiator bit in the DELBA.

Definition at line 1880 of file mgt-headers.cc.

References m_initiator.

Referenced by ns3::HtFrameExchangeManager::SendDelbaFrame().

Here is the caller graph for this function:

◆ SetByRecipient()

void ns3::MgtDelBaHeader::SetByRecipient ( void )

Un-set the initiator bit in the DELBA.

Definition at line 1886 of file mgt-headers.cc.

References m_initiator.

Referenced by ns3::HtFrameExchangeManager::SendDelbaFrame().

Here is the caller graph for this function:

◆ SetParameterSet()

void ns3::MgtDelBaHeader::SetParameterSet ( uint16_t params )

private

Set the parameter set from the given raw value.

Parameters

params raw parameter set value

Definition at line 1908 of file mgt-headers.cc.

References m_initiator, and m_tid.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetTid()

void ns3::MgtDelBaHeader::SetTid ( uint8_t tid )

Set Traffic ID (TID).

Parameters

tid	traffic ID

Definition at line 1892 of file mgt-headers.cc.

References m_tid, and NS_ASSERT.

Referenced by ns3::HtFrameExchangeManager::SendDelbaFrame().

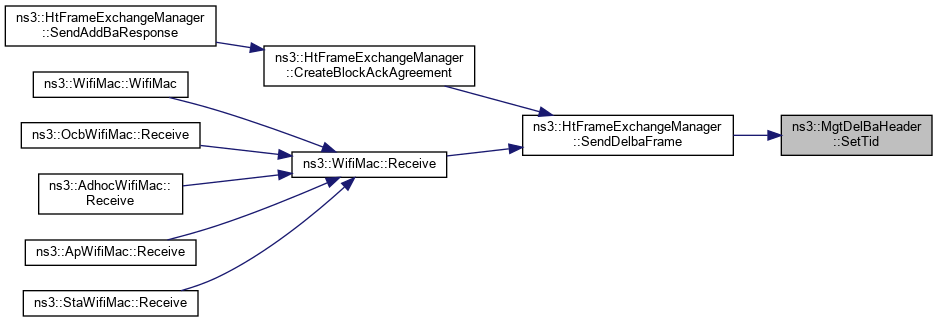

Here is the caller graph for this function:

Member Data Documentation

◆ m_initiator

uint16_t ns3::MgtDelBaHeader::m_initiator

private

initiator

Definition at line 1330 of file mgt-headers.h.

Referenced by GetParameterSet(), IsByOriginator(), SetByOriginator(), SetByRecipient(), and SetParameterSet().

◆ m_reasonCode

uint16_t ns3::MgtDelBaHeader::m_reasonCode

private

Not used for now.

Always set to 1: "Unspecified reason"

Definition at line 1332 of file mgt-headers.h.

Referenced by Deserialize(), and Serialize().

◆ m_tid

uint16_t ns3::MgtDelBaHeader::m_tid

private

Traffic ID.

Definition at line 1331 of file mgt-headers.h.

Referenced by GetParameterSet(), GetTid(), SetParameterSet(), and SetTid().

The documentation for this class was generated from the following files:

src/wifi/model/mgt-headers.h
src/wifi/model/mgt-headers.cc
