PHY entity for HE (11ax) More...

#include "he-phy.h"

Inheritance diagram for ns3::HePhy:

Collaboration diagram for ns3::HePhy:

Public Types
typedef Callback< void, HeSigAParameters >	EndOfHeSigACallback
	Callback upon end of HE-SIG-A. More...

Public Types inherited from ns3::PhyEntity
typedef std::pair< std::pair< Time, Time >, WifiMode >	PhyHeaderChunkInfo
	A pair containing information on the PHY header chunk, namely the start and stop times of the chunk and the WifiMode used. More...

typedef std::map< WifiPpduField, PhyHeaderChunkInfo >	PhyHeaderSections
	A map of PhyHeaderChunkInfo elements per PPDU field. More...

enum	PhyRxFailureAction { DROP = 0 , ABORT , IGNORE }
	Action to perform in case of RX failure. More...

Public Member Functions
	HePhy (bool buildModeList=true)
	Constructor for HE PHY. More...

virtual	~HePhy ()
	Destructor for HE PHY. More...

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU. More...

Time	CalculateNonOfdmaDurationForHeTb (const WifiTxVector &txVector) const

Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) const override

void	CancelAllEvents (void) override
	Cancel and clear all running events. More...

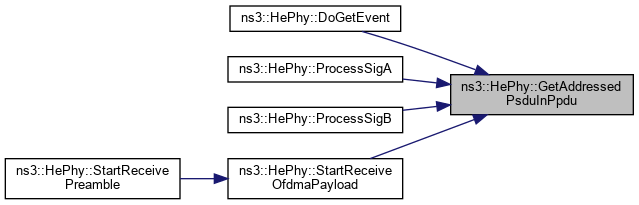

Ptr< const WifiPsdu >	GetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const override
	Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU). More...

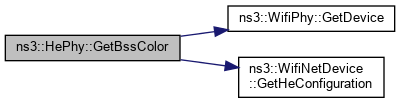

uint8_t	GetBssColor (void) const

uint16_t	GetCenterFrequencyForNonOfdmaPart (const WifiTxVector &txVector, uint16_t staId) const
	Get the center frequency of the non-OFDMA part of the current TxVector for the given STA-ID. More...

uint64_t	GetCurrentHeTbPpduUid (void) const

Time	GetLSigDuration (WifiPreamble preamble) const override

uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override
	Return the channel width used to measure the RSSI. More...

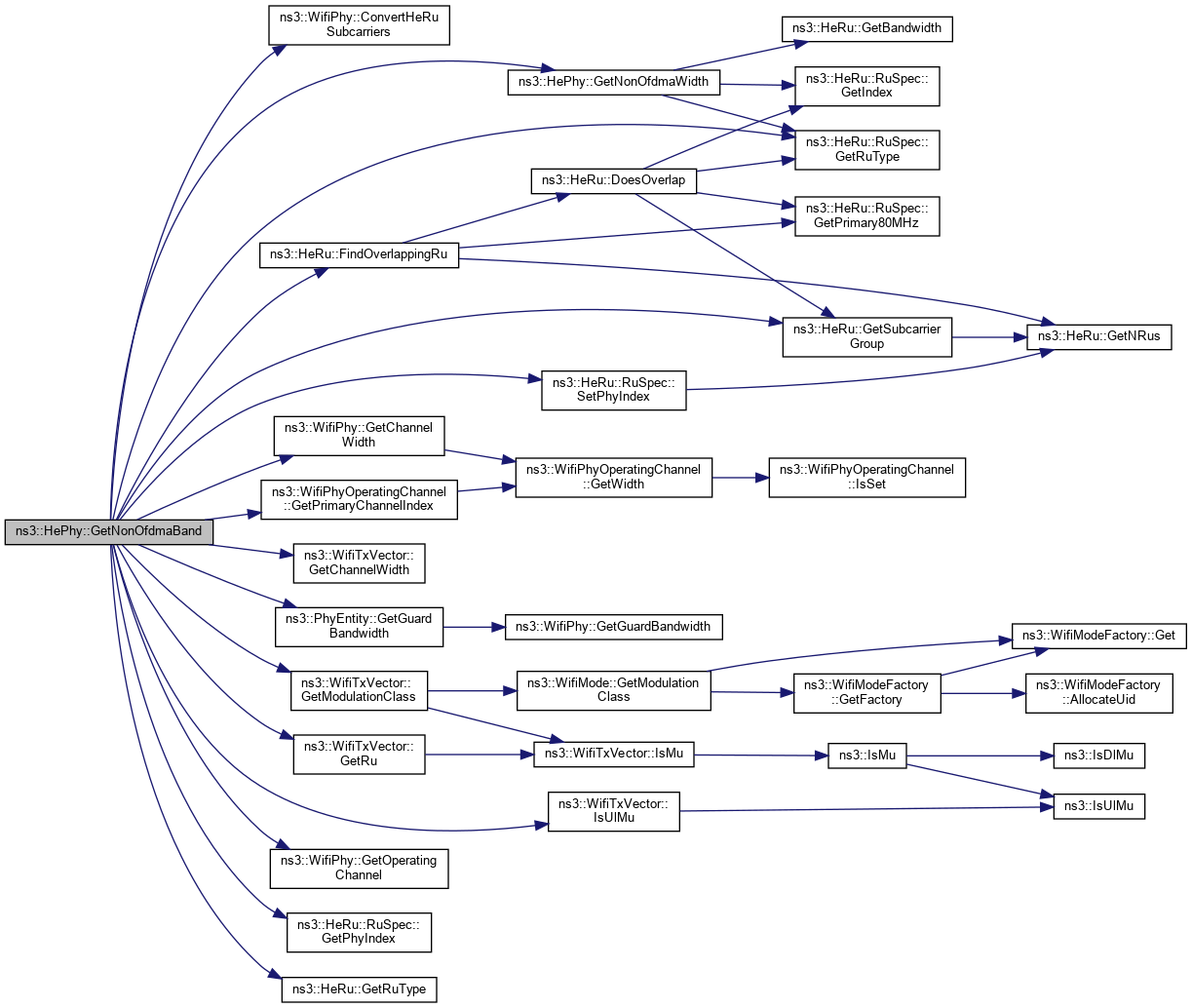

WifiSpectrumBand	GetNonOfdmaBand (const WifiTxVector &txVector, uint16_t staId) const
	Get the band used to transmit the non-OFDMA part of an HE TB PPDU. More...

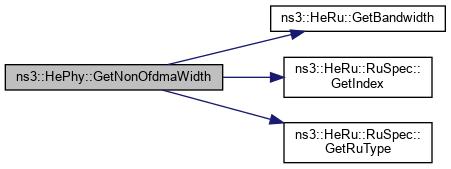

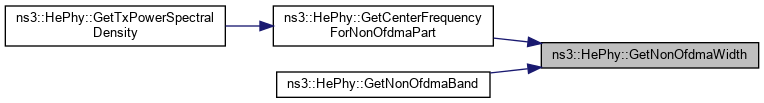

uint16_t	GetNonOfdmaWidth (HeRu::RuSpec ru) const
	Get the width in MHz of the non-OFDMA portion of an HE TB PPDU. More...

const PpduFormats &	GetPpduFormats (void) const override
	Return the PPDU formats of the PHY. More...

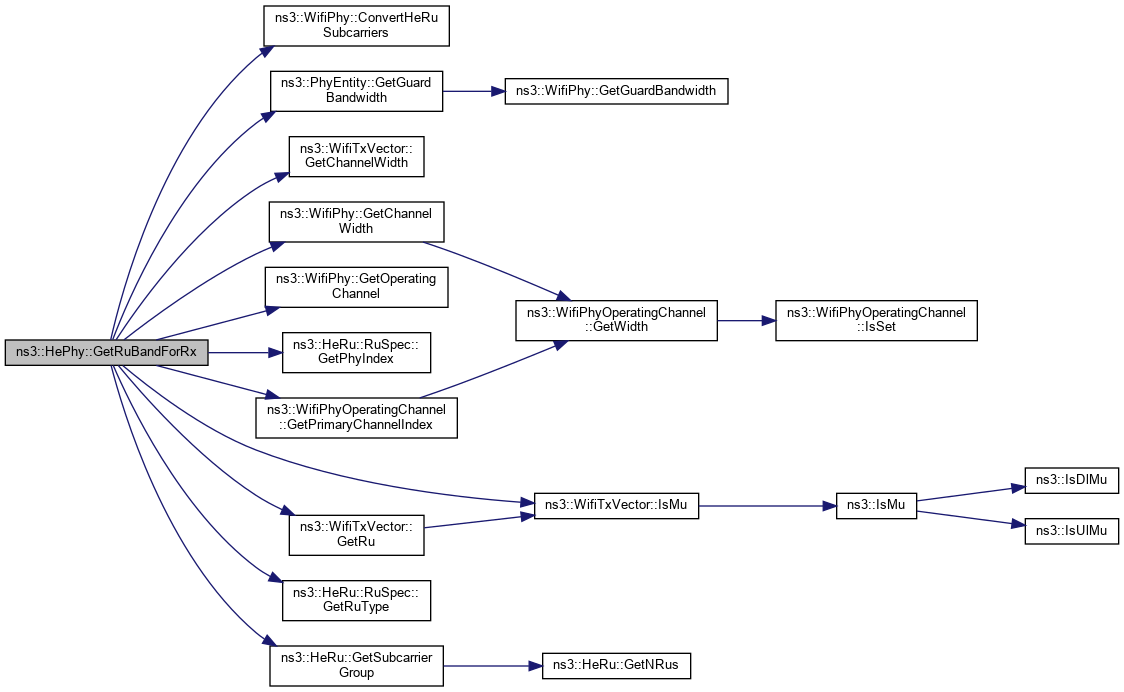

WifiSpectrumBand	GetRuBandForRx (const WifiTxVector &txVector, uint16_t staId) const
	Get the band in the RX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU. More...

WifiSpectrumBand	GetRuBandForTx (const WifiTxVector &txVector, uint16_t staId) const
	Get the band in the TX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU. More...

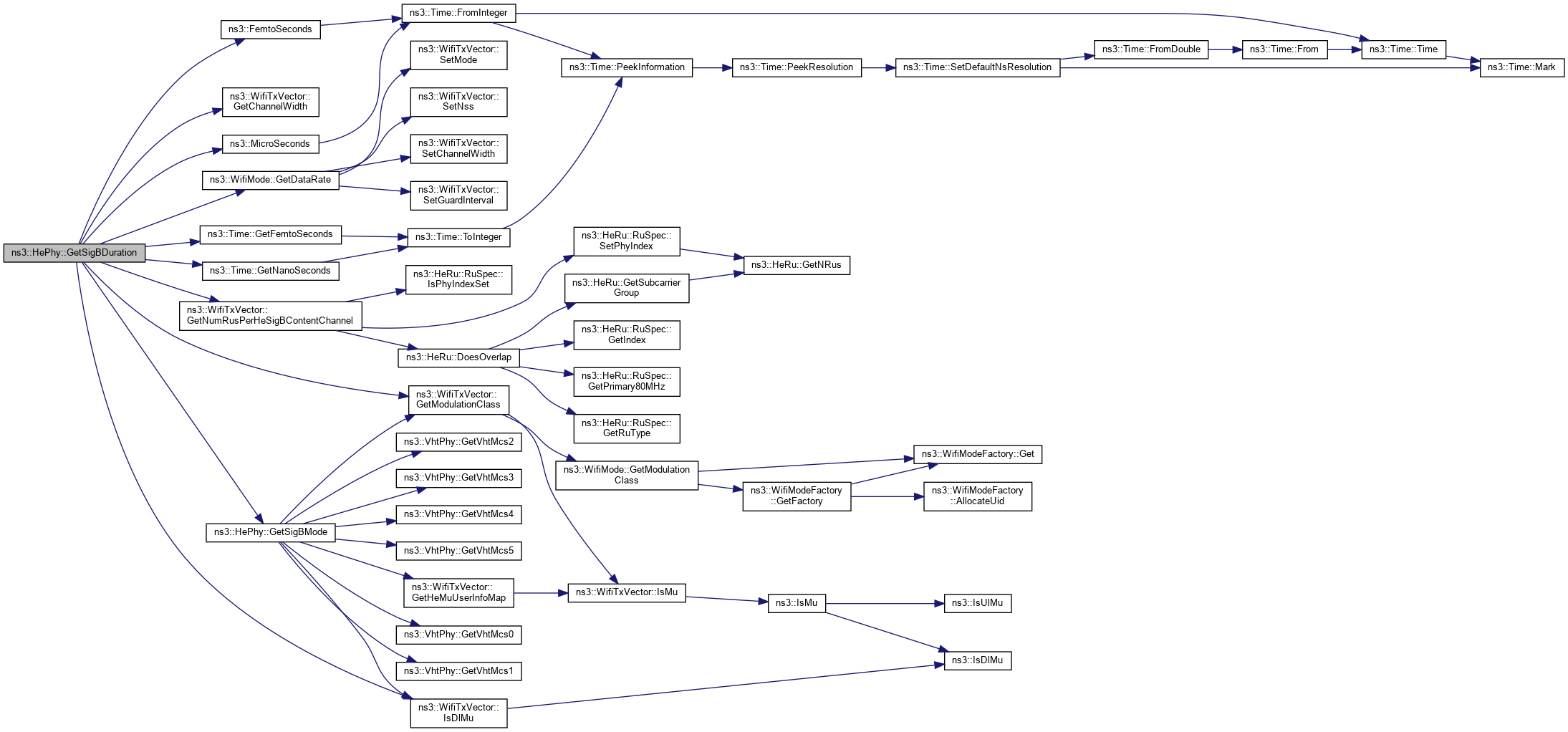

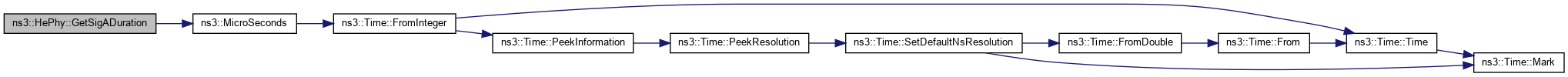

Time	GetSigADuration (WifiPreamble preamble) const override

WifiMode	GetSigAMode (void) const override

Time	GetSigBDuration (const WifiTxVector &txVector) const override

WifiMode	GetSigBMode (const WifiTxVector &txVector) const override

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field. More...

uint16_t	GetStaId (const Ptr< const WifiPpdu > ppdu) const override

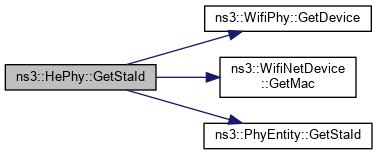

	Return the STA ID that has been assigned to the station this PHY belongs to. More...

Time	GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const override

void	NotifyEndOfHeSigA (HeSigAParameters params)
	Fire a EndOfHeSigA callback (if connected) once HE-SIG-A field has been received. More...

void	SetEndOfHeSigACallback (EndOfHeSigACallback callback)
	Set a callback for a end of HE-SIG-A. More...

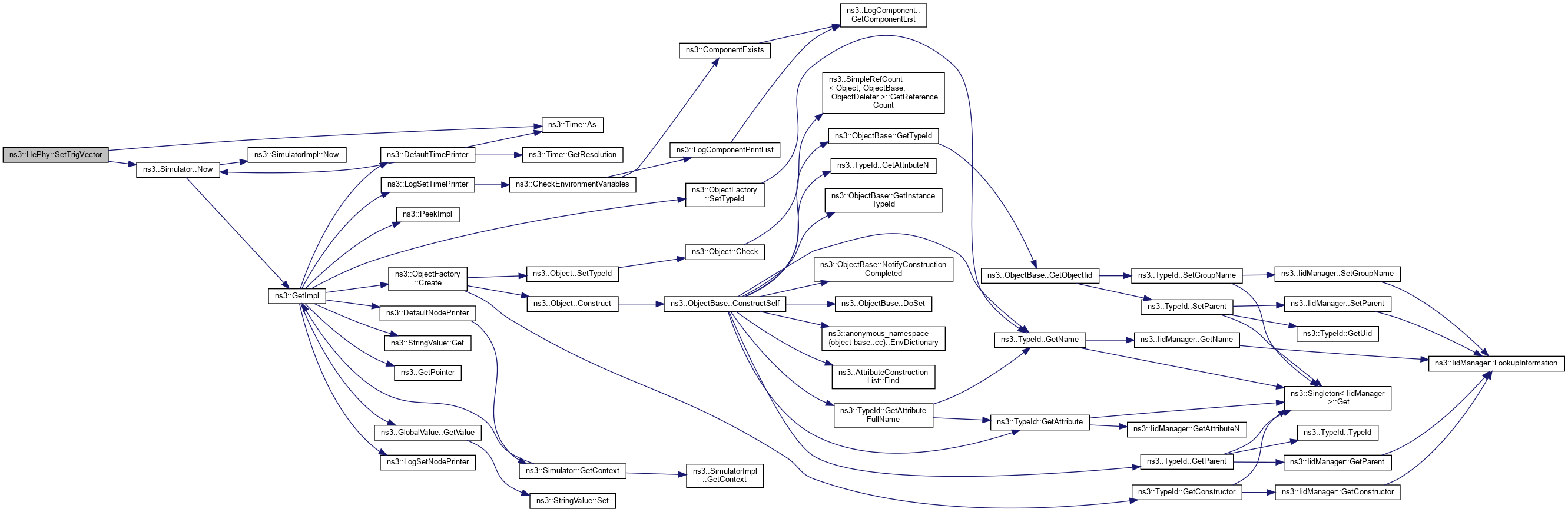

void	SetTrigVector (const WifiTxVector &trigVector, Time validity)
	Set the TRIGVECTOR and the associated expiration time. More...

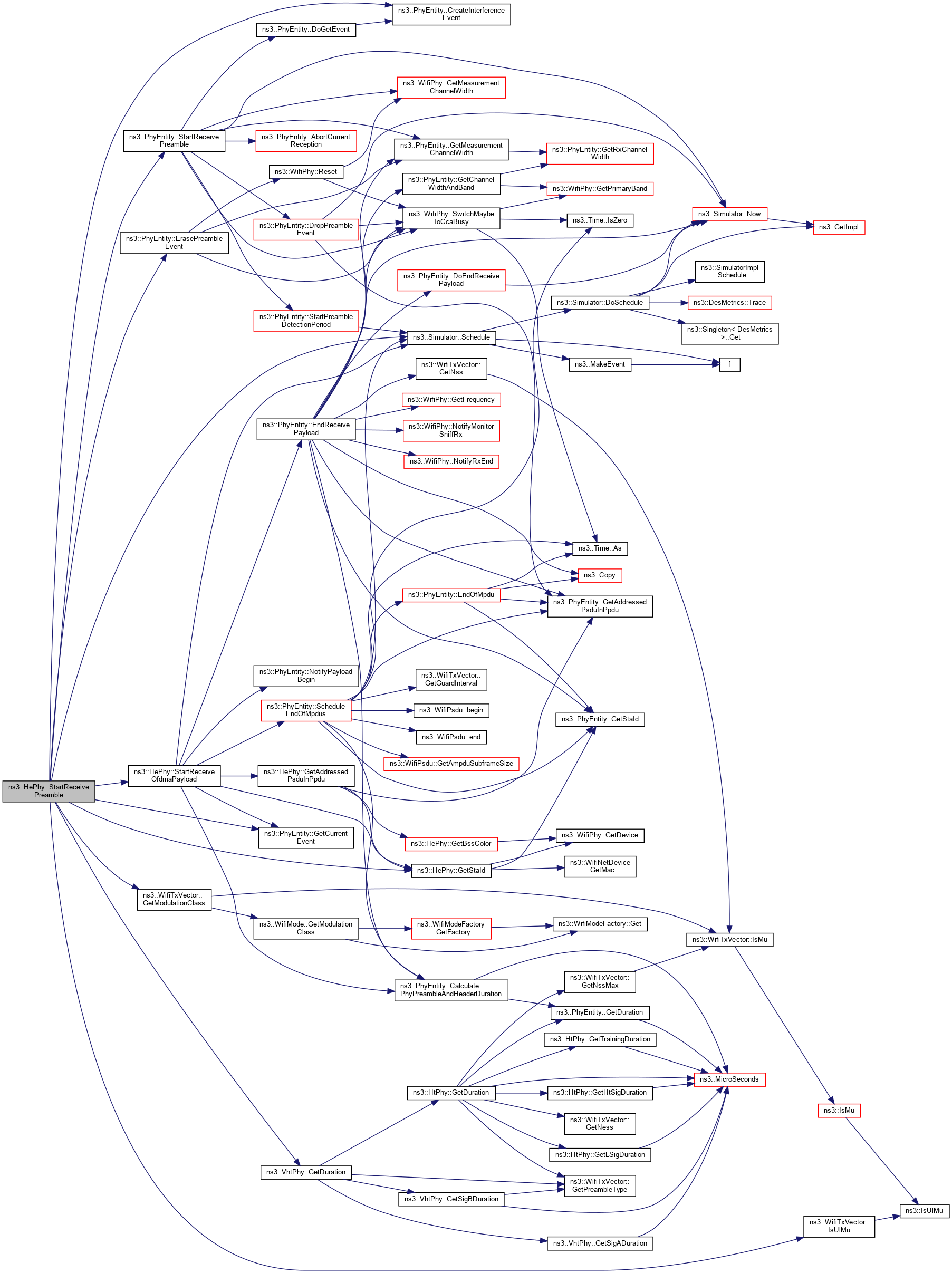

void	StartReceivePreamble (Ptr< WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration) override
	Start receiving the PHY preamble of a PPDU (i.e. More...

void	StartTx (Ptr< WifiPpdu > ppdu) override
	This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions. More...

Public Member Functions inherited from ns3::VhtPhy
	VhtPhy (bool buildModeList=true)
	Constructor for VHT PHY. More...

virtual	~VhtPhy ()
	Destructor for VHT PHY. More...

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU. More...

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters. More...

Time	GetLSigDuration (WifiPreamble preamble) const override

const PpduFormats &	GetPpduFormats (void) const override
	Return the PPDU formats of the PHY. More...

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field. More...

Time	GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const override

Public Member Functions inherited from ns3::HtPhy
	HtPhy (uint8_t maxNss=1, bool buildModeList=true)
	Constructor for HT PHY. More...

virtual	~HtPhy ()
	Destructor for HT PHY. More...

uint8_t	GetBssMembershipSelector (void) const

uint8_t	GetMaxSupportedMcsIndexPerSs (void) const
	Set the maximum supported MCS index per spatial stream. More...

WifiMode	GetMcs (uint8_t index) const override
	Get the WifiMode corresponding to the given MCS index. More...

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

bool	HandlesMcsModes (void) const override
	Check if the WifiModes handled by this PHY are MCSs. More...

bool	IsMcsSupported (uint8_t index) const override
	Check if the WifiMode corresponding to the given MCS index is supported. More...

void	SetMaxSupportedMcsIndexPerSs (uint8_t maxIndex)
	Set the maximum supported MCS index per spatial stream. More...

void	SetMaxSupportedNss (uint8_t maxNss)
	Configure the maximum number of spatial streams supported by this HT PHY. More...

Public Member Functions inherited from ns3::OfdmPhy
	OfdmPhy (OfdmPhyVariant variant=OFDM_PHY_DEFAULT, bool buildModeList=true)
	Constructor for OFDM PHY. More...

virtual	~OfdmPhy ()
	Destructor for OFDM PHY. More...

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

Public Member Functions inherited from ns3::PhyEntity
virtual	~PhyEntity ()
	Destructor for PHY entity. More...

std::list< WifiMode >::const_iterator	begin (void) const
	Return a const iterator to the first WifiMode. More...

Time	CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector) const

void	CancelRunningEndPreambleDetectionEvents (bool clear=false)
	Cancel and eventually clear all end preamble detection events. More...

std::list< WifiMode >::const_iterator	end (void) const
	Return a const iterator to past-the-last WifiMode. More...

void	EndReceiveField (WifiPpduField field, Ptr< Event > event)
	End receiving a given field. More...

void	EndReceivePayload (Ptr< Event > event)
	The last symbol of the PPDU has arrived. More...

Time	GetDurationUpToField (WifiPpduField field, const WifiTxVector &txVector) const
	Get the duration of the PPDU up to (but excluding) the given field. More...

WifiPpduField	GetNextField (WifiPpduField currentField, WifiPreamble preamble) const
	Return the field following the provided one. More...

virtual uint8_t	GetNumModes (void) const

PhyHeaderSections	GetPhyHeaderSections (const WifiTxVector &txVector, Time ppduStart) const
	Return a map of PHY header chunk information per PPDU field. More...

Time	GetRemainingDurationAfterField (Ptr< const WifiPpdu > ppdu, WifiPpduField field) const
	Get the remaining duration of the PPDU after the end of the given field. More...

virtual uint16_t	GetRxChannelWidth (const WifiTxVector &txVector) const
	Return the channel width used in the reception spectrum model. More...

virtual bool	IsModeSupported (WifiMode mode) const
	Check if the WifiMode is supported. More...

bool	NoEndPreambleDetectionEvents (void) const

void	ResetReceive (Ptr< Event > event)
	Reset PHY at the end of the PPDU under reception after it has failed the PHY header. More...

void	SetOwner (Ptr< WifiPhy > wifiPhy)
	Set the WifiPhy owning this PHY entity. More...

void	StartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field. More...

void	Transmit (Time txDuration, Ptr< WifiPpdu > ppdu, std::string type)
	This function prepares most of the WifiSpectrumSignalParameters parameters and invokes SpectrumWifiPhy's Transmit method. More...

Public Member Functions inherited from ns3::SimpleRefCount< PhyEntity >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Static Public Member Functions
static std::pair< uint16_t, Time >	ConvertHeTbPpduDurationToLSigLength (Time ppduDuration, const WifiTxVector &txVector, WifiPhyBand band)
	Compute the L-SIG length value corresponding to the given HE TB PPDU duration. More...

static Time	ConvertLSigLengthToHeTbPpduDuration (uint16_t length, const WifiTxVector &txVector, WifiPhyBand band)

static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HE MCS index. More...

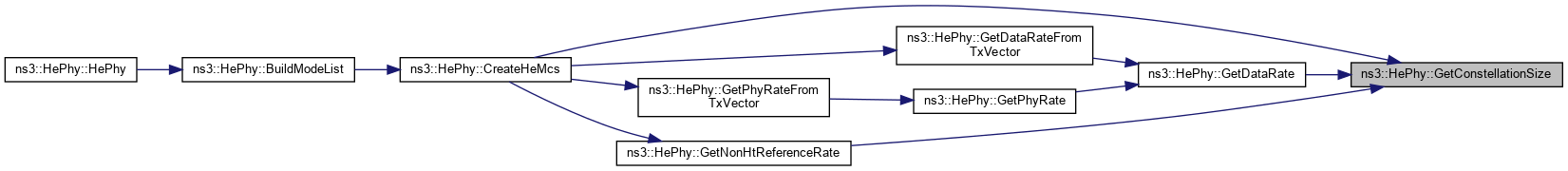

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HE MCS index. More...

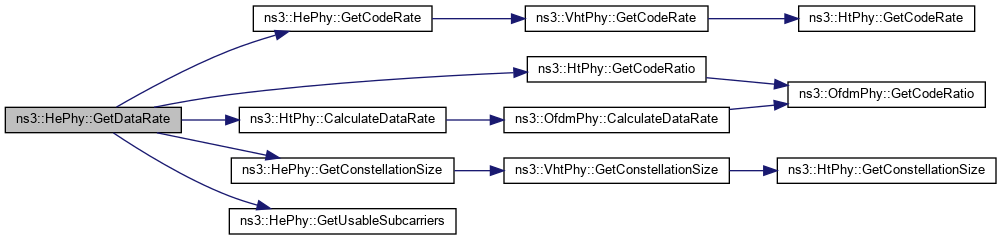

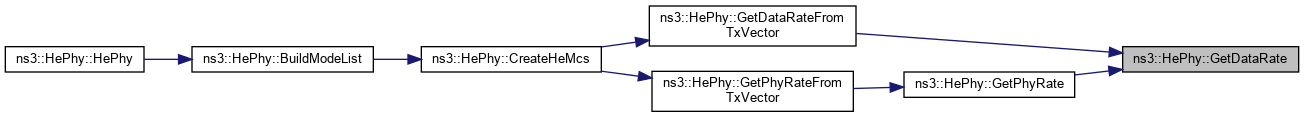

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial streams. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID)
	Return the data rate corresponding to the supplied TXVECTOR for the STA-ID. More...

static WifiMode	GetHeMcs (uint8_t index)
	Return the HE MCS corresponding to the provided index. More...

static WifiMode	GetHeMcs0 (void)
	Return MCS 0 from HE MCS values. More...

static WifiMode	GetHeMcs1 (void)
	Return MCS 1 from HE MCS values. More...

static WifiMode	GetHeMcs10 (void)
	Return MCS 10 from HE MCS values. More...

static WifiMode	GetHeMcs11 (void)
	Return MCS 11 from HE MCS values. More...

static WifiMode	GetHeMcs2 (void)
	Return MCS 2 from HE MCS values. More...

static WifiMode	GetHeMcs3 (void)
	Return MCS 3 from HE MCS values. More...

static WifiMode	GetHeMcs4 (void)
	Return MCS 4 from HE MCS values. More...

static WifiMode	GetHeMcs5 (void)
	Return MCS 5 from HE MCS values. More...

static WifiMode	GetHeMcs6 (void)
	Return MCS 6 from HE MCS values. More...

static WifiMode	GetHeMcs7 (void)
	Return MCS 7 from HE MCS values. More...

static WifiMode	GetHeMcs8 (void)
	Return MCS 8 from HE MCS values. More...

static WifiMode	GetHeMcs9 (void)
	Return MCS 9 from HE MCS values. More...

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HE MCS index. More...

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial stream. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID)
	Return the PHY rate corresponding to the supplied TXVECTOR for the STA-ID. More...

static void	InitializeModes (void)
	Initialize all HE modes. More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

Static Public Member Functions inherited from ns3::VhtPhy
static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied VHT MCS index. More...

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied VHT MCS index. More...

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied VHT MCS index, channel width, guard interval, and number of spatial streams. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR. More...

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied VHT MCS index. More...

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied VHT MCS index, channel width, guard interval, and number of spatial stream. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR. More...

static WifiMode	GetVhtMcs (uint8_t index)
	Return the VHT MCS corresponding to the provided index. More...

static WifiMode	GetVhtMcs0 (void)
	Return MCS 0 from VHT MCS values. More...

static WifiMode	GetVhtMcs1 (void)
	Return MCS 1 from VHT MCS values. More...

static WifiMode	GetVhtMcs2 (void)
	Return MCS 2 from VHT MCS values. More...

static WifiMode	GetVhtMcs3 (void)
	Return MCS 3 from VHT MCS values. More...

static WifiMode	GetVhtMcs4 (void)
	Return MCS 4 from VHT MCS values. More...

static WifiMode	GetVhtMcs5 (void)
	Return MCS 5 from VHT MCS values. More...

static WifiMode	GetVhtMcs6 (void)
	Return MCS 6 from VHT MCS values. More...

static WifiMode	GetVhtMcs7 (void)
	Return MCS 7 from VHT MCS values. More...

static WifiMode	GetVhtMcs8 (void)
	Return MCS 8 from VHT MCS values. More...

static WifiMode	GetVhtMcs9 (void)
	Return MCS 9 from VHT MCS values. More...

static void	InitializeModes (void)
	Initialize all VHT modes. More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

static bool	IsCombinationAllowed (uint8_t mcsValue, uint16_t channelWidth, uint8_t nss)
	Check whether the combination of <MCS, channel width, NSS> is allowed. More...

Static Public Member Functions inherited from ns3::HtPhy
static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HT MCS index between 0 and 7, since HT MCS index > 8 is used for higher NSS. More...

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HT MCS index between 0 and 7, since HT MCS index > 8 is used for higher NSS. More...

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied HT MCS index, channel width, guard interval, and number of spatial streams. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR. More...

static WifiCodeRate	GetHtCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HT MCS index. More...

static uint16_t	GetHtConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HT MCS index. More...

static WifiMode	GetHtMcs (uint8_t index)
	Return the HT MCS corresponding to the provided index. More...

static WifiMode	GetHtMcs0 (void)
	Return MCS 0 from HT MCS values. More...

static WifiMode	GetHtMcs1 (void)
	Return MCS 1 from HT MCS values. More...

static WifiMode	GetHtMcs10 (void)
	Return MCS 10 from HT MCS values. More...

static WifiMode	GetHtMcs11 (void)
	Return MCS 11 from HT MCS values. More...

static WifiMode	GetHtMcs12 (void)
	Return MCS 12 from HT MCS values. More...

static WifiMode	GetHtMcs13 (void)
	Return MCS 13 from HT MCS values. More...

static WifiMode	GetHtMcs14 (void)
	Return MCS 14 from HT MCS values. More...

static WifiMode	GetHtMcs15 (void)
	Return MCS 15 from HT MCS values. More...

static WifiMode	GetHtMcs16 (void)
	Return MCS 16 from HT MCS values. More...

static WifiMode	GetHtMcs17 (void)
	Return MCS 17 from HT MCS values. More...

static WifiMode	GetHtMcs18 (void)
	Return MCS 18 from HT MCS values. More...

static WifiMode	GetHtMcs19 (void)
	Return MCS 19 from HT MCS values. More...

static WifiMode	GetHtMcs2 (void)
	Return MCS 2 from HT MCS values. More...

static WifiMode	GetHtMcs20 (void)
	Return MCS 20 from HT MCS values. More...

static WifiMode	GetHtMcs21 (void)
	Return MCS 21 from HT MCS values. More...

static WifiMode	GetHtMcs22 (void)
	Return MCS 22 from HT MCS values. More...

static WifiMode	GetHtMcs23 (void)
	Return MCS 23 from HT MCS values. More...

static WifiMode	GetHtMcs24 (void)
	Return MCS 24 from HT MCS values. More...

static WifiMode	GetHtMcs25 (void)
	Return MCS 25 from HT MCS values. More...

static WifiMode	GetHtMcs26 (void)
	Return MCS 26 from HT MCS values. More...

static WifiMode	GetHtMcs27 (void)
	Return MCS 27 from HT MCS values. More...

static WifiMode	GetHtMcs28 (void)
	Return MCS 28 from HT MCS values. More...

static WifiMode	GetHtMcs29 (void)
	Return MCS 29 from HT MCS values. More...

static WifiMode	GetHtMcs3 (void)
	Return MCS 3 from HT MCS values. More...

static WifiMode	GetHtMcs30 (void)
	Return MCS 30 from HT MCS values. More...

static WifiMode	GetHtMcs31 (void)
	Return MCS 31 from HT MCS values. More...

static WifiMode	GetHtMcs4 (void)
	Return MCS 4 from HT MCS values. More...

static WifiMode	GetHtMcs5 (void)
	Return MCS 5 from HT MCS values. More...

static WifiMode	GetHtMcs6 (void)
	Return MCS 6 from HT MCS values. More...

static WifiMode	GetHtMcs7 (void)
	Return MCS 7 from HT MCS values. More...

static WifiMode	GetHtMcs8 (void)
	Return MCS 8 from HT MCS values. More...

static WifiMode	GetHtMcs9 (void)
	Return MCS 9 from HT MCS values. More...

static WifiMode	GetLSigMode (void)

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HT MCS index. More...

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied HT MCS index, channel width, guard interval, and number of spatial stream. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR. More...

static void	InitializeModes (void)
	Initialize all HT modes. More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

Static Public Member Functions inherited from ns3::OfdmPhy
static WifiCodeRate	GetCodeRate (const std::string &name)
	Return the WifiCodeRate from the OFDM mode's unique name using ModulationLookupTable. More...

static uint16_t	GetConstellationSize (const std::string &name)
	Return the constellation size from the OFDM mode's unique name using ModulationLookupTable. More...

static uint64_t	GetDataRate (const std::string &name, uint16_t channelWidth)
	Return the data rate from the OFDM mode's unique name and the supplied parameters. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR. More...

static WifiMode	GetOfdmRate (uint64_t rate, uint16_t bw=20)
	Return a WifiMode for OFDM corresponding to the provided rate and the channel bandwidth (20, 10, or 5 MHz). More...

static WifiMode	GetOfdmRate12Mbps (void)
	Return a WifiMode for OFDM at 12Mbps. More...

static WifiMode	GetOfdmRate12MbpsBW10MHz (void)
	Return a WifiMode for OFDM at 12 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz (void)
	Return a WifiMode for OFDM at 12 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz (void)
	Return a WifiMode for OFDM at 13.5 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate18Mbps (void)
	Return a WifiMode for OFDM at 18 Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz (void)
	Return a WifiMode for OFDM at 18 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate1_5MbpsBW5MHz (void)
	Return a WifiMode for OFDM at 1.5 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps (void)
	Return a WifiMode for OFDM at 24 Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz (void)
	Return a WifiMode for OFDM at 24 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz (void)
	Return a WifiMode for OFDM at 27 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz (void)
	Return a WifiMode for OFDM at 2.25 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps (void)
	Return a WifiMode for OFDM at 36 Mbps. More...

static WifiMode	GetOfdmRate3MbpsBW10MHz (void)
	Return a WifiMode for OFDM at 3 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz (void)
	Return a WifiMode for OFDM at 3 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps (void)
	Return a WifiMode for OFDM at 48 Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz (void)
	Return a WifiMode for OFDM at 4.5 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz (void)
	Return a WifiMode for OFDM at 4.5 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps (void)
	Return a WifiMode for OFDM at 54 Mbps. More...

static WifiMode	GetOfdmRate6Mbps (void)
	Return a WifiMode for OFDM at 6 Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz (void)
	Return a WifiMode for OFDM at 6 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz (void)
	Return a WifiMode for OFDM at 6 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps (void)
	Return a WifiMode for OFDM at 9 Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz (void)
	Return a WifiMode for OFDM at 9 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz (void)
	Return a WifiMode for OFDM at 9 Mbps with 5 MHz channel spacing. More...

static uint64_t	GetPhyRate (const std::string &name, uint16_t channelWidth)
	Return the PHY rate from the OFDM mode's unique name and the supplied parameters. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR. More...

static void	InitializeModes (void)
	Initialize all OFDM modes (for all variants). More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

Protected Member Functions
void	DoAbortCurrentReception (WifiPhyRxfailureReason reason) override
	Perform amendment-specific actions before aborting the current reception. More...

void	DoEndReceivePayload (Ptr< const WifiPpdu > ppdu) override
	Perform amendment-specific actions at the end of the reception of the payload. More...

Ptr< Event >	DoGetEvent (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW) override
	Get the event corresponding to the incoming PPDU. More...

void	DoResetReceive (Ptr< Event > event) override
	Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header. More...

void	DoStartReceivePayload (Ptr< Event > event) override
	Start receiving the PSDU (i.e. More...

std::pair< uint16_t, WifiSpectrumBand >	GetChannelWidthAndBand (const WifiTxVector &txVector, uint16_t staId) const override
	Get the channel width and band to use (will be overloaded by child classes). More...

uint32_t	GetMaxPsduSize (void) const override
	Get the maximum PSDU size in bytes. More...

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) const override
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU. More...

bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY. More...

uint64_t	ObtainNextUid (const WifiTxVector &txVector) override
	Obtain the next UID for the PPDU to transmit. More...

PhyFieldRxStatus	ProcessSigA (Ptr< Event > event, PhyFieldRxStatus status) override
	Process SIG-A, perform amendment-specific actions, and provide an updated status of the reception. More...

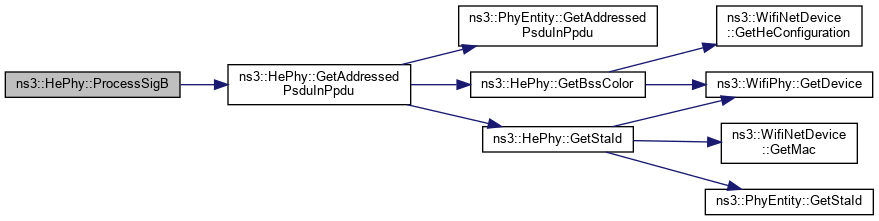

PhyFieldRxStatus	ProcessSigB (Ptr< Event > event, PhyFieldRxStatus status) override
	Process SIG-B, perform amendment-specific actions, and provide an updated status of the reception. More...

void	StartReceiveOfdmaPayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

Protected Member Functions inherited from ns3::VhtPhy
PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception. More...

PhyFieldRxStatus	EndReceiveSigA (Ptr< Event > event)
	End receiving the SIG-A, perform VHT-specific actions, and provide the status of the reception. More...

PhyFieldRxStatus	EndReceiveSigB (Ptr< Event > event)
	End receiving the SIG-B, perform VHT-specific actions, and provide the status of the reception. More...

Time	GetHtSigDuration (void) const override

WifiMode	GetHtSigMode (void) const override

uint32_t	GetMaxPsduSize (void) const override
	Get the maximum PSDU size in bytes. More...

uint8_t	GetNumberBccEncoders (const WifiTxVector &txVector) const override

bool	IsAllConfigSupported (WifiPpduField field, Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (including bandwidth) is supported by the PHY. More...

Protected Member Functions inherited from ns3::HtPhy
Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY. More...

Protected Member Functions inherited from ns3::OfdmPhy
PhyFieldRxStatus	EndReceiveHeader (Ptr< Event > event)
	End receiving the header, perform OFDM-specific actions, and provide the status of the reception. More...

virtual Time	GetHeaderDuration (const WifiTxVector &txVector) const

virtual WifiMode	GetHeaderMode (const WifiTxVector &txVector) const

uint8_t	GetNumberServiceBits (void) const

virtual Time	GetPreambleDuration (const WifiTxVector &txVector) const

Time	GetSignalExtension (WifiPhyBand band) const

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

virtual bool	IsChannelWidthSupported (Ptr< const WifiPpdu > ppdu) const
	Checks if the PPDU's bandwidth is supported by the PHY. More...

Protected Member Functions inherited from ns3::PhyEntity
void	AbortCurrentReception (WifiPhyRxfailureReason reason)
	Abort the current reception. More...

void	AddPreambleEvent (Ptr< Event > event)
	Add an entry to the map of current preamble events (stored in WifiPhy). More...

Ptr< Event >	CreateInterferenceEvent (Ptr< const WifiPpdu > ppdu, const WifiTxVector &txVector, Time duration, RxPowerWattPerChannelBand &rxPower, bool isStartOfdmaRxing=false)
	Create an event using WifiPhy's InterferenceHelper class. More...

virtual PhyFieldRxStatus	DoEndReceivePreamble (Ptr< Event > event)
	End receiving the preamble, perform amendment-specific actions, and provide the status of the reception. More...

virtual bool	DoStartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field, perform amendment-specific actions, and signify if it is supported. More...

void	DropPreambleEvent (Ptr< const WifiPpdu > ppdu, WifiPhyRxfailureReason reason, Time endRx, uint16_t measurementChannelWidth)
	Drop the PPDU and the corresponding preamble detection event, but keep CCA busy state after the completion of the currently processed event. More...

void	EndOfMpdu (Ptr< Event > event, Ptr< const WifiPsdu > psdu, size_t mpduIndex, Time relativeStart, Time mpduDuration)
	The last symbol of an MPDU in an A-MPDU has arrived. More...

void	EndPreambleDetectionPeriod (Ptr< Event > event)
	End the preamble detection period. More...

void	ErasePreambleEvent (Ptr< const WifiPpdu > ppdu, Time rxDuration)
	Erase the event corresponding to the PPDU from the list of preamble events, but consider it as noise after the completion of the current event. More...

uint16_t	GetCenterFrequencyForChannelWidth (const WifiTxVector &txVector) const
	Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width. More...

Ptr< const Event >	GetCurrentEvent (void) const
	Get the pointer to the current event (stored in WifiPhy). More...

const std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > &	GetCurrentPreambleEvents (void) const
	Get the map of current preamble events (stored in WifiPhy). More...

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const

SnrPer	GetPhyHeaderSnrPer (WifiPpduField field, Ptr< Event > event) const
	Obtain the SNR and PER of the PPDU field from the WifiPhy's InterferenceHelper class. More...

double	GetRandomValue (void) const
	Obtain a random value from the WifiPhy's generator. More...

std::pair< bool, SignalNoiseDbm >	GetReceptionStatus (Ptr< const WifiPsdu > psdu, Ptr< Event > event, uint16_t staId, Time relativeMpduStart, Time mpduDuration)
	Get the reception status for the provided MPDU and notify. More...

double	GetRxPowerWForPpdu (Ptr< Event > event) const
	Obtain the received power (W) for a given band. More...

std::tuple< double, double, double >	GetTxMaskRejectionParams (void) const

void	NotifyInterferenceRxEndAndClear (bool reset)
	Notify WifiPhy's InterferenceHelper of the end of the reception, clear maps and end of MPDU event, and eventually reset WifiPhy. More...

void	NotifyPayloadBegin (const WifiTxVector &txVector, const Time &payloadDuration)
	Fire the trace indicating that the PHY is starting to receive the payload of a PPDU. More...

void	ScheduleEndOfMpdus (Ptr< Event > event)
	Schedule end of MPDUs events. More...

void	StartPreambleDetectionPeriod (Ptr< Event > event)
	Start the preamble detection period. More...

void	StartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

void	UpdateInterferenceEvent (Ptr< Event > event, const RxPowerWattPerChannelBand &rxPower)
	Update an event in WifiPhy's InterferenceHelper class. More...

Static Protected Member Functions
static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More...

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::VhtPhy
static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More...

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::HtPhy
static uint64_t	CalculateDataRate (double symbolDuration, uint16_t guardInterval, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate, uint8_t nss)
	Calculates data rate from the supplied parameters. More...

static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More...

static uint64_t	CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate)
	Return the PHY rate corresponding to the supplied code rate and data rate. More...

static double	GetCodeRatio (WifiCodeRate codeRate)
	Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5. More...

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::OfdmPhy
static uint64_t	CalculateDataRate (double symbolDuration, uint16_t guardInterval, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate)
	Calculates data rate from the supplied parameters. More...

static uint64_t	CalculateDataRate (WifiCodeRate codeRate, uint16_t constellationSize, uint16_t channelWidth)
	Calculates data rate from the supplied parameters. More...

static uint64_t	CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate)
	Calculate the PHY rate in bps from code rate and data rate. More...

static double	GetCodeRatio (WifiCodeRate codeRate)
	Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5. More...

Protected Attributes
std::map< uint16_t, EventId >	m_beginOfdmaPayloadRxEvents
	the beginning of the OFDMA payload reception events (indexed by STA-ID) More...

uint64_t	m_currentHeTbPpduUid
	UID of the HE TB PPDU being received. More...

EndOfHeSigACallback	m_endOfHeSigACallback
	end of HE-SIG-A callback More...

uint64_t	m_previouslyTxPpduUid
	UID of the previously sent PPDU, used by AP to recognize response HE TB PPDUs. More...

WifiTxVector	m_trigVector
	the TRIGVECTOR More...

Time	m_trigVectorExpirationTime
	expiration time of the TRIGVECTOR More...

Protected Attributes inherited from ns3::HtPhy
uint8_t	m_bssMembershipSelector
	the BSS membership selector More...

uint8_t	m_maxMcsIndexPerSs
	the maximum MCS index per spatial stream as defined by the standard More...

uint8_t	m_maxSupportedMcsIndexPerSs
	the maximum supported MCS index per spatial stream More...

Protected Attributes inherited from ns3::PhyEntity
std::vector< EventId >	m_endOfMpduEvents
	the end of MPDU events (only used for A-MPDUs) More...

std::vector< EventId >	m_endPreambleDetectionEvents
	the end of preamble detection events More...

std::vector< EventId >	m_endRxPayloadEvents
	the end of receive events (only one unless UL MU reception) More...

std::list< WifiMode >	m_modeList
	the list of supported modes More...

std::map< UidStaIdPair, SignalNoiseDbm >	m_signalNoiseMap
	Map of the latest signal power and noise power in dBm (noise power includes the noise figure) More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper of the WifiPhy (to make it reachable for child classes) More...

std::map< UidStaIdPair, std::vector< bool > >	m_statusPerMpduMap
	Map of the current reception status per MPDU that is filled in as long as MPDUs are being processed by the PHY in case of an A-MPDU. More...

Ptr< WifiPhy >	m_wifiPhy
	Pointer to the owning WifiPhy. More...

Private Member Functions
void	BuildModeList (void) override
	Build mode list. More...

uint8_t	GetNumberBccEncoders (const WifiTxVector &txVector) const override

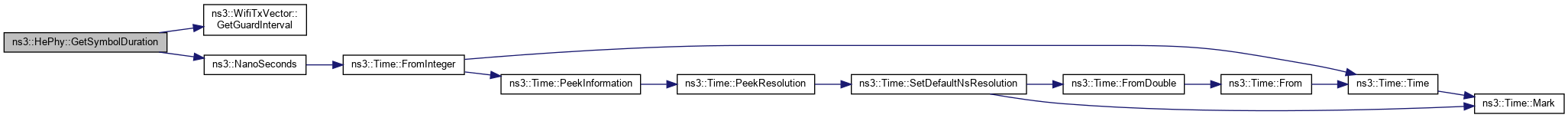

Time	GetSymbolDuration (const WifiTxVector &txVector) const override

Static Private Member Functions
static WifiMode	CreateHeMcs (uint8_t index)
	Create and return the HE MCS corresponding to the provided index. More...

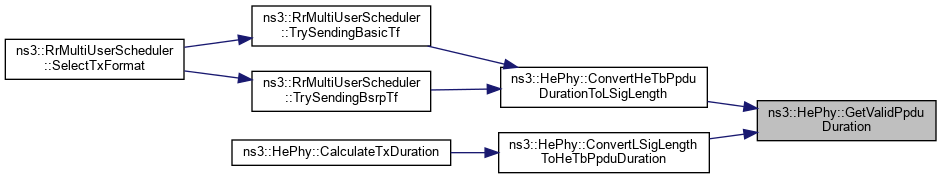

static Time	GetValidPpduDuration (Time ppduDuration, const WifiTxVector &txVector, WifiPhyBand band)
	Given a PPDU duration value, the TXVECTOR used to transmit the PPDU and the PHY band, compute a valid PPDU duration considering the number and duration of symbols, the preamble duration and the guard interval. More...

Static Private Attributes
static const PpduFormats	m_hePpduFormats
	HE PPDU formats. More...

Additional Inherited Members
Protected Types inherited from ns3::PhyEntity
typedef std::pair< WifiCodeRate, uint16_t >	CodeRateConstellationSizePair
	A pair to hold modulation information: code rate and constellation size. More...

typedef std::map< std::string, CodeRateConstellationSizePair >	ModulationLookupTable
	A modulation lookup table using unique name of modulation as key. More...

typedef std::map< WifiPreamble, std::vector< WifiPpduField > >	PpduFormats
	A map of PPDU field elements per preamble type. More...

typedef std::pair< uint64_t, uint16_t >	UidStaIdPair
	A pair of a UID and STA_ID. More...

Static Protected Attributes inherited from ns3::PhyEntity
static uint64_t	m_globalPpduUid = 0
	Global counter of the PPDU UID. More...

Detailed Description

PHY entity for HE (11ax)

HE PHY is based on VHT PHY.

Refer to P802.11ax/D4.0, clause 27.

Definition at line 60 of file he-phy.h.

Member Typedef Documentation

◆ EndOfHeSigACallback

typedef Callback<void, HeSigAParameters> ns3::HePhy::EndOfHeSigACallback

Callback upon end of HE-SIG-A.

arg1: Parameters of HE-SIG-A

Definition at line 68 of file he-phy.h.

Constructor & Destructor Documentation

◆ HePhy()

ns3::HePhy::HePhy ( bool buildModeList = true )

Constructor for HE PHY.

Parameters

buildModeList flag used to add HE modes to list (disabled by child classes to only add child classes' modes)

Definition at line 71 of file he-phy.cc.

References BuildModeList(), HE_PHY, ns3::HtPhy::m_bssMembershipSelector, m_currentHeTbPpduUid, ns3::HtPhy::m_maxMcsIndexPerSs, ns3::HtPhy::m_maxSupportedMcsIndexPerSs, m_previouslyTxPpduUid, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ~HePhy()

ns3::HePhy::~HePhy ( )

virtual

Destructor for HE PHY.

Definition at line 87 of file he-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ BuildModeList()

void ns3::HePhy::BuildModeList ( void )

overrideprivatevirtual

Build mode list.

Should be redone whenever the maximum MCS index per spatial stream ,or any other important parameter having an impact on the MCS index (e.g. number of spatial streams for HT), changes.

Reimplemented from ns3::HtPhy.

Definition at line 93 of file he-phy.cc.

References CreateHeMcs(), HE_PHY, ns3::HtPhy::m_bssMembershipSelector, ns3::HtPhy::m_maxSupportedMcsIndexPerSs, ns3::PhyEntity::m_modeList, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by HePhy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildPpdu()

Ptr< WifiPpdu > ns3::HePhy::BuildPpdu	(	const WifiConstPsduMap &	psdus,
		const WifiTxVector &	txVector,
		Time	ppduDuration
	)

overridevirtual

Build amendment-specific PPDU.

Parameters

psdus	the PHY payloads (PSDUs)
txVector	the TXVECTOR that was used for the PPDU
ppduDuration	the transmission duration of the PPDU

Returns: the amendment-specific WifiPpdu

Reimplemented from ns3::PhyEntity.

Definition at line 330 of file he-phy.cc.

References ns3::WifiTxVector::GetModulationClass(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhy::GetPhyBand(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::IsUlMu(), ns3::PhyEntity::m_wifiPhy, NS_ASSERT, NS_LOG_FUNCTION, ObtainNextUid(), ns3::HePpdu::PSD_HE_TB_NON_OFDMA_PORTION, ns3::HePpdu::PSD_NON_HE_TB, and ns3::WIFI_MOD_CLASS_HE.

Here is the call graph for this function:

◆ CalculateNonHtReferenceRate()

uint64_t ns3::HePhy::CalculateNonHtReferenceRate	(	WifiCodeRate	codeRate,
		uint16_t	constellationSize
	)

staticprotected

Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size.

Parameters

codeRate	the convolutional coding rate
constellationSize	the size of modulation constellation

Returns: the rate in bps.

To convert an HE MCS to its corresponding non-HT Reference Rate use the modulation and coding rate of the HT MCS and lookup in Table 10-10 of IEEE P802.11ax/D6.0.

Definition at line 1186 of file he-phy.cc.

References ns3::VhtPhy::CalculateNonHtReferenceRate(), NS_FATAL_ERROR, ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_CODE_RATE_5_6.

Referenced by GetNonHtReferenceRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateNonOfdmaDurationForHeTb()

Time ns3::HePhy::CalculateNonOfdmaDurationForHeTb ( const WifiTxVector & txVector ) const

Parameters

txVector the transmission parameters used for the HE TB PPDU

Returns: the duration of the non-OFDMA portion of the HE TB PPDU.

Definition at line 298 of file he-phy.cc.

References ns3::VhtPhy::GetDuration(), ns3::WifiTxVector::GetModulationClass(), ns3::WifiTxVector::IsUlMu(), NS_ABORT_IF, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, ns3::WIFI_PPDU_FIELD_PREAMBLE, and ns3::WIFI_PPDU_FIELD_SIG_A.

Referenced by DoGetEvent(), and StartTx().

Here is the call graph for this function:

Here is the caller graph for this function:

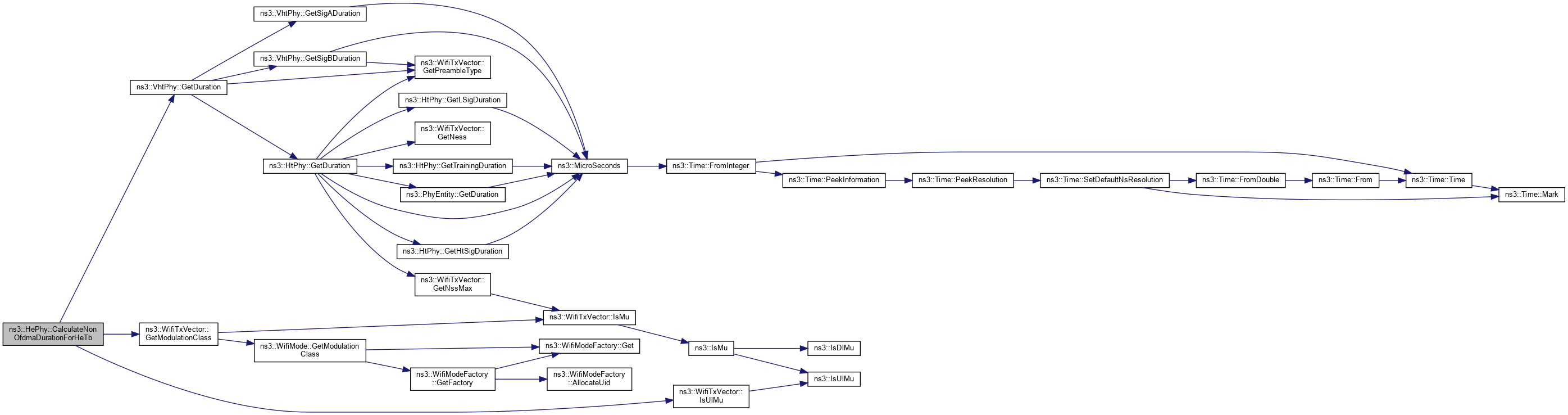

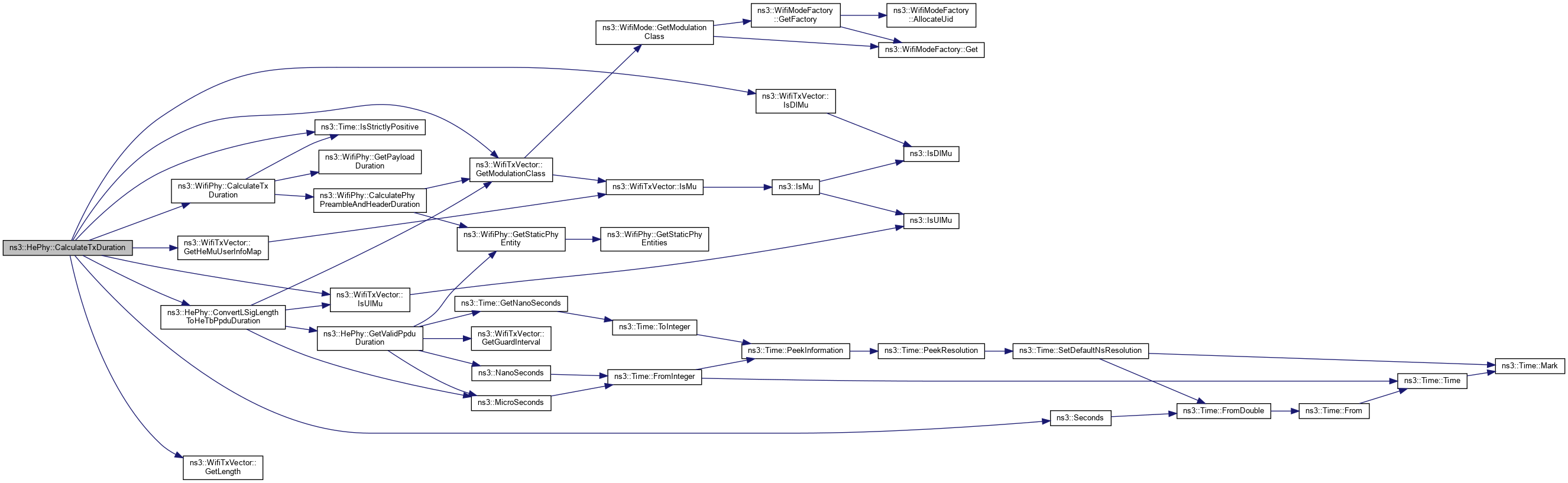

◆ CalculateTxDuration()

Time ns3::HePhy::CalculateTxDuration	(	WifiConstPsduMap	psduMap,
		const WifiTxVector &	txVector,
		WifiPhyBand	band
	)		const

overridevirtual

Parameters

psduMap	the PSDU(s) to transmit indexed by STA-ID
txVector	the TXVECTOR used for the transmission of the PPDU
band	the frequency band being used

Returns: the total amount of time this PHY will stay busy for the transmission of the PPDU

Reimplemented from ns3::PhyEntity.

Definition at line 977 of file he-phy.cc.

References ns3::WifiPhy::CalculateTxDuration(), ConvertLSigLengthToHeTbPpduDuration(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetLength(), ns3::WifiTxVector::GetModulationClass(), ns3::WifiTxVector::IsDlMu(), ns3::Time::IsStrictlyPositive(), ns3::WifiTxVector::IsUlMu(), NS_ABORT_MSG_IF, NS_ASSERT, ns3::Seconds(), and ns3::WIFI_MOD_CLASS_HE.

Here is the call graph for this function:

◆ CancelAllEvents()

void ns3::HePhy::CancelAllEvents ( void )

overridevirtual

Cancel and clear all running events.

Reimplemented from ns3::PhyEntity.

Definition at line 389 of file he-phy.cc.

References ns3::PhyEntity::CancelAllEvents(), m_beginOfdmaPayloadRxEvents, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ConvertHeTbPpduDurationToLSigLength()

std::pair< uint16_t, Time > ns3::HePhy::ConvertHeTbPpduDurationToLSigLength	(	Time	ppduDuration,
		const WifiTxVector &	txVector,
		WifiPhyBand	band
	)

static

Compute the L-SIG length value corresponding to the given HE TB PPDU duration.

If the latter is not a feasible duration (considering the selected guard interval), a proper duration is computed and returned along with the L-SIG length value.

Parameters

ppduDuration	the duration of the HE TB PPDU
txVector	the TXVECTOR used for the transmission of this HE TB PPDU
band	the frequency band being used

Returns: the L-SIG length value and the adjusted HE TB PPDU duration.

Definition at line 274 of file he-phy.cc.

References ns3::WifiTxVector::GetModulationClass(), ns3::Time::GetNanoSeconds(), GetValidPpduDuration(), ns3::WifiTxVector::IsUlMu(), NS_ABORT_IF, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by ns3::RrMultiUserScheduler::TrySendingBasicTf(), and ns3::RrMultiUserScheduler::TrySendingBsrpTf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConvertLSigLengthToHeTbPpduDuration()

Time ns3::HePhy::ConvertLSigLengthToHeTbPpduDuration	(	uint16_t	length,
		const WifiTxVector &	txVector,
		WifiPhyBand	band
	)

static

Parameters

length	the L-SIG length value
txVector	the TXVECTOR used for the transmission of this HE TB PPDU
band	the frequency band being used

Returns: the duration of the HE TB PPDU corresponding to that L-SIG length value.

Definition at line 287 of file he-phy.cc.

References ns3::WifiTxVector::GetModulationClass(), GetValidPpduDuration(), ns3::WifiTxVector::IsUlMu(), ns3::MicroSeconds(), NS_ABORT_IF, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by CalculateTxDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateHeMcs()

WifiMode ns3::HePhy::CreateHeMcs ( uint8_t index )

staticprivate

Create and return the HE MCS corresponding to the provided index.

This method binds all the callbacks used by WifiMode.

Parameters

index the index of the MCS

Returns: an HE MCS

Definition at line 1065 of file he-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), GetCodeRate(), GetConstellationSize(), GetDataRateFromTxVector(), GetNonHtReferenceRate(), GetPhyRateFromTxVector(), IsAllowed(), ns3::MakeBoundCallback(), ns3::MakeCallback(), NS_ASSERT_MSG, nlohmann::to_string(), and ns3::WIFI_MOD_CLASS_HE.

Referenced by BuildModeList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoAbortCurrentReception()

void ns3::HePhy::DoAbortCurrentReception ( WifiPhyRxfailureReason reason )

overrideprotectedvirtual

Perform amendment-specific actions before aborting the current reception.

Parameters

reason the reason the reception is aborted

Reimplemented from ns3::PhyEntity.

Definition at line 401 of file he-phy.cc.

References ns3::PhyEntity::DoAbortCurrentReception(), ns3::PhyEntity::m_endOfMpduEvents, NS_LOG_FUNCTION, and ns3::OBSS_PD_CCA_RESET.

Here is the call graph for this function:

◆ DoEndReceivePayload()

void ns3::HePhy::DoEndReceivePayload ( Ptr< const WifiPpdu > ppdu )

overrideprotectedvirtual

Perform amendment-specific actions at the end of the reception of the payload.

Parameters

ppdu	the incoming PPDU

Reimplemented from ns3::PhyEntity.

Definition at line 708 of file he-phy.cc.

References ns3::PhyEntity::DoEndReceivePayload(), ns3::WifiPhy::GetLastRxEndTime(), ns3::PhyEntity::m_endRxPayloadEvents, ns3::PhyEntity::m_wifiPhy, ns3::PhyEntity::NotifyInterferenceRxEndAndClear(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::WIFI_PPDU_TYPE_UL_MU.

Here is the call graph for this function:

◆ DoGetEvent()

Ptr< Event > ns3::HePhy::DoGetEvent	(	Ptr< const WifiPpdu >	ppdu,
		RxPowerWattPerChannelBand &	rxPowersW
	)

overrideprotectedvirtual

Get the event corresponding to the incoming PPDU.

We store all incoming preamble events, perform amendment-specific actions, and a decision is made at the end of the preamble detection window.

Parameters

ppdu	the incoming PPDU
rxPowersW	the receive power in W per band

Returns: the event holding the incoming PPDU's information

Reimplemented from ns3::PhyEntity.

Definition at line 434 of file he-phy.cc.

References ns3::PhyEntity::AddPreambleEvent(), CalculateNonOfdmaDurationForHeTb(), ns3::PhyEntity::CreateInterferenceEvent(), ns3::PhyEntity::DoGetEvent(), GetAddressedPsduInPpdu(), ns3::WifiTxVector::GetBssColor(), ns3::PhyEntity::GetCurrentEvent(), ns3::PhyEntity::GetCurrentPreambleEvents(), ns3::PhyEntity::m_wifiPhy, ns3::WifiPhy::NotifyRxDrop(), NS_LOG_DEBUG, ns3::RXING, ns3::PhyEntity::UpdateInterferenceEvent(), and ns3::WIFI_PPDU_TYPE_UL_MU.

Here is the call graph for this function:

◆ DoResetReceive()

void ns3::HePhy::DoResetReceive ( Ptr< Event > event )

overrideprotectedvirtual

Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header.

Parameters

event the event holding incoming PPDU's information

Reimplemented from ns3::PhyEntity.

Definition at line 419 of file he-phy.cc.

References m_beginOfdmaPayloadRxEvents, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::WIFI_PPDU_TYPE_UL_MU.

Here is the call graph for this function:

◆ DoStartReceivePayload()

void ns3::HePhy::DoStartReceivePayload ( Ptr< Event > event )

overrideprotectedvirtual

Start receiving the PSDU (i.e.

the first symbol of the PSDU has arrived) and perform amendment-specific actions.

Parameters

event the event holding incoming PPDU's information

Reimplemented from ns3::PhyEntity.

Definition at line 664 of file he-phy.cc.

References ns3::PhyEntity::CalculatePhyPreambleAndHeaderDuration(), ns3::PhyEntity::DoStartReceivePayload(), ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetMac(), ns3::WifiTxVector::GetModulationClass(), GetStaId(), ns3::WifiTxVector::IsUlMu(), m_beginOfdmaPayloadRxEvents, ns3::PhyEntity::m_endRxPayloadEvents, ns3::PhyEntity::m_signalNoiseMap, ns3::PhyEntity::m_statusPerMpduMap, ns3::PhyEntity::m_wifiPhy, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::PhyEntity::ResetReceive(), ns3::Simulator::Schedule(), and ns3::WIFI_MOD_CLASS_HE.

Here is the call graph for this function:

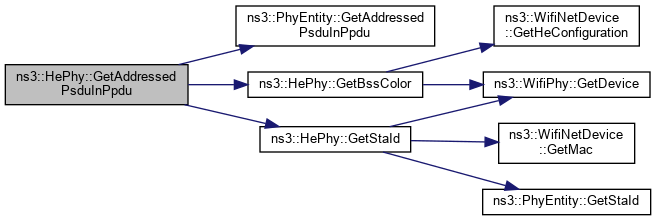

◆ GetAddressedPsduInPpdu()

Ptr< const WifiPsdu > ns3::HePhy::GetAddressedPsduInPpdu ( Ptr< const WifiPpdu > ppdu ) const

overridevirtual

Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU).

Parameters

ppdu	the PPDU to extract the PSDU from

Returns: the PSDU addressed to that PHY

Reimplemented from ns3::PhyEntity.

Definition at line 477 of file he-phy.cc.

References ns3::PhyEntity::GetAddressedPsduInPpdu(), GetBssColor(), GetStaId(), NS_ASSERT, ns3::WIFI_PPDU_TYPE_DL_MU, and ns3::WIFI_PPDU_TYPE_UL_MU.

Referenced by DoGetEvent(), ProcessSigA(), ProcessSigB(), and StartReceiveOfdmaPayload().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBssColor()

uint8_t ns3::HePhy::GetBssColor ( void ) const

Returns: the BSS color of this PHY.

Definition at line 489 of file he-phy.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHeConfiguration(), and ns3::PhyEntity::m_wifiPhy.

Referenced by GetAddressedPsduInPpdu(), and ProcessSigA().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCenterFrequencyForNonOfdmaPart()

uint16_t ns3::HePhy::GetCenterFrequencyForNonOfdmaPart	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)		const

Get the center frequency of the non-OFDMA part of the current TxVector for the given STA-ID.

Note this method is only to be used for UL MU.

Parameters

txVector	the TXVECTOR that has the RU allocation
staId	the STA-ID of the station taking part of the UL MU

Returns: the center frequency in MHz corresponding to the non-OFDMA part of the HE TB PPDU

Definition at line 932 of file he-phy.cc.

References ns3::HeRu::FindOverlappingRu(), ns3::PhyEntity::GetCenterFrequencyForChannelWidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetModulationClass(), GetNonOfdmaWidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::HeRu::RuSpec::GetPhyIndex(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRu(), ns3::HeRu::GetRuType(), ns3::WifiTxVector::IsUlMu(), ns3::PhyEntity::m_wifiPhy, NS_ASSERT, NS_LOG_FUNCTION, ns3::HeRu::RuSpec::SetPhyIndex(), and ns3::WIFI_MOD_CLASS_HE.

Referenced by GetTxPowerSpectralDensity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetChannelWidthAndBand()

std::pair< uint16_t, WifiSpectrumBand > ns3::HePhy::GetChannelWidthAndBand	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)		const

overrideprotectedvirtual

Get the channel width and band to use (will be overloaded by child classes).

Parameters

txVector	the transmission parameters
staId	the station ID of the PSDU

Returns: a pair of channel width (MHz) and band

Reimplemented from ns3::PhyEntity.

Definition at line 775 of file he-phy.cc.

References ns3::HeRu::GetBandwidth(), ns3::PhyEntity::GetChannelWidthAndBand(), ns3::WifiTxVector::GetRu(), GetRuBandForRx(), ns3::HeRu::RuSpec::GetRuType(), and ns3::WifiTxVector::IsMu().

Here is the call graph for this function:

◆ GetCodeRate()

WifiCodeRate ns3::HePhy::GetCodeRate ( uint8_t mcsValue )

static

Return the coding rate corresponding to the supplied HE MCS index.

This function is used as a callback for WifiMode operation.

Parameters

mcsValue the MCS index

Returns: the coding rate.

Definition at line 1081 of file he-phy.cc.

References ns3::VhtPhy::GetCodeRate(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_CODE_RATE_5_6.

Referenced by CreateHeMcs(), GetDataRate(), GetNonHtReferenceRate(), and GetPhyRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetConstellationSize()

uint16_t ns3::HePhy::GetConstellationSize ( uint8_t mcsValue )

static

Return the constellation size corresponding to the supplied HE MCS index.

This function is used as a callback for WifiMode operation.

Parameters

mcsValue the MCS index

Returns: the size of modulation constellation.

Definition at line 1095 of file he-phy.cc.

References ns3::VhtPhy::GetConstellationSize().

Referenced by CreateHeMcs(), GetDataRate(), and GetNonHtReferenceRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCurrentHeTbPpduUid()

uint64_t ns3::HePhy::GetCurrentHeTbPpduUid ( void ) const

Returns: the UID of the HE TB PPDU being received

Definition at line 855 of file he-phy.cc.

References m_currentHeTbPpduUid.

◆ GetDataRate()

uint64_t ns3::HePhy::GetDataRate	(	uint8_t	mcsValue,
		uint16_t	channelWidth,
		uint16_t	guardInterval,
		uint8_t	nss
	)

static

Return the data rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial streams.

Parameters

mcsValue	the MCS index
channelWidth	the channel width in MHz
guardInterval	the guard interval duration in nanoseconds
nss	the number of spatial streams

Returns: the data bit rate in bps.

Definition at line 1144 of file he-phy.cc.

References ns3::HtPhy::CalculateDataRate(), GetCodeRate(), ns3::HtPhy::GetCodeRatio(), GetConstellationSize(), GetUsableSubcarriers(), and NS_ASSERT.

Referenced by GetDataRateFromTxVector(), and GetPhyRate().

Here is the call graph for this function:

Here is the caller graph for this function:

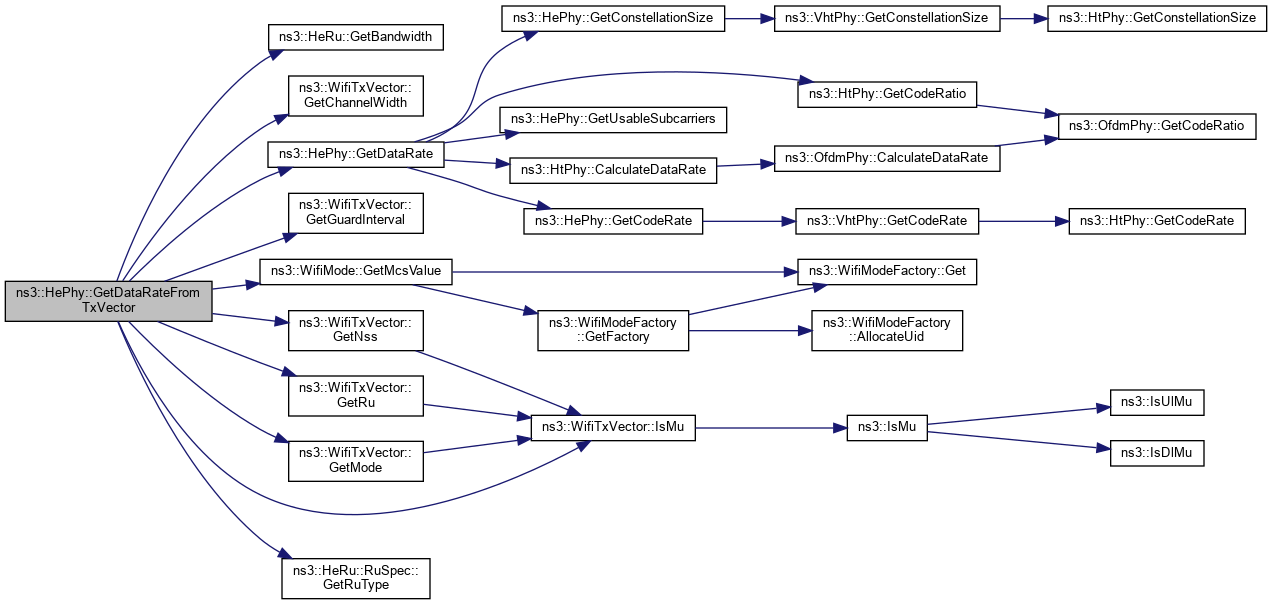

◆ GetDataRateFromTxVector()

uint64_t ns3::HePhy::GetDataRateFromTxVector	(	const WifiTxVector &	txVector,
		uint16_t	staId = `SU_STA_ID`
	)

static

Return the data rate corresponding to the supplied TXVECTOR for the STA-ID.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID for MU (unused if SU)

Returns: the data bit rate in bps.

Definition at line 1130 of file he-phy.cc.

References ns3::HeRu::GetBandwidth(), ns3::WifiTxVector::GetChannelWidth(), GetDataRate(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), and ns3::WifiTxVector::IsMu().

Referenced by CreateHeMcs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeMcs()

WifiMode ns3::HePhy::GetHeMcs ( uint8_t index )

static

Return the HE MCS corresponding to the provided index.

Parameters

index the index of the MCS

Returns: an HE MCS

Definition at line 1015 of file he-phy.cc.

References CASE, and NS_ABORT_MSG.

Referenced by ns3::HePpdu::DoGetTxVector(), ns3::WifiDefaultAckManager::GetAckInfoIfAggregatedMuBar(), ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar(), ns3::CtrlTriggerHeader::GetHeTbTxVector(), InitializeModes(), and ns3::RrMultiUserScheduler::TrySendingBasicTf().

Here is the caller graph for this function:

◆ GetHeMcs0()

static WifiMode ns3::HePhy::GetHeMcs0 ( void )

static

Return MCS 0 from HE MCS values.

Returns: MCS 0 from HE MCS values

◆ GetHeMcs1()

static WifiMode ns3::HePhy::GetHeMcs1 ( void )

static

Return MCS 1 from HE MCS values.

Returns: MCS 1 from HE MCS values

◆ GetHeMcs10()

static WifiMode ns3::HePhy::GetHeMcs10 ( void )

static

Return MCS 10 from HE MCS values.

Returns: MCS 10 from HE MCS values

◆ GetHeMcs11()

static WifiMode ns3::HePhy::GetHeMcs11 ( void )

static

Return MCS 11 from HE MCS values.

Returns: MCS 11 from HE MCS values

◆ GetHeMcs2()

static WifiMode ns3::HePhy::GetHeMcs2 ( void )

static

Return MCS 2 from HE MCS values.

Returns: MCS 2 from HE MCS values

◆ GetHeMcs3()

static WifiMode ns3::HePhy::GetHeMcs3 ( void )

static

Return MCS 3 from HE MCS values.

Returns: MCS 3 from HE MCS values

◆ GetHeMcs4()

static WifiMode ns3::HePhy::GetHeMcs4 ( void )

static

Return MCS 4 from HE MCS values.

Returns: MCS 4 from HE MCS values

◆ GetHeMcs5()

static WifiMode ns3::HePhy::GetHeMcs5 ( void )

static

Return MCS 5 from HE MCS values.

Returns: MCS 5 from HE MCS values

◆ GetHeMcs6()

static WifiMode ns3::HePhy::GetHeMcs6 ( void )

static

Return MCS 6 from HE MCS values.

Returns: MCS 6 from HE MCS values

◆ GetHeMcs7()

static WifiMode ns3::HePhy::GetHeMcs7 ( void )

static

Return MCS 7 from HE MCS values.

Returns: MCS 7 from HE MCS values

◆ GetHeMcs8()

static WifiMode ns3::HePhy::GetHeMcs8 ( void )

static

Return MCS 8 from HE MCS values.

Returns: MCS 8 from HE MCS values

◆ GetHeMcs9()

static WifiMode ns3::HePhy::GetHeMcs9 ( void )

static

Return MCS 9 from HE MCS values.

Returns: MCS 9 from HE MCS values

◆ GetLSigDuration()

Time ns3::HePhy::GetLSigDuration ( WifiPreamble preamble ) const

overridevirtual

Parameters

preamble the type of preamble

Returns: the duration of the L-SIG (non-HT header) field

See also: WIFI_PPDU_FIELD_NON_HT_HEADER

Reimplemented from ns3::HtPhy.

Definition at line 173 of file he-phy.cc.

References ns3::MicroSeconds().

Here is the call graph for this function:

◆ GetMaxPsduSize()

uint32_t ns3::HePhy::GetMaxPsduSize ( void ) const

overrideprotectedvirtual

Get the maximum PSDU size in bytes.

Returns: the maximum PSDU size in bytes

Implements ns3::PhyEntity.

Definition at line 1228 of file he-phy.cc.

◆ GetMeasurementChannelWidth()

uint16_t ns3::HePhy::GetMeasurementChannelWidth ( const Ptr< const WifiPpdu > ppdu ) const

overridevirtual

Return the channel width used to measure the RSSI.

Parameters

ppdu	the PPDU that is being received

Returns: the channel width (in MHz) used for RSSI measurement

The PHY shall not issue a PHY-RXSTART.indication primitive in response to a PPDU that does not overlap the primary channel unless the PHY at an AP receives the HE TB PPDU solicited by the AP. For the HE TB PPDU solicited by the AP, the PHY shall issue a PHY-RXSTART.indication primitive for a PPDU received in the primary or at the secondary 20 MHz channel, the secondary 40 MHz channel, or the secondary 80 MHz channel.

Reimplemented from ns3::PhyEntity.

Definition at line 861 of file he-phy.cc.

References ns3::PhyEntity::GetMeasurementChannelWidth(), and m_previouslyTxPpduUid.

Here is the call graph for this function:

◆ GetNonHtReferenceRate()

uint64_t ns3::HePhy::GetNonHtReferenceRate ( uint8_t mcsValue )

static

Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HE MCS index.

This function calls CalculateNonHtReferenceRate and is used as a callback for WifiMode operation.

Parameters

mcsValue the HE MCS index

Returns: the rate in bps of the non-HT Reference Rate.

Definition at line 1178 of file he-phy.cc.

References CalculateNonHtReferenceRate(), GetCodeRate(), and GetConstellationSize().

Referenced by CreateHeMcs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNonOfdmaBand()

WifiSpectrumBand ns3::HePhy::GetNonOfdmaBand	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)		const

Get the band used to transmit the non-OFDMA part of an HE TB PPDU.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the STA-ID of the station taking part of the UL MU

Returns: the spectrum band used to transmit the non-OFDMA part of an HE TB PPDU

Definition at line 823 of file he-phy.cc.

References ns3::WifiPhy::ConvertHeRuSubcarriers(), ns3::HeRu::FindOverlappingRu(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), ns3::WifiTxVector::GetModulationClass(), GetNonOfdmaWidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::HeRu::RuSpec::GetPhyIndex(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRu(), ns3::HeRu::GetRuType(), ns3::HeRu::RuSpec::GetRuType(), ns3::HeRu::GetSubcarrierGroup(), ns3::WifiTxVector::IsUlMu(), ns3::PhyEntity::m_wifiPhy, NS_ASSERT, ns3::HeRu::RuSpec::SetPhyIndex(), and ns3::WIFI_MOD_CLASS_HE.

Here is the call graph for this function:

◆ GetNonOfdmaWidth()

uint16_t ns3::HePhy::GetNonOfdmaWidth ( HeRu::RuSpec ru ) const

Get the width in MHz of the non-OFDMA portion of an HE TB PPDU.

Parameters

ru	the RU in which the HE TB PPDU is sent

Returns: the width in MHz of the non-OFDMA portion of an HE TB PPDU

Definition at line 843 of file he-phy.cc.

References ns3::HeRu::GetBandwidth(), ns3::HeRu::RuSpec::GetIndex(), ns3::HeRu::RuSpec::GetRuType(), and ns3::HeRu::RU_26_TONE.

Referenced by GetCenterFrequencyForNonOfdmaPart(), and GetNonOfdmaBand().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNumberBccEncoders()

uint8_t ns3::HePhy::GetNumberBccEncoders ( const WifiTxVector & txVector ) const

overrideprivatevirtual

Parameters

txVector the transmission parameters

Returns: the number of BCC encoders used for data encoding

Add an encoder when crossing maxRatePerCoder frontier.

The value of 320 Mbps and 350 Mbps for normal GI and short GI (resp.) were obtained by observing the rates for which Nes was incremented in tables 19-27 to 19-41 of IEEE 802.11-2016.

Reimplemented from ns3::HtPhy.

Definition at line 308 of file he-phy.cc.

◆ GetPhyRate()

uint64_t ns3::HePhy::GetPhyRate	(	uint8_t	mcsValue,
		uint16_t	channelWidth,
		uint16_t	guardInterval,
		uint8_t	nss
	)

static

Return the PHY rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial stream.

This function calls HtPhy::CalculatePhyRate and is mainly used as a callback for WifiMode operation.

Parameters

mcsValue	the HE MCS index
channelWidth	the considered channel width in MHz
guardInterval	the considered guard interval duration in nanoseconds
nss	the considered number of stream

Returns: the physical bit rate of this signal in bps.

Definition at line 1108 of file he-phy.cc.

References ns3::HtPhy::CalculatePhyRate(), GetCodeRate(), and GetDataRate().

Referenced by GetPhyRateFromTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPhyRateFromTxVector()

uint64_t ns3::HePhy::GetPhyRateFromTxVector	(	const WifiTxVector &	txVector,
		uint16_t	staId = `SU_STA_ID`
	)

static

Return the PHY rate corresponding to the supplied TXVECTOR for the STA-ID.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID for MU (unused if SU)

Returns: the physical bit rate of this signal in bps.

Definition at line 1116 of file he-phy.cc.

References ns3::HeRu::GetBandwidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), GetPhyRate(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), and ns3::WifiTxVector::IsMu().

Referenced by CreateHeMcs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPpduFormats()

const PhyEntity::PpduFormats & ns3::HePhy::GetPpduFormats ( void ) const

overridevirtual

Return the PPDU formats of the PHY.

Returns: the PPDU formats of the PHY

Implements ns3::PhyEntity.

Definition at line 167 of file he-phy.cc.

References m_hePpduFormats.

◆ GetRuBandForRx()

WifiSpectrumBand ns3::HePhy::GetRuBandForRx	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)		const

Get the band in the RX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the STA-ID of the station

Returns: the RU band in the RX spectrum

Definition at line 806 of file he-phy.cc.

References ns3::WifiPhy::ConvertHeRuSubcarriers(), ns3::WifiPhy::GetChannelWidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::HeRu::RuSpec::GetPhyIndex(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), ns3::HeRu::GetSubcarrierGroup(), ns3::WifiTxVector::IsMu(), ns3::PhyEntity::m_wifiPhy, and NS_ASSERT.

Referenced by GetChannelWidthAndBand().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRuBandForTx()

WifiSpectrumBand ns3::HePhy::GetRuBandForTx	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)		const

Get the band in the TX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the STA-ID of the station

Returns: the RU band in the TX spectrum

Definition at line 789 of file he-phy.cc.

References ns3::WifiPhy::ConvertHeRuSubcarriers(), ns3::WifiTxVector::GetChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), ns3::HeRu::RuSpec::GetPhyIndex(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), ns3::HeRu::GetSubcarrierGroup(), ns3::WifiTxVector::IsMu(), ns3::PhyEntity::m_wifiPhy, and NS_ASSERT.

Referenced by GetTxPowerSpectralDensity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSigADuration()

Time ns3::HePhy::GetSigADuration ( WifiPreamble preamble ) const

overridevirtual

Parameters

preamble the type of preamble

Returns: the duration of the SIG-A field

Reimplemented from ns3::VhtPhy.

Definition at line 199 of file he-phy.cc.

References ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_HE_ER_SU.

Here is the call graph for this function:

◆ GetSigAMode()

WifiMode ns3::HePhy::GetSigAMode ( void ) const

overridevirtual

Returns: the WifiMode used for the SIG-A field

Reimplemented from ns3::VhtPhy.

Definition at line 128 of file he-phy.cc.

References ns3::VhtPhy::GetVhtMcs0().

Referenced by GetSigMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSigBDuration()

Time ns3::HePhy::GetSigBDuration ( const WifiTxVector & txVector ) const

overridevirtual

Parameters

txVector the transmission parameters

Returns: the duration of the SIG-B field

Reimplemented from ns3::VhtPhy.

Definition at line 205 of file he-phy.cc.

References ns3::FemtoSeconds(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::Time::GetFemtoSeconds(), ns3::WifiTxVector::GetModulationClass(), ns3::Time::GetNanoSeconds(), ns3::WifiTxVector::GetNumRusPerHeSigBContentChannel(), GetSigBMode(), ns3::WifiTxVector::IsDlMu(), max, ns3::MicroSeconds(), NS_ASSERT, and ns3::WIFI_MOD_CLASS_HE.

Here is the call graph for this function:

◆ GetSigBMode()

WifiMode ns3::HePhy::GetSigBMode ( const WifiTxVector & txVector ) const

overridevirtual

Parameters

txVector the transmission parameters

Returns: the WifiMode used for the SIG-B field

Get smallest HE MCS index among station's allocations and use the VHT version of the index. This enables to have 800 ns GI, 52 data tones, and 312.5 kHz spacing while ensuring that MCS will be decoded by all stations.

Reimplemented from ns3::VhtPhy.

Definition at line 134 of file he-phy.cc.

References ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetModulationClass(), ns3::VhtPhy::GetVhtMcs0(), ns3::VhtPhy::GetVhtMcs1(), ns3::VhtPhy::GetVhtMcs2(), ns3::VhtPhy::GetVhtMcs3(), ns3::VhtPhy::GetVhtMcs4(), ns3::VhtPhy::GetVhtMcs5(), ns3::WifiTxVector::IsDlMu(), min, NS_ABORT_MSG_IF, and ns3::WIFI_MOD_CLASS_HE.

Referenced by GetSigBDuration(), and GetSigMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSigMode()

WifiMode ns3::HePhy::GetSigMode	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overridevirtual

Get the WifiMode for the SIG field specified by the PPDU field.

Parameters

field	the PPDU field
txVector	the transmission parameters

Returns: the WifiMode used for the SIG field

Reimplemented from ns3::PhyEntity.

Definition at line 106 of file he-phy.cc.

References ns3::WifiTxVector::GetModulationClass(), GetSigAMode(), GetSigBMode(), ns3::VhtPhy::GetSigMode(), ns3::WifiTxVector::IsDlMu(), NS_ASSERT, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_FIELD_TRAINING.

Here is the call graph for this function:

◆ GetStaId()

uint16_t ns3::HePhy::GetStaId ( const Ptr< const WifiPpdu > ppdu ) const

overridevirtual

Return the STA ID that has been assigned to the station this PHY belongs to.

This is typically called for MU PPDUs, in order to pick the correct PSDU.

Parameters

ppdu	the PPDU for which the STA ID is requested

Returns: the STA ID

Reimplemented from ns3::PhyEntity.

Reimplemented in OfdmaTestHePhy.

Definition at line 504 of file he-phy.cc.

References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetMac(), ns3::PhyEntity::GetStaId(), ns3::PhyEntity::m_wifiPhy, third::mac, ns3::WIFI_PPDU_TYPE_DL_MU, and ns3::WIFI_PPDU_TYPE_UL_MU.

Referenced by DoStartReceivePayload(), GetAddressedPsduInPpdu(), GetTxPowerSpectralDensity(), IsConfigSupported(), StartReceiveOfdmaPayload(), and StartReceivePreamble().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSymbolDuration()

Time ns3::HePhy::GetSymbolDuration ( const WifiTxVector & txVector ) const

overrideprivatevirtual

Parameters

txVector the transmission parameters

Returns: the symbol duration (including GI)

Reimplemented from ns3::HtPhy.

Definition at line 314 of file he-phy.cc.

References ns3::WifiTxVector::GetGuardInterval(), ns3::NanoSeconds(), and NS_ASSERT.

Here is the call graph for this function:

◆ GetTrainingDuration()

Time ns3::HePhy::GetTrainingDuration	(	const WifiTxVector &	txVector,
		uint8_t	nDataLtf,
		uint8_t	nExtensionLtf = `0`
	)		const

overridevirtual

Parameters

txVector	the transmission parameters
nDataLtf	the number of data LTF fields (excluding those in preamble)
nExtensionLtf	the number of extension LTF fields

Returns: the duration of the training field

See also: WIFI_PPDU_FIELD_TRAINING

Reimplemented from ns3::HtPhy.

Definition at line 179 of file he-phy.cc.

References ns3::WifiTxVector::GetModulationClass(), ns3::WifiTxVector::IsUlMu(), ns3::MicroSeconds(), NS_ABORT_MSG_IF, NS_ASSERT, and ns3::WIFI_MOD_CLASS_HE.

Here is the call graph for this function:

◆ GetTxPowerSpectralDensity()

Ptr< SpectrumValue > ns3::HePhy::GetTxPowerSpectralDensity	(	double	txPowerW,
		Ptr< const WifiPpdu >	ppdu
	)		const

overrideprotectedvirtual

Parameters

txPowerW	power in W to spread across the bands
ppdu	the PPDU that will be transmitted

Returns: Pointer to SpectrumValue

This is a helper function to create the right TX PSD corresponding to the amendment of this PHY.

Implements ns3::PhyEntity.

Definition at line 899 of file he-phy.cc.

References ns3::WifiSpectrumValueHelper::CreateHeMuOfdmTxPowerSpectralDensity(), ns3::WifiSpectrumValueHelper::CreateHeOfdmTxPowerSpectralDensity(), ns3::HeRu::GetBandwidth(), ns3::PhyEntity::GetCenterFrequencyForChannelWidth(), GetCenterFrequencyForNonOfdmaPart(), ns3::WifiTxVector::GetChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), ns3::WifiTxVector::GetRu(), GetRuBandForTx(), ns3::HeRu::RuSpec::GetRuType(), GetStaId(), ns3::PhyEntity::GetTxMaskRejectionParams(), NS_ASSERT, NS_LOG_FUNCTION, ns3::HePpdu::PSD_HE_TB_NON_OFDMA_PORTION, and ns3::HePpdu::PSD_HE_TB_OFDMA_PORTION.

Here is the call graph for this function:

◆ GetUsableSubcarriers()

uint16_t ns3::HePhy::GetUsableSubcarriers ( uint16_t channelWidth )

staticprotected

Parameters

channelWidth the channel width in MHz

Returns: he number of usable subcarriers for data

Definition at line 1155 of file he-phy.cc.

Referenced by GetDataRate().

Here is the caller graph for this function:

◆ GetValidPpduDuration()

Time ns3::HePhy::GetValidPpduDuration	(	Time	ppduDuration,
		const WifiTxVector &	txVector,
		WifiPhyBand	band
	)

staticprivate

Given a PPDU duration value, the TXVECTOR used to transmit the PPDU and the PHY band, compute a valid PPDU duration considering the number and duration of symbols, the preamble duration and the guard interval.

Parameters

ppduDuration	the given PPDU duration
txVector	the given TXVECTOR
band	the PHY band

Returns: a valid PPDU duration

Definition at line 263 of file he-phy.cc.

References ns3::WifiTxVector::GetGuardInterval(), ns3::Time::GetNanoSeconds(), ns3::WifiPhy::GetStaticPhyEntity(), ns3::MicroSeconds(), ns3::NanoSeconds(), ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by ConvertHeTbPpduDurationToLSigLength(), and ConvertLSigLengthToHeTbPpduDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetWifiConstPsduMap()

WifiConstPsduMap ns3::HePhy::GetWifiConstPsduMap	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector
	)		const

overrideprotectedvirtual

Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU.

The STA-ID value is properly determined based on whether the given PSDU has to be transmitted as a DL or UL frame.

Parameters

psdu	the given PSDU
txVector	the TXVECTOR to use to send the PSDU

Returns: a WifiConstPsduMap built from the given PSDU and the given TXVECTOR

Reimplemented from ns3::PhyEntity.

Definition at line 1214 of file he-phy.cc.

References ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::IsUlMu(), NS_ASSERT, and SU_STA_ID.

Here is the call graph for this function:

◆ InitializeModes()

void ns3::HePhy::InitializeModes ( void )

static

Initialize all HE modes.

Definition at line 1006 of file he-phy.cc.

References GetHeMcs().

Referenced by anonymous_namespace{he-phy.cc}::ConstructorHe::ConstructorHe().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsAllowed()

bool ns3::HePhy::IsAllowed ( const WifiTxVector & txVector )

static

Check whether the combination in TXVECTOR is allowed.

This function is used as a callback for WifiMode operation.

Parameters

txVector the TXVECTOR

Returns: true if this combination is allowed, false otherwise.

Definition at line 1208 of file he-phy.cc.

Referenced by CreateHeMcs().

Here is the caller graph for this function:

◆ IsConfigSupported()

bool ns3::HePhy::IsConfigSupported ( Ptr< const WifiPpdu > ppdu ) const

overrideprotectedvirtual

Checks if the signaled configuration (excluding bandwidth) is supported by the PHY.

Parameters

ppdu	the received PPDU

Returns: true if supported, false otherwise

Reimplemented from ns3::PhyEntity.

Definition at line 631 of file he-phy.cc.

References ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiPhy::GetMaxSupportedRxSpatialStreams(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetModulationClass(), ns3::WifiTxVector::GetNssMax(), GetStaId(), ns3::WifiTxVector::IsDlMu(), ns3::PhyEntity::IsModeSupported(), ns3::PhyEntity::m_wifiPhy, NS_ASSERT, NS_LOG_DEBUG, and ns3::WIFI_MOD_CLASS_HE.

Here is the call graph for this function:

◆ NotifyEndOfHeSigA()

void ns3::HePhy::NotifyEndOfHeSigA ( HeSigAParameters params )

Fire a EndOfHeSigA callback (if connected) once HE-SIG-A field has been received.

This method is scheduled immediatly after end of HE-SIG-A, once field processing is finished.

Parameters

params the HE-SIG-A parameters

Definition at line 606 of file he-phy.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), and m_endOfHeSigACallback.

Referenced by ProcessSigA().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ObtainNextUid()

uint64_t ns3::HePhy::ObtainNextUid ( const WifiTxVector & txVector )

overrideprotectedvirtual

Obtain the next UID for the PPDU to transmit.

Note that the global UID counter could be incremented.

Parameters

txVector the transmission parameters

Returns: the UID to use for the PPDU to transmit

Reimplemented from ns3::PhyEntity.

Definition at line 879 of file he-phy.cc.

References ns3::WifiTxVector::GetModulationClass(), ns3::WifiPhy::GetPreviouslyRxPpduUid(), ns3::WifiTxVector::IsUlMu(), ns3::PhyEntity::m_globalPpduUid, m_previouslyTxPpduUid, ns3::PhyEntity::m_wifiPhy, NS_ASSERT, NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_HE.

Referenced by BuildPpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessSigA()

PhyEntity::PhyFieldRxStatus ns3::HePhy::ProcessSigA	(	Ptr< Event >	event,
		PhyFieldRxStatus	status
	)

overrideprotectedvirtual

Process SIG-A, perform amendment-specific actions, and provide an updated status of the reception.

Parameters

event	the event holding incoming PPDU's information
status	the status of the reception of the correctly received SIG-A after the configuration support check

Returns: the updated status of the reception of the SIG-A

Reimplemented from ns3::VhtPhy.

Definition at line 522 of file he-phy.cc.

Here is the call graph for this function:

◆ ProcessSigB()

PhyEntity::PhyFieldRxStatus ns3::HePhy::ProcessSigB	(	Ptr< Event >	event,
		PhyFieldRxStatus	status
	)

overrideprotectedvirtual

Process SIG-B, perform amendment-specific actions, and provide an updated status of the reception.

Parameters

event	the event holding incoming PPDU's information
status	the status of the reception of the correctly received SIG-B after the configuration support check

Returns: the updated status of the reception of the SIG-B

Reimplemented from ns3::VhtPhy.

Definition at line 615 of file he-phy.cc.

References ns3::PhyEntity::DROP, ns3::FILTERED, GetAddressedPsduInPpdu(), ns3::PhyEntity::PhyFieldRxStatus::isSuccess, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetEndOfHeSigACallback()

void ns3::HePhy::SetEndOfHeSigACallback ( EndOfHeSigACallback callback )

Set a callback for a end of HE-SIG-A.

Parameters

callback the EndOfHeSigACallback to set

Definition at line 600 of file he-phy.cc.

References m_endOfHeSigACallback.

◆ SetTrigVector()

void ns3::HePhy::SetTrigVector	(	const WifiTxVector &	trigVector,
		Time	validity
	)

Set the TRIGVECTOR and the associated expiration time.

A TRIGVECTOR shall expire when the TX timer associated with the transmission of the Trigger Frame expires.

Parameters

trigVector	the TRIGVECTOR
validity	the amount of time (from now) until expiration of the TRIGVECTOR

Definition at line 322 of file he-phy.cc.

References ns3::Time::As(), m_trigVector, m_trigVectorExpirationTime, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::Time::US.

Here is the call graph for this function:

◆ StartReceiveOfdmaPayload()

void ns3::HePhy::StartReceiveOfdmaPayload ( Ptr< Event > event )

protected

Start receiving the PSDU (i.e.

the first symbol of the PSDU has arrived) of an UL-OFDMA transmission. This function is called upon the RX event corresponding to the OFDMA part of the UL MU PPDU.

Parameters

event the event holding incoming OFDMA part of the PPDU's information

m_beginOfdmaPayloadRxEvents should still be running only for APs, since canceled in StartReceivePayload for STAs. This is because SpectrumWifiPhy does not have access to the device type and thus blindly schedules things, letting the parent WifiPhy class take into account device type.

Definition at line 738 of file he-phy.cc.

References ns3::PhyEntity::CalculatePhyPreambleAndHeaderDuration(), ns3::PhyEntity::EndReceivePayload(), GetAddressedPsduInPpdu(), ns3::PhyEntity::GetCurrentEvent(), GetStaId(), ns3::LOG_FUNCTION, m_beginOfdmaPayloadRxEvents, ns3::PhyEntity::m_endRxPayloadEvents, ns3::PhyEntity::m_signalNoiseMap, ns3::PhyEntity::m_statusPerMpduMap, ns3::PhyEntity::NotifyPayloadBegin(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and ns3::PhyEntity::ScheduleEndOfMpdus().

Referenced by StartReceivePreamble().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartReceivePreamble()

void ns3::HePhy::StartReceivePreamble	(	Ptr< WifiPpdu >	ppdu,
		RxPowerWattPerChannelBand &	rxPowersW,
		Time	rxDuration
	)

overridevirtual

Start receiving the PHY preamble of a PPDU (i.e.

the first bit of the preamble has arrived).

This method triggers the start of the preamble detection period (

See also: StartPreambleDetectionPeriod) if the PHY can process the PPDU.

Parameters

ppdu	the arriving PPDU
rxPowersW	the receive power in W per band
rxDuration	the duration of the PPDU

Reimplemented from ns3::PhyEntity.

Definition at line 349 of file he-phy.cc.

References ns3::PhyEntity::CreateInterferenceEvent(), ns3::PhyEntity::ErasePreambleEvent(), ns3::PhyEntity::GetCurrentEvent(), ns3::VhtPhy::GetDuration(), ns3::WifiTxVector::GetModulationClass(), GetStaId(), ns3::WifiTxVector::IsUlMu(), m_beginOfdmaPayloadRxEvents, m_currentHeTbPpduUid, ns3::Time::NS, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::HePpdu::PSD_HE_TB_OFDMA_PORTION, ns3::Simulator::Schedule(), StartReceiveOfdmaPayload(), ns3::PhyEntity::StartReceivePreamble(), ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_FIELD_TRAINING.

Here is the call graph for this function:

◆ StartTx()

void ns3::HePhy::StartTx ( Ptr< WifiPpdu > ppdu )

overridevirtual

This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions.

See also: SpectrumWifiPhy::StartTx

Parameters

ppdu	the PPDU to send

Reimplemented from ns3::PhyEntity.

Definition at line 954 of file he-phy.cc.

References CalculateNonOfdmaDurationForHeTb(), NS_ASSERT, NS_LOG_FUNCTION, ns3::HePpdu::PSD_HE_TB_OFDMA_PORTION, ns3::Simulator::Schedule(), ns3::PhyEntity::StartTx(), ns3::PhyEntity::Transmit(), and ns3::WIFI_PPDU_TYPE_UL_MU.

Here is the call graph for this function:

Member Data Documentation

◆ m_beginOfdmaPayloadRxEvents

std::map<uint16_t , EventId> ns3::HePhy::m_beginOfdmaPayloadRxEvents

protected

the beginning of the OFDMA payload reception events (indexed by STA-ID)

Definition at line 430 of file he-phy.h.

Referenced by CancelAllEvents(), DoResetReceive(), DoStartReceivePayload(), StartReceiveOfdmaPayload(), and StartReceivePreamble().

◆ m_currentHeTbPpduUid

uint64_t ns3::HePhy::m_currentHeTbPpduUid

protected

UID of the HE TB PPDU being received.

Definition at line 428 of file he-phy.h.

Referenced by HePhy(), GetCurrentHeTbPpduUid(), ProcessSigA(), and StartReceivePreamble().

◆ m_endOfHeSigACallback

EndOfHeSigACallback ns3::HePhy::m_endOfHeSigACallback

protected

end of HE-SIG-A callback

Definition at line 432 of file he-phy.h.

Referenced by NotifyEndOfHeSigA(), and SetEndOfHeSigACallback().

◆ m_hePpduFormats

const PhyEntity::PpduFormats ns3::HePhy::m_hePpduFormats

staticprivate

Initial value:

{
  { WIFI_PREAMBLE_HE_SU,    { WIFI_PPDU_FIELD_PREAMBLE,
                              WIFI_PPDU_FIELD_NON_HT_HEADER,
                              WIFI_PPDU_FIELD_SIG_A,
                              WIFI_PPDU_FIELD_TRAINING,
                              WIFI_PPDU_FIELD_DATA } },
  { WIFI_PREAMBLE_HE_MU,    { WIFI_PPDU_FIELD_PREAMBLE,
                              WIFI_PPDU_FIELD_NON_HT_HEADER,
                              WIFI_PPDU_FIELD_SIG_A,
                              WIFI_PPDU_FIELD_SIG_B,
                              WIFI_PPDU_FIELD_TRAINING,
                              WIFI_PPDU_FIELD_DATA } },
  { WIFI_PREAMBLE_HE_TB,    { WIFI_PPDU_FIELD_PREAMBLE,
                              WIFI_PPDU_FIELD_NON_HT_HEADER,
                              WIFI_PPDU_FIELD_SIG_A,
                              WIFI_PPDU_FIELD_TRAINING,
                              WIFI_PPDU_FIELD_DATA } },
  { WIFI_PREAMBLE_HE_ER_SU, { WIFI_PPDU_FIELD_PREAMBLE,
                              WIFI_PPDU_FIELD_NON_HT_HEADER,
                              WIFI_PPDU_FIELD_SIG_A,
                              WIFI_PPDU_FIELD_TRAINING,
                              WIFI_PPDU_FIELD_DATA } }
}

HE PPDU formats.

Definition at line 464 of file he-phy.h.

Referenced by GetPpduFormats().

◆ m_previouslyTxPpduUid

uint64_t ns3::HePhy::m_previouslyTxPpduUid

protected

UID of the previously sent PPDU, used by AP to recognize response HE TB PPDUs.

Definition at line 427 of file he-phy.h.

Referenced by HePhy(), GetMeasurementChannelWidth(), and ObtainNextUid().

◆ m_trigVector

WifiTxVector ns3::HePhy::m_trigVector

protected

the TRIGVECTOR

Definition at line 433 of file he-phy.h.

Referenced by ProcessSigA(), and SetTrigVector().

◆ m_trigVectorExpirationTime

Time ns3::HePhy::m_trigVectorExpirationTime

protected

expiration time of the TRIGVECTOR

Definition at line 434 of file he-phy.h.

Referenced by ProcessSigA(), and SetTrigVector().

The documentation for this class was generated from the following files:

src/wifi/model/he/he-phy.h
src/wifi/model/he/he-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ EndOfHeSigACallback

Constructor & Destructor Documentation

◆ HePhy()

◆ ~HePhy()

Member Function Documentation

◆ BuildModeList()

◆ BuildPpdu()

◆ CalculateNonHtReferenceRate()

◆ CalculateNonOfdmaDurationForHeTb()

◆ CalculateTxDuration()

◆ CancelAllEvents()

◆ ConvertHeTbPpduDurationToLSigLength()

◆ ConvertLSigLengthToHeTbPpduDuration()

◆ CreateHeMcs()

◆ DoAbortCurrentReception()

◆ DoEndReceivePayload()

◆ DoGetEvent()

◆ DoResetReceive()

◆ DoStartReceivePayload()

◆ GetAddressedPsduInPpdu()

◆ GetBssColor()

◆ GetCenterFrequencyForNonOfdmaPart()

◆ GetChannelWidthAndBand()

◆ GetCodeRate()

◆ GetConstellationSize()

◆ GetCurrentHeTbPpduUid()

◆ GetDataRate()

◆ GetDataRateFromTxVector()

◆ GetHeMcs()

◆ GetHeMcs0()

◆ GetHeMcs1()

◆ GetHeMcs10()

◆ GetHeMcs11()

◆ GetHeMcs2()

◆ GetHeMcs3()

◆ GetHeMcs4()

◆ GetHeMcs5()

◆ GetHeMcs6()

◆ GetHeMcs7()

◆ GetHeMcs8()

◆ GetHeMcs9()

◆ GetLSigDuration()

◆ GetMaxPsduSize()

◆ GetMeasurementChannelWidth()

◆ GetNonHtReferenceRate()

◆ GetNonOfdmaBand()

◆ GetNonOfdmaWidth()

◆ GetNumberBccEncoders()

◆ GetPhyRate()

◆ GetPhyRateFromTxVector()

◆ GetPpduFormats()

◆ GetRuBandForRx()

◆ GetRuBandForTx()

◆ GetSigADuration()

◆ GetSigAMode()

◆ GetSigBDuration()

◆ GetSigBMode()

◆ GetSigMode()

◆ GetStaId()

◆ GetSymbolDuration()

◆ GetTrainingDuration()

◆ GetTxPowerSpectralDensity()

◆ GetUsableSubcarriers()

◆ GetValidPpduDuration()

◆ GetWifiConstPsduMap()

◆ InitializeModes()

◆ IsAllowed()

◆ IsConfigSupported()
