Status of the reception of the PPDU field. More...

#include "phy-entity.h"

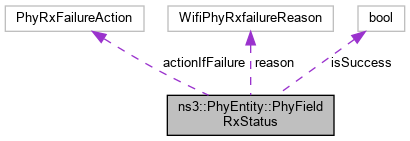

Collaboration diagram for ns3::PhyEntity::PhyFieldRxStatus:

Public Member Functions
	PhyFieldRxStatus (bool s)
	Constructor setting outcome of reception. More...

	PhyFieldRxStatus (bool s, WifiPhyRxfailureReason r, PhyRxFailureAction a)
	Constructor. More...

Public Attributes
PhyRxFailureAction	actionIfFailure {DROP}
	action to perform in case of failure More...

bool	isSuccess {true}
	outcome (`true` if success) of the reception More...

WifiPhyRxfailureReason	reason {UNKNOWN}
	failure reason More...

Detailed Description

Status of the reception of the PPDU field.

Definition at line 110 of file phy-entity.h.

Constructor & Destructor Documentation

◆ PhyFieldRxStatus() [1/2]

ns3::PhyEntity::PhyFieldRxStatus::PhyFieldRxStatus ( bool s )

inline

Constructor setting outcome of reception.

Parameters

s	`true` if success

Definition at line 121 of file phy-entity.h.

◆ PhyFieldRxStatus() [2/2]

ns3::PhyEntity::PhyFieldRxStatus::PhyFieldRxStatus	(	bool	s,
		WifiPhyRxfailureReason	r,
		PhyRxFailureAction	a
	)

inline

Constructor.

Parameters

s	`true` if success
r	reason of failure
a	action to perform in case of failure

Definition at line 129 of file phy-entity.h.

Member Data Documentation

◆ actionIfFailure

PhyRxFailureAction ns3::PhyEntity::PhyFieldRxStatus::actionIfFailure {DROP}

action to perform in case of failure

See also: PhyRxFailureAction

Definition at line 115 of file phy-entity.h.

Referenced by ns3::PhyEntity::EndReceiveField(), ns3::DsssPhy::EndReceiveHeader(), ns3::OfdmPhy::EndReceiveHeader(), ns3::HtPhy::EndReceiveHtSig(), ns3::VhtPhy::EndReceiveSigA(), ns3::VhtPhy::EndReceiveSigB(), and ns3::operator<<().

◆ isSuccess

bool ns3::PhyEntity::PhyFieldRxStatus::isSuccess {true}

outcome (true if success) of the reception

Definition at line 113 of file phy-entity.h.

Referenced by ns3::PhyEntity::EndReceiveField(), ns3::DsssPhy::EndReceiveHeader(), ns3::OfdmPhy::EndReceiveHeader(), ns3::HtPhy::EndReceiveHtSig(), ns3::VhtPhy::EndReceiveSigA(), ns3::VhtPhy::EndReceiveSigB(), ns3::operator<<(), ns3::HePhy::ProcessSigA(), and ns3::HePhy::ProcessSigB().

◆ reason

WifiPhyRxfailureReason ns3::PhyEntity::PhyFieldRxStatus::reason {UNKNOWN}

failure reason

Definition at line 114 of file phy-entity.h.
