handles interference calculations More...

#include "interference-helper.h"

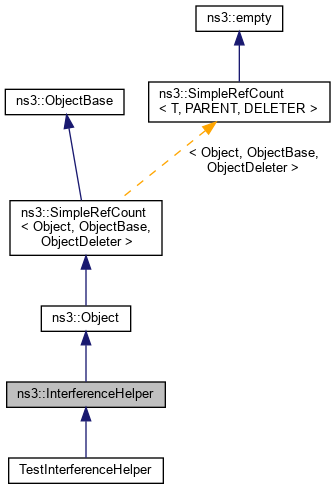

Inheritance diagram for ns3::InterferenceHelper:

Collaboration diagram for ns3::InterferenceHelper:

Classes
class	NiChange
	Noise and Interference (thus Ni) event. More...

Public Member Functions
	InterferenceHelper ()

virtual	~InterferenceHelper ()

Ptr< Event >	Add (Ptr< const WifiPpdu > ppdu, const WifiTxVector &txVector, Time duration, RxPowerWattPerChannelBand &rxPower, bool isStartOfdmaRxing=false)
	Add the PPDU-related signal to interference helper. More...

void	AddBand (WifiSpectrumBand band)
	Add a frequency band. More...

void	AddForeignSignal (Time duration, RxPowerWattPerChannelBand &rxPower)
	Add a non-Wifi signal to interference helper. More...

struct PhyEntity::SnrPer	CalculatePayloadSnrPer (Ptr< Event > event, uint16_t channelWidth, WifiSpectrumBand band, uint16_t staId, std::pair< Time, Time > relativeMpduStartStop) const
	Calculate the SNIR at the start of the payload and accumulate all SNIR changes in the SNIR vector for each MPDU of an A-MPDU. More...

struct PhyEntity::SnrPer	CalculatePhyHeaderSnrPer (Ptr< Event > event, uint16_t channelWidth, WifiSpectrumBand band, WifiPpduField header) const
	Calculate the SNIR at the start of the PHY header and accumulate all SNIR changes in the SNIR vector. More...

double	CalculateSnr (Ptr< Event > event, uint16_t channelWidth, uint8_t nss, WifiSpectrumBand band) const
	Calculate the SNIR for the event (starting from now until the event end). More...

void	EraseEvents (void)
	Erase all events. More...

Time	GetEnergyDuration (double energyW, WifiSpectrumBand band)

Ptr< ErrorRateModel >	GetErrorRateModel (void) const
	Return the error rate model. More...

void	NotifyRxEnd (Time endTime)
	Notify that RX has ended. More...

void	NotifyRxStart ()
	Notify that RX has started. More...

void	RemoveBands (void)
	Remove the frequency bands. More...

void	SetErrorRateModel (const Ptr< ErrorRateModel > rate)
	Set the error rate model for this interference helper. More...

void	SetNoiseFigure (double value)
	Set the noise figure. More...

void	SetNumberOfReceiveAntennas (uint8_t rx)
	Set the number of RX antennas in the receiver corresponding to this interference helper. More...

void	UpdateEvent (Ptr< Event > event, const RxPowerWattPerChannelBand &rxPower)
	Update event to scale its received power (W) per band. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
double	CalculateChunkSuccessRate (double snir, Time duration, WifiMode mode, const WifiTxVector &txVector, WifiPpduField field) const
	Calculate the success rate of the chunk given the SINR, duration, and TXVECTOR. More...

double	CalculatePayloadChunkSuccessRate (double snir, Time duration, const WifiTxVector &txVector, uint16_t staId=SU_STA_ID) const
	Calculate the success rate of the payload chunk given the SINR, duration, and TXVECTOR. More...

double	CalculateSnr (double signal, double noiseInterference, uint16_t channelWidth, uint8_t nss) const
	Calculate SNR (linear ratio) from the given signal power and noise+interference power. More...

void	DoDispose (void) override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::multimap< Time, NiChange >	NiChanges
	typedef for a multimap of NiChange More...

typedef std::map< WifiSpectrumBand, NiChanges >	NiChangesPerBand
	Map of NiChanges per band. More...

Private Member Functions
NiChanges::iterator	AddNiChangeEvent (Time moment, NiChange change, NiChangesPerBand::iterator niIt)
	Add NiChange to the list at the appropriate position and return the iterator of the new event. More...

void	AppendEvent (Ptr< Event > event, bool isStartOfdmaRxing)
	Append the given Event. More...

double	CalculateNoiseInterferenceW (Ptr< Event > event, NiChangesPerBand *nis, WifiSpectrumBand band) const
	Calculate noise and interference power in W. More...

double	CalculatePayloadPer (Ptr< const Event > event, uint16_t channelWidth, NiChangesPerBand *nis, WifiSpectrumBand band, uint16_t staId, std::pair< Time, Time > window) const
	Calculate the error rate of the given PHY payload only in the provided time window (thus enabling per MPDU PER information). More...

double	CalculatePhyHeaderPer (Ptr< const Event > event, NiChangesPerBand *nis, uint16_t channelWidth, WifiSpectrumBand band, WifiPpduField header) const
	Calculate the error rate of the PHY header. More...

double	CalculatePhyHeaderSectionPsr (Ptr< const Event > event, NiChangesPerBand *nis, uint16_t channelWidth, WifiSpectrumBand band, PhyEntity::PhyHeaderSections phyHeaderSections) const
	Calculate the success rate of the PHY header sections for the provided event. More...

NiChanges::iterator	GetNextPosition (Time moment, NiChangesPerBand::iterator niIt)
	Returns an iterator to the first NiChange that is later than moment. More...

NiChanges::iterator	GetPreviousPosition (Time moment, NiChangesPerBand::iterator niIt)
	Returns an iterator to the last NiChange that is before than moment. More...

Private Attributes
Ptr< ErrorRateModel >	m_errorRateModel
	error rate model More...

std::map< WifiSpectrumBand, double >	m_firstPowerPerBand
	first power of each band in watts More...

NiChangesPerBand	m_niChangesPerBand
	NI Changes for each band. More...

double	m_noiseFigure
	noise figure (linear) More...

uint8_t	m_numRxAntennas
	the number of RX antennas in the corresponding receiver More...

bool	m_rxing
	flag whether it is in receiving state More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

handles interference calculations

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 160 bytes (on a 64-bit architecture).

Definition at line 132 of file interference-helper.h.

Member Typedef Documentation

◆ NiChanges

typedef std::multimap<Time, NiChange> ns3::InterferenceHelper::NiChanges

private

typedef for a multimap of NiChange

Definition at line 359 of file interference-helper.h.

◆ NiChangesPerBand

typedef std::map<WifiSpectrumBand, NiChanges> ns3::InterferenceHelper::NiChangesPerBand

private

Map of NiChanges per band.

Definition at line 364 of file interference-helper.h.

Constructor & Destructor Documentation

◆ InterferenceHelper()

ns3::InterferenceHelper::InterferenceHelper ( )

Definition at line 178 of file interference-helper.cc.

References NS_LOG_FUNCTION.

◆ ~InterferenceHelper()

ns3::InterferenceHelper::~InterferenceHelper ( )

virtual

Definition at line 186 of file interference-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Add()

Ptr< Event > ns3::InterferenceHelper::Add	(	Ptr< const WifiPpdu >	ppdu,
		const WifiTxVector &	txVector,
		Time	duration,
		RxPowerWattPerChannelBand &	rxPower,
		bool	isStartOfdmaRxing = `false`
	)

Add the PPDU-related signal to interference helper.

Parameters

ppdu	the PPDU
txVector	the TXVECTOR
duration	the PPDU duration
rxPower	received power per band (W)
isStartOfdmaRxing	flag whether the event corresponds to the start of the OFDMA payload reception (only used for UL-OFDMA) //TODO simplify this once WifiPpdu is subclassed by adding an attribute

Returns: Event

Definition at line 211 of file interference-helper.cc.

References AppendEvent().

Referenced by AddForeignSignal().

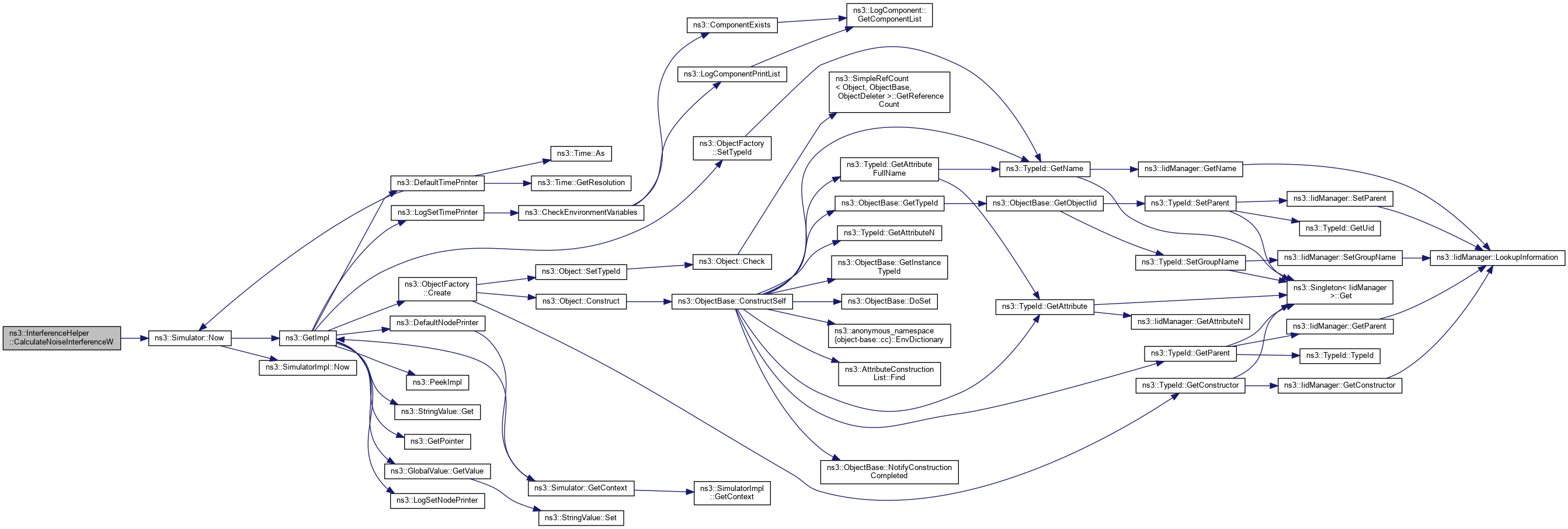

Here is the call graph for this function:

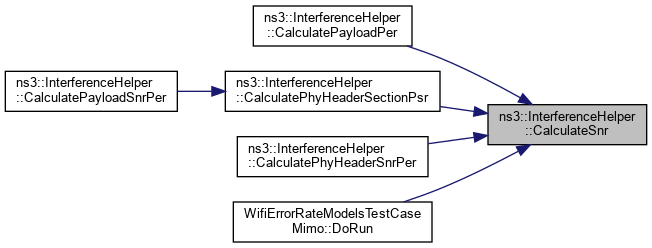

Here is the caller graph for this function:

◆ AddBand()

void ns3::InterferenceHelper::AddBand ( WifiSpectrumBand band )

Add a frequency band.

Parameters

band	the band to be created

Definition at line 244 of file interference-helper.cc.

References AddNiChangeEvent(), m_firstPowerPerBand, m_niChangesPerBand, NS_ASSERT, NS_LOG_FUNCTION, and test-ns3::result.

Here is the call graph for this function:

◆ AddForeignSignal()

void ns3::InterferenceHelper::AddForeignSignal	(	Time	duration,
		RxPowerWattPerChannelBand &	rxPower
	)

Add a non-Wifi signal to interference helper.

Parameters

duration	the duration of the signal
rxPower	received power per band (W)

Definition at line 219 of file interference-helper.cc.

References Add(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_QOSDATA.

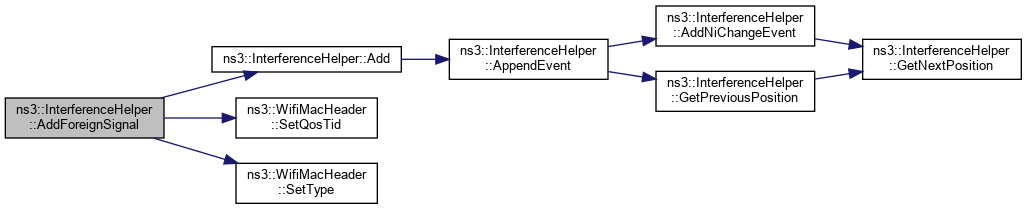

Here is the call graph for this function:

◆ AddNiChangeEvent()

InterferenceHelper::NiChanges::iterator ns3::InterferenceHelper::AddNiChangeEvent	(	Time	moment,
		NiChange	change,
		NiChangesPerBand::iterator	niIt
	)

private

Add NiChange to the list at the appropriate position and return the iterator of the new event.

Parameters

moment	time to check from
change	the NiChange to add
niIt	iterator of the band to check

Returns: the iterator of the new event

Definition at line 650 of file interference-helper.cc.

References GetNextPosition().

Referenced by AddBand(), AppendEvent(), and EraseEvents().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AppendEvent()

void ns3::InterferenceHelper::AppendEvent	(	Ptr< Event >	event,
		bool	isStartOfdmaRxing
	)

private

Append the given Event.

Parameters

event	the event to be appended
isStartOfdmaRxing	flag whether event corresponds to the start of the OFDMA payload reception (only used for UL-OFDMA)

Definition at line 301 of file interference-helper.cc.

References AddNiChangeEvent(), GetPreviousPosition(), m_firstPowerPerBand, m_niChangesPerBand, m_rxing, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Add().

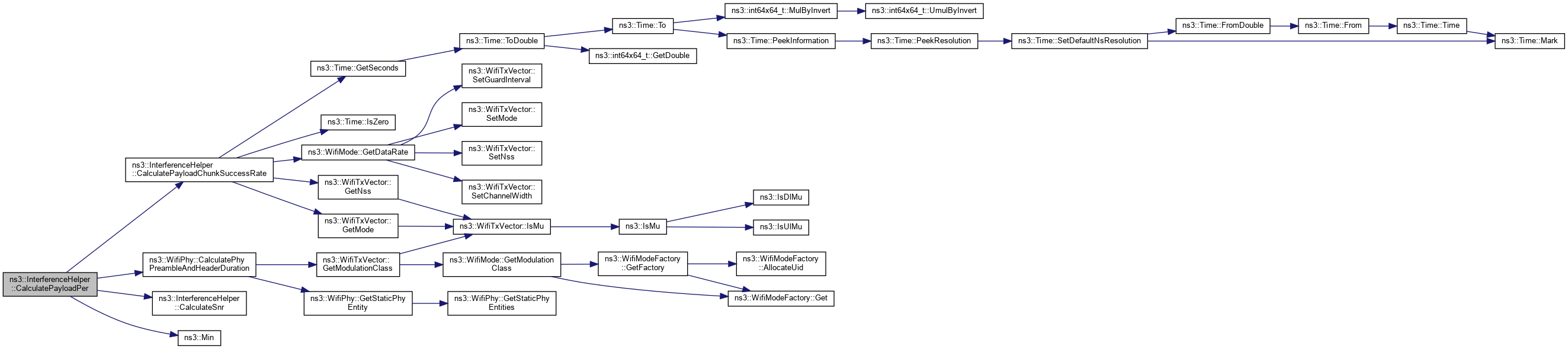

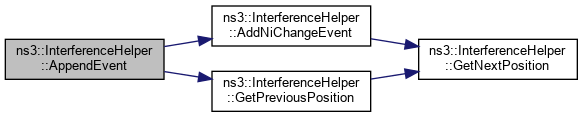

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateChunkSuccessRate()

double ns3::InterferenceHelper::CalculateChunkSuccessRate	(	double	snir,
		Time	duration,
		WifiMode	mode,
		const WifiTxVector &	txVector,
		WifiPpduField	field
	)		const

protected

Calculate the success rate of the chunk given the SINR, duration, and TXVECTOR.

The duration and TXVECTOR are used to calculate how many bits are present in the chunk.

Parameters

snir	the SINR
duration	the duration of the chunk
mode	the WifiMode
txVector	the TXVECTOR
field	the PPDU field to which the chunk belongs to

Returns: the success rate

Definition at line 412 of file interference-helper.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::Time::GetSeconds(), ns3::Time::IsZero(), m_errorRateModel, and m_numRxAntennas.

Referenced by CalculatePhyHeaderSectionPsr().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateNoiseInterferenceW()

double ns3::InterferenceHelper::CalculateNoiseInterferenceW	(	Ptr< Event >	event,
		NiChangesPerBand *	nis,
		WifiSpectrumBand	band
	)		const

private

Calculate noise and interference power in W.

Parameters

event	the event
nis	the NiChanges
band	the band

Returns: noise and interference power

Definition at line 383 of file interference-helper.cc.

References m_firstPowerPerBand, m_niChangesPerBand, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by CalculatePhyHeaderSnrPer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculatePayloadChunkSuccessRate()

double ns3::InterferenceHelper::CalculatePayloadChunkSuccessRate	(	double	snir,
		Time	duration,
		const WifiTxVector &	txVector,
		uint16_t	staId = `SU_STA_ID`
	)		const

protected

Calculate the success rate of the payload chunk given the SINR, duration, and TXVECTOR.

The duration and TXVECTOR are used to calculate how many bits are present in the payload chunk.

Parameters

snir	the SINR
duration	the duration of the chunk
txVector	the TXVECTOR
staId	the station ID of the PSDU (only used for MU)

Returns: the success rate

Definition at line 425 of file interference-helper.cc.

References ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), ns3::Time::GetSeconds(), ns3::Time::IsZero(), m_errorRateModel, m_numRxAntennas, and ns3::WIFI_PPDU_FIELD_DATA.

Referenced by CalculatePayloadPer(), and WifiErrorRateModelsTestCaseMimo::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculatePayloadPer()

double ns3::InterferenceHelper::CalculatePayloadPer	(	Ptr< const Event >	event,
		uint16_t	channelWidth,
		NiChangesPerBand *	nis,
		WifiSpectrumBand	band,
		uint16_t	staId,
		std::pair< Time, Time >	window
	)		const

private

Calculate the error rate of the given PHY payload only in the provided time window (thus enabling per MPDU PER information).

The PHY payload can be divided into multiple chunks (e.g. due to interference from other transmissions).

Parameters

event	the event
channelWidth	the channel width used to transmit the PSDU (in MHz)
nis	the NiChanges
band	identify the band used by the PSDU
staId	the station ID of the PSDU (only used for MU)
window	time window (pair of start and end times) of PHY payload to focus on

Returns: the error rate of the payload

Definition at line 440 of file interference-helper.cc.

References CalculatePayloadChunkSuccessRate(), ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), CalculateSnr(), m_firstPowerPerBand, ns3::Min(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_PPDU_TYPE_UL_MU, and visualizer.ipython_view::window.

Here is the call graph for this function:

◆ CalculatePayloadSnrPer()

struct PhyEntity::SnrPer ns3::InterferenceHelper::CalculatePayloadSnrPer	(	Ptr< Event >	event,
		uint16_t	channelWidth,
		WifiSpectrumBand	band,
		uint16_t	staId,
		std::pair< Time, Time >	relativeMpduStartStop
	)		const

Calculate the SNIR at the start of the payload and accumulate all SNIR changes in the SNIR vector for each MPDU of an A-MPDU.

This workaround is required in order to provide one PER per MPDU, for reception success/failure evaluation, while hiding aggregation details from this class.

Parameters

event	the event corresponding to the first time the corresponding PPDU arrives
channelWidth	the channel width used to transmit the PSDU (in MHz)
band	identify the band used by the PSDU
staId	the station ID of the PSDU (only used for MU)
relativeMpduStartStop	the time window (pair of start and end times) of PHY payload to focus on

Returns: struct of SNR and PER (with PER being evaluated over the provided time window)

Definition at line 543 of file interference-helper.cc.

References CalculatePhyHeaderSectionPsr(), ns3::WifiPhy::GetStaticPhyEntity(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CalculatePhyHeaderPer()

double ns3::InterferenceHelper::CalculatePhyHeaderPer	(	Ptr< const Event >	event,
		NiChangesPerBand *	nis,
		uint16_t	channelWidth,
		WifiSpectrumBand	band,
		WifiPpduField	header
	)		const

private

Calculate the error rate of the PHY header.

The PHY header can be divided into multiple chunks (e.g. due to interference from other transmissions).

Parameters

event	the event
nis	the NiChanges
channelWidth	the channel width (in MHz) for header measurement
band	the band
header	the PHY header to consider

Returns: the error rate of the HT PHY header

Definition at line 543 of file interference-helper.cc.

◆ CalculatePhyHeaderSectionPsr()

double ns3::InterferenceHelper::CalculatePhyHeaderSectionPsr	(	Ptr< const Event >	event,
		NiChangesPerBand *	nis,
		uint16_t	channelWidth,
		WifiSpectrumBand	band,
		PhyEntity::PhyHeaderSections	phyHeaderSections
	)		const

private

Calculate the success rate of the PHY header sections for the provided event.

Parameters

event	the event
nis	the NiChanges
channelWidth	the channel width (in MHz) for header measurement
band	the band
phyHeaderSections	the map of PHY header sections (

See also: PhyEntity::PhyHeaderSections)

Returns: the success rate of the PHY header sections

Definition at line 490 of file interference-helper.cc.

References ns3::Time::As(), CalculateChunkSuccessRate(), CalculateSnr(), ns3::Time::IsStrictlyPositive(), m_firstPowerPerBand, ns3::Max(), ns3::Min(), ns3::Time::NS, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Seconds(), and visualizer.core::start().

Referenced by CalculatePayloadSnrPer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculatePhyHeaderSnrPer()

struct PhyEntity::SnrPer ns3::InterferenceHelper::CalculatePhyHeaderSnrPer	(	Ptr< Event >	event,
		uint16_t	channelWidth,
		WifiSpectrumBand	band,
		WifiPpduField	header
	)		const

Calculate the SNIR at the start of the PHY header and accumulate all SNIR changes in the SNIR vector.

Parameters

event	the event corresponding to the first time the corresponding PPDU arrives
channelWidth	the channel width (in MHz) for header measurement
band	identify the band used by the PSDU
header	the PHY header to consider

Returns: struct of SNR and PER

Definition at line 589 of file interference-helper.cc.

References CalculateNoiseInterferenceW(), and CalculateSnr().

Here is the call graph for this function:

◆ CalculateSnr() [1/2]

double ns3::InterferenceHelper::CalculateSnr	(	double	signal,
		double	noiseInterference,
		uint16_t	channelWidth,
		uint8_t	nss
	)		const

protected

Calculate SNR (linear ratio) from the given signal power and noise+interference power.

Parameters

signal	signal power, W
noiseInterference	noise and interference power, W
channelWidth	signal width (MHz)
nss	the number of spatial streams

Returns: SNR in linear scale

Definition at line 357 of file interference-helper.cc.

References m_errorRateModel, m_noiseFigure, m_numRxAntennas, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::RatioToDb().

Here is the call graph for this function:

◆ CalculateSnr() [2/2]

double ns3::InterferenceHelper::CalculateSnr	(	Ptr< Event >	event,
		uint16_t	channelWidth,
		uint8_t	nss,
		WifiSpectrumBand	band
	)		const

Calculate the SNIR for the event (starting from now until the event end).

Parameters

event	the event corresponding to the first time the corresponding PPDU arrives
channelWidth	the channel width (in MHz)
nss	the number of spatial streams
band	identify the band used by the PSDU

Returns: the SNR for the PPDU in linear scale

Definition at line 589 of file interference-helper.cc.

Referenced by CalculatePayloadPer(), CalculatePhyHeaderSectionPsr(), CalculatePhyHeaderSnrPer(), and WifiErrorRateModelsTestCaseMimo::DoRun().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::InterferenceHelper::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 203 of file interference-helper.cc.

References m_errorRateModel, NS_LOG_FUNCTION, and RemoveBands().

Here is the call graph for this function:

◆ EraseEvents()

void ns3::InterferenceHelper::EraseEvents ( void )

Erase all events.

Definition at line 621 of file interference-helper.cc.

References AddNiChangeEvent(), m_firstPowerPerBand, m_niChangesPerBand, and m_rxing.

Here is the call graph for this function:

◆ GetEnergyDuration()

Time ns3::InterferenceHelper::GetEnergyDuration	(	double	energyW,
		WifiSpectrumBand	band
	)

Parameters

energyW	the minimum energy (W) requested
band	identify the requested band

Returns: the expected amount of time the observed energy on the medium for a given band will be higher than the requested threshold.

Definition at line 281 of file interference-helper.cc.

References GetPreviousPosition(), m_niChangesPerBand, ns3::MicroSeconds(), ns3::Simulator::Now(), and NS_ASSERT.

Here is the call graph for this function:

◆ GetErrorRateModel()

Ptr< ErrorRateModel > ns3::InterferenceHelper::GetErrorRateModel ( void ) const

Return the error rate model.

Returns: Error rate model

Definition at line 269 of file interference-helper.cc.

References m_errorRateModel.

◆ GetNextPosition()

InterferenceHelper::NiChanges::iterator ns3::InterferenceHelper::GetNextPosition	(	Time	moment,
		NiChangesPerBand::iterator	niIt
	)

private

Returns an iterator to the first NiChange that is later than moment.

Parameters

moment	time to check from
niIt	iterator of the band to check

Returns: an iterator to the list of NiChanges

Definition at line 634 of file interference-helper.cc.

Referenced by AddNiChangeEvent(), and GetPreviousPosition().

Here is the caller graph for this function:

◆ GetPreviousPosition()

InterferenceHelper::NiChanges::iterator ns3::InterferenceHelper::GetPreviousPosition	(	Time	moment,
		NiChangesPerBand::iterator	niIt
	)

private

Returns an iterator to the last NiChange that is before than moment.

Parameters

moment	time to check from
niIt	iterator of the band to check

Returns: an iterator to the list of NiChanges

Definition at line 640 of file interference-helper.cc.

References GetNextPosition().

Referenced by AppendEvent(), GetEnergyDuration(), NotifyRxEnd(), and UpdateEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::InterferenceHelper::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 192 of file interference-helper.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ NotifyRxEnd()

void ns3::InterferenceHelper::NotifyRxEnd ( Time endTime )

Notify that RX has ended.

Parameters

endTime the end time of the signal

Definition at line 663 of file interference-helper.cc.

References GetPreviousPosition(), m_firstPowerPerBand, m_niChangesPerBand, m_rxing, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyRxStart()

void ns3::InterferenceHelper::NotifyRxStart ( void )

Notify that RX has started.

Definition at line 656 of file interference-helper.cc.

References m_rxing, and NS_LOG_FUNCTION.

◆ RemoveBands()

void ns3::InterferenceHelper::RemoveBands ( void )

Remove the frequency bands.

Definition at line 232 of file interference-helper.cc.

References m_firstPowerPerBand, m_niChangesPerBand, and NS_LOG_FUNCTION.

Referenced by DoDispose().

Here is the caller graph for this function:

◆ SetErrorRateModel()

void ns3::InterferenceHelper::SetErrorRateModel ( const Ptr< ErrorRateModel > rate )

Set the error rate model for this interference helper.

Parameters

rate	Error rate model

Definition at line 263 of file interference-helper.cc.

References m_errorRateModel.

Referenced by WifiErrorRateModelsTestCaseMimo::DoRun().

Here is the caller graph for this function:

◆ SetNoiseFigure()

void ns3::InterferenceHelper::SetNoiseFigure ( double value )

Set the noise figure.

Parameters

value noise figure in linear scale

Definition at line 257 of file interference-helper.cc.

References m_noiseFigure.

Referenced by WifiErrorRateModelsTestCaseMimo::DoRun().

Here is the caller graph for this function:

◆ SetNumberOfReceiveAntennas()

void ns3::InterferenceHelper::SetNumberOfReceiveAntennas ( uint8_t rx )

Set the number of RX antennas in the receiver corresponding to this interference helper.

Parameters

rx	the number of RX antennas

Definition at line 275 of file interference-helper.cc.

References m_numRxAntennas.

Referenced by WifiErrorRateModelsTestCaseMimo::DoRun().

Here is the caller graph for this function:

◆ UpdateEvent()

void ns3::InterferenceHelper::UpdateEvent	(	Ptr< Event >	event,
		const RxPowerWattPerChannelBand &	rxPower
	)

Update event to scale its received power (W) per band.

Parameters

event	the event to be updated
rxPower	the received power (W) per band to be added to the current event

Definition at line 337 of file interference-helper.cc.

References GetPreviousPosition(), m_niChangesPerBand, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Data Documentation

◆ m_errorRateModel

Ptr<ErrorRateModel> ns3::InterferenceHelper::m_errorRateModel

private

error rate model

Definition at line 431 of file interference-helper.h.

Referenced by CalculateChunkSuccessRate(), CalculatePayloadChunkSuccessRate(), CalculateSnr(), DoDispose(), GetErrorRateModel(), and SetErrorRateModel().

◆ m_firstPowerPerBand

std::map<WifiSpectrumBand, double> ns3::InterferenceHelper::m_firstPowerPerBand

private

first power of each band in watts

Definition at line 434 of file interference-helper.h.

Referenced by AddBand(), AppendEvent(), CalculateNoiseInterferenceW(), CalculatePayloadPer(), CalculatePhyHeaderSectionPsr(), EraseEvents(), NotifyRxEnd(), and RemoveBands().

◆ m_niChangesPerBand

NiChangesPerBand ns3::InterferenceHelper::m_niChangesPerBand

private

NI Changes for each band.

Definition at line 433 of file interference-helper.h.

Referenced by AddBand(), AppendEvent(), CalculateNoiseInterferenceW(), EraseEvents(), GetEnergyDuration(), NotifyRxEnd(), RemoveBands(), and UpdateEvent().

◆ m_noiseFigure

double ns3::InterferenceHelper::m_noiseFigure

private

noise figure (linear)

Definition at line 430 of file interference-helper.h.

Referenced by CalculateSnr(), and SetNoiseFigure().

◆ m_numRxAntennas

uint8_t ns3::InterferenceHelper::m_numRxAntennas

private

the number of RX antennas in the corresponding receiver

Definition at line 432 of file interference-helper.h.

Referenced by CalculateChunkSuccessRate(), CalculatePayloadChunkSuccessRate(), CalculateSnr(), and SetNumberOfReceiveAntennas().

◆ m_rxing

bool ns3::InterferenceHelper::m_rxing

private

flag whether it is in receiving state

Definition at line 435 of file interference-helper.h.

Referenced by AppendEvent(), EraseEvents(), NotifyRxEnd(), and NotifyRxStart().

The documentation for this class was generated from the following files:

src/wifi/model/interference-helper.h
src/wifi/model/interference-helper.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ NiChanges

◆ NiChangesPerBand

Constructor & Destructor Documentation

◆ InterferenceHelper()

◆ ~InterferenceHelper()

Member Function Documentation

◆ Add()

◆ AddBand()

◆ AddForeignSignal()

◆ AddNiChangeEvent()

◆ AppendEvent()

◆ CalculateChunkSuccessRate()

◆ CalculateNoiseInterferenceW()

◆ CalculatePayloadChunkSuccessRate()

◆ CalculatePayloadPer()

◆ CalculatePayloadSnrPer()

◆ CalculatePhyHeaderPer()

◆ CalculatePhyHeaderSectionPsr()

◆ CalculatePhyHeaderSnrPer()

◆ CalculateSnr() [1/2]

◆ CalculateSnr() [2/2]

◆ DoDispose()

◆ EraseEvents()

◆ GetEnergyDuration()

◆ GetErrorRateModel()

◆ GetNextPosition()

◆ GetPreviousPosition()

◆ GetTypeId()

◆ NotifyRxEnd()

◆ NotifyRxStart()

◆ RemoveBands()

◆ SetErrorRateModel()

◆ SetNoiseFigure()

◆ SetNumberOfReceiveAntennas()

◆ UpdateEvent()

Member Data Documentation

◆ m_errorRateModel

◆ m_firstPowerPerBand

◆ m_niChangesPerBand

◆ m_noiseFigure

◆ m_numRxAntennas

◆ m_rxing
