Issue211Test Class Reference

Test for issue 211 (https://gitlab.com/nsnam/ns-3-dev/-/issues/211) More...

Inheritance diagram for Issue211Test:

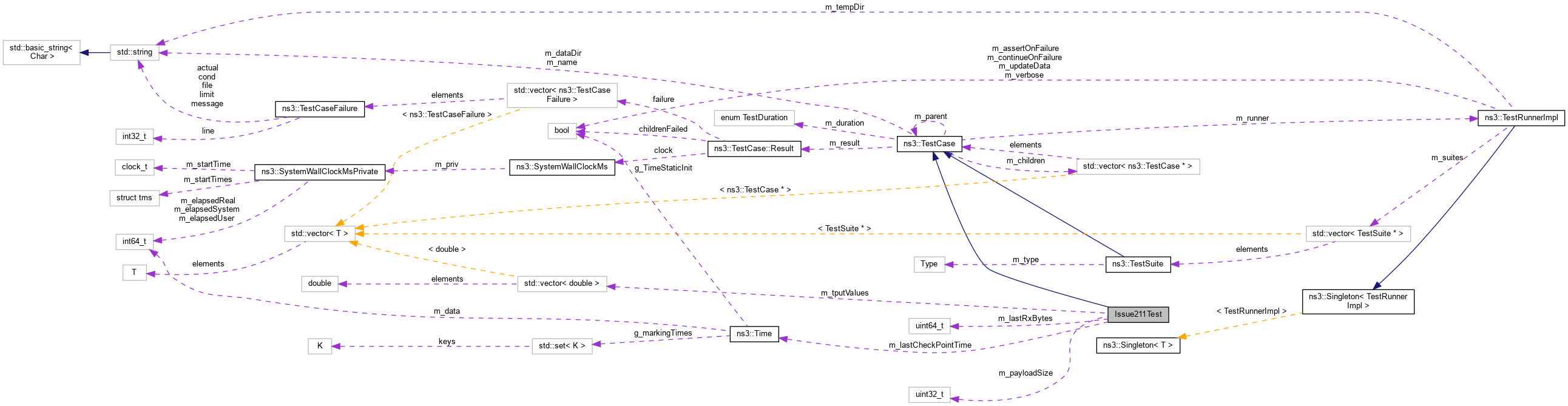

Collaboration diagram for Issue211Test:

Public Member Functions
	Issue211Test ()
	Constructor. More...
virtual	~Issue211Test ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CalcThroughput (Ptr< UdpServer > server)
	Compute the average throughput since the last check-point. More...

Private Attributes
Time	m_lastCheckPointTime
	time of last check-point More...
uint64_t	m_lastRxBytes
	RX bytes at last check-point. More...
uint32_t	m_payloadSize
	payload size in bytes More...
std::vector< double >	m_tputValues
	throughput in sub-intervals More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test for issue 211 (https://gitlab.com/nsnam/ns-3-dev/-/issues/211)

This test aims to check that the transmission of data frames (under a Block Ack agreement) resumes after a period in which the connectivity between originator and recipient is interrupted (e.g., the station moves away and comes back). Issue 211 revealed that MSDUs with expired lifetime were not removed from the wifi MAC queue if the station had to transmit a Block Ack Request. If the connectivity was lost for enough time, the wifi MAC queue could become full of MSDUs with expired lifetime, thus preventing the traffic control layer to forward down new packets. At this point, the station gave up transmitting the Block Ack Request and did not request channel access anymore.

Definition at line 59 of file wifi-issue-211-test-suite.cc.

Constructor & Destructor Documentation

Issue211Test()

Issue211Test::Issue211Test

(

)

Constructor.

Definition at line 83 of file wifi-issue-211-test-suite.cc.

~Issue211Test()

Issue211Test::~Issue211Test ( )

virtual

Definition at line 91 of file wifi-issue-211-test-suite.cc.

Member Function Documentation

CalcThroughput()

void Issue211Test::CalcThroughput ( Ptr< UdpServer >  server )

private

Compute the average throughput since the last check-point.

Parameters

server

the UDP server

Definition at line 96 of file wifi-issue-211-test-suite.cc.

References m_lastCheckPointTime, m_lastRxBytes, m_payloadSize, m_tputValues, and ns3::Now().

Referenced by DoRun().

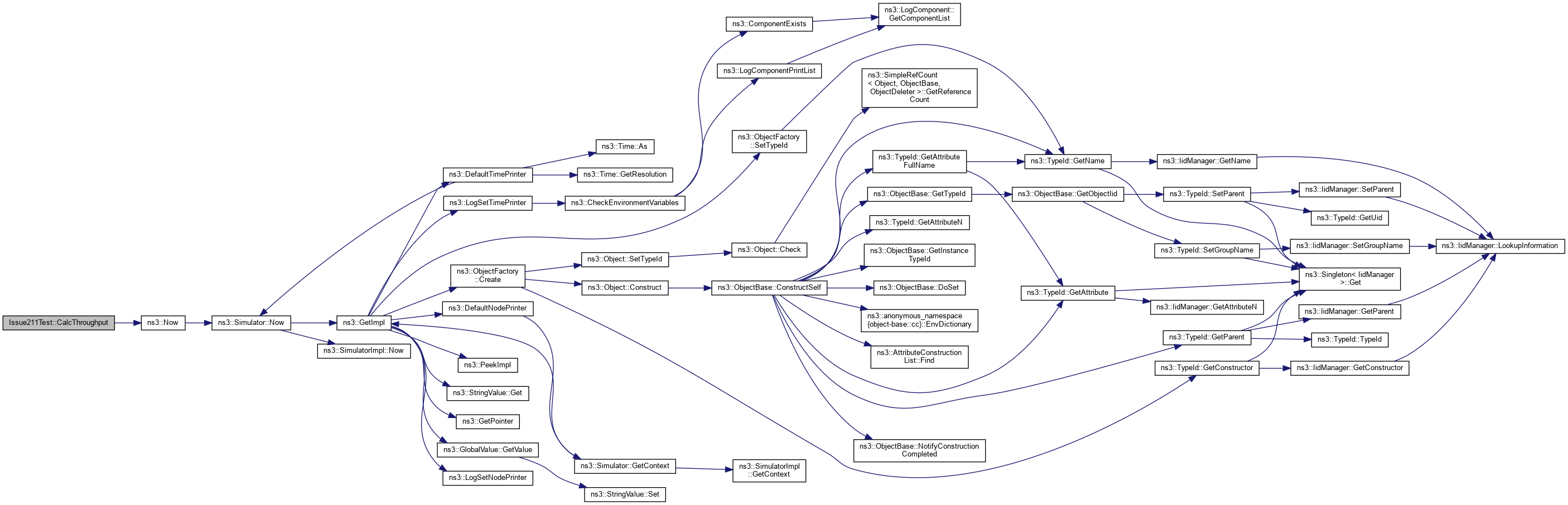

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void Issue211Test::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 106 of file wifi-issue-211-test-suite.cc.

References first::address, third::apDevices, CalcThroughput(), ns3::NodeContainer::Create(), ns3::ApplicationContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Object::GetObject(), ns3::UdpServerHelper::Install(), ns3::UdpClientHelper::Install(), m_payloadSize, m_tputValues, third::mac, ns3::MilliSeconds(), third::mobility, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_GT, third::phy, port, ns3::Seconds(), ns3::UdpClientHelper::SetAttribute(), ns3::Config::SetDefault(), SetPosition(), first::stack, third::staDevices, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), third::wifi, ns3::WIFI_STANDARD_80211n, and third::wifiApNode.

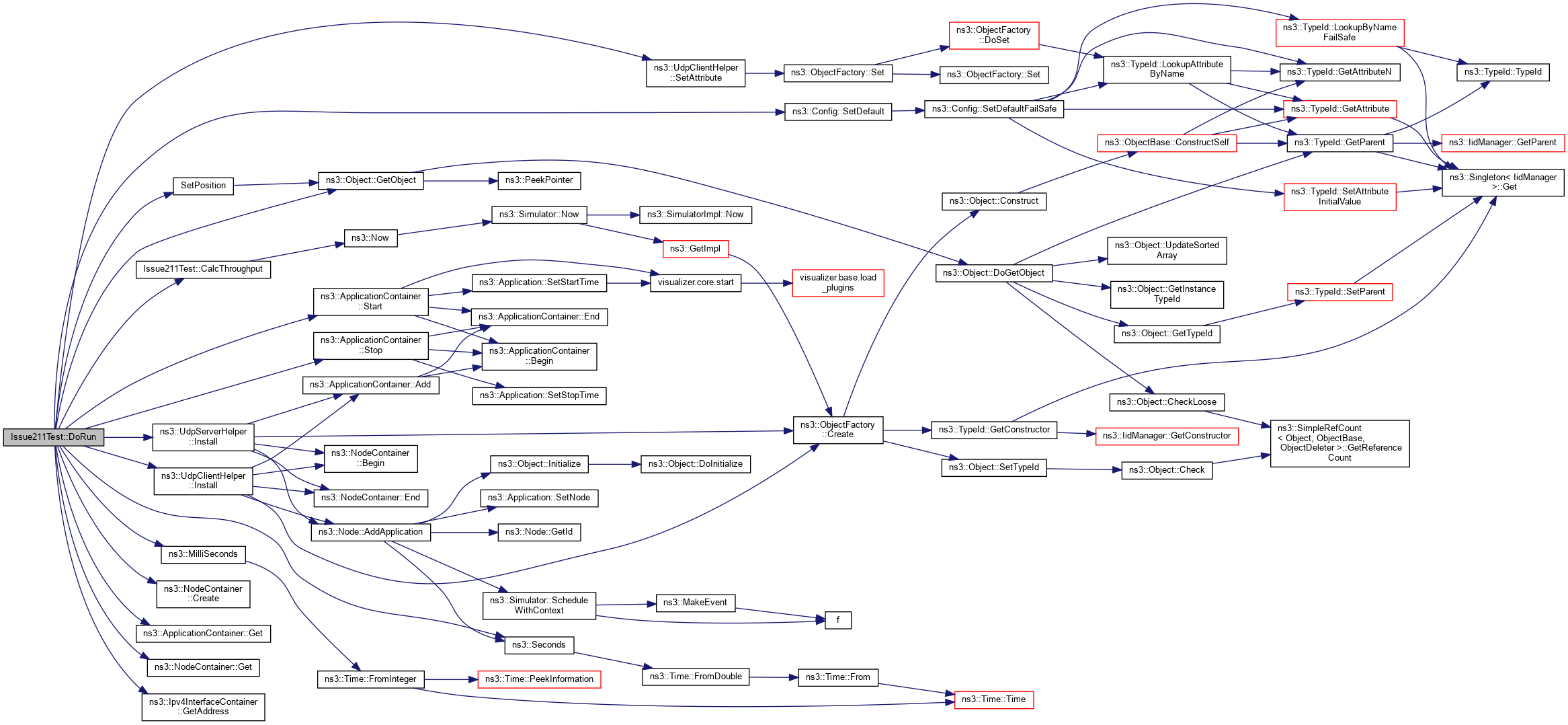

Here is the call graph for this function:

Member Data Documentation

m_lastCheckPointTime

Time Issue211Test::m_lastCheckPointTime

private

time of last check-point

Definition at line 79 of file wifi-issue-211-test-suite.cc.

Referenced by CalcThroughput().

m_lastRxBytes

uint64_t Issue211Test::m_lastRxBytes

private

RX bytes at last check-point.

Definition at line 78 of file wifi-issue-211-test-suite.cc.

Referenced by CalcThroughput().

m_payloadSize

uint32_t Issue211Test::m_payloadSize

private

payload size in bytes

Definition at line 80 of file wifi-issue-211-test-suite.cc.

Referenced by CalcThroughput(), and DoRun().

m_tputValues

std::vector<double> Issue211Test::m_tputValues

private

throughput in sub-intervals

Definition at line 77 of file wifi-issue-211-test-suite.cc.

Referenced by CalcThroughput(), and DoRun().

---

The documentation for this class was generated from the following file:

• src/test/ns3wifi/wifi-issue-211-test-suite.cc
