This system test program creates different test cases with a single eNB and single UE. More...

#include "lte-test-mimo.h"

Inheritance diagram for LenaMimoTestCase:

Collaboration diagram for LenaMimoTestCase:

Public Member Functions
	LenaMimoTestCase (uint16_t dist, std::vector< uint32_t > estThrDl, std::string schedulerType, bool useIdealRrc)
	Constructor. More...

virtual	~LenaMimoTestCase ()

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

void	GetRlcBufferSample (Ptr< RadioBearerStatsCalculator > rlcStats, uint64_t imsi, uint8_t rnti)
	Get RLC buffer sample. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t dist, std::string schedulerType, bool useIdealRrc)
	Builds the test name string based on provided parameter values. More...

Private Attributes
uint16_t	m_dist
	the distance More...

std::vector< uint64_t >	m_dlDataRxed
	DL data received. More...

std::vector< uint32_t >	m_estThrDl
	estimated throughput DL More...

std::string	m_schedulerType
	the scheduler type More...

bool	m_useIdealRrc
	whether to use the ideal RRC More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

This system test program creates different test cases with a single eNB and single UE.

The traffic is configured to be in saturation mode. It is checked if the throughput reaches the expected values when MIMO is used.

Definition at line 40 of file lte-test-mimo.h.

Constructor & Destructor Documentation

◆ LenaMimoTestCase()

LenaMimoTestCase::LenaMimoTestCase	(	uint16_t	dist,
		std::vector< uint32_t >	estThrDl,
		std::string	schedulerType,
		bool	useIdealRrc
	)

Constructor.

Parameters

dist	the distance
estThrDl	the estimated throughput DL
schedulerType	the scheduler type
useIdealRrc	true if use ideal RRC

Definition at line 99 of file lte-test-mimo.cc.

◆ ~LenaMimoTestCase()

LenaMimoTestCase::~LenaMimoTestCase ( )

virtual

Definition at line 108 of file lte-test-mimo.cc.

Member Function Documentation

◆ BuildNameString()

std::string LenaMimoTestCase::BuildNameString	(	uint16_t	dist,
		std::string	schedulerType,
		bool	useIdealRrc
	)

staticprivate

Builds the test name string based on provided parameter values.

Parameters

dist	the distance
schedulerType	the scheduler type
useIdealRrc	if true use the ideal RRC

Returns: the name string

Definition at line 84 of file lte-test-mimo.cc.

◆ DoRun()

void LenaMimoTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Implements ns3::TestCase.

Definition at line 113 of file lte-test-mimo.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::LteEnbNetDevice::GetCcMap(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), GetRlcBufferSample(), ns3::LteHelper::GetRlcStats(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_dist, m_dlDataRxed, m_estThrDl, m_schedulerType, m_useIdealRrc, third::mobility, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityModel::SetPosition(), and ns3::LteHelper::SetSchedulerType().

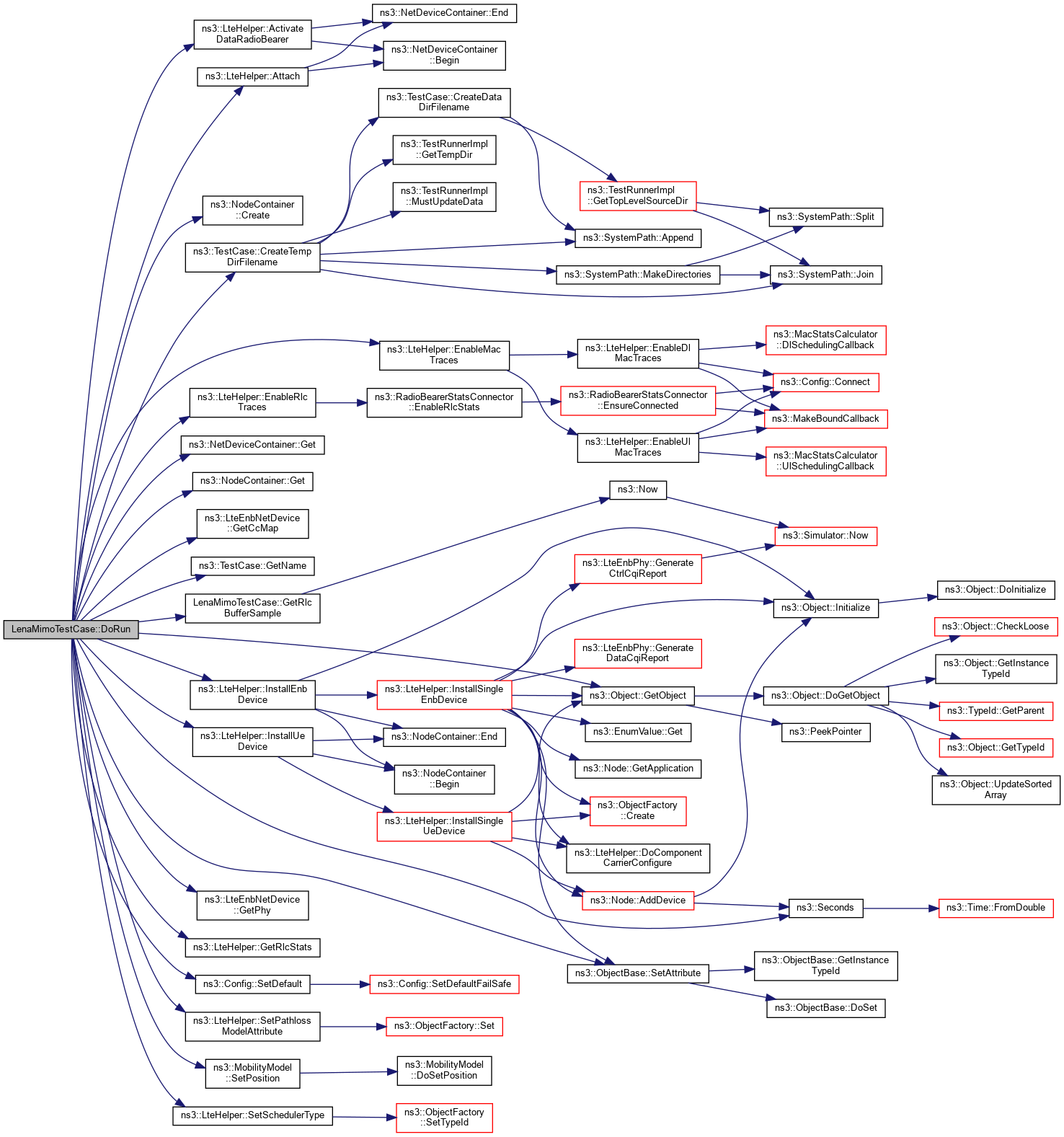

Here is the call graph for this function:

◆ GetRlcBufferSample()

void LenaMimoTestCase::GetRlcBufferSample	(	Ptr< RadioBearerStatsCalculator >	rlcStats,
		uint64_t	imsi,
		uint8_t	rnti
	)

private

Get RLC buffer sample.

Parameters

rlcStats	Ptr<RadioBearerStatsCalculator>
imsi	the IMSI
rnti	the RNTI

Definition at line 262 of file lte-test-mimo.cc.

References m_dlDataRxed, ns3::Now(), and NS_LOG_INFO.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_dist

uint16_t LenaMimoTestCase::m_dist

private

the distance

Definition at line 73 of file lte-test-mimo.h.

Referenced by DoRun().

◆ m_dlDataRxed

std::vector<uint64_t> LenaMimoTestCase::m_dlDataRxed

private

DL data received.

Definition at line 78 of file lte-test-mimo.h.

Referenced by DoRun(), and GetRlcBufferSample().

◆ m_estThrDl

std::vector<uint32_t> LenaMimoTestCase::m_estThrDl

private

estimated throughput DL

Definition at line 74 of file lte-test-mimo.h.

Referenced by DoRun().

◆ m_schedulerType

std::string LenaMimoTestCase::m_schedulerType

private

the scheduler type

Definition at line 75 of file lte-test-mimo.h.

Referenced by DoRun().

◆ m_useIdealRrc

bool LenaMimoTestCase::m_useIdealRrc

private

whether to use the ideal RRC

Definition at line 76 of file lte-test-mimo.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-mimo.h
src/lte/test/lte-test-mimo.cc
