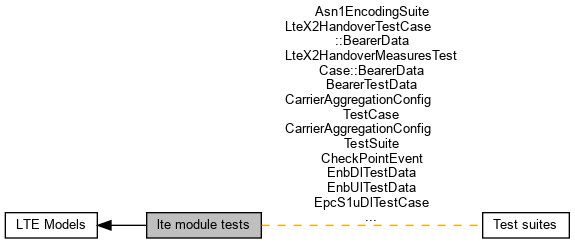

Collaboration diagram for lte module tests:

Classes
class	Asn1EncodingSuite
	Asn1Encoding Test Suite. More...

struct	LteX2HandoverTestCase::BearerData
	BearerData structure. More...

struct	LteX2HandoverMeasuresTestCase::BearerData
	BearerData structure. More...

struct	BearerTestData

class	CarrierAggregationConfigTestCase
	Carrier aggregation configuration test case. More...

class	CarrierAggregationConfigTestSuite
	Carrier aggregation configuration test suite. More...

struct	CheckPointEvent
	CheckPointEvent structure. More...

struct	EnbDlTestData
	Custom structure for testing eNodeB downlink data, contains the list of data structures for UEs. More...

struct	EnbUlTestData
	Custom structure containing information about data sent in the uplink of eNodeB. More...

class	EpcS1uDlTestCase
	EpcS1uDlTestCase class. More...

class	EpcS1uUlTestCase
	EpcS1uUlTestCase class. More...

class	ns3::EpcTestRrc
	RRC stub providing a testing S1 SAP user to be used with the EpcEnbApplication. More...

class	EpcTftClassifierTestCase
	Test case to check the functionality of the Tft Classifier. More...

class	EpcTftClassifierTestSuite
	Epc Tft Classifier Test Suite. More...

class	EpsBearerTagUdpClient
	A Udp client. More...

class	EpsGtpuTestSuite
	Test suite for testing GPRS tunnelling protocol header coding and decoding. More...

struct	HandoverEvent
	HandoverEvent structure. More...

class	HandoverPreparationInfoTestCase
	Handover Preparation Info Test Case. More...

class	LenaCqaFfMacSchedulerTestCase1
	This is a system test program. More...

class	LenaCqaFfMacSchedulerTestCase2
	This is a system test program. More...

class	LenaDataPhyErrorModelTestCase
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	ns3::LenaDeactivateBearerTestCase
	Test case that for testing the deactivation of the bearer functionality. More...

class	LenaDlCtrlPhyErrorModelTestCase
	Lena Dl Ctrl Phy Error Model Test Case. More...

class	LenaFdBetFfMacSchedulerTestCase1
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaFdBetFfMacSchedulerTestCase2
	Test case is simillar to the one defined in LenaFdBetFfMacSchedulerTestCase1, with the difference that UEs are placed in such a way to experience different SINRs from eNodeB. More...

class	LenaFdMtFfMacSchedulerTestCase
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaFdTbfqFfMacSchedulerTestCase1
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaFdTbfqFfMacSchedulerTestCase2
	Test case is simillar to the one defined in LenaFdTbfqFfMacSchedulerTestCase1, with the difference that UEs are placed in such a way to experience different SINRs from eNodeB. More...

class	LenaHarqTestCase
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaMimoTestCase
	This system test program creates different test cases with a single eNB and single UE. More...

class	LenaPfFfMacSchedulerTestCase1
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaPfFfMacSchedulerTestCase2
	Lena PfFf Mac Scheduler Test Case 2. More...

class	LenaPssFfMacSchedulerTestCase1
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaPssFfMacSchedulerTestCase2
	Simillar to the LenaPssFfMacSchedulerTestCase1 with the difference that UEs are places in such a way to experience different SINRs. More...

class	LenaRrFfMacSchedulerTestCase
	This system test program creates different test cases with a single eNB and This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaTdBetFfMacSchedulerTestCase1
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaTdBetFfMacSchedulerTestCase2
	Lena TdBet Ff Mac Scheduler Test Case. More...

class	LenaTdMtFfMacSchedulerTestCase
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaTdTbfqFfMacSchedulerTestCase1
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LenaTdTbfqFfMacSchedulerTestCase2
	Lena TdTbfq Ff Mac Scheduler Test Case 2. More...

class	ns3::LenaTestBearerDeactivateSuite
	The test suite class for the LenaDeactivateBearerTestCase. More...

class	LenaTestCqaFfMacSchedulerSuite
	The test suite for testing CQA scheduler functionality. More...

class	LenaTestFdBetFfMacSchedulerSuite
	Test suite for FDBetFfMacScheduler test case. More...

class	LenaTestFdMtFfMacSchedulerSuite
	Test suite for LenaFdMtFfMacSchedulerTestCase test case. More...

class	LenaTestFdTbfqFfMacSchedulerSuite
	Test suit for FdTbfqFfMacScheduler test. More...

class	LenaTestHarqSuite
	Test suite for harq test. More...

class	LenaTestMimoSuite
	Lena Test Mimo Suite. More...

class	LenaTestPfFfMacSchedulerSuite
	PfFfMacScheduler test suite. More...

class	LenaTestPhyErrorModelSuite
	Lena Test Phy Error Model Suite. More...

class	LenaTestPssFfMacSchedulerSuite
	Lena Pss Ff Mac Scheduler Test Suite. More...

class	LenaTestRrFfMacSchedulerSuite
	Test suite for RrFfMacScheduler test. More...

class	LenaTestTdBetFfMacSchedulerSuite
	Test suite for TdBetFfMacScheduler tests. More...

class	LenaTestTdMtFfMacSchedulerSuite
	Test suite for TdMtFfMacScheduler tests. More...

class	LenaTestTdTbfqFfMacSchedulerSuite
	Test suite for TdTbfqFfMacScheduler test. More...

class	LenaTestTtaFfMacSchedulerSuite
	Lena Test Tta Ff Mac Scheduler Suite. More...

class	LenaTtaFfMacSchedulerTestCase
	This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

class	LteAntennaTestSuite
	Lte Enb Antenna Test Suite. More...

class	LteCqiGenerationDlPowerControlTestCase
	This test is very similar to LteCqiGenerationTestCase. More...

class	LteCqiGenerationTestCase
	This is the test case for testing different configuration of CQI generation. More...

class	LteCqiGenerationTestSuite
	Lte Cqi Generation Test Suite. More...

class	LteDistributedFfrAreaTestCase
	Lte Distributed Ffr Area Test Case. More...

class	LteDownlinkCtrlSinrTestCase
	Test compares if the generated SINR is equal to estimated SINR value. More...

class	LteDownlinkDataSinrTestCase
	Test compares if the generated SINR is equal to estimated SINR value. More...

class	LteDownlinkPowerControlRrcConnectionReconfigurationTestCase
	Test if RRC connection reconfiguration messages are properly generated upon the change in the downlink power. More...

class	LteDownlinkPowerControlSpectrumValueTestCase
	Test SINR calculation in the downlink when power control is used. More...

class	LteDownlinkPowerControlTestCase
	Test SINR calculation in the downlink when the power control is used. More...

class	LteDownlinkPowerControlTestSuite
	Test suite for the LteDownlinkPowerControlSpectrumValueTestCase. More...

class	LteDownlinkSinrTestSuite
	Test 1.1 SINR calculation in downlink. More...

class	LteEarfcnDlTestCase
	Test case that is testing if the downlink frequency is properly converted from provided downlink EARFCN frequency value. More...

class	LteEarfcnTestCase
	Test case that is testing if the frequency is properly generated from provided EARFCN frequency. More...

class	LteEarfcnTestSuite
	Test suite for testing correct conversion of frequencies in the downlink and the uplink, and general EARFCN frequencies. More...

class	LteEarfcnUlTestCase
	Test case that is testing if the uplink frequency is properly converted from provided uplink EARFCN frequency value. More...

class	LteEnbAntennaTestCase
	Tests that the propagation model and the antenna parameters are generate the correct values. More...

class	LteEnhancedFfrAreaTestCase
	Lte Enhanced Ffr Area Test Case. More...

class	LteEpcE2eDataTestCase
	Test that e2e packet flow is correct. More...

class	LteEpcE2eDataTestSuite
	Test that the S1-U interface implementation works correctly. More...

class	ns3::LteFfrSimple
	Simple Frequency Reuse algorithm implementation which uses only 1 sub-band. More...

class	LteFrAreaTestCase
	Test frequency reuse algorithm by teleporing UEs to different parts of area and checking if the frequency is used according to the frequency pattern for different parts of area. More...

class	LteFrequencyReuseTestSuite
	Test the fractional frequency reuse algorithms. More...

class	LteFrTestCase
	Test frequency reuse algorithm. More...

class	LteHandoverDelayTestCase
	Verifying that the time needed for handover is under a specified threshold. More...

class	LteHandoverDelayTestSuite
	Lte Handover Delay Test Suite. More...

class	LteHandoverTargetTestCase
	Testing a handover algorithm, verifying that it selects the right target cell when more than one options available. More...

class	LteHardFrTestCase
	Test hard frequency reuse algorithm. More...

class	LteInterferenceFrTestSuite
	Test suite for the interference test when using different frequency reuse algorithms.Check if the interfence values correspond to theoretical values. More...

class	LteInterferenceHardFrTestCase
	Lte interference test when using hard frequency reuse algorithm. More...

class	LteInterferenceStrictFrTestCase
	Lte interference test when using strict frequency reuse algorithm. More...

class	LteInterferenceTestCase
	Test that SINR calculation and MCS selection works fine in a multi-cell interference scenario. More...

class	LteInterferenceTestSuite
	Test suite for interference test. More...

class	LteIpv6RoutingTestCase
	Lte Ipv6 routing test case. More...

class	LteLinkAdaptationTestCase
	Test that LTE link adaptation works according to the theoretical model. More...

class	LteLinkAdaptationTestSuite
	Test 1.3 Link adaptation. More...

class	LteNoisePsdTestCase
	Test that the function for creation of LTE noise power spectral density is working properly. More...

class	LtePathlossModelSystemTestCase
	Tests that the BuildingPathlossModel works according to the expected theoretical values. More...

class	LtePathlossModelTestSuite
	Test 1.1 pathloss calculation. More...

class	LteRlcAmE2eTestCase
	Test cases used for the test suite lte-rlc-am-e2e. More...

class	LteRlcAmE2eTestSuite
	Test suite for RlcAmE2e test case. More...

class	LteRlcAmTransmitterConcatenationTestCase
	Test 4.1.1.3 Test that concatenation functionality works properly. More...

class	LteRlcAmTransmitterOneSduTestCase
	Test 4.1.1.1 Test that SDU transmitted at PDCP corresponds to PDU received by MAC. More...

class	LteRlcAmTransmitterReportBufferStatusTestCase
	Test 4.1.1.4 Test checks functionality of Report Buffer Status by testing primitive parameters. More...

class	LteRlcAmTransmitterSegmentationTestCase
	Test 4.1.1.2 Test the correct functionality of the Segmentation. More...

class	LteRlcAmTransmitterTestCase
	Test case used by LteRlcAmTransmitterOneSduTestCase to create topology and to implement functionalities and check if data received corresponds to data sent. More...

class	LteRlcAmTransmitterTestSuite
	TestSuite 4.1.1 RLC AM: Only transmitter functionality. More...

class	ns3::LteRlcHeaderTestSuite
	Lte Rlc Header Test Suite. More...

class	LteRlcUmE2eTestCase
	Test end-to-end flow when RLC UM is being used. More...

class	LteRlcUmE2eTestSuite
	Test suite for RlcUmE2eTestCase. More...

class	LteRlcUmTransmitterConcatenationTestCase
	Test 4.1.1.3 Concatenation (n SDUs => One PDU) More...

class	LteRlcUmTransmitterOneSduTestCase
	Test 4.1.1.1 One SDU, One PDU. More...

class	LteRlcUmTransmitterReportBufferStatusTestCase
	Test 4.1.1.4 Report Buffer Status (test primitive parameters) More...

class	LteRlcUmTransmitterSegmentationTestCase
	Test 4.1.1.2 Segmentation (One SDU => n PDUs) More...

class	LteRlcUmTransmitterTestCase
	Test case used by LteRlcUmTransmitterOneSduTestCase to create topology and to implement functionalities and check if data received corresponds to data sent. More...

class	LteRlcUmTransmitterTestSuite
	TestSuite 4.1.1 for RLC UM: Only transmitter part. More...

class	LteRrcConnectionEstablishmentErrorTestCase
	Lte Rrc Connection Establishment Error Test Case. More...

class	LteRrcConnectionEstablishmentTestCase
	Test rrc connection establishment. More...

class	LteRrcTestSuite
	Lte Rrc Test Suite. More...

class	LteSecondaryCellHandoverTestCase
	Test measurement-based handover to secondary cell. More...

class	LteSecondaryCellHandoverTestSuite
	LTE measurement-based handover to secondary cell test suite. More...

class	LteSecondaryCellSelectionTestCase
	Testing the initial cell selection procedure by UE at IDLE state in the beginning of simulation with multiple component carriers. More...

class	LteSecondaryCellSelectionTestSuite
	Test suite for executing the secondary cell selection test cases. More...

class	ns3::LteSimpleHelper
	A simplified version of LteHelper, that is used for creation and configuration of LTE entities for testing purposes when just a limited LteHelper functionality is wanted. More...

class	LteSoftFfrAreaTestCase
	Lte Soft Ffr Area Test Case. More...

class	LteSoftFrAreaTestCase
	Lte Soft Fr Area Test Case. More...

class	LteSpectrumModelTestCase
	Test checks if lte spectrum model is generated properly. More...

class	LteSpectrumValueHelperTestSuite
	Test suite for LteSpectrumValueHelper. More...

class	LteStrictFrAreaTestCase
	Lte Fr Area Test Case. More...

class	LteStrictFrTestCase
	Test stric frequency reuse algorithm. More...

class	ns3::LteTestMac
	This class implements a testing loopback MAC layer. More...

class	ns3::LteTestPdcp
	This class implements a testing PDCP entity. More...

class	ns3::LteTestRrc
	This class implements a testing RRC entity. More...

class	ns3::LteTestUePhy
	Defines a simplified LtePhy class that is used for testing purposes of downlink and uplink SINR generation. More...

class	LteTxPsdTestCase
	Test that the funtcion for the creation of the Lte transmission power spectral density is working as expected. More...

class	LteUeMeasurementsHandoverTestCase
	Testing UE measurements in LTE with simulation of 2 eNodeB and 1 UE in a handover configuration. More...

class	LteUeMeasurementsHandoverTestSuite
	Test suite for generating calls to UE measurements test case ns3::LteUeMeasurementsHandoverTestCase. More...

class	LteUeMeasurementsPiecewiseTestCase1
	Testing UE measurements in LTE with simulation of 1 eNodeB and 1 UE in piecewise configuration and 120 ms report interval. More...

class	LteUeMeasurementsPiecewiseTestCase2
	Testing UE measurements in LTE with simulation of 2 eNodeB and 1 UE in piecewise configuration and 240 ms report interval. More...

class	LteUeMeasurementsPiecewiseTestCase3
	Testing UE measurements in LTE with simulation of 3 eNodeB and 1 UE in piecewise configuration and 240 ms report interval. More...

class	LteUeMeasurementsPiecewiseTestSuite1
	Test suite for generating calls to UE measurements test case ns3::LteUeMeasurementsPiecewiseTestCase1. More...

class	LteUeMeasurementsPiecewiseTestSuite2
	Test suite for generating calls to UE measurements test case ns3::LteUeMeasurementsPiecewiseTestCase2. More...

class	LteUeMeasurementsPiecewiseTestSuite3
	Test suite for generating calls to UE measurements test case ns3::LteUeMeasurementsPiecewiseTestCase3. More...

class	LteUeMeasurementsTestCase
	Test that UE measurements calculation works properly in a scenario with 2 eNodeBs and 2UEs. More...

class	LteUeMeasurementsTestSuite
	Test that UE Measurements (see 36.214) calculation works fine in a multi-cell interference scenario. More...

class	LteUplinkClosedLoopPowerControlAbsoluteModeTestCase
	Lte Uplink Closed Loop Power Control Absolute Mode Test Case. More...

class	LteUplinkClosedLoopPowerControlAccumulatedModeTestCase
	Lte Uplink Closed Loop Power Control Accumulated Mode Test Case. More...

class	LteUplinkDataSinrTestCase
	Test generation of SINR in the uplink. More...

class	LteUplinkOpenLoopPowerControlTestCase
	Lte Uplink Open Loop Power Control Test Case. More...

class	LteUplinkPowerControlTestCase
	Lte Uplink Power Control Test Case. More...

class	LteUplinkPowerControlTestSuite
	Test 1.1 Uplink Power Control. More...

class	LteUplinkSinrTestSuite
	Test 1.2 SINR calculation in uplink. More...

class	LteUplinkSrsSinrTestCase
	In this test one signal will be of interest, i.e., the SRS of the first signal will have the same CellId of the receiving PHY; the others will have a different CellId and hence will be the interfering signals. More...

class	LteX2HandoverMeasuresTestCase
	Test different X2 handover measures and algorithms, e.g. More...

class	LteX2HandoverMeasuresTestSuite
	Lte X2 Handover Measures Test Suite. More...

class	LteX2HandoverTestCase
	Test X2 Handover. More...

class	LteX2HandoverTestSuite
	LTE X2 Handover Test Suite. More...

class	MeasurementReportTestCase
	Measurement Report Test Case. More...

class	ns3::RlcAmStatusPduTestCase
	Rlc Am Status Pdu Test Case. More...

class	RrcConnectionReconfigurationCompleteTestCase
	Rrc Connection Reconfiguration Complete Test Case. More...

class	RrcConnectionReconfigurationTestCase
	Rrc Connection Reconfiguration Test Case. More...

class	RrcConnectionReestablishmentCompleteTestCase
	Rrc Connection Reestablishment Complete Test Case. More...

class	RrcConnectionReestablishmentRequestTestCase
	Rrc Connection Reestablishment Request Test Case. More...

class	RrcConnectionReestablishmentTestCase
	Rrc Connection Reestablishment Test Case. More...

class	RrcConnectionRejectTestCase
	Rrc Connection Reject Test Case. More...

class	RrcConnectionRequestTestCase
	Rrc Connection Request Test Case. More...

class	RrcConnectionSetupCompleteTestCase
	Rrc Connection Setup Complete Test Case. More...

class	RrcConnectionSetupTestCase
	Rrc Connection Setup Test Case. More...

class	RrcHeaderTestCase
	This class provides common functions to be inherited by the children TestCases. More...

class	ns3::TestUtils
	Test Utils. More...

class	TestUtils
	Contains ASN encoding test utility functions. More...

struct	LteX2HandoverMeasuresTestCase::UeData
	UeData structure. More...

struct	LteX2HandoverTestCase::UeData
	UeData structure. More...

struct	UeDlTestData
	Custom structure for testing UE downlink data. More...

struct	UeUlTestData
	Custom test structure to hold information of data transmitted in the uplink per UE. More...

Variables
LteEpcE2eDataTestSuite	g_lteEpcE2eDataTestSuite
	the test suite More...

Classes

Variables

Detailed Description

Variable Documentation

◆ g_lteEpcE2eDataTestSuite
