Lte Fr Area Test Case. More...

#include "lte-test-frequency-reuse.h"

Inheritance diagram for LteStrictFrAreaTestCase:

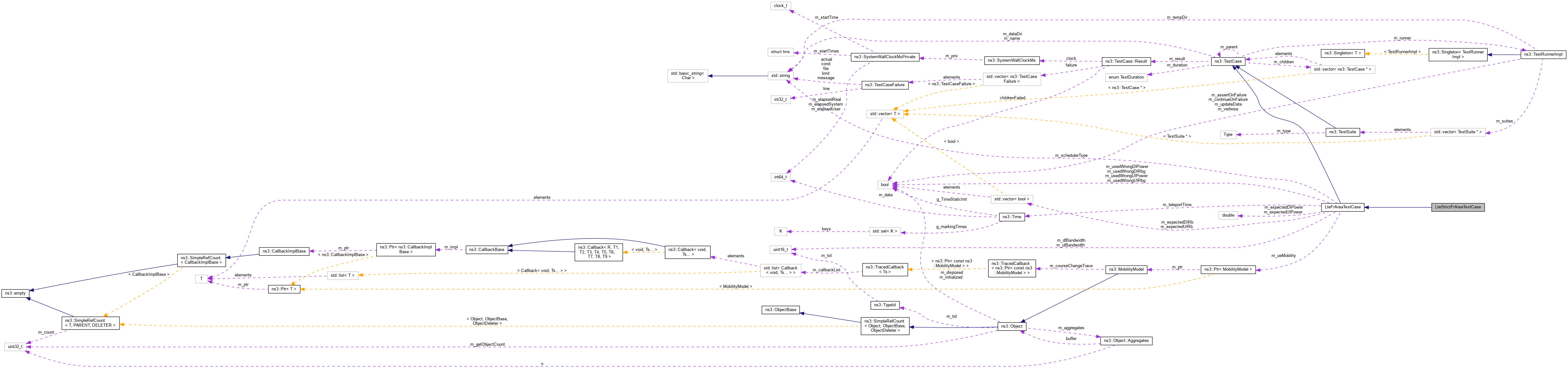

Collaboration diagram for LteStrictFrAreaTestCase:

Public Member Functions
	LteStrictFrAreaTestCase (std::string name, std::string schedulerType)
	Constructor. More...

virtual	~LteStrictFrAreaTestCase ()

Public Member Functions inherited from LteFrAreaTestCase
	LteFrAreaTestCase (std::string name, std::string schedulerType)
	Constructor. More...

virtual	~LteFrAreaTestCase ()

void	DlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
	DL data receive start function. More...

void	SetDlExpectedValues (double expectedPower, std::vector< bool > expectedDlRb)
	Set DL expected values function. More...

void	SetUlExpectedValues (double expectedPower, std::vector< bool > expectedDlRb)
	Set UL expected values function. More...

void	SimpleTeleportUe (uint32_t x, uint32_t y)
	Simple teleport UE function. More...

void	TeleportUe (uint32_t x, uint32_t y, double expectedPower, std::vector< bool > expectedDlRb)
	Teleport UE function. More...

void	TeleportUe2 (Ptr< Node > ueNode, uint32_t x, uint32_t y, double expectedPower, std::vector< bool > expectedDlRb)
	Teleport UE 2 function. More...

void	UlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
	UL data receive start function. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions

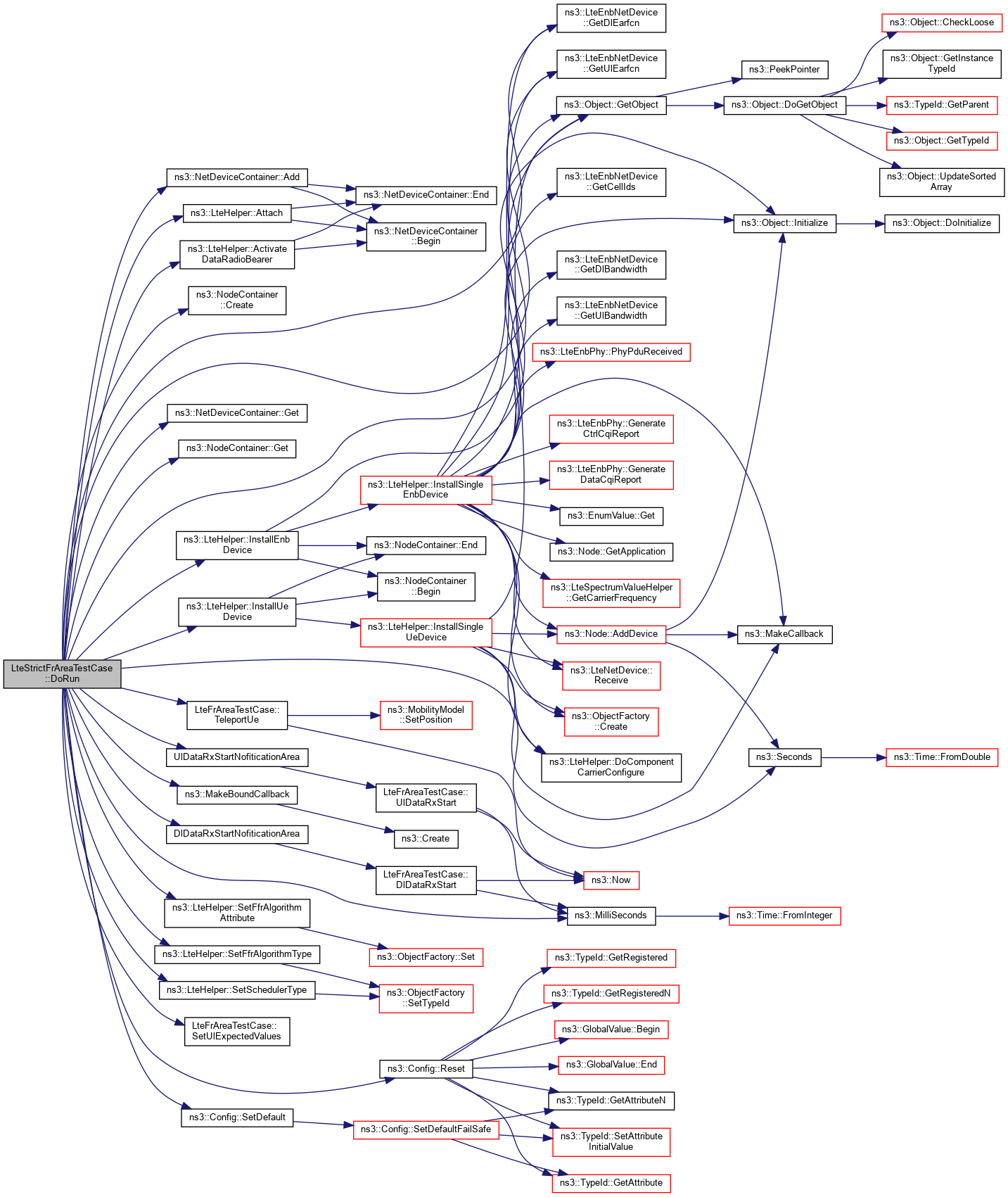

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Protected Attributes inherited from LteFrAreaTestCase
uint16_t	m_dlBandwidth
	the DL bandwidth More...

double	m_expectedDlPower
	the expected DL power More...

std::vector< bool >	m_expectedDlRb
	the expected DL per RB More...

double	m_expectedUlPower
	expected UL power More...

std::vector< bool >	m_expectedUlRb
	expected UL per RB More...

std::string	m_schedulerType
	the scheduler type More...

Time	m_teleportTime
	the telport time More...

Ptr< MobilityModel >	m_ueMobility
	the UE mobility model More...

uint16_t	m_ulBandwidth
	the UL bandwidth More...

bool	m_usedWrongDlPower
	used wrong DL power? More...

bool	m_usedWrongDlRbg
	used wrong DL RBG? More...

bool	m_usedWrongUlPower
	used wrong UL power? More...

bool	m_usedWrongUlRbg
	used wrong UL RBG? More...
