Test compares if the generated SINR is equal to estimated SINR value. More...

#include "lte-test-downlink-sinr.h"

Inheritance diagram for LteDownlinkCtrlSinrTestCase:

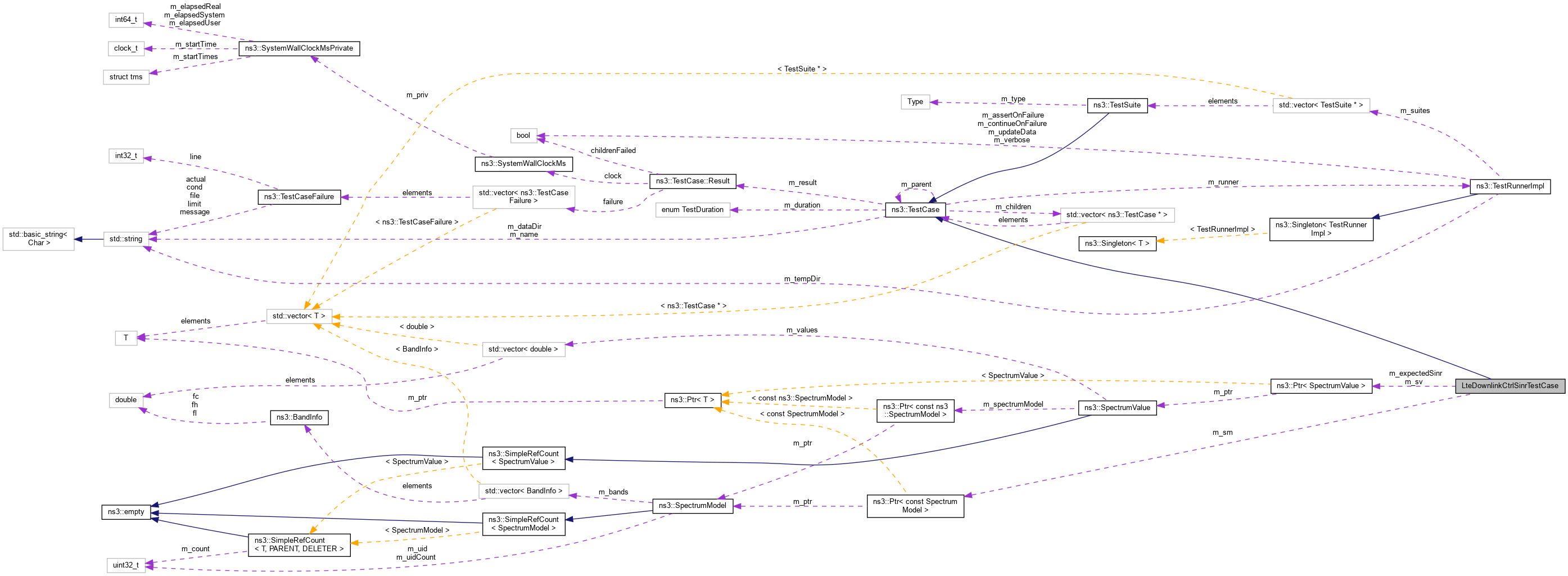

Collaboration diagram for LteDownlinkCtrlSinrTestCase:

Public Member Functions
	LteDownlinkCtrlSinrTestCase (Ptr< SpectrumValue > sv, Ptr< SpectrumValue > sinr, std::string name)
	Constructor. More...

virtual	~LteDownlinkCtrlSinrTestCase ()

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
Ptr< SpectrumValue >	m_expectedSinr
	the expected SINR More...

Ptr< const SpectrumModel >	m_sm
	the spectrum model More...

Ptr< SpectrumValue >	m_sv
	the spectrum value More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test compares if the generated SINR is equal to estimated SINR value.

Test generates several calls to LteSpectrumPhy::StartRx corresponding to several signals. One will be the signal of interest, i.e., the LteSpectrumSignalParametersDlCtrlFrame of the first signal will have the same CellId of the receiving PHY; the others will have a different CellId and hence will be the interfering signals.

Definition at line 90 of file lte-test-downlink-sinr.h.

Constructor & Destructor Documentation

◆ LteDownlinkCtrlSinrTestCase()

LteDownlinkCtrlSinrTestCase::LteDownlinkCtrlSinrTestCase	(	Ptr< SpectrumValue >	sv,
		Ptr< SpectrumValue >	sinr,
		std::string	name
	)

Constructor.

TestCase CTRL.

Parameters

sv	the spectrum value
sinr	the SINR
name	the name of the test

Definition at line 280 of file lte-test-downlink-sinr.cc.

References NS_LOG_INFO.

◆ ~LteDownlinkCtrlSinrTestCase()

LteDownlinkCtrlSinrTestCase::~LteDownlinkCtrlSinrTestCase ( )

virtual

Definition at line 289 of file lte-test-downlink-sinr.cc.

Member Function Documentation

◆ DoRun()

void LteDownlinkCtrlSinrTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Instantiate a single receiving LteSpectrumPhy

Generate several calls to LteSpectrumPhy::StartRx corresponding to several signals. One will be the signal of interest, i.e., the LteSpectrumSignalParametersDlCtrlFrame of the first signal will have the same CellId of the receiving PHY; the others will have a different CellId and hence will be the interfering signals

Build ctrl msg lists

Schedule the reception of the data signal plus the interference signals

Implements ns3::TestCase.

Definition at line 294 of file lte-test-downlink-sinr.cc.

References ns3::LteSpectrumValueCatcher::GetValue(), m_expectedSinr, m_sm, m_sv, ns3::MakeCallback(), NS_LOG_INFO, NS_TEST_ASSERT_MSG_SPECTRUM_VALUE_EQ_TOL, ns3::Seconds(), and ns3::Config::SetDefault().

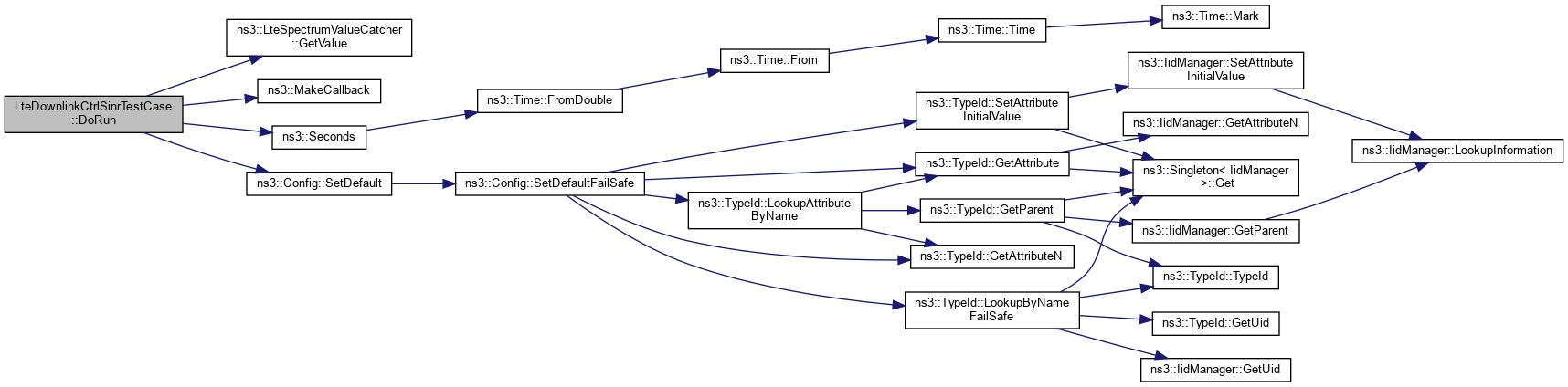

Here is the call graph for this function:

Member Data Documentation

◆ m_expectedSinr

Ptr<SpectrumValue> LteDownlinkCtrlSinrTestCase::m_expectedSinr

private

the expected SINR

Definition at line 108 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

◆ m_sm

Ptr<const SpectrumModel> LteDownlinkCtrlSinrTestCase::m_sm

private

the spectrum model

Definition at line 107 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

◆ m_sv

Ptr<SpectrumValue> LteDownlinkCtrlSinrTestCase::m_sv

private

the spectrum value

Definition at line 106 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-downlink-sinr.h
src/lte/test/lte-test-downlink-sinr.cc
