LtePathlossModelSystemTestCase Class Reference

Tests that the BuildingPathlossModel works according to the expected theoretical values. More...

#include "lte-test-pathloss-model.h"

Inheritance diagram for LtePathlossModelSystemTestCase:

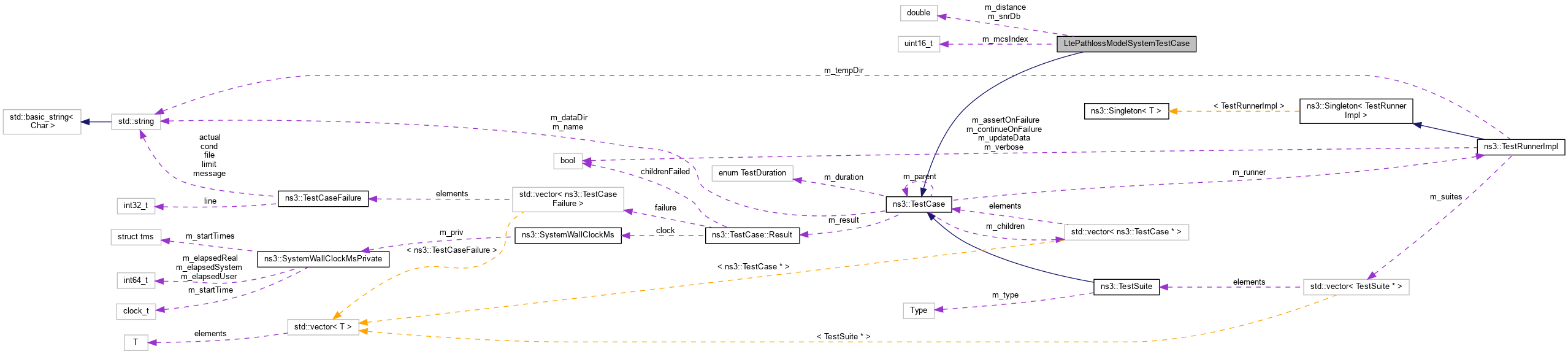

Collaboration diagram for LtePathlossModelSystemTestCase:

Public Member Functions
	LtePathlossModelSystemTestCase ()
	LtePathlossModelSystemTestCase (std::string name, double snrDb, double dist, uint16_t mcsIndex)
	Constructor. More...
virtual	~LtePathlossModelSystemTestCase ()
void	DlScheduling (DlSchedulingCallbackInfo dlInfo)
	DL scheduling function. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
double	m_distance
	the distance More...
uint16_t	m_mcsIndex
	the MCS index More...
double	m_snrDb
	the SNR in dB More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Tests that the BuildingPathlossModel works according to the expected theoretical values.

Theoretical reference values are obtained with the octave script src/lte/test/reference/lte_pathloss.m

Definition at line 55 of file lte-test-pathloss-model.h.

Constructor & Destructor Documentation

LtePathlossModelSystemTestCase() [1/2]

LtePathlossModelSystemTestCase::LtePathlossModelSystemTestCase	(	std::string	name,
		double	snrDb,
		double	dist,
		uint16_t	mcsIndex
	)

Constructor.

Parameters

name	the reference name
snrDb	the SNR in dB
dist	the distance
mcsIndex	the MCS index

Definition at line 176 of file lte-test-pathloss-model.cc.

References NS_LOG_INFO.

LtePathlossModelSystemTestCase() [2/2]

LtePathlossModelSystemTestCase::LtePathlossModelSystemTestCase

(

)

~LtePathlossModelSystemTestCase()

LtePathlossModelSystemTestCase::~LtePathlossModelSystemTestCase ( )

virtual

Definition at line 189 of file lte-test-pathloss-model.cc.

Member Function Documentation

DlScheduling()

void LtePathlossModelSystemTestCase::DlScheduling

(

DlSchedulingCallbackInfo

dlInfo

)

DL scheduling function.

Parameters

dlInfo

the DL info

Definition at line 290 of file lte-test-pathloss-model.cc.

References m_mcsIndex, m_snrDb, ns3::DlSchedulingCallbackInfo::mcsTb1, ns3::MilliSeconds(), ns3::Now(), NS_LOG_INFO, and NS_TEST_ASSERT_MSG_EQ.

Referenced by LteTestPathlossDlSchedCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void LtePathlossModelSystemTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Simulation Topology

Implements ns3::TestCase.

Definition at line 194 of file lte-test-pathloss-model.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteSpectrumValueCatcher::GetValue(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_distance, m_snrDb, ns3::MakeCallback(), third::mobility, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::LteHelper::SetEnbDeviceAttribute(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerType(), and ns3::LteHelper::SetUeDeviceAttribute().

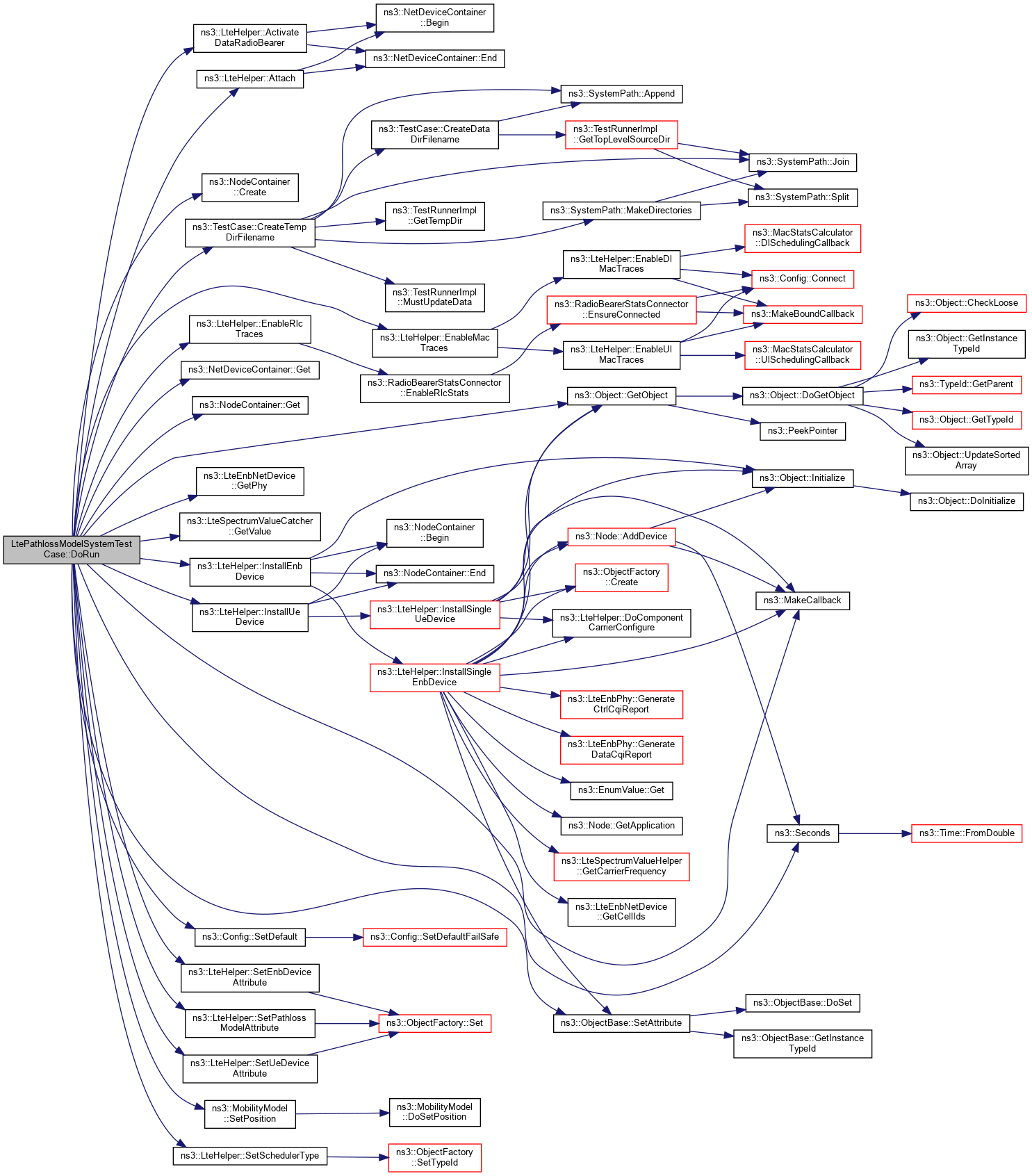

Here is the call graph for this function:

Member Data Documentation

m_distance

double LtePathlossModelSystemTestCase::m_distance

private

the distance

Definition at line 80 of file lte-test-pathloss-model.h.

Referenced by DoRun().

m_mcsIndex

uint16_t LtePathlossModelSystemTestCase::m_mcsIndex

private

the MCS index

Definition at line 81 of file lte-test-pathloss-model.h.

Referenced by DlScheduling().

m_snrDb

double LtePathlossModelSystemTestCase::m_snrDb

private

the SNR in dB

Definition at line 79 of file lte-test-pathloss-model.h.

Referenced by DlScheduling(), and DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-pathloss-model.h
• src/lte/test/lte-test-pathloss-model.cc
