This application is installed inside eNBs and provides the bridge functionality for user data plane packets between the radio interface and the S1-U interface. More...

#include "epc-enb-application.h"

Inheritance diagram for ns3::EpcEnbApplication:

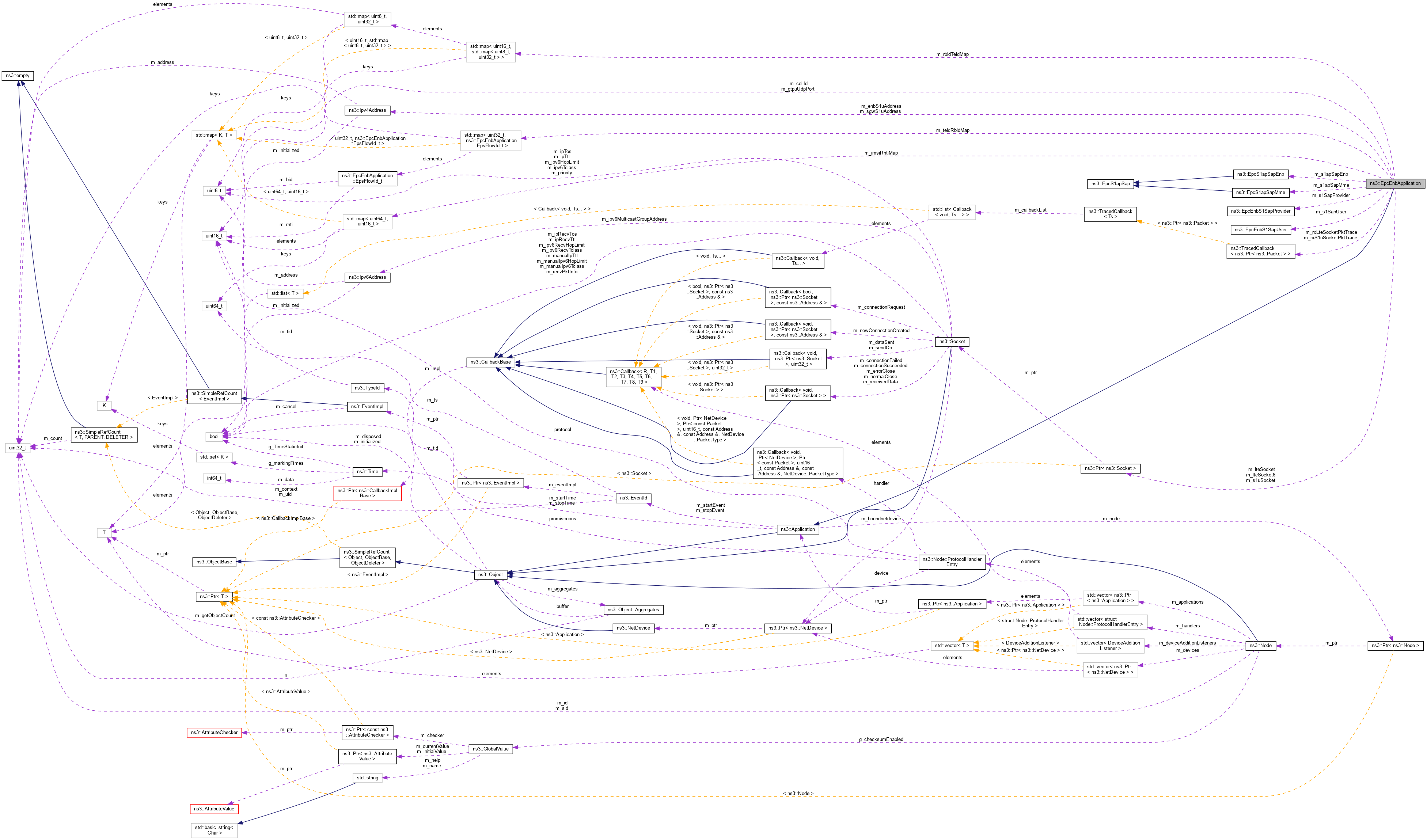

Collaboration diagram for ns3::EpcEnbApplication:

Classes
struct	EpsFlowId_t
	EPS flow ID structure. More...

Public Types
typedef void(*	RxTracedCallback) (Ptr< Packet > packet)
	TracedCallback signature for data Packet reception event. More...

Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Public Member Functions
	EpcEnbApplication (Ptr< Socket > lteSocket, Ptr< Socket > lteSocket6, uint16_t cellId)
	Constructor. More...

virtual	~EpcEnbApplication (void)
	Destructor. More...

void	AddS1Interface (Ptr< Socket > s1uSocket, Ipv4Address enbS1uAddress, Ipv4Address sgwS1uAddress)
	Add a S1-U interface to the eNB. More...

EpcS1apSapEnb *	GetS1apSapEnb ()

EpcEnbS1SapProvider *	GetS1SapProvider ()

void	RecvFromLteSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the LTE socket. More...

void	RecvFromS1uSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the S1-U socket. More...

void	SetS1apSapMme (EpcS1apSapMme *s)
	Set the MME side of the S1-AP SAP. More...

void	SetS1SapUser (EpcEnbS1SapUser *s)
	Set the S1 SAP User. More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	DoInitialContextSetupRequest (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< EpcS1apSapEnb::ErabToBeSetupItem > erabToBeSetupList)
	Initial Context Setup Request. More...

void	DoInitialUeMessage (uint64_t imsi, uint16_t rnti)
	Initial UE message function. More...

void	DoPathSwitchRequest (EpcEnbS1SapProvider::PathSwitchRequestParameters params)
	Path switch request function. More...

void	DoPathSwitchRequestAcknowledge (uint64_t enbUeS1Id, uint64_t mmeUeS1Id, uint16_t cgi, std::list< EpcS1apSapEnb::ErabSwitchedInUplinkItem > erabToBeSwitchedInUplinkList)
	Path Switch Request Acknowledge. More...

void	DoReleaseIndication (uint64_t imsi, uint16_t rnti, uint8_t bearerId)
	This function accepts bearer id corresponding to a particular UE and schedules indication of bearer release towards MME. More...

void	DoUeContextRelease (uint16_t rnti)
	UE Context Release function. More...

void	SendToLteSocket (Ptr< Packet > packet, uint16_t rnti, uint8_t bid)
	Send a packet to the UE via the LTE radio interface of the eNB. More...

void	SendToS1uSocket (Ptr< Packet > packet, uint32_t teid)
	Send a packet to the SGW via the S1-U interface. More...

void	SetupS1Bearer (uint32_t teid, uint16_t rnti, uint8_t bid)
	internal method used for the actual setup of the S1 Bearer More...

Private Attributes
uint16_t	m_cellId
	cell ID More...

Ipv4Address	m_enbS1uAddress
	address of the eNB for S1-U communications More...

uint16_t	m_gtpuUdpPort
	UDP port to be used for GTP. More...

std::map< uint64_t, uint16_t >	m_imsiRntiMap
	UE context info. More...

Ptr< Socket >	m_lteSocket
	raw packet socket to send and receive the packets to and from the LTE radio interface More...

Ptr< Socket >	m_lteSocket6
	raw packet socket to send and receive the packets to and from the LTE radio interface More...

std::map< uint16_t, std::map< uint8_t, uint32_t > >	m_rbidTeidMap
	map of maps telling for each RNTI and BID the corresponding S1-U TEID More...

TracedCallback< Ptr< Packet > >	m_rxLteSocketPktTrace
	Callback to trace RX (reception) data packets from LTE Socket. More...

TracedCallback< Ptr< Packet > >	m_rxS1uSocketPktTrace
	Callback to trace RX (reception) data packets from S1-U Socket. More...

EpcS1apSapEnb *	m_s1apSapEnb
	ENB side of the S1-AP SAP. More...

EpcS1apSapMme *	m_s1apSapMme
	MME side of the S1-AP SAP. More...

EpcEnbS1SapProvider *	m_s1SapProvider
	Provider for the S1 SAP. More...

EpcEnbS1SapUser *	m_s1SapUser
	User for the S1 SAP. More...

Ptr< Socket >	m_s1uSocket
	UDP socket to send and receive GTP-U the packets to and from the S1-U interface. More...

Ipv4Address	m_sgwS1uAddress
	address of the SGW which terminates all S1-U tunnels More...

std::map< uint32_t, EpsFlowId_t >	m_teidRbidMap
	map telling for each S1-U TEID the corresponding RNTI,BID More...

Friends
class	MemberEpcEnbS1SapProvider< EpcEnbApplication >
	allow MemberEpcEnbS1SapProvider<EpcEnbApplication> class friend access More...

class	MemberEpcS1apSapEnb< EpcEnbApplication >
	allow MemberEpcS1apSapEnb<EpcEnbApplication> class friend access More...

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This application is installed inside eNBs and provides the bridge functionality for user data plane packets between the radio interface and the S1-U interface.

Definition at line 49 of file epc-enb-application.h.

Member Typedef Documentation

◆ RxTracedCallback

typedef void(* ns3::EpcEnbApplication::RxTracedCallback) (Ptr< Packet > packet)

TracedCallback signature for data Packet reception event.

Parameters

[in] packet The data packet sent from the internet.

Definition at line 143 of file epc-enb-application.h.

Constructor & Destructor Documentation

◆ EpcEnbApplication()

ns3::EpcEnbApplication::EpcEnbApplication	(	Ptr< Socket >	lteSocket,
		Ptr< Socket >	lteSocket6,
		uint16_t	cellId
	)

Constructor.

Parameters

lteSocket	the socket to be used to send/receive IPv4 packets to/from the LTE radio interface
lteSocket6	the socket to be used to send/receive IPv6 packets to/from the LTE radio interface
cellId	the identifier of the eNB

Definition at line 90 of file epc-enb-application.cc.

References m_lteSocket, m_lteSocket6, m_s1apSapEnb, m_s1SapProvider, ns3::MakeCallback(), MemberEpcEnbS1SapProvider< EpcEnbApplication >, MemberEpcS1apSapEnb< EpcEnbApplication >, NS_LOG_FUNCTION, RecvFromLteSocket(), and ns3::Socket::SetRecvCallback().

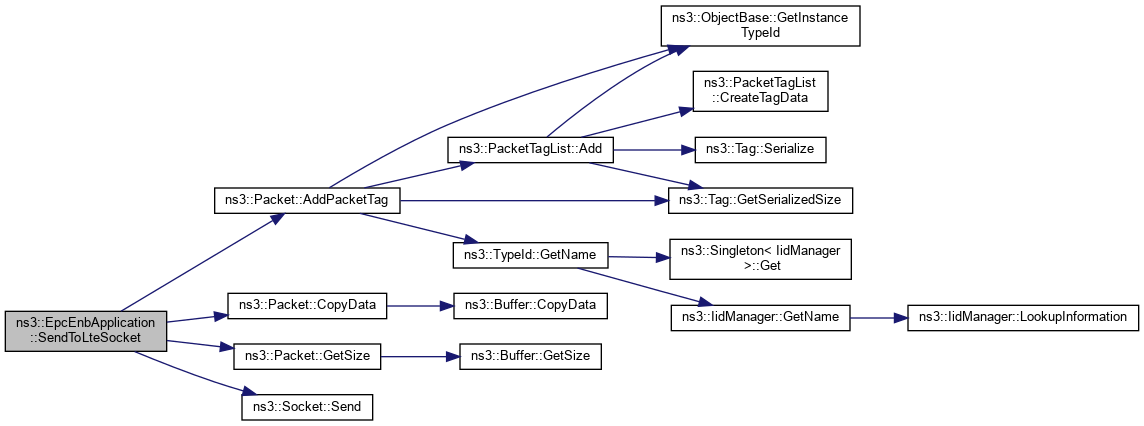

Here is the call graph for this function:

◆ ~EpcEnbApplication()

ns3::EpcEnbApplication::~EpcEnbApplication ( void )

virtual

Destructor.

Definition at line 119 of file epc-enb-application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddS1Interface()

void ns3::EpcEnbApplication::AddS1Interface	(	Ptr< Socket >	s1uSocket,
		Ipv4Address	enbS1uAddress,
		Ipv4Address	sgwS1uAddress
	)

Add a S1-U interface to the eNB.

Parameters

s1uSocket	the socket to be used to send/receive packets to/from the S1-U interface connected with the SGW
enbS1uAddress	the IPv4 address of the S1-U interface of this eNB
sgwS1uAddress	the IPv4 address at which this eNB will be able to reach its SGW for S1-U communications

Definition at line 108 of file epc-enb-application.cc.

References m_enbS1uAddress, m_s1uSocket, m_sgwS1uAddress, ns3::MakeCallback(), NS_LOG_FUNCTION, RecvFromS1uSocket(), and ns3::Socket::SetRecvCallback().

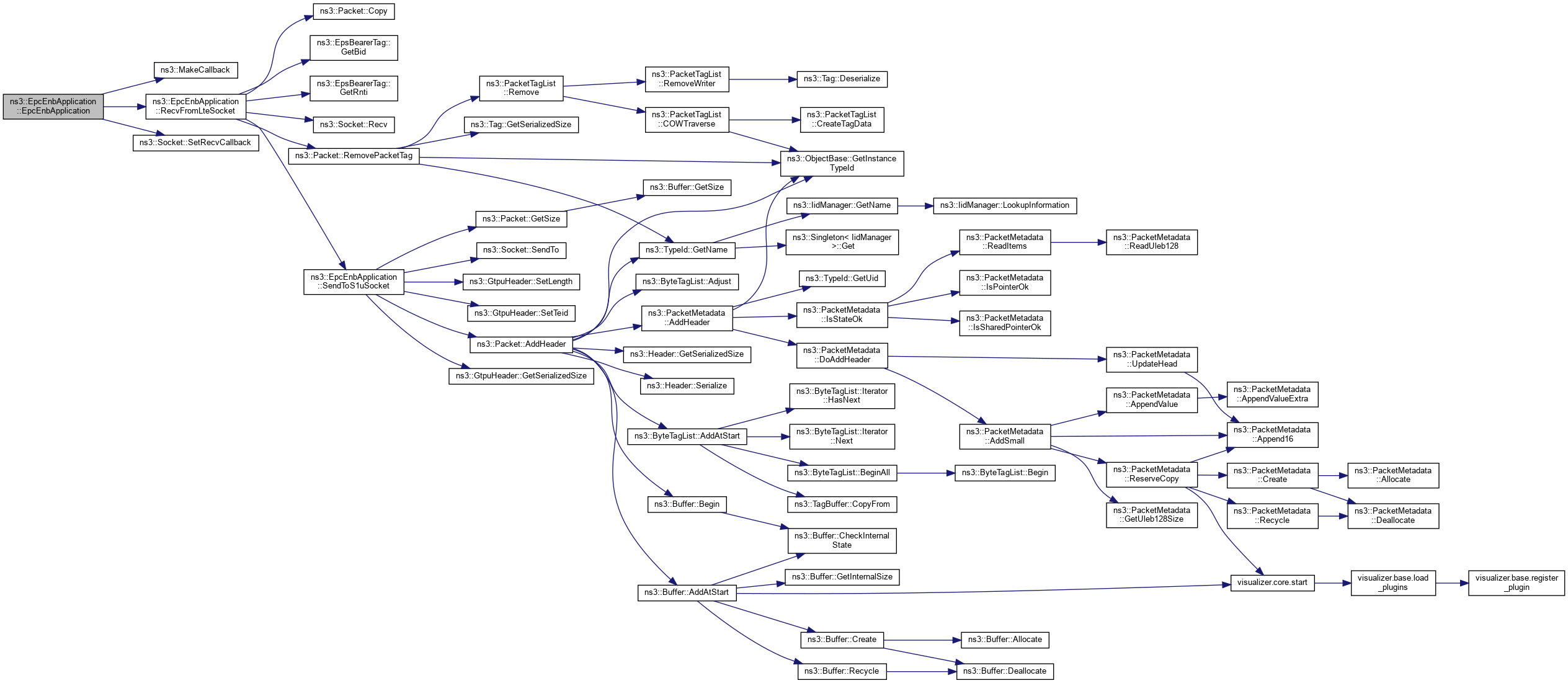

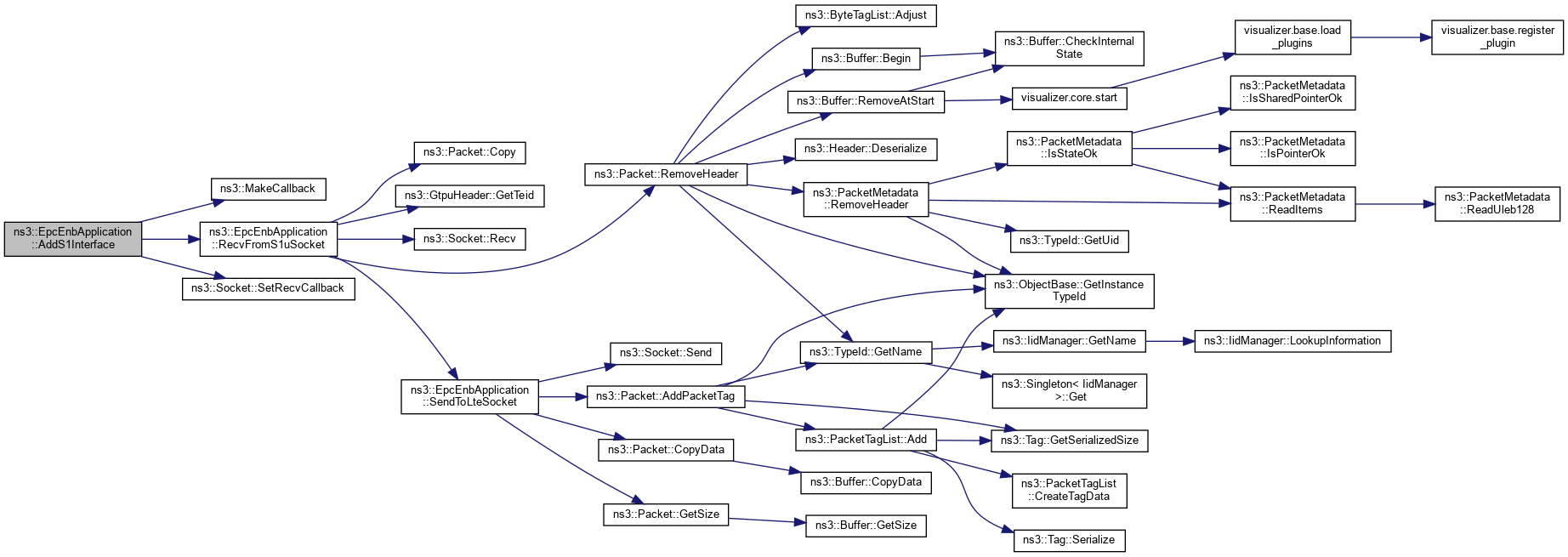

Here is the call graph for this function:

◆ DoDispose()

void ns3::EpcEnbApplication::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Application.

Definition at line 80 of file epc-enb-application.cc.

References m_lteSocket, m_lteSocket6, m_s1apSapEnb, m_s1SapProvider, m_s1uSocket, and NS_LOG_FUNCTION.

◆ DoInitialContextSetupRequest()

void ns3::EpcEnbApplication::DoInitialContextSetupRequest	(	uint64_t	mmeUeS1Id,
		uint16_t	enbUeS1Id,
		std::list< EpcS1apSapEnb::ErabToBeSetupItem >	erabToBeSetupList
	)

private

Initial Context Setup Request.

Parameters

mmeUeS1Id	the MME UE S1 ID
enbUeS1Id	the ENB UE S1 ID
erabToBeSetupList	the ERAB setup list

Definition at line 217 of file epc-enb-application.cc.

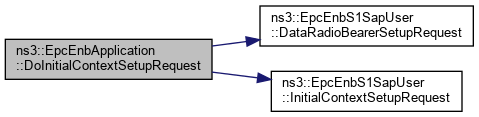

References ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearer, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearerId, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequest(), ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::gtpTeid, ns3::EpcEnbS1SapUser::InitialContextSetupRequest(), m_imsiRntiMap, m_rbidTeidMap, m_s1SapUser, m_teidRbidMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::EpcEnbS1SapUser::InitialContextSetupRequestParameters::rnti, and ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::rnti.

Here is the call graph for this function:

◆ DoInitialUeMessage()

void ns3::EpcEnbApplication::DoInitialUeMessage	(	uint64_t	imsi,
		uint16_t	rnti
	)

private

Initial UE message function.

Parameters

imsi	the IMSI
rnti	the RNTI

Definition at line 152 of file epc-enb-application.cc.

References ns3::EpcS1apSapMme::InitialUeMessage(), m_cellId, m_imsiRntiMap, m_s1apSapMme, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoPathSwitchRequest()

void ns3::EpcEnbApplication::DoPathSwitchRequest ( EpcEnbS1SapProvider::PathSwitchRequestParameters params )

private

Path switch request function.

Parameters

params PathSwitchRequestParameters

Definition at line 161 of file epc-enb-application.cc.

References ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::bearersToBeSwitched, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::cellId, ns3::EpcS1apSapMme::ErabSwitchedInDownlinkItem::enbTeid, ns3::EpcS1apSapMme::ErabSwitchedInDownlinkItem::enbTransportLayerAddress, ns3::EpcS1apSapMme::ErabSwitchedInDownlinkItem::erabId, ns3::EpcEnbApplication::EpsFlowId_t::m_bid, m_enbS1uAddress, m_imsiRntiMap, m_rbidTeidMap, ns3::EpcEnbApplication::EpsFlowId_t::m_rnti, m_s1apSapMme, m_teidRbidMap, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::mmeUeS1Id, NS_LOG_FUNCTION, ns3::EpcS1apSapMme::PathSwitchRequest(), and ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::rnti.

Here is the call graph for this function:

◆ DoPathSwitchRequestAcknowledge()

void ns3::EpcEnbApplication::DoPathSwitchRequestAcknowledge	(	uint64_t	enbUeS1Id,
		uint64_t	mmeUeS1Id,
		uint16_t	cgi,
		std::list< EpcS1apSapEnb::ErabSwitchedInUplinkItem >	erabToBeSwitchedInUplinkList
	)

private

Path Switch Request Acknowledge.

Parameters

mmeUeS1Id	the MME UE S1 ID
enbUeS1Id	the ENB UE S1 ID
cgi	the CGI
erabToBeSwitchedInUplinkList	the ERAB switched in uplink list

Definition at line 251 of file epc-enb-application.cc.

References m_imsiRntiMap, m_s1SapUser, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::EpcEnbS1SapUser::PathSwitchRequestAcknowledge(), and ns3::EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters::rnti.

Here is the call graph for this function:

◆ DoReleaseIndication()

void ns3::EpcEnbApplication::DoReleaseIndication	(	uint64_t	imsi,
		uint16_t	rnti,
		uint8_t	bearerId
	)

private

This function accepts bearer id corresponding to a particular UE and schedules indication of bearer release towards MME.

Parameters

imsi	maps to mmeUeS1Id
rnti	maps to enbUeS1Id
bearerId	Bearer Identity which is to be de-activated

Definition at line 364 of file epc-enb-application.cc.

References ns3::EpcS1apSapMme::ErabToBeReleasedIndication::erabId, ns3::EpcS1apSapMme::ErabReleaseIndication(), m_s1apSapMme, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoUeContextRelease()

void ns3::EpcEnbApplication::DoUeContextRelease ( uint16_t rnti )

private

UE Context Release function.

Parameters

rnti the RNTI

Definition at line 197 of file epc-enb-application.cc.

References m_rbidTeidMap, m_teidRbidMap, NS_LOG_FUNCTION, and NS_LOG_INFO.

◆ GetS1apSapEnb()

EpcS1apSapEnb * ns3::EpcEnbApplication::GetS1apSapEnb ( )

Returns: the ENB side of the S1-AP SAP

Definition at line 146 of file epc-enb-application.cc.

References m_s1apSapEnb.

◆ GetS1SapProvider()

EpcEnbS1SapProvider * ns3::EpcEnbApplication::GetS1SapProvider ( )

Returns: the S1 SAP Provider

Definition at line 133 of file epc-enb-application.cc.

References m_s1SapProvider.

◆ GetTypeId()

TypeId ns3::EpcEnbApplication::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 62 of file epc-enb-application.cc.

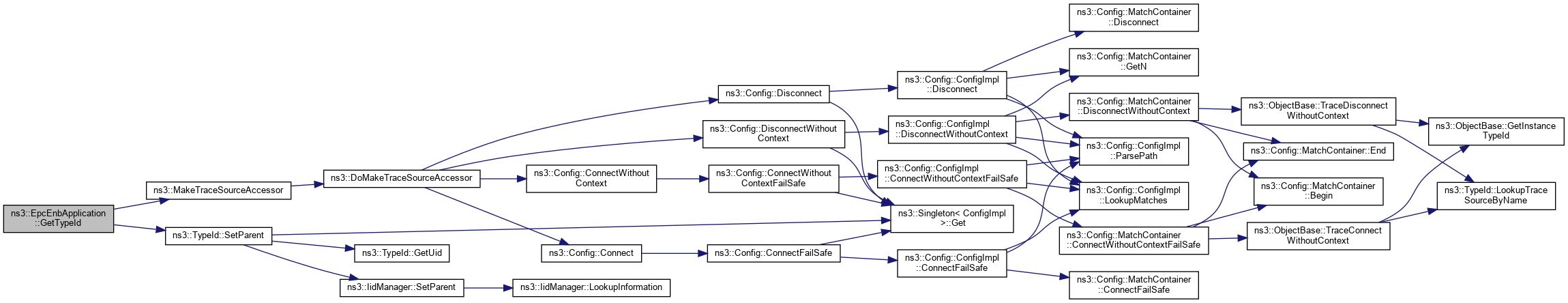

References m_rxLteSocketPktTrace, m_rxS1uSocketPktTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ RecvFromLteSocket()

void ns3::EpcEnbApplication::RecvFromLteSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the LTE socket.

It is called when the eNB receives a data packet from the radio interface that is to be forwarded to the SGW.

Parameters

socket pointer to the LTE socket

Definition at line 265 of file epc-enb-application.cc.

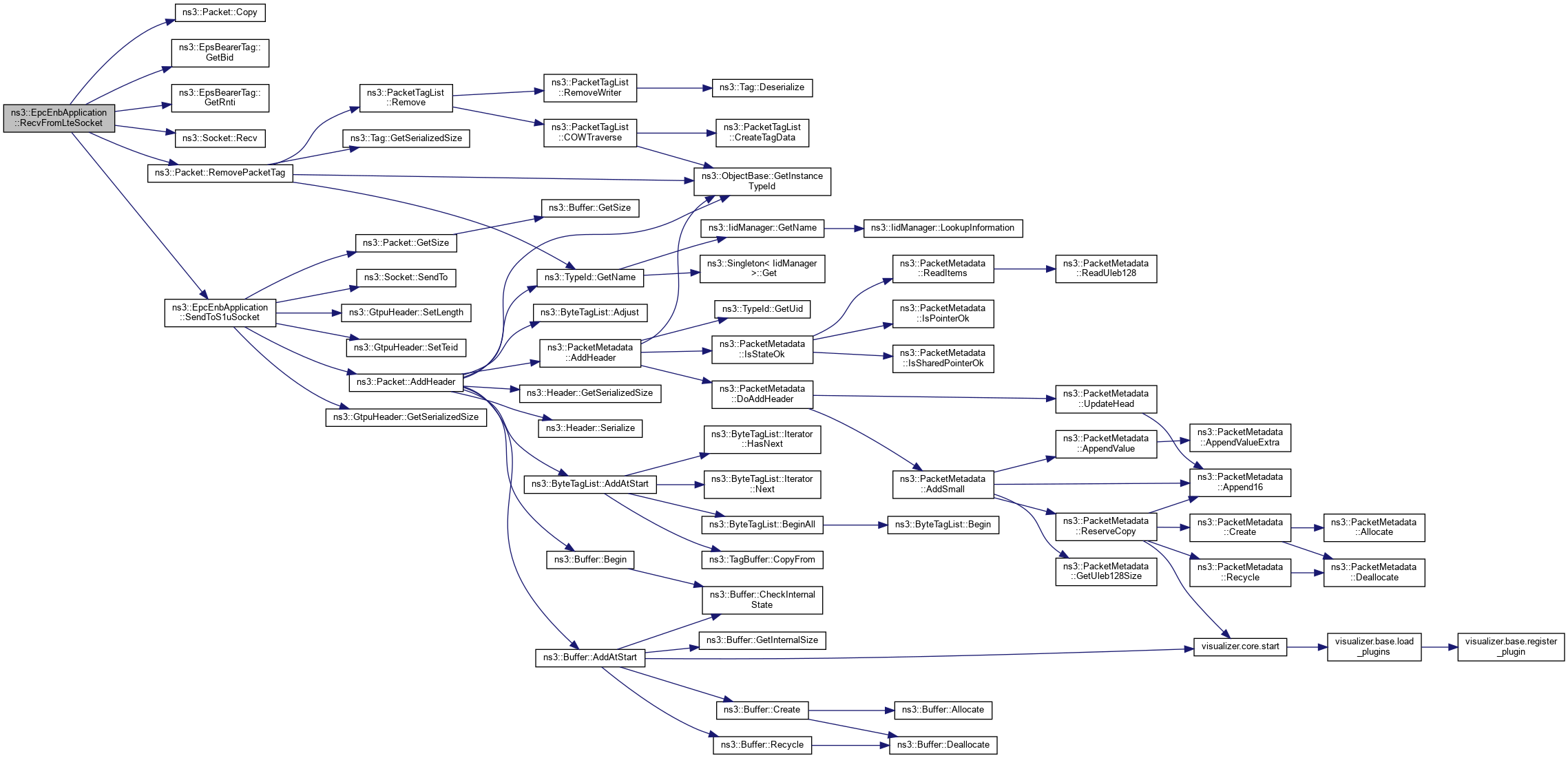

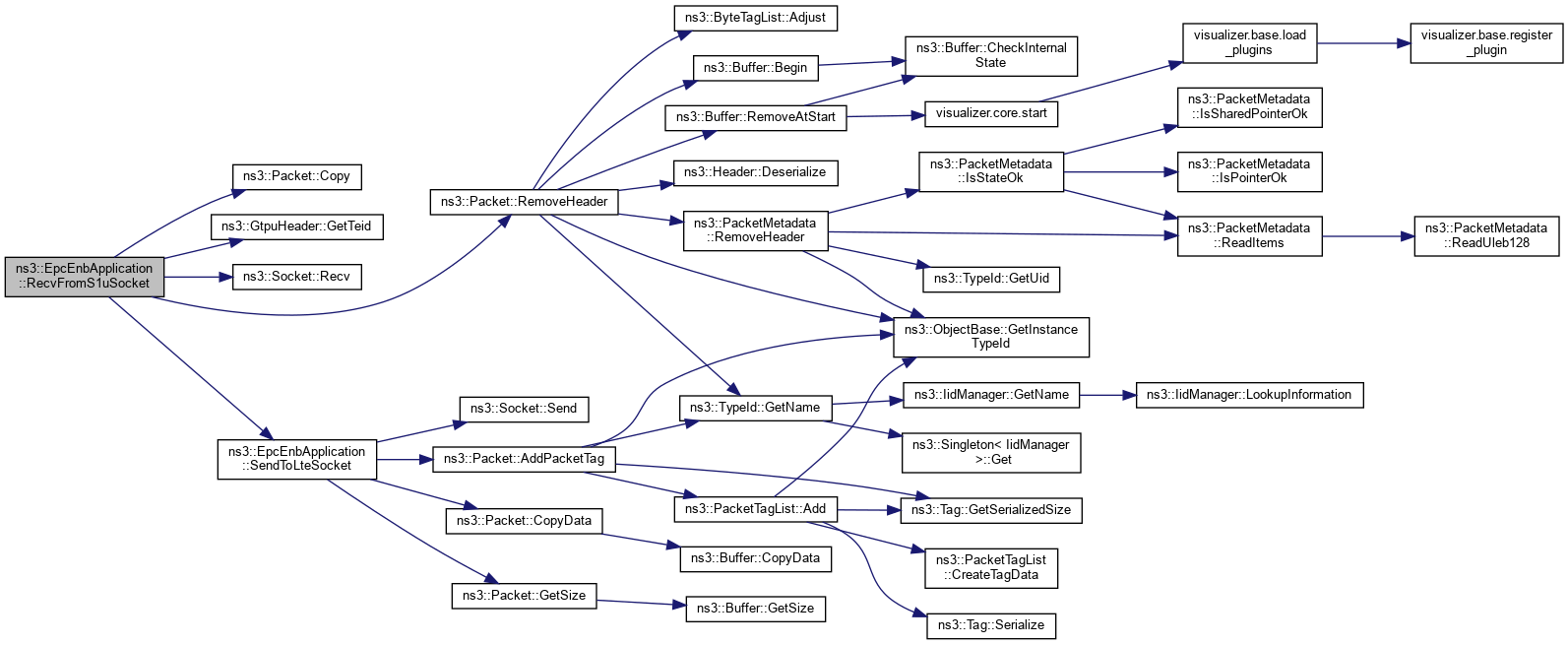

References ns3::Packet::Copy(), ns3::EpsBearerTag::GetBid(), ns3::EpsBearerTag::GetRnti(), m_lteSocket, m_lteSocket6, m_rbidTeidMap, m_rxLteSocketPktTrace, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Socket::Recv(), ns3::Packet::RemovePacketTag(), and SendToS1uSocket().

Referenced by EpcEnbApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecvFromS1uSocket()

void ns3::EpcEnbApplication::RecvFromS1uSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the S1-U socket.

It is called when the eNB receives a data packet from the SGW that is to be forwarded to the UE.

Parameters

socket pointer to the S1-U socket

Definition at line 300 of file epc-enb-application.cc.

References ns3::Packet::Copy(), ns3::GtpuHeader::GetTeid(), m_cellId, m_rxS1uSocketPktTrace, m_s1uSocket, m_teidRbidMap, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::Socket::Recv(), ns3::Packet::RemoveHeader(), and SendToLteSocket().

Referenced by AddS1Interface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendToLteSocket()

void ns3::EpcEnbApplication::SendToLteSocket	(	Ptr< Packet >	packet,
		uint16_t	rnti,
		uint8_t	bid
	)

private

Send a packet to the UE via the LTE radio interface of the eNB.

Parameters

packet	t
rnti	maps to enbUeS1Id
bid	the EPS Bearer IDentifier

Definition at line 321 of file epc-enb-application.cc.

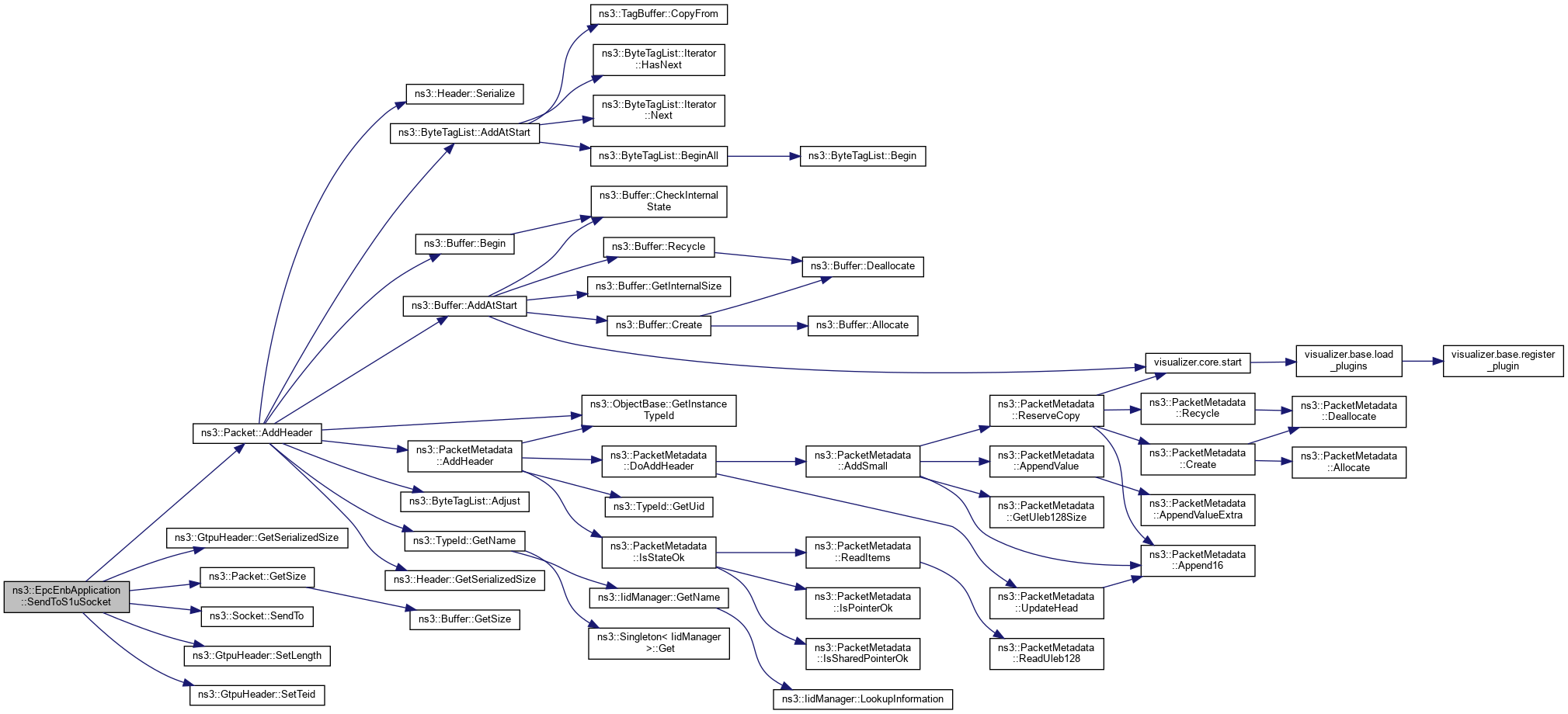

References ns3::Packet::AddPacketTag(), ns3::Packet::CopyData(), ns3::Packet::GetSize(), m_lteSocket, m_lteSocket6, NS_ABORT_MSG, NS_ASSERT, NS_LOG_FUNCTION, and ns3::Socket::Send().

Referenced by RecvFromS1uSocket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendToS1uSocket()

void ns3::EpcEnbApplication::SendToS1uSocket	(	Ptr< Packet >	packet,
		uint32_t	teid
	)

private

Send a packet to the SGW via the S1-U interface.

Parameters

packet	packet to be sent
teid	the Tunnel Enpoint IDentifier

Definition at line 350 of file epc-enb-application.cc.

References ns3::Packet::AddHeader(), ns3::GtpuHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_gtpuUdpPort, m_s1uSocket, m_sgwS1uAddress, NS_LOG_FUNCTION, ns3::Socket::SendTo(), ns3::GtpuHeader::SetLength(), and ns3::GtpuHeader::SetTeid().

Referenced by RecvFromLteSocket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetS1apSapMme()

void ns3::EpcEnbApplication::SetS1apSapMme ( EpcS1apSapMme * s )

Set the MME side of the S1-AP SAP.

Parameters

s	the MME side of the S1-AP SAP

Definition at line 139 of file epc-enb-application.cc.

References m_s1apSapMme.

◆ SetS1SapUser()

void ns3::EpcEnbApplication::SetS1SapUser ( EpcEnbS1SapUser * s )

Set the S1 SAP User.

Parameters

s	the S1 SAP User

Definition at line 126 of file epc-enb-application.cc.

References m_s1SapUser.

◆ SetupS1Bearer()

void ns3::EpcEnbApplication::SetupS1Bearer	(	uint32_t	teid,
		uint16_t	rnti,
		uint8_t	bid
	)

private

internal method used for the actual setup of the S1 Bearer

Parameters

teid	the Tunnel Endpoint IDentifier
rnti	maps to enbUeS1Id
bid	the S1-U Bearer IDentifier

Friends And Related Function Documentation

◆ MemberEpcEnbS1SapProvider< EpcEnbApplication >

friend class MemberEpcEnbS1SapProvider< EpcEnbApplication >

friend

allow MemberEpcEnbS1SapProvider<EpcEnbApplication> class friend access

Definition at line 1 of file epc-enb-application.h.

Referenced by EpcEnbApplication().

◆ MemberEpcS1apSapEnb< EpcEnbApplication >

friend class MemberEpcS1apSapEnb< EpcEnbApplication >

friend

allow MemberEpcS1apSapEnb<EpcEnbApplication> class friend access

Definition at line 1 of file epc-enb-application.h.

Referenced by EpcEnbApplication().

Member Data Documentation

◆ m_cellId

uint16_t ns3::EpcEnbApplication::m_cellId

private

cell ID

Definition at line 328 of file epc-enb-application.h.

Referenced by DoInitialUeMessage(), and RecvFromS1uSocket().

◆ m_enbS1uAddress

Ipv4Address ns3::EpcEnbApplication::m_enbS1uAddress

private

address of the eNB for S1-U communications

Definition at line 276 of file epc-enb-application.h.

Referenced by AddS1Interface(), and DoPathSwitchRequest().

◆ m_gtpuUdpPort

uint16_t ns3::EpcEnbApplication::m_gtpuUdpPort

private

UDP port to be used for GTP.

Definition at line 298 of file epc-enb-application.h.

Referenced by SendToS1uSocket().

◆ m_imsiRntiMap

std::map<uint64_t, uint16_t> ns3::EpcEnbApplication::m_imsiRntiMap

private

UE context info.

Definition at line 326 of file epc-enb-application.h.

Referenced by DoInitialContextSetupRequest(), DoInitialUeMessage(), DoPathSwitchRequest(), and DoPathSwitchRequestAcknowledge().

◆ m_lteSocket

Ptr<Socket> ns3::EpcEnbApplication::m_lteSocket

private

raw packet socket to send and receive the packets to and from the LTE radio interface

Definition at line 261 of file epc-enb-application.h.

Referenced by EpcEnbApplication(), DoDispose(), RecvFromLteSocket(), and SendToLteSocket().

◆ m_lteSocket6

Ptr<Socket> ns3::EpcEnbApplication::m_lteSocket6

private

raw packet socket to send and receive the packets to and from the LTE radio interface

Definition at line 266 of file epc-enb-application.h.

Referenced by EpcEnbApplication(), DoDispose(), RecvFromLteSocket(), and SendToLteSocket().

◆ m_rbidTeidMap

std::map<uint16_t, std::map<uint8_t, uint32_t> > ns3::EpcEnbApplication::m_rbidTeidMap

private

map of maps telling for each RNTI and BID the corresponding S1-U TEID

Definition at line 287 of file epc-enb-application.h.

Referenced by DoInitialContextSetupRequest(), DoPathSwitchRequest(), DoUeContextRelease(), and RecvFromLteSocket().

◆ m_rxLteSocketPktTrace

TracedCallback<Ptr<Packet> > ns3::EpcEnbApplication::m_rxLteSocketPktTrace

private

Callback to trace RX (reception) data packets from LTE Socket.

Definition at line 333 of file epc-enb-application.h.

Referenced by GetTypeId(), and RecvFromLteSocket().

◆ m_rxS1uSocketPktTrace

TracedCallback<Ptr<Packet> > ns3::EpcEnbApplication::m_rxS1uSocketPktTrace

private

Callback to trace RX (reception) data packets from S1-U Socket.

Definition at line 338 of file epc-enb-application.h.

Referenced by GetTypeId(), and RecvFromS1uSocket().

◆ m_s1apSapEnb

EpcS1apSapEnb* ns3::EpcEnbApplication::m_s1apSapEnb

private

ENB side of the S1-AP SAP.

Definition at line 320 of file epc-enb-application.h.

Referenced by EpcEnbApplication(), DoDispose(), and GetS1apSapEnb().

◆ m_s1apSapMme

EpcS1apSapMme* ns3::EpcEnbApplication::m_s1apSapMme

private

MME side of the S1-AP SAP.

Definition at line 314 of file epc-enb-application.h.

Referenced by DoInitialUeMessage(), DoPathSwitchRequest(), DoReleaseIndication(), and SetS1apSapMme().

◆ m_s1SapProvider

EpcEnbS1SapProvider* ns3::EpcEnbApplication::m_s1SapProvider

private

Provider for the S1 SAP.

Definition at line 303 of file epc-enb-application.h.

Referenced by EpcEnbApplication(), DoDispose(), and GetS1SapProvider().

◆ m_s1SapUser

EpcEnbS1SapUser* ns3::EpcEnbApplication::m_s1SapUser

private

User for the S1 SAP.

Definition at line 308 of file epc-enb-application.h.

Referenced by DoInitialContextSetupRequest(), DoPathSwitchRequestAcknowledge(), and SetS1SapUser().

◆ m_s1uSocket

Ptr<Socket> ns3::EpcEnbApplication::m_s1uSocket

private

UDP socket to send and receive GTP-U the packets to and from the S1-U interface.

Definition at line 271 of file epc-enb-application.h.

Referenced by AddS1Interface(), DoDispose(), RecvFromS1uSocket(), and SendToS1uSocket().

◆ m_sgwS1uAddress

Ipv4Address ns3::EpcEnbApplication::m_sgwS1uAddress

private

address of the SGW which terminates all S1-U tunnels

Definition at line 281 of file epc-enb-application.h.

Referenced by AddS1Interface(), and SendToS1uSocket().

◆ m_teidRbidMap

std::map<uint32_t, EpsFlowId_t> ns3::EpcEnbApplication::m_teidRbidMap

private

map telling for each S1-U TEID the corresponding RNTI,BID

Definition at line 293 of file epc-enb-application.h.

Referenced by DoInitialContextSetupRequest(), DoPathSwitchRequest(), DoUeContextRelease(), and RecvFromS1uSocket().

The documentation for this class was generated from the following files:

src/lte/model/epc-enb-application.h
src/lte/model/epc-enb-application.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ RxTracedCallback

Constructor & Destructor Documentation

◆ EpcEnbApplication()

◆ ~EpcEnbApplication()

Member Function Documentation

◆ AddS1Interface()

◆ DoDispose()

◆ DoInitialContextSetupRequest()

◆ DoInitialUeMessage()

◆ DoPathSwitchRequest()

◆ DoPathSwitchRequestAcknowledge()

◆ DoReleaseIndication()

◆ DoUeContextRelease()

◆ GetS1apSapEnb()

◆ GetS1SapProvider()

◆ GetTypeId()

◆ RecvFromLteSocket()

◆ RecvFromS1uSocket()

◆ SendToLteSocket()

◆ SendToS1uSocket()

◆ SetS1apSapMme()

◆ SetS1SapUser()

◆ SetupS1Bearer()

Friends And Related Function Documentation

◆ MemberEpcEnbS1SapProvider< EpcEnbApplication >

◆ MemberEpcS1apSapEnb< EpcEnbApplication >

Member Data Documentation

◆ m_cellId

◆ m_enbS1uAddress

◆ m_gtpuUdpPort

◆ m_imsiRntiMap

◆ m_lteSocket

◆ m_lteSocket6

◆ m_rbidTeidMap

◆ m_rxLteSocketPktTrace

◆ m_rxS1uSocketPktTrace

◆ m_s1apSapEnb

◆ m_s1apSapMme

◆ m_s1SapProvider

◆ m_s1SapUser

◆ m_s1uSocket

◆ m_sgwS1uAddress

◆ m_teidRbidMap
