Simple Frequency Reuse algorithm implementation which uses only 1 sub-band. More...

#include "lte-ffr-simple.h"

Inheritance diagram for ns3::LteFfrSimple:

Collaboration diagram for ns3::LteFfrSimple:

Public Types
typedef void(*	PdschTracedCallback) (uint16_t rnti, uint8_t pdschPa)
	TracedCallback signature for change of PdschConfigDedicated. More...

Public Member Functions
	LteFfrSimple ()
	Creates a trivial ffr algorithm instance. More...

virtual	~LteFfrSimple ()

void	ChangePdschConfigDedicated (bool change)
	Callback function that is used to be connected to trace ChangePdschConfigDedicated. More...

virtual LteFfrRrcSapProvider *	GetLteFfrRrcSapProvider ()
	Export the "provider" part of the LteFfrRrcSap interface. More...

virtual LteFfrSapProvider *	GetLteFfrSapProvider ()
	Export the "provider" part of the LteFfrSap interface. More...

virtual void	SetLteFfrRrcSapUser (LteFfrRrcSapUser *s)
	Set the "user" part of the LteFfrRrcSap interface that this frequency reuse algorithm instance will interact with. More...

virtual void	SetLteFfrSapUser (LteFfrSapUser *s)
	Set the "user" part of the LteFfrSap interface that this frequency reuse algorithm instance will interact with. More...

void	SetPdschConfigDedicated (LteRrcSap::PdschConfigDedicated pdschConfigDedicated)
	Set PDSCH config dedicated function. More...

void	SetTpc (uint32_t tpc, uint32_t num, bool acculumatedMode)
	Set transmission power control. More...

Public Member Functions inherited from ns3::LteFfrAlgorithm
	LteFfrAlgorithm ()

virtual	~LteFfrAlgorithm ()

uint16_t	GetDlBandwidth () const

uint8_t	GetFrCellTypeId () const

uint16_t	GetUlBandwidth () const

void	SetDlBandwidth (uint16_t bw)

void	SetFrCellTypeId (uint8_t cellTypeId)

void	SetUlBandwidth (uint16_t bw)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::LteFfrAlgorithm
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Destructor implementation. More...

virtual std::vector< bool >	DoGetAvailableDlRbg ()
	Implementation of LteFfrSapProvider::GetAvailableDlRbg. More...

virtual std::vector< bool >	DoGetAvailableUlRbg ()
	Implementation of LteFfrSapProvider::GetAvailableUlRbg. More...

virtual uint16_t	DoGetMinContinuousUlBandwidth ()
	DoGetMinContinuousUlBandwidth in number of RB. More...

virtual uint8_t	DoGetTpc (uint16_t rnti)
	DoGetTpc for UE. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual bool	DoIsDlRbgAvailableForUe (int i, uint16_t rnti)
	Implementation of LteFfrSapProvider::IsDlRbgAvailableForUe. More...

virtual bool	DoIsUlRbgAvailableForUe (int i, uint16_t rnti)
	Implementation of LteFfrSapProvider::IsUlRbgAvailableForUe. More...

virtual void	DoRecvLoadInformation (EpcX2Sap::LoadInformationParams params)
	DoRecvLoadInformation. More...

virtual void	DoReportDlCqiInfo (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)
	DoReportDlCqiInfo. More...

virtual void	DoReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults)
	Implementation of LteFfrRrcSapProvider::ReportUeMeas. More...

virtual void	DoReportUlCqiInfo (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)
	DoReportUlCqiInfo. More...

virtual void	DoReportUlCqiInfo (std::map< uint16_t, std::vector< double > > ulCqiMap)
	DoReportUlCqiInfo. More...

virtual void	Reconfigure ()
	Automatic FR reconfiguration. More...

Protected Member Functions inherited from ns3::LteFfrAlgorithm
virtual void	DoSetBandwidth (uint16_t ulBandwidth, uint16_t dlBandwidth)
	Implementation of LteFfrRrcSapProvider::SetBandwidth. More...

virtual void	DoSetCellId (uint16_t cellId)
	SetCellId. More...

int	GetRbgSize (int dlbandwidth)
	Get RBG size for DL Bandwidth according to table 7.1.6.1-1 of 36.213. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	UpdatePdschConfigDedicated ()
	Update PDSCH config dedicated function. More...

Private Attributes
bool	m_accumulatedMode
	whether to use the TPC accumulated mode More...

bool	m_changePdschConfigDedicated
	PDSCH config dedicate changed? More...

TracedCallback< uint16_t, uint8_t >	m_changePdschConfigDedicatedTrace
	PDSCH config dedicated change trace callback. More...

uint8_t	m_dlOffset
	DL offset. More...

std::vector< bool >	m_dlRbgMap
	DL RBG map. More...

uint8_t	m_dlSubBand
	DL subband. More...

LteFfrRrcSapProvider *	m_ffrRrcSapProvider
	FFR RRC SAP provider. More...

LteFfrRrcSapUser *	m_ffrRrcSapUser
	FFR RRC SAP user. More...

LteFfrSapProvider *	m_ffrSapProvider
	FFR SAP provider. More...

LteFfrSapUser *	m_ffrSapUser
	FFR SAP user. More...

uint8_t	m_measId
	measure ID More...

LteRrcSap::PdschConfigDedicated	m_pdschConfigDedicated
	PDSCH config dedicated. More...

uint32_t	m_tpc
	transmission power control to be used More...

uint32_t	m_tpcNum
	number of TPC configurations More...

std::map< uint16_t, LteRrcSap::PdschConfigDedicated >	m_ues
	UEs. More...

uint8_t	m_ulOffset
	UL offset. More...

std::vector< bool >	m_ulRbgMap
	UL RBG map. More...

uint8_t	m_ulSubBand
	UL subband. More...

Friends
class	MemberLteFfrRrcSapProvider< LteFfrSimple >
	let the forwarder class access the protected and private members More...

class	MemberLteFfrSapProvider< LteFfrSimple >
	let the forwarder class access the protected and private members More...

Additional Inherited Members
Protected Attributes inherited from ns3::LteFfrAlgorithm
uint16_t	m_cellId
	cell ID More...

uint8_t	m_dlBandwidth
	downlink bandwidth in RBs More...

bool	m_enabledInUplink
	If true FR algorithm will also work in Uplink. More...

uint8_t	m_frCellTypeId
	FFR cell type ID for automatic configuration. More...

bool	m_needReconfiguration
	If true FR algorithm will be reconfigured. More...

uint8_t	m_ulBandwidth
	uplink bandwidth in RBs More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Simple Frequency Reuse algorithm implementation which uses only 1 sub-band.

Used to test Downlink Power Allocation. When Simple FR receives UE measurements it immediately call functions to change PdschConfigDedicated (i.e. P_A) value for this UE.

Definition at line 45 of file lte-ffr-simple.h.

Member Typedef Documentation

◆ PdschTracedCallback

typedef void(* ns3::LteFfrSimple::PdschTracedCallback) (uint16_t rnti, uint8_t pdschPa)

TracedCallback signature for change of PdschConfigDedicated.

Parameters

[in]	rnti
[in]	pdschPa	PdschConfiDedicated.pa

Definition at line 98 of file lte-ffr-simple.h.

Constructor & Destructor Documentation

◆ LteFfrSimple()

ns3::LteFfrSimple::LteFfrSimple ( )

Creates a trivial ffr algorithm instance.

Definition at line 33 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, m_ffrSapProvider, MemberLteFfrRrcSapProvider< LteFfrSimple >, MemberLteFfrSapProvider< LteFfrSimple >, and NS_LOG_FUNCTION.

◆ ~LteFfrSimple()

ns3::LteFfrSimple::~LteFfrSimple ( )

virtual

Definition at line 52 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ChangePdschConfigDedicated()

void ns3::LteFfrSimple::ChangePdschConfigDedicated ( bool change )

Callback function that is used to be connected to trace ChangePdschConfigDedicated.

Parameters

change trace fired upon change of PdschConfigDedicated if true

Definition at line 159 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicated.

Referenced by LteCqiGenerationDlPowerControlTestCase::DoRun(), LteDownlinkPowerControlTestCase::DoRun(), and LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun().

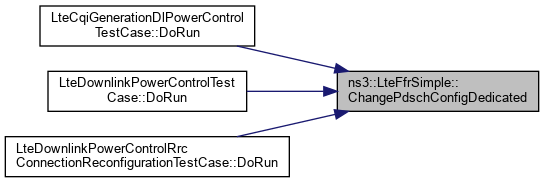

Here is the caller graph for this function:

◆ DoDispose()

void ns3::LteFfrSimple::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteFfrAlgorithm.

Definition at line 59 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, m_ffrSapProvider, and NS_LOG_FUNCTION.

◆ DoGetAvailableDlRbg()

std::vector< bool > ns3::LteFfrSimple::DoGetAvailableDlRbg ( )

protectedvirtual

Implementation of LteFfrSapProvider::GetAvailableDlRbg.

Returns: vector of size (m_dlBandwidth/RbgSize); false indicates that RBG is free to use, true otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 179 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::GetRbgSize(), ns3::LteFfrAlgorithm::m_dlBandwidth, m_dlOffset, m_dlRbgMap, m_dlSubBand, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoGetAvailableUlRbg()

std::vector< bool > ns3::LteFfrSimple::DoGetAvailableUlRbg ( )

protectedvirtual

Implementation of LteFfrSapProvider::GetAvailableUlRbg.

Returns: vector of size m_ulBandwidth; false indicates that RB is free to use, true otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 206 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::m_ulBandwidth, m_ulOffset, m_ulRbgMap, m_ulSubBand, and NS_LOG_FUNCTION.

◆ DoGetMinContinuousUlBandwidth()

uint16_t ns3::LteFfrSimple::DoGetMinContinuousUlBandwidth ( )

protectedvirtual

DoGetMinContinuousUlBandwidth in number of RB.

Returns: number of RB in min continuous UL Bandwidth

Implements ns3::LteFfrAlgorithm.

Definition at line 274 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::m_ulBandwidth, and NS_LOG_FUNCTION.

◆ DoGetTpc()

uint8_t ns3::LteFfrSimple::DoGetTpc ( uint16_t rnti )

protectedvirtual

DoGetTpc for UE.

Parameters

rnti

Returns: TPC value

Implements ns3::LteFfrAlgorithm.

Definition at line 249 of file lte-ffr-simple.cc.

References m_accumulatedMode, m_tpc, m_tpcNum, and NS_LOG_FUNCTION.

◆ DoInitialize()

void ns3::LteFfrSimple::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 134 of file lte-ffr-simple.cc.

References ns3::LteFfrRrcSapUser::AddUeMeasReportConfigForFfr(), ns3::LteRrcSap::ThresholdEutra::choice, ns3::LteRrcSap::PdschConfigDedicated::dB0, ns3::Object::DoInitialize(), ns3::LteRrcSap::ReportConfigEutra::EVENT_A1, ns3::LteRrcSap::ReportConfigEutra::eventId, m_ffrRrcSapUser, m_measId, m_pdschConfigDedicated, ns3::LteRrcSap::ReportConfigEutra::MS120, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteRrcSap::PdschConfigDedicated::pa, ns3::LteRrcSap::ThresholdEutra::range, ns3::LteRrcSap::ReportConfigEutra::reportInterval, ns3::LteRrcSap::ReportConfigEutra::RSRQ, ns3::LteRrcSap::ReportConfigEutra::threshold1, ns3::LteRrcSap::ThresholdEutra::THRESHOLD_RSRQ, and ns3::LteRrcSap::ReportConfigEutra::triggerQuantity.

Here is the call graph for this function:

◆ DoIsDlRbgAvailableForUe()

bool ns3::LteFfrSimple::DoIsDlRbgAvailableForUe	(	int	rbId,
		uint16_t	rnti
	)

protectedvirtual

Implementation of LteFfrSapProvider::IsDlRbgAvailableForUe.

Parameters

rbId
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Returns: true if UE can be served on i-th RB, false otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 199 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

◆ DoIsUlRbgAvailableForUe()

bool ns3::LteFfrSimple::DoIsUlRbgAvailableForUe	(	int	rbId,
		uint16_t	rnti
	)

protectedvirtual

Implementation of LteFfrSapProvider::IsUlRbgAvailableForUe.

Parameters

rbId
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Returns: true if UE can be served on i-th RB, false otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 224 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

◆ DoRecvLoadInformation()

void ns3::LteFfrSimple::DoRecvLoadInformation ( EpcX2Sap::LoadInformationParams params )

protectedvirtual

DoRecvLoadInformation.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 322 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

◆ DoReportDlCqiInfo()

void ns3::LteFfrSimple::DoReportDlCqiInfo ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters & params )

protectedvirtual

DoReportDlCqiInfo.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 231 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

◆ DoReportUeMeas()

void ns3::LteFfrSimple::DoReportUeMeas	(	uint16_t	rnti,
		LteRrcSap::MeasResults	measResults
	)

protectedvirtual

Implementation of LteFfrRrcSapProvider::ReportUeMeas.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from
measResults	a single report of one measurement identity

Implements ns3::LteFfrAlgorithm.

Definition at line 281 of file lte-ffr-simple.cc.

References ns3::LteRrcSap::PdschConfigDedicated::dB0, m_changePdschConfigDedicated, m_ues, ns3::LteRrcSap::MeasResults::measId, NS_LOG_FUNCTION, ns3::LteRrcSap::PdschConfigDedicated::pa, and UpdatePdschConfigDedicated().

Here is the call graph for this function:

◆ DoReportUlCqiInfo() [1/2]

void ns3::LteFfrSimple::DoReportUlCqiInfo ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters & params )

protectedvirtual

DoReportUlCqiInfo.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 237 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

◆ DoReportUlCqiInfo() [2/2]

void ns3::LteFfrSimple::DoReportUlCqiInfo ( std::map< uint16_t, std::vector< double > > ulCqiMap )

protectedvirtual

DoReportUlCqiInfo.

Parameters

ulCqiMap

Implements ns3::LteFfrAlgorithm.

Definition at line 243 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

◆ GetLteFfrRrcSapProvider()

LteFfrRrcSapProvider * ns3::LteFfrSimple::GetLteFfrRrcSapProvider ( )

virtual

Export the "provider" part of the LteFfrRrcSap interface.

Returns: the reference to the "provider" part of the interface, typically to be kept by an LteEnbRrc instance

Implements ns3::LteFfrAlgorithm.

Definition at line 126 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, and NS_LOG_FUNCTION.

◆ GetLteFfrSapProvider()

LteFfrSapProvider * ns3::LteFfrSimple::GetLteFfrSapProvider ( )

virtual

Export the "provider" part of the LteFfrSap interface.

Returns: the reference to the "provider" part of the interface, typically to be kept by an Scheduler instance

Implements ns3::LteFfrAlgorithm.

Definition at line 111 of file lte-ffr-simple.cc.

References m_ffrSapProvider, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::LteFfrSimple::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 68 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicatedTrace, m_dlOffset, m_dlSubBand, m_ulOffset, m_ulSubBand, ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ Reconfigure()

void ns3::LteFfrSimple::Reconfigure ( )

protectedvirtual

Automatic FR reconfiguration.

Implements ns3::LteFfrAlgorithm.

Definition at line 153 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

◆ SetLteFfrRrcSapUser()

void ns3::LteFfrSimple::SetLteFfrRrcSapUser ( LteFfrRrcSapUser * s )

virtual

Set the "user" part of the LteFfrRrcSap interface that this frequency reuse algorithm instance will interact with.

Parameters

s	a reference to the "user" part of the interface, typically a member of an LteEnbRrc instance

Implements ns3::LteFfrAlgorithm.

Definition at line 118 of file lte-ffr-simple.cc.

References m_ffrRrcSapUser, and NS_LOG_FUNCTION.

◆ SetLteFfrSapUser()

void ns3::LteFfrSimple::SetLteFfrSapUser ( LteFfrSapUser * s )

virtual

Set the "user" part of the LteFfrSap interface that this frequency reuse algorithm instance will interact with.

Parameters

s	a reference to the "user" part of the interface, typically a member of an Scheduler instance

Implements ns3::LteFfrAlgorithm.

Definition at line 103 of file lte-ffr-simple.cc.

References m_ffrSapUser, and NS_LOG_FUNCTION.

◆ SetPdschConfigDedicated()

void ns3::LteFfrSimple::SetPdschConfigDedicated ( LteRrcSap::PdschConfigDedicated pdschConfigDedicated )

Set PDSCH config dedicated function.

Parameters

pdschConfigDedicated LteRrcSap::PdschConfigDedicated object

Definition at line 165 of file lte-ffr-simple.cc.

References m_pdschConfigDedicated.

Referenced by LteCqiGenerationDlPowerControlTestCase::DoRun(), LteDownlinkPowerControlTestCase::DoRun(), and LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun().

Here is the caller graph for this function:

◆ SetTpc()

void ns3::LteFfrSimple::SetTpc	(	uint32_t	tpc,
		uint32_t	num,
		bool	acculumatedMode
	)

Set transmission power control.

Parameters

tpc	TPC
num	number of TPC configurations in the test case
acculumatedMode	whether TPC accumulated mode is used

Definition at line 171 of file lte-ffr-simple.cc.

References m_accumulatedMode, m_tpc, and m_tpcNum.

Referenced by LteUplinkPowerControlTestCase::SetTpcConfiguration().

Here is the caller graph for this function:

◆ UpdatePdschConfigDedicated()

void ns3::LteFfrSimple::UpdatePdschConfigDedicated ( )

private

Update PDSCH config dedicated function.

Definition at line 305 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicatedTrace, m_ffrRrcSapUser, m_pdschConfigDedicated, m_ues, NS_LOG_FUNCTION, ns3::LteRrcSap::PdschConfigDedicated::pa, and ns3::LteFfrRrcSapUser::SetPdschConfigDedicated().

Referenced by DoReportUeMeas().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ MemberLteFfrRrcSapProvider< LteFfrSimple >

friend class MemberLteFfrRrcSapProvider< LteFfrSimple >

friend

let the forwarder class access the protected and private members

Definition at line 85 of file lte-ffr-simple.h.

Referenced by LteFfrSimple().

◆ MemberLteFfrSapProvider< LteFfrSimple >

friend class MemberLteFfrSapProvider< LteFfrSimple >

friend

let the forwarder class access the protected and private members

Definition at line 85 of file lte-ffr-simple.h.

Referenced by LteFfrSimple().

Member Data Documentation

◆ m_accumulatedMode

bool ns3::LteFfrSimple::m_accumulatedMode

private

whether to use the TPC accumulated mode

Definition at line 159 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

◆ m_changePdschConfigDedicated

bool ns3::LteFfrSimple::m_changePdschConfigDedicated

private

PDSCH config dedicate changed?

Definition at line 149 of file lte-ffr-simple.h.

Referenced by ChangePdschConfigDedicated(), and DoReportUeMeas().

◆ m_changePdschConfigDedicatedTrace

TracedCallback<uint16_t, uint8_t> ns3::LteFfrSimple::m_changePdschConfigDedicatedTrace

private

PDSCH config dedicated change trace callback.

Definition at line 153 of file lte-ffr-simple.h.

Referenced by GetTypeId(), and UpdatePdschConfigDedicated().

◆ m_dlOffset

uint8_t ns3::LteFfrSimple::m_dlOffset

private

DL offset.

Definition at line 135 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg(), and GetTypeId().

◆ m_dlRbgMap

std::vector<bool> ns3::LteFfrSimple::m_dlRbgMap

private

DL RBG map.

Definition at line 141 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg().

◆ m_dlSubBand

uint8_t ns3::LteFfrSimple::m_dlSubBand

private

DL subband.

Definition at line 136 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg(), and GetTypeId().

◆ m_ffrRrcSapProvider

LteFfrRrcSapProvider* ns3::LteFfrSimple::m_ffrRrcSapProvider

private

FFR RRC SAP provider.

Definition at line 133 of file lte-ffr-simple.h.

Referenced by LteFfrSimple(), DoDispose(), and GetLteFfrRrcSapProvider().

◆ m_ffrRrcSapUser

LteFfrRrcSapUser* ns3::LteFfrSimple::m_ffrRrcSapUser

private

FFR RRC SAP user.

Definition at line 132 of file lte-ffr-simple.h.

Referenced by DoInitialize(), SetLteFfrRrcSapUser(), and UpdatePdschConfigDedicated().

◆ m_ffrSapProvider

LteFfrSapProvider* ns3::LteFfrSimple::m_ffrSapProvider

private

FFR SAP provider.

Definition at line 129 of file lte-ffr-simple.h.

Referenced by LteFfrSimple(), DoDispose(), and GetLteFfrSapProvider().

◆ m_ffrSapUser

LteFfrSapUser* ns3::LteFfrSimple::m_ffrSapUser

private

FFR SAP user.

Definition at line 128 of file lte-ffr-simple.h.

Referenced by SetLteFfrSapUser().

◆ m_measId

uint8_t ns3::LteFfrSimple::m_measId

private

measure ID

Definition at line 147 of file lte-ffr-simple.h.

Referenced by DoInitialize().

◆ m_pdschConfigDedicated

LteRrcSap::PdschConfigDedicated ns3::LteFfrSimple::m_pdschConfigDedicated

private

PDSCH config dedicated.

Definition at line 151 of file lte-ffr-simple.h.

Referenced by DoInitialize(), SetPdschConfigDedicated(), and UpdatePdschConfigDedicated().

◆ m_tpc

uint32_t ns3::LteFfrSimple::m_tpc

private

transmission power control to be used

Definition at line 157 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

◆ m_tpcNum

uint32_t ns3::LteFfrSimple::m_tpcNum

private

number of TPC configurations

Definition at line 158 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

◆ m_ues

std::map<uint16_t, LteRrcSap::PdschConfigDedicated> ns3::LteFfrSimple::m_ues

private

UEs.

Definition at line 144 of file lte-ffr-simple.h.

Referenced by DoReportUeMeas(), and UpdatePdschConfigDedicated().

◆ m_ulOffset

uint8_t ns3::LteFfrSimple::m_ulOffset

private

UL offset.

Definition at line 138 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg(), and GetTypeId().

◆ m_ulRbgMap

std::vector<bool> ns3::LteFfrSimple::m_ulRbgMap

private

UL RBG map.

Definition at line 142 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg().

◆ m_ulSubBand

uint8_t ns3::LteFfrSimple::m_ulSubBand

private

UL subband.

Definition at line 139 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg(), and GetTypeId().

The documentation for this class was generated from the following files:

src/lte/test/lte-ffr-simple.h
src/lte/test/lte-ffr-simple.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ PdschTracedCallback

Constructor & Destructor Documentation

◆ LteFfrSimple()

◆ ~LteFfrSimple()

Member Function Documentation

◆ ChangePdschConfigDedicated()

◆ DoDispose()

◆ DoGetAvailableDlRbg()

◆ DoGetAvailableUlRbg()

◆ DoGetMinContinuousUlBandwidth()

◆ DoGetTpc()

◆ DoInitialize()

◆ DoIsDlRbgAvailableForUe()

◆ DoIsUlRbgAvailableForUe()

◆ DoRecvLoadInformation()

◆ DoReportDlCqiInfo()

◆ DoReportUeMeas()

◆ DoReportUlCqiInfo() [1/2]

◆ DoReportUlCqiInfo() [2/2]

◆ GetLteFfrRrcSapProvider()

◆ GetLteFfrSapProvider()

◆ GetTypeId()

◆ Reconfigure()

◆ SetLteFfrRrcSapUser()

◆ SetLteFfrSapUser()

◆ SetPdschConfigDedicated()

◆ SetTpc()

◆ UpdatePdschConfigDedicated()

Friends And Related Function Documentation

◆ MemberLteFfrRrcSapProvider< LteFfrSimple >

◆ MemberLteFfrSapProvider< LteFfrSimple >

Member Data Documentation

◆ m_accumulatedMode

◆ m_changePdschConfigDedicated

◆ m_changePdschConfigDedicatedTrace

◆ m_dlOffset

◆ m_dlRbgMap

◆ m_dlSubBand

◆ m_ffrRrcSapProvider

◆ m_ffrRrcSapUser

◆ m_ffrSapProvider

◆ m_ffrSapUser

◆ m_measId

◆ m_pdschConfigDedicated

◆ m_tpc

◆ m_tpcNum

◆ m_ues

◆ m_ulOffset

◆ m_ulRbgMap

◆ m_ulSubBand
